Page 4817 of 6020

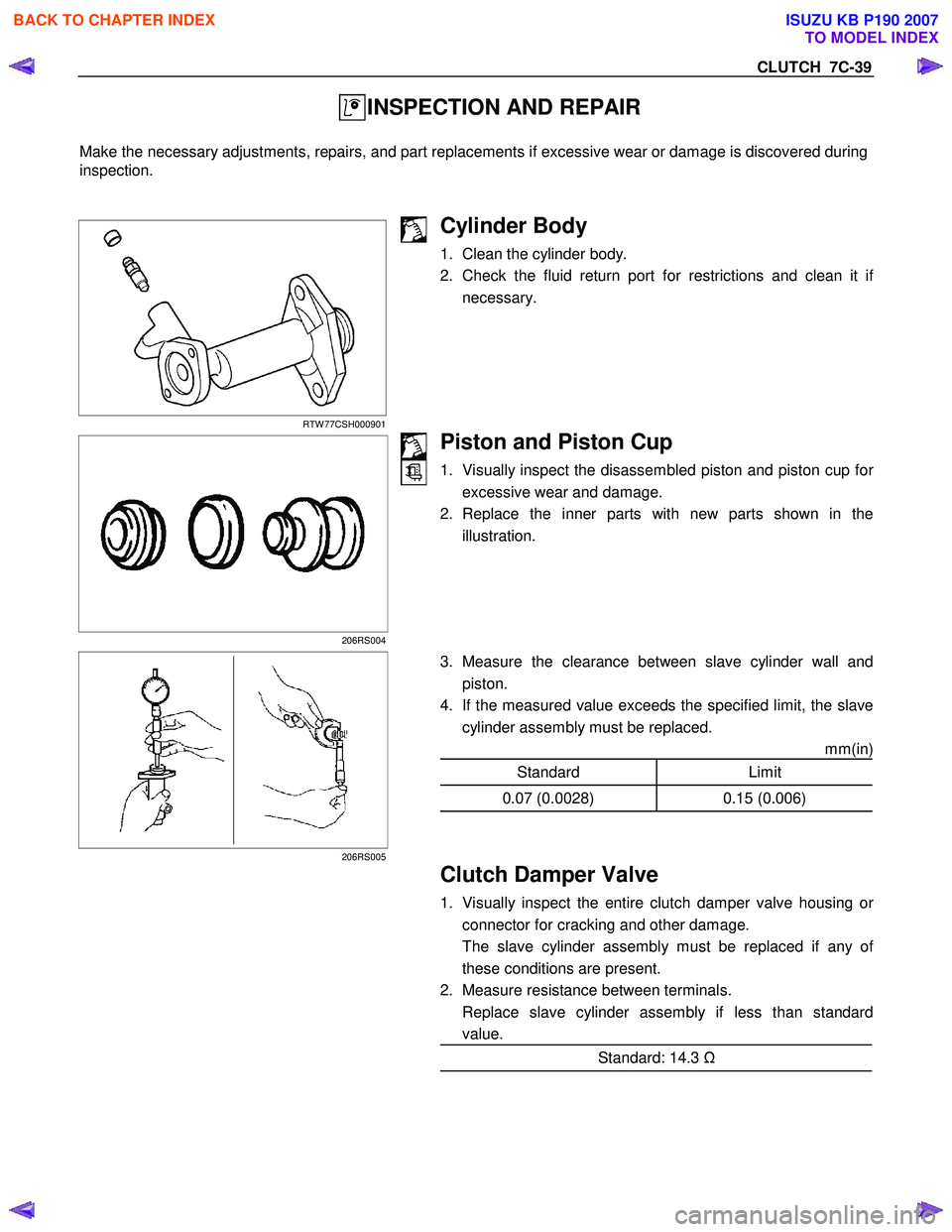

ISUZU KB P190 2007 Workshop Repair Manual CLUTCH 7C-39 INSPECTION AND REPAIR Make the necessary adjustments, repairs, and part replacements if excessive wear or damage is discovered during inspection. RTW 77CSH000901 Cylinder

Page 4818 of 6020

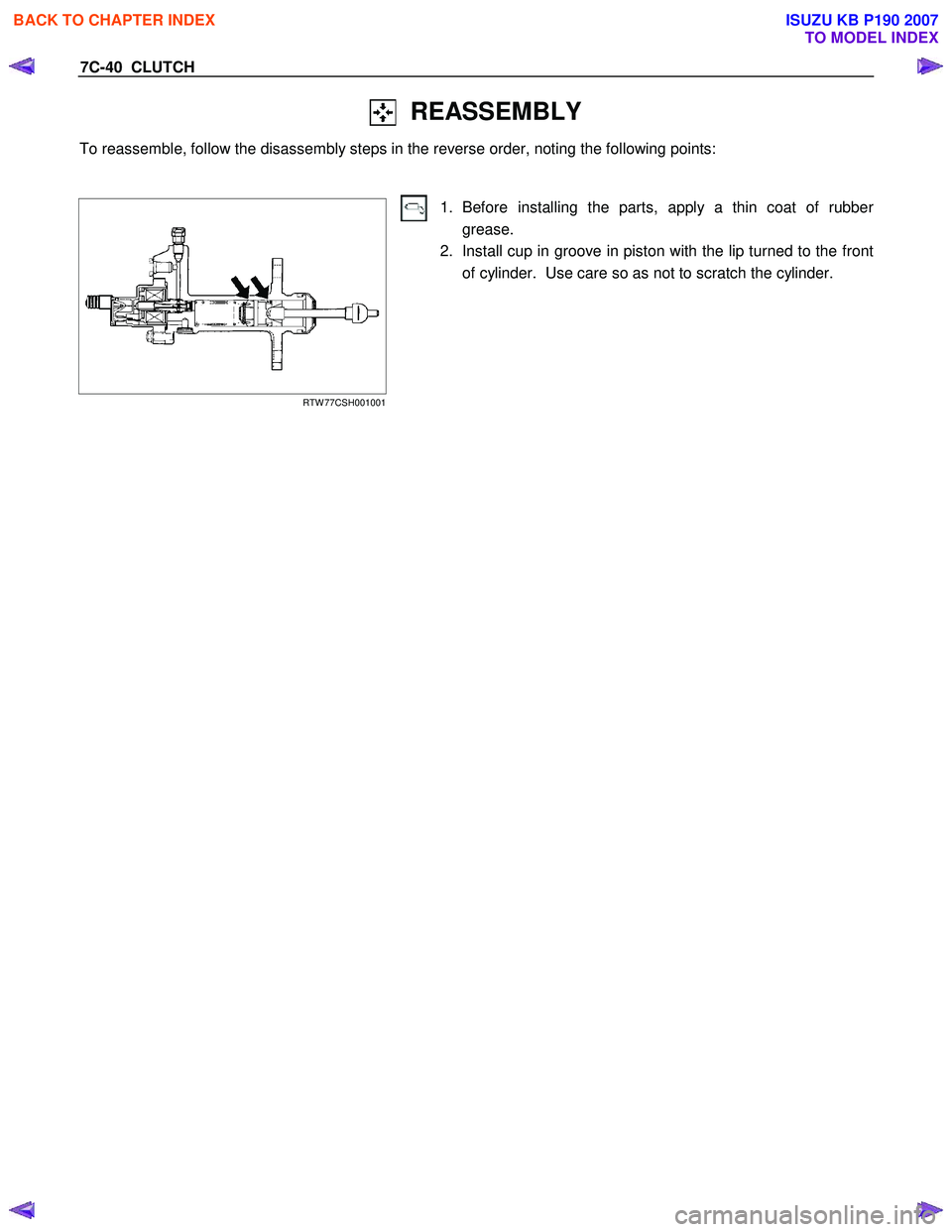

ISUZU KB P190 2007 Workshop Repair Manual 7C-40 CLUTCH REASSEMBLY To reassemble, follow the disassembly steps in the reverse order, noting the following points: RTW 77CSH001001 1. Before installing the parts, apply a thin coat o

Page 4819 of 6020

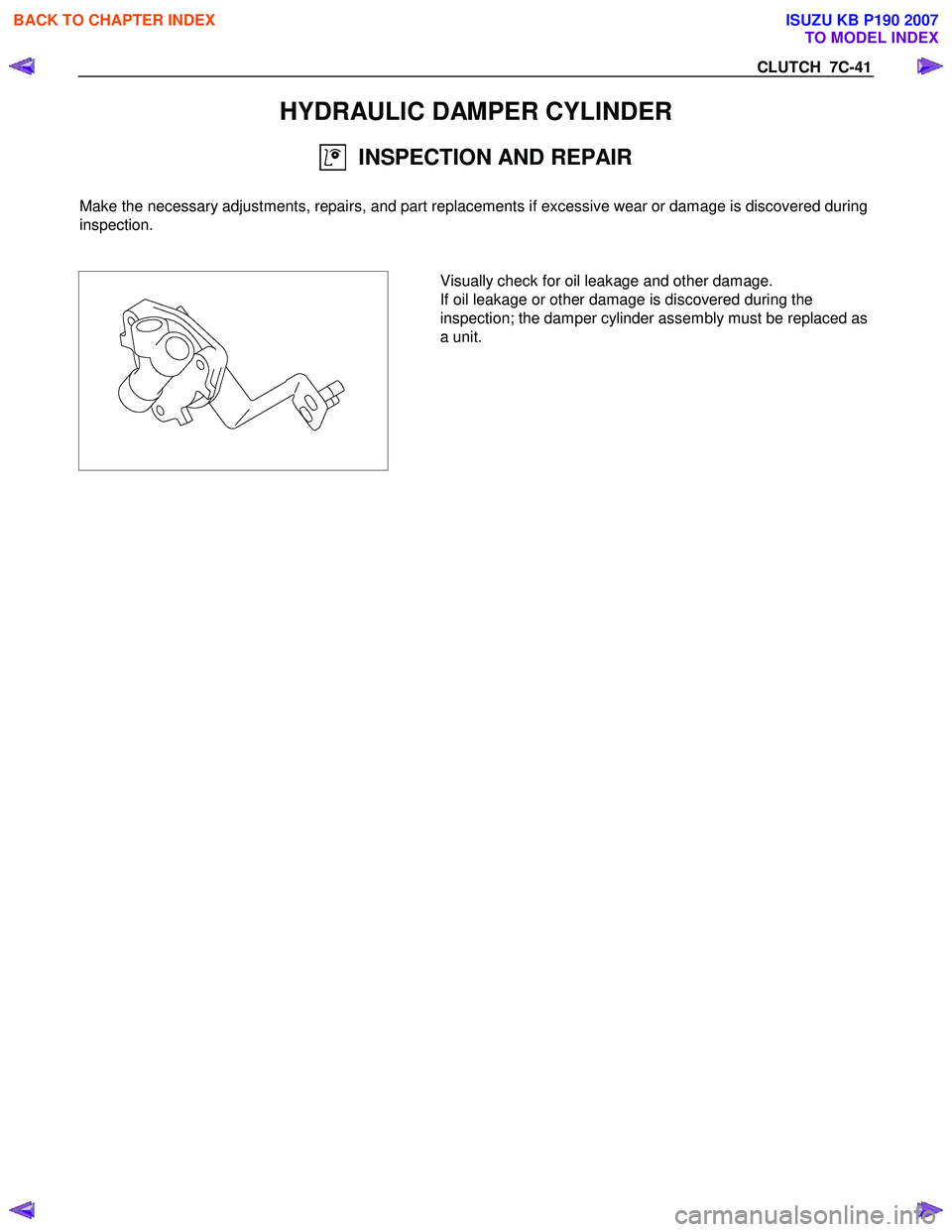

ISUZU KB P190 2007 Workshop Repair Manual CLUTCH 7C-41 HYDRAULIC DAMPER CYLINDER INSPECTION AND REPAIR Make the necessary adjustments, repairs, and part replacements if excessive wear or damage is discovered during inspection.

Page 4820 of 6020

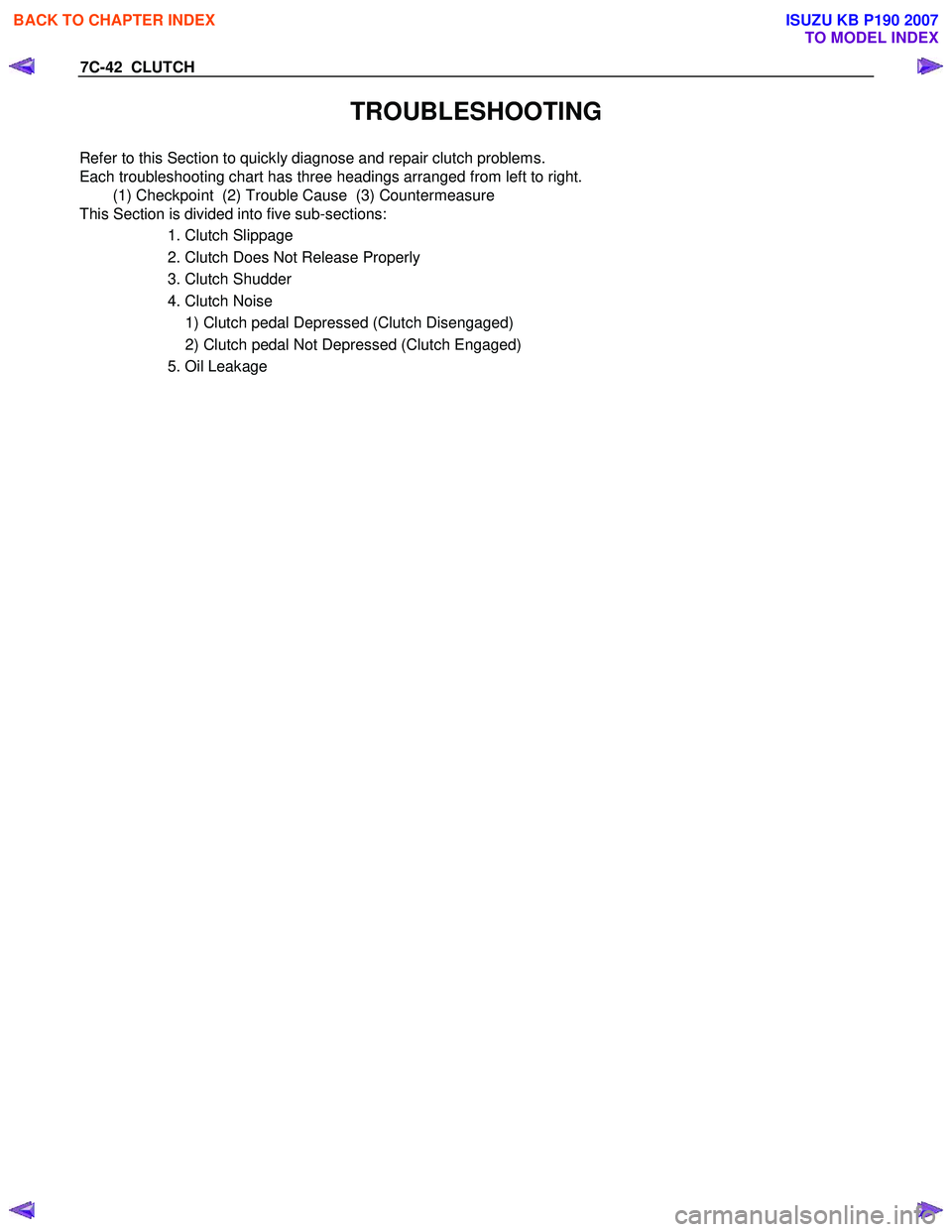

ISUZU KB P190 2007 Workshop Repair Manual 7C-42 CLUTCH TROUBLESHOOTING Refer to this Section to quickly diagnose and repair clutch problems. Each troubleshooting chart has three headings arranged from left to right. (1) Checkpoint (2)

Page 4821 of 6020

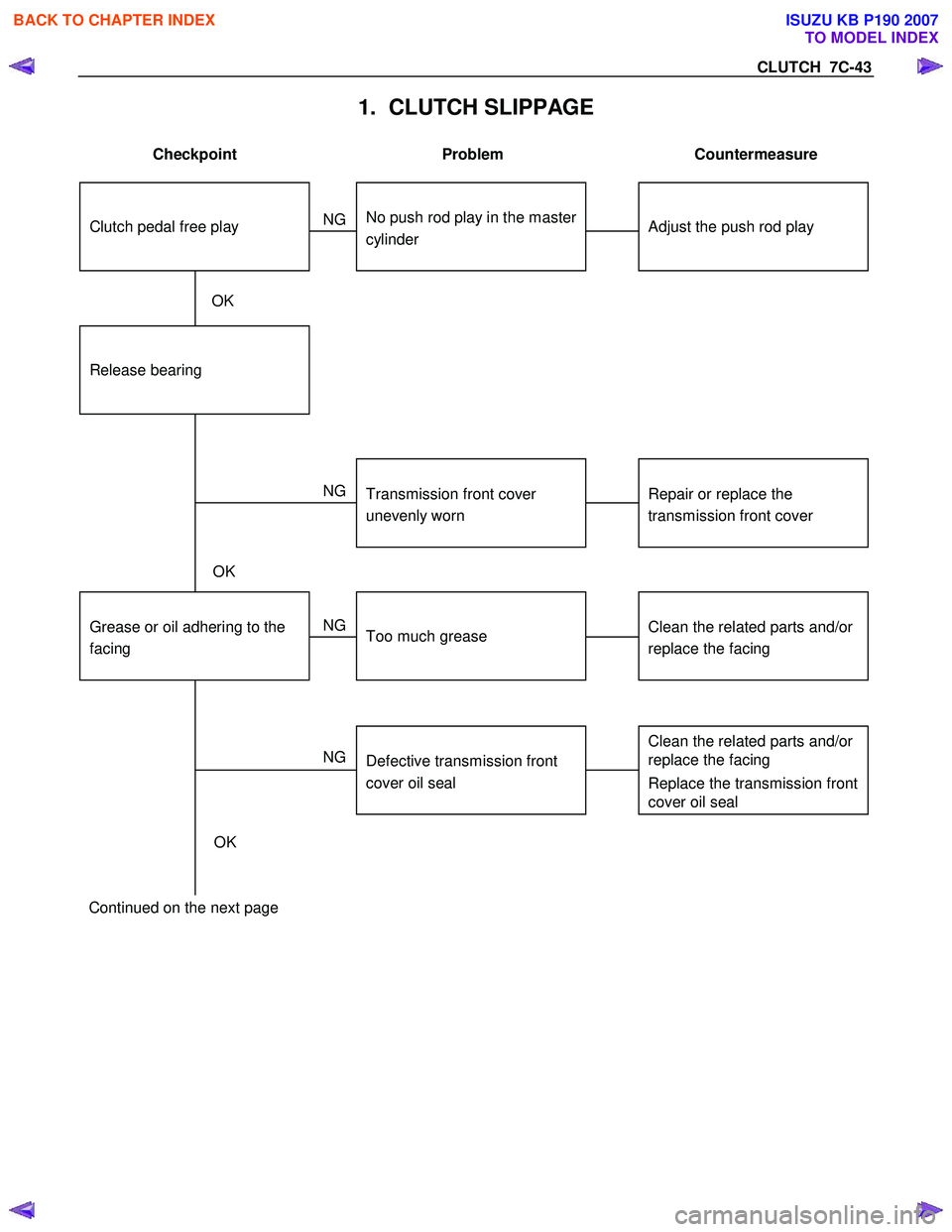

ISUZU KB P190 2007 Workshop Repair Manual CLUTCH 7C-43 1. CLUTCH SLIPPAGE Checkpoint Problem Countermeasure Adjust the push rod play No push rod play in the master cylinder NG Clutch pedal free play Clean the rel

Page 4822 of 6020

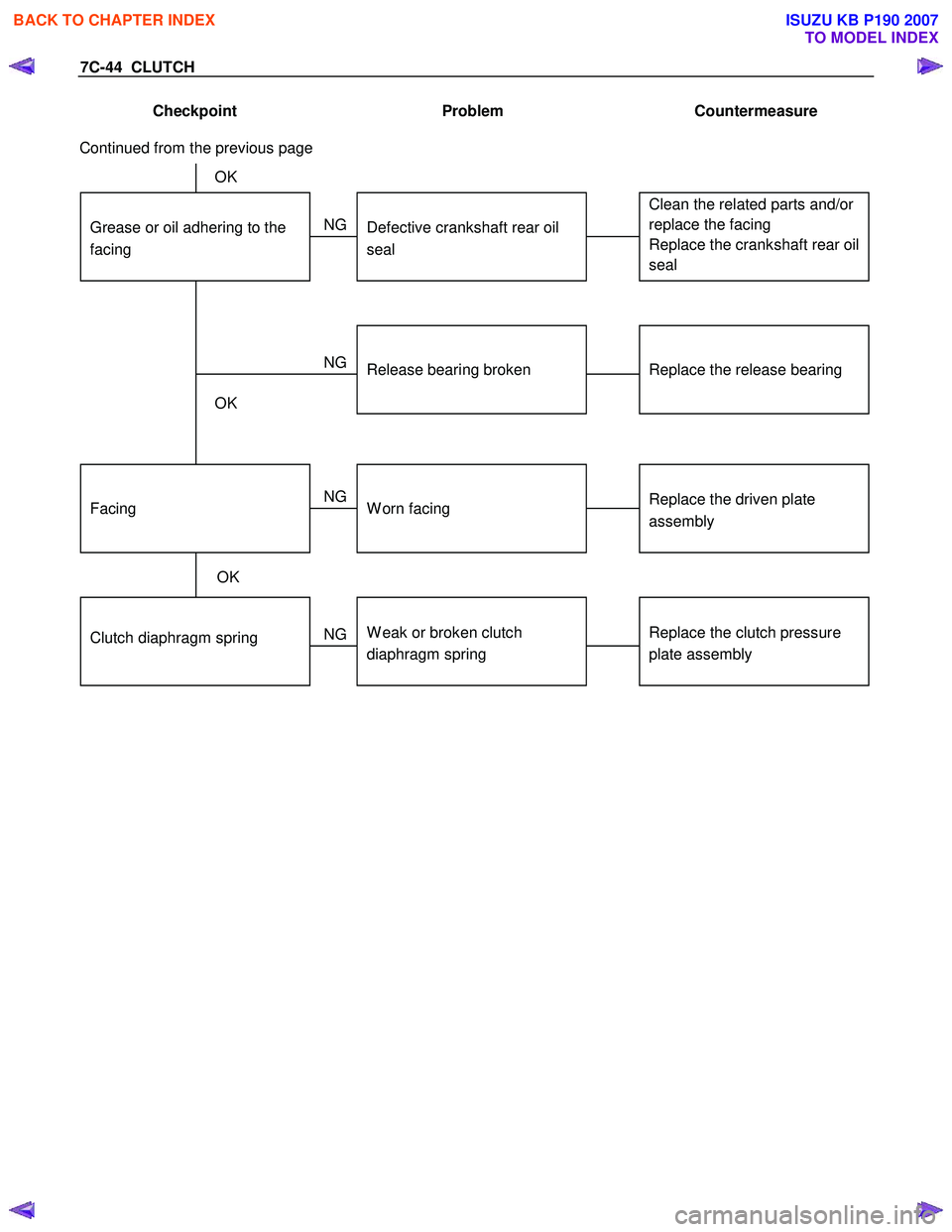

ISUZU KB P190 2007 Workshop Repair Manual 7C-44 CLUTCH Checkpoint Problem Countermeasure Replace the release bearingRelease bearing broken Clean the related parts and/or replace the facing Replace the crankshaft rear oil seal Defect

Page 4823 of 6020

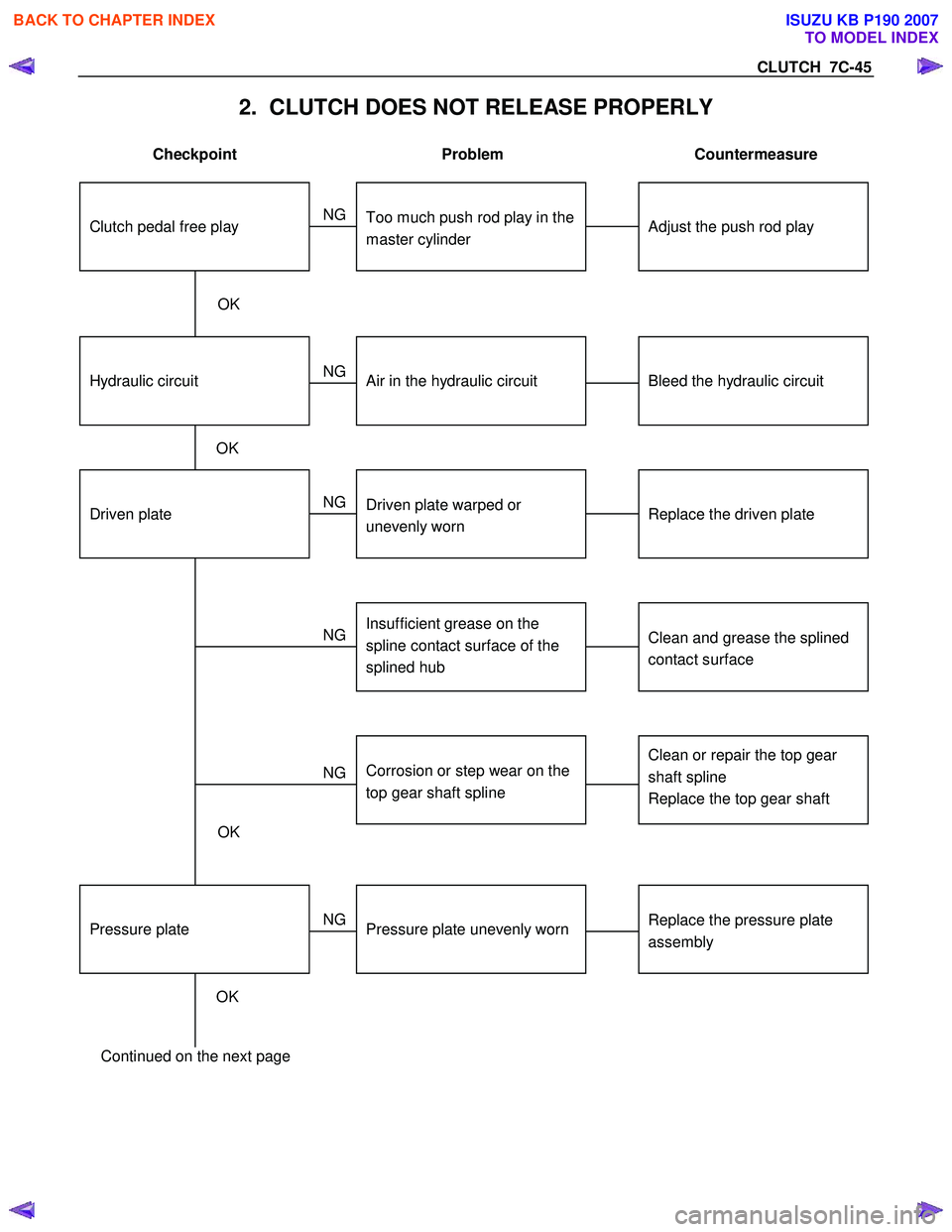

ISUZU KB P190 2007 Workshop Repair Manual CLUTCH 7C-45 2. CLUTCH DOES NOT RELEASE PROPERLY Checkpoint Problem Countermeasure Adjust the push rod play Too much push rod play in the master cylinder NG Clutch pedal fre

Page 4824 of 6020

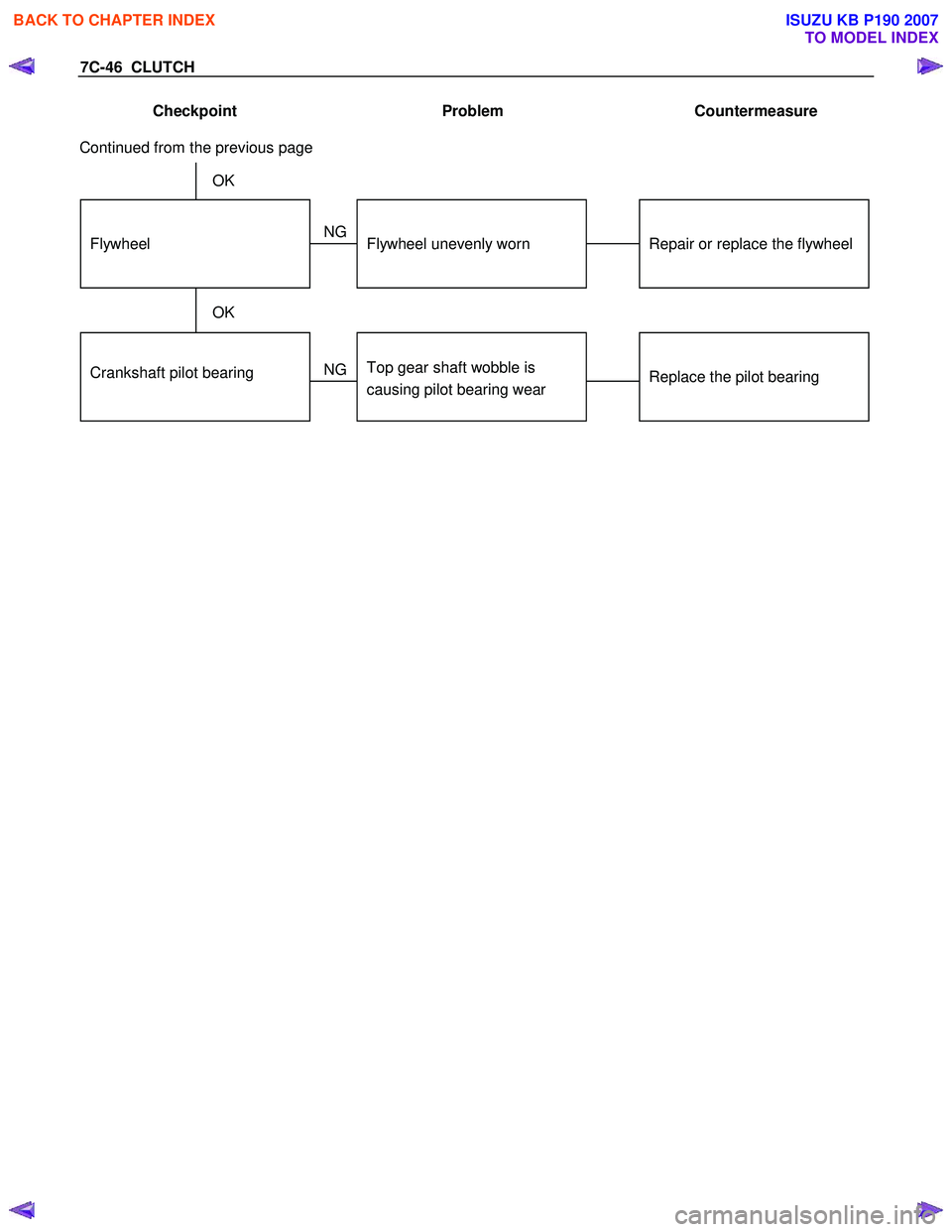

ISUZU KB P190 2007 Workshop Repair Manual 7C-46 CLUTCH Checkpoint Problem Countermeasure Crankshaft pilot bearingReplace the pilot bearingTop gear shaft wobble is causing pilot bearing wear Repair or replace the flywheelFlywheel une
