4L indicator (in meter panel)
This lamp indicates following items:
Valve check
Driving status (High-Low)
Operating status (2Hz: Actuator in operation, mechanism
standby)
Restrictions on operation (4Hz)
RTW 77DSH000601
Neutral indicator (in operation switch panel)
This LED indicates following items:
LED check
Driving status (Neutral)
Operating status (2Hz: Actuator in operation, mechanism
standby)
Restrictions on operation (4Hz)
7B4-PDF5
Check 4WD warning light (in meter panel)
This light indicates following items:
Valve check
Faulty actuator limit SW , and circuit related faults with the limit
switch
RTW 77DSH000501
4WD switch
Switch to transmit a switching command to the 2H, 4H,
Neutral, or 4L position.
It comprises 3 PUSH momentary switches. By pushing the 2H
and 4L switches for 10 seconds,
operation is changed to the neutral position.
To shift from the neutral to another position, push another
switch for 10 seconds.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4882 of 6020
7D1-8 TRANSFER CONTROL SYSTEM

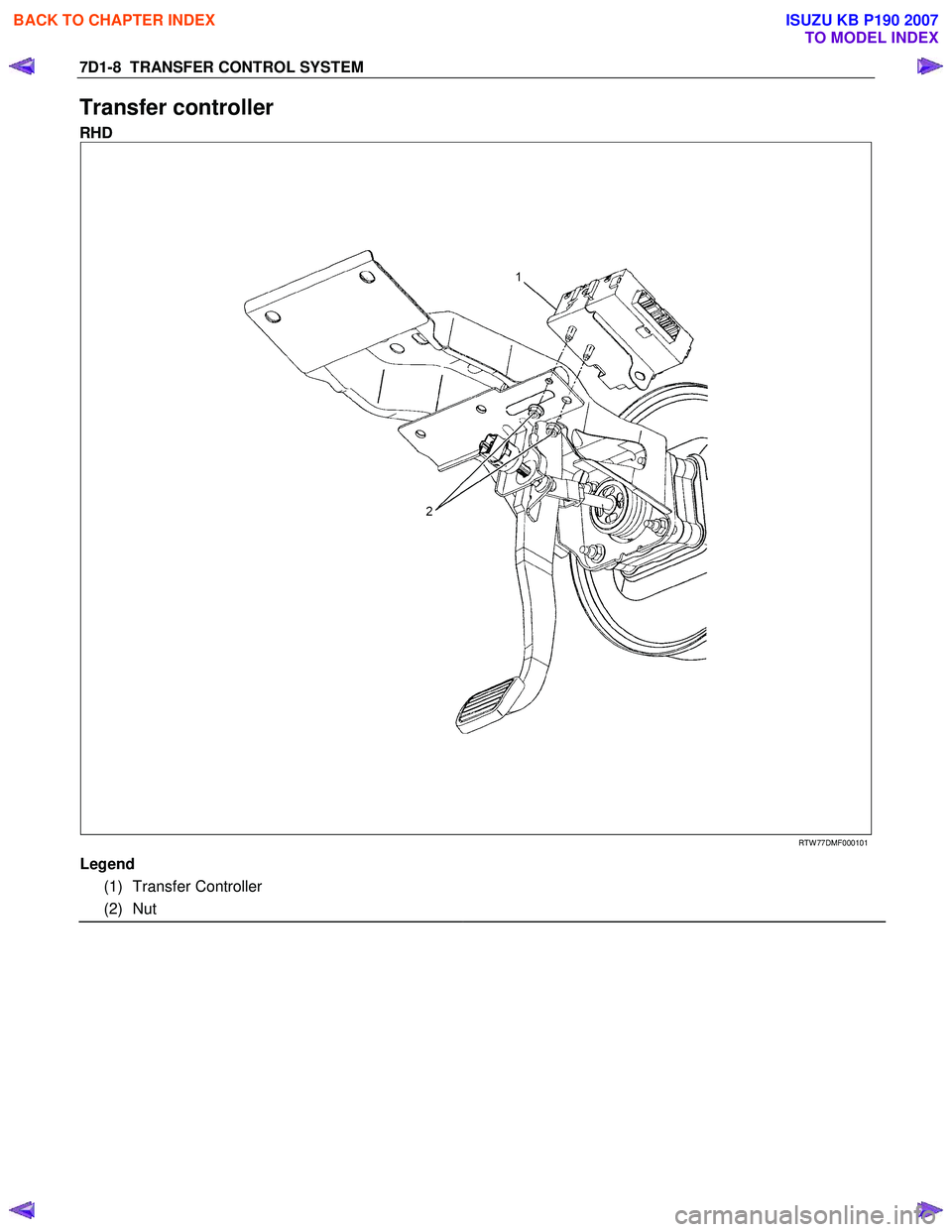

Transfer controller
RHD
RTW 77DMF000101
Legend
(1) Transfer Controller
(2) Nut
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4883 of 6020
TRANSFER CONTROL SYSTEM 7D1-9

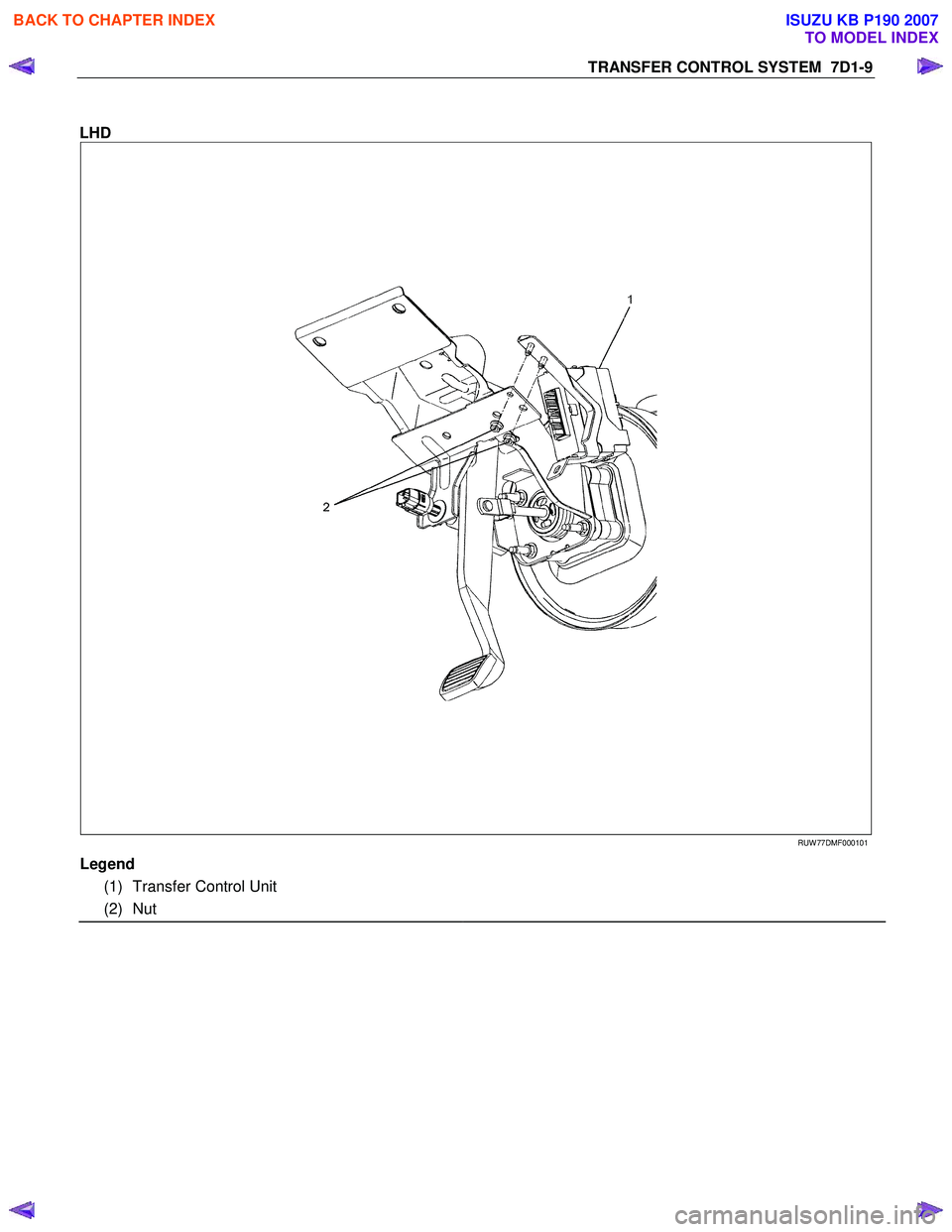

LHD
RUW 77DMF000101
Legend
(1) Transfer Control Unit
(2) Nut
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4884 of 6020

7D1-10 TRANSFER CONTROL SYSTEM

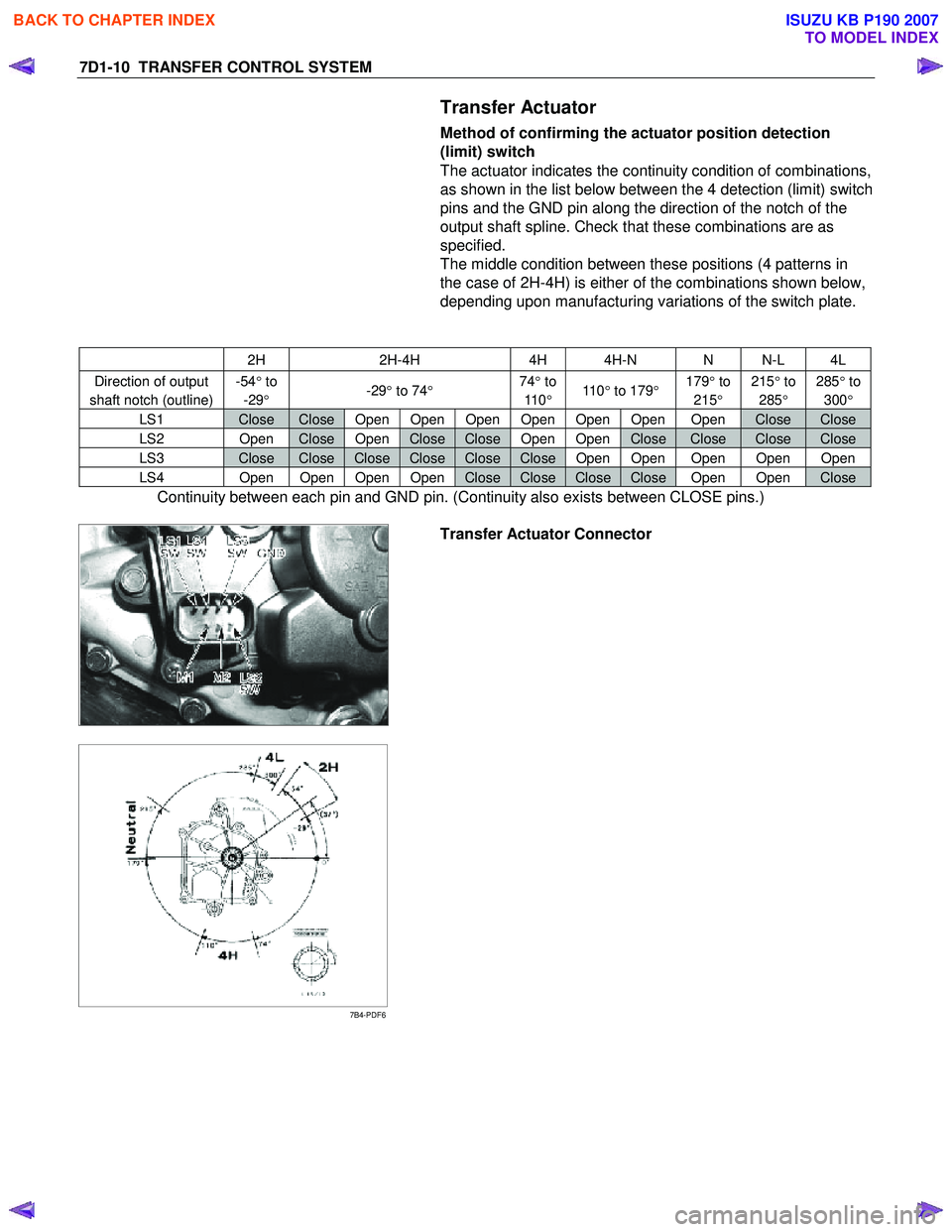

Transfer Actuator
Method of confirming the actuator position detection
(limit) switch
The actuator indicates the continuity condition of combinations,
as shown in the list below between the 4 detection (limit) switch
pins and the GND pin along the direction of the notch of the
output shaft spline. Check that these combinations are as
specified.
The middle condition between these positions (4 patterns in
the case of 2H-4H) is either of the combinations shown below,
depending upon manufacturing variations of the switch plate.
2H 2H-4H 4H 4H-N N N-L 4L
Direction of output
shaft notch (outline) -54
° to
-29 ° -29
° to 74 ° 74
° to
11 0 ° 11 0
° to 179 ° 179
° to
215 ° 215
° to
285 ° 285
° to
300 °
LS1 Close Close Open Open Open Open Open Open Open Close Close
LS2 Open Close OpenCloseCloseOpen OpenCloseClose Close Close
LS3 Close Close CloseCloseCloseCloseOpen Open Open Open Open
LS4 Open Open Open OpenCloseCloseCloseCloseOpen Open Close
Continuity between each pin and GND pin. (Continuity also exists between CLOSE pins.)
Transfer Actuator Connector
7B4-PDF6
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4885 of 6020
TRANSFER CONTROL SYSTEM 7D1-11
Method of checking the position detection switch harness
Disconnect the vehicle harness connector on the transfer
controller side, and the vehicle harness connector on the
transfer actuator side as shown in the wiring diagram. Check
the continuity between the following connector pins, ensure
there is no continuity between those pins and GND or power
source.
Check that there is continuity between the GND pin and the
vehicle GND on the transfer actuator, and there is no continuity
between the GND pin and another power source.
C-112 C-111
Vehicle harness connector pin No. (connector of mating parts of the harness is shown in this figure)
Name of pin T/F controller side T/F actuator side Remarks
LS1 C-112, 17 5
LS2 C-112, 6 4
LS3 C-112, 15 7
LS4 C-112, 14 6
GND C-111, 1, 9 8
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4886 of 6020

7D1-12 TRANSFER CONTROL SYSTEM
Functions of Switch and indicator Lamp
Transfer-related indicator lamp and switch function
Item 4WD
lamp 4L lamp Neutral
lamp Check
4WD
warning light 4WD
switch Actu ato r
detection (limit)
switches
LS1, LS2, LS3. and LS4
1 = on
2 = off Transfer
4WD
switch Transfer
neutral switch SOF
actuator switch Or
Axl e
dummy Remarks
2H Off Off Off Off No
operation 1,0,1,0 Open Open Open -----
4H start
of
operation Off Off Off Off 4H position
for 0.1
second 1,0,1,0 Open Open Open Switch
operation sensor
Start of
operation Blinking
(2HZ) Off Off Off No
operation 1,1,1,0
0,0,1,0
0,1,1,0
0,1,1,1 Open Open Open
2H to 4H
while
driving
During
operation
(Synchro) Blinking
(2HZ) Off Off Off No
operation 1,1,1,0
0,0,1,0
0,1,1,0
0,1,1,1 Open Open Open 2H to 4H
using
synchro and
retrial
During
operation (Axle
drive) Blinking
(2HZ) Off Off Off No
operation 0,0,1,1 Closed Open Open Axle drive
Axle
waiting Blinking
(2HZ) Off Off Off No
operation 0,0,1,1 Closed Open Open Axle drive
4H On Off Off Off No
operation 0,0,1,1 Closed Open Closed -----
4L start
of
operation On Off Off Off 4L position
for 0.1
second 0,0,1,1 Closed Open Closed Switch
operation sensor
Start of
operation On Blinking
(2HZ) Off Off No
operation 0,0,0,1
0,1,0,1 Closed Open Closed 4H to 4L
while
driving
During
operation (N) Off
Blinking
(2HZ) Off Off No
operation 0,0,0,1
0,1,0,1 Closed Closed Closed 4H to 4L
through neutral
During
operation (N) Off
Blinking
(2HZ) Off Off No
operation 0,1,0,0 Closed Closed Closed 4H to 4L
through neutral
During
operation (N) Off
Blinking
(2HZ) Off Off No
operation 1,1,0,0 Closed Closed Closed 4H to 4L
through neutral
4L
waiting On Blinking
(2HZ) Off Off No
operation 1,1,0,1 Closed Closed Closed 4H to 4L
while
waiting
4L On On Off Off No
operation 1,1,0,1 Closed Open Closed -----
4H start of
operation On Off Off Off 4H position
for 0.1
second 1,1,0,1 Closed Open Closed Switch
operation sensor
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4887 of 6020

TRANSFER CONTROL SYSTEM 7D1-13
Item 4WD
lamp 4L lamp Neutral
lamp Check
4WD
warning light 4WD
switch Actu ato r
detection (limit)
switches
LS1, LS2, LS3. and LS4
1 = on
2 = off Transfer
4WD
switch Transfer
neutral switch SOF
actuator switch Or
Axl e
dummy Remarks
During
operation On Blinking
(2HZ) Off Off No
operation 1,1,0,1 Closed Open Closed 4L to 4H
while
driving
During
operation (N) Off
Blinking
(2HZ) Off Off No
operation 1,1,0,0 Closed Closed Closed 4L to 4H
through neutral
During
operation Off Blinking
(2HZ) Off Off No
operation 0,1,0,1
0,0,0,1 Closed Closed Closed 4L to 4H
while
driving
4H
waiting Off Blinking
(2HZ) Off Off No
operation 0,0,1,1 Closed Closed Closed
4L to 4H
while
waiting
4H On Off Off Off No
operation 0,0,1,1 Closed Open Closed -----
2H start of
operation On Off Off Off 2H position
for 0.1
second 0,0,1,1 Closed Open Closed Switch
operation sensor
Start of
operation Blinking
(2HZ) Off Off Off No
operation 0,1,1,1
0,1,1,0
0,0,1,0
1,1,1,0 Closed Open Closed
2H to 4H
while
driving
During
operation (Axle) Blinking
(2HZ) Off Off Off No
operation 0,1,1,1
0,1,1,0
0,0,1,0
1,1,1,0 Open Open Closed Axle drive
Axle
waiting
Blinking
(2HZ) Off Off Off No
operation 1,0,1,0 Open Open Closed Axle
waiting
2H Off Off Off Off No
operation 1,0,1,0 Open Open Open -----
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4888 of 6020

7D1-14 TRANSFER CONTROL SYSTEM
2H to 4H retrial
Item 4WD
lamp 4L lamp Neutral
lamp Check
4WD
warning light 4WD
switch Actu ato r
detection (limit)
switches
LS1, LS2, LS3. and LS4
1 = on
2 = off Transfer
4WD
switch Transfer
neutral switch SOF
actuator switch Or
Axl e
dummy Remarks
2H Off Off Off Off No
operation1,0,1,0 Open Open Open -----
4H start
of
operation Off Off Off Off 4H
position for 0.1
second 1,0,1,0 Open Open Open -----
Start of
operation Blinking
(2HZ) Off Off Off No
operation 1,1,1,0
0,0,1,0
0,1,1,0
0,1,1,1 Open Open Open
2H to 4H
while
driving
During
operation
(Synchro)
(Go to 4H if synchro
complete) Blinking
(2HZ) Off Off Off No
operation 1,1,1,0
0,0,1,0
0,1,1,0
0,1,1,1 Open Open Open 2H to 4H
using
synchro
and retrial X 2
Abandoned
operation (2H) Blinking
(4HZ) Off Off Off No
operation 1,0,1,0 Open Open Open Return to
2H
2H
indication
after
10second
s
Off Off Off Off No
operation1,0,1,0 Open Open Open -----
