ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-607 No. Connector face No. Connector face B29 ~ B30 NOT USED B43 Black Anti theft control unit (A) B31 Yellow SRS control unit B44

Page 5546 of 6020

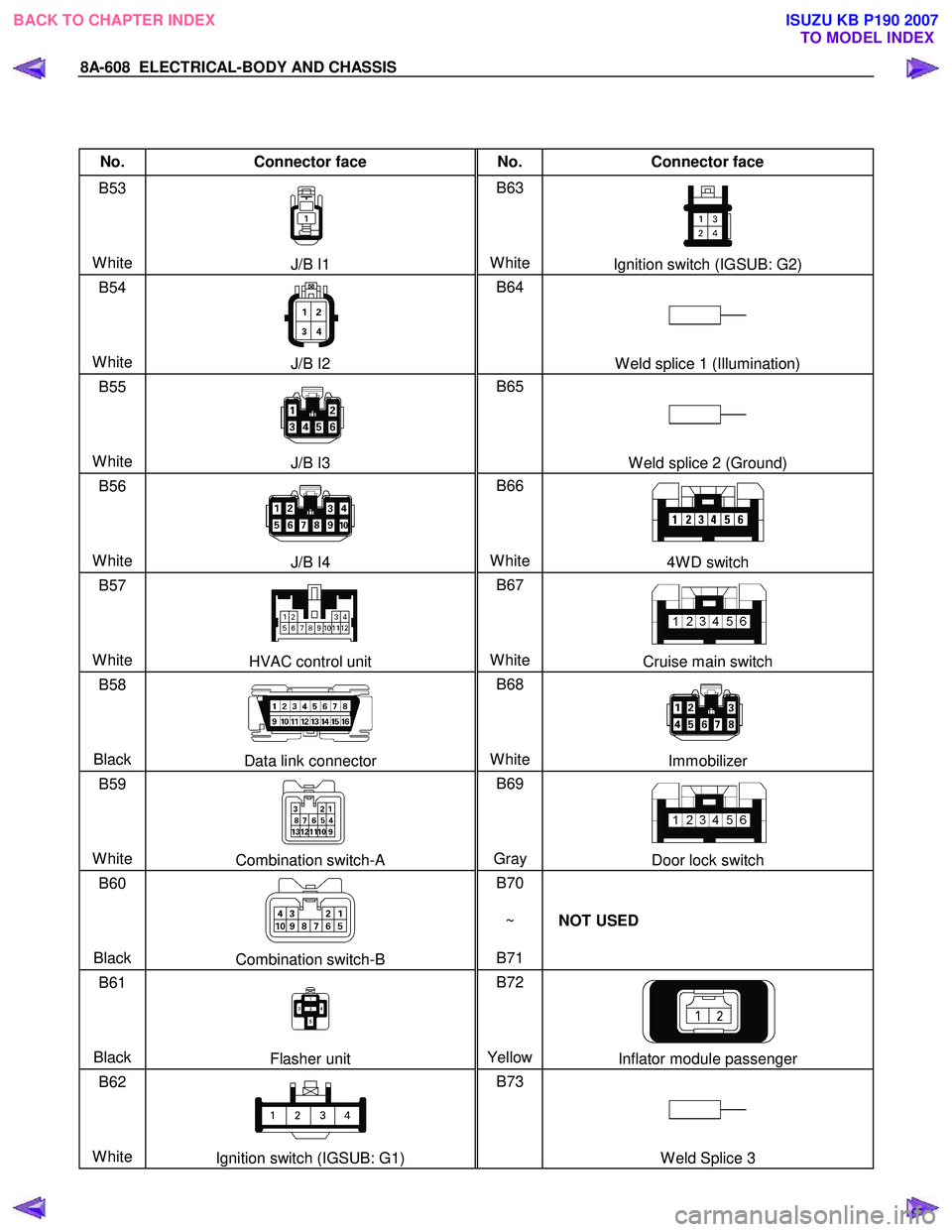

ISUZU KB P190 2007 Workshop Repair Manual 8A-608 ELECTRICAL-BODY AND CHASSIS No. Connector face No. Connector face B53 White J/B I1 B63 WhiteIgnition switch (IGSUB: G2) B54 White J/B I2 B64 W eld spl

Page 5547 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-609 No. Connector face No. Connector face B74 NOT USED B85 W eld splice 7 (Ground) B75 Black Rear fog light C/U B86 W eld s

Page 5548 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-610 ELECTRICAL-BODY AND CHASSIS No. Connector face No. Connector face B102 White Key inter lock solenoid B103 White Joint connector 3 B104 White Joint con

Page 5549 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-611 No. Connector face No. Connector face C1 Gray Side turn light-RH C20 BlackHorn; high note C2 Silver Engine room-RH ground C21

Page 5550 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-612 ELECTRICAL-BODY AND CHASSIS No. Connector face No. Connector face C29 Headlight leveling acutuator STD-LH C40 BlackAccelerator pedal position sensor C30 White

Page 5551 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-613 No. Connector face No. Connector face C56 (4JH1-TC) Black ECM-A C77 WhiteClutch switch C56 (HFV6) Black ECM-A C78 ~ C93 NOT U

Page 5552 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-614 ELECTRICAL-BODY AND CHASSIS No. Connector face No. Connector face C106 NOT USED C117 Black Anti theft horn C107 White J/B E2 C118 A/C Resister & Neutr
