Page 433 of 6020

PROPELLER SHAFT 4A-17
401RS011
Universal Joint Reassembly
1. Set the propeller shafts.
• Be sure to set the propeller shaft yoke by aligning the
setting marks made during disassembly.
2. Spider
• Be sure to install the spider by aligning the setting marks
made during disassembly.
3. Needle Roller Bearing
1) Apply a molybdenum-disulfide grease or a multi-purpose. type grease NLGI No.2 to inside of the bearing cap. Grease Amount g(oz)
Approx. 1.2 (0.042)
401RS012
2) Using either a mallet (or copper hammer) or a press, install
the needle roller bearing into the yoke so that snap ring can
be installed in its groove.
CAUTION: •
••
•
The needle roller bearing cannot be installed smoothly
if it is set at an incorrect angle with the flange.
•
••
•
Excessive hammering will damage the needle rolle
r
bearing.
401R300003
3) Align setting marks and join the yokes.
NOTE:
Assemble the spider and spline yoke so that their grease
fittings are arranged on the same side.(4 ×4)
4. Snap ring
NOTE:
Discard used snap rings and install new ones.
W hen the bearing cap is in position, select and attach a snap
ring of suitable thickness so that the end play of the spider pin
is held within 0.1mm (0.004in).
mm(in)
Snap ring thickness Identification color
1.50 (0.059) Light Blue
1.53 (0.060) W hite
1.56 (0.061) Pink
1.59 (0.063) Yellow
1.62 (0.064) Green
1.65 (0.065) Brown
1.68 (0.066) Not colored
NOTE:
Be sure to use snap rings of the same thickness on both sides.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 434 of 6020
4A-18 PROPELLER SHAFT

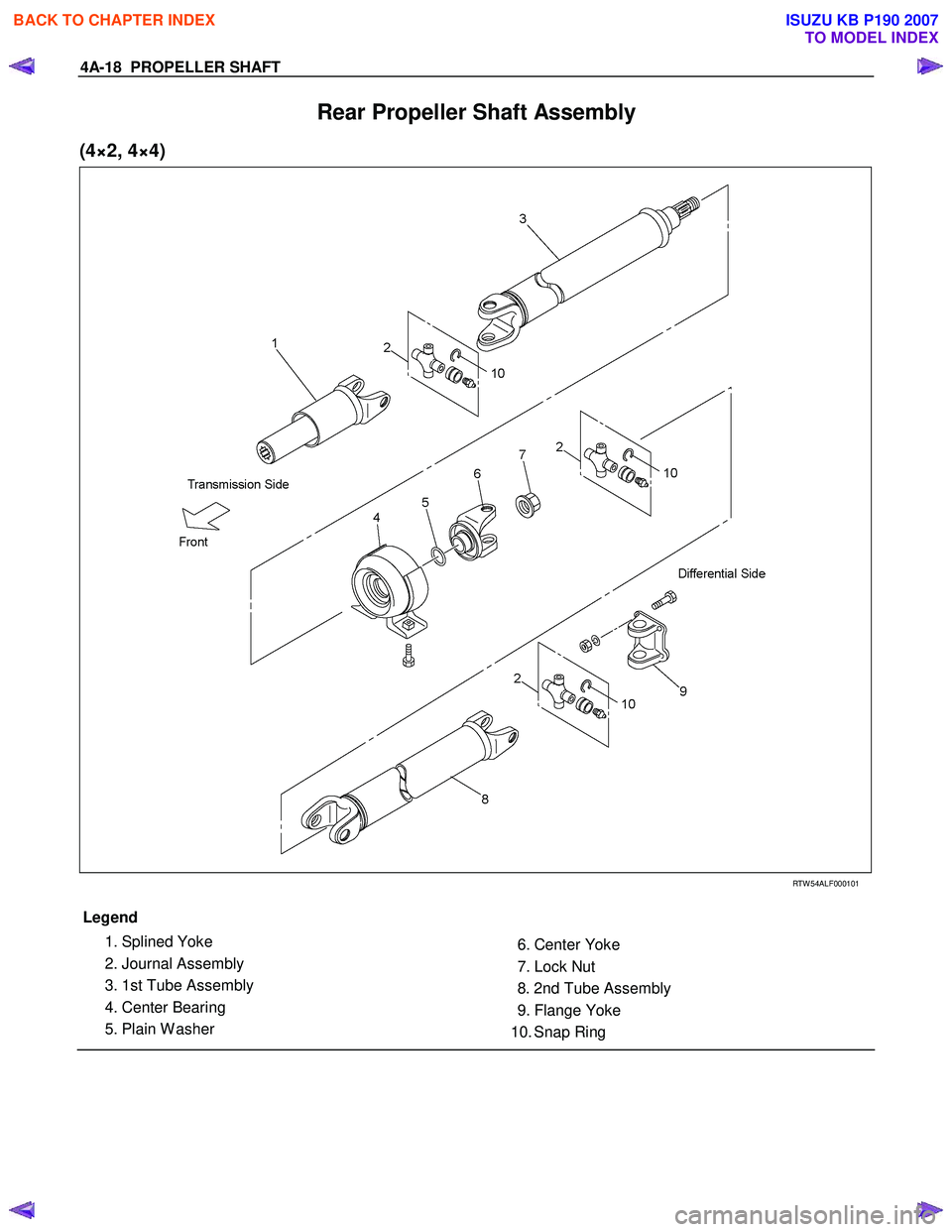

Rear Propeller Shaft Assembly
(4×2, 4×4)
RTW 54ALF000101
Legend
1. Splined Yoke
2. Journal Assembly
3. 1st Tube Assembly
4. Center Bearing
5. Plain W asher
6. Center Yoke
7. Lock Nut
8. 2nd Tube Assembly
9. Flange Yoke
10. Snap Ring
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 435 of 6020

PROPELLER SHAFT 4A-19
Disassembly
1. Disassembly the three portions of the journal assemblies.
2. Remove the splined yoke, the 1st tube assembly with cente
r
bearing, the 2nd tube assembly and the flange yoke.
3. Remove the lock nut.
4. Remove the center yoke, the plain washer the cente
r
bearing and the 1st tube assembly.
Reassembly
1. Install the center bearing on the 1st tube assembly.
Clean the bearing fitting face.
Repack the grease.
Amount of grease
required g(oz) Approx. 12 (0.42)
2. Install the plain washer and the center yoke.
3. Install the lock nut and tighten it to the specified torque.
Lock nut Torque : 118 N ⋅
⋅⋅
⋅
m (12.0 kgf ⋅
⋅⋅
⋅
m/87lb ⋅
⋅⋅
⋅
ft)
(1) Discard the flange nut and install a new one.
(2) Stake the outer face of the flange nut against the slot in the shaft.
4. Install the splined yoke, the 1st tube assembly with cente
r
bearing, the 2nd tube assembly and the flange yoke by
assembling the universal joint.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 436 of 6020
4A-20 PROPELLER SHAFT
Front Propeller Shaft
Removal and Installation
RUW 54AMF000201
Legend
1. Bolt, Nut and W asher (Front Axle Side)
2. Front Propeller Shaft
3. Nut and W asher (Transfer Side)
401RS020
Removal
1. Jack up the vehicle and support it on the chassis stands.
2. Gear shift lever should be placed in neutral position and parking brake released.
3. Remove the exhaust and transfer protectors.
NOTE:
Apply alignment marks on the flange at the front propeller shaft
both front and rear side.
4. Remove bolt, nut and washer (Front axle side).
5. Remove bolt, nut and washer (Transfer side).
6. Remove front propeller shaft.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 437 of 6020
PROPELLER SHAFT 4A-21
Installation
NOTE:
Never install the shaft assembly backwards. Completel
y
remove the black paint from the connecting surface of flange
coupling on each end of propeller shaft. Clean so that no
foreign matter will be caught in between.
1. Align the mark, which was applied at removal. Install front
propeller shaft and tighten the bolts and nuts to the
specified torque.
Torque: 59 N ⋅
⋅⋅
⋅
m (6.0 kgf ⋅
⋅⋅
⋅
m/43 lb ⋅
⋅⋅
⋅
ft)
2. Install the exhaust and transfer protectors.
401RS019
3. After installing the propeller shaft, be sure to apply black
paint (1) to exposed area (other than connecting surface) o
f
the entire surface of flange coupling.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 438 of 6020
4A-22 PROPELLER SHAFT
Disassembly
401RW 057
Legend
1. Sleeve Yoke
2. Seal
3. Tube Assembly
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 439 of 6020
PROPELLER SHAFT 4A-23
401RW 056
1. Apply alignment marks (1) on the sleeve yoke and tube
assembly then remove sleeve yoke.
2. Remove seal.
3. Remove tube assembly.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 440 of 6020
4A-24 PROPELLER SHAFT
Universal Joint Disassembly and
Reassembly
401RW 055
Legend
1. Flange Yoke
2. Spider
3. Snap Ring
4. Needle Roller Bearing
5. Grease Fitting
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
