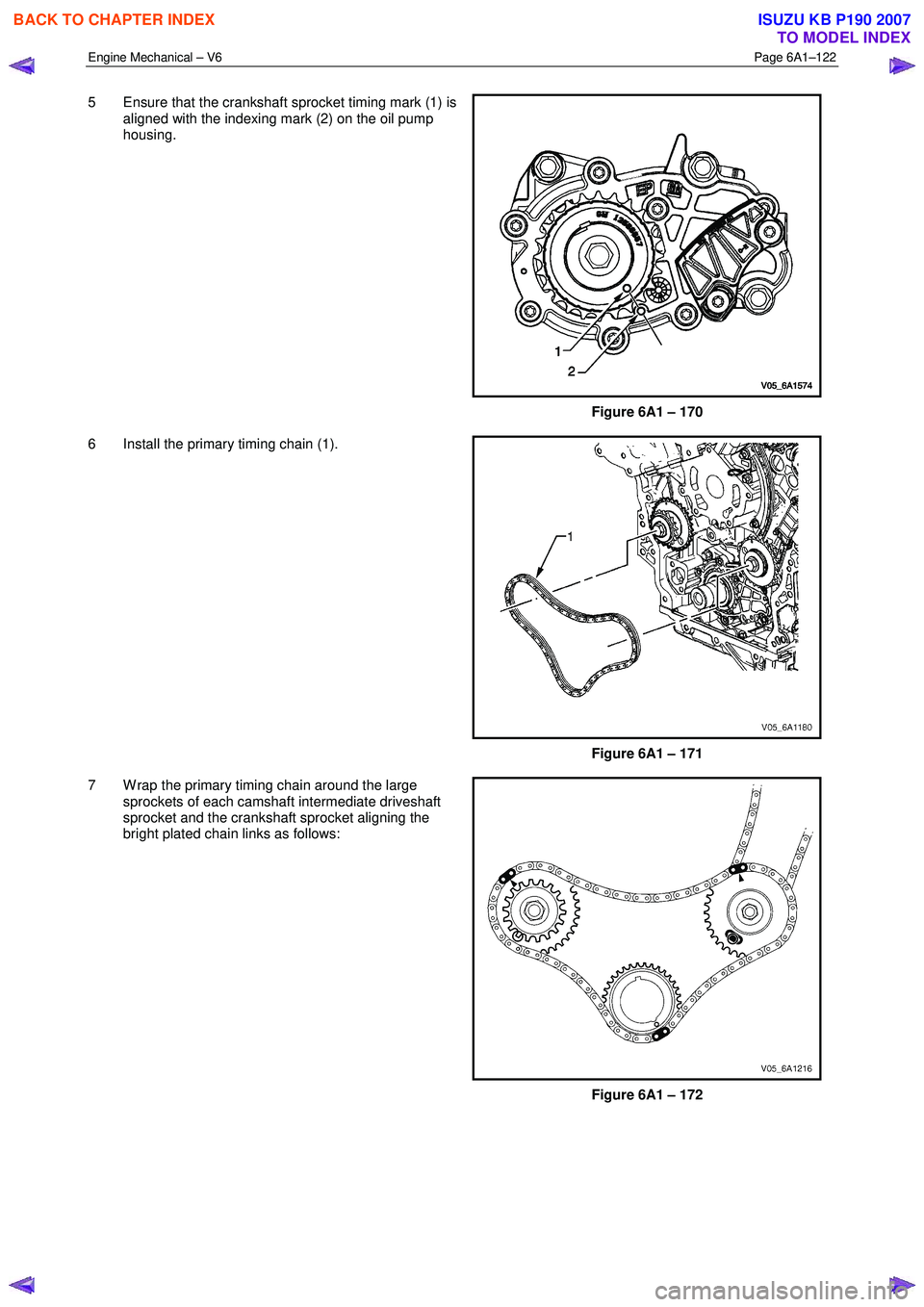

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–122 5 Ensure that the crankshaft sprocket timing mark (1) is aligned with the indexing mark (2) on the oil pump housing. Figure 6A1 – 170 6 Install th

Page 2602 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–123 8 The left-hand camshaft intermediate driveshaft sprocket timing mark (1) will align with a bright plated primary timing chain link (2). Figure 6A1

Page 2603 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–124 11 Ensure all the timing marks (1, 2 and 3) are properly aligned with the bright plated timing chain links (4, 5 and 6). Figure 6A1 – 176 NOTE Do

Page 2604 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–125 13 Install the primary timing chain upper guide (1). 14 Install the primary timing chain upper guide bolts (2) and tighten to the correct torque specifi

Page 2605 of 6020

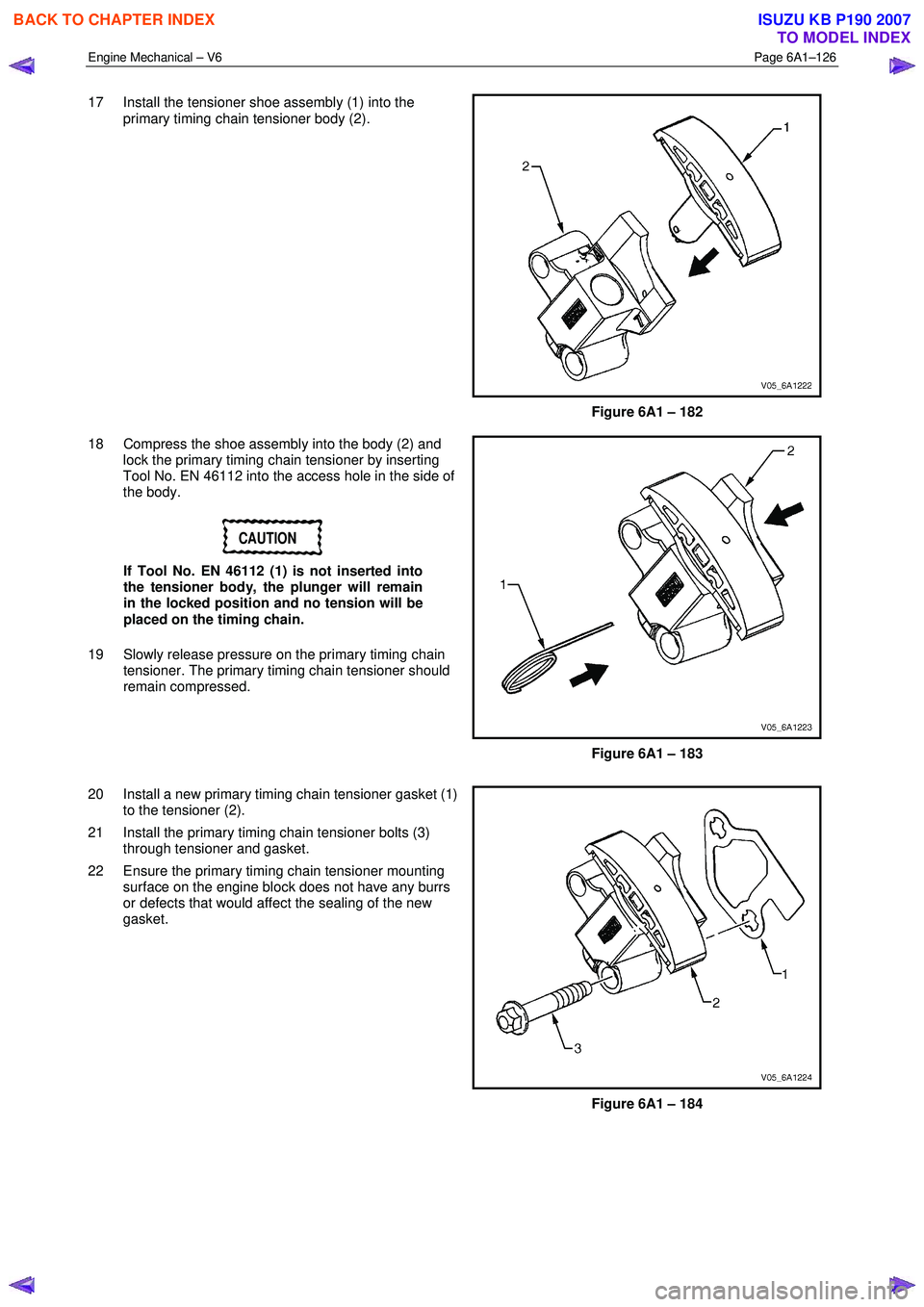

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–126 17 Install the tensioner shoe assembly (1) into the primary timing chain tensioner body (2). Figure 6A1 – 182 18 Compress the shoe assembly into the

Page 2606 of 6020

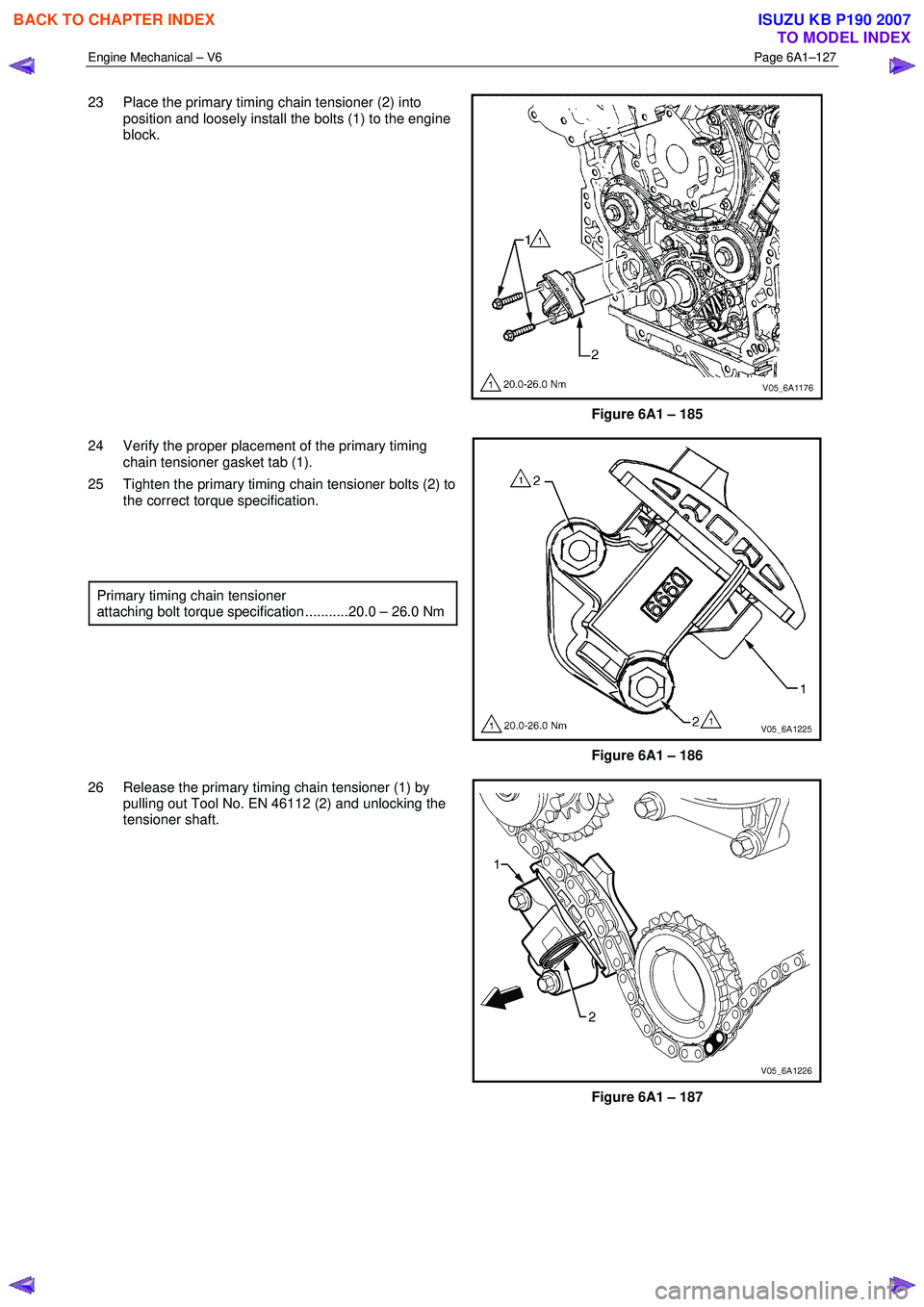

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–127 23 Place the primary timing chain tensioner (2) into position and loosely install the bolts (1) to the engine block. Figure 6A1 – 185 24 Verify th

Page 2607 of 6020

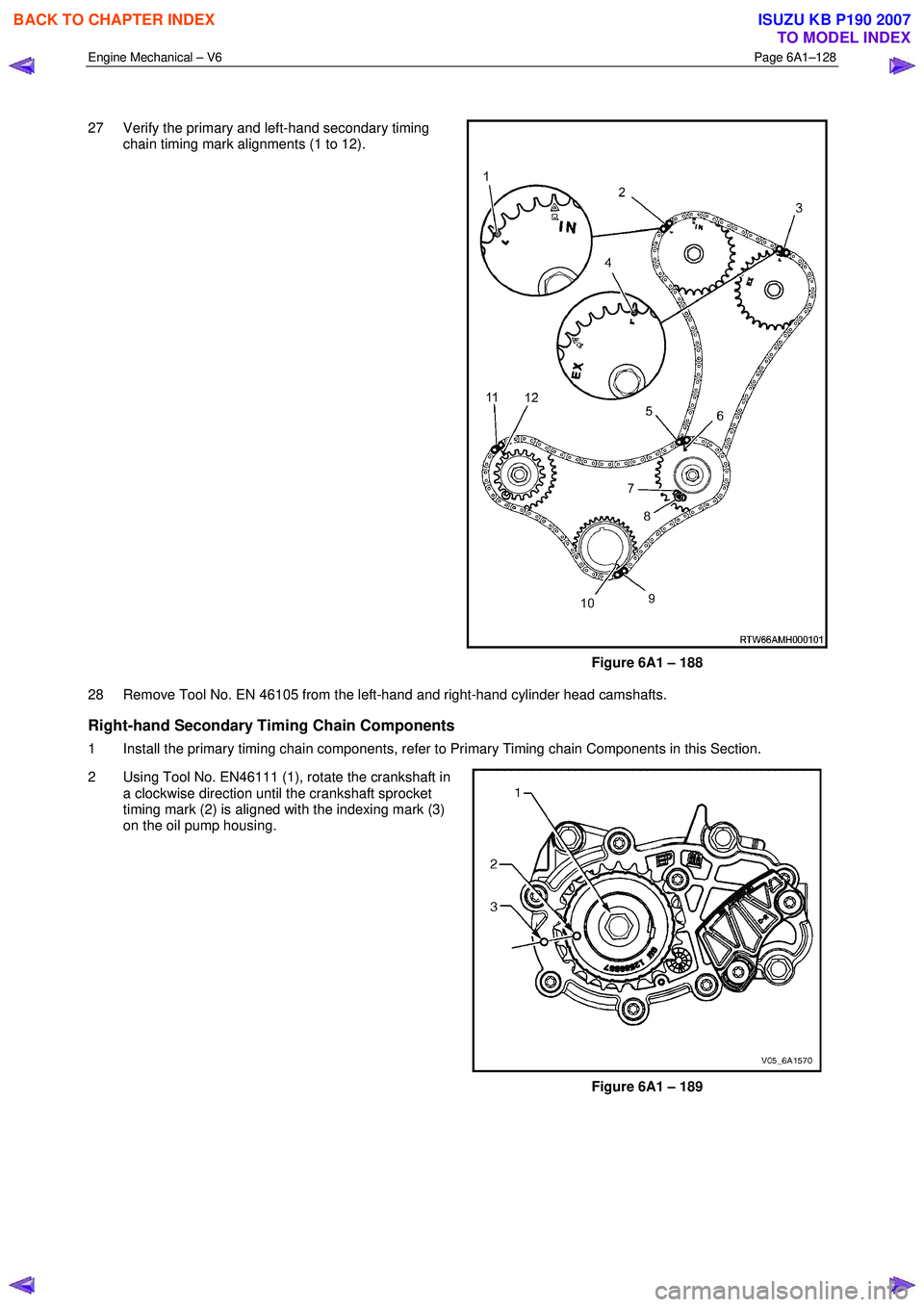

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–128 27 Verify the primary and left-hand secondary timing chain timing mark alignments (1 to 12). Figure 6A1 – 188 28 Remove Tool No. EN 46105 from the

Page 2608 of 6020

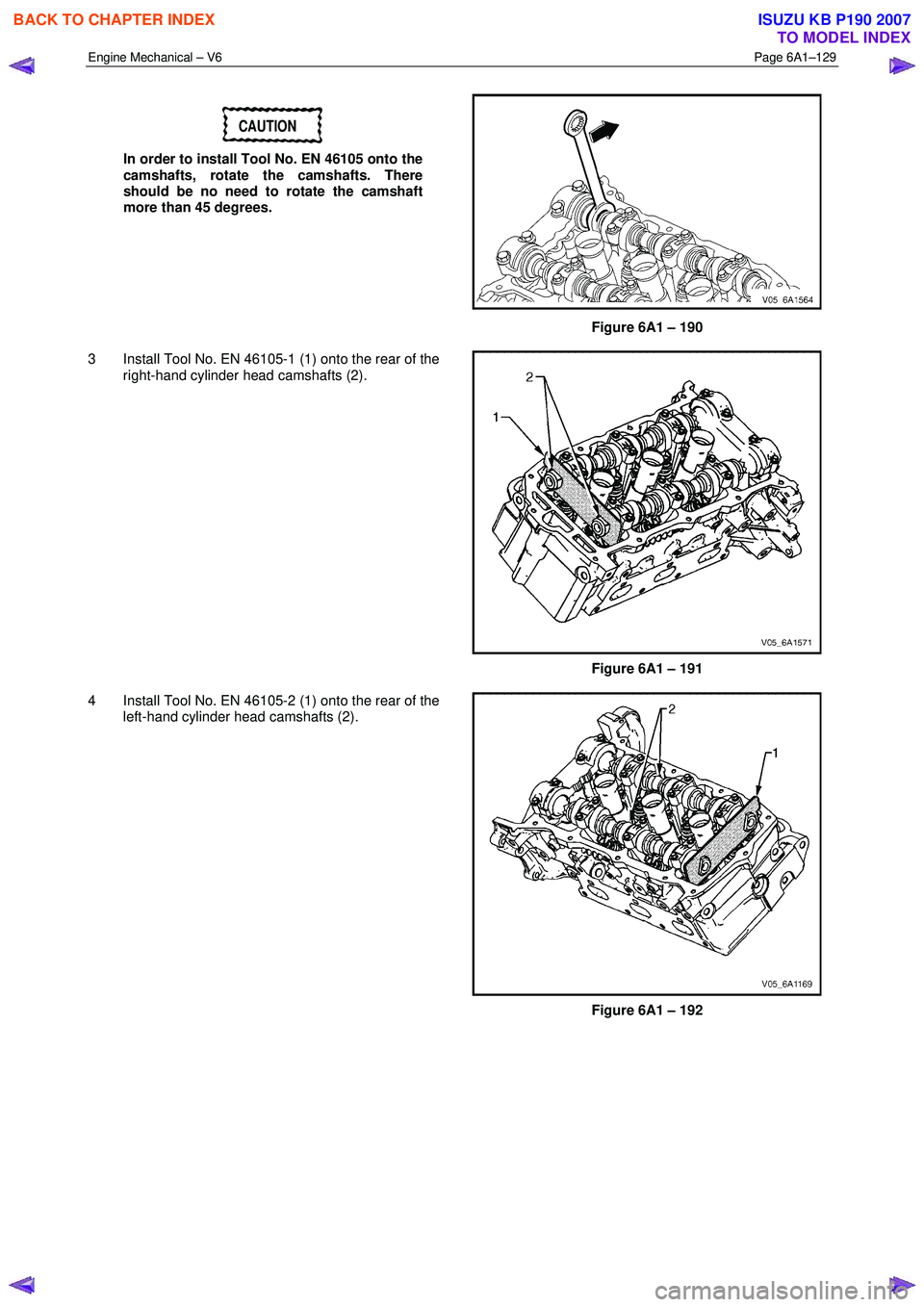

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–129 CAUTION In order to install Tool No. EN 46105 onto the camshafts, rotate the camshafts. There should be no need to rotate the camshaft more than 45 deg
