Page 3545 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Management – V6 – Service Operations Page 6C1-3–21 NOTE When Tech 2 requests programming approval, obtain TIS approval. 3 W hen Tech 2 displays Enter Security Code, enter the sec

Page 3546 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Management – V6 – Service Operations Page 6C1-3–22 3 Road test the vehicle and check for correct operation. 2.9 Engine Oil Level and Temperature Sensor To avoid personal injury,

Page 3547 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Management – V6 – Service Operations Page 6C1-3–23 Test Engine Oil Level Sensor Check 1 W ith the aid of an assistant, perform the following: a W hilst holding the engine oil lev

Page 3548 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Management – V6 – Service Operations Page 6C1-3–24 Clean the area around the engine oil pressure sensor before removal to avoid debris from entering the engine. 2 Disconnect th

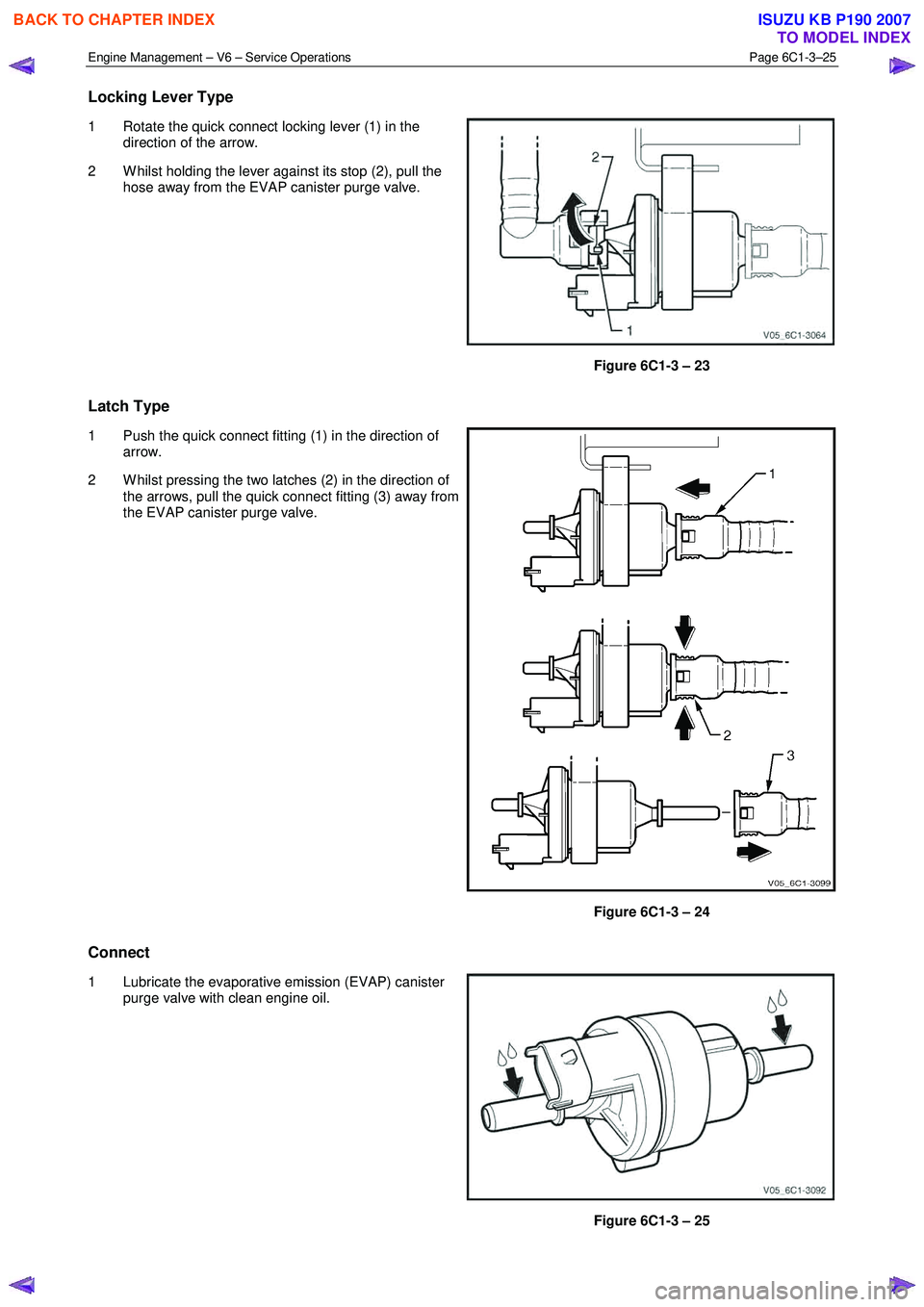

Page 3549 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Management – V6 – Service Operations Page 6C1-3–25 Locking Lever Type 1 Rotate the quick connect locking lever (1) in the direction of the arrow. 2 W hilst holding the lever again

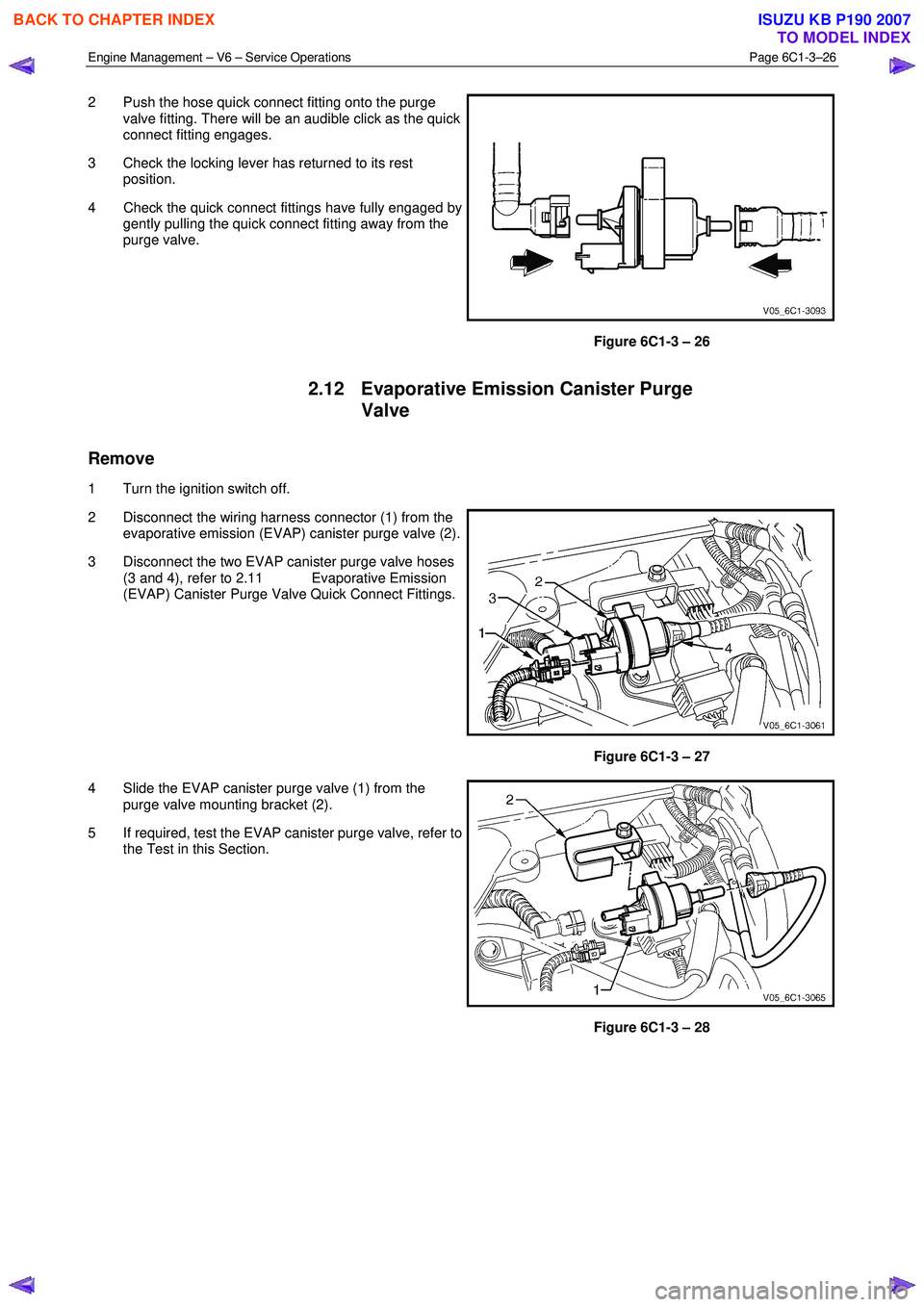

Page 3550 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Management – V6 – Service Operations Page 6C1-3–26 2 Push the hose quick connect fitting onto the purge valve fitting. There will be an audible click as the quick connect fitting e

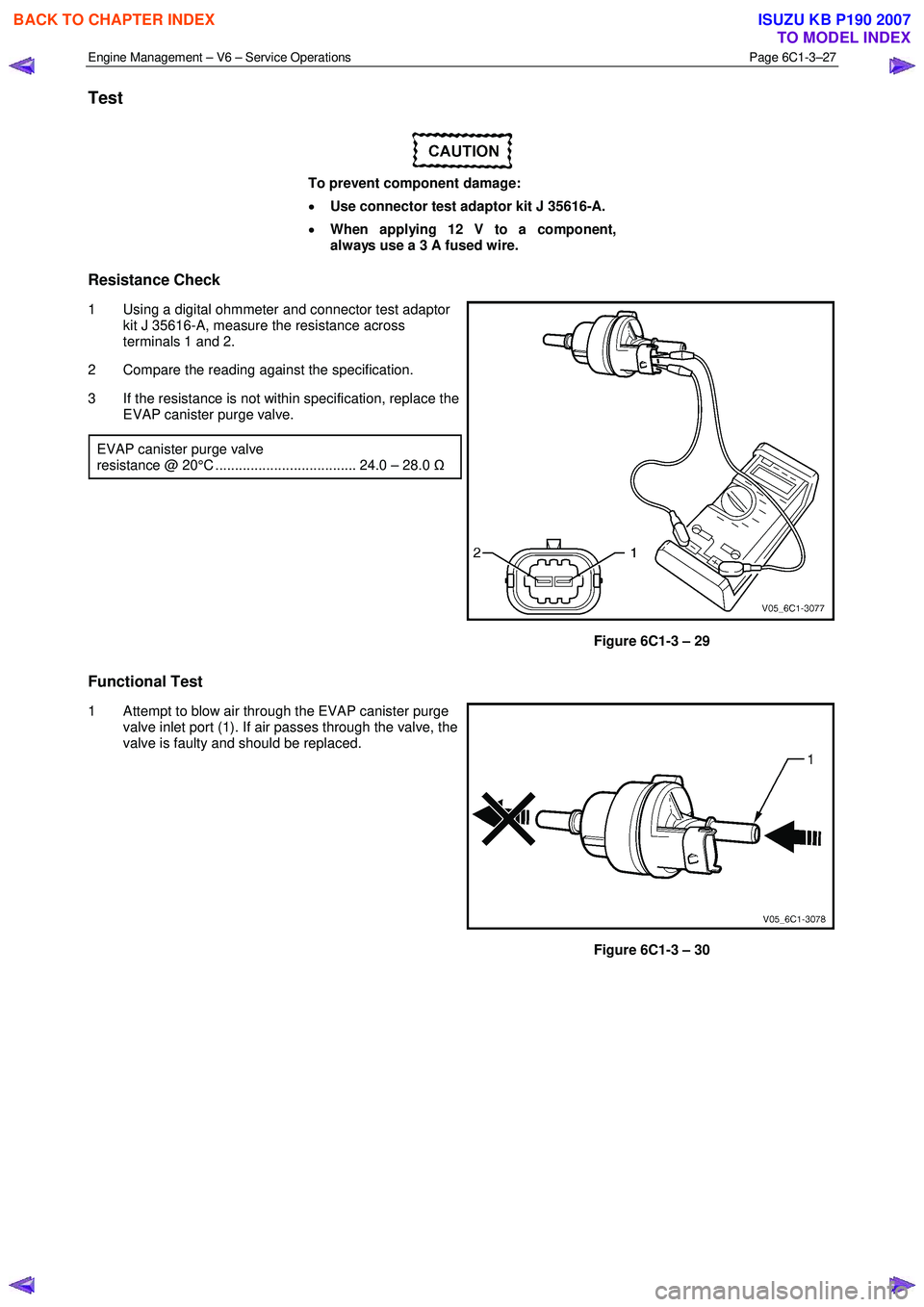

Page 3551 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Management – V6 – Service Operations Page 6C1-3–27 Test To prevent component damage: • Use connector test adaptor kit J 35616-A. • When applying 12 V to a component, alwa

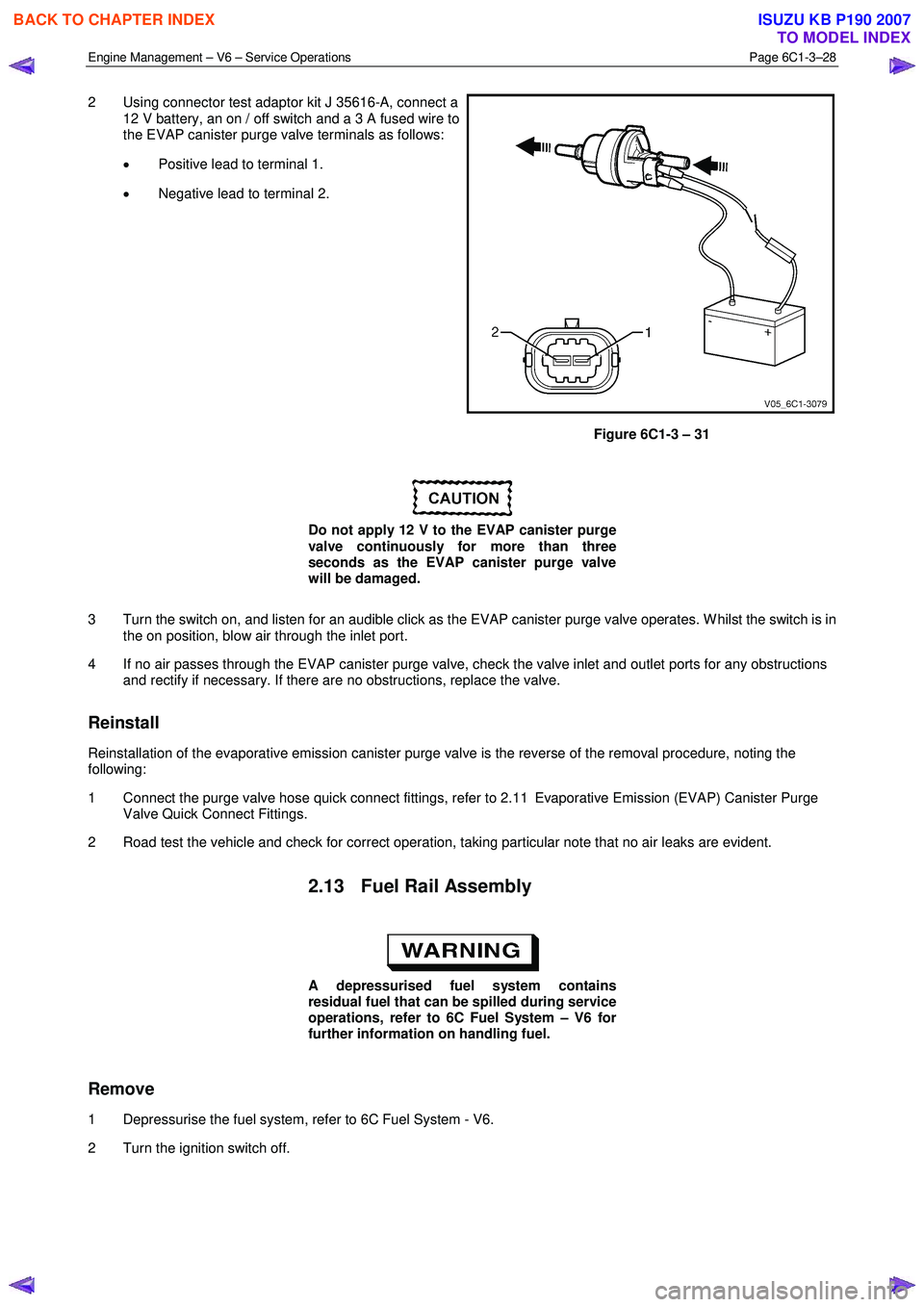

Page 3552 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Management – V6 – Service Operations Page 6C1-3–28 2 Using connector test adaptor kit J 35616-A, connect a 12 V battery, an on / off switch and a 3 A fused wire to the EVAP caniste
