ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-15 NormalBlown FUSE Fuses are the most common form of circuit protection used in vehicle wiring. A fuse is a thin piece of wire or strip of metal encased in a

Page 4954 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-16 ELECTRICAL-BODY AND CHASSIS RELAY Battery and load location may require that a switch be placed some distance from either component. This means a longer wire and a higher voltage drop

Page 4955 of 6020

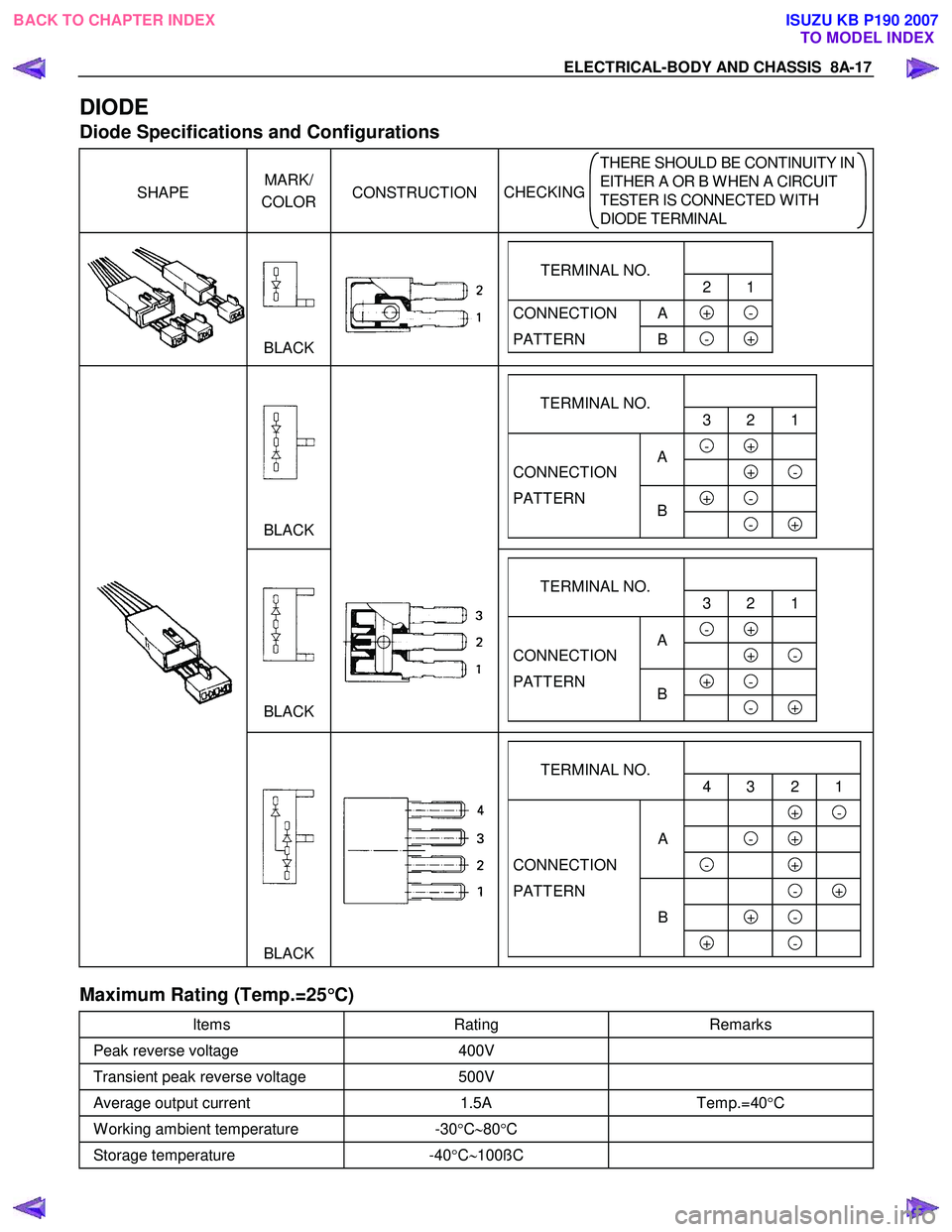

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-17 DIODE Diode Specifications and Configurations SHAPE MARK/ COLOR CONSTRUCTION CHECKING THERE SHOULD BE CONTINUITY IN EITHER A OR B W HEN A CIRCUIT TE

Page 4956 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-18 ELECTRICAL-BODY AND CHASSIS CONNECTOR The connector pin shape determines whether the connector is male or female. The connector housing configuration does not determine whether a con

Page 4957 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-19 Battery-1 BATTERY Inspection 1. Check the battery terminals 1 for corrosion. 2. Check the battery cables 2 for looseness. 3. Check the battery case 3

Page 4958 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-20 ELECTRICAL-BODY AND CHASSIS Caution: Never push or tow the vehicle in an attempt to start it. Extensive damage to the emission system and other vehicle parts will result. (Only catalyti

Page 4959 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-21 Caution: Do not attach the booster cable to the discharged battery negative terminal. 11. Start the engine of the vehicle with the booster battery. Che

Page 4960 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-22 ELECTRICAL-BODY AND CHASSIS READING THE CIRCUIT DIAGRAM In this manual, each system has its own parts location illustration and circuit diagram. And connector configurations used in the cir
