2 Inspect the tensioner for locked or binding tensioner shaft (2). Reset the plunger (3) and ensure the tensioner shaft
moves freely in and out of the body of the tensioner.
NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver or Tool No. J 45027 (4) to wind
the plunger in a clockwise direction, into the
tensioner shaft.
3 Replace a damaged tens ioner as required.
Right-hand Secondary Timing Chain Guide
1 Inspect the right-hand secondary timing chain guide
for the following:
• worn guide surface (1),
• cracked or broken guide surface (2), and
• cracked or damaged guide base (3).
2 Replace a damaged guide as required.
Figure 6A1 – 140
Right-hand Secondary Timing Chain Shoe
1 Inspect the front of t he right-hand secondary timing
chain shoe for the following:
• worn shoe surface (1),
• cracked or broken shoe surface (2), and
• cracked or damaged shoe (3).
Figure 6A1 – 141
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2906 of 6020
Engine Mechanical – V6 Page 6A1–129
Page 6A1–129
2 Inspect the back of the shoe for a damaged, worn or
missing timing chain tensioner contact pad (1).
Replace a damaged shoe as required.
Figure 6A1 – 142
Right-hand Secondary Timing Chain Tensioner
Figure 6A1 – 143
1 Inspect the right-hand secondary timing chain tensioner for damaged plunger-to-shoe contact surface (1), refer to
Figure 6A1 – 141.
NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver or Tool No. J 45027 (4) to wind
the plunger in a clockwise direction, into the
tensioner shaft.
2 Inspect the tensioner for a locked or binding tensioner shaft (2). Reset the plunger (3) and ensure the tensioner
shaft moves freely in and out of the body of the tensioner.
3 Replace a damaged tens ioner as required.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2907 of 6020
Engine Mechanical – V6 Page 6A1–130
Page 6A1–130
Reinstall
Left-hand Secondary Timing Chain Components – Excluding MY06 Update

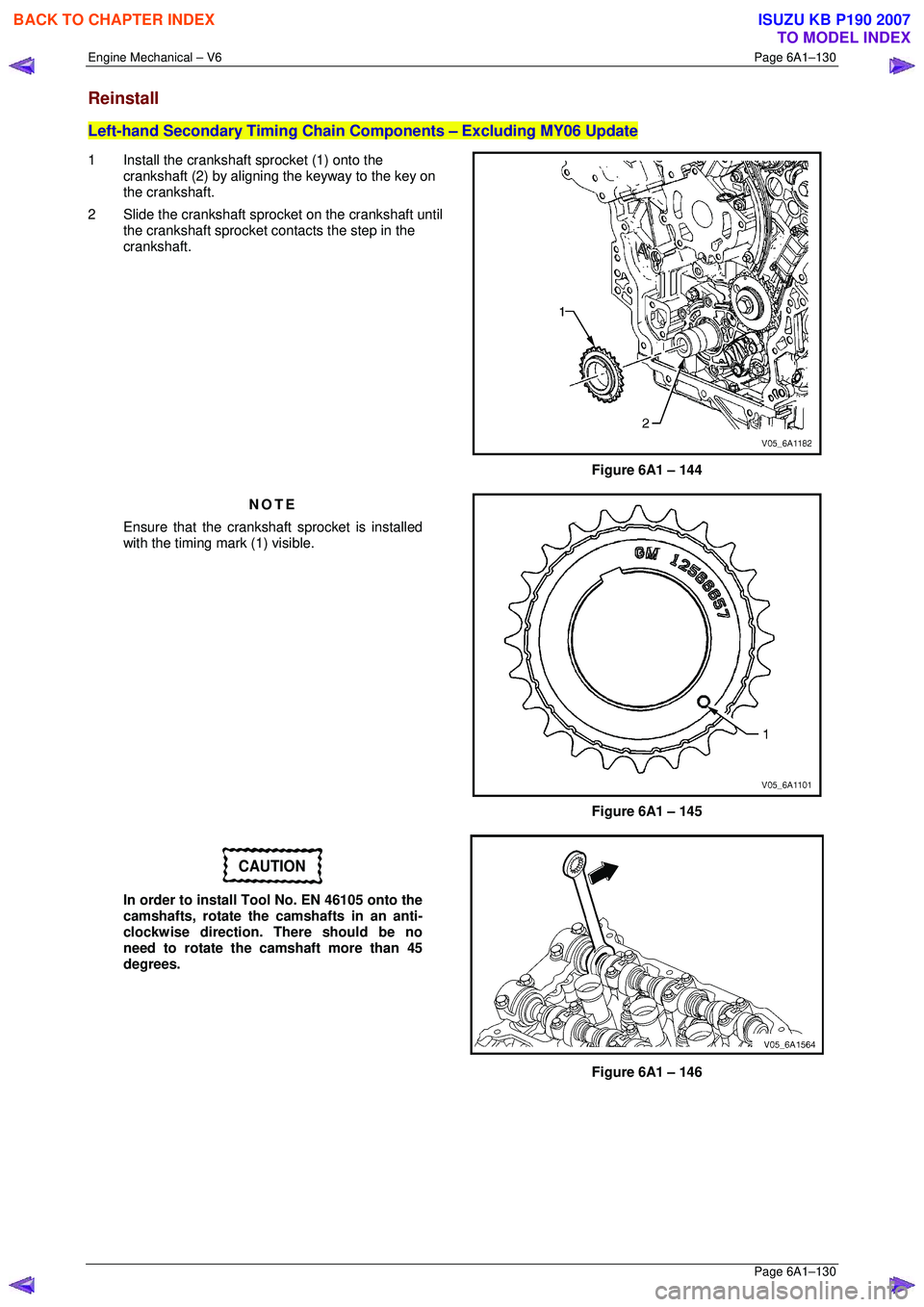

1 Install the crankshaft sprocket (1) onto the
crankshaft (2) by aligning the keyway to the key on
the crankshaft.
2 Slide the crankshaft sprocket on the crankshaft until the crankshaft sprocket contacts the step in the
crankshaft.
Figure 6A1 – 144
NOTE
Ensure that the crankshaft sprocket is installed
with the timing mark (1) visible.
Figure 6A1 – 145
CAUTION
In order to install Tool No. EN 46105 onto the
camshafts, rotate the camshafts in an anti-
clockwise direction. There should be no
need to rotate the camshaft more than 45
degrees.
Figure 6A1 – 146
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2908 of 6020
Engine Mechanical – V6 Page 6A1–131
Page 6A1–131

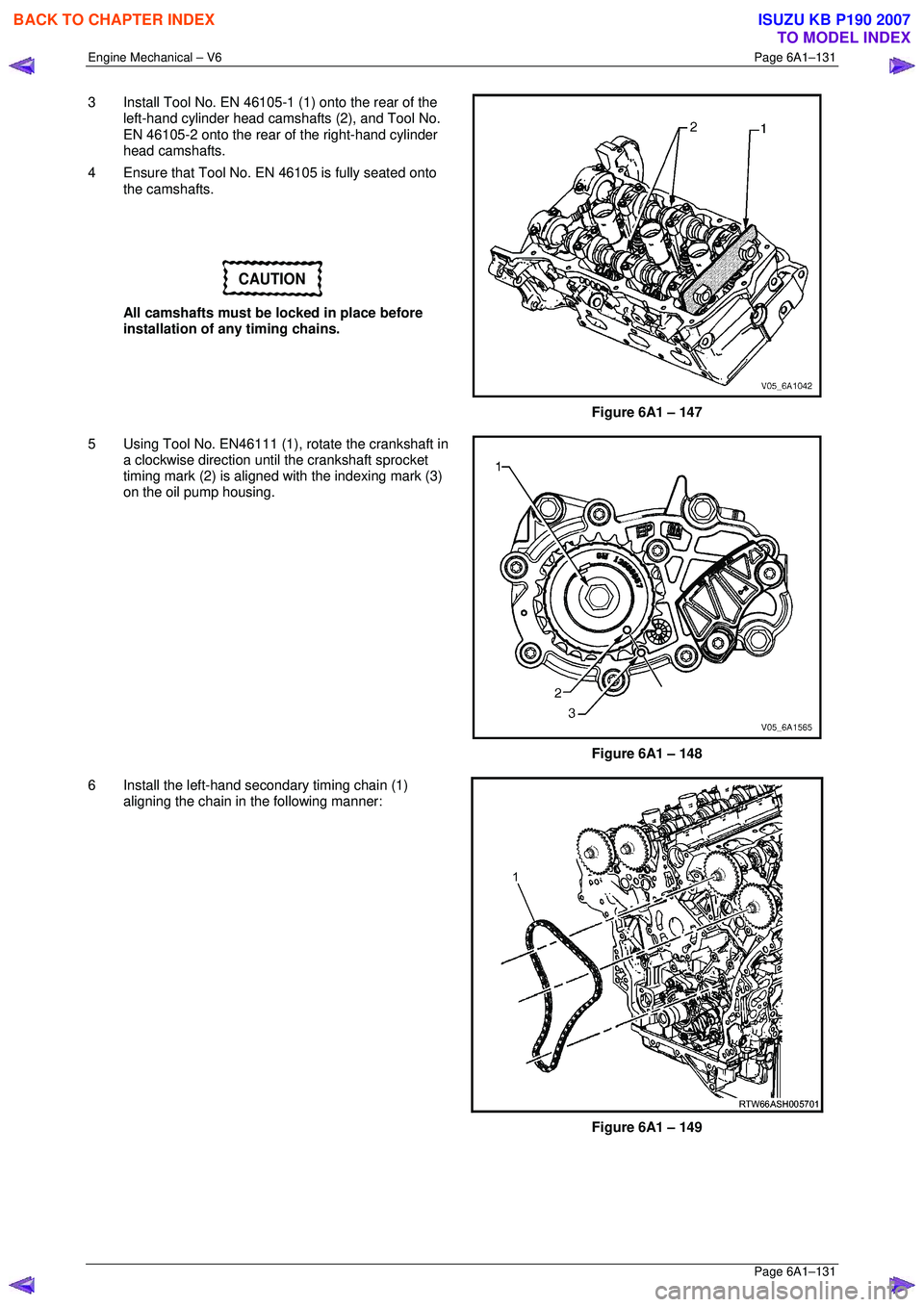

3 Install Tool No. EN 46105-1 (1) onto the rear of the
left-hand cylinder head camshafts (2), and Tool No.
EN 46105-2 onto the rear of the right-hand cylinder
head camshafts.
4 Ensure that Tool No. EN 46105 is fully seated onto the camshafts.
CAUTION
All camshafts must be locked in place before
installation of any timing chains.
Figure 6A1 – 147
5 Using Tool No. EN46111 (1), rotate the crankshaft in a clockwise direction until the crankshaft sprocket
timing mark (2) is aligned with the indexing mark (3)
on the oil pump housing.
Figure 6A1 – 148
6 Install the left-hand secondary timing chain (1) aligning the chain in the following manner:
Figure 6A1 – 149
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2909 of 6020
Engine Mechanical – V6 Page 6A1–132
Page 6A1–132

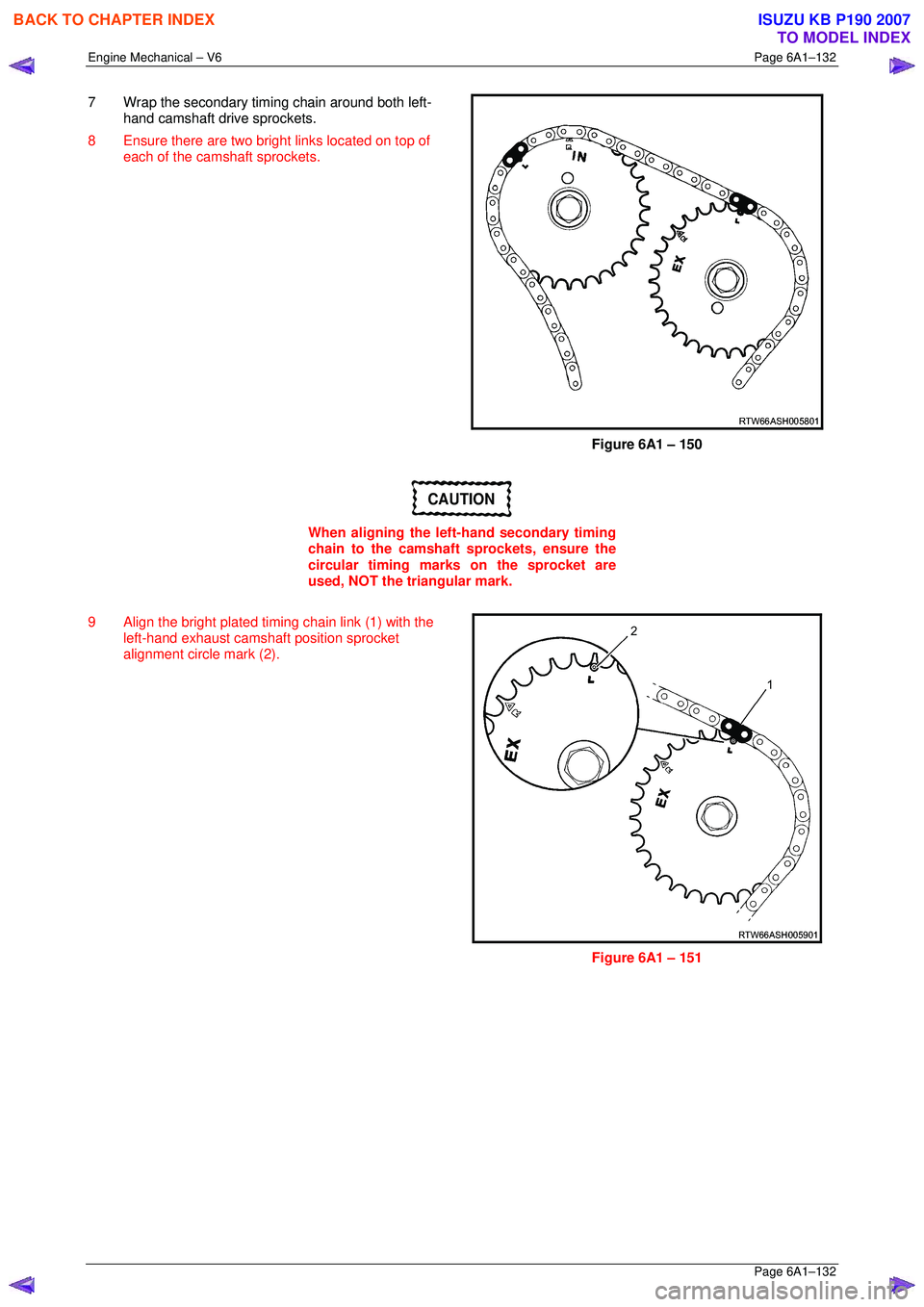

7 Wrap the secondary timing chain around both left-
hand camshaft drive sprockets.
8 Ensure there are two bright links located on top of each of the camshaft sprockets.
Figure 6A1 – 150
CAUTION
When aligning the left-hand secondary timing
chain to the camshaft sprockets, ensure the
circular timing marks on the sprocket are
used, NOT the triangular mark.
9 Align the bright plated timing chain link (1) with the left-hand exhaust camshaft position sprocket
alignment circle mark (2).
Figure 6A1 – 151
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2910 of 6020
Engine Mechanical – V6 Page 6A1–133
Page 6A1–133

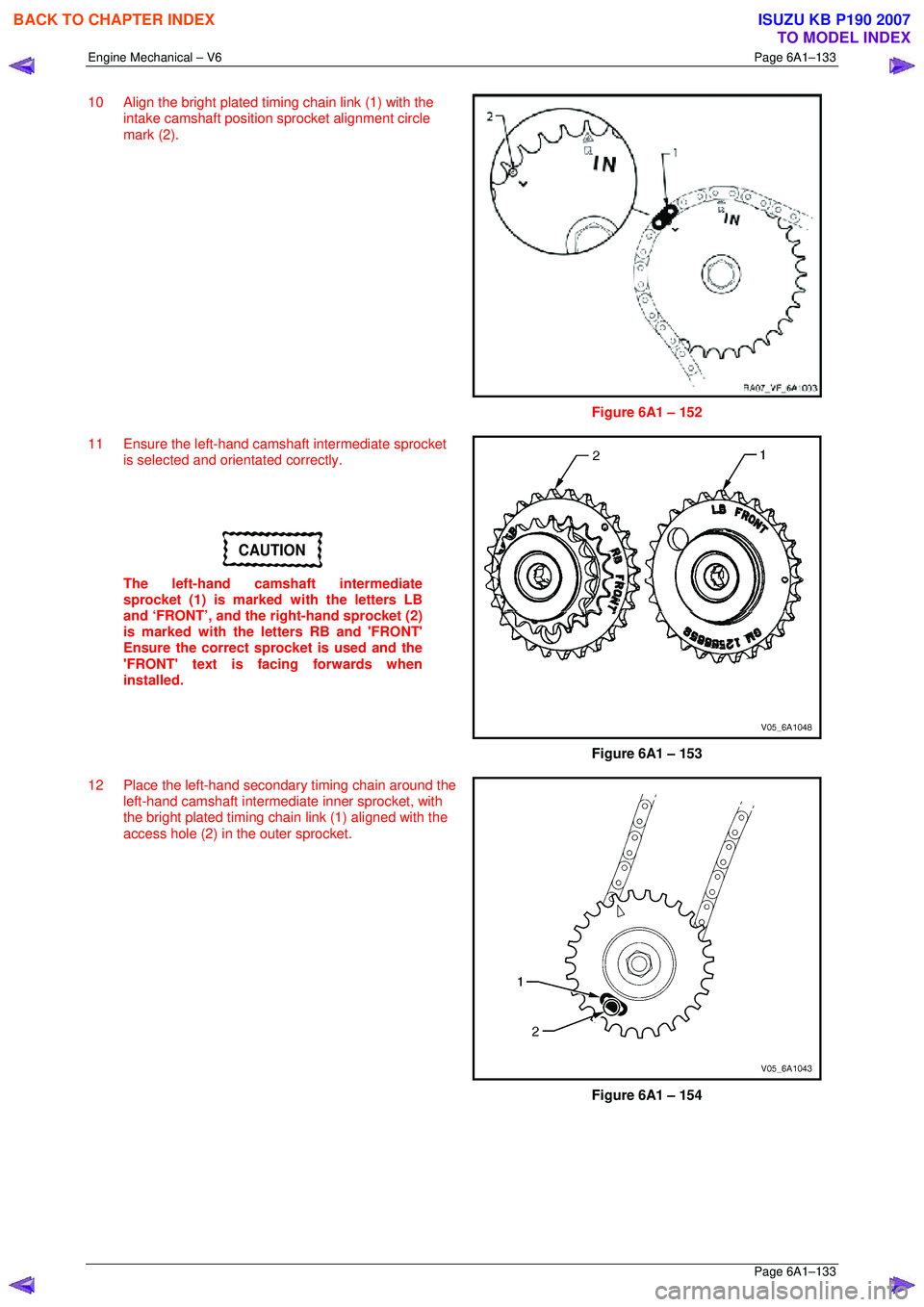

10 Align the bright plated timing chain link (1) with the
intake camshaft position sprocket alignment circle
mark (2).
Figure 6A1 – 152
11 Ensure the left-hand camshaft intermediate sprocket is selected and orientated correctly.
CAUTION
The left-hand camshaft intermediate
sprocket (1) is marked with the letters LB
and ‘FRONT’, and the right-hand sprocket (2)
is marked with the letters RB and 'FRONT'
Ensure the correct sprocket is used and the
'FRONT' text is facing forwards when
installed.
Figure 6A1 – 153
12 Place the left-hand secondary timing chain around the left-hand camshaft intermediate inner sprocket, with
the bright plated timing chain link (1) aligned with the
access hole (2) in the outer sprocket.
Figure 6A1 – 154
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2911 of 6020
Engine Mechanical – V6 Page 6A1–134
Page 6A1–134

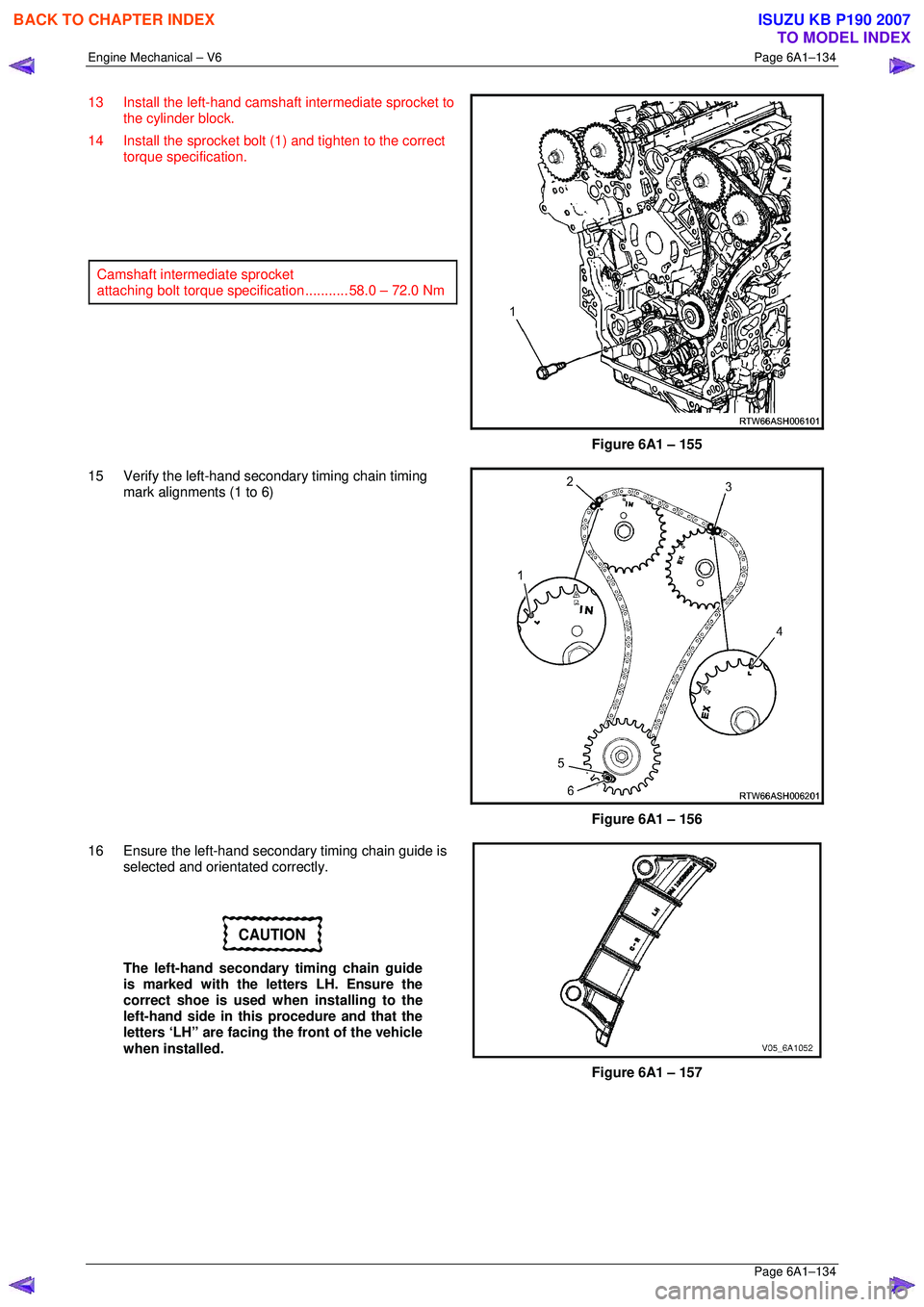

13 Install the left-hand camshaft intermediate sprocket to
the cylinder block.
14 Install the sprocket bolt (1) and tighten to the correct torque specification.
Camshaft intermediate sprocket
attaching bolt torque spec ification ........... 58.0 – 72.0 Nm
Figure 6A1 – 155
15 Verify the left-hand secondary timing chain timing mark alignments (1 to 6)
Figure 6A1 – 156
16 Ensure the left-hand secondary timing chain guide is selected and orientated correctly.
CAUTION
The left-hand secondary timing chain guide
is marked with the letters LH. Ensure the
correct shoe is used when installing to the
left-hand side in this procedure and that the
letters ‘LH” are facing the front of the vehicle
when installed.
Figure 6A1 – 157
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2912 of 6020
Engine Mechanical – V6 Page 6A1–135
Page 6A1–135

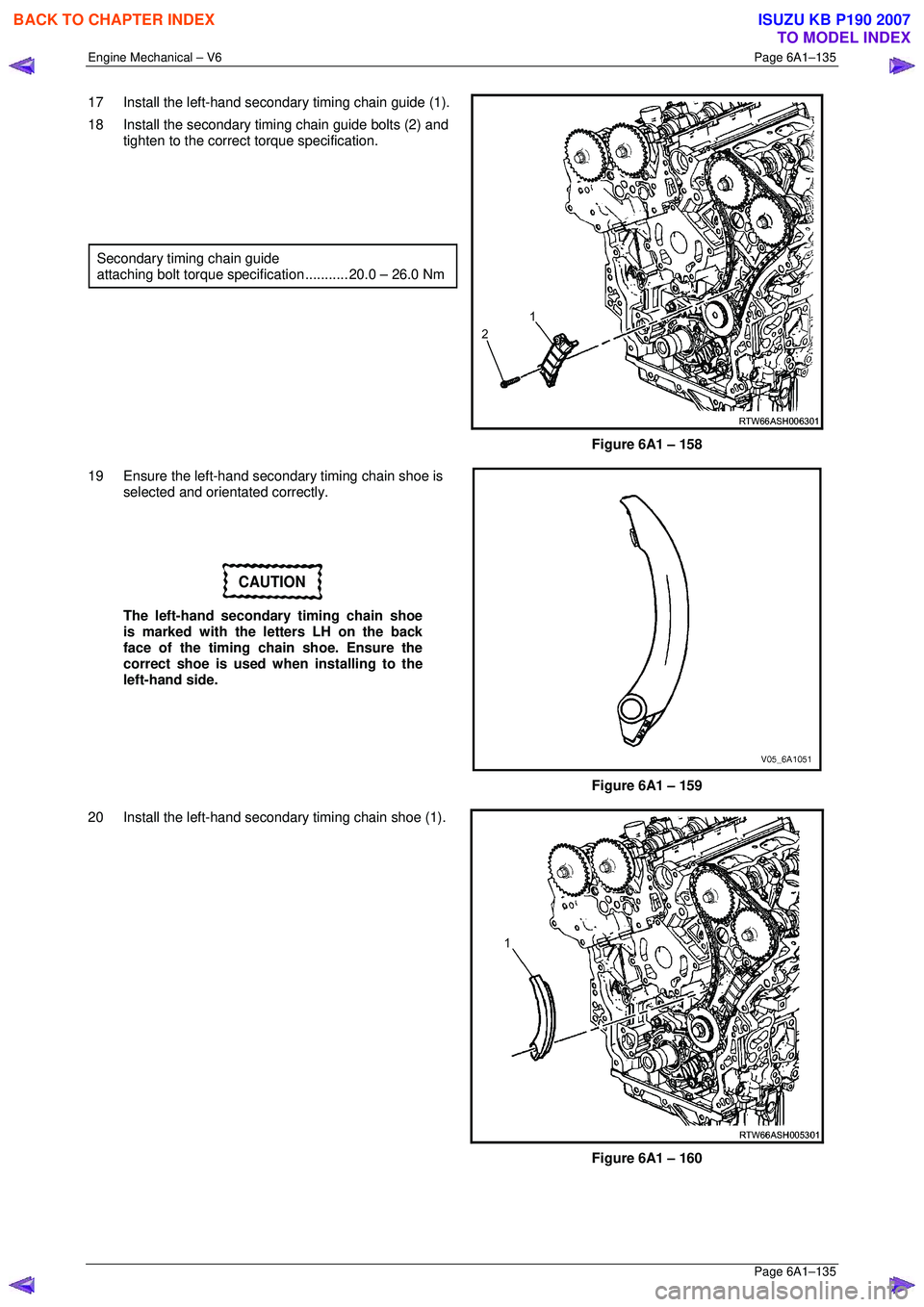

17 Install the left-hand secondary timing chain guide (1).
