Page 5641 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 9A-6 SUPPLEMENTAL RESTRAINT SYSTEM Circuit Diagram 4JJ1-TC, 4JK1-TC (Except South Africa) RTW 78AXF028601 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5642 of 6020

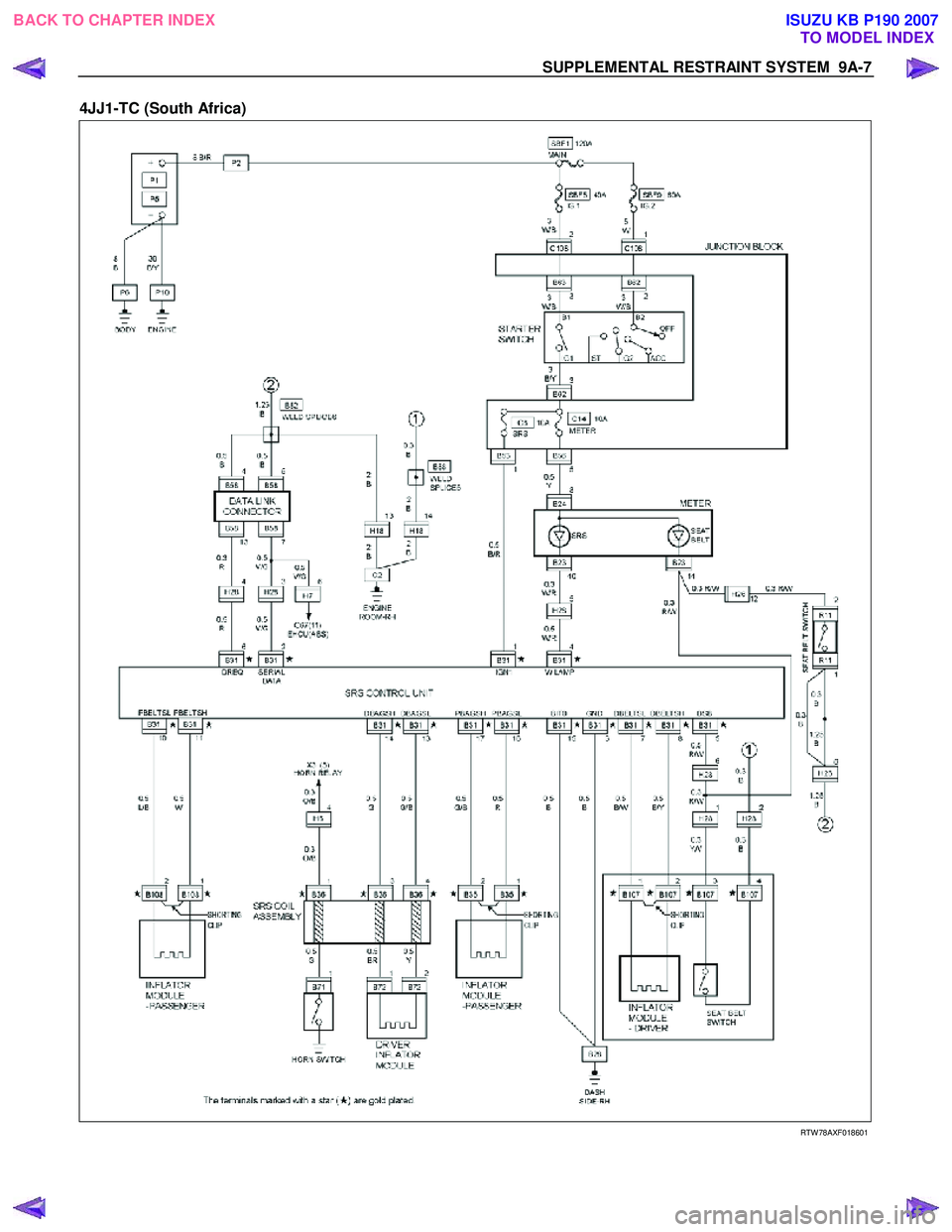

ISUZU KB P190 2007 Workshop Repair Manual SUPPLEMENTAL RESTRAINT SYSTEM 9A-7 4JJ1-TC (South Africa) RTW 78AXF018601 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5643 of 6020

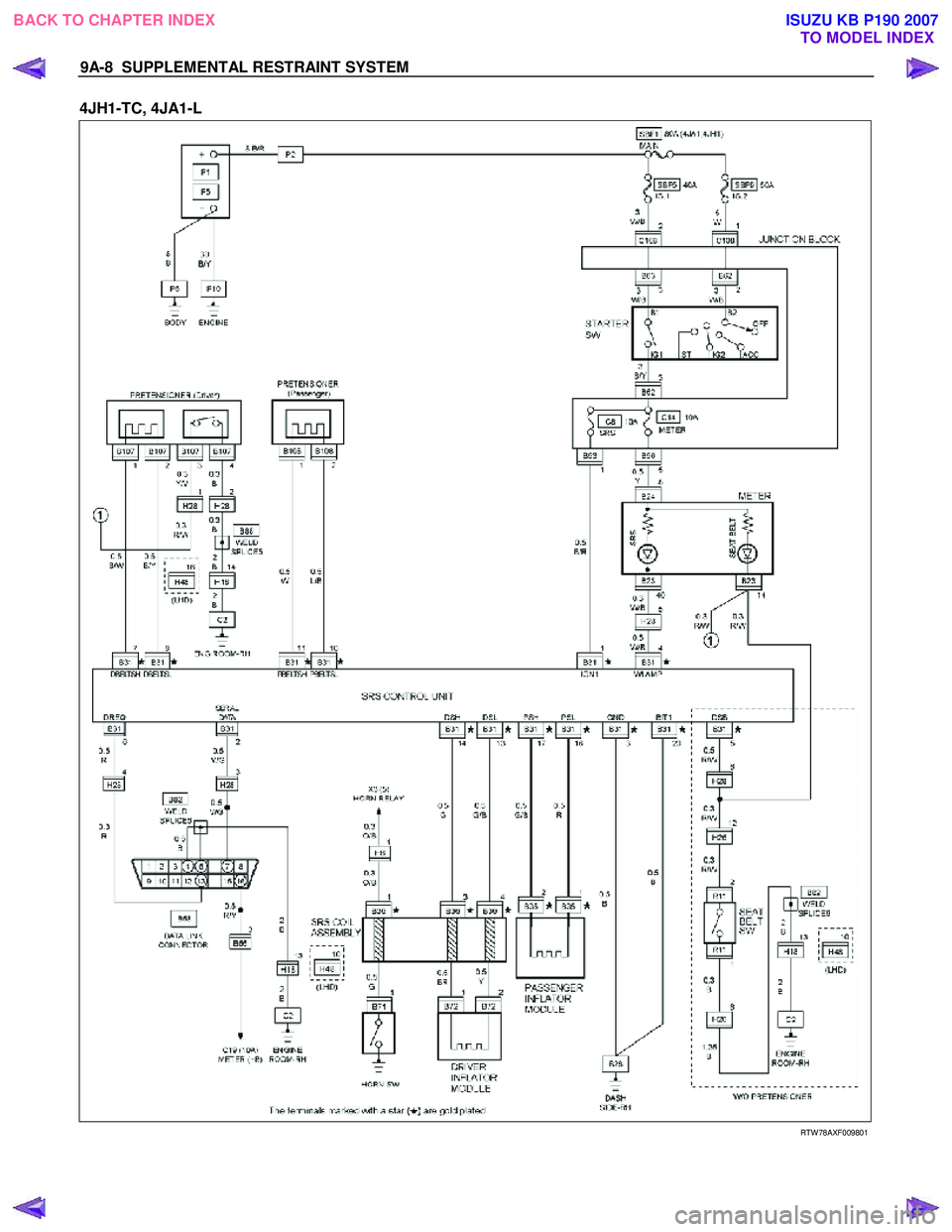

ISUZU KB P190 2007 Workshop Repair Manual 9A-8 SUPPLEMENTAL RESTRAINT SYSTEM 4JH1-TC, 4JA1-L RTW 78AXF009801 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5644 of 6020

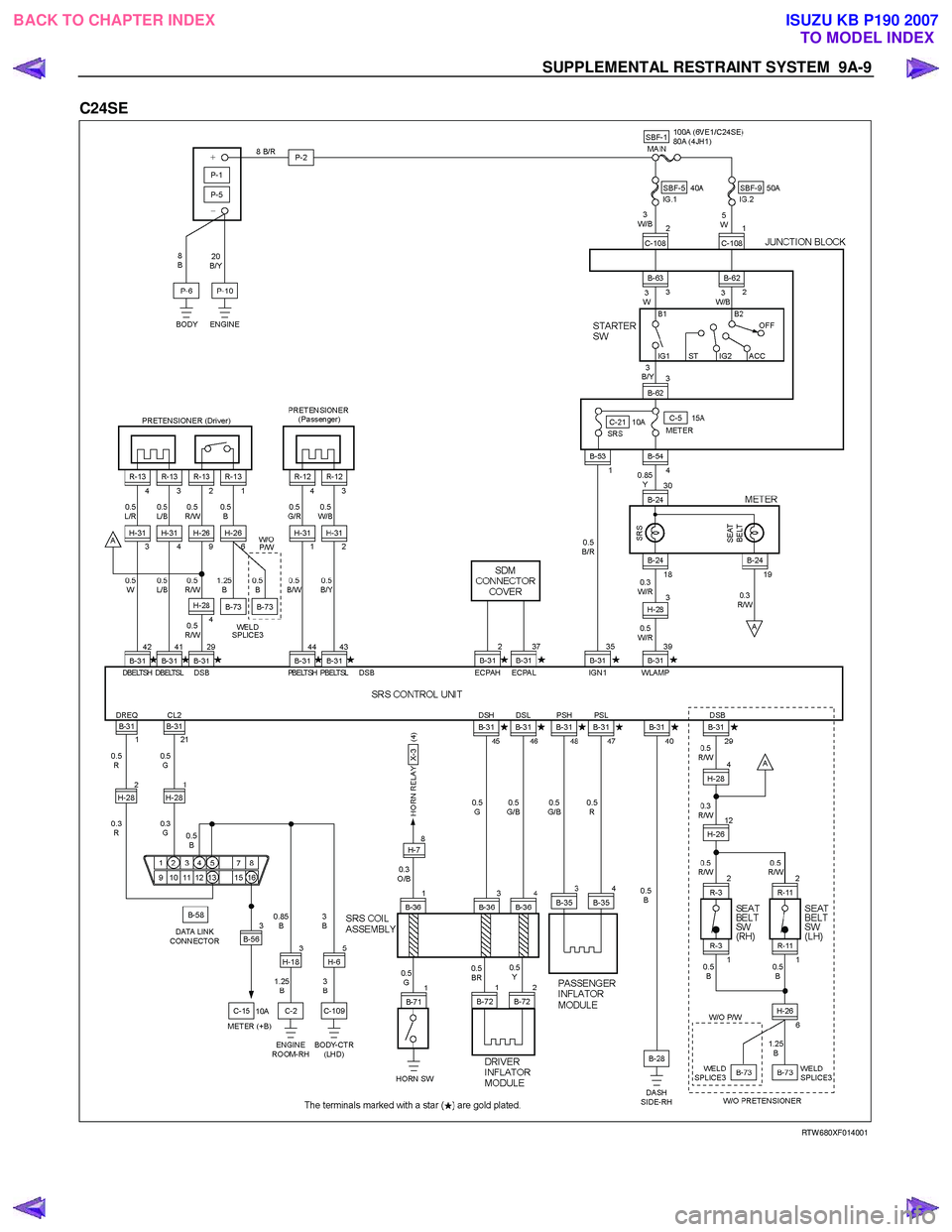

ISUZU KB P190 2007 Workshop Repair Manual SUPPLEMENTAL RESTRAINT SYSTEM 9A-9 C24SE RTW 680XF014001 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5645 of 6020

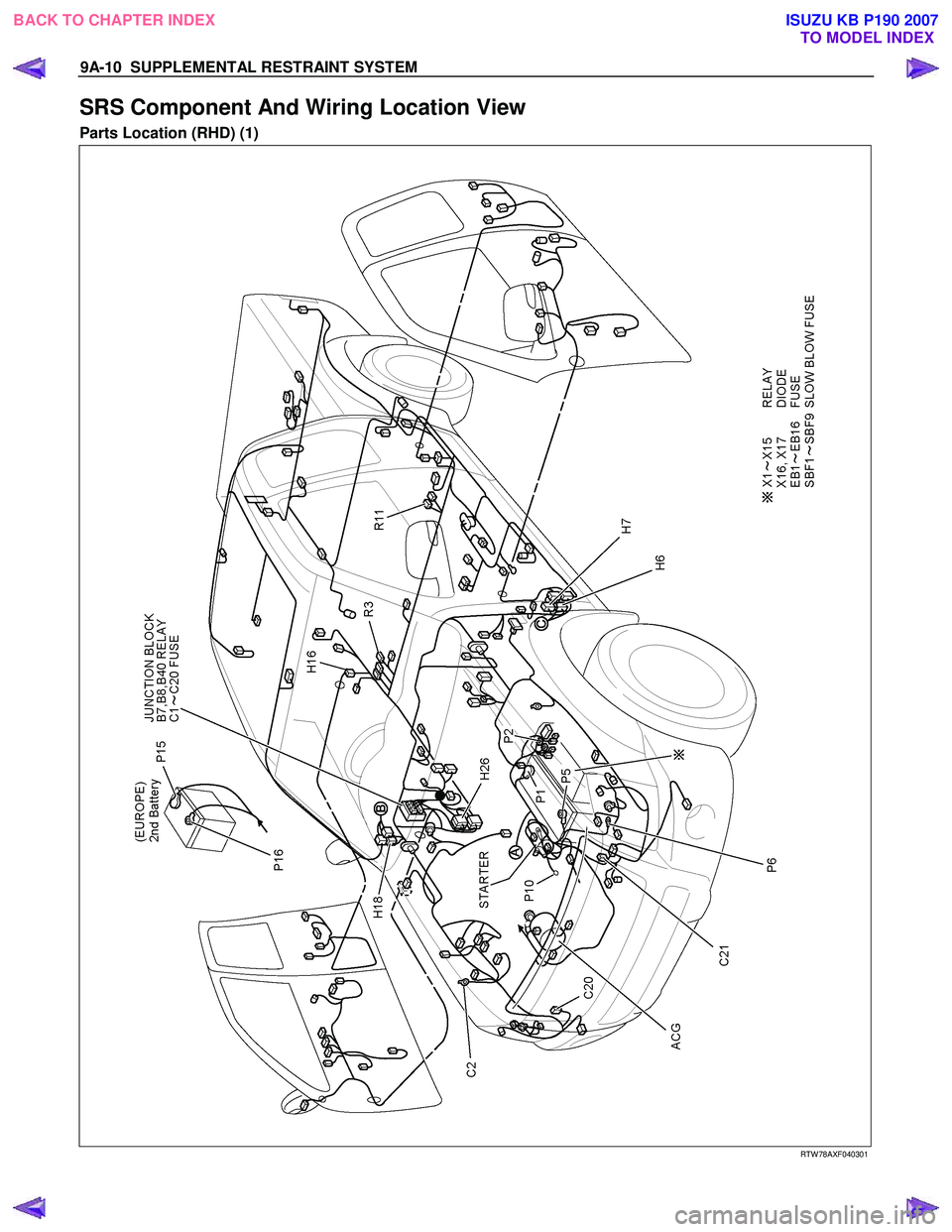

ISUZU KB P190 2007 Workshop Repair Manual 9A-10 SUPPLEMENTAL RESTRAINT SYSTEM SRS Component And Wiring Location View Parts Location (RHD) (1) RTW 78AXF040301 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5646 of 6020

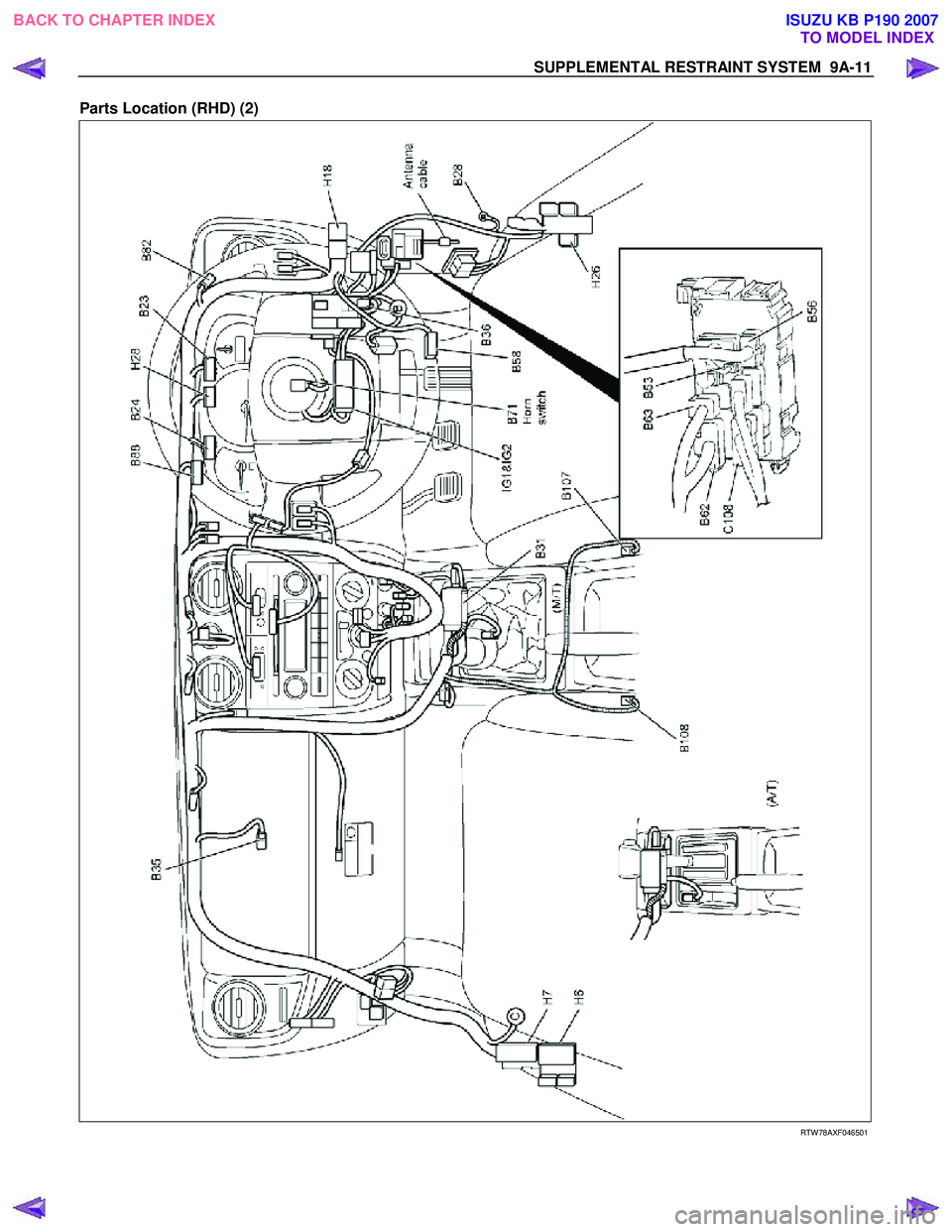

ISUZU KB P190 2007 Workshop Repair Manual SUPPLEMENTAL RESTRAINT SYSTEM 9A-11 Parts Location (RHD) (2) RTW 78AXF046501 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5647 of 6020

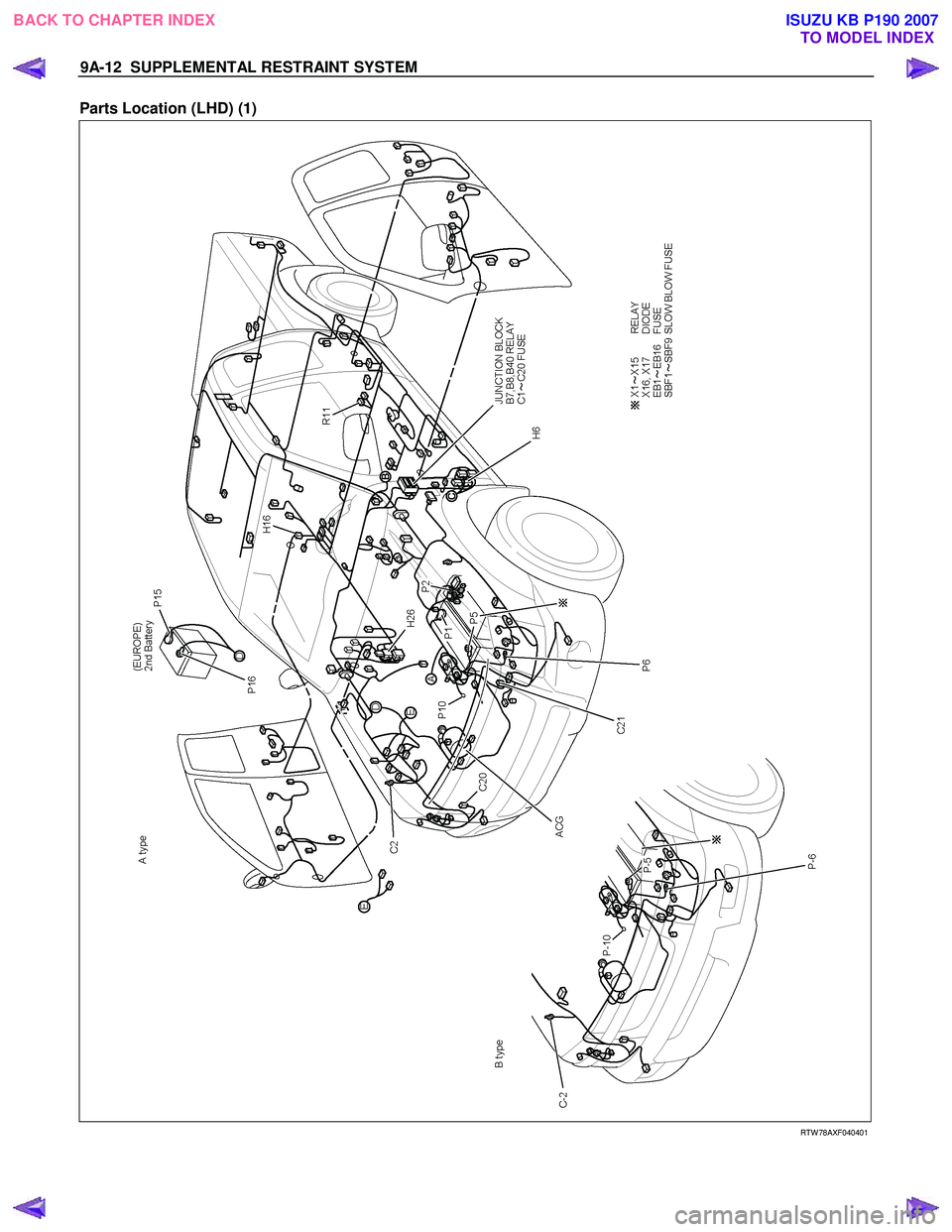

ISUZU KB P190 2007 Workshop Repair Manual 9A-12 SUPPLEMENTAL RESTRAINT SYSTEM Parts Location (LHD) (1) RTW 78AXF040401 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5648 of 6020

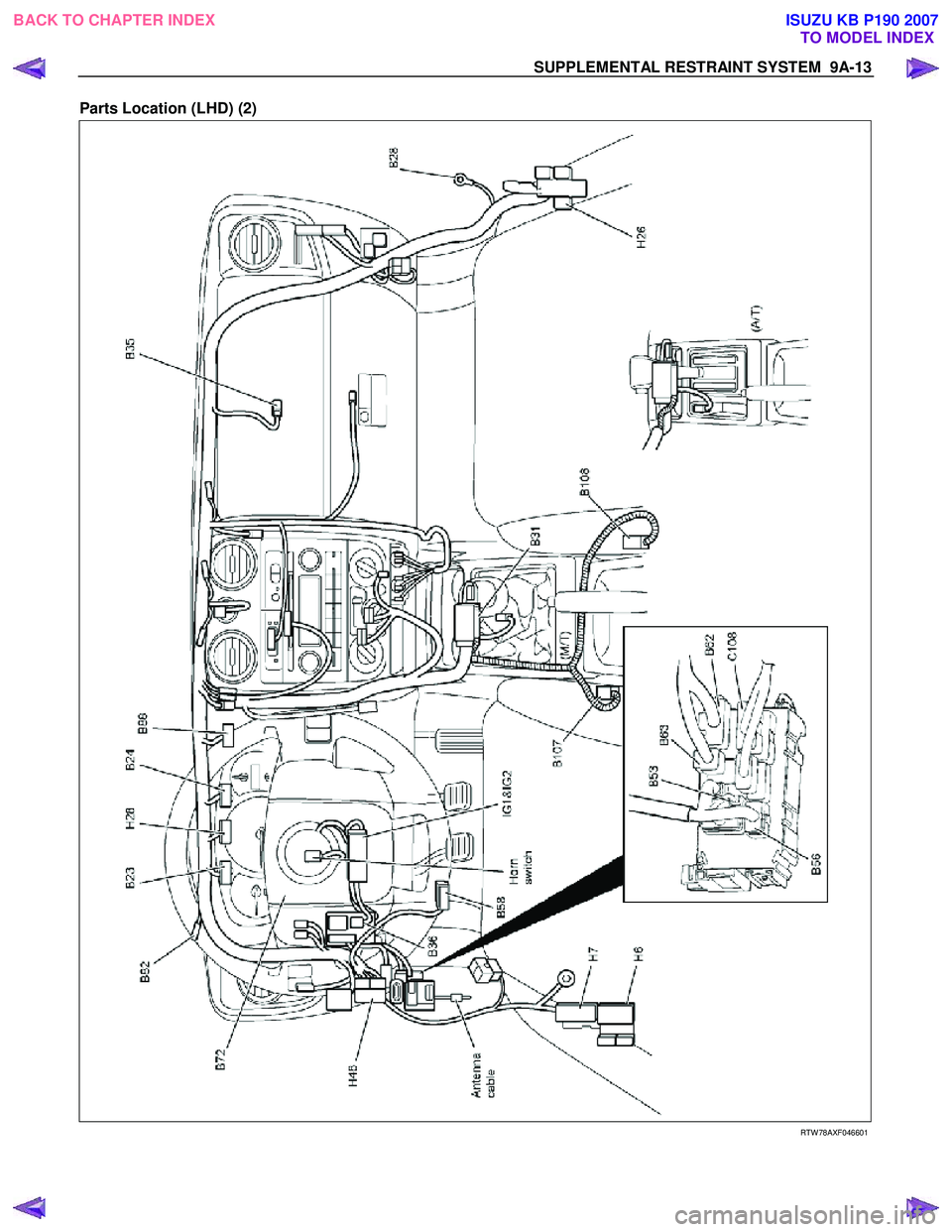

ISUZU KB P190 2007 Workshop Repair Manual SUPPLEMENTAL RESTRAINT SYSTEM 9A-13 Parts Location (LHD) (2) RTW 78AXF046601 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
