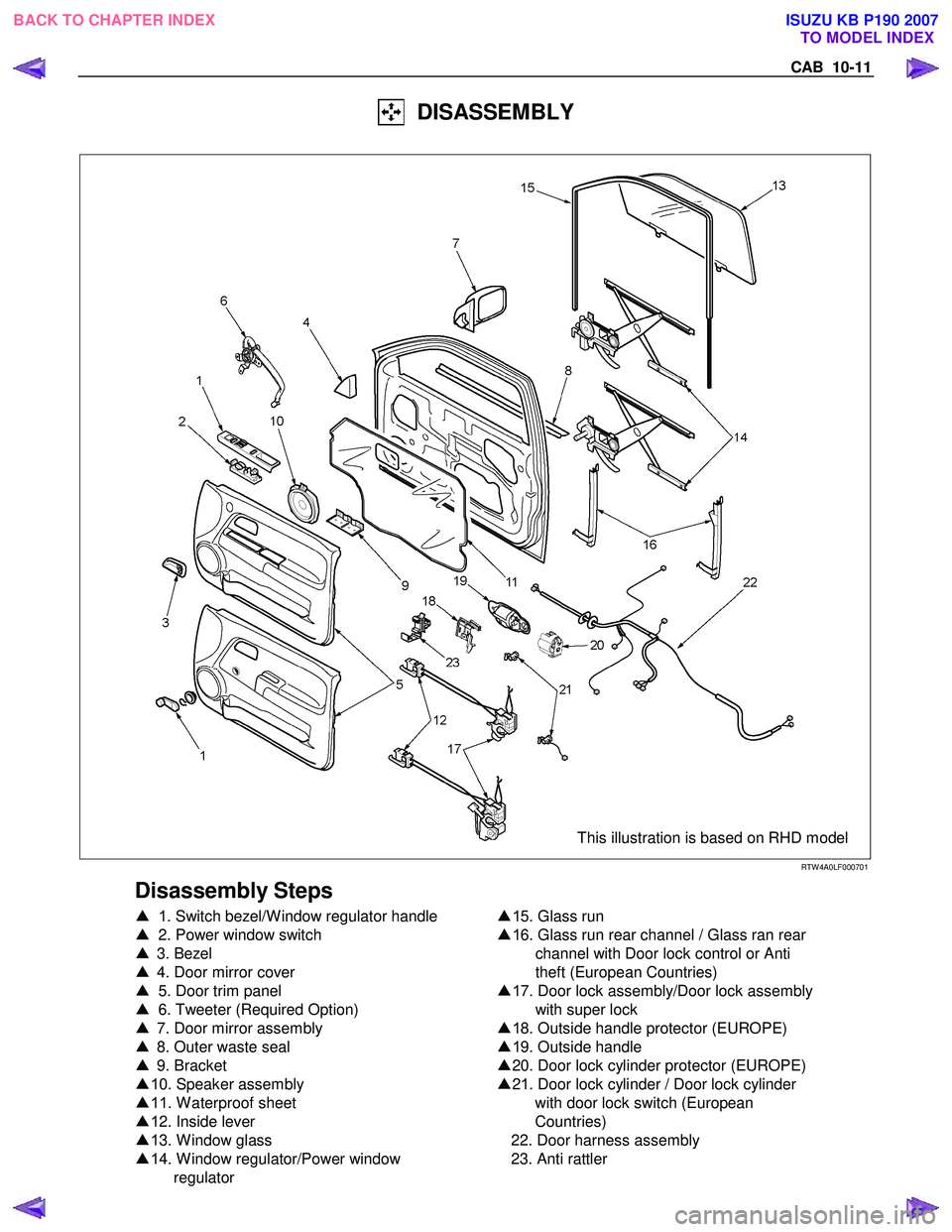

ISUZU KB P190 2007 Workshop Repair Manual CAB 10-11 DISASSEMBLY This illustration is based on RHD model RTW 4A0LF000701 Disassembly Steps ▲ 1 . Switch bezel/W indow regulator handle ▲ 2. Power window switch ▲ 3.

Page 5770 of 6020

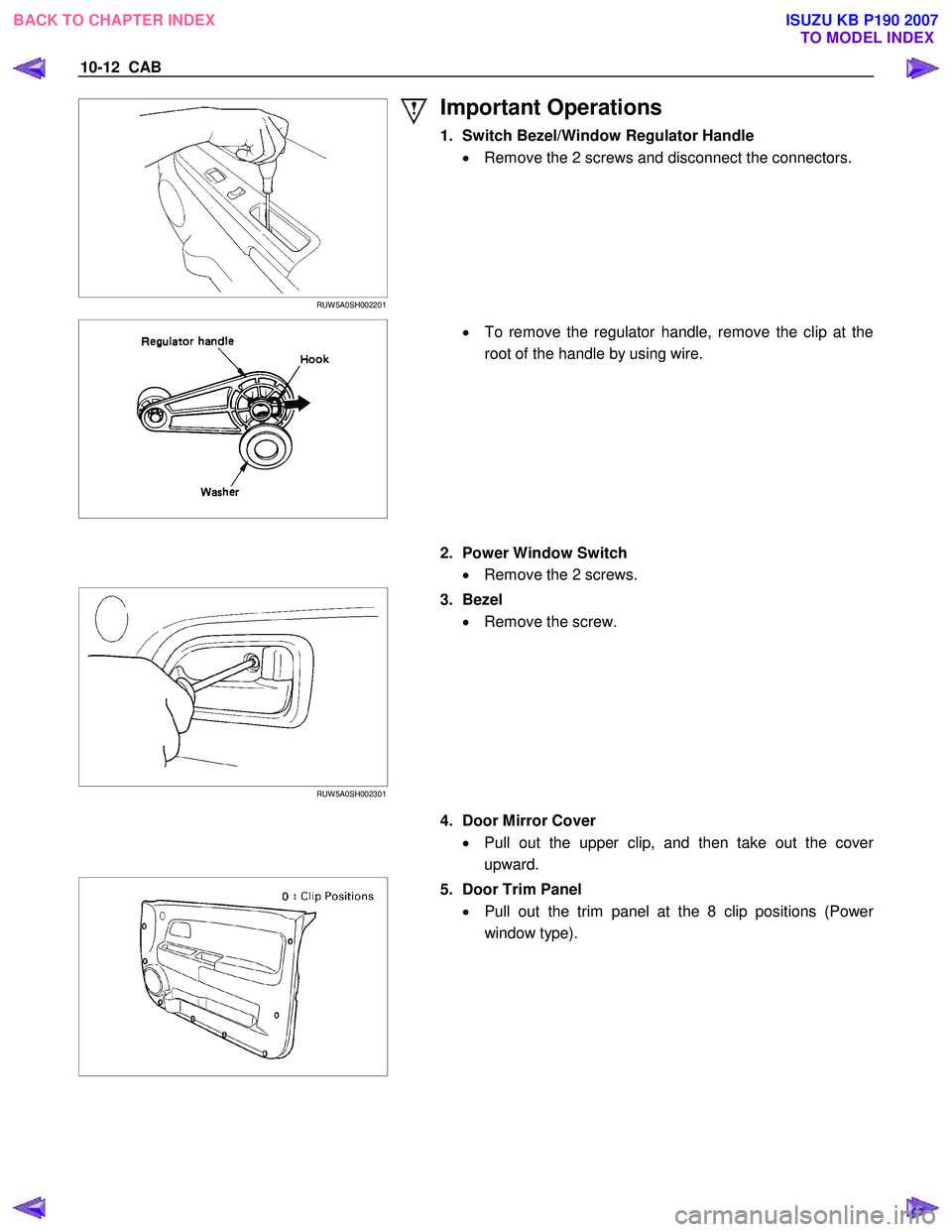

ISUZU KB P190 2007 Workshop Repair Manual 10-12 CAB RUW 5A0SH002201 Important Operations 1. Switch Bezel/Window Regulator Handle • Remove the 2 screws and disconnect the connectors. • To remove the regulator handle

Page 5771 of 6020

ISUZU KB P190 2007 Workshop Repair Manual CAB 10-13 • Remove the 2 screws and pull out the trim panel at the 8 clip positions (W indow regulator handle type). RTW 3A0SH00070 1 6. Tweeter (Required option) • Disconnect the t

Page 5772 of 6020

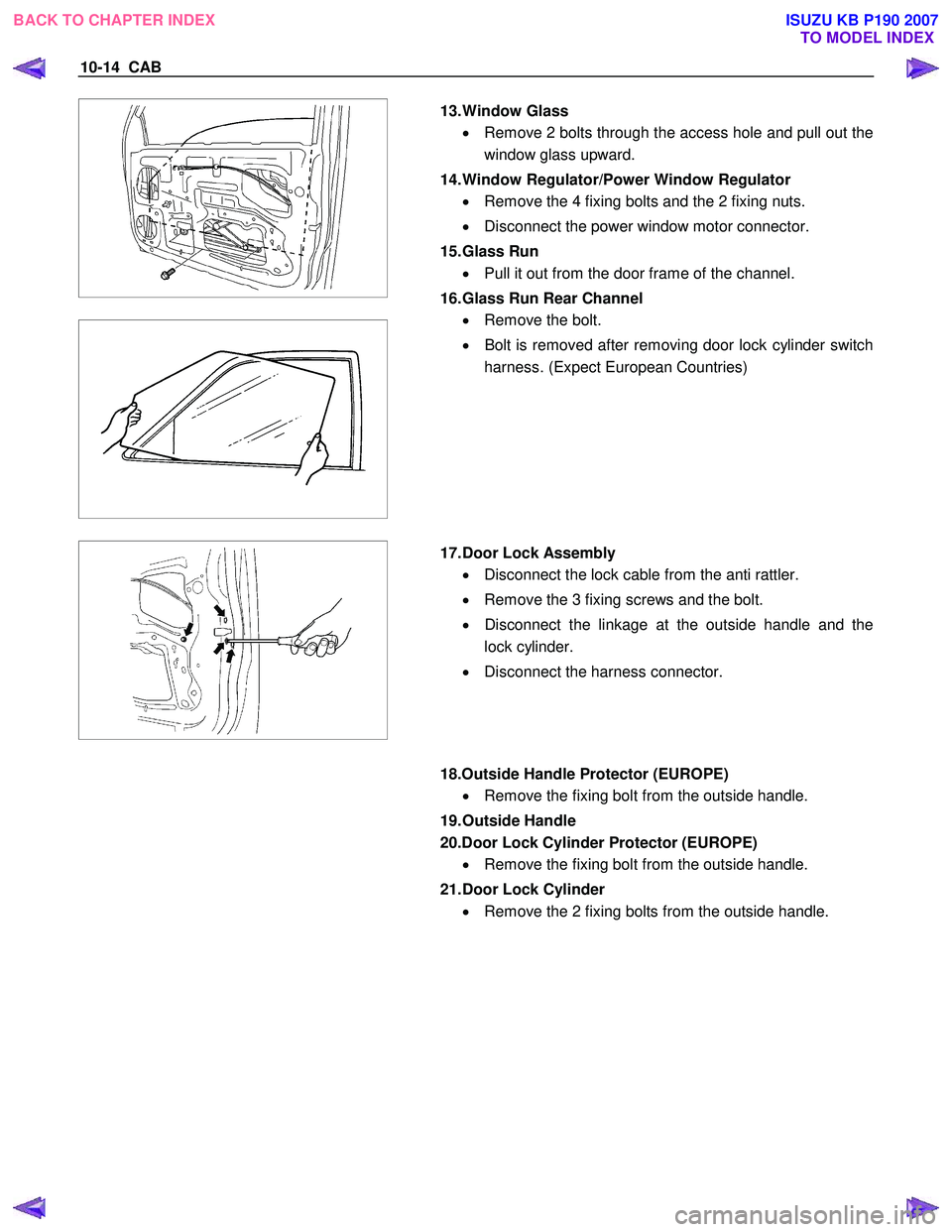

ISUZU KB P190 2007 Workshop Repair Manual 10-14 CAB 13. Window Glass • Remove 2 bolts through the access hole and pull out the window glass upward. 14. Window Regulator/Power Window Regulator • Remove the 4 fixi

Page 5773 of 6020

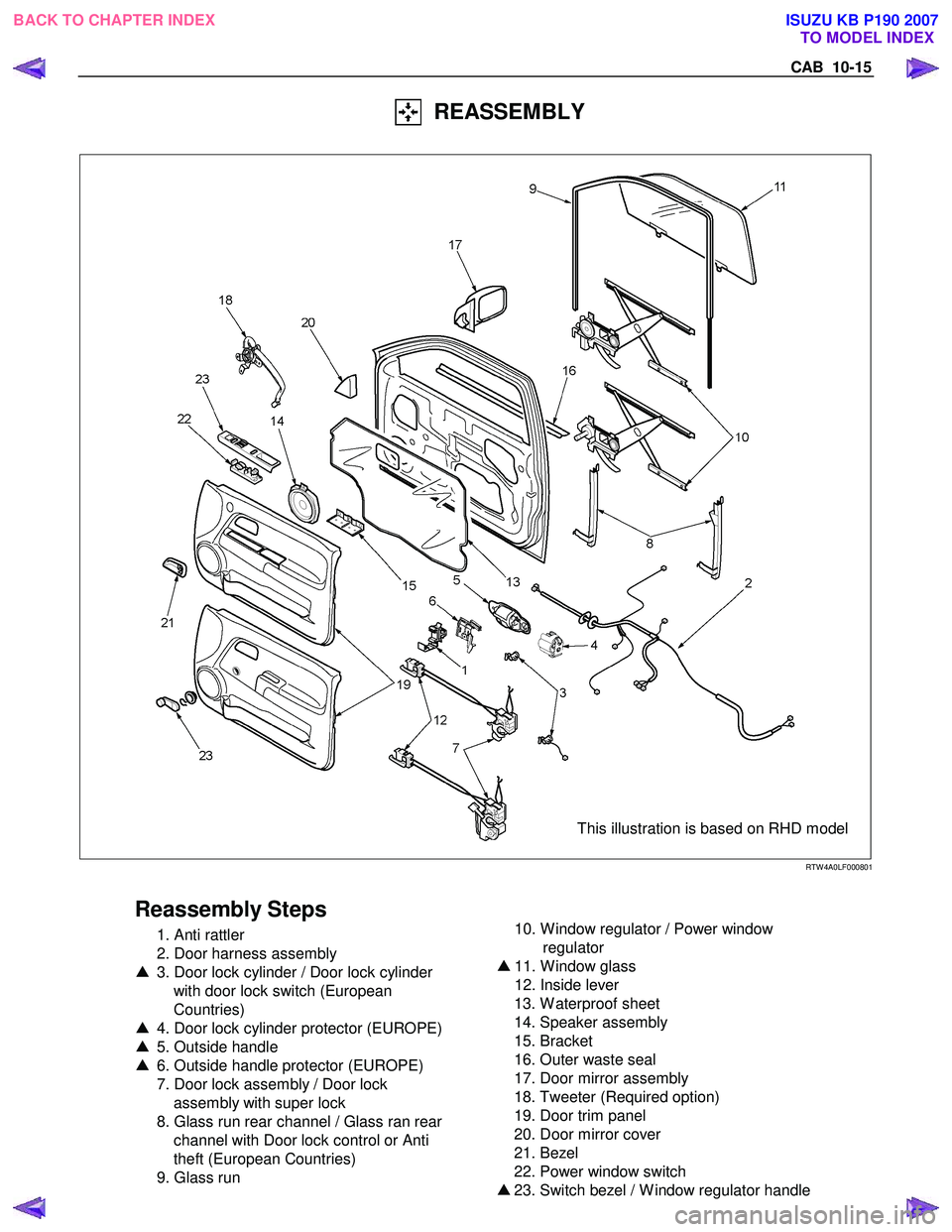

ISUZU KB P190 2007 Workshop Repair Manual CAB 10-15 REASSEMBLY This illustration is based on RHD model RTW 4A0LF000801 Reassembly Steps 1. Anti rattler 2. Door harness assembly ▲ 3. Door lock cylinder / Door

Page 5774 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 10-16 CAB Important Operations 3. Door Lock Cylinder • Tighten the door lock cylinder fixing bolts to the specified torque. Torque N ⋅m (kgf ⋅m/lb ⋅in) 9 (0.9/78) 4. Door L

Page 5775 of 6020

ISUZU KB P190 2007 Workshop Repair Manual CAB 10-17 23. Window Regulator Handle • Install the regulator handle as illustrated when closing the window glass. BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 5776 of 6020

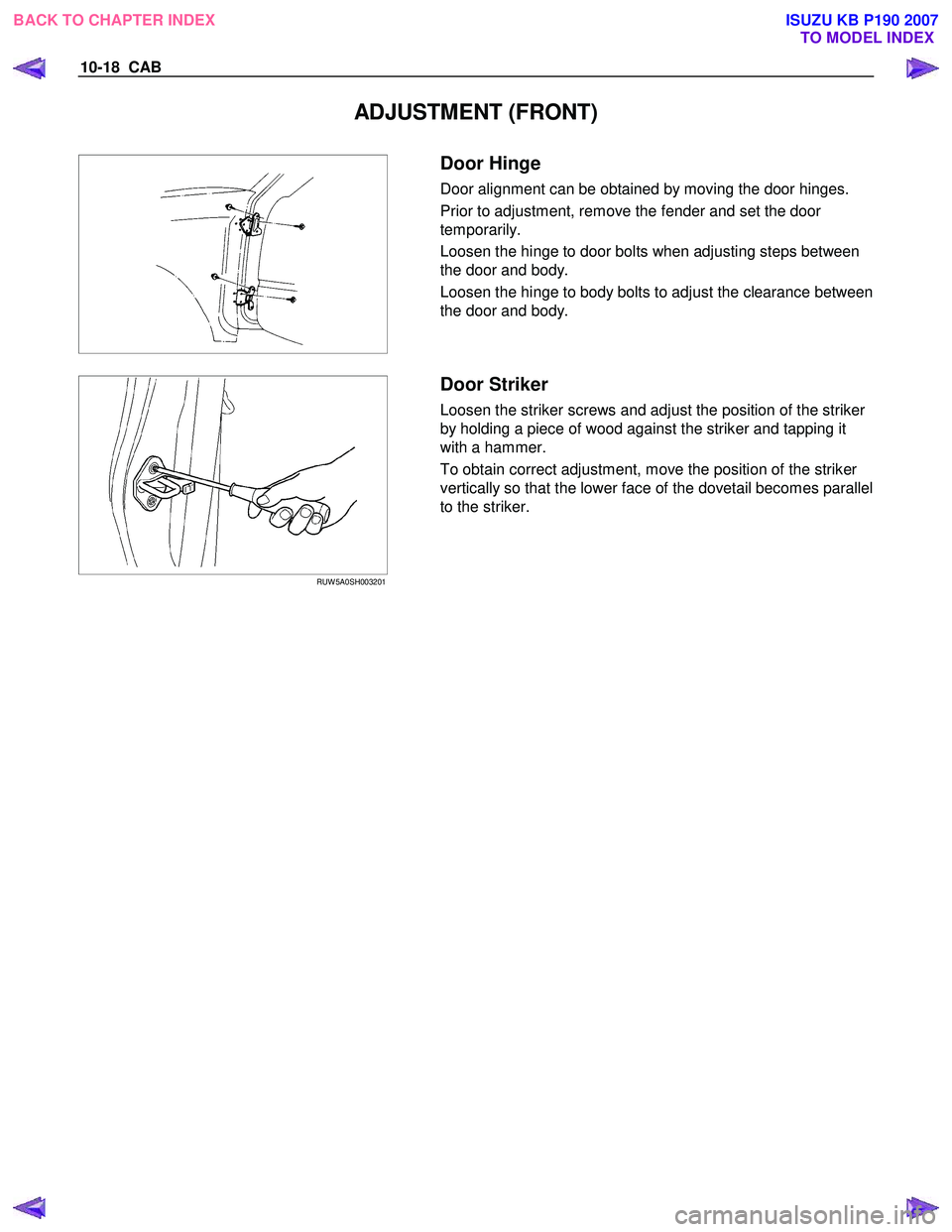

ISUZU KB P190 2007 Workshop Repair Manual 10-18 CAB ADJUSTMENT (FRONT) Door Hinge Door alignment can be obtained by moving the door hinges. Prior to adjustment, remove the fender and set the door temporarily. Loosen the h
