Automatic Transmission – 4L60E – On-vehicle Servicing Page 7C4–8
3 Service Operations
3.1 Fluid Change and Filter Replacement
To avoid personal injury take note of the
following:
• Avoid accidental hot oil spillage by
performing fluid change only when the
transmission fluid is cold.
• Wear safety glasses and gloves when
using compressed air and cleaning fluids.
Remove
1 Raise the vehicle and support in a safe manner, refer to 0A General Information.
2 Clean all dirt from around the oil pan and the transmission case.
3 Place a suitable sized drain tray under the transmission.
4 Hold the oil pan (1) in place and remove the oil pan bolts (2) from the front and both sides.
NOTE
Leave the three rear oil pan bolts in place.
5 Loosen the three rear oil pan bolts by about 4 turns each. While still supporting the oil pan, lightly tap the
sides with a rubber hammer to break the gasket (3)
seal.
6 Lower the front of the oil pan and drain the fluid into a suitable container.
7 Remove the three remaining rear bolts and the oil pan from the transmission.
8 Remove the oil pan gasket and discard.
Figure 7C4 – 2
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3922 of 6020

Automatic Transmission – 4L60E – On-vehicle Servicing Page 7C4–9
9 Remove the oil filter (1) by pulling down while twisting
the filter and remove it from the transmission.
10 Open the filter by prising the metal crimping away from the top of the filter and pull it apart.
11 Inspect the filter material for particles that may indicate evidence of a potential transmission problem.
Examples of the type of material are:
• clutch friction material,
• bronze slivers, indicating bush wear and
• steel particles.
Figure 7C4 – 3
Take care not to scratch the oil pump bore,
as fluid leakage could occur from this point
or the pump may suck in air, causing the
fluid to aerate.
12 Using suitable circlip pliers (1) or a two legged puller and slide hammer, remove the oil filter seal (2) taking
care not to scratch the oil pump bore (3) during the
process. Discard the seal.
Figure 7C4 – 4
Reinstall
1 Clean the oil pan in a commercially available cleaning fluid and blow dry using compressed air.
NOTE
Ensure all traces of the old gasket are removed
from the transmission and oil pan.
2 W ipe the transmission case gasket mating surface with a clean lint free cloth.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3923 of 6020

Automatic Transmission – 4L60E – On-vehicle Servicing Page 7C4–10
3 Lubricate a new oil filter seal (1) with clean
transmission fluid and install into the oil pump bore (2)
using a suitable sized socket or piece of tubing.
4 Install a new filter into the transmission case.
5 Check if the magnet is functional and located in the designated position in the oil pan. Install a new gasket
and reinstall the oil pan.
6 Tighten the bolts attaching the oil pan to the correct torque specification.
Oil pan attaching bolt
torque specification ............................................ 12.0 Nm
Figure 7C4 – 5
7 Lower vehicle and add approximately 4.8 litres of automatic transmission fluid.
8 Operate the vehicle for about 24 km or until normal transmission operating temperature is reached, refer to 2.1 Transmission Fluid.
9 Ensure there are no fluid leaks from the oil pan area, rectify as required.
10 Check and top up the transmission fluid to the correct level as required, refer 2.1 Transmission Fluid.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3924 of 6020
Automatic Transmission – 4L60E – On-vehicle Servicing Page 7C4–11

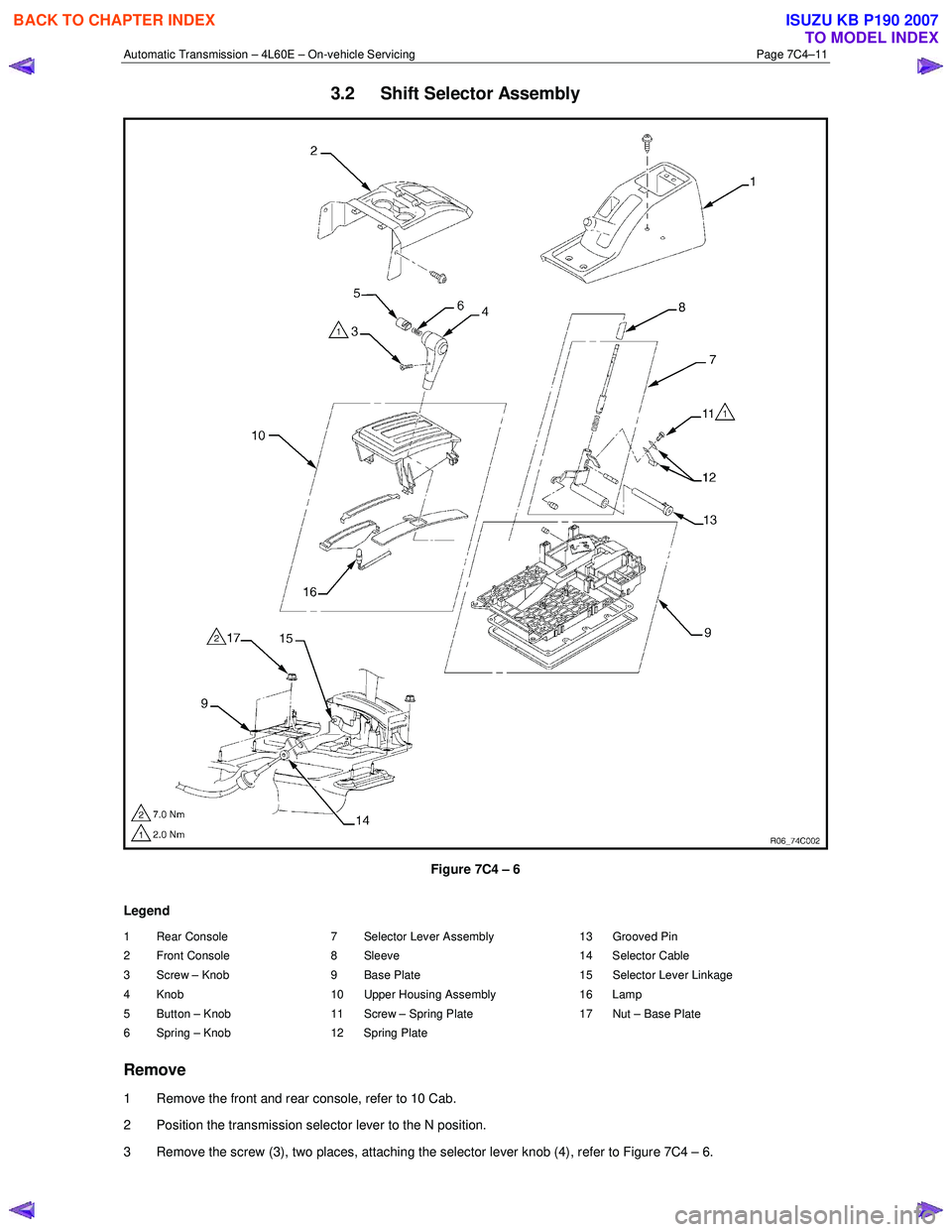

3.2 Shift Selector Assembly
Figure 7C4 – 6
Legend
1 Rear Console
2 Front Console
3 Screw – Knob
4 Knob
5 Button – Knob
6 Spring – Knob 7 Selector Lever Assembly
8 Sleeve
9 Base Plate
10 Upper Housing Assembly
11 Screw – Spring Plate
12 Spring Plate 13 Grooved Pin
14 Selector Cable
15 Selector Lever Linkage
16 Lamp
17 Nut – Base Plate
Remove
1 Remove the front and rear console, refer to 10 Cab.
2 Position the transmission selector lever to the N position.
3 Remove the screw (3), two places, attaching the selector lever knob (4), refer to Figure 7C4 – 6.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3925 of 6020

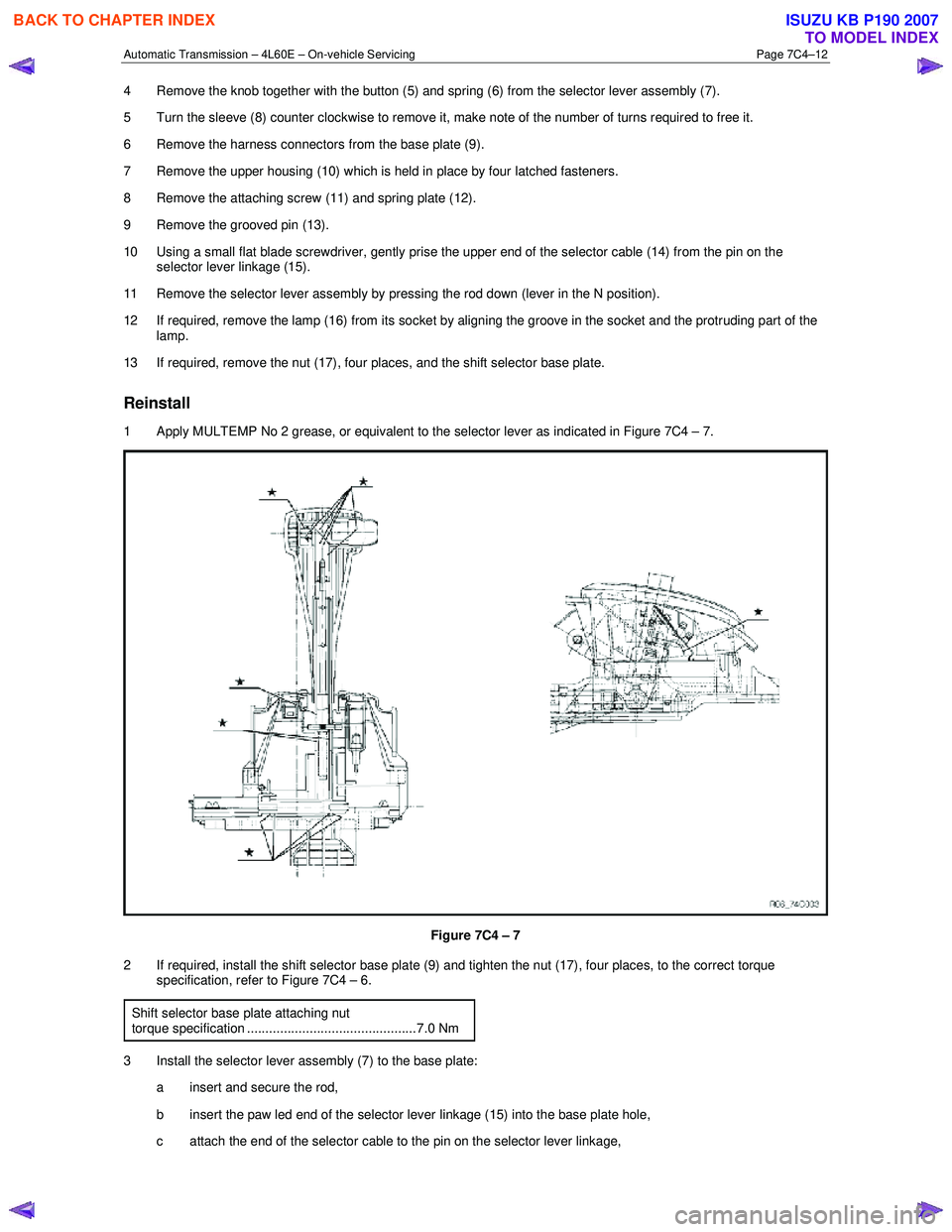

Automatic Transmission – 4L60E – On-vehicle Servicing Page 7C4–12
4 Remove the knob together with the button (5) and spring (6) from the selector lever assembly (7).
5 Turn the sleeve (8) counter clockwise to remove it, make note of the number of turns required to free it.
6 Remove the harness connectors from the base plate (9).
7 Remove the upper housing (10) which is held in place by four latched fasteners.
8 Remove the attaching screw (11) and spring plate (12).
9 Remove the grooved pin (13).
10 Using a small flat blade screwdriver, gently prise the upper end of the selector cable (14) from the pin on the selector lever linkage (15).
11 Remove the selector lever assembly by pressing the rod down (lever in the N position).
12 If required, remove the lamp (16) from its socket by aligning the groove in the socket and the protruding part of the lamp.
13 If required, remove the nut (17), four places, and the shift selector base plate.
Reinstall
1 Apply MULTEMP No 2 grease, or equivalent to the selector lever as indicated in Figure 7C4 – 7.
Figure 7C4 – 7
2 If required, install the shift selector base plate (9) and tighten the nut (17), four places, to the correct torque specification, refer to Figure 7C4 – 6.
Shift selector base plate attaching nut
torque specification ..............................................7.0 Nm
3 Install the selector lever assembly (7) to the base plate: a insert and secure the rod,
b insert the paw led end of the selector lever linkage (15) into the base plate hole,
c attach the end of the selector cable to the pin on the selector lever linkage,
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3926 of 6020

Automatic Transmission – 4L60E – On-vehicle Servicing Page 7C4–13
d Install the grooved pin (13) in the selector lever.
4 Insert the grooved pin in the base plate détente groove until it touches the front wall. The selector lever is in
the N position.
Figure 7C4 – 8
5 Install the spring plate (12) and tighten the screw (11) to the correct torque specification, refer to Figure 7C4 – 6.
Spring plate attaching screw
torque specification ..............................................2.0 Nm
6 W ith the selector lever knob temporarily installed, ensure the grooved pin of the selector lever moves smoothly in the base plate détente groove.
7 Temporarily install the sleeve (8).
8 If previously removed, install the lamp (16) by aligning the groove in the socket and the protruding part of the lamp and rotate the lamp 90 degrees clockwise.
9 Attach the harness connectors to the base plate.
10 Position the transmission selector lever to the P position.
11 Install the sleeve (8) by rotating it clockwise the same number of turns as noted on removal.
12 Fit the upper housing (10) over the selector lever assembly, do not secure at this stage.
13 Install the knob (4) together with the button (5) and spring (6) to the selector lever assembly.
14 Adjust the clearance (2) between the base plate détente groove and the grooved pin by moving the
selector lever knob sleeve (1).
Base plate détente groove and
grooved pin clearance................................ 0.2 – 1.0 mm
Figure 7C4 – 9
15 Install the screw (3), two places, attaching the knob and tighten to the correct torque specification, refer to Figure 7C4 – 6.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3927 of 6020

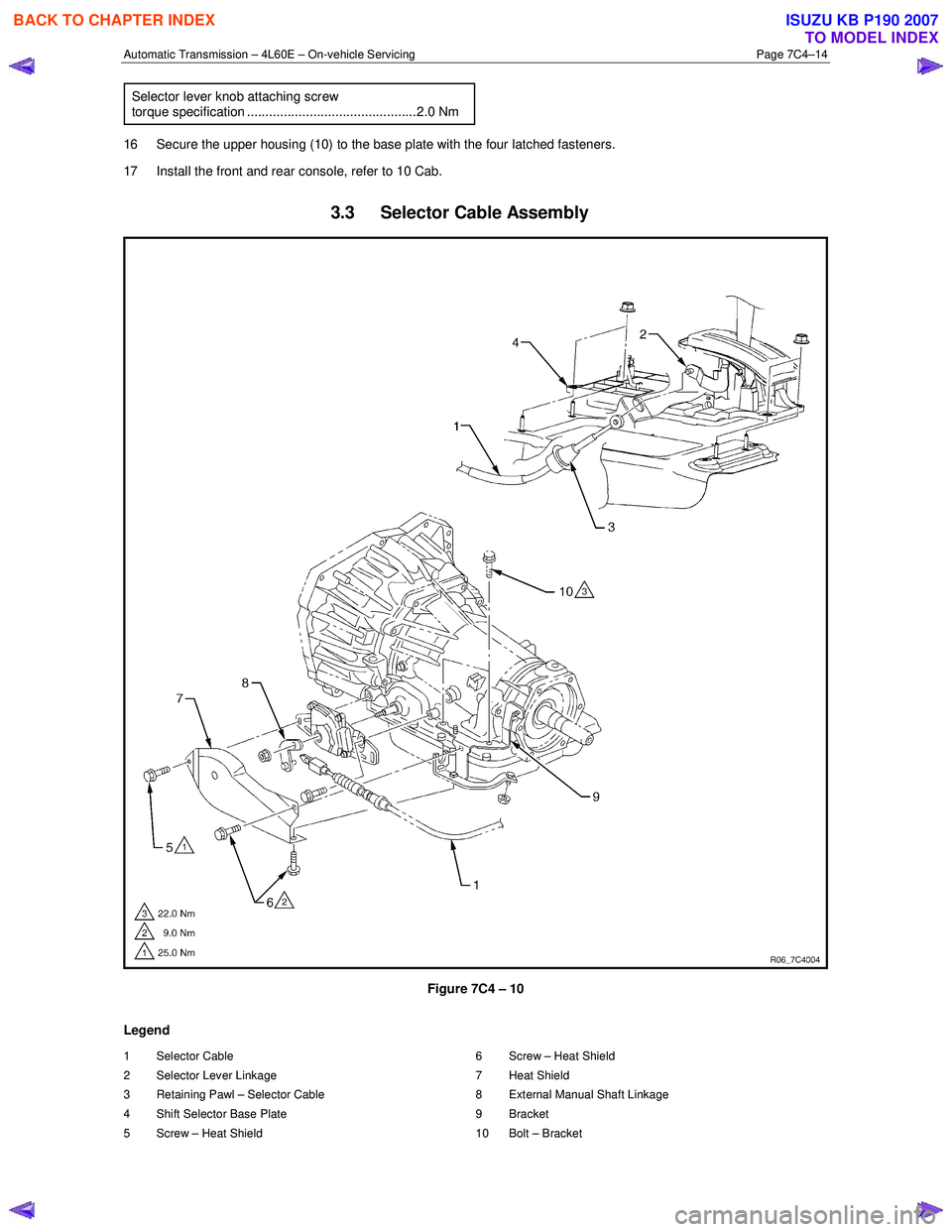

Automatic Transmission – 4L60E – On-vehicle Servicing Page 7C4–14
Selector lever knob attaching screw torque specification ..............................................2.0 Nm
16 Secure the upper housing (10) to the base plate with the four latched fasteners.
17 Install the front and rear console, refer to 10 Cab.
3.3 Selector Cable Assembly
Figure 7C4 – 10
Legend
1 Selector Cable
2 Selector Lever Linkage
3 Retaining Pawl – Selector Cable
4 Shift Selector Base Plate
5 Screw – Heat Shield 6 Screw – Heat Shield
7 Heat Shield
8 External Manual Shaft Linkage
9 Bracket
10 Bolt – Bracket
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3928 of 6020

Automatic Transmission – 4L60E – On-vehicle Servicing Page 7C4–15
Remove
1 Remove the front and rear console, refer to 10 Cab.
2 Position the transmission selector lever to the N position.
3 Using a small flat blade screwdriver, gently prise the upper end of the selector cable (1) from the pin on the selector lever linkage (2), refer to Figure 7C4 – 10.
4 Press on the selector cable retaining pawl (3) to remove the cable from the shift selector base plate (4).
5 Raise the vehicle and support in a safe manner, refer to 0A General Information for the location of support points.
6 Remove the three attaching screws (5 and 6) and the heat shield (7).
7 Using a small flat blade screwdriver, gently prise the transmission end of the selector cable from the transmission external manual shaft linkage (8).
8 Remove the clip and selector cable from the bracket (9).
9 Pull the selector cable free from the bottom of the vehicle.
10 If required, remove the two attaching bolts (10) and the selector cable bracket.
Reinstall
1 Install the selector cable (1) toward the inside of the cabin from under the vehicle, refer to Figure 7C4 – 10.
2 Push the end of the selector cable into the shift selector base plate (4).
3 Attach the end of the selector cable to the pin on the selector lever linkage (2).
4 If required, install the selector cable bracket (9), tighten the two attaching bolts (10) to the correct torque specification.
Selector cable bracket attaching
bolt torque specification ..................................... 22.0 Nm
5 Fit the selector cable to the bracket and install the clip on the marking of the selector cable.
6 Ensure the selector lever is in the N position.
7 Ensure the transmission external manual shaft linkage (8) is in the N position.
Figure 7C4 – 11
