Page 4529 of 6020
7A4-52 UNIT REPAIR (JR405E)
40C&L-SUB46
15.Bearing race
16.Rear carrier
17.Bearing Install the bearing race and the bearing to the rear carrier.
NOTE:
Apply Vaseline to the fitting surfaces of the rear carrier to
prevent the bearing race and the bearing from falling
during the installation process.
41C&L-SUB49
42C&L-SUB61
• Install the rear carrier to the low clutch drum.
43C&L-SUB07
18.Rear sun gear
Install the rear sun gear to the low clutch drum.
44C&L-SUB52
19.Bearing (with bearing race)
20.Front carrier Install the bearing (with bearing race) to the front carrier.
NOTE:
Apply Vaseline to the fitting surfaces of the front carrier to
prevent the bearing from falling during the installation
process.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4530 of 6020
UNIT REPAIR (JR405E) 7A4-53
45C&L-SUB04

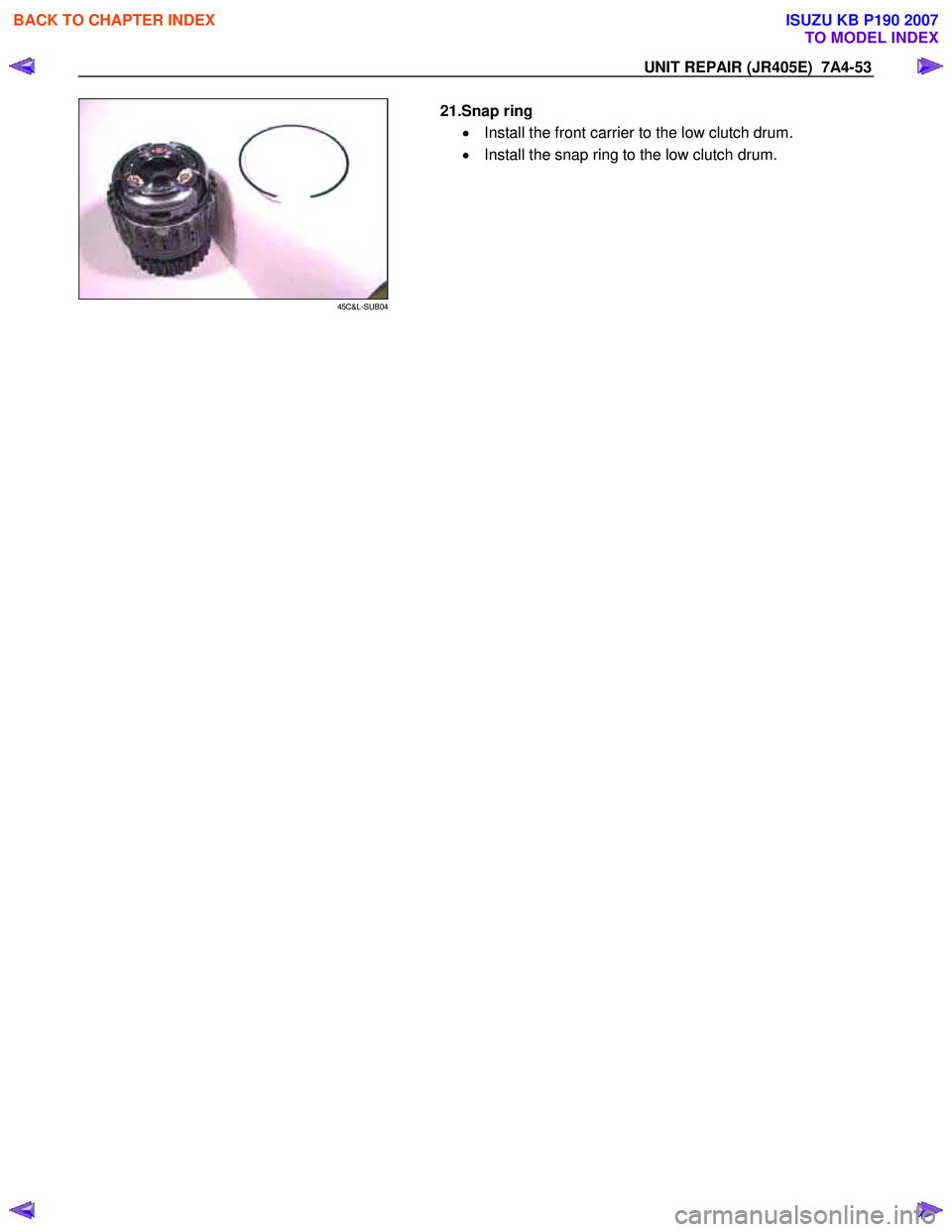

21.Snap ring
• Install the front carrier to the low clutch drum.
• Install the snap ring to the low clutch drum.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4531 of 6020
7A4-54 UNIT REPAIR (JR405E)

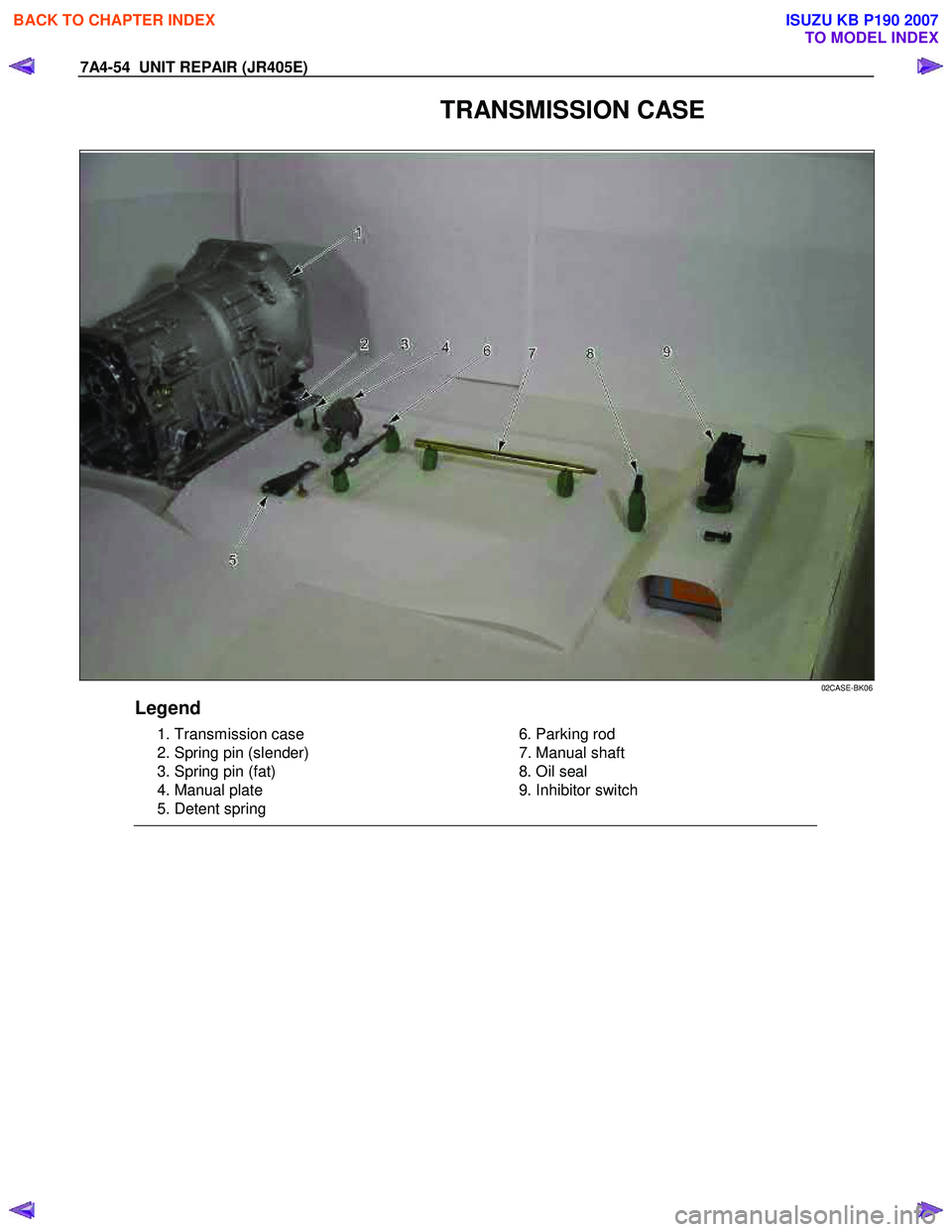

TRANSMISSION CASE
02CASE-BK06
Legend
1. Transmission case
2. Spring pin (slender)
3. Spring pin (fat)
4. Manual plate
5. Detent spring
6. Parking rod
7. Manual shaft
8. Oil seal
9. Inhibitor switch
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4532 of 6020
UNIT REPAIR (JR405E) 7A4-55
01L&R-CS05
Legend
1. Seal ring
2. Low one-way clutch inner race
3. Return spring
4. Low and reverse brake piston
5. Seal ring
6. Lip seal
7. Transmission case
8. Snap ring
9. Retaining plate
10. Driven plate
11. Drive plate
12. Dish plate
04CASE-AY52
Disassembly steps
1. Harness assembly
Remove the fixing bolt and the harness assembly.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4533 of 6020
7A4-56 UNIT REPAIR (JR405E)
05CASE-AY30

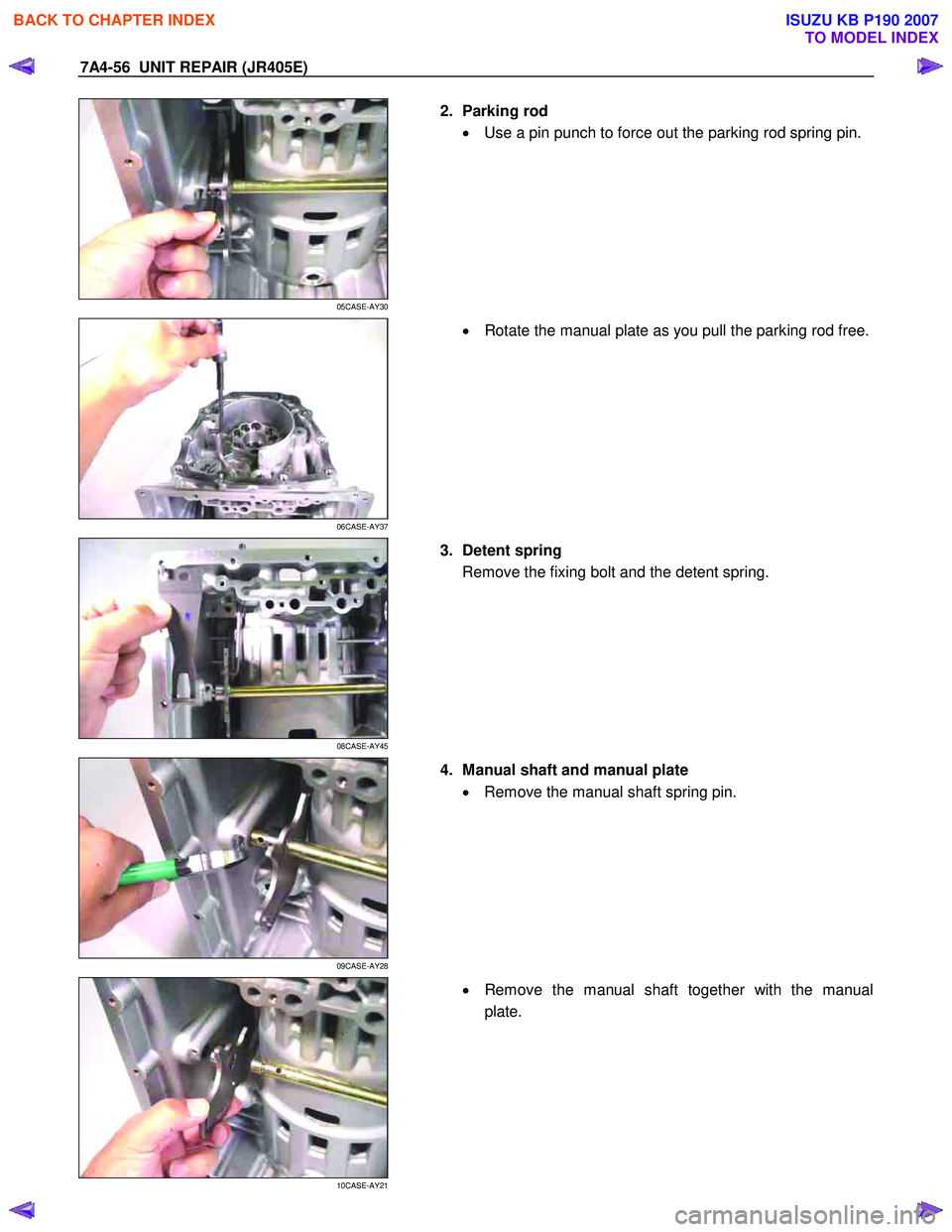

2. Parking rod
• Use a pin punch to force out the parking rod spring pin.
06CASE-AY37
•
Rotate the manual plate as you pull the parking rod free.
08CASE-AY45
3. Detent spring
Remove the fixing bolt and the detent spring.
09CASE-AY28
4. Manual shaft and manual plate
• Remove the manual shaft spring pin.
10CASE-AY21
•
Remove the manual shaft together with the manual
plate.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4534 of 6020

UNIT REPAIR (JR405E) 7A4-57
11CASE-AY01

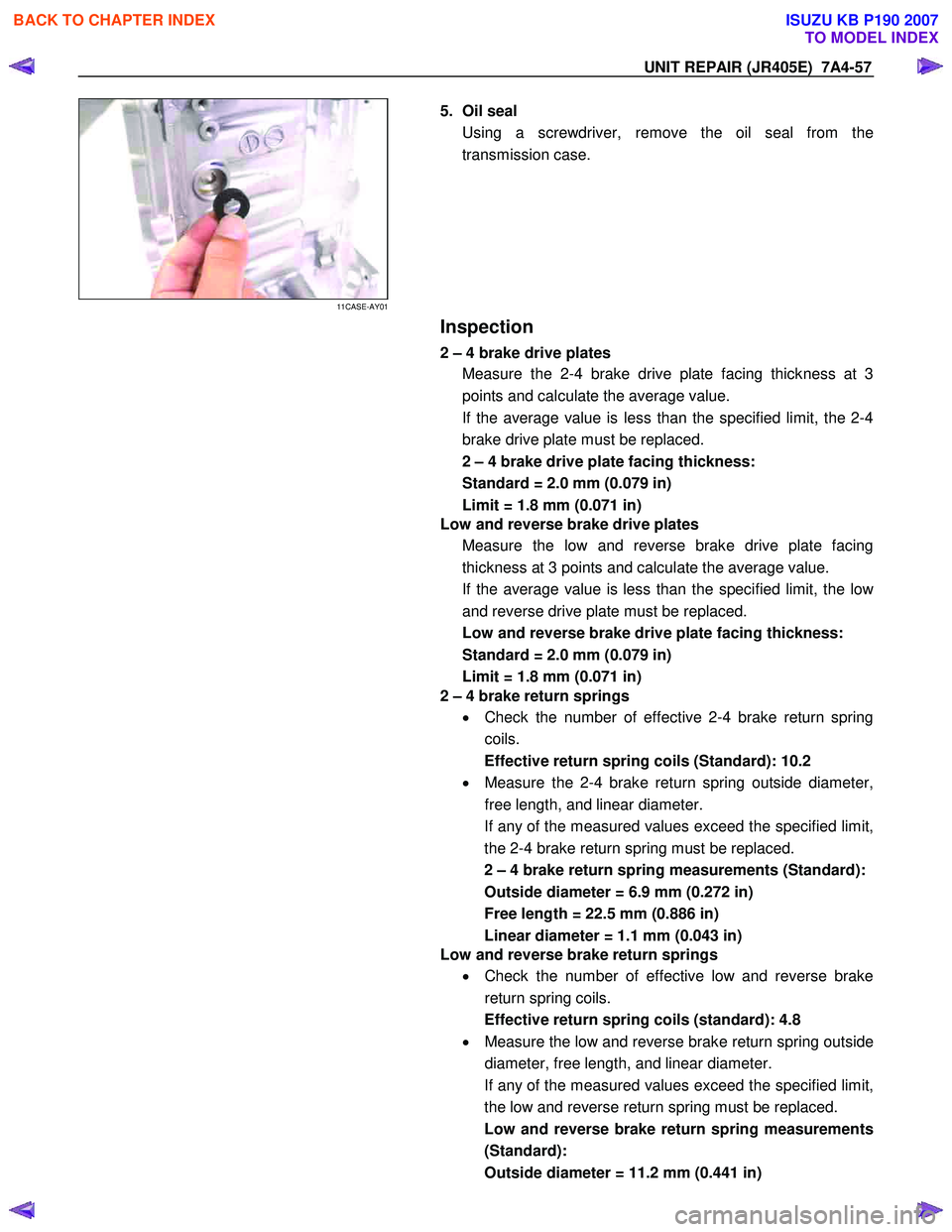

5. Oil seal
Using a screwdriver, remove the oil seal from the
transmission case.
Inspection
2 – 4 brake drive plates
Measure the 2-4 brake drive plate facing thickness at 3
points and calculate the average value.
If the average value is less than the specified limit, the 2-4
brake drive plate must be replaced.
2 – 4 brake drive plate facing thickness:
Standard = 2.0 mm (0.079 in)
Limit = 1.8 mm (0.071 in)
Low and reverse brake drive plates
Measure the low and reverse brake drive plate facing
thickness at 3 points and calculate the average value.
If the average value is less than the specified limit, the lo
w
and reverse drive plate must be replaced.
Low and reverse brake drive plate facing thickness:
Standard = 2.0 mm (0.079 in)
Limit = 1.8 mm (0.071 in)
2 – 4 brake return springs
• Check the number of effective 2-4 brake return spring
coils.
Effective return spring coils (Standard): 10.2
• Measure the 2-4 brake return spring outside diameter,
free length, and linear diameter.
If any of the measured values exceed the specified limit,
the 2-4 brake return spring must be replaced.
2 – 4 brake return spring measurements (Standard):
Outside diameter = 6.9 mm (0.272 in)
Free length = 22.5 mm (0.886 in)
Linear diameter = 1.1 mm (0.043 in)
Low and reverse brake return springs
• Check the number of effective low and reverse brake
return spring coils.
Effective return spring coils (standard): 4.8
• Measure the low and reverse brake return spring outside
diameter, free length, and linear diameter.
If any of the measured values exceed the specified limit,
the low and reverse return spring must be replaced.
Low and reverse brake return spring measurements
(Standard):
Outside diameter = 11.2 mm (0.441 in)
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4535 of 6020
7A4-58 UNIT REPAIR (JR405E)
Free length = 22.3 mm (0.878 in)
Linear diameter = 1.1 mm (0.043 in)
12CASE-AY06

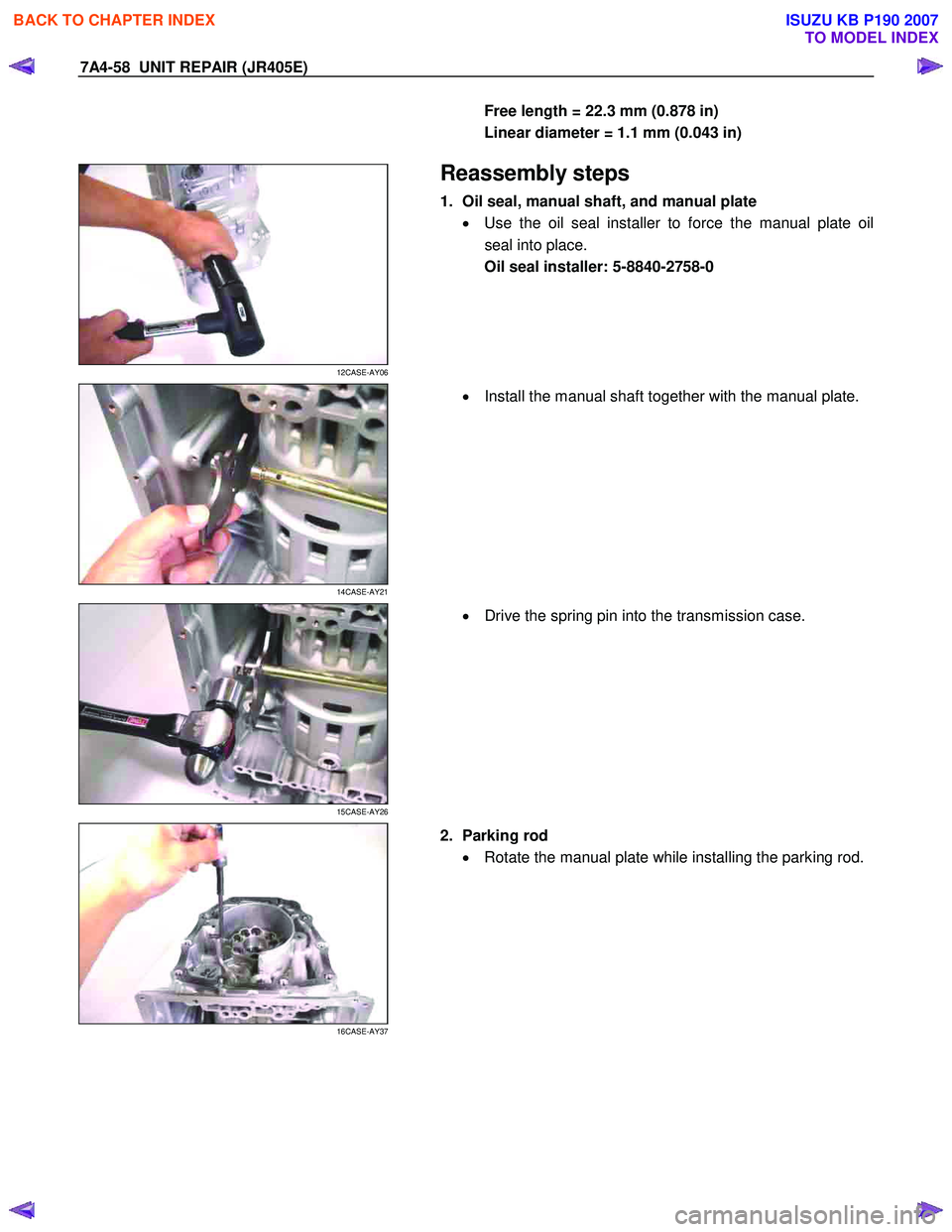

Reassembly steps
1. Oil seal, manual shaft, and manual plate
• Use the oil seal installer to force the manual plate oil
seal into place.
Oil seal installer: 5-8840-2758-0
14CASE-AY21
•
Install the manual shaft together with the manual plate.
15CASE-AY26
•
Drive the spring pin into the transmission case.
16CASE-AY37
2. Parking rod
• Rotate the manual plate while installing the parking rod.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4536 of 6020
UNIT REPAIR (JR405E) 7A4-59
18CASE-AY43
•
Use a pin punch to drive the manual plate spring pin into
place.
21CASE-AY48
3. Detent spring
• Install the detent spring and tighten the fixing bolt to the
specified torque.
Torque: 7 N ⋅
⋅⋅
⋅
m (0.7 kgf ⋅
⋅⋅
⋅
m/61 Ib ⋅
⋅⋅
⋅
in)
23CASE-AY53
4. Harness assembly
• Apply automatic transmission fluid to the new O-ring and
install them to the harness assembly.
• Install the harness assembly to the transmission case.
Tighten the fixing bolt to the specified torque.
Torque: 6 N ⋅
⋅⋅
⋅
m (0.6 kgf ⋅
⋅⋅
⋅
m/52 Ib ⋅
⋅⋅
⋅
in)
24ASSY003
5. Low one-way clutch inner race
• Install new seal rings to the low one-way clutch inne
r
race.
25ASSY126
•
Measure the gap between the seal ring and the ring
groove.
If the measured valve is outside the specified range the
low one-way clutch inner race must be replaced.
Sealing ring and ring groove gap:
0.10~0.25 mm (0.0039~0.0098 in)
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
