2007 ISUZU KB P190 Workshop Repair Manual

USB lug pattern battery capacity air suspension mirror oil pressure

Page 5705 of 6020

ISUZU KB P190 2007 Workshop Repair Manual RESTRAINT CONTROL SYSTEM 9A1-23

DTC B0018 (Flash Code 18) Passenger Air Bag Squib Circuit Short to GND

RTW 79ALF000301
Circuit Description
W hen the ignition switch is turned “ON”

Page 5706 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 9A1-24 RESTRAINT CONTROL SYSTEM

DTC Will Clear When
The “Passenger Bag Low" voltage comes to specified
voltage.

DTC Chart Test Description
Number(s) below refer to circled number(s) on th

9A1-24 RESTRAINT CONTROL SYSTEM

DTC Will Clear When
The “Passenger Bag Low" voltage comes to specified
voltage.

DTC Chart Test Description
Number(s) below refer to circled number(s) on the
diagnostic chart.
2. This test determines whether the SRS control unit is malfunctioning.
3. This test isolates the malfunction to one side of the passenger air bag assembly yellow connecto
r
behind the glove box compartment.

4. This test determines whether the malfunction is in
the “Passenger Bag High” circuit.
5. This test determines whether the malfunction is in the “Passenger Bag Low” circuit.

Diagnostic Aids
An intermittent condition is likely to be caused by a short
to ground/+B in the passenger air bag assembly circuit.
Inspect circuits “Passenger Bag High” and “Passenge
r
Bag Low” carefully for cutting or chafing. If the wiring
pigtail of the passenger air bag assembly is damaged,
the component must be replaced.

DTC B0018 (Flash Code 18) Passenger Air Bag Squib Circuit Short to GND

Step Action Yes No
1 W as the “SRS Diagnostic System Check” performed?
Go to Step 2 Go to the “SRS
Diagnostic System Check”
2 1. W hen measurements are requested in this chart use a 5-
8840-0366-0 DMM with a correct terminal adapter from 5-
8840-2835-0.
2. Ignition switch is at “LOCK”.
3. Ignition switch is “ON”.
4. Check the passenger air bag squib circuit for a short to ground.
W as a problem found? Go to Step 3

3 1. Ignition switch is at “LOCK”.
2. Disconnect the passenger air bag assembly yellow connector behind the glove box assembly.
3. Leave the driver air bag assembly connected.
4. Connect the SRS driver / passenger load tool 5-8840-2421-0 and appropriate adapter to the passenger air bag assembly
harness connector.
5. Ignition switch is “ON”.
Is DTC B0018 current? Go to Step 4 Ignition switch is at
“LOCK”.
Replace
passenger air bag assembly .
Go to Step 6
4 1. Ignition switch is at “LOCK”.
2. Disconnect the SRS driver /passenger load tool.
3. Measure the resistance on the SRS control unit harness connector as follow.
z From terminals "17" to "3" and "23" (ground) (without the
pretensioner)
z From terminals "17" to "3" and "15" (ground) (with the
pretensioner)
Does 5-8840-0366-0 display “OL” (Infinite)? Go to Step 5 Replace SRS
Harness.
Go to Step 6

BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

Page 5707 of 6020

ISUZU KB P190 2007 Workshop Repair Manual RESTRAINT CONTROL SYSTEM 9A1-25

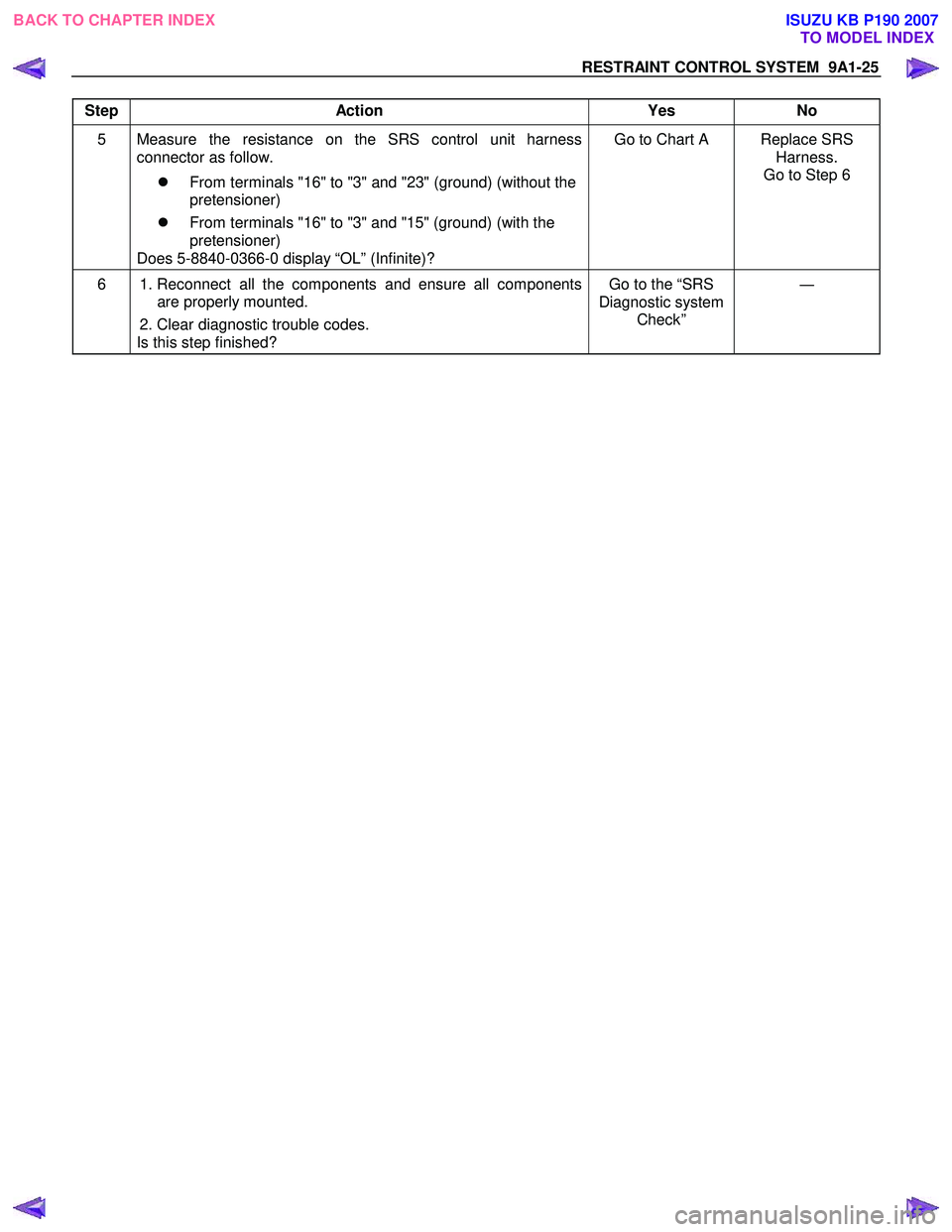

Step Action Yes No
5 Measure the resistance on the SRS control unit harness
connector as follow.
�z From terminals "16" to "3" and "23" (ground) (without th

Page 5708 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 9A1-26 RESTRAINT CONTROL SYSTEM

DTC B0019 (Flash Code 19) Passenger Air Bag Squib Circuit Short to Battery
Voltage

RTW 79ALF000301

Circuit Description
W hen the ignition switch is t

Page 5709 of 6020

ISUZU KB P190 2007 Workshop Repair Manual RESTRAINT CONTROL SYSTEM 9A1-27

DTC Will Clear When
The SRS control unit is replaced and the “Passenger
Bag Low" voltage comes to specified voltage.

DTC Chart Test Description
Number(s) be

RESTRAINT CONTROL SYSTEM 9A1-27

DTC Will Clear When
The SRS control unit is replaced and the “Passenger
Bag Low" voltage comes to specified voltage.

DTC Chart Test Description
Number(s) below refer to circled number(s) on the
diagnostic chart.
2. This test determines whether the SRS control unit is malfunctioning.
3. This test isolates the malfunction to one side of the passenger air bag assembly yellow connecto
r
behind the glove box compartment.
4. This test determines whether the malfunction is in the “Passenger Bag High” circuit.
5. This test determines whether the malfunction is in the “Passenger Bag Low” circuit.
Diagnostic Aids
An intermittent condition is likely to be caused by a short
to ground/+B in the passenger air bag assembly circuit.
Inspect circuits “Passenger Bag High” and “Passenge
r
Bag Low” carefully for cutting or chafing. If the wiring
pigtail of the passenger air bag assembly is damaged,
the component must be replaced.

DTC B0019 (Flash Code 19) Passenger Air Bag Squib Circuit Short to Battery Voltage

Step Action Yes No
1 W as the “SRS Diagnostic System Check” performed? Go to Step 2 Go to the “SRS
Diagnostic System Check”
2 1. W hen measurements are requested in this chart use a 5-
8840-0366-0 DMM with a correct terminal adapter from 5-
8840-2835-0.
2. Ignition switch is at “LOCK”.
3. Ignition switch is “ON”.
4. Check the passenger air bag squib circuit for a short to voltage, short to ground and open.
W as a problem found? Go to Step 3
―
3 1. Ignition switch is at “LOCK”.
2. Disconnect the passenger air bag assembly yellow connector behind the glove box assembly.
3. Leave the driver air bag assembly connected.
4. Connect the SRS driver /passenger load tool 5-8840-2421-0 and appropriate adapter to the passenger air bag assembly
harness connector.
5. Ignition switch is “ON”.
Is DTC B0019 current? Go to Step 4 Ignition switch is at
“LOCK”.
Replace
passenger air bag assembly
Go to Step 6
4 Measure the resistance on the SRS control unit harness connector from terminal “17” to terminal “1” (ignition).
Does 5-8840-0366-0 display “OL” (Infinite)? Go to Step 5 Replace SRS
Harness.
Go to Step 6
5 Measure the resistance on the SRS control unit harness connector from terminal “16” to terminal “1” (ignition).
Does 5-8840-0366-0 display “OL” (Infinite)? Go to Chart A Replace SRS
Harness.
Go to Step 6
6 1. Reconnect all the components and ensure all components
are properly mounted.
2. Clear diagnostic trouble codes.
Is this step finished? Go to the “SRS
Diagnostic system Check” ―

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 5710 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 9A1-28 RESTRAINT CONTROL SYSTEM

DTC B0021 (Flash Code 21) Driver Air Bag Squib Circuit High Resistance

RTW 79ALF000301

Circuit Description
W hen the ignition switch is turned “ON�

Page 5711 of 6020

ISUZU KB P190 2007 Workshop Repair Manual RESTRAINT CONTROL SYSTEM 9A1-29

DTC Will Set When
The combined resistance of the driver air bag
assembly, the SRS Coil assembly, the harness wiring
circuits “Driver Bag High” and “Driver

RESTRAINT CONTROL SYSTEM 9A1-29

DTC Will Set When
The combined resistance of the driver air bag
assembly, the SRS Coil assembly, the harness wiring
circuits “Driver Bag High” and “Driver Bag Low”, and
connector terminal contact is above a specified value.
This test runs once for each ignition cycle during the
“Resistance Measurement Test” when:
1. No “higher priority faults” are detected during “Turn–
ON”.
2. “Ignition 1” voltage is in the specified value.

Action Taken
The SRS control unit turns “ON” the “SRS” warning
lamp and sets DTC B0021.

DTC Will Clear When
Resistance value returns to specified resistance value.

DTC Chart Test Description
Number(s) below refer to step number(s) on the
diagnostic chart:
2. This test determines whether the malfunction is in
the SRS control unit.
3. This test verifies proper connection of the yello
w
connector at the base of the steering column.
4. This test checks for proper contact and/or corrosion
of the connector terminals at the base of the steering
column.
5. This test isolates the malfunction to one side of the
SRS coil assembly yellow connector located at the
base of the steering column.
6. This test determines whether the malfunction is due
to high resistance in the wiring.
7. This test determines whether the malfunction is in
the SRS coil assembly or the driver air bag
assembly.

Diagnostic Aids
An intermittent condition is likely to be caused by a poor
connection at terminals “1” and “2” of the SRS coil
connector at the base of the steering column, terminal
“1” and “2” of the driver air bag assembly connector at
the top of the steering column, the SRS control unit
terminals “14” and “13” or a poor wire to terminal
connection in circuit “Driver Bag High” or “Driver Bag
Low” The test for this diagnostic trouble code is only run
while the “SRS” warning lamp is performing the bulb
check. W hen a scan tool “Clear Codes” command is
issued and the malfunction is still present, the DTC will
not reappear until the next ignition cycle.

DTC B0021 (Flash Code 21) Driver Air Bag Squib Circuit High Resistance

Step Action Yes No
1 Perform the “SRS Diagnostic System Check”.
W as the “SRS Diagnostic System Check” performed? Go to Step 2 Repeat the “SRS
Diagnostic System Check”
2
1. Check the driver air bag squib circuit for open.
2. If a the problem is found, repair as necessary.
W as a problem found? Verify repair Go to Step 3
3

1. Ignition switch to “LOCK”.
2. Disconnect the SRS coil assembly yellow connector located
at the base of the steering column and check it is seated
properly.
Is the connector connected properly? Go to Step 4 Seat SRS coil
assembly
connector properly. Go to Step 8

BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

Page 5712 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 9A1-30 RESTRAINT CONTROL SYSTEM

Step Action Yes No
4
1. Disconnect and inspect the SRS coil assembly yellow
connector located at the base of the steering column.
2. If ok, reconnect the S

9A1-30 RESTRAINT CONTROL SYSTEM

Step Action Yes No
4
1. Disconnect and inspect the SRS coil assembly yellow
connector located at the base of the steering column.
2. If ok, reconnect the SRS coil assembly yellow connector.
3. Ignition switch is “ON”.
Is DTC B0021 current? Go to Step 5 Go to Step 8
5

1. Ignition switch is at “LOCK”.
2. Disconnect the SRS coil and the passenger air bag assembly,
yellow 2–pin connector located at the base of the steering
column and behind the glove box assembly.
3. Connect the SRS driver / passenger load tool 5-8840-2421-0
and appropriate adapter to the SRS coil and the passenger
air bag assembly harness connectors.
4. Ignition switch is “ON”.
Is DTC B0021 current? Go to Step 6 Go to Step 7
6

1. Ignition switch is at “LOCK“.
2. There has been an increase in the total circuit resistance of
the driver deployment loop.
3. Use the high resolution ohmmeter mode of the DMM while
checking circuits “Driver Bag High” and “Driver Bag Low”, and
the SRS control unit connector terminal “14” and “13” to
locate the root cause.
W as a fault found? Replace SRS
harness.
Go to Step 8 Go to Chart A
7

1. Ignition switch is at “LOCK”.
2. Disconnect the SRS driver / passenger load tool from the
SRS coil assembly harness connector.
3. Connect the SRS driver / passenger load tool 5-8840-2421-0 on the top of the steering column.
4. Reconnect the SRS coil assembly harness connector at the
base of the steering column.
5. Ignition switch is “ON”.
Is DTC B0021 current? Ignition switch
“LOCK”.
Replace SRS coil assembly.
Go to Step 8 Ignition switch
“LOCK”.
Replace driver air bag assembly. Go to Step 8
8
1. Reconnect all components and ensure all components are
properly mounted.
2. Clear the diagnostic trouble codes.
Is this step finished? Repeat the “SRS
Diagnostic System Check” ―

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Load next 8 pages

Page: < prev 1-10 ... 5673-5680 5681-5688 5689-5696 5697-5704 5705-5712 5713-5720 5721-5728 5729-5736 5737-5744 ... 6024 next >

maintenance reset engine oil light deactivate airbag service indicator ECU
