Page 1777 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E-160 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
121. Reconnect all previously disconnected fuse,
relay or harness connector(s).
2. Clear the DTCs with a scan tool.
3. Turn OFF the ignition for 30 seconds.

Page 1778 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-161
DTC P0401 (Flash Code 93)
Circuit Description
The ECM controls the EGR valve opening based on the
engine running condition and by controlling the EGR
solen

ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-161
DTC P0401 (Flash Code 93)
Circuit Description
The ECM controls the EGR valve opening based on the
engine running condition and by controlling the EGR
solenoid. The EGR valve position is detected by the
position sensor, and relayed to the ECM. When the
proper enabling conditions are met, the ECM will open
the EGR valve while monitoring the mass air flow
(MAF) signal. An expected MAF difference should be
detected between the closed and open positions. If the
ECM detects the MAF difference less than expected,
this DTC will set. This DTC will only run once per
ignition cycle within the enabling conditions.
Condition for Running the DTC • DTCs P0101, P0102, P0103, P0112, P0113, P0116, P0117, P0118, P0122, P0123, P0403,
P0404, P0405, P0406, P0500, P0501, P0652,
P0653, P0698, P0699, P2100, P2101, P2102,
P2103, P2227, P2228 and P2229 are not set.
• The battery voltage is between 10 to 16 volts.
• The ignition switch is ON. Condition for Setting the DTC
• The ECM detects that the MAF amount is not within the calculated range during the EGR flow
test. This indicates insufficient amount of EGR
flow.
Action Taken When the DTC Sets • The ECM illuminates the MIL when the diagnostic runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
• The ECM limits fuel injection quantity.
• The ECM inhibits pilot injection.
• The ECM inhibits cruise control.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A.
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
• A sticking or intermittently sticking the EGR valve may set this DTC.
Circuit/ System Testing DTC P0401
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine and warm up as necessary (allow engine coolant temperature to reach at
least 60 °C [140 °F]).
4. Perform the EGR Solenoid Control with a scan tool.
5. Command the Desired EGR Position Increase or Decrease while observing the Mass Air
Flow (MAF) Sensor parameter with a scan
tool.
Does the MAF Sensor parameter decrease by at
least 0.5 volts when the Desired EGR Position is
commanded from 0 to 90%? —
Go to Diagnostic Aids Go to Step 3

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 1779 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E-162 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
31. Inspect the following conditions:
• An EGR valve gasket that is missing ordamaged
• A sticking EGR valve
• EGR gas leakage from any of the EGR pas

Page 1780 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-163
DTC P0403 (Flash Code 37)
Circuit Description
The ECM controls the EGR valve opening based on the
engine running condition and by controlling the EGR
solen

ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-163
DTC P0403 (Flash Code 37)
Circuit Description
The ECM controls the EGR valve opening based on the
engine running condition and by controlling the EGR
solenoid. The EGR valve position is detected by the
position sensor, and relayed to the ECM. If the ECM
detects an open circuit or short circuit on the solenoid
circuits, this DTC will set.
Condition for Running the DTC • The battery voltage is more than 9 volts.
• The ignition switch is ON.
Condition for Setting the DTC
Either of following condition is met: • The ECM detects an open circuit on the EGR solenoid circuits.
• The ECM detects a short to ground on the EGR solenoid circuits.
• The ECM detects a short to voltage circuit on the EGR solenoid circuits. Action Taken When the DTC Sets
• The ECM illuminates the MIL on the second consecutive driving cycle when the diagnostic runs
and fails. Refer to DTC Type Definitions for Action
Taken When the DTC Sets - Type B. (Euro 4
Specification)
• The ECM illuminates the MIL when the diagnostic runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
(Except Euro 4 Specification)
• The ECM inhibits EGR control.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type B (Euro 4
Specification)
• Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A. (Except Euro 4
Specification)
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P0403
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine.
4. Monitor the DTC with a scan tool.
Does the DTC fail this ignition? —
Go to Step 3 Go to Diagnostic
Aids
3 1. Turn OFF the ignition.
2. Disconnect the EGR valve harness connector.
3. Turn ON the ignition, with the engine OFF.
4. Connect a DMM between the drive voltage circuit (pin 4 of E-71) and a known good
ground.
5. Connect a DMM between the low side circuit (pin 6 of E-71) and a known good ground.
Are both voltage readings within the specified
value? 1.4 - 1.8 volts
Go to Step 5 Go to Step 4
4 Is the DMM voltage more than the specified value
at Step 3? —
Go to Step 7 Go to Step 6

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 1781 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E-164 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
51. Test the circuits between the ECM (pins 62
and 63 of E-90) and the EGR valve (pins 4
and 6 of E-71) for a short circuit each other.
2. Repair the circui

Page 1782 of 6020

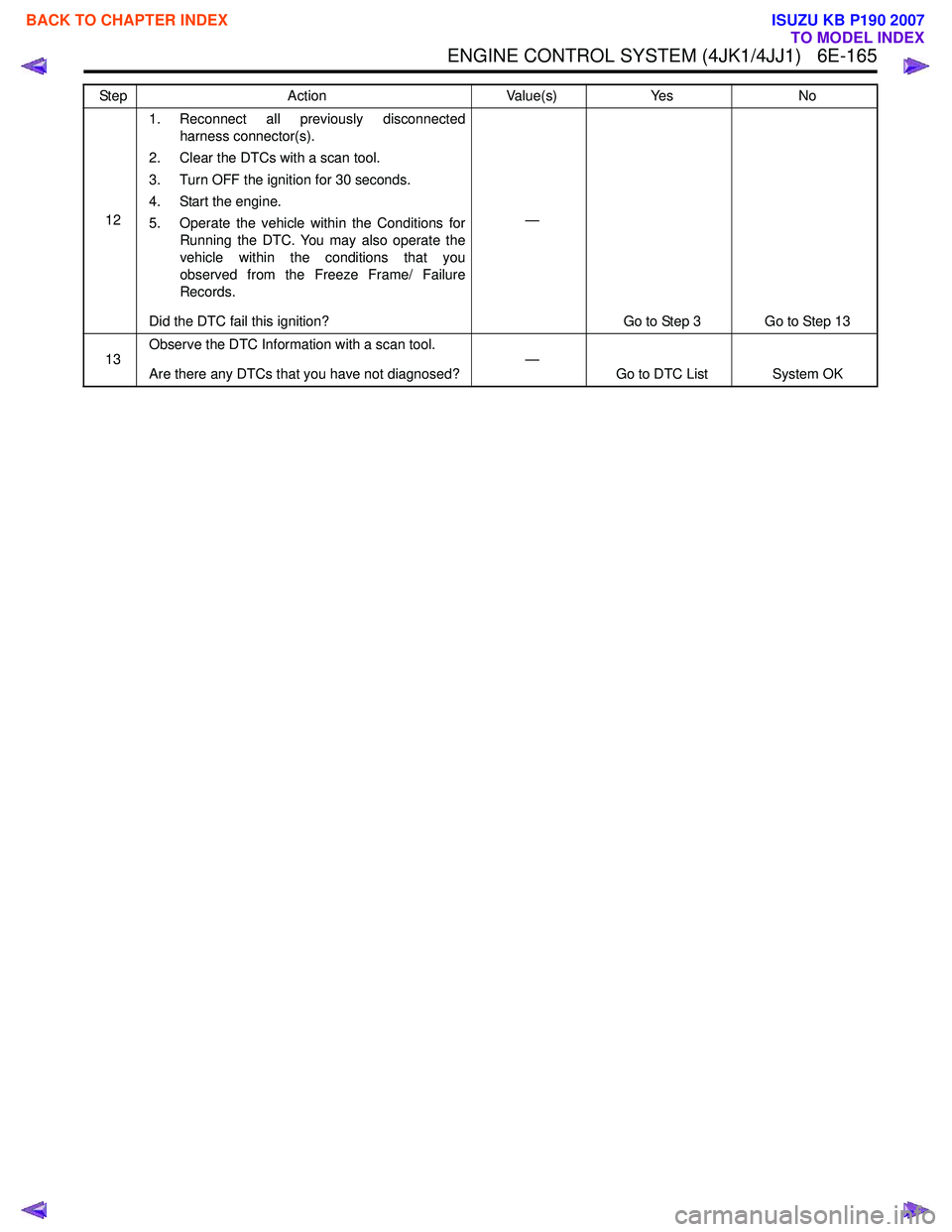

ISUZU KB P190 2007 Workshop Repair Manual ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-165
121. Reconnect all previously disconnected
harness connector(s).
2. Clear the DTCs with a scan tool.
3. Turn OFF the ignition for 30 seconds.
4. Start the

Page 1783 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E-166 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
DTC P0404 (Flash Code 45)
Circuit Description
The ECM controls the EGR valve opening based on the
engine running condition and by controlling the EGR
solen

6E-166 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
DTC P0404 (Flash Code 45)
Circuit Description
The ECM controls the EGR valve opening based on the
engine running condition and by controlling the EGR
solenoid. The EGR valve position is detected by the
position sensor, and relayed to the ECM. If the ECM
detects a variance between the actual EGR valve
position and desired EGR valve position for a
calibrated amount of time while the EGR valve is
commanded ON, this DTC will set.
Condition for Running the DTC • DTCs P0112, P0113, P0116, P0117, P0118, P0405, P0406, P0652, P0653, P2227, P2228 and
P2229 are not set.
• The battery voltage is between 10 to 16 volts.
• The ignition switch is ON.
• The engine coolant temperature is between 20 to 11 0 °C (68 to 230 °F).
• The intake air temperature is between 0 to 110 °C
(32 to 230 °F).
• The barometric pressure is between 60 to 120 kPa (8.7 to 17.4 psi).
• The EGR control is commanded ON. Condition for Setting the DTC
• The ECM detects that the actual EGR position is more than 10% below the desired position for 4
seconds.
Action Taken When the DTC Sets • The ECM illuminates the MIL when the diagnostic runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
• The ECM limits fuel injection quantity.
• The ECM inhibits pilot injection.
• The ECM inhibits EGR control.
• The ECM inhibits cruise control.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A.
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
• A sticking or intermittently sticking EGR valve may set this DTC.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P0404
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine.
4. Monitor the DTC Information with a scan tool.
Is DTC P0403, P0405 or P0406 also set? —
Go to Applicable DTC Go to Step 3
3 1. Perform the EGR Solenoid Control with a scan
tool several times.
2. Command the Desired EGR Position Increase and Decrease while observing the EGR
Position.
Does the EGR Position parameter follow within the
specified value quick enough (compare with a
similar unit if available)?
± 5%
Go to Diagnostic Aids Go to Step 4

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 1784 of 6020

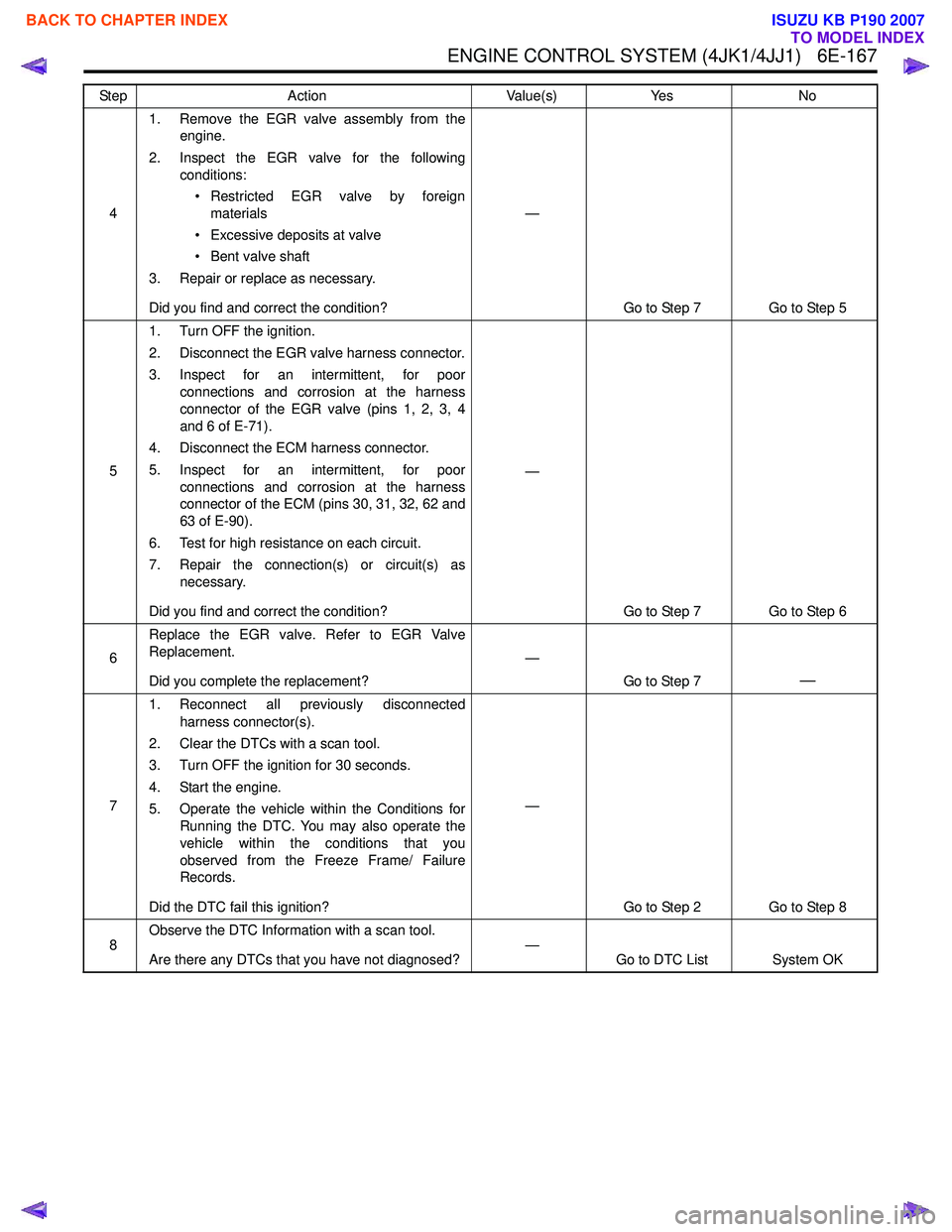

ISUZU KB P190 2007 Workshop Repair Manual ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-167
41. Remove the EGR valve assembly from the
engine.
2. Inspect the EGR valve for the following conditions:
• Restricted EGR valve by foreign materials
• E
