Page 5833 of 6020

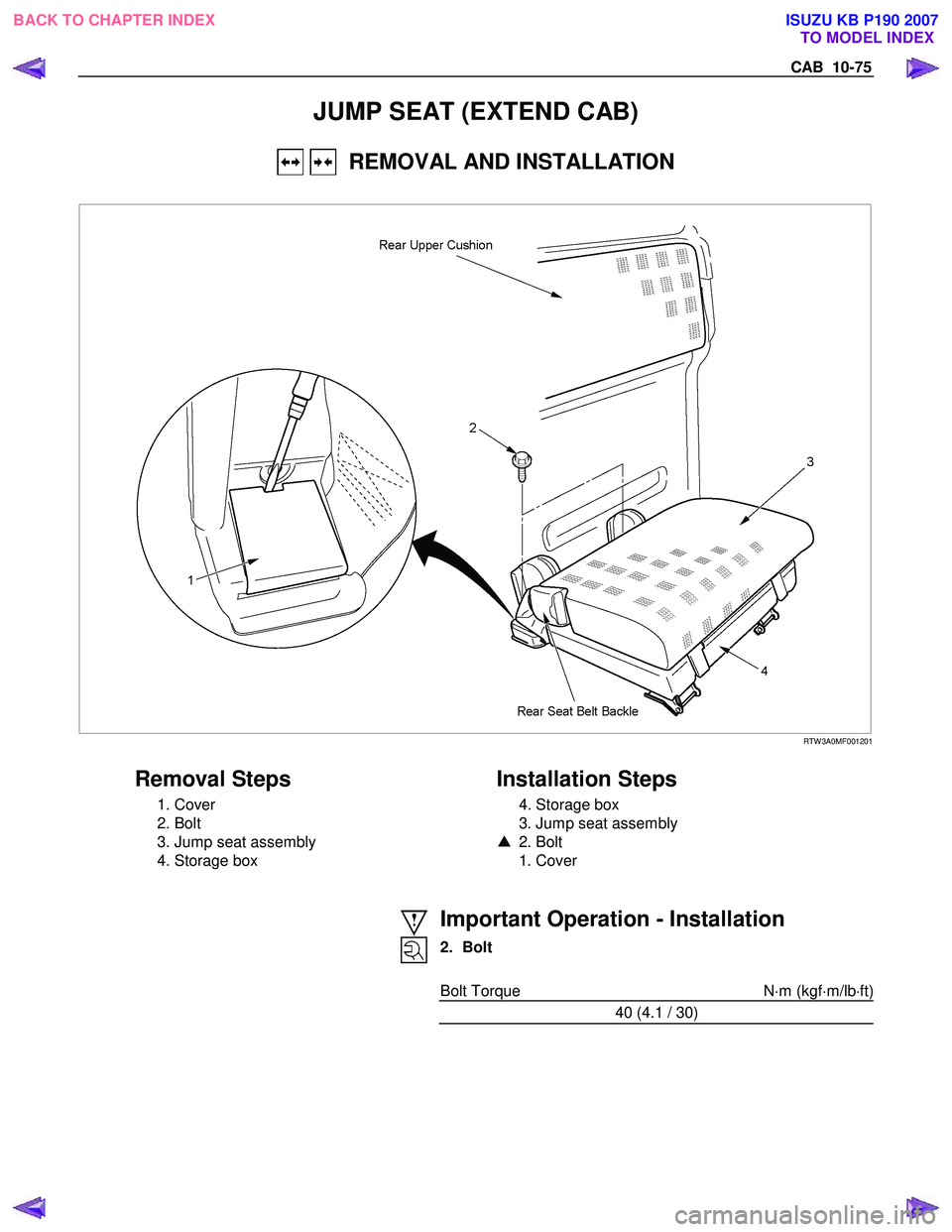

ISUZU KB P190 2007 Workshop Repair Manual CAB 10-75 JUMP SEAT (EXTEND CAB) REMOVAL AND INSTALLATION RTW 3A0MF001201 Removal Steps 1. Cover 2. Bolt 3. Jump seat assembly 4. Storage box Installation Steps 4. St

Page 5834 of 6020

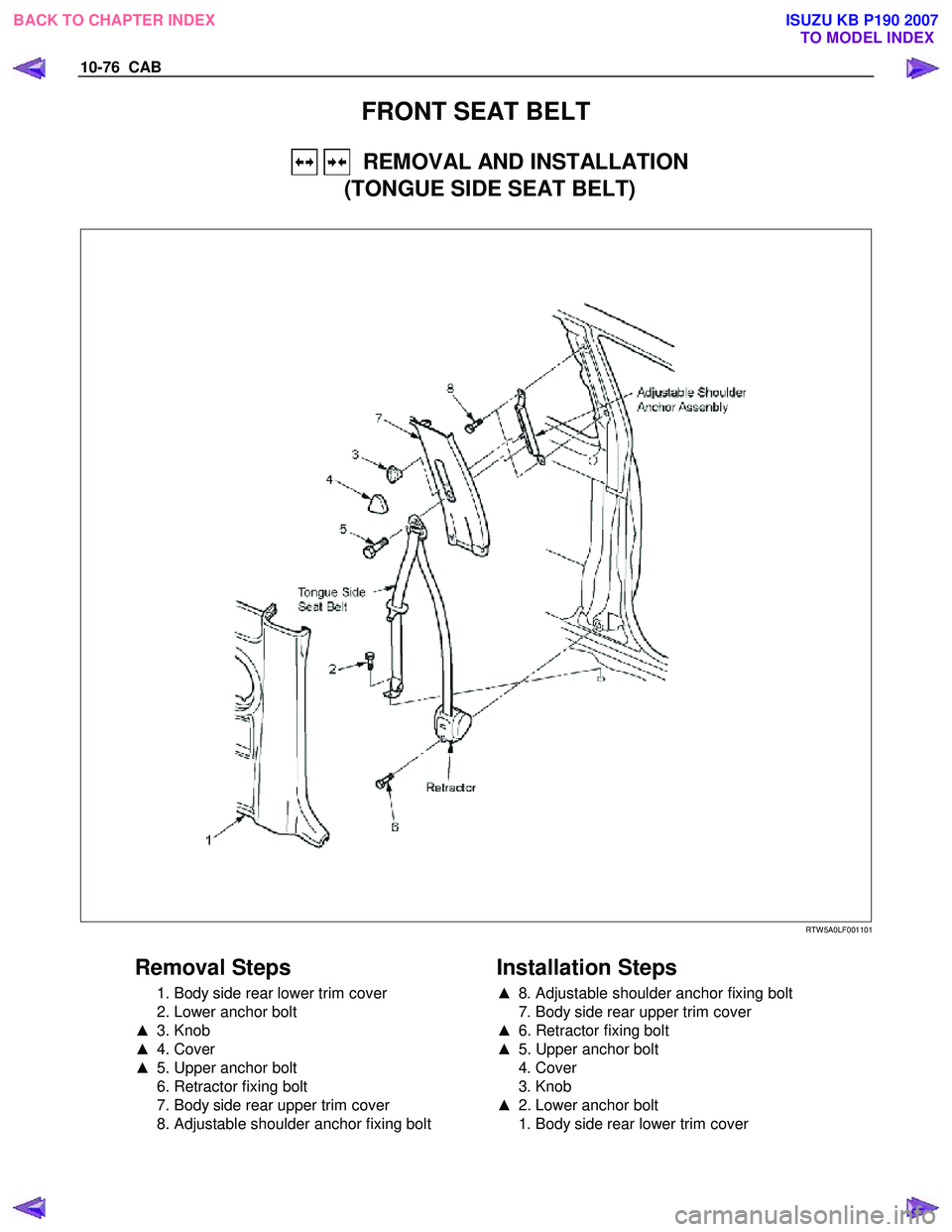

ISUZU KB P190 2007 Workshop Repair Manual 10-76 CAB FRONT SEAT BELT REMOVAL AND INSTALLATION (TONGUE SIDE SEAT BELT) RTW 5A0LF001101 Removal Steps 1. Body side rear lower trim cover 2. Lower anchor b

Page 5835 of 6020

ISUZU KB P190 2007 Workshop Repair Manual CAB 10-77 Important Operations - Removal 3. Knob • Pull out the knob. RTW 5A0SH000501 4. Cover 5. Upper Anchor Bolt • Remove the seat belt upper anchor bolt. • Insert th

Page 5836 of 6020

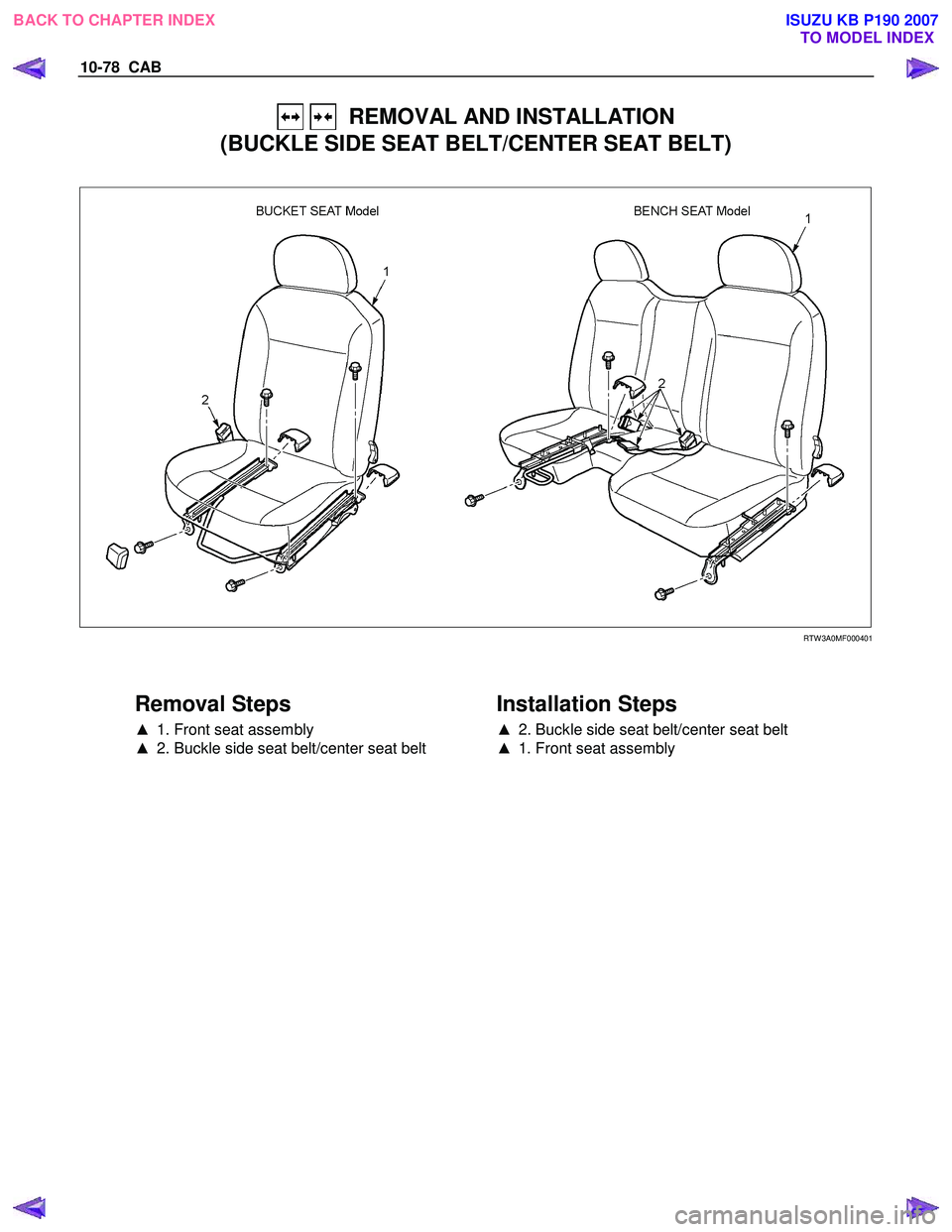

ISUZU KB P190 2007 Workshop Repair Manual 10-78 CAB REMOVAL AND INSTALLATION (BUCKLE SIDE SEAT BELT/CENTER SEAT BELT) RTW 3A0MF000401 Removal Steps ▲ 1. Front seat assembly ▲ 2. Buckle side seat belt/center

Page 5837 of 6020

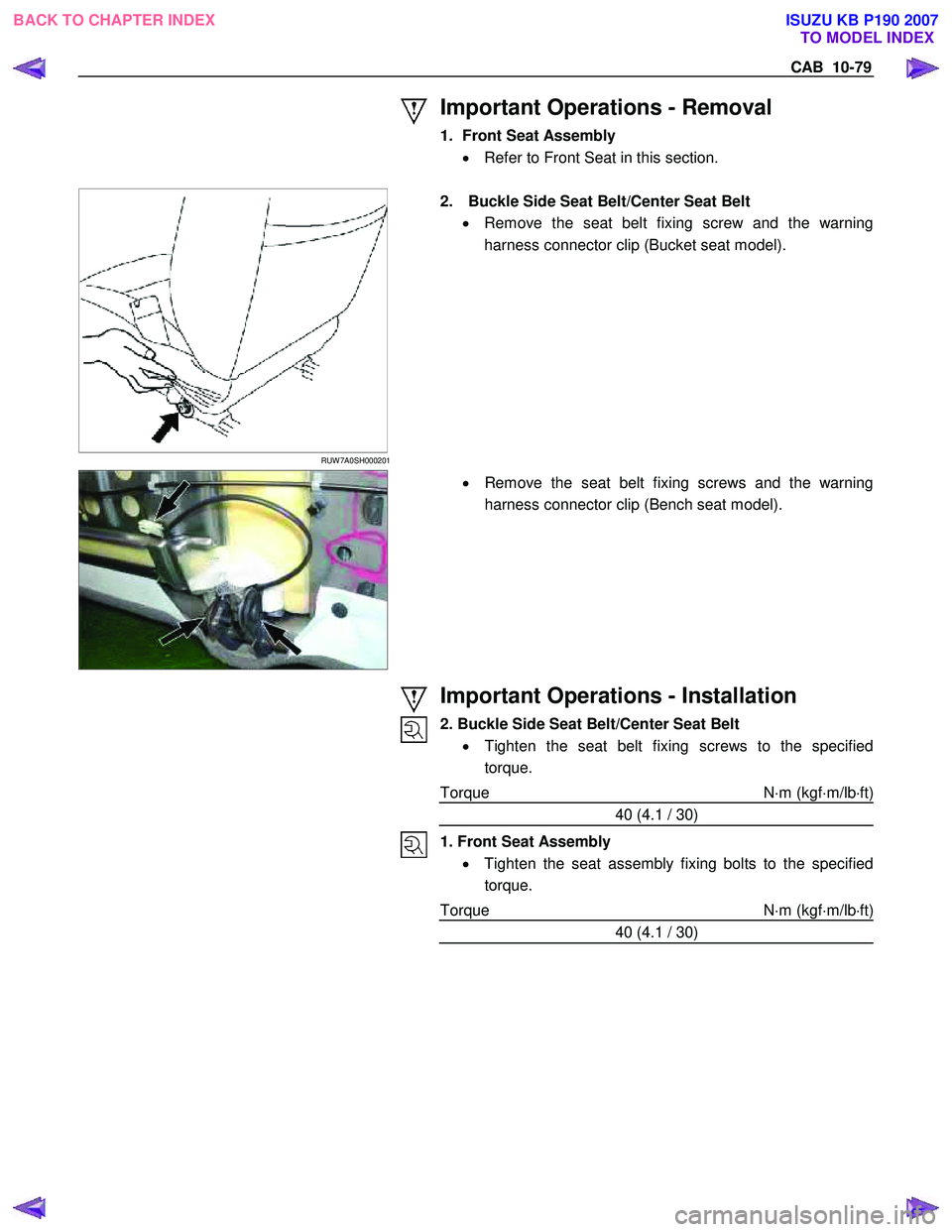

ISUZU KB P190 2007 Workshop Repair Manual CAB 10-79 Important Operations - Removal 1. Front Seat Assembly • Refer to Front Seat in this section. RUW 7A0SH000201 2. Buckle Side Seat Belt/Center Seat Belt • Remove the se

Page 5838 of 6020

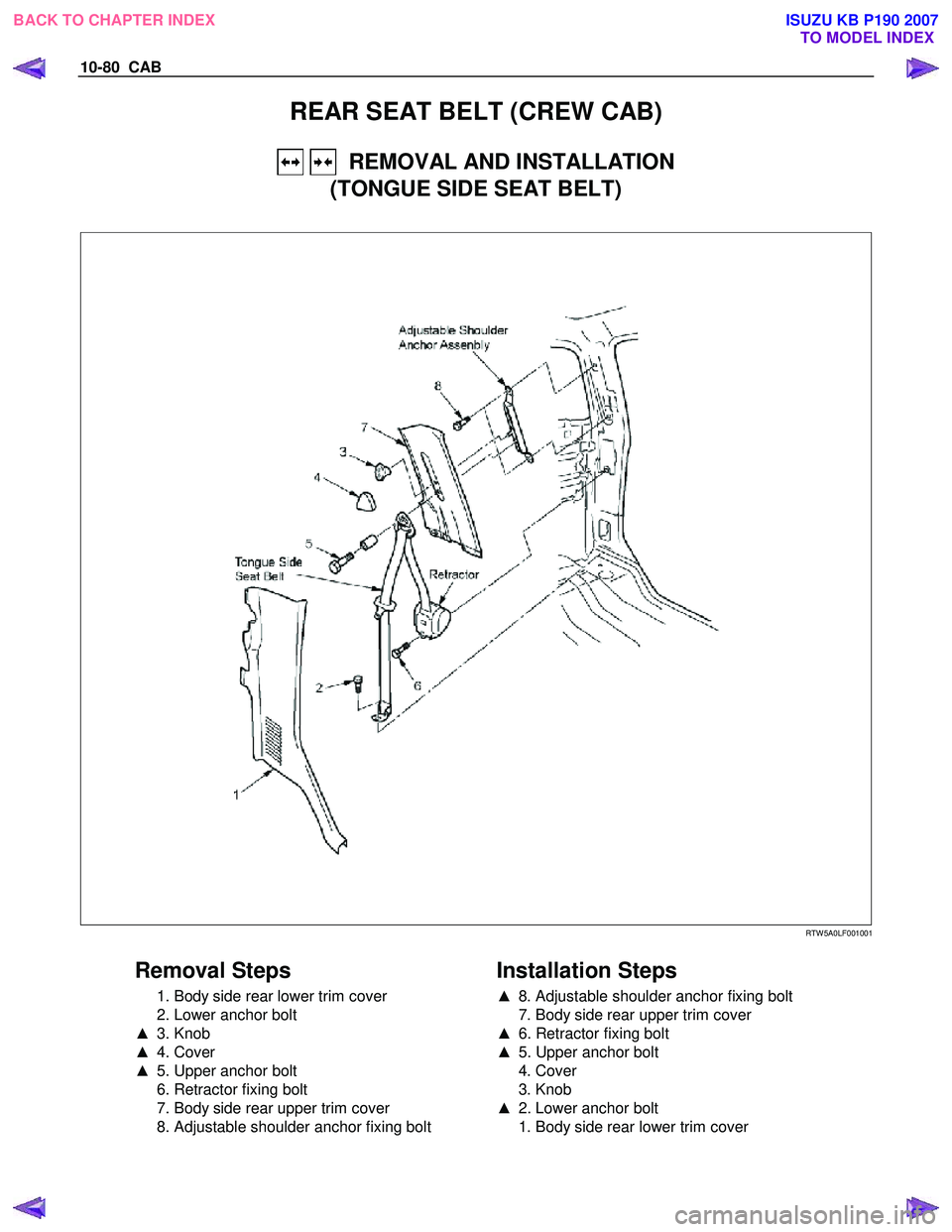

ISUZU KB P190 2007 Workshop Repair Manual 10-80 CAB REAR SEAT BELT (CREW CAB) REMOVAL AND INSTALLATION (TONGUE SIDE SEAT BELT) RTW 5A0LF001001 Removal Steps 1. Body side rear lower trim cover 2. Lowe

Page 5839 of 6020

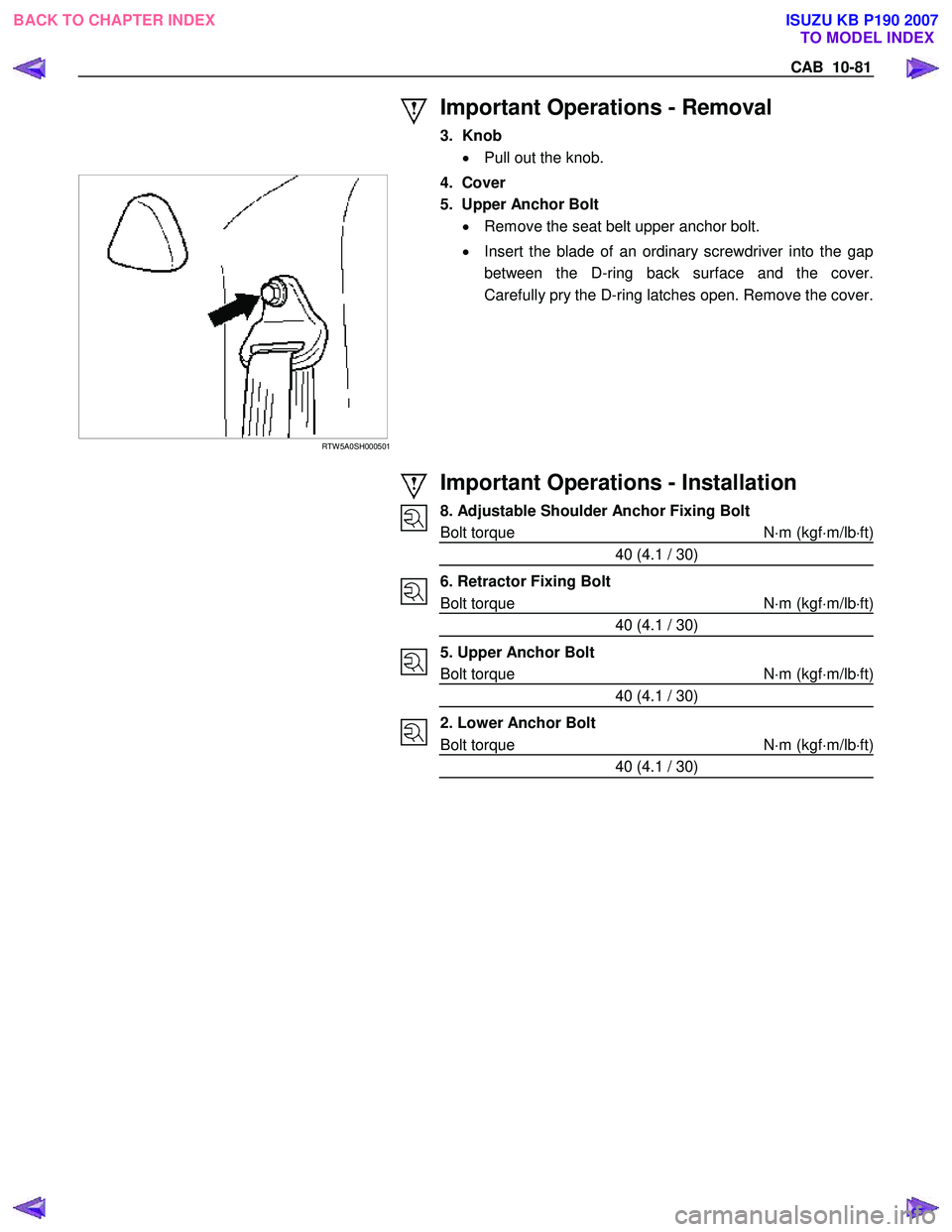

ISUZU KB P190 2007 Workshop Repair Manual CAB 10-81 Important Operations - Removal 3. Knob • Pull out the knob. RTW 5A0SH000501 4. Cover 5. Upper Anchor Bolt • Remove the seat belt upper anchor bolt. • Insert th

Page 5840 of 6020

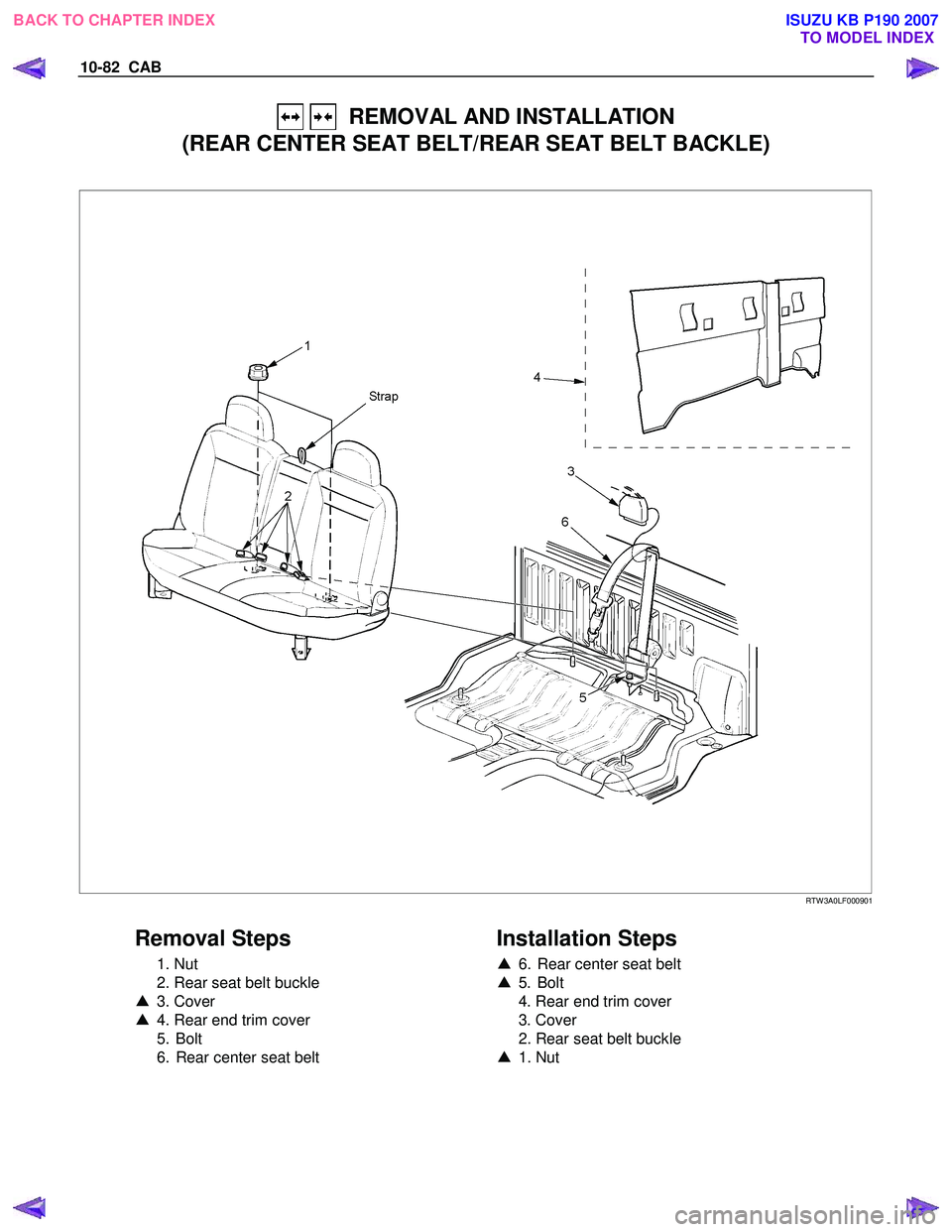

ISUZU KB P190 2007 Workshop Repair Manual 10-82 CAB REMOVAL AND INSTALLATION (REAR CENTER SEAT BELT/REAR SEAT BELT BACKLE) RTW 3A0LF000901 Removal Steps 1. Nut 2. Rear seat belt buckle ▲ 3. Cover ▲ 4. Rear end tr
