Page 5345 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-407
TROUBLESHOOTING
QUICK CHART FOR CHECK POINTS
Check Points Fuse C21
(20A) Power
Window &
Door Lock Switch Door
Lock
Switch Key Cylinder
switch Door Lock Actuator
Cable
Trouble Mode Driver’s
side Driver’s
side D/S P/S Passen
ger’s side RR-RH RR-LH
Harness
1. All the doors do not
lock and unlock
2. All the doors do not get locked (or
unlocked)
3. Driver’s side door
does not get locked
(or unlocked)
4. FRT passenger’s side
door does not get
locked (or unlocked)
5. RR door-RH does not
get locked (or
unlocked)
6. RR door-LH does not
get locked (or
unlocked)
7. Door lock does not
operate when
operating from the
driver’s seat side
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5346 of 6020

8A-408 ELECTRICAL-BODY AND CHASSIS
1. All the doors do not lock and unlock
Checkpoint Trouble Cause Countermeasure
Reinstall or replace the fuse
No. C21 (20A)
Poor fuse contact or blown
NG
Repair grounding point contact
Grounding point C2
Poor grounding point contact
Repair open circuit or
connector contact
Voltage between the driver’s
side power window & door
lock SW harness side
connector terminal 1
D5
and the ground (Should be
battery voltage present)
Open circuit or poor connector
contact
NG
NG
OK
OK
OK
Fuse No. C21 (20A, Fuse box)
Repair open circuit or
connector contact
Open circuit or poor connector
contact
NG
Replace the driver’s side
power window & door lock
SW .
Driver’s side power window &
door lock SW . function
SW . malfunction
NG
OK
Continuity between 3 or 4
D4 or 2 D24 and
C2
2. All the doors do not get locked (or unlocked)
Repair open circuit or
connector contact
Open circuit or poor connector
contact
NG
Replace the driver’s side
power window & door lock
SW .
Driver’s side power window &
door lock SW . function
SW . malfunction
NG
OK
Continuity between the driver’s
side power window & door
lock SW harness side
connector terminals 14
D20
and 6
D20
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5347 of 6020

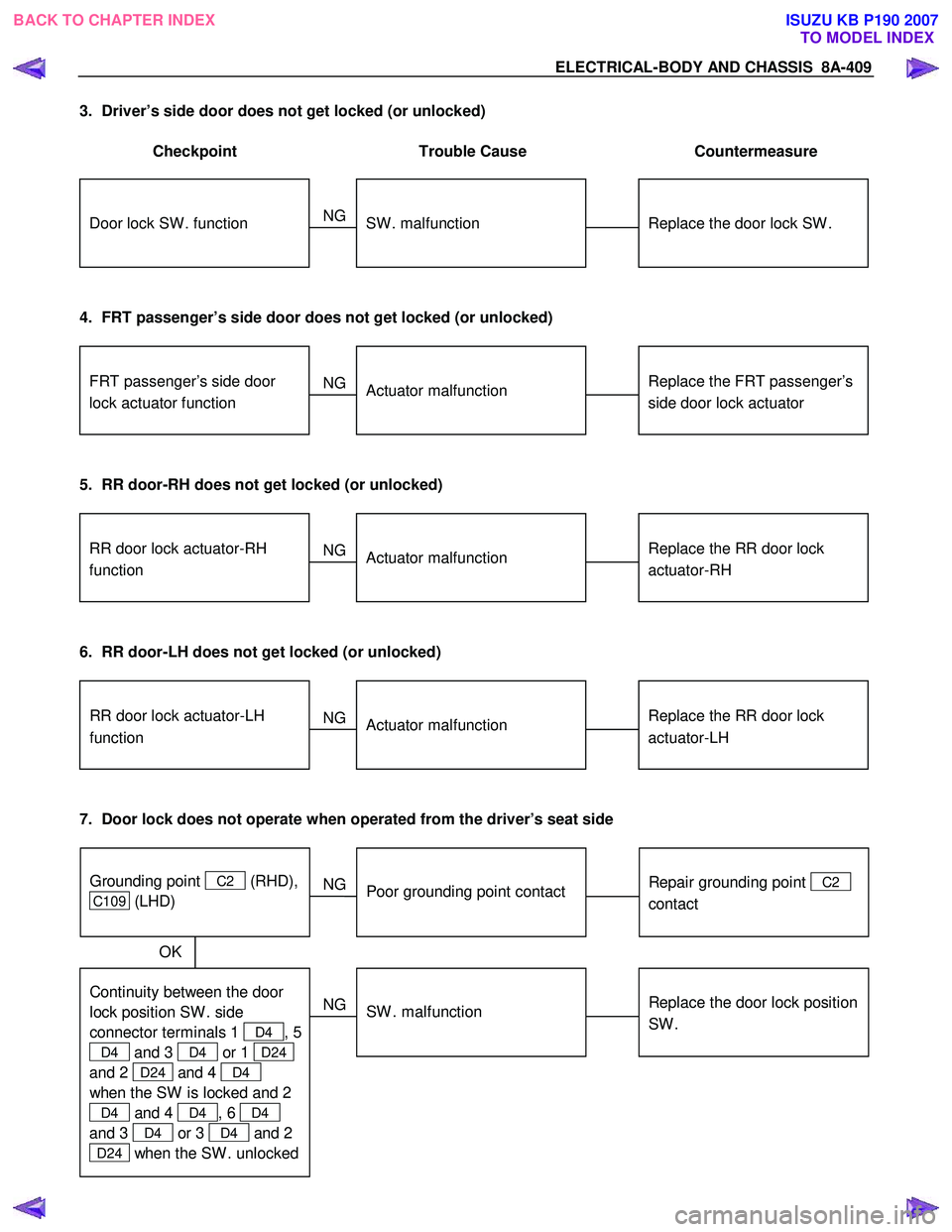

ELECTRICAL-BODY AND CHASSIS 8A-409
3. Driver’s side door does not get locked (or unlocked)
Checkpoint Trouble Cause Countermeasure
Replace the door lock SW .Door lock SW . functionSW . malfunction
NG
4. FRT passenger’s side door does not get locked (or unlocked)
Replace the FRT passenger’s
side door lock actuatorFRT passenger’s side door
lock actuator functionActuator malfunction
NG
5. RR door-RH does not get locked (or unlocked)
Replace the RR door lock
actuator-RHRR door lock actuator-RH
functionActuator malfunction
NG
6. RR door-LH does not get locked (or unlocked)
Replace the RR door lock
actuator-LH
RR door lock actuator-LH
function
Actuator malfunction
NG
7. Door lock does not operate when operated from the driver’s seat side
Repair grounding point
C2
contact
Poor grounding point contact
NG
Replace the door lock position
SW .
Continuity between the door
lock position SW . side
connector terminals 1
D4 , 5
D4 and 3 D4 or 1 D24
and 2
D24 and 4 D4
when the SW is locked and 2
D4 and 4 D4 , 6 D4
and 3
D4 or 3 D4 and 2
D24 when the SW . unlocked
SW . malfunction
NG
OK
Grounding point
C2 (RHD),
C109 (LHD)
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5348 of 6020

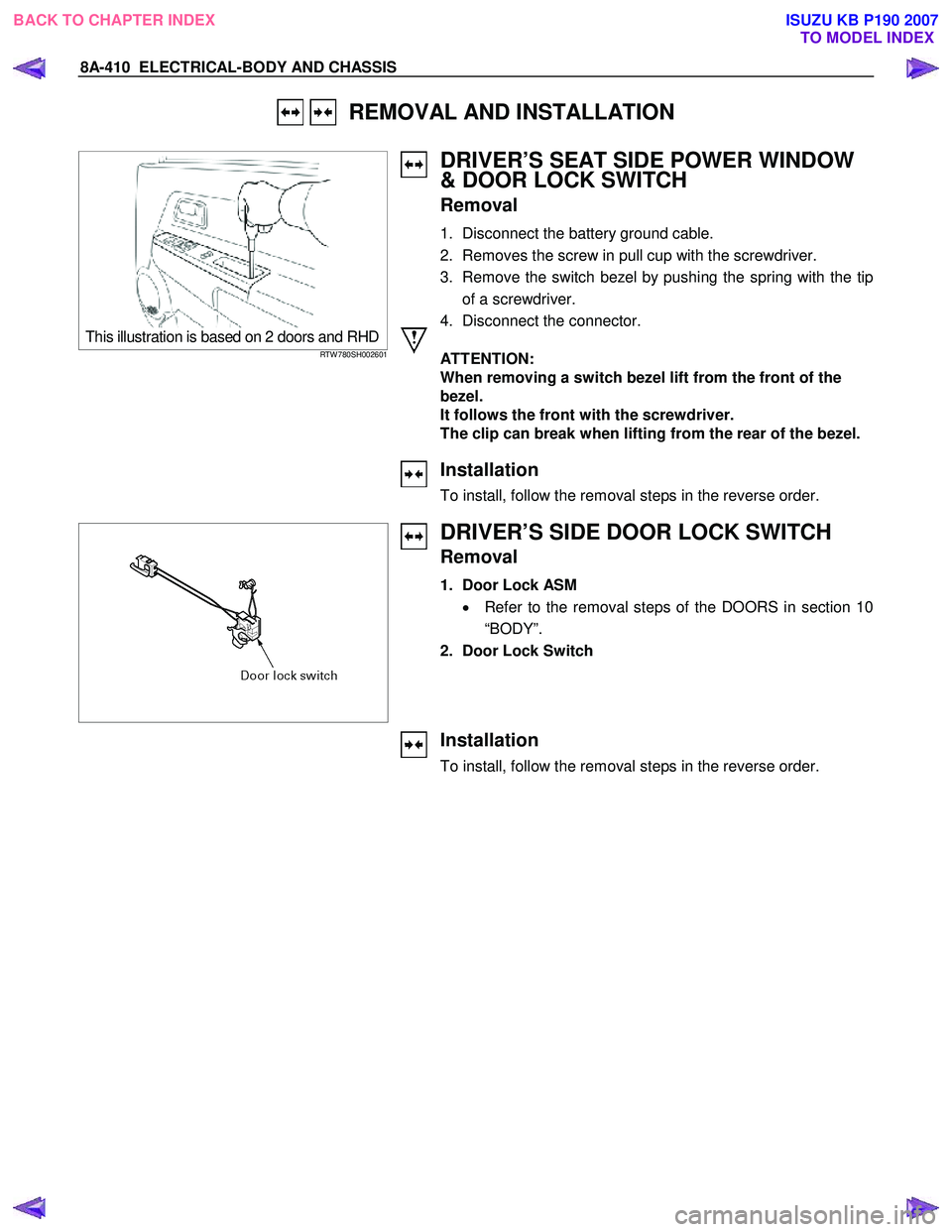

8A-410 ELECTRICAL-BODY AND CHASSIS
REMOVAL AND INSTALLATION
This illustration is based on 2 doors and RHDRTW 780SH002601
DRIVER’S SEAT SIDE POWER WINDOW
& DOOR LOCK SWITCH
Removal
1. Disconnect the battery ground cable.
2. Removes the screw in pull cup with the screwdriver.
3. Remove the switch bezel by pushing the spring with the tip of a screwdriver.
4. Disconnect the connector.
ATTENTION:
When removing a switch bezel lift from the front of the
bezel.
It follows the front with the screwdriver.
The clip can break when lifting from the rear of the bezel.
Installation
To install, follow the removal steps in the reverse order.
DRIVER’S SIDE DOOR LOCK SWITCH
Removal
1. Door Lock ASM
• Refer to the removal steps of the DOORS in section 10
“BODY”.
2. Door Lock Switch
Installation
To install, follow the removal steps in the reverse order.
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5349 of 6020

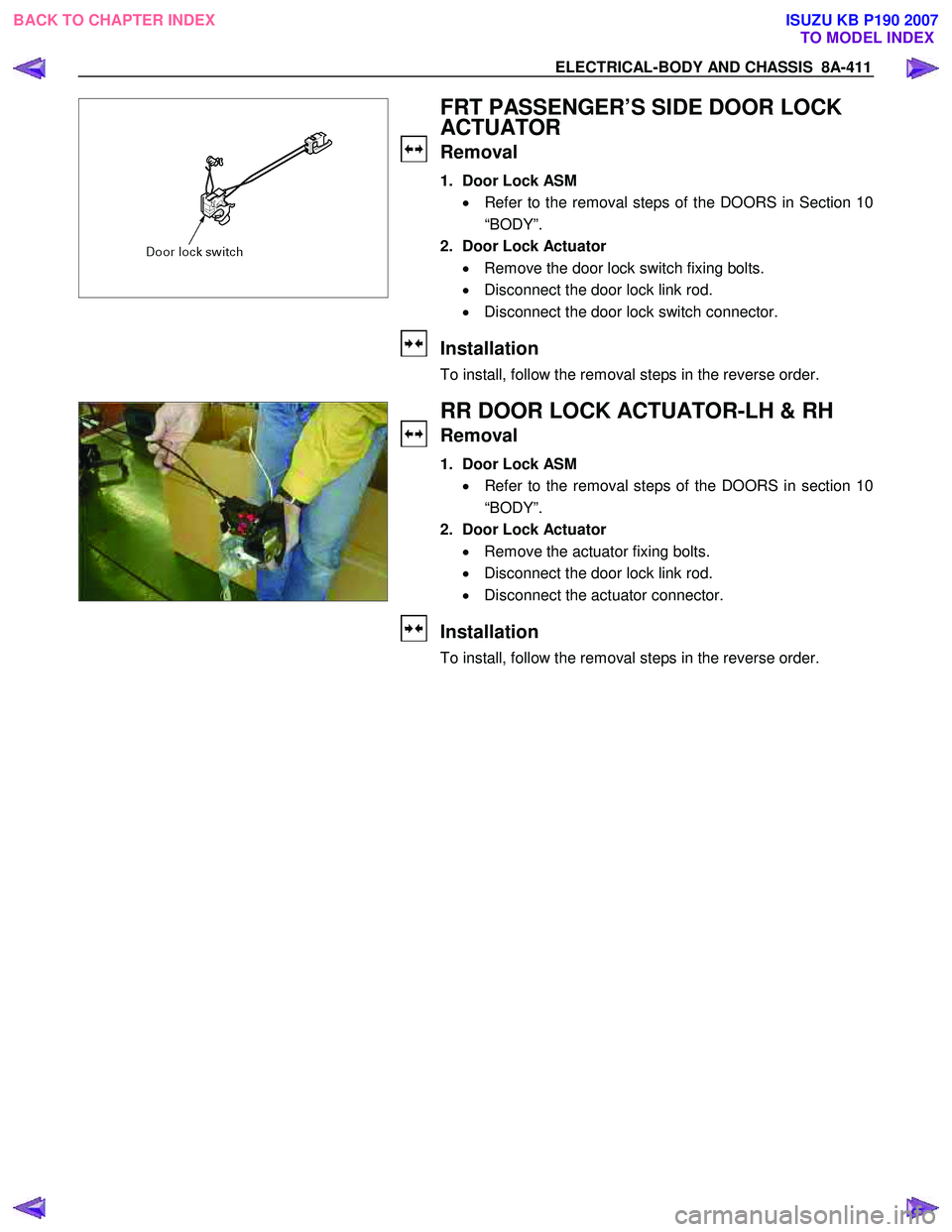

ELECTRICAL-BODY AND CHASSIS 8A-411
FRT PASSENGER’S SIDE DOOR LOCK
ACTUATOR
Removal
1. Door Lock ASM
• Refer to the removal steps of the DOORS in Section 10
“BODY”.
2. Door Lock Actuator • Remove the door lock switch fixing bolts.
• Disconnect the door lock link rod.
• Disconnect the door lock switch connector.
Installation
To install, follow the removal steps in the reverse order.
RR DOOR LOCK ACTUATOR-LH & RH
Removal
1. Door Lock ASM
• Refer to the removal steps of the DOORS in section 10
“BODY”.
2. Door Lock Actuator • Remove the actuator fixing bolts.
• Disconnect the door lock link rod.
• Disconnect the actuator connector.
Installation
To install, follow the removal steps in the reverse order.
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5350 of 6020

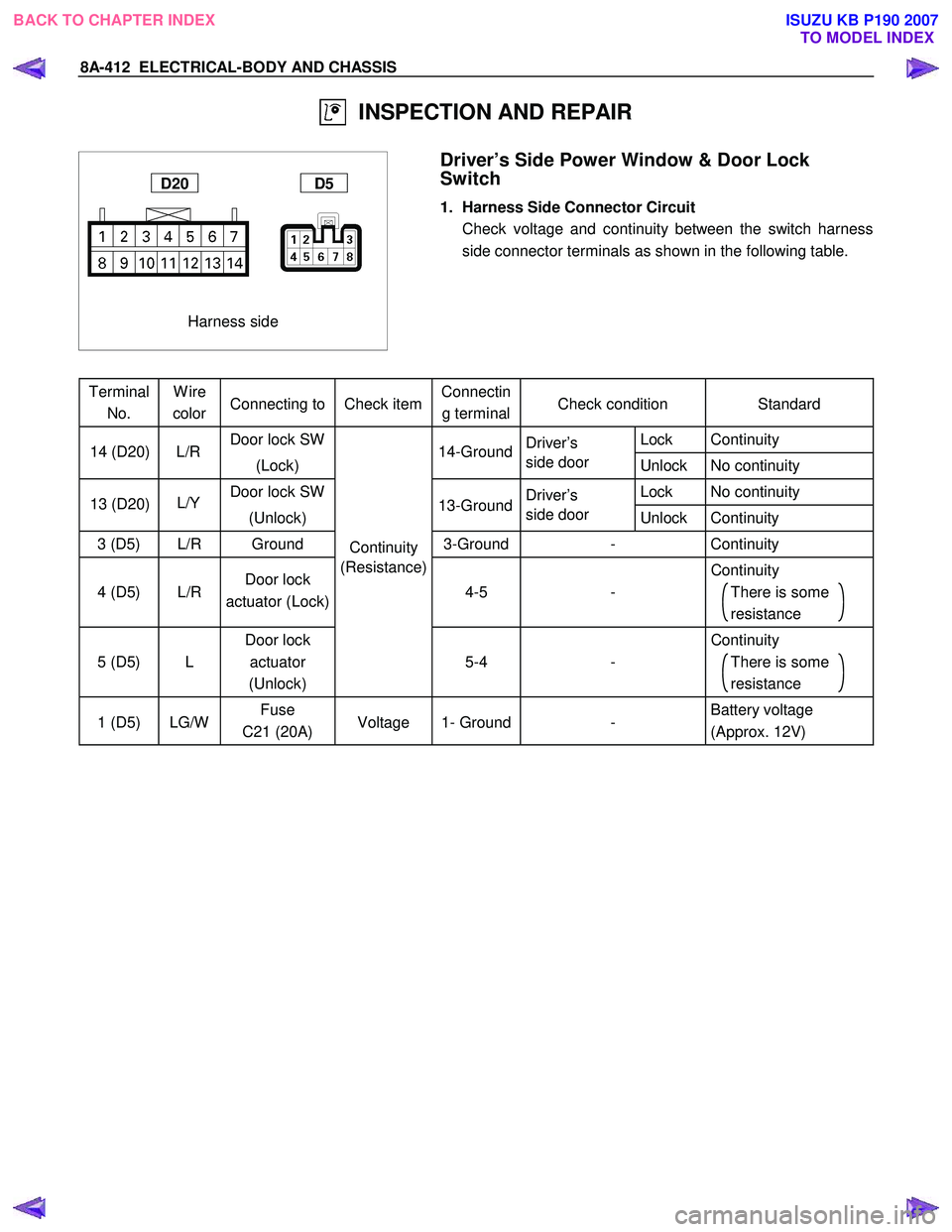

8A-412 ELECTRICAL-BODY AND CHASSIS
INSPECTION AND REPAIR
Harness side
D20 D5
Driver’s Side Power Window & Door Lock
Switch
1. Harness Side Connector Circuit
Check voltage and continuity between the switch harness side connector terminals as shown in the following table.
Terminal No. Wire
color Connecting to Check item Connectin
g terminal Check condition
Standard
Door lock SW
Driver’s Lock Continuity
(Lock) side door
Unlock No continuity
Door lock SW
Driver’s Lock No continuity
(Unlock) side door
Unlock Continuity
3 (D5) L/R Ground Continuity 3-Ground
- Continuity
4 (D5)
L/R Door lock
actuator (Lock) (Resistance)
4-5
- Continuity
There is some
resistance
5 (D5)
L Door lock
actuator
(Unlock)
5-4
- Continuity
There is some
resistance
1 (D5) LG/W Fuse
C21 (20A) Voltage 1- Ground
- Battery voltage
(Approx. 12V)
14-Ground
L/R
14 (D20)
13-Ground
L/Y
13 (D20)
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5351 of 6020

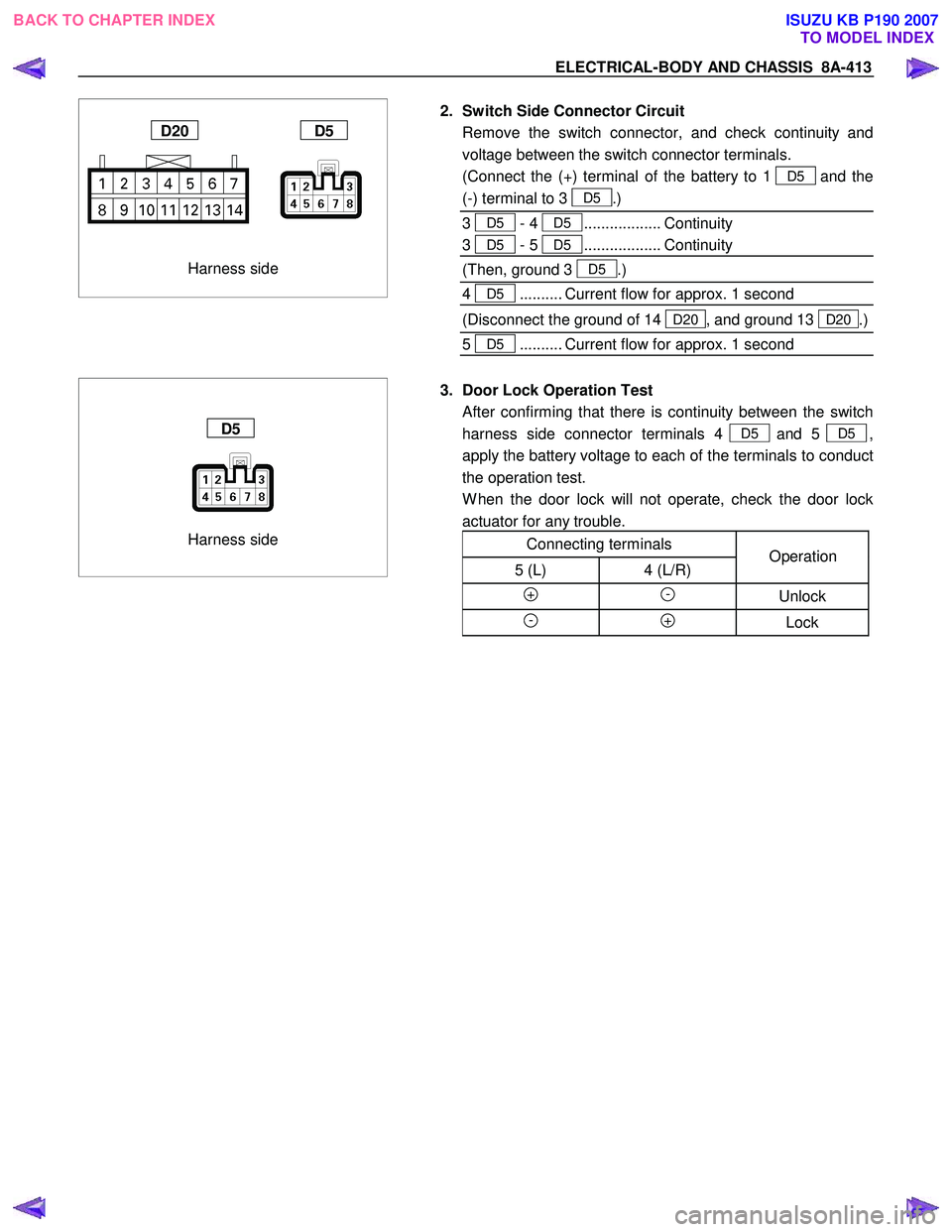

ELECTRICAL-BODY AND CHASSIS 8A-413
Harness side
D20 D5
2. Switch Side Connector Circuit
Remove the switch connector, and check continuity and voltage between the switch connector terminals.
(Connect the (+) terminal of the battery to 1
D5and the
(-) terminal to 3
D5.)
3
D5 - 4 D5.................. Continuity
3 D5 - 5 D5.................. Continuity
(Then, ground 3 D5.)
4
D5.......... Current flow for approx. 1 second
(Disconnect the ground of 14 D20 , and ground 13 D20.)
5
D5.......... Current flow for approx. 1 second
Harness side
D5
3. Door Lock Operation Test
After confirming that there is continuity between the switch
harness side connector terminals 4
D5 and 5 D5,
apply the battery voltage to each of the terminals to conduct
the operation test.
W hen the door lock will not operate, check the door lock actuator for any trouble.
Connecting terminals
5 (L) 4 (L/R)
+ - Unlock
- + Lock
Operation
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5352 of 6020

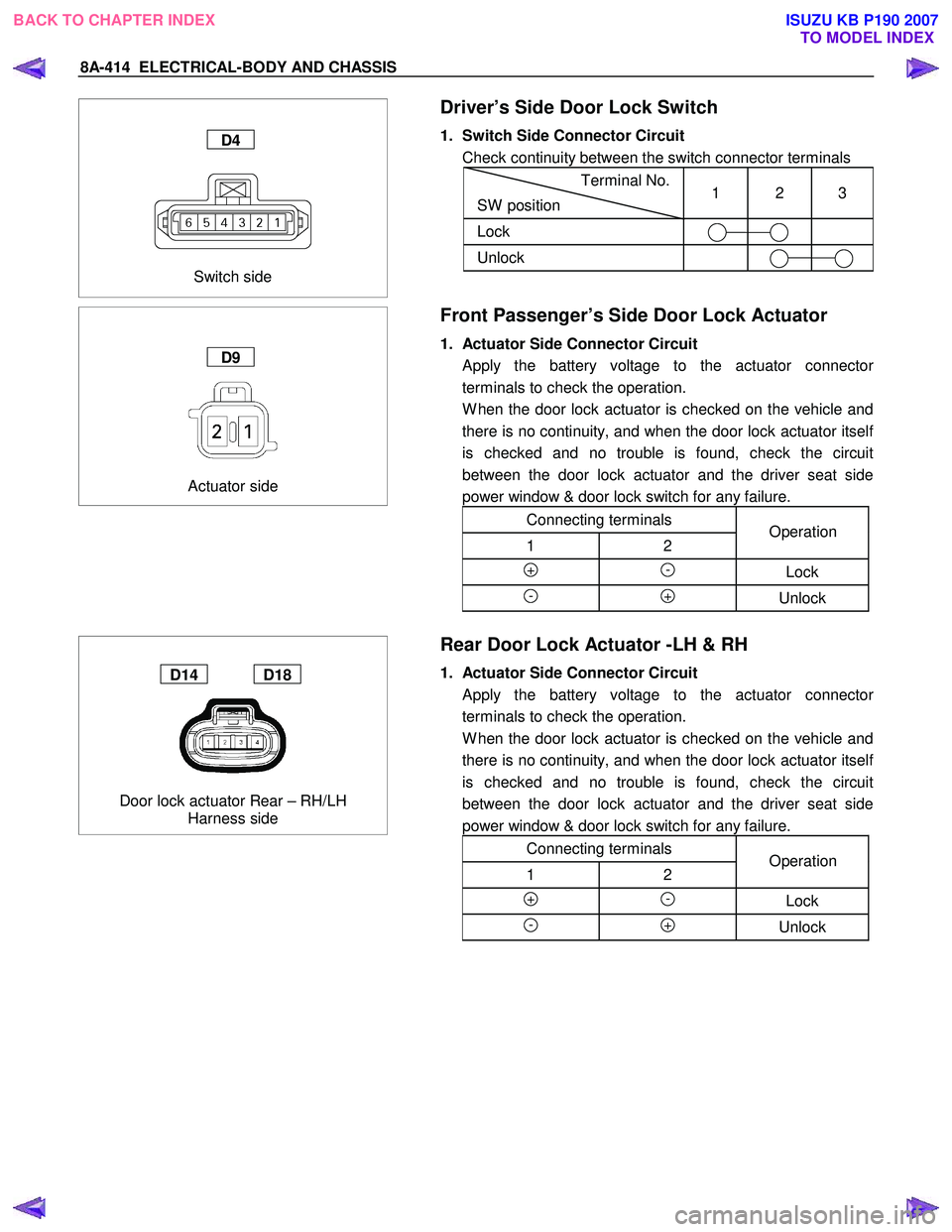

8A-414 ELECTRICAL-BODY AND CHASSIS
Switch side
D4
Driver’s Side Door Lock Switch
1. Switch Side Connector Circuit
Check continuity between the switch connector terminals
Terminal No.
SW position 1 2 3
Lock
Unlock
Actuator side
D9
Front Passenger’s Side Door Lock Actuator
1. Actuator Side Connector Circuit
Apply the battery voltage to the actuator connecto
r
terminals to check the operation.
W hen the door lock actuator is checked on the vehicle and there is no continuity, and when the door lock actuator itsel
f
is checked and no trouble is found, check the circuit
between the door lock actuator and the driver seat side
power window & door lock switch for any failure.
Connecting terminals
1 2
+ - Lock
- + Unlock
Operation
Door lock actuator Rear – RH/LH Harness side
D14 D18
Rear Door Lock Actuator -LH & RH
1. Actuator Side Connector Circuit
Apply the battery voltage to the actuator connecto
r
terminals to check the operation.
W hen the door lock actuator is checked on the vehicle and there is no continuity, and when the door lock actuator itsel
f
is checked and no trouble is found, check the circuit
between the door lock actuator and the driver seat side
power window & door lock switch for any failure.
Connecting terminals
1 2
+ - Lock
- + Unlock
Operation
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
