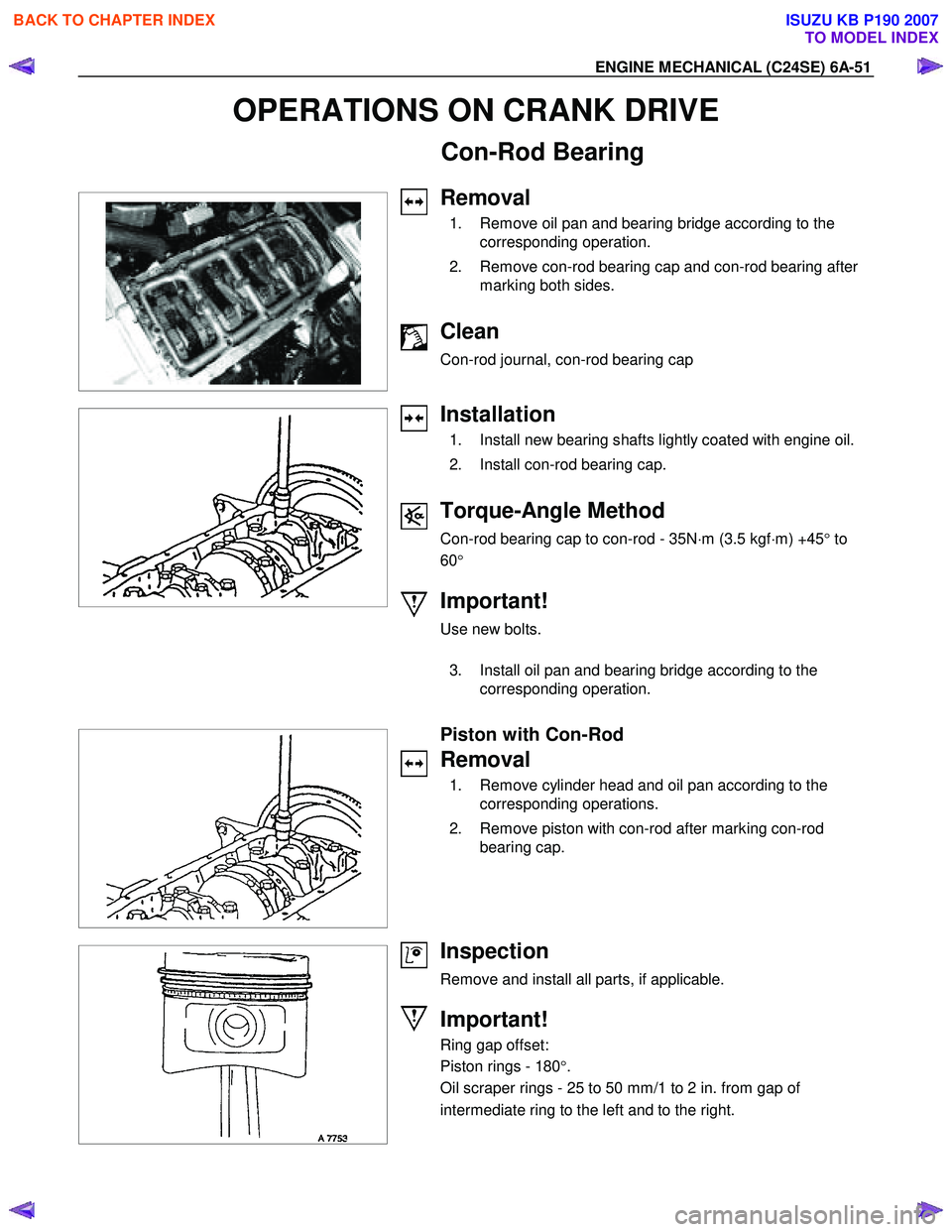

OPERATIONS ON CRANK DRIVE
Con-Rod Bearing
Removal
1. Remove oil pan and bearing bridge according to the corresponding operation.
2. Remove con-rod bearing cap and con-rod bearing after marking both sides.
Clean
Con-rod journal, con-rod bearing cap
Installation
1. Install new bearing shafts lightly coated with engine oil.
2. Install con-rod bearing cap.
Torque-Angle Method
Con-rod bearing cap to con-rod - 35N ⋅m (3.5 kgf ⋅m) +45 ° to
60 °
Important!
Use new bolts.
3. Install oil pan and bearing bridge according to the corresponding operation.
Piston with Con-Rod
Removal
1. Remove cylinder head and oil pan according to the corresponding operations.
2. Remove piston with con-rod after marking con-rod bearing cap.
Inspection
Remove and install all parts, if applicable.
Important!
Ring gap offset:
Piston rings - 180 °.
Oil scraper rings - 25 to 50 mm/1 to 2 in. from gap of
intermediate ring to the left and to the right.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2066 of 6020

6A-52 ENGINE MECHANICAL (C24SE)

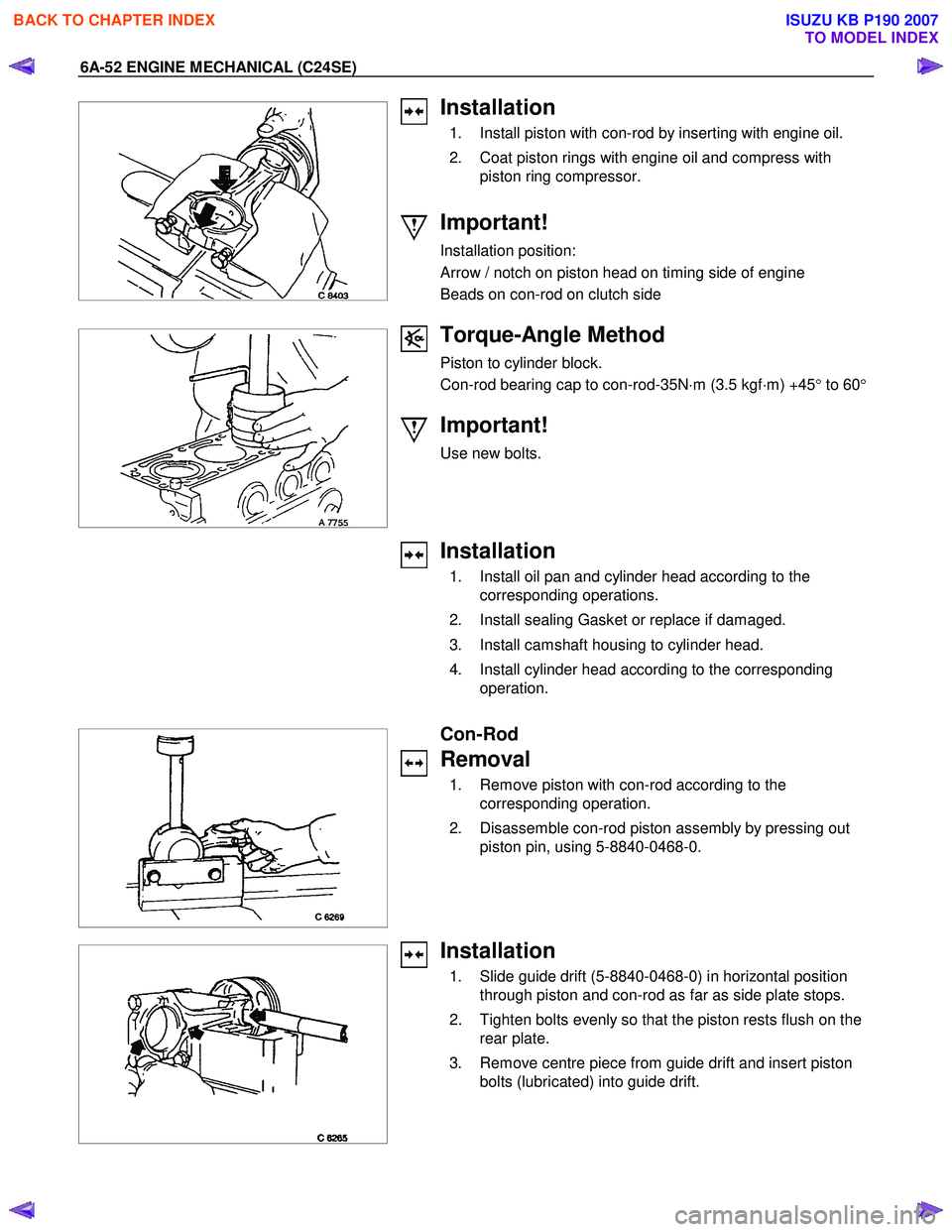

Installation
1. Install piston with con-rod by inserting with engine oil.
2. Coat piston rings with engine oil and compress with piston ring compressor.
Important!
Installation position:
Arrow / notch on piston head on timing side of engine
Beads on con-rod on clutch side
Torque-Angle Method
Piston to cylinder block.
Con-rod bearing cap to con-rod-35N ⋅m (3.5 kgf ⋅m) +45 ° to 60 °
Important!
Use new bolts.
Installation
1. Install oil pan and cylinder head according to the corresponding operations.
2. Install sealing Gasket or replace if damaged.
3. Install camshaft housing to cylinder head.
4. Install cylinder head according to the corresponding operation.
Con-Rod
Removal
1. Remove piston with con-rod according to the corresponding operation.
2. Disassemble con-rod piston assembly by pressing out piston pin, using 5-8840-0468-0.
Installation
1. Slide guide drift (5-8840-0468-0) in horizontal position through piston and con-rod as far as side plate stops.
2. Tighten bolts evenly so that the piston rests flush on the rear plate.
3. Remove centre piece from guide drift and insert piston bolts (lubricated) into guide drift.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2067 of 6020
ENGINE MECHANICAL (C24SE) 6A-53
4. Heat a new con-rod to 280
°C in the oil bath.
5. Install the con-rod to the piston and insert the piston pin.
Important!
Since the con-rods have no weight balancing studs, re-working
is not possible.
Exchange con-rods in sets only.
Installation position, beads on con-rod point to the flattening on
the piston pin eye.
Firmly seated piston pin cannot be pushed in. Carry out
installation quickly.
Piston Rings
Removal
1. Remove piston with con-rod according to the corresponding operation.
2. Remove piston rings using commercially available ring installer or piston ring clamp pliers.
Clean
Piston ring grooves - ground piece of old piston ring
Inspection
Piston ring gap
For piston ring sizes, permissible piston ring gaps - see
"Technical Data"
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2068 of 6020
6A-54 ENGINE MECHANICAL (C24SE)
RTW 46ASH002401

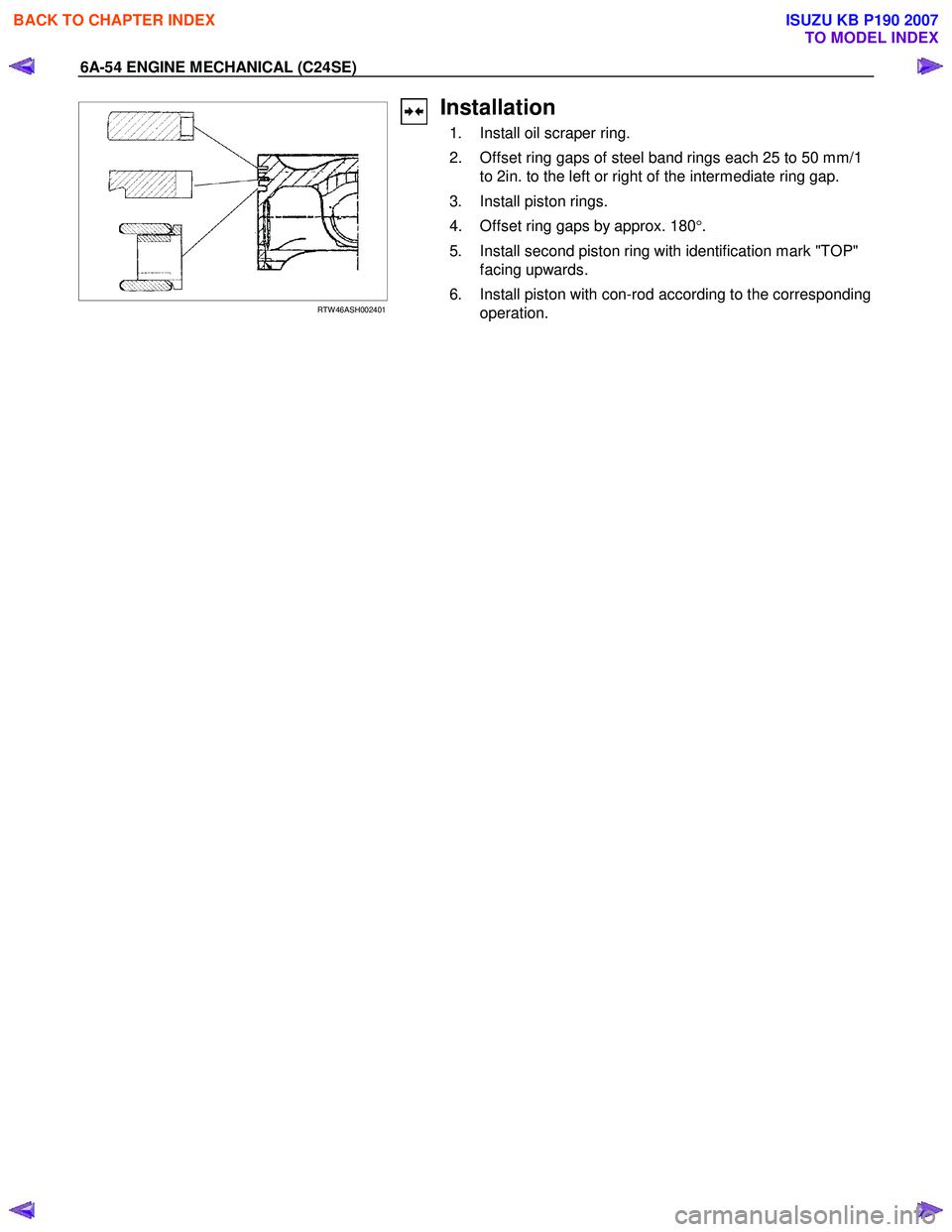

Installation
