Page 4209 of 6020

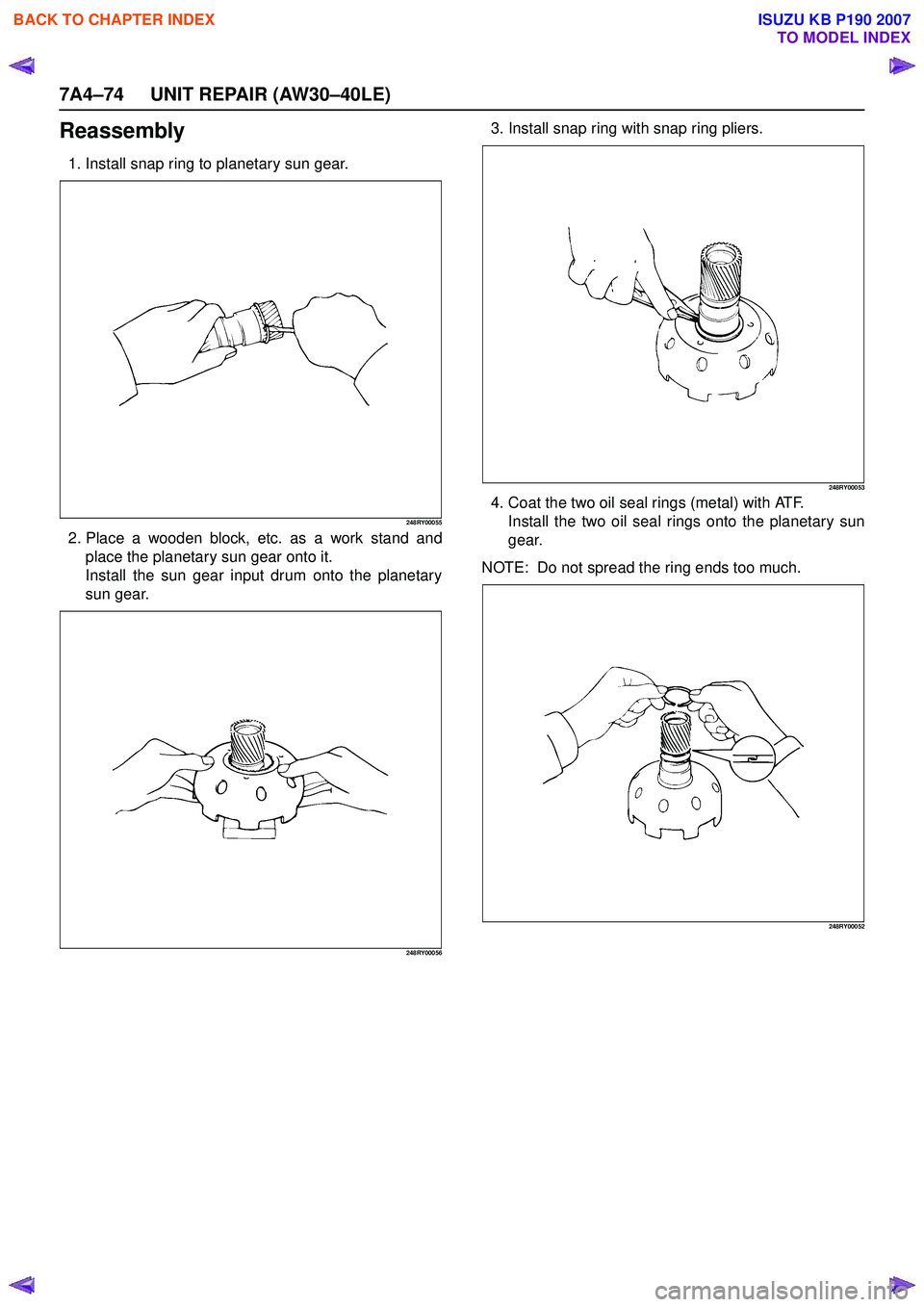

ISUZU KB P190 2007 Workshop Repair Manual 7A4–74 UNIT REPAIR (AW30–40LE) Reassembly 1. Install snap ring to planetary sun gear. 248RY00055 2. Place a wooden block, etc. as a work stand andplace the planetary sun gear onto it. Install the

Page 4210 of 6020

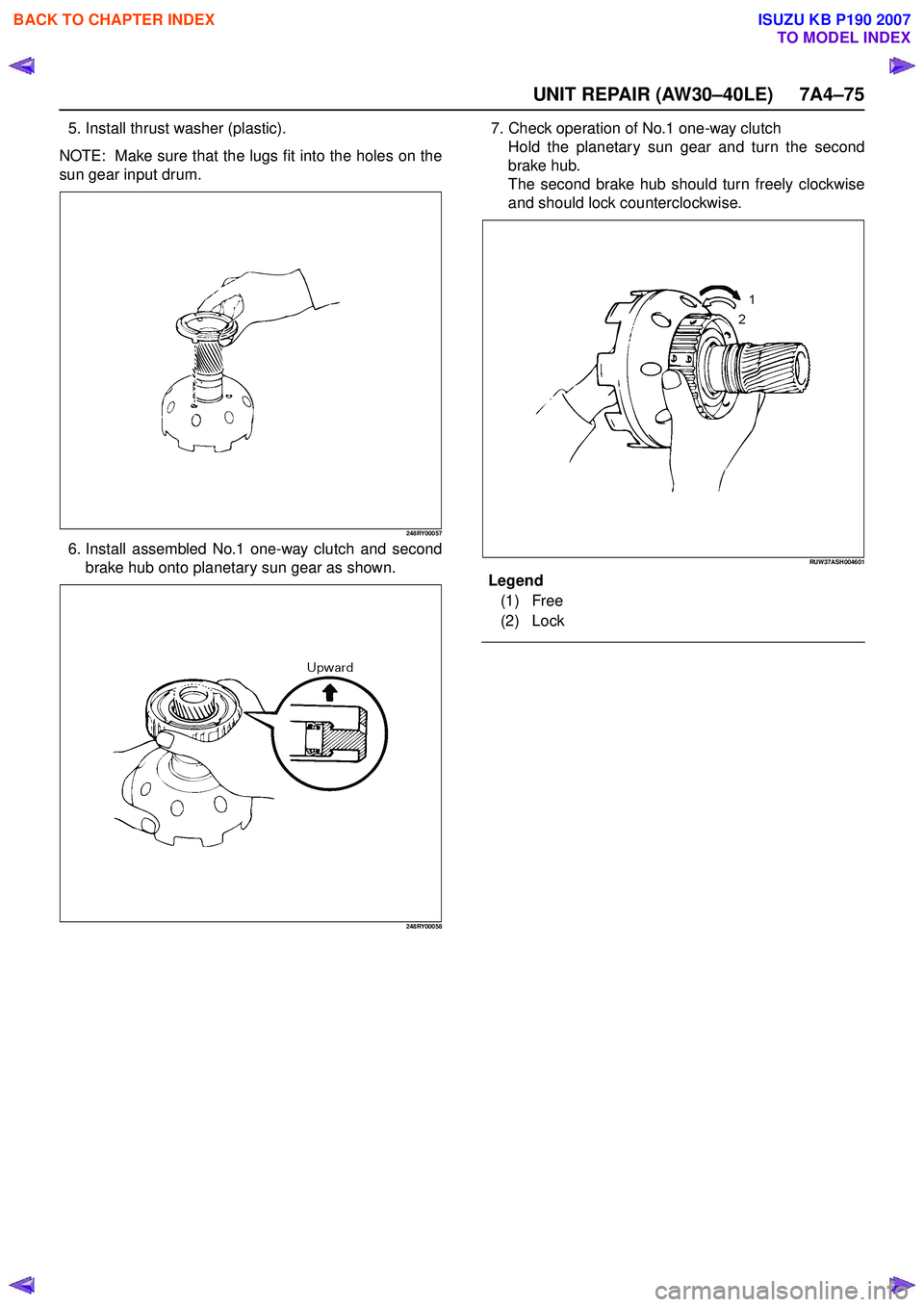

ISUZU KB P190 2007 Workshop Repair Manual UNIT REPAIR (AW30–40LE) 7A4–75 5. Install thrust washer (plastic). NOTE: Make sure that the lugs fit into the holes on the sun gear input drum. 248RY00057 6. Install assembled No.1 one-way clutc

Page 4211 of 6020

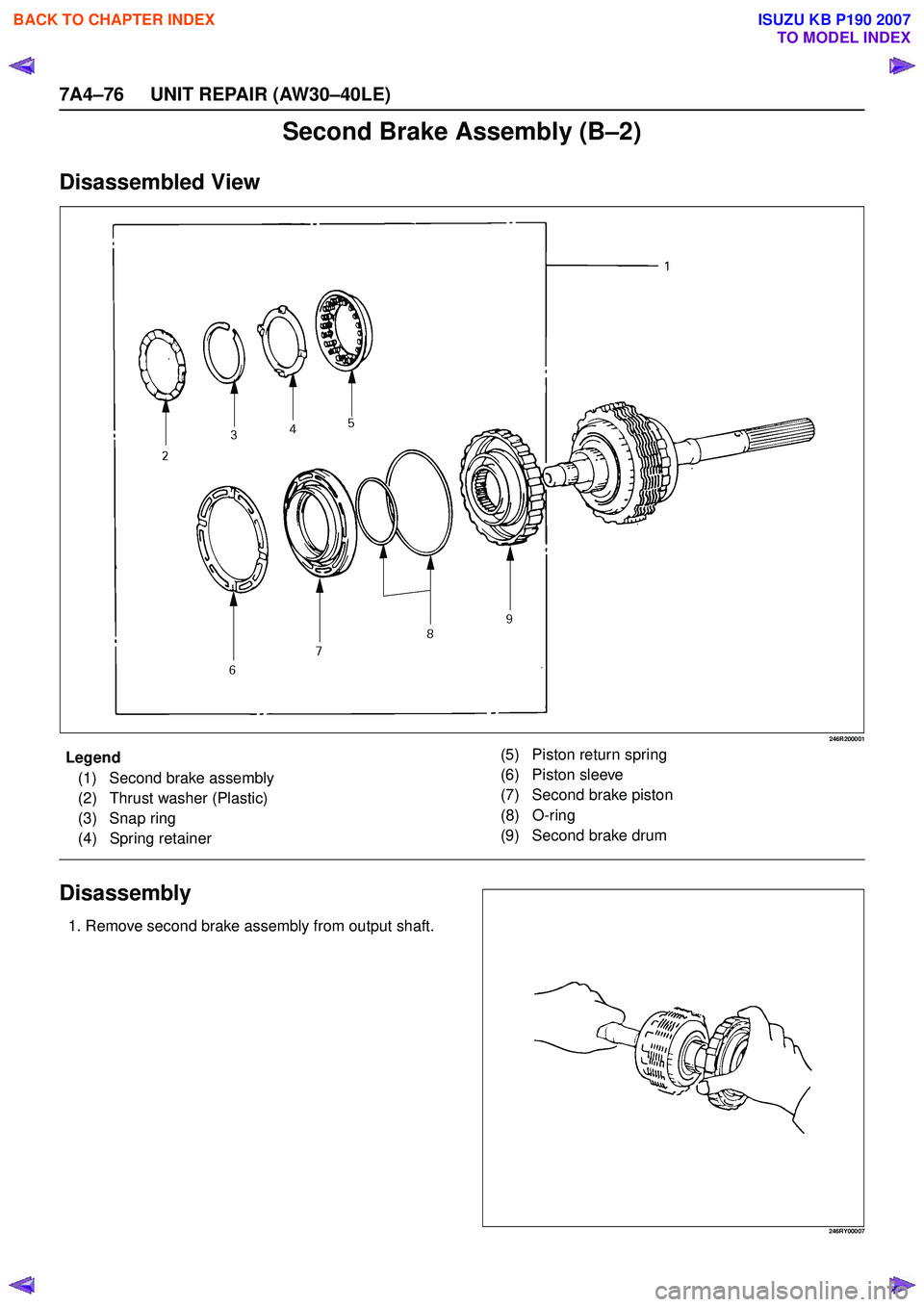

ISUZU KB P190 2007 Workshop Repair Manual 7A4–76 UNIT REPAIR (AW30–40LE) Second Brake Assembly (B–2) Disassembled View 246R200001 EndOFCallout Disassembly 1. Remove second brake assembly from output shaft. 246RY00007 Legend(1) Second br

Page 4212 of 6020

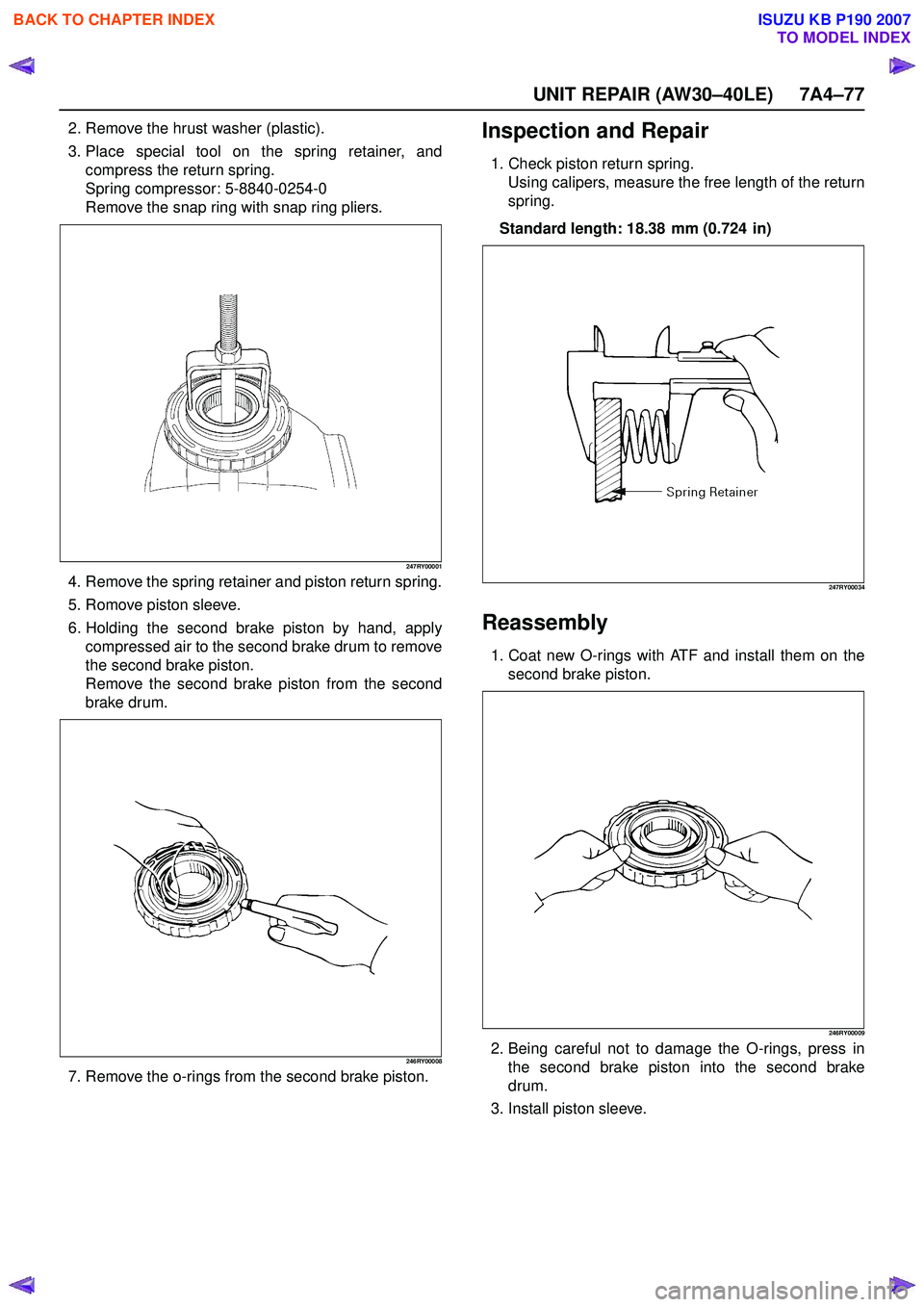

ISUZU KB P190 2007 Workshop Repair Manual UNIT REPAIR (AW30–40LE) 7A4–77 2. Remove the hrust washer (plastic). 3. Place special tool on the spring retainer, and compress the return spring. Spring compressor: 5-8840-0254-0 Remove the sna

Page 4213 of 6020

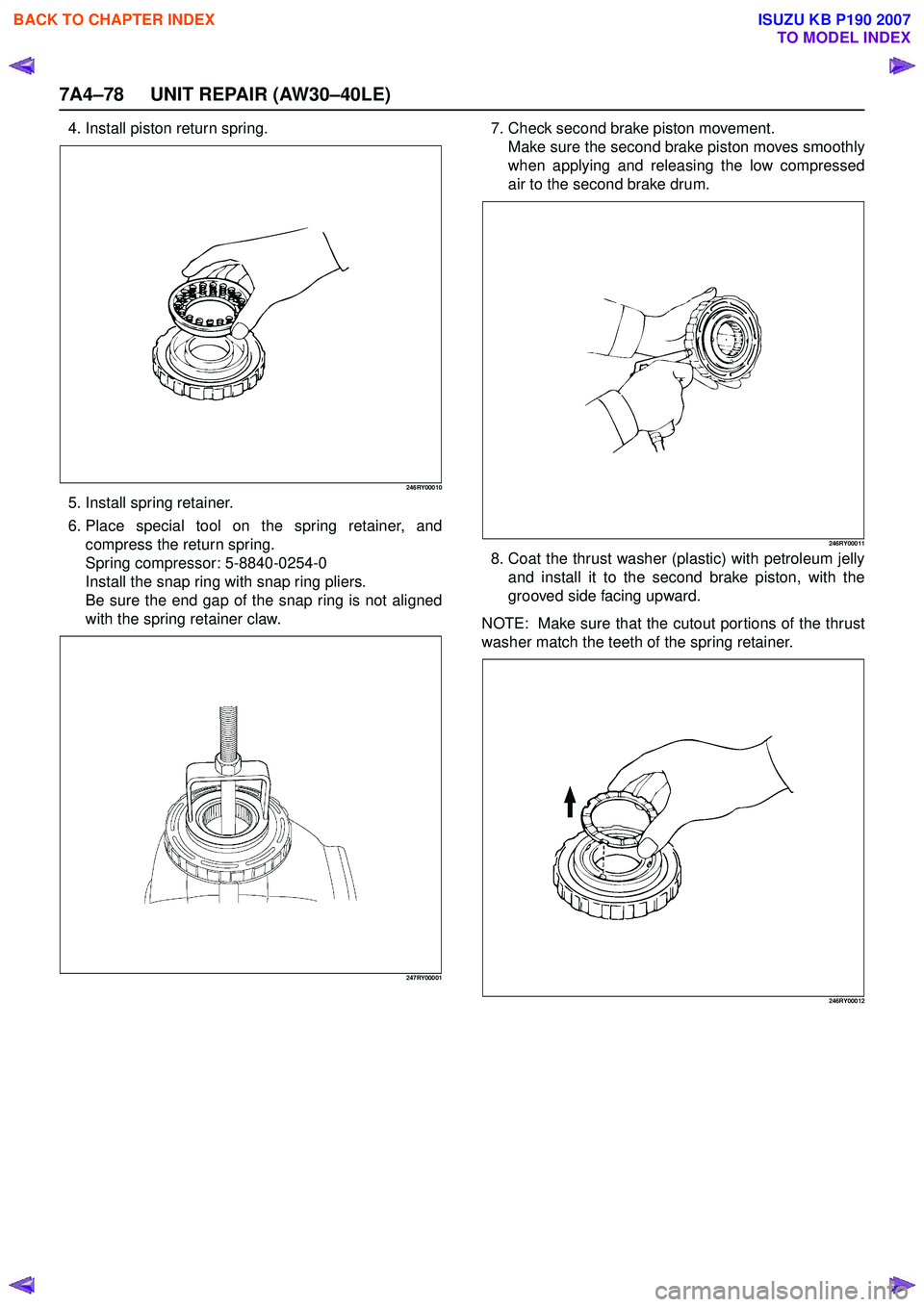

ISUZU KB P190 2007 Workshop Repair Manual 7A4–78 UNIT REPAIR (AW30–40LE) 4. Install piston return spring. 246RY00010 5. Install spring retainer. 6. Place special tool on the spring retainer, and compress the return spring. Spring compre

Page 4214 of 6020

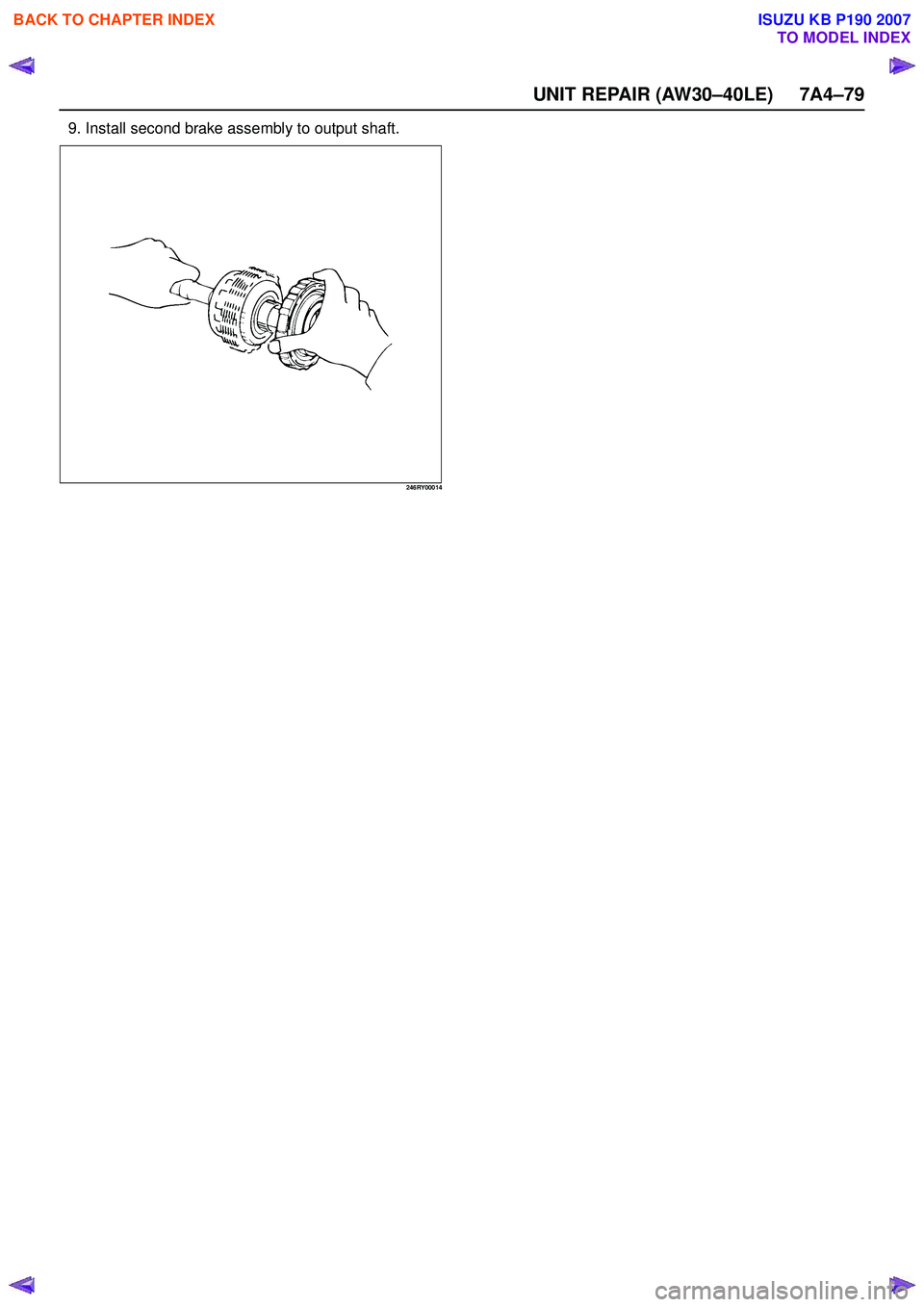

ISUZU KB P190 2007 Workshop Repair Manual UNIT REPAIR (AW30–40LE) 7A4–79 9. Install second brake assembly to output shaft. 246RY00014 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 4215 of 6020

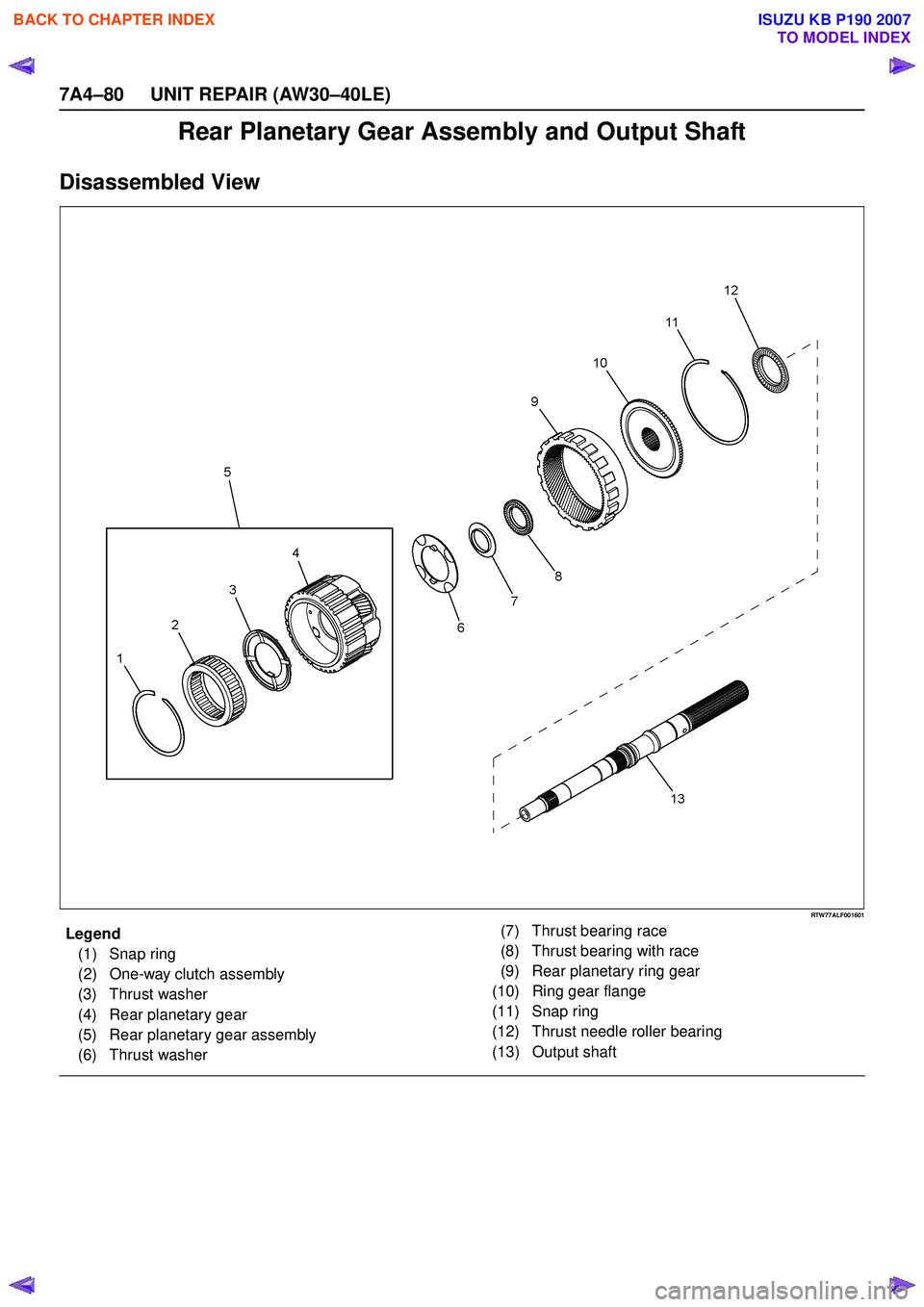

ISUZU KB P190 2007 Workshop Repair Manual 7A4–80 UNIT REPAIR (AW30–40LE) Rear Planetary Gear Assembly and Output Shaft Disassembled View RTW77ALF001601 EndOFCallout Legend(1) Snap ring (2) One-way clutch assembly (3) Thrust washer (4) R

Page 4216 of 6020

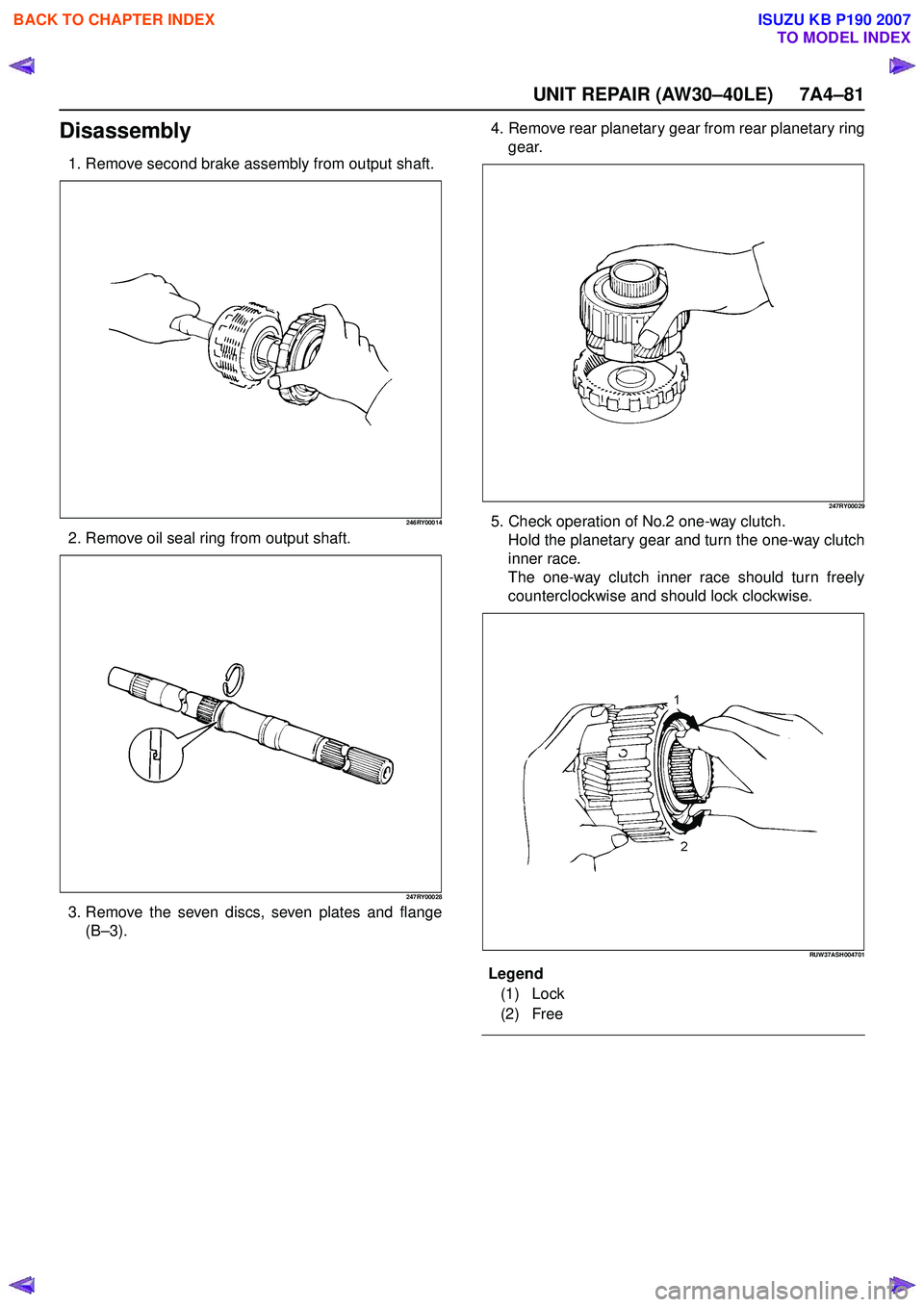

ISUZU KB P190 2007 Workshop Repair Manual UNIT REPAIR (AW30–40LE) 7A4–81 Disassembly 1. Remove second brake assembly from output shaft. 246RY00014 2. Remove oil seal ring from output shaft. 247RY00028 3. Remove the seven discs, seven plat
