Page 5417 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-479
Door mirror side
D2 D7

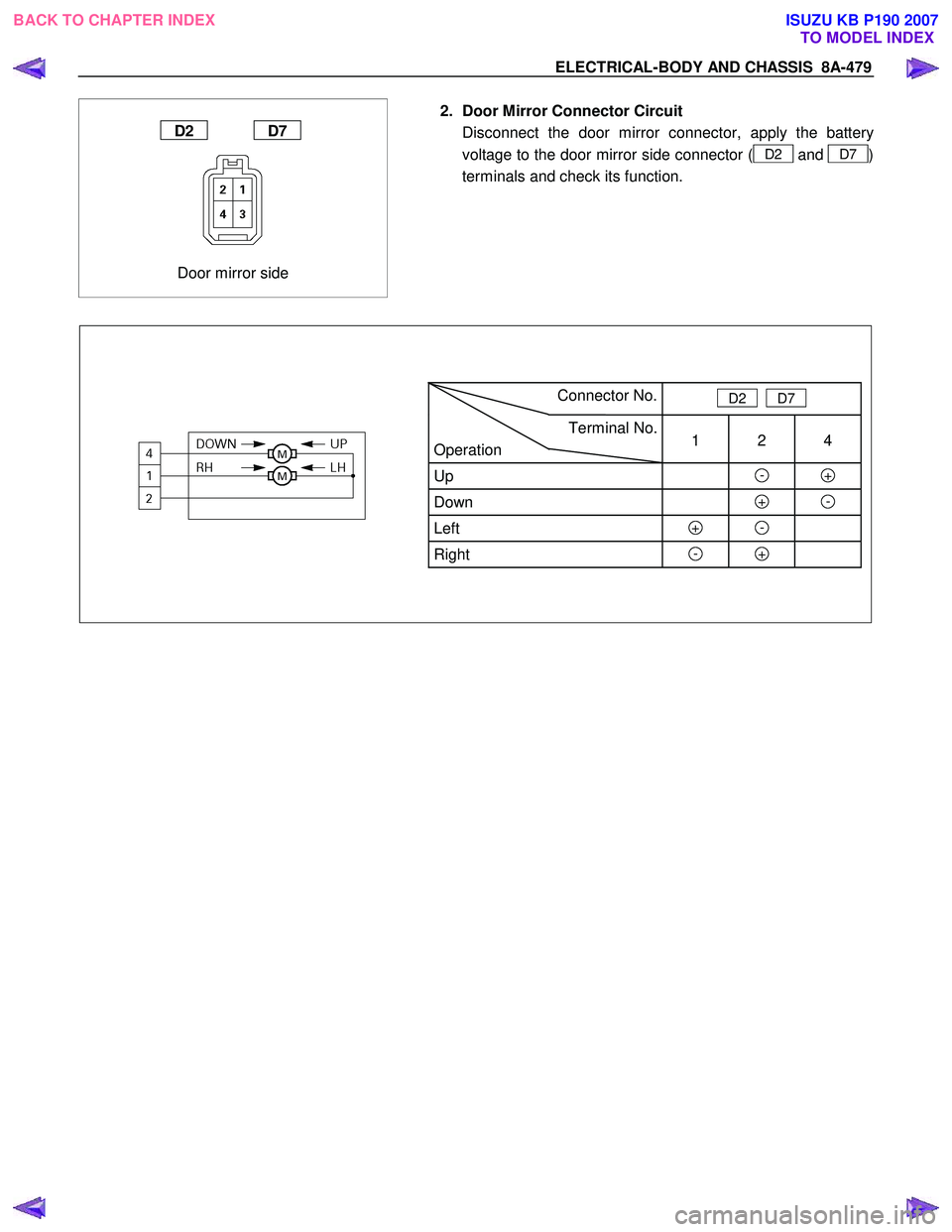

2. Door Mirror Connector Circuit
Disconnect the door mirror connector, apply the batter
y
voltage to the door mirror side connector (
D2 and D7)
terminals and check its function.
Connector No.
D2 D7
Terminal No.
Operation 1 2 4
Up - +
Down + -
Left + -
Right - +
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5418 of 6020
8A-480 ELECTRICAL-BODY AND CHASSIS

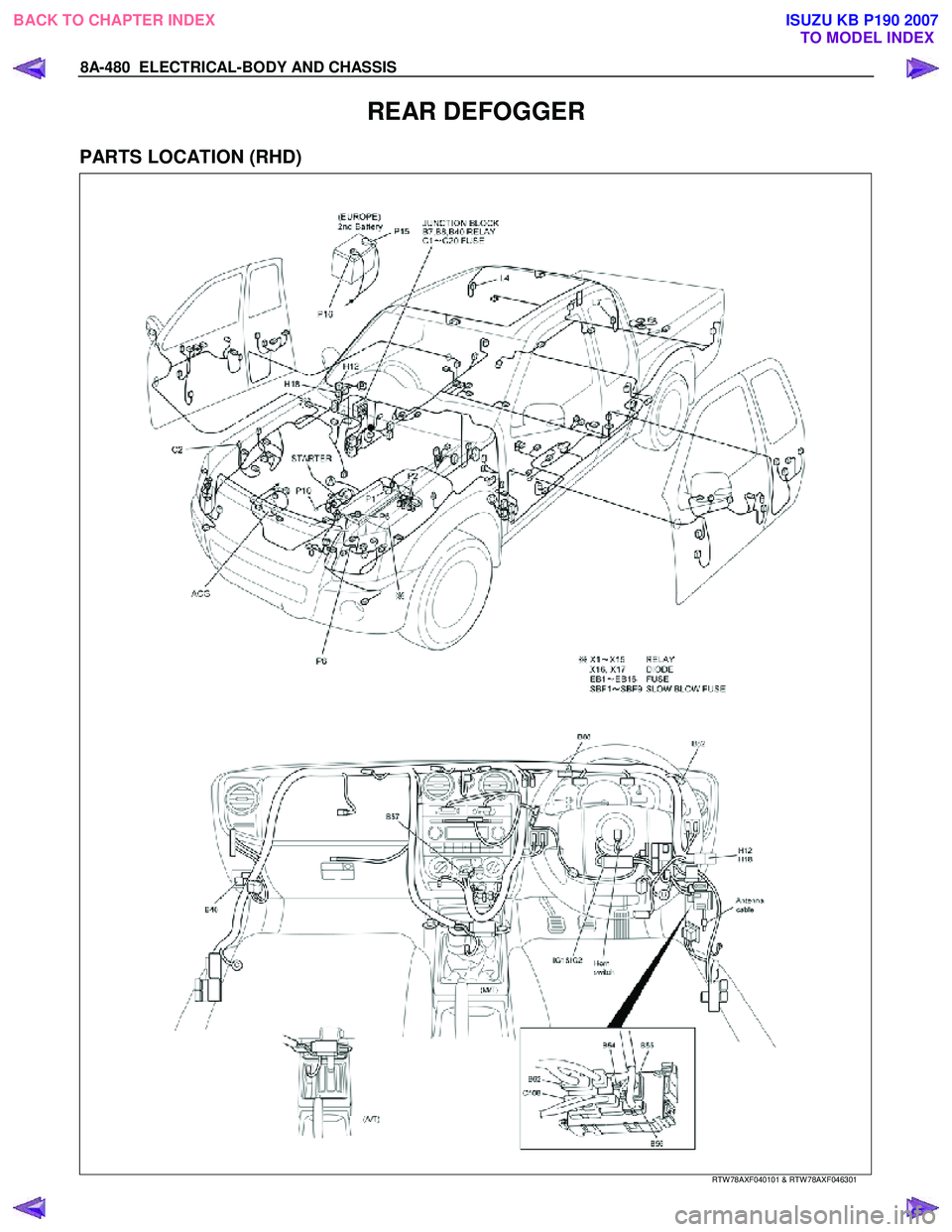

REAR DEFOGGER
PARTS LOCATION (RHD)
RTW 78AXF040101 & RTW 78AXF046301
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5419 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-481

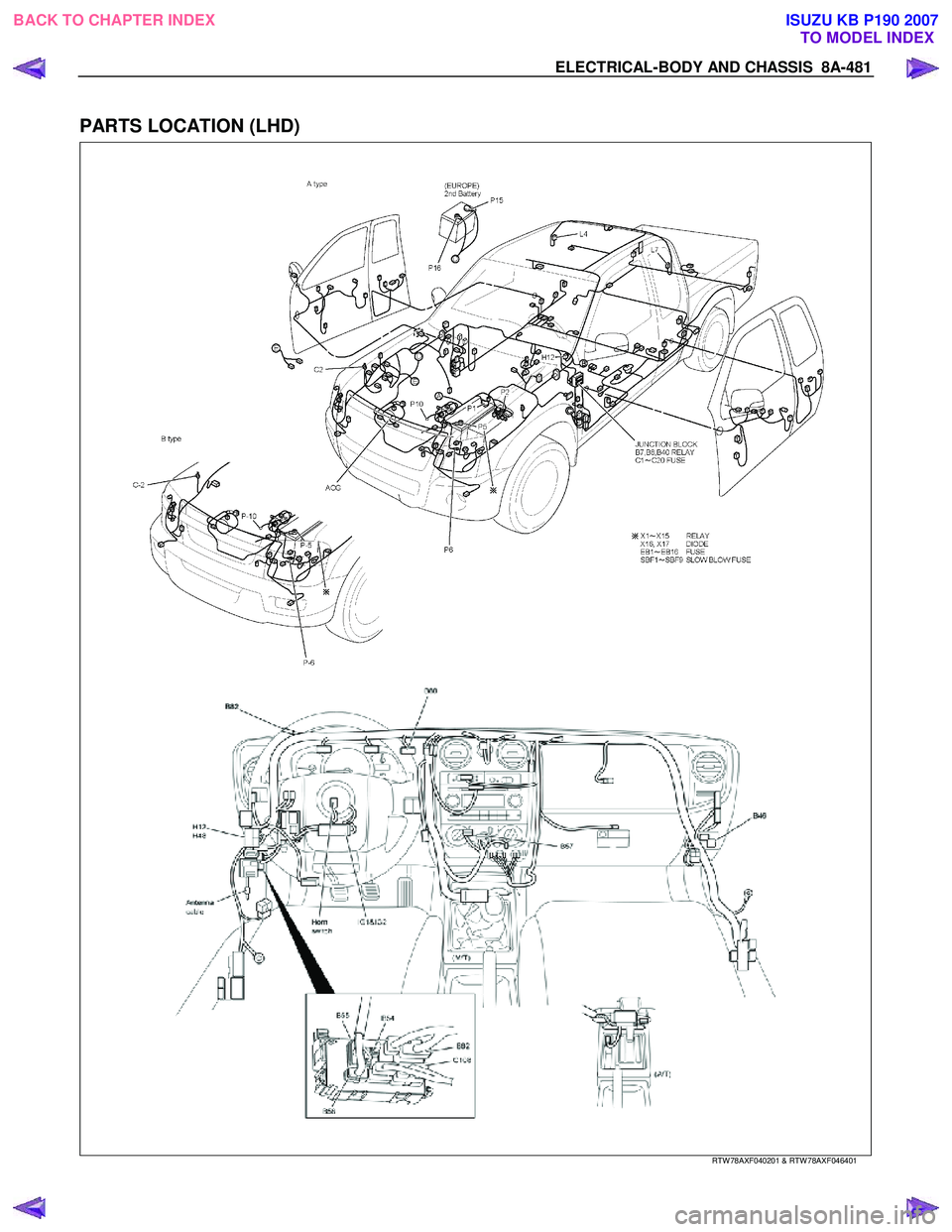

PARTS LOCATION (LHD)
RTW 78AXF040201 & RTW 78AXF046401
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5420 of 6020
8A-482 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM C24SE (RHD)
RTW 780XF014401
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5421 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-483
CIRCUIT DIAGRAM HFV6
RTW 78AXF016801
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5422 of 6020
8A-484 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JA1T(L), 4JJ1-TC / 4JK1-TC, 4JH1-TC
RTW 78AXF006201
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5423 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-485
CIRCUIT DIAGRAM C24SE (LHD)
RTW 780XF014501
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5424 of 6020

8A-486 ELECTRICAL-BODY AND CHASSIS
TROUBLE SHOOTING
Rear defogger inoperative
Checkpoint Trouble Cause Countermeasure
Reinstall or replace the fuse
No. C7 (10A) and 9
B56
Poor fuse contact or blown
NG
Reinstall or replace the fuse
C18 (20A)
C18 (20A, Fuse box)
Poor fuse contact or blown
Replace the rear defogger
switch
Rear defogger switch function
Switch malfunction
NG
NG
OK
OK
OK
Fuse No. C3 (10A, Fuse box)
and 9
B56
Replace the rear defogger
relay
Relay malfunction
NG
Continued on the next page
Rear defogger relay function
Repair grounding point contact
Grounding point
C2
Poor grounding point contact
NG
OK
Repair open circuit or poor
connector contact between
fuse No. C3 (10A) and 3
B7 , C18 (20A) and 1
B7 , 2 B7 (3 B55) and
1
L4 , 4 B7 (3 B54)
and 3
B46 or 1 B46 and
C2
Voltage between 1 L4 -
ground when the starter switch
and the rear defogger switch
are at on position (should be
battery voltage present)
Open circuit or poor connector
contact
NG
OK
