Page 497 of 6020

ISUZU KB P190 2007 Workshop Repair Manual REAR AXLE 4B-53 2) Axle Case Leakage Checkpoint Trouble Cause Countermeasure Tighten the drain plug and/or replace the gasket(s)Loose drain plug and/or defective gasket(s) NG Reapply the

Page 498 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 4B-54 REAR AXLE 3) Axle Case to Inside Brake Drum Leakage Checkpoint Trouble Cause Countermeasure Replace the oil sealW orn or defective oil seal NGOil seal BACK TO CHAPTER INDEX TO

Page 499 of 6020

ISUZU KB P190 2007 Workshop Repair Manual REAR AXLE 4B-55 4. POWER NOT BEING TRANSMITTED TO THE WHEELS (PROPELLER SHAFT OPERATION IS NORMAL) Checkpoint Trouble Cause Countermeasure Replace the rear axle shaftBroken rear axle shaf

Page 500 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 4B-56 REAR AXLE SPECIAL SERVICE TOOL ILLUSTRATION PART NO. PART NAME 5-8840-2831-0 Bearing Remover 5-8840-0007-0 (J-8092) Grip 5-8840-2119-0 (J-36829) Installer 5-8

Page 501 of 6020

ISUZU KB P190 2007 Workshop Repair Manual REAR AXLE 4B-57 ILLUSTRATION PART NO. PART NAME 5-8840-0013-0 (J-22888) Remover 5-8840-0014-0 (J-22888-30) Remover 5-8840-2196-0 (J-8107-4) Adapter ( φ220mm) 9-852

Page 502 of 6020

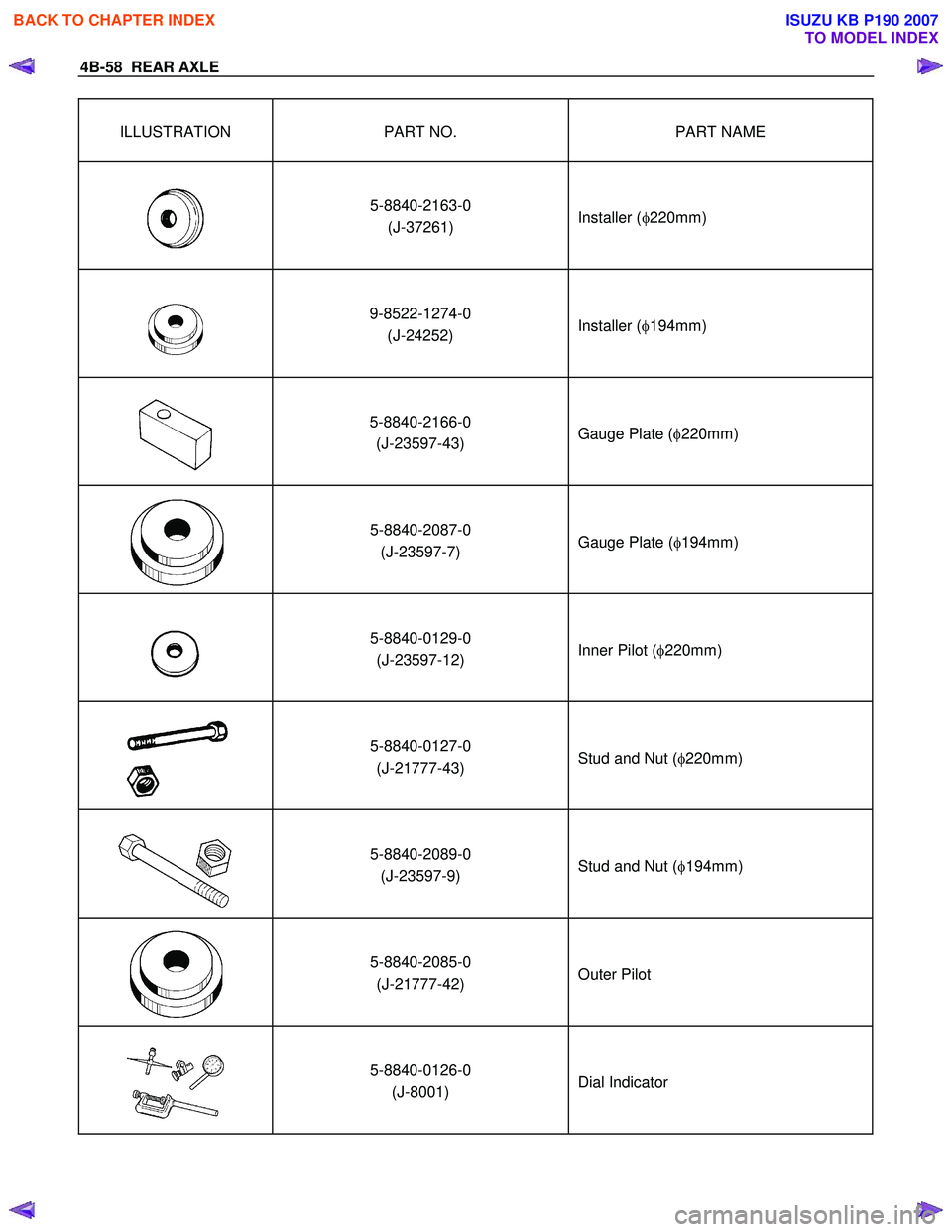

ISUZU KB P190 2007 Workshop Repair Manual 4B-58 REAR AXLE ILLUSTRATION PART NO. PART NAME 5-8840-2163-0 (J-37261) Installer ( φ220mm) 9-8522-1274-0 (J-24252) Installer ( φ194mm) 5-8840-2166-0 (J-23597-43) Ga

Page 503 of 6020

ISUZU KB P190 2007 Workshop Repair Manual REAR AXLE 4B-59 ILLUSTRATION PART NO. PART NAME 5-8840-2167-0 (J-21777-86) Disc ( φ220mm) 5-8840-0128-0 (J-23597-1) Arbor 5-8840-2088-0 (J-23597-8) Disc ( φ194mm)

Page 504 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 4B-60 REAR AXLE ILLUSTRATION PART NO. PART NAME 5-8840-2682-0 (J-44450) Sid Gear Holder BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007
