ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–178

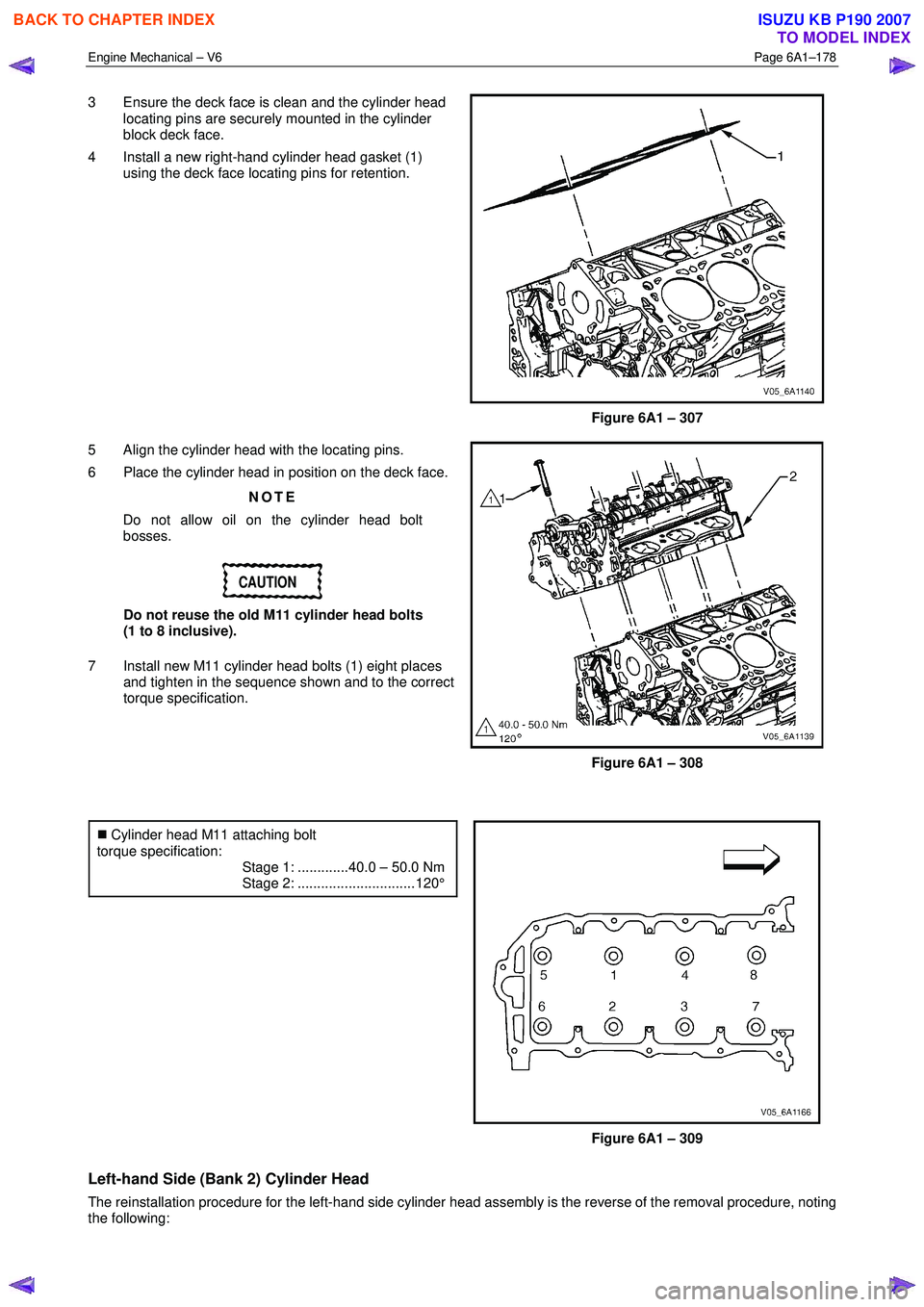

3 Ensure the deck face is clean and the cylinder head
locating pins are securely mounted in the cylinder
block deck face.
4 Install a new right-hand cy

Page 2658 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–179

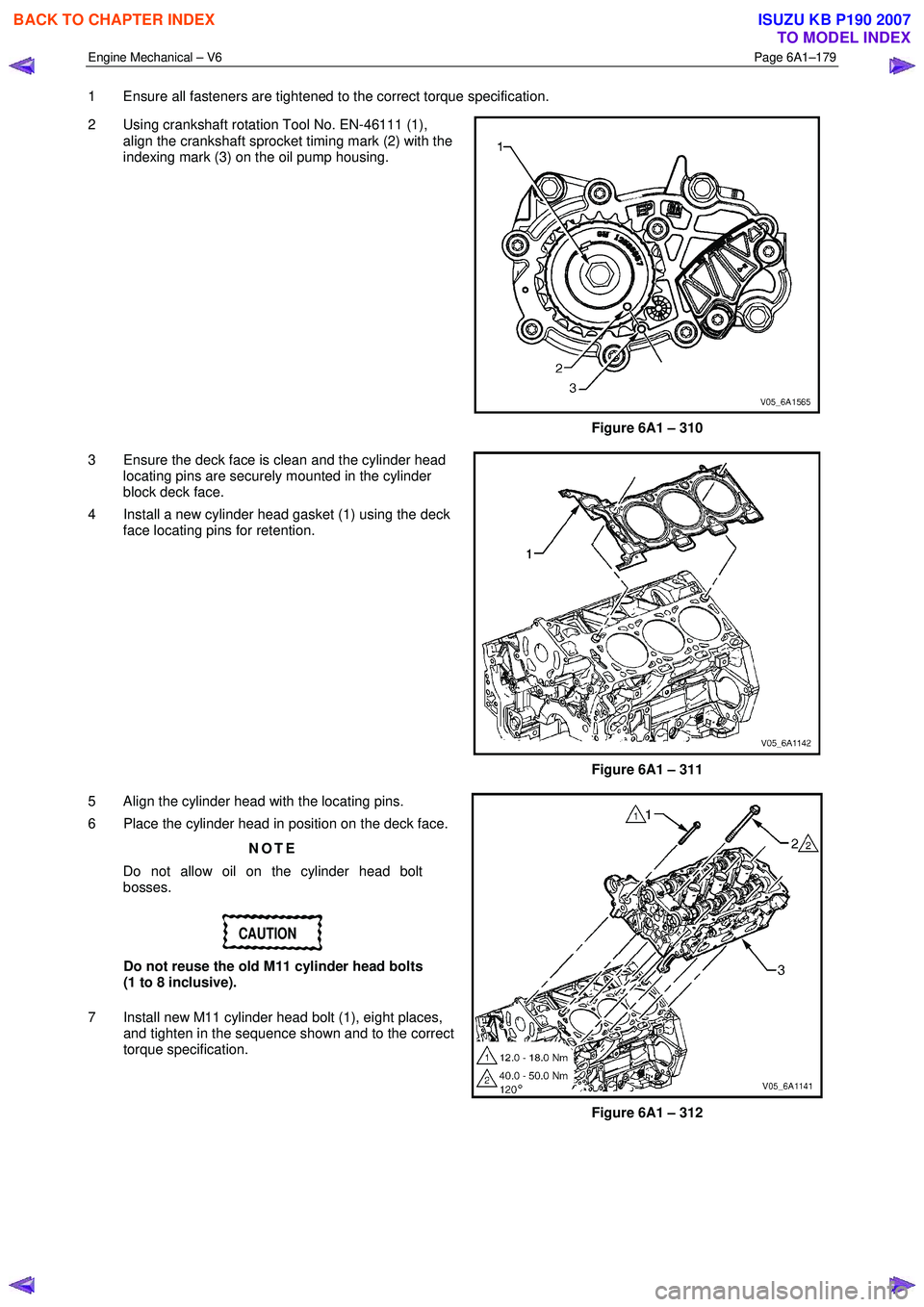

1 Ensure all fasteners are tightened to the correct torque specification.
2 Using crankshaft rotation Tool No. EN-46111 (1), align the crankshaft sprock

Page 2659 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–180

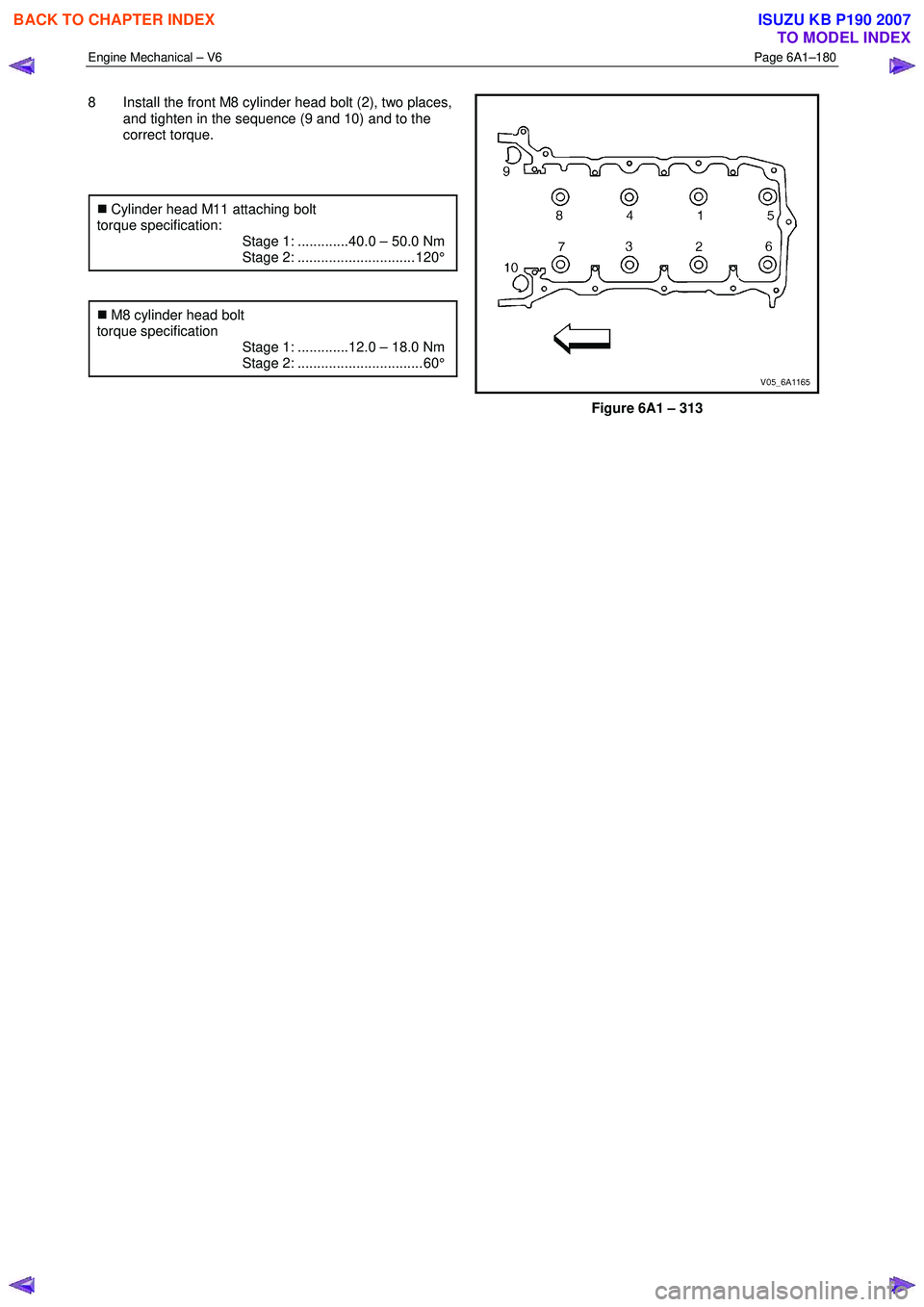

8 Install the front M8 cylinder head bolt (2), two places,
and tighten in the sequence (9 and 10) and to the
correct torque.

�„ Cylinder head M1

Page 2660 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–181

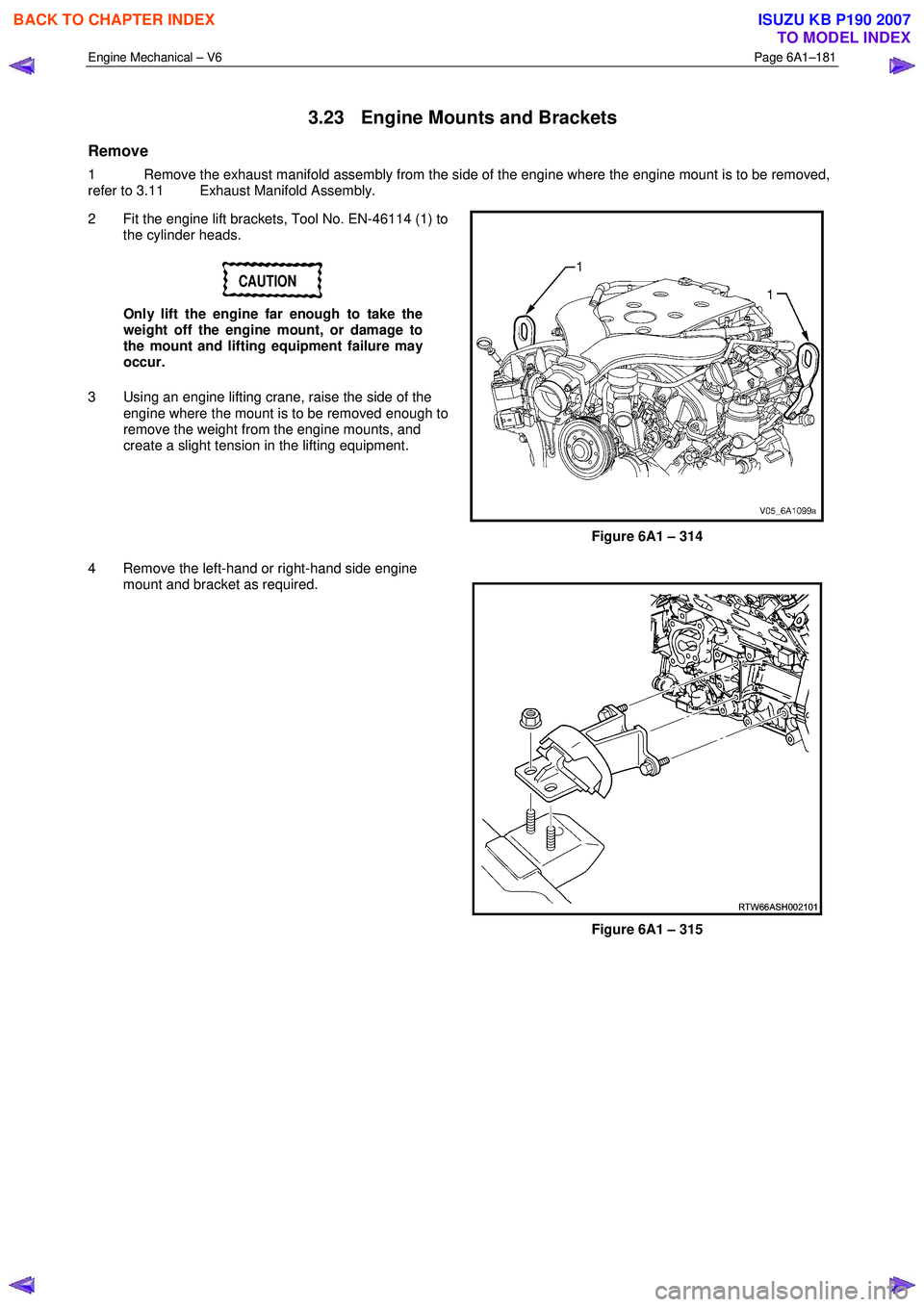

3.23 Engine Mounts and Brackets
Remove
1 Remove the exhaust manifold assembly from the side of the engine where the engine mount is to be removed,
refe

Page 2661 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–182

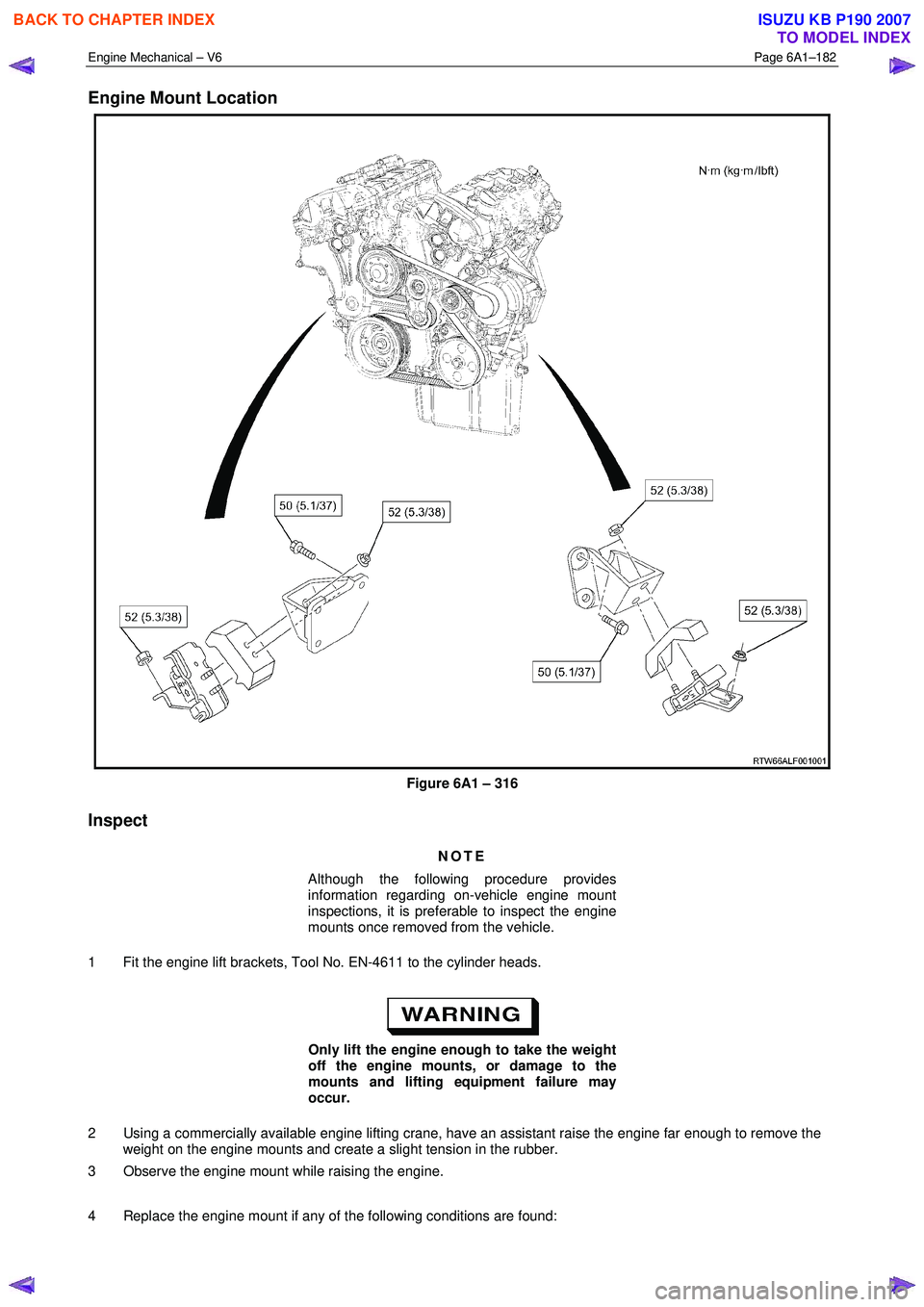

Engine Mount Location

Figure 6A1 – 316
Inspect
NOTE
Although the following procedure provides
information regarding on-vehicle engine mount
inspe

Page 2662 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–183

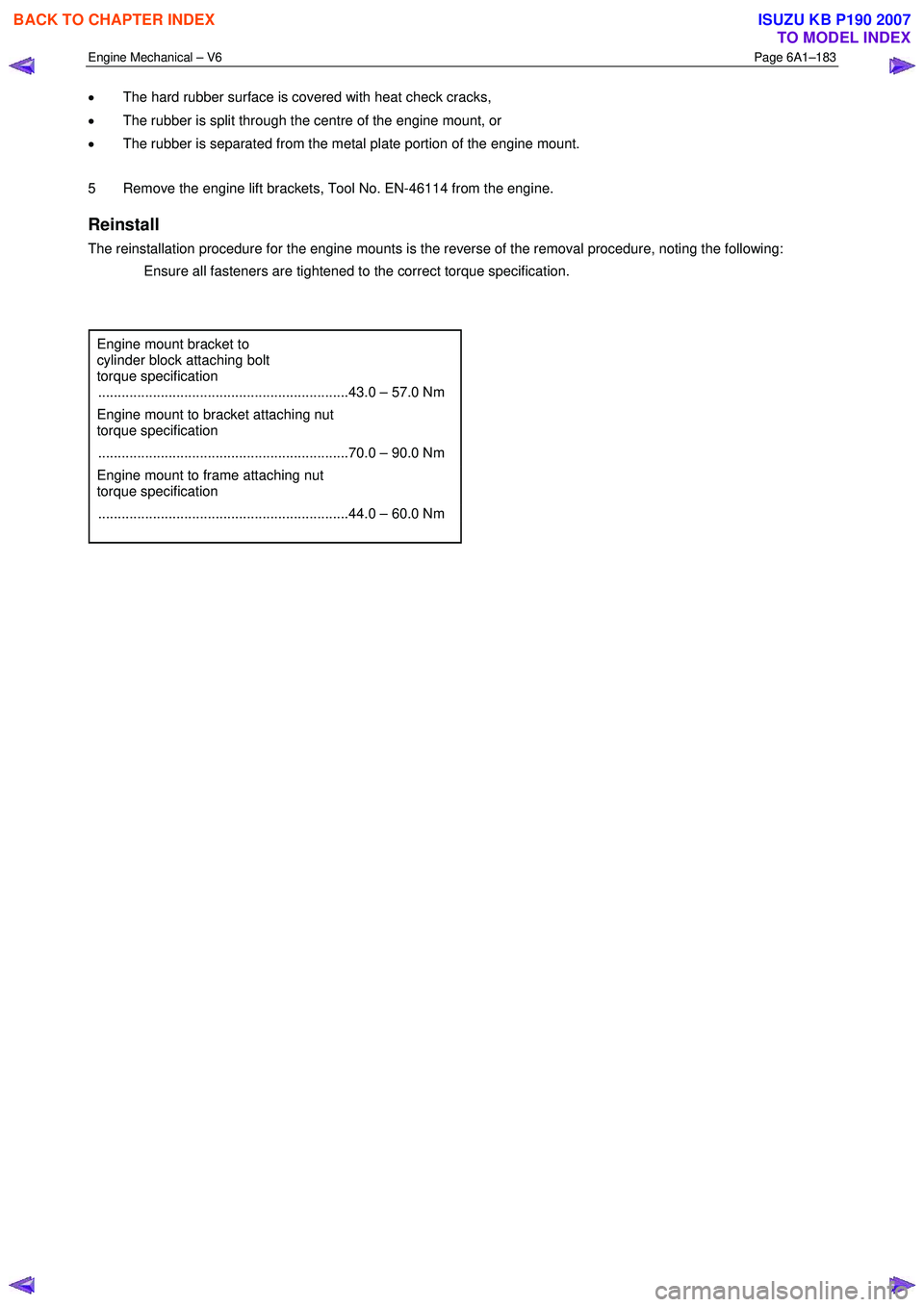

• The hard rubber surface is covered with heat check cracks,
• The rubber is split through the centre of the engine mount, or
• The rubber is separ

Page 2663 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–184

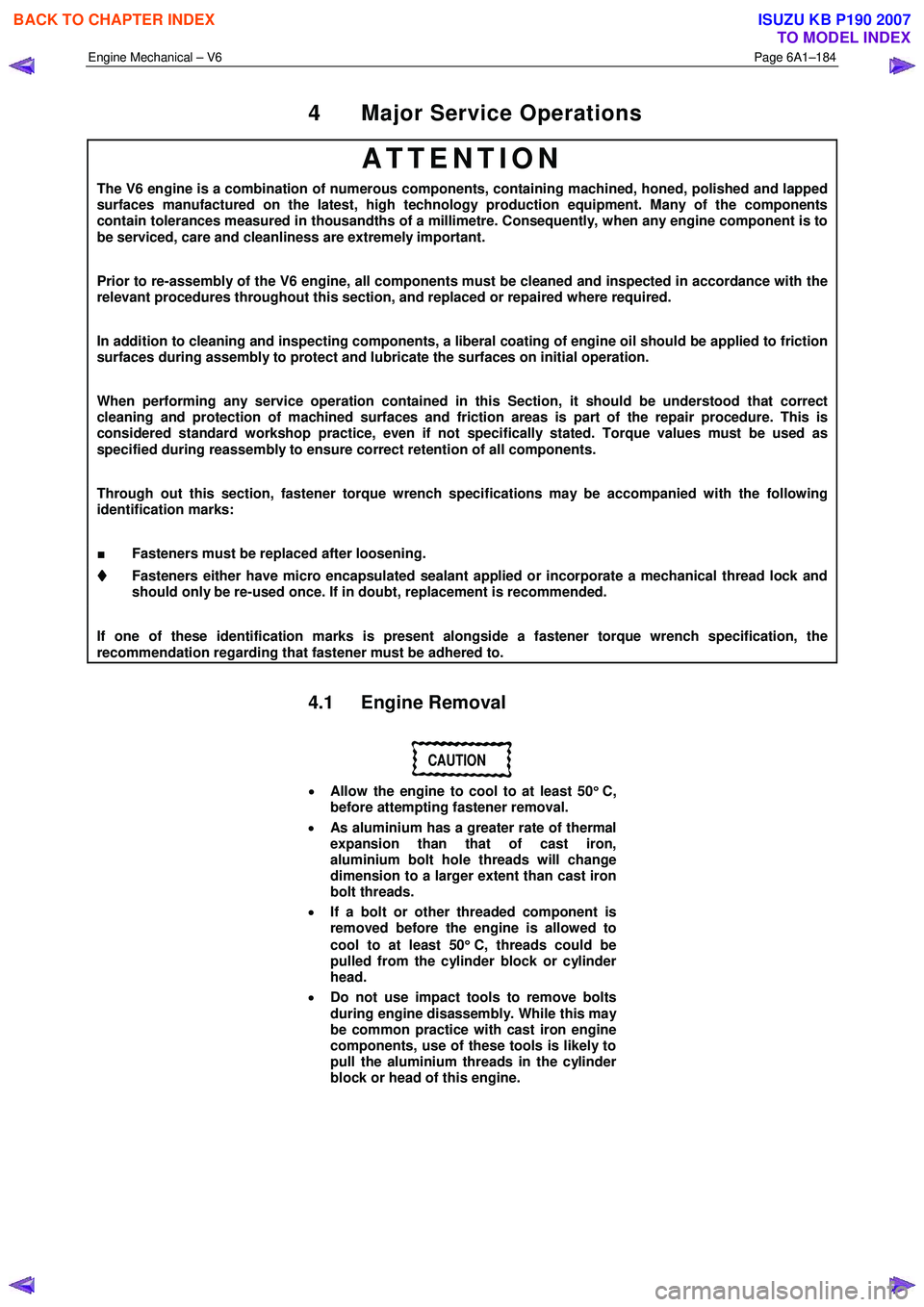

4 Major Service Operations
ATTENTION
The V6 engine is a combination of numerous components, containing machined, honed, polished and lapped
surfaces manu

Engine Mechanical – V6 Page 6A1–184

4 Major Service Operations
ATTENTION
The V6 engine is a combination of numerous components, containing machined, honed, polished and lapped
surfaces manufactured on the latest, high technology production equipment. Many of the components
contain tolerances measured in thousandths of a millimetre. Consequently, when any engine component is to
be serviced, care and cleanliness are extremely important.
Prior to re-assembly of the V6 engine, all components must be cleaned and inspected in accordance with the
relevant procedures throughout this section, and replaced or repaired where required.
In addition to cleaning and inspecting components, a liberal coating of engine oil should be applied to friction
surfaces during assembly to protect and lubricate the surfaces on initial operation.
When performing any service operation contained in this Section, it should be understood that correct
cleaning and protection of machined surfaces and friction areas is part of the repair procedure. This is
considered standard workshop practice, even if not specifically stated. Torque values must be used as
specified during reassembly to ensure correct retention of all components.
Through out this section, fastener torque wrench specifications may be accompanied with the following
identification marks:
■ Fasteners must be replaced after loosening.

Fasteners either have micro encapsulated sealant applied or incorporate a mechanical thread lock and
should only be re-used once. If in doubt, replacement is recommended.

If one of these identification marks is present alongside a fastener torque wrench specification, the
recommendation regarding that fastener must be adhered to.
4.1 Engine Removal
CAUTION
• Allow the engine to cool to at least 50 °
°°
°
C,
before attempting fastener removal.
• As aluminium has a greater rate of thermal
expansion than that of cast iron,
aluminium bolt hole threads will change
dimension to a larger extent than cast iron
bolt threads.
• If a bolt or other threaded component is
removed before the engine is allowed to
cool to at least 50 °
°°
°
C, threads could be
pulled from the cylinder block or cylinder
head.
• Do not use impact tools to remove bolts
during engine disassembly. While this may
be common practice with cast iron engine
components, use of these tools is likely to
pull the aluminium threads in the cylinder
block or head of this engine.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 2664 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–185

Remove
1 Remove the skid plate.
2 Drain the radiator coolant, refer to 6B1 Engine Cooling – V6.
3 Disconnect the battery negative and positive term
