ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-471 CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC / 4JH1-TC (LHD) RTW 78AXF028401 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5410 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-472 ELECTRICAL-BODY AND CHASSIS TROUBLESHOOTING QUICK CHART FOR CHECK POINT Check Point Fuse Door Mirror Door Mirror Trouble Mode C11 (10A) Control Switch LH RH 1. Mirrors on

Page 5411 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-473 DOOR MIRROR CONTROL SWITCH 1. Mirrors on the both sides do not operate Checkpoint Trouble Cause Countermeasure Reinstall or replace the fuse No. C1

Page 5412 of 6020

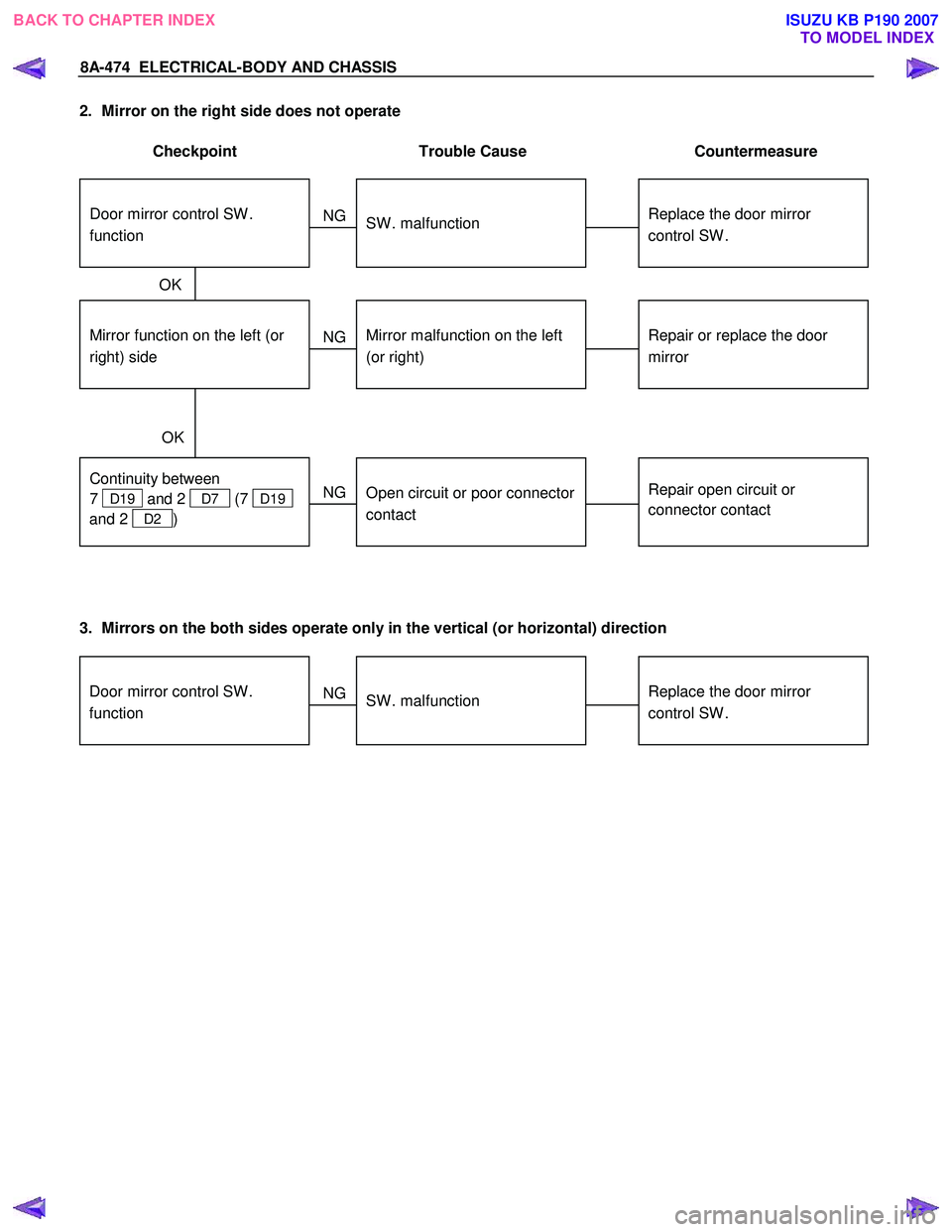

ISUZU KB P190 2007 Workshop Repair Manual 8A-474 ELECTRICAL-BODY AND CHASSIS 2. Mirror on the right side does not operate Checkpoint Trouble Cause Countermeasure Replace the door mirror control SW . SW . malfunction NG

Page 5413 of 6020

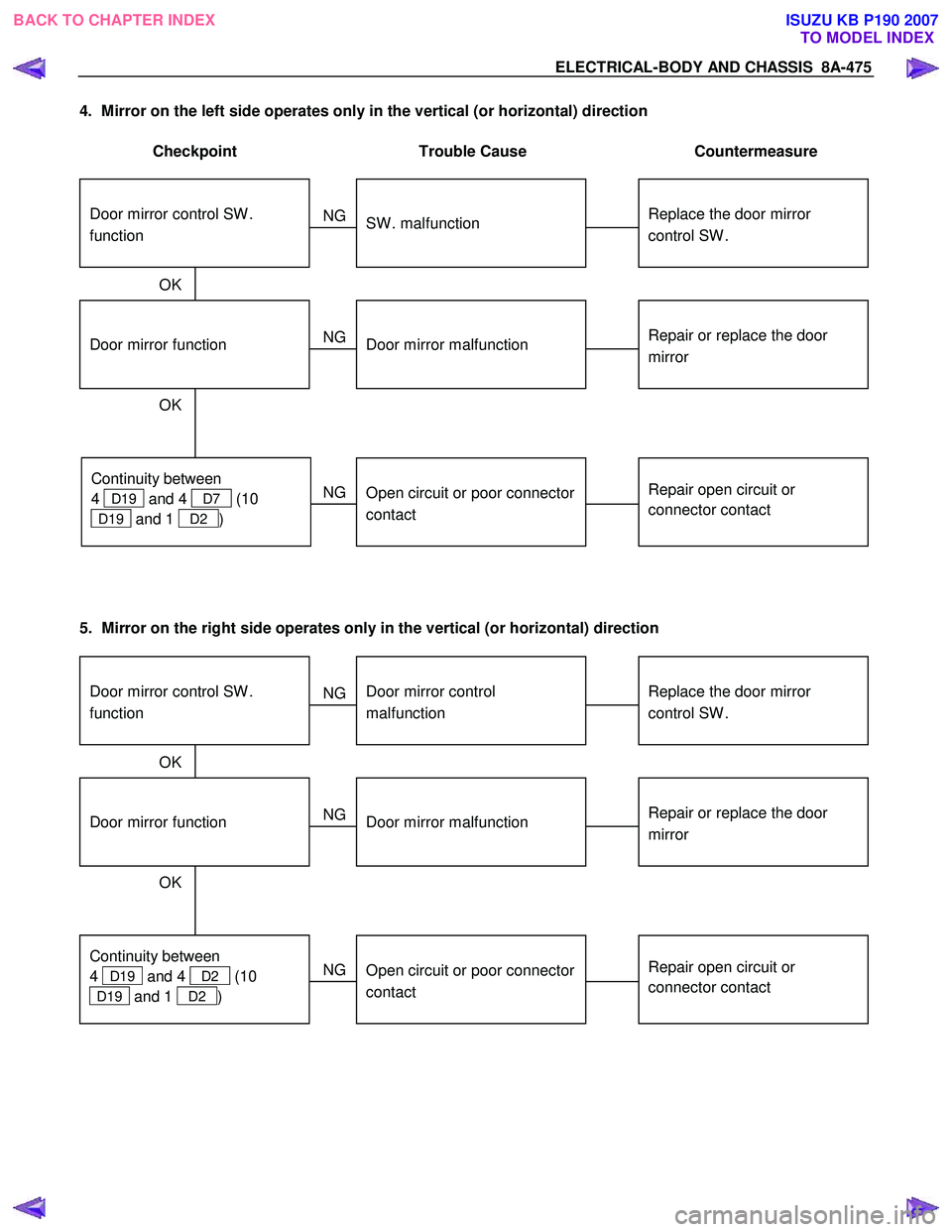

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-475 4. Mirror on the left side operates only in the vertical (or horizontal) direction Checkpoint Trouble Cause Countermeasure Replace the door mirror c

Page 5414 of 6020

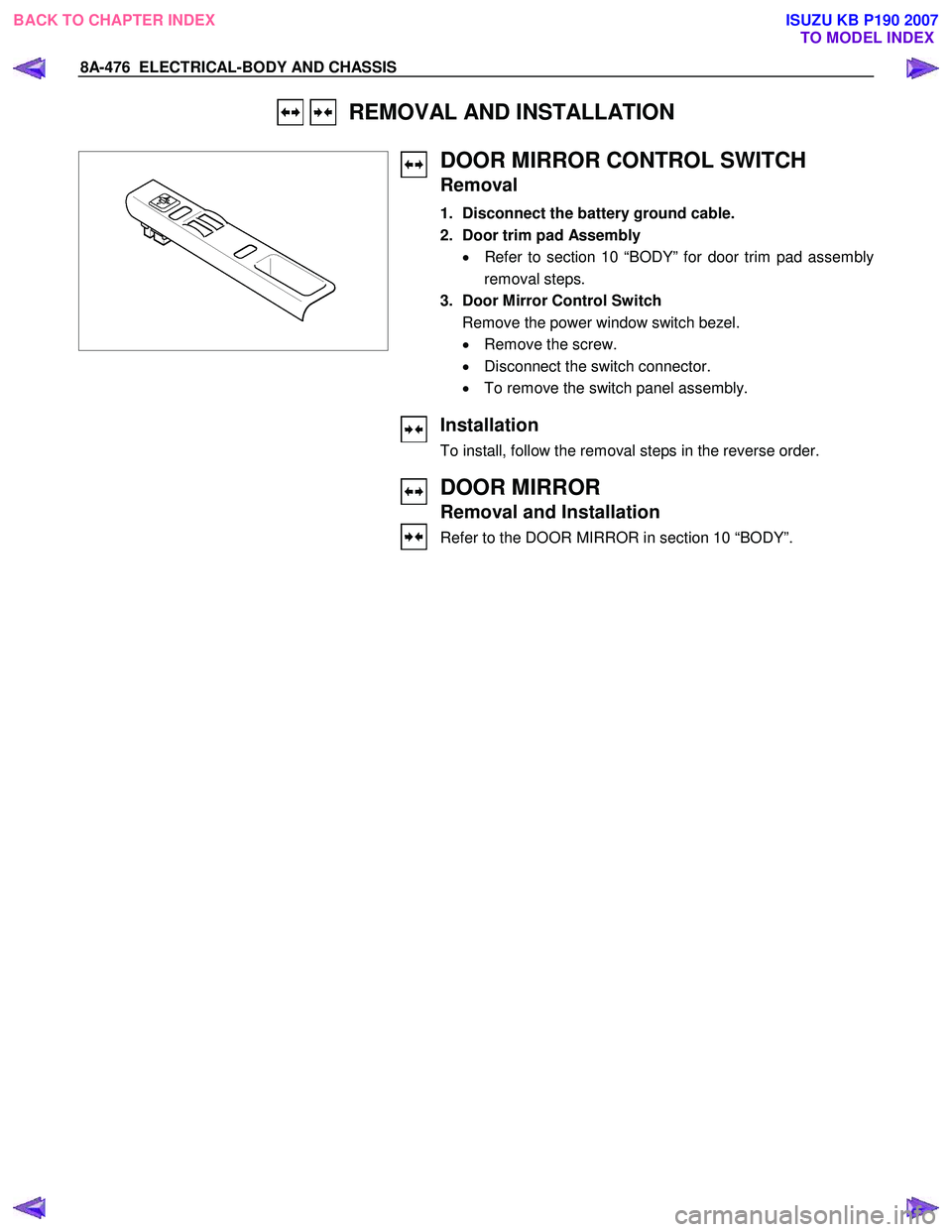

ISUZU KB P190 2007 Workshop Repair Manual 8A-476 ELECTRICAL-BODY AND CHASSIS REMOVAL AND INSTALLATION DOOR MIRROR CONTROL SWITCH Removal 1. Disconnect the battery ground cable. 2. Door trim pad Assembly • Refer to sectio

Page 5415 of 6020

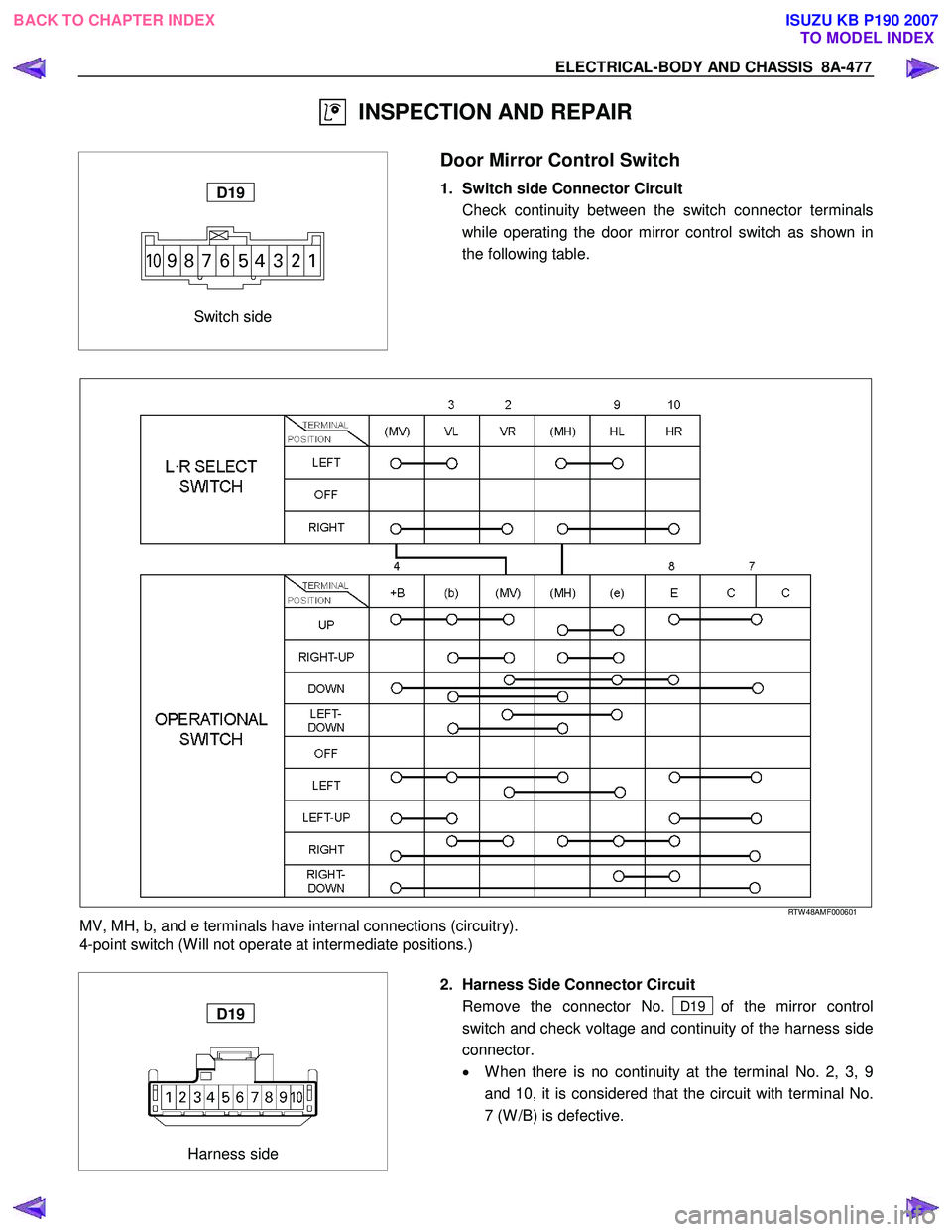

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-477 INSPECTION AND REPAIR Switch side D19 Door Mirror Control Switch 1. Switch side Connector Circuit Check continuity between the switch co

Page 5416 of 6020

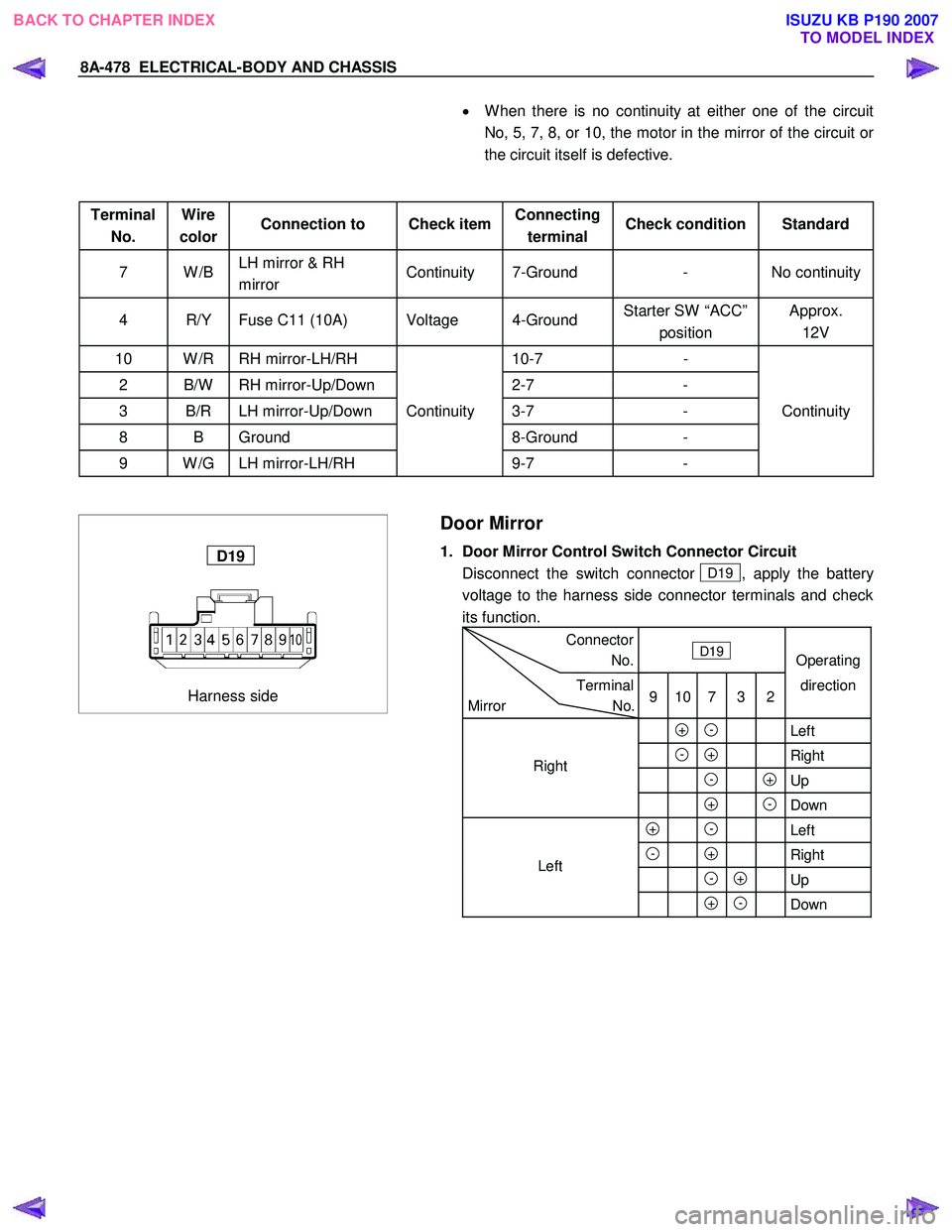

ISUZU KB P190 2007 Workshop Repair Manual 8A-478 ELECTRICAL-BODY AND CHASSIS • W hen there is no continuity at either one of the circuit No, 5, 7, 8, or 10, the motor in the mirror of the circuit o r the circuit itself is defective.
