Page 5977 of 6020

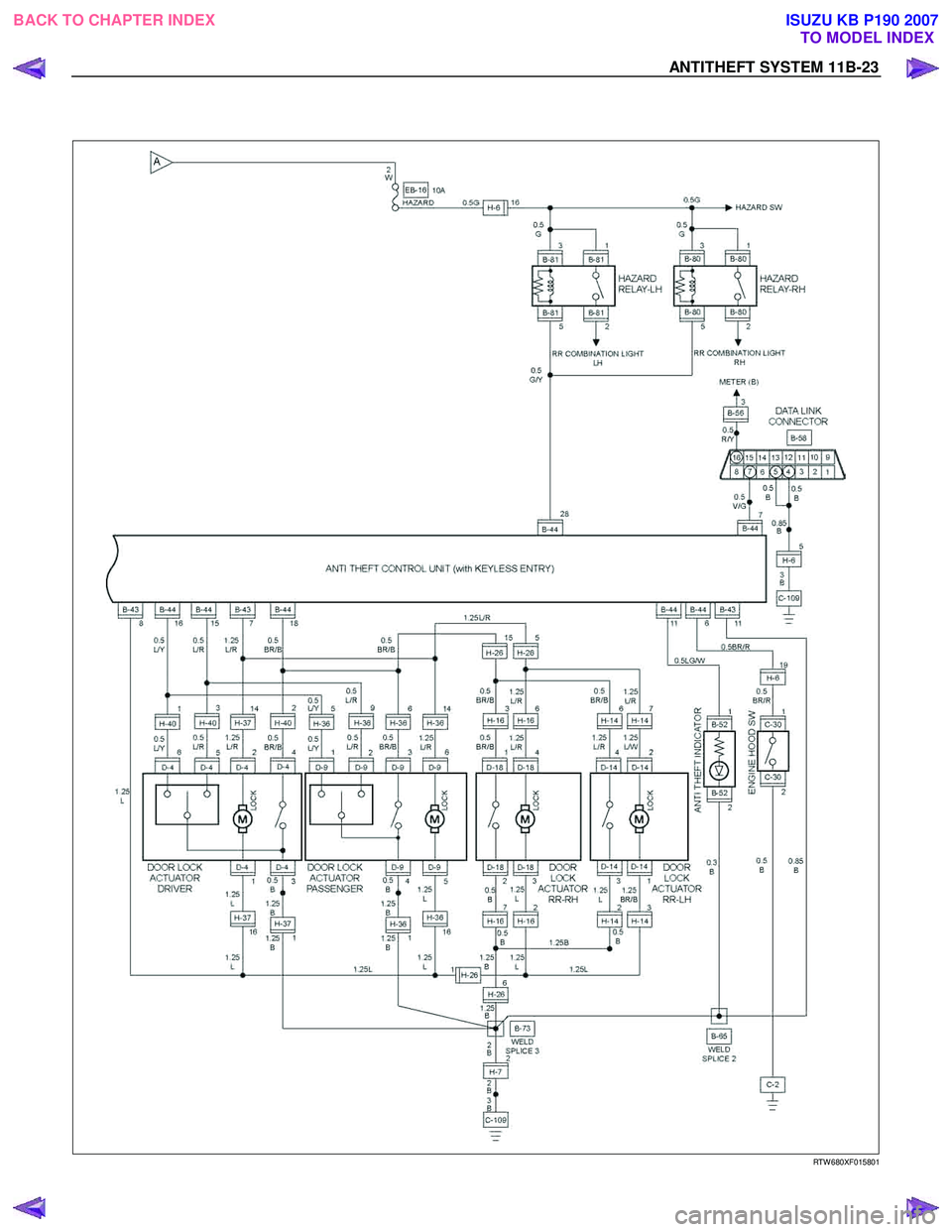

ANTITHEFT SYSTEM 11B-23
RTW 680XF015801
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 5978 of 6020
11B-24 ANTITHEFT SYSTEM

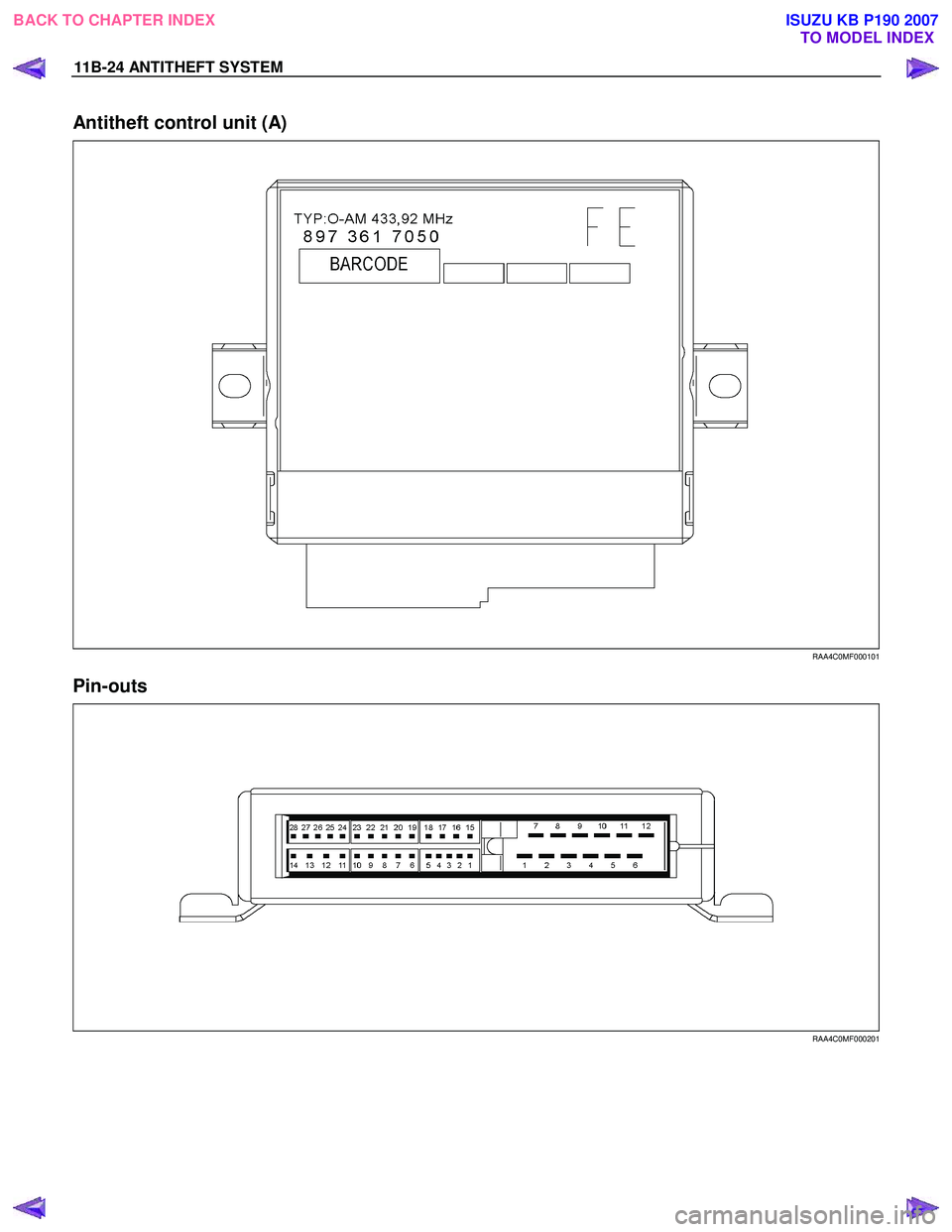

Antitheft control unit (A)
RAA4C0MF000101
Pin-outs
RAA4C0MF000201
BACK TO CHAPTER INDEXTO MODEL INDEX
ISUZU KB P190 2007
Page 5979 of 6020
ANTITHEFT SYSTEM 11B-25
Pin-Assignment
No. Pin Assignment 28 PIN
1 Contact switch driver door
2 Contact switch doors
3 —
4 Power supply antitheft
5 horn
6 Contact switch engine compartment
7 Diagnosis
8 —
9 —
10 —
11 Status LED
12 —
13 —
14 —
15 Lock driver side door lock cylinder
16 Unlock driver side door lock cylinder
17 —
18 Micro Switch, lock / unlock door lock motor
19 —
20 —
21 —
22 —
23 —
24 —
25 —
26 —
27 —
28 Flasher control
No. Pin Assignment 12 PIN
1 —
2 —
3 Key in
4 —
5 —
6 Micro Switch, unlock, auto door lock
7 Lock, locking motors
8 Unlock, locking motors
9 Power supply locking motors
10 —
11 Ground
12 —
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 5980 of 6020

11B-26 ANTITHEFT SYSTEM
lmportant information on Programming
Security code
The security code protects the antitheft control unit
against unauthorized programming and data access
from Tech-2. The security code consists of a 4 digit
code number and is programmed into the antitheft
Control Module (ACU).
New control units are not programmed with a security
code.
If the control units are replaced, the security code
entered in the transmitter (into remote key).
Must be programmed into the new control unit with
Tech-2.
The security code can only be programmed with Tech-2
once and must therefore be performed with great care.
Once programmed, the security code cannot be
overwritten. An already used antitheft can be reused in
a different car by initializing the antitheft. After that you
can program the security code again. For initializing
command you need the current security code.
If the antitheft control unit is returned, always enclosed
the security code that is allocated to that control unit. If
this is not done, we can not process the case and the
warranty will not be recognized.
Entering a code
If the Tech-2 display requests that the
• security code
• Vehicle Identification No.
• Country code (Select 213 Germany in all items)
be entered, process as follows;
To input a digit you need to use the up and down
buttons of the Tech-2. By using the numeric buttons the
according digit will be displayed at the current position
and the cursor will move to the next position.
For letters you need to use the up and down buttons of
the Tech-2. The up and down key might be used for
digits as well. By using the up and down buttons the
displayed digit or letter will be increased or decreased.
To move to the next position you need to use the move-
to-right-button.
W ith the two buttons, move-to-right and move-to-left
you can select the position of number you want to
change.
This will allow you to correct a wrong number.
After the number is completed you need to press the
Enter button to accept the number. Correction is now no
longer possible.
Use the OKAY soft key to program the number and the
NOT OKAY soft key to abort the programming.
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5981 of 6020
ANTITHEFT SYSTEM 11B-27
Tech-2 Scan Tool
Operating Procedure
The power up screen is displayed when you power up
the tester with the Isuzu systems PCMCIA card.
Follow the operating procedure below.
060R100102
RAW 4B0LH000101
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5982 of 6020

11B-28 ANTITHEFT SYSTEM
Menu
The following table shows which functions are used for
the available equipment versions.
F0: Diagnostic Trouble Codes
F0: Read DTC Info Ordered By Priority
F1: Read DTC Info As Stored By ECU
F2: Clear DTC Information
F3: Read Alarm Codes
F1: Data Display
F2: Snap Shot
F3: Actuator Test
F0: Unlock/Lock Test
F1: Arm/Disarm Signal Test
F2: Horn Signal Test
F3: Turn Signal Test
F4: Theft LED Test
F4: Programming
F0: Erase Remote Keys
F1: Program Remote Keys
F2: Program Anti Theft Warning
F3: Program Country Code
F4: Program Vehicle Options
NOTE: Before going to programming process, Tech-2
indicates instruction as follows.
060R200289
DTC
On OBD has two options available in the Tech 2 DTC
mode to display the enhanced information available.
• Read DTC Info Ordered By Priority
• Read DTC Info As Stored By ECU
Clear DTC Information
To clear Diagnostic Trouble Codes (DTCs), use the
diagnostic scan tool "clear DTC information" function.
Tech-2 Data Display
Use the Tech 2 Data Values only after the On-Board
Diagnostic System Check has been completed, no
DTC(s) were noted, and you have determined that the
on-board diagnostics are functioning properly.
The Tech 2 data values represent values that would be
seen on a normally-immobilizer system.
Actuator Test
The actuator tests are used to check abnormalities in
the antitheft control system.
The actuators are operated by the ECU based on the
Tech-2 command signal.
Observe the actuators to check abnormalities in the
antitheft system.
Unlock/Lock Test
The unlock/lock test is used to check abnormalities in
the door lock control system.
1. Select “Body” and “Antitheft”.
2. Select ”Actuator Test” and “Unlock/Lock Test”.
3. Observe the door lock function.
4. Press the lock bottom.
5. Press the unlock bottom.
060R200279
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5983 of 6020

ANTITHEFT SYSTEM 11B-29
Arm/Disarm Signal Test
Arm/Disarm signal test is used to check abnormalities
in arm/disarm signal circuit.
1. Select “Body” and “Antitheft”.
2. Select “Actuator Test” and “
Arm/Disarm Signal
Test”.
3. Observe the data list.
4. Insert the key into door key cylinder.
5. Remove the key into door key cylinder.
RAW 4B0SH000201
Horn Signal Test
Horn signal test is used to check abnormalities in horn
signal circuit.
1. Select “Body” and “Antitheft”.
2. Select “Actuator Test” and “Horn Signal Test”.
3. Observe the alarm sound.
4. Push “active bottom”.
5. Check the alarm sound function.
RAW 4B0SH000301
Turn Signal Test
Turn signal test is used to check abnormalities in turn
signal circuit.
1. Select “Body” and “Antitheft”.
2. Select “Actuator Test” and “Turn Signal Test”.
3. Observe the flasher lamp.
4. Push “active bottom”.
5. Check the flasher lamp function.
RAW 4B0SH000401
Theft LED Test
Theft LED test is used to check abnormalities in theft
LED signal circuit.
1. Select “Body” and “Antitheft”.
2. Select “Actuator Test” and “Turn Signal Test”.
3. Observe the antitheft LED.
4. Push “active bottom”.
5. Check the antitheft function.
RAW 4B0SH000501
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 5984 of 6020
11B-30 ANTITHEFT SYSTEM
Programming
Programming antitheft function is used to input security
code for the antitheft system by tech 2.
If the remote key or ECU replaced, program as
necessary.
Erase Remote Keys
1. Select “Body” and “Antitheft”.
2. Select “Programming”.
3. Select “Erase Remote Keys”.
RAW 4B0SH000601
The following screen shows up.
060R200289
4. Confirm the following screen shows up.
060R200284
