Page 2545 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–66 13 Disconnect the EVAP valve outlet tube (1) from the intake manifold (2). 14 Remove the four long (3) (165 mm long) and two short bolts (4) (70 mm long)

Page 2546 of 6020

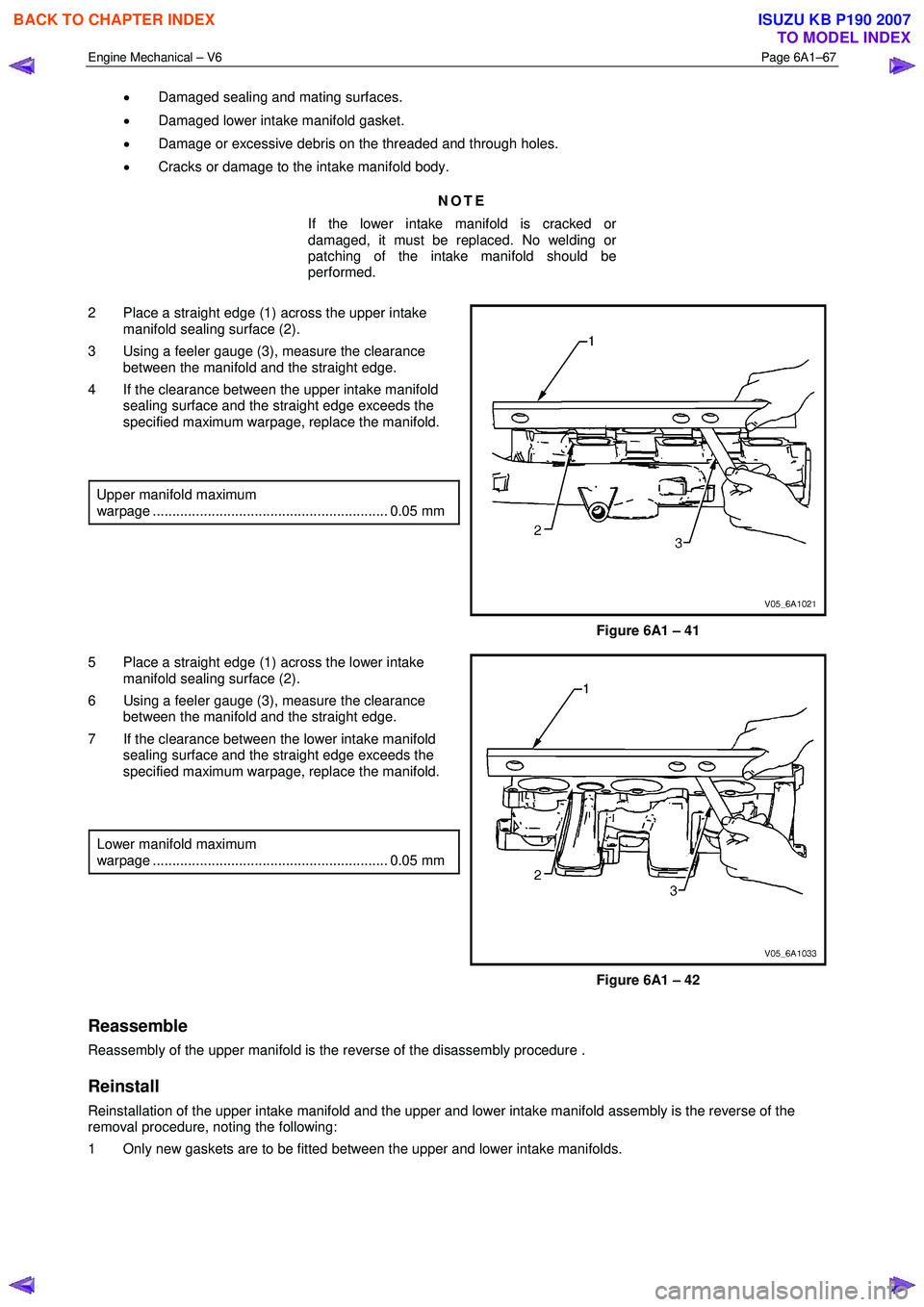

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–67 • Damaged sealing and mating surfaces. • Damaged lower intake manifold gasket. • Damage or excessive debris on the threaded and through holes. •

Page 2547 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–68 CAUTION Tighten the intake manifold bolts in a circular pattern starting at the centre bolt and moving outward. 2 Ensure that all fasteners are tighten

Page 2548 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–69 3 Remove the air intake duct (1) and hose (2), refer to 6C1-3 Engine Management – V6 – Service Operations. Figure 6A1 – 43 4 Retract the thro

Page 2549 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–70 8 Disconnect the brake booster hose (1), from the upper intake manifold: Figure 6A1 – 45 9 Disconnect the wiring harness connector from the baromet

Page 2550 of 6020

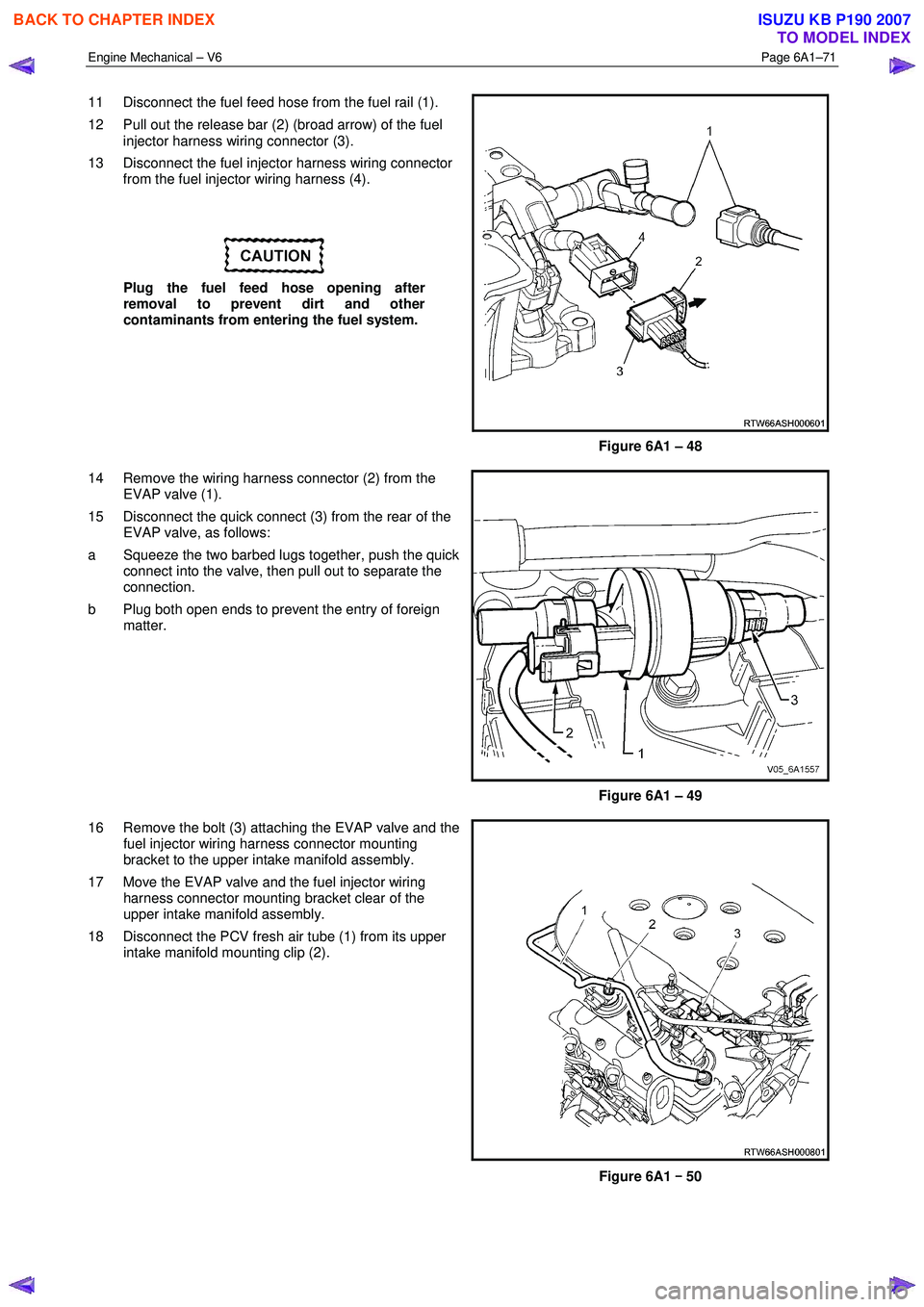

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–71 11 Disconnect the fuel feed hose from the fuel rail (1). 12 Pull out the release bar (2) (broad arrow) of the fuel injector harness wiring connector (3)

Page 2551 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–72 19 Remove the four long (1) bolts (165 mm) securing the complete intake manifold to the cylinder heads. 20 Remove the two short (2) bolts (45 mm) securing

Page 2552 of 6020

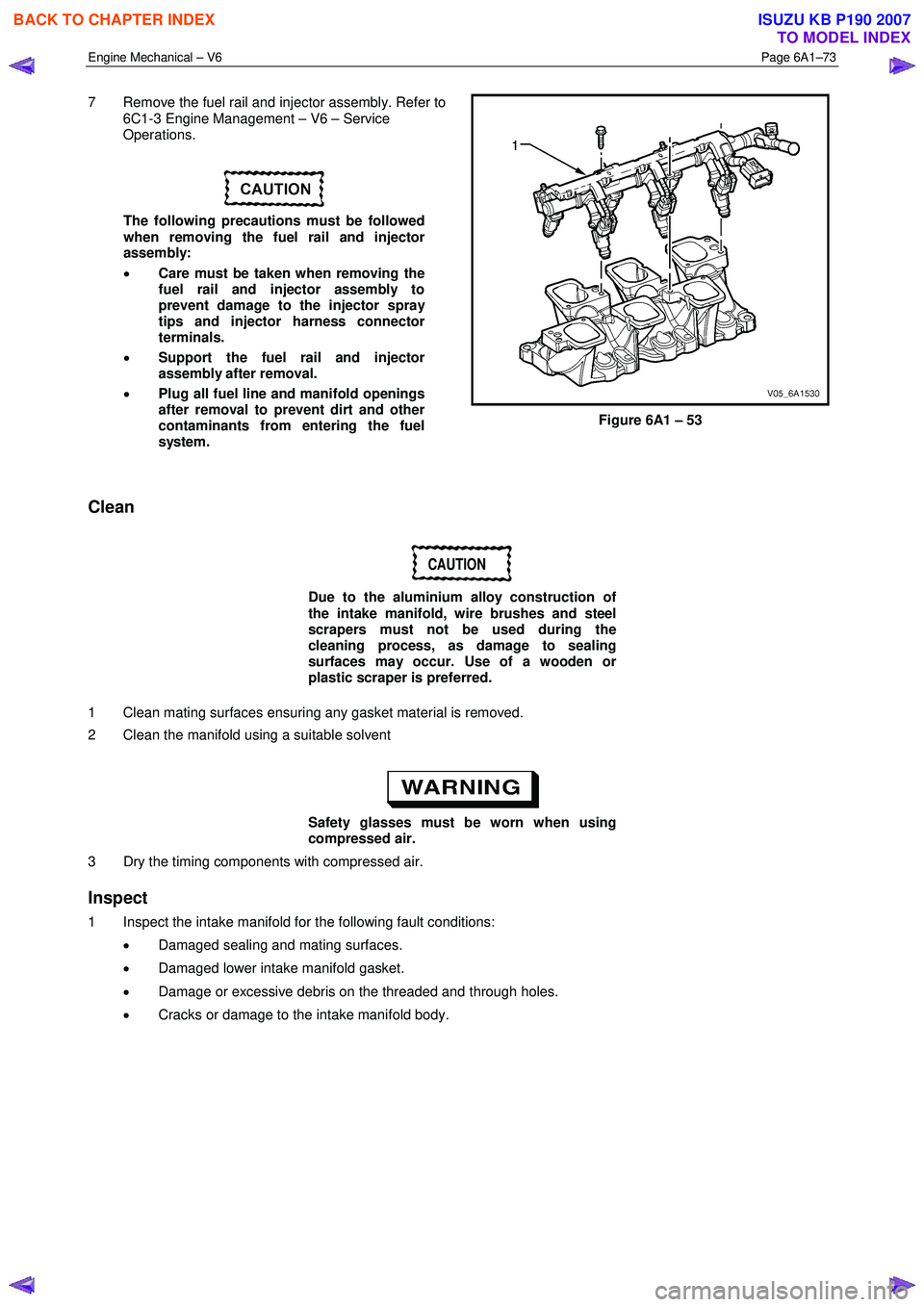

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–73 7 Remove the fuel rail and injector assembly. Refer to 6C1-3 Engine Management – V6 – Service Operations. The following precautions must be followe
