Cruise Control – HFV6 Page 8C–23
4 Push the switch assembly (1) so the plunger is
pressed and the end switch barrel is against the brake
pedal (2).
5 Twist the switch assembly clockwise to lock into place. The distance between the brake pedal and the switch
barrel should be 0.7 ± 0.5 mm.
6 Install the wiring connector to the switch assembly.
Figure 8C – 12
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5602 of 6020
Cruise Control – HFV6 Page 8C–24
3.4 Clutch Pedal Switch (Manual Only)
Remove
1 Disconnect the electrical connector (1) from the clutch
switch (2).
2 Loosen the lock nut (3) and remove the clutch switch from the pedal bracket.
Figure 8C – 13
Test
1 Using a multimeter set to measure ohms, probe the pins (1) of the switch assembly.
2 In the neutral position (plunger extended) there should be an open circuit across the switch.
3 In the active position (plunger extended) there should be a closed circuit across the switch.
4 Replace the switch as per the following reinstall procedure if the tests prove the switch to be faulty.
5 If the test proves the switch to be serviceable, reinstall it as per the following procedure.
Figure 8C – 14
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5603 of 6020
Cruise Control – HFV6 Page 8C–25
Reinstall
6 Install the clutch switch (1) as follows:
a Insert the switch into the clutch pedal bracket.
b Rotate the switch clockwise until obtaining the clearance (2) between the pedal (3) and the
pedal stoper.
Clutch pedal and pedal stoper
clearance specification............................... 0.5 – 1.5 mm
c Tighten the lock nut (4) to the correct torque specification.
Clutch switch lock nut
torque specification ............................................ 31.0 Nm
d Recheck the clutch switch clearance, readjust clearance if required.
NOTE
No adjustment is required for the clutch switch
itself.
Figure 8C – 15
7 Reconnect the electrical connector to the clutch switch.
8 Verify the operation of the clutch switch by operating the cruise control and checking the clutch switch stops operation of the cruise control when the clutch pedal is pressed.
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5604 of 6020
Cruise Control – HFV6 Page 8C–26
4 Special Tools
Tool Number Illustration Description Tool Classification
3588
Digital Multimeter
Previously released as J39200 or
equivalent.
NOTE: The instrument must have 10
meg ohms impedance and be capable
of reading frequencies. Mandatory
KM-609 Electronic Kit.
Used in conjunction with a multimeter
for measuring voltages and
resistances without damaging wiring
harness connectors. Desirable.
70000861
Tech 2 Diagnostic Scan Tool
Previously released. Mandatory
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5605 of 6020
PAGE
SECTION 9
ACCESSORIES & RESTRAINTS
TA BLE OF CONTENTS
ACCESSORIES & RESTRAINTS 9-1
TO MODEL INDEX
Section 9 Accessories.....................................................................................................5698
Section 9A Supplemental Restraint System..................................................................5728
Section 9A1 Restraints Control System.........................................................................5776
BACK TO MAIN INDEX
ISUZU KB P190 2007
Page 5606 of 6020

ACCESSORIES 9-1
SECTION 9
ACCESSORIES
TABLE OF CONTENTS
PAGE
Parts Location ................................................................................................................ ... 9 −
−−
−
2
Circuit Diagram ............................................................................................................... ... 9 −
−−
−
6
Connector List ................................................................................................................ ... 9 −
−−
−
22
Audio ......................................................................................................................... ......... 9 −
−−
−
24
Front Speaker ................................................................................................................. ... 9 −
−−
−
25
Tweeter ........................................................................................................................ ........ 9 −
−−
−
26
Rear Speaker (Extend Cab) .............................................................................................. 9 −
−−
−
27
Rear Speaker (Crew Cab) ................................................................................................. 9 −
−−
−
28
Clock.......................................................................................................................... .......... 9 −
−−
−
29
Antenna ....................................................................................................................... ....... 9 −
−−
−
30
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5607 of 6020
9-2 ACCESSORIES

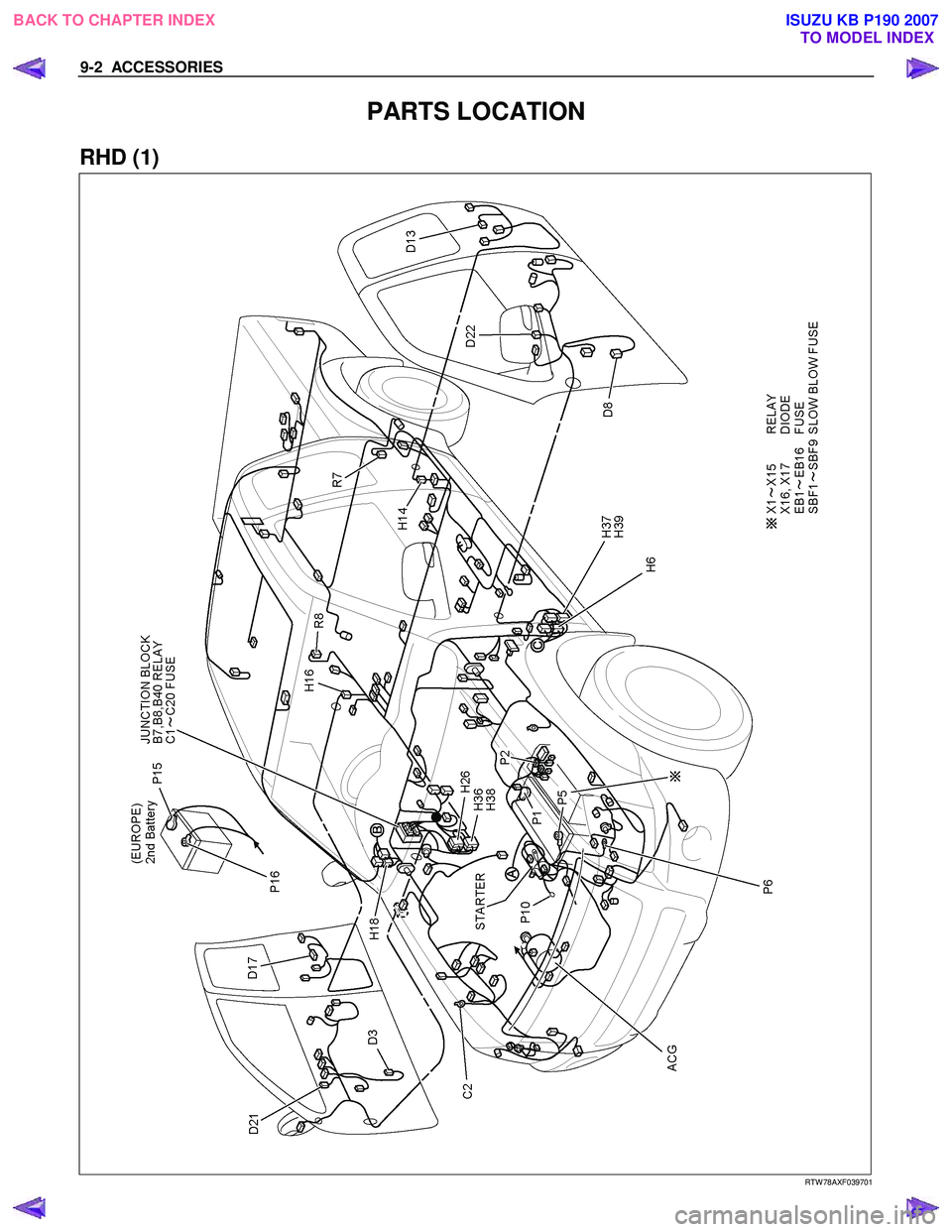

PARTS LOCATION
RHD (1)
RTW 78AXF039701
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5608 of 6020

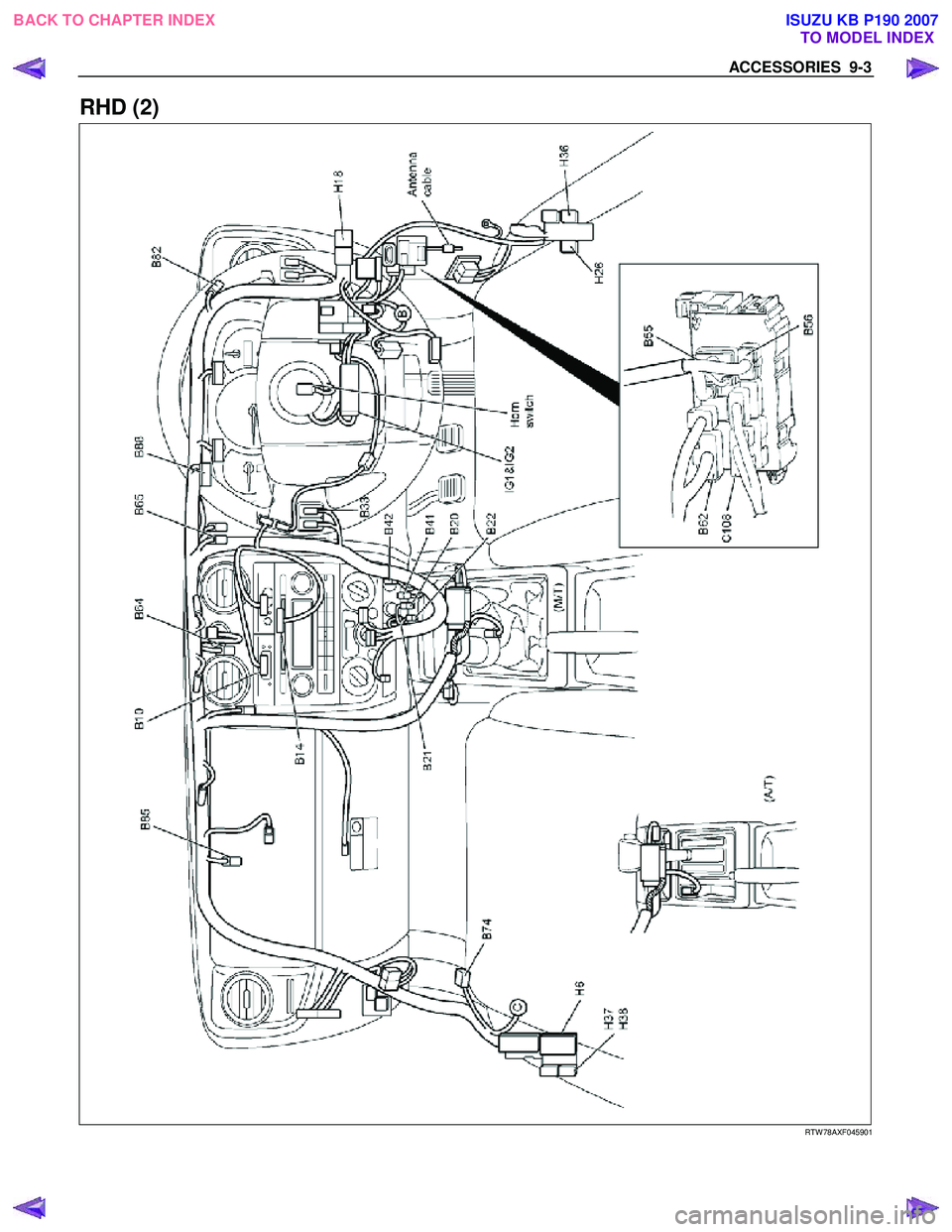

ACCESSORIES 9-3
