Page 2961 of 6020

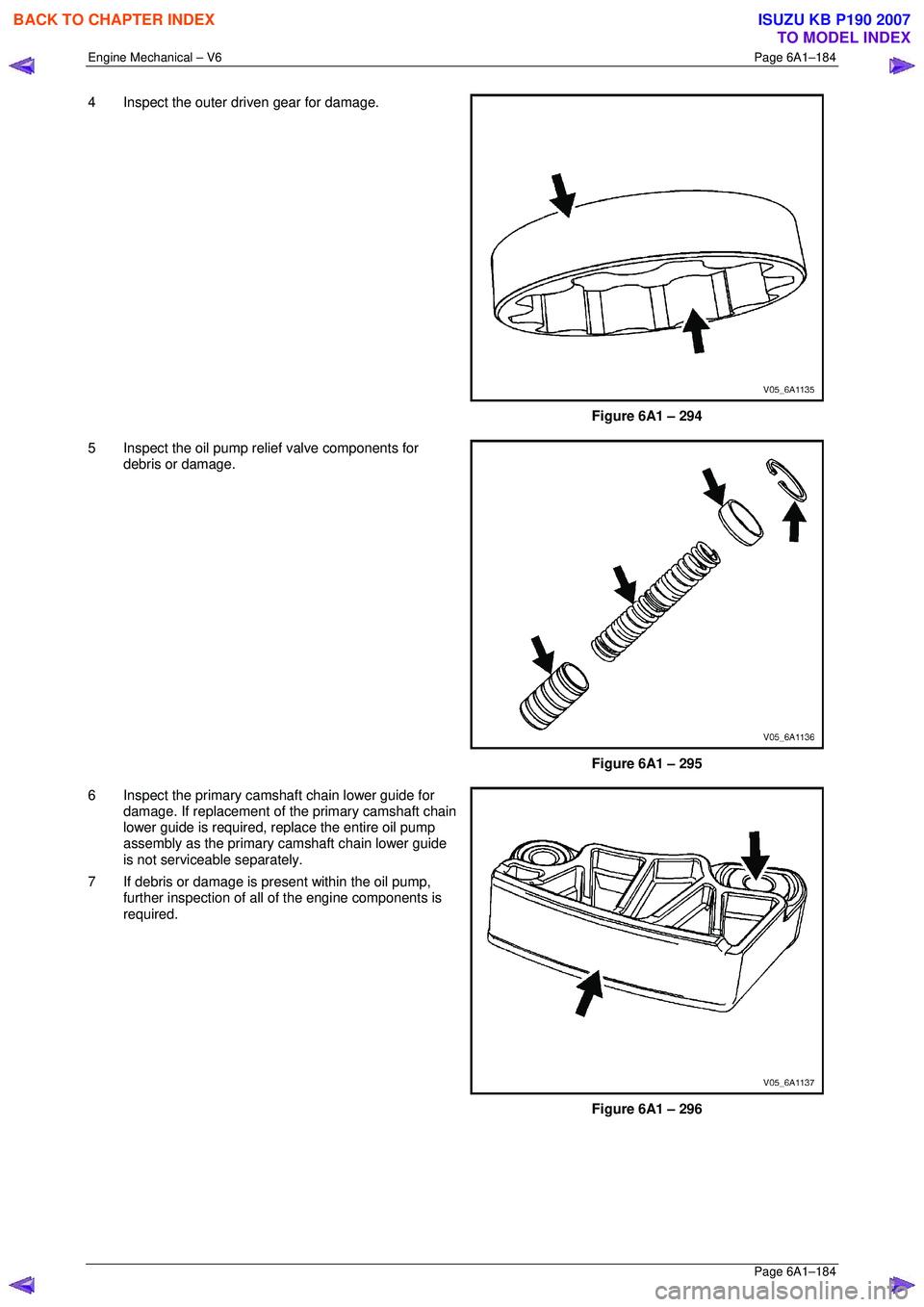

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–184 Page 6A1–184 4 Inspect the outer driven gear for damage. Figure 6A1 – 294 5 Inspect the oil pump relief valve components for debris or damage.

Page 2962 of 6020

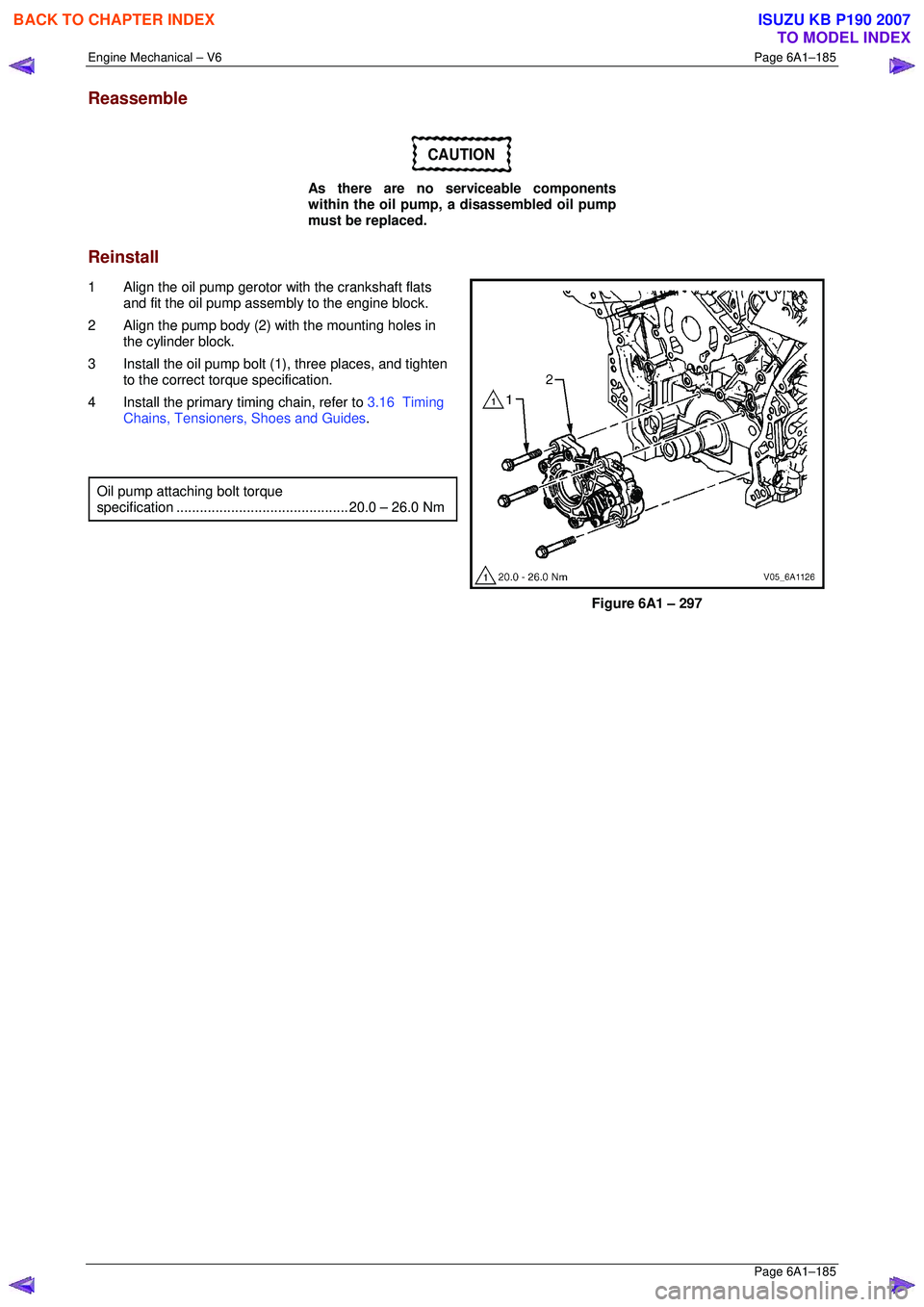

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–185 Page 6A1–185 Reassemble CAUTION As there are no serviceable components within the oil pump, a disassembled oil pump must be replaced. Reinstall 1

Page 2963 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–186 Page 6A1–186 3.18 Camshaft Sprocket – Excluding MY06 Update CAUTION Setting the camshaft timing is required whenever the camshaft drive system is

Page 2964 of 6020

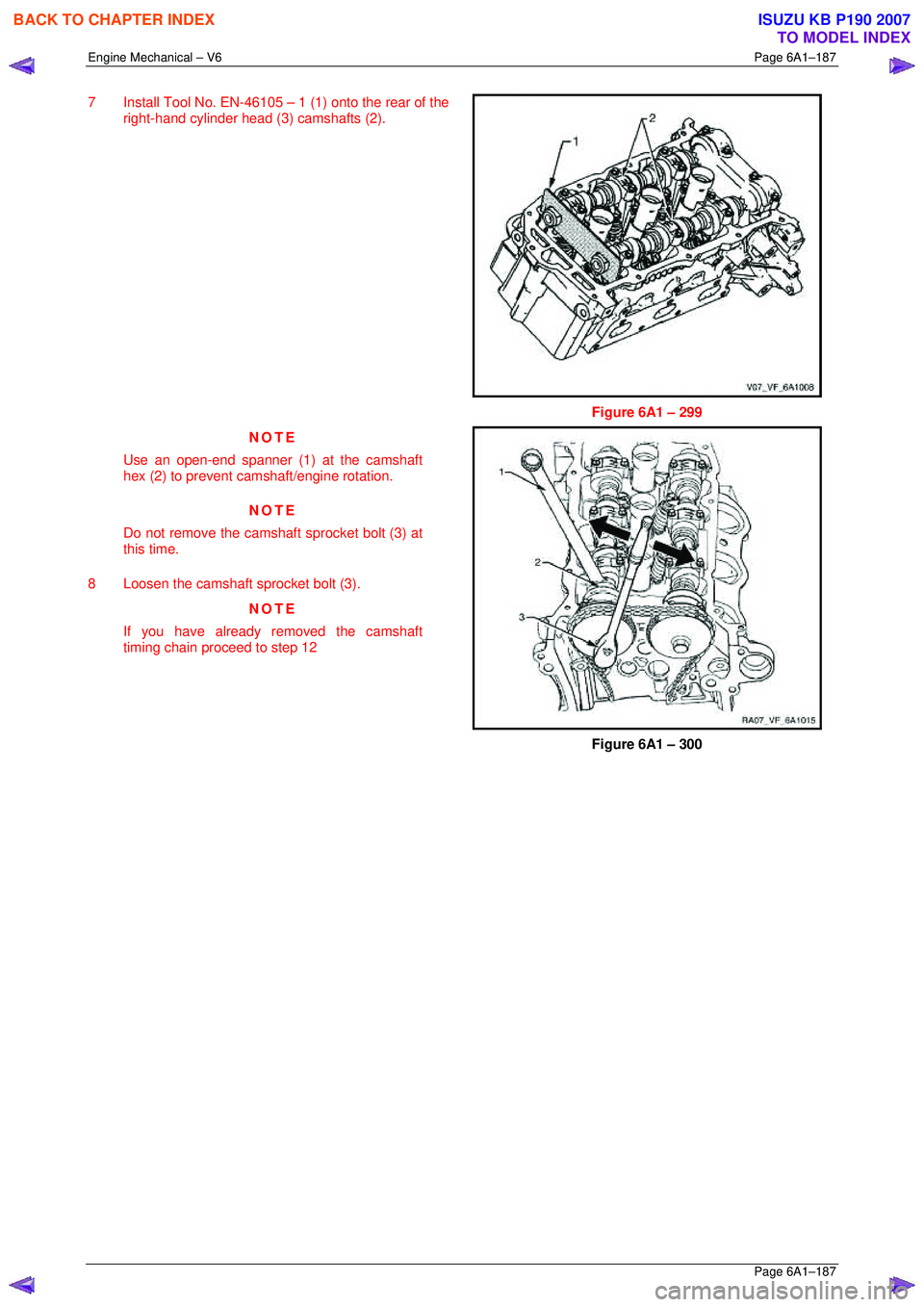

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–187 Page 6A1–187 7 Install Tool No. EN-46105 – 1 (1) onto the rear of the right-hand cylinder head (3) camshafts (2). Figure 6A1 – 299 NOTE Use an

Page 2965 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–188 Page 6A1–188 CAUTION Ensure the tips of Tool No. EN-46108 are fully engaged into the timing chain and the wing nuts are tight and the timing chain i

Page 2966 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–189 Page 6A1–189 Left-hand Side 1 Remove the left-hand camshaft cover, refer to 3.12 Camshaft Cover . 2 Remove the camshaft position sensors, refer to Se

Page 2967 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–190 Page 6A1–190 NOTE Use an open-end wrench (1) at the camshaft hex (2) to prevent camshaft/engine rotation. NOTE Do not remove the cams haft sprocket bo

Page 2968 of 6020

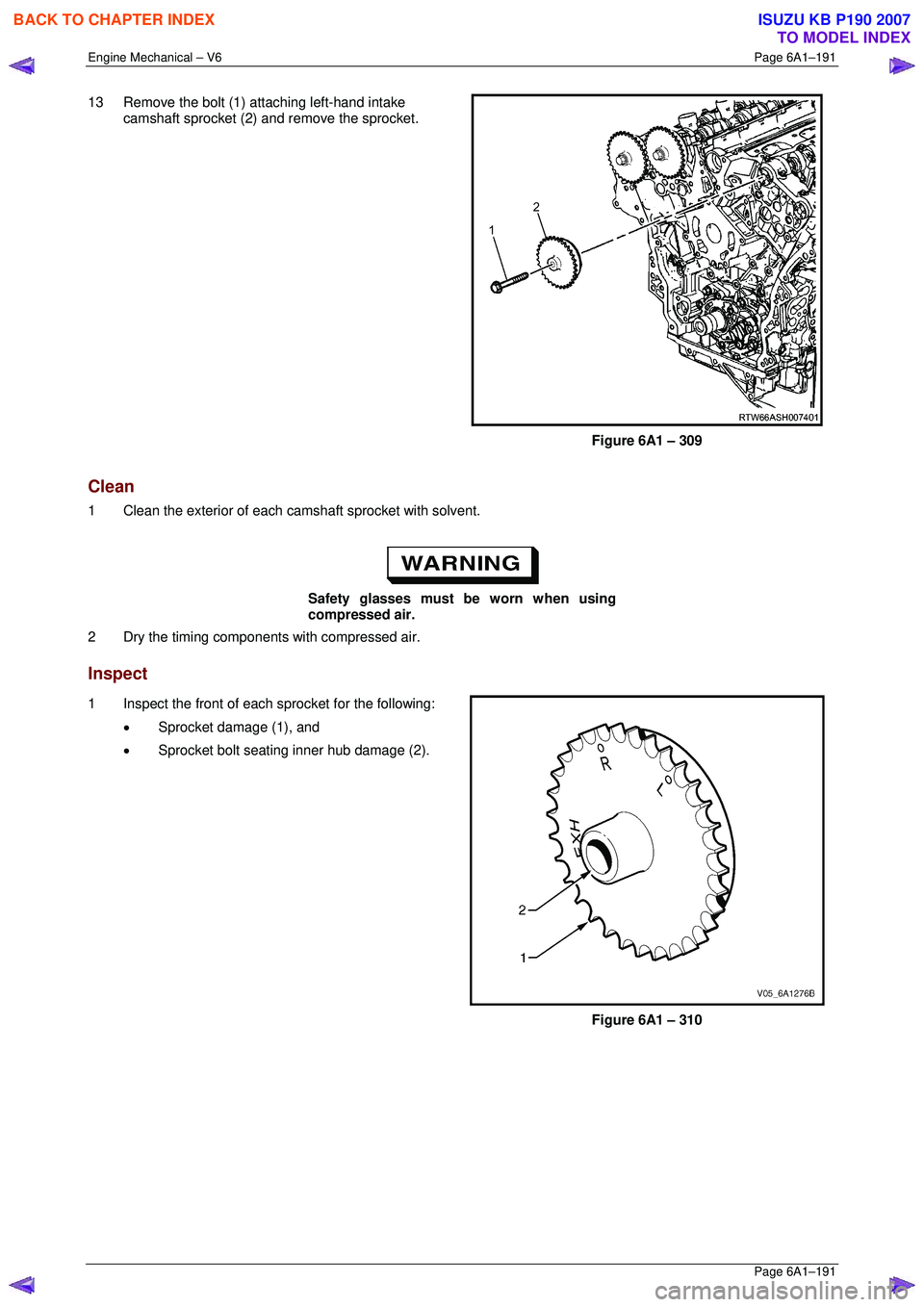

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–191 Page 6A1–191 13 Remove the bolt (1) attaching left-hand intake camshaft sprocket (2) and remove the sprocket. Figure 6A1 – 309 Clean 1 Clean the
