Page 2585 of 6020

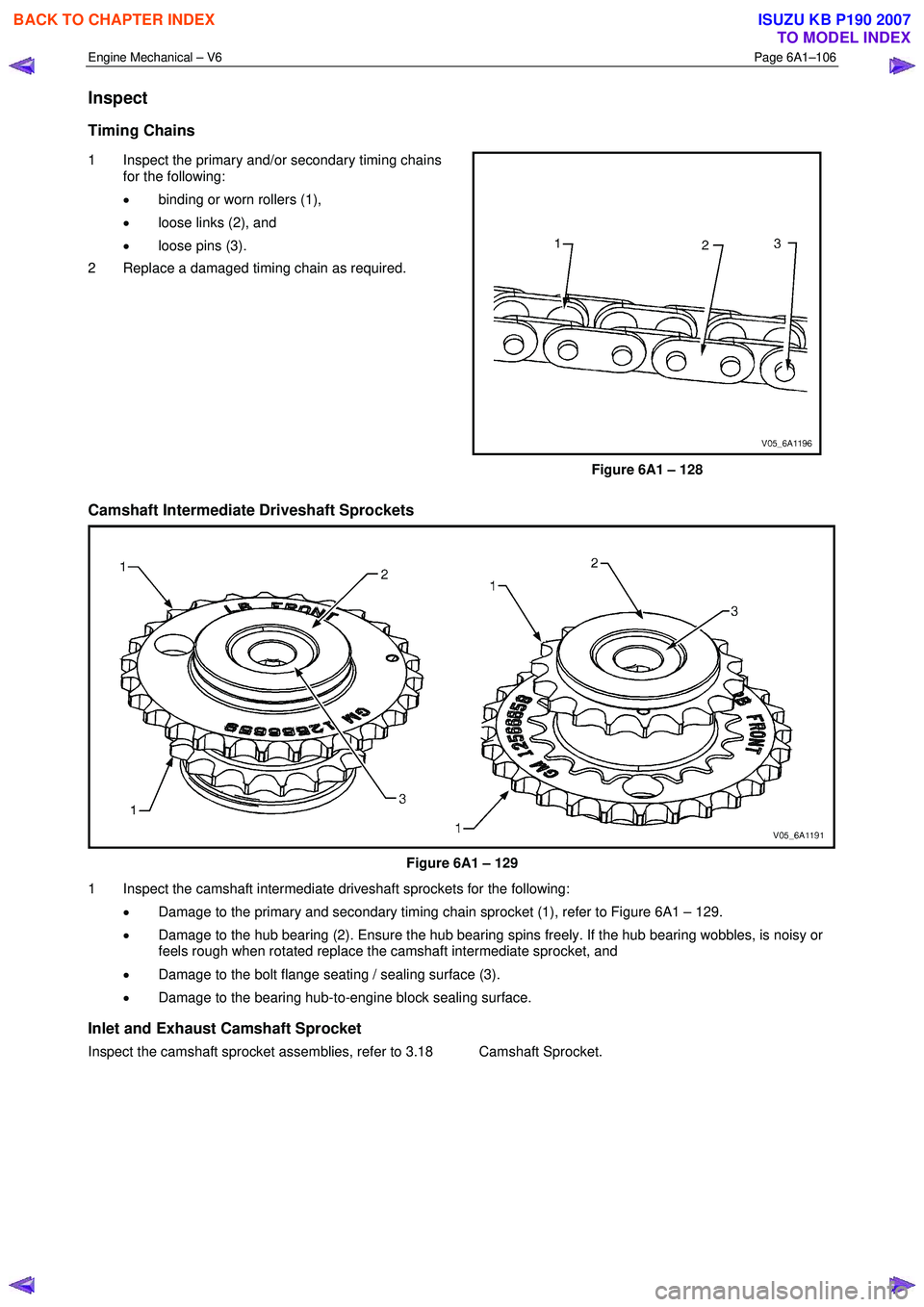

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–106 Inspect Timing Chains 1 Inspect the primary and/or secondary timing chains for the following: • binding or worn rollers (1), • loose links (2),

Page 2586 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–107 Crankshaft Sprocket 1 Inspect the crankshaft sprocket for the following: • sprocket damage (1), • bore damage (2), • keyway damage (3), and •

Page 2587 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–108 Primary Timing Chain Tensioner Figure 6A1 – 133 1 Inspect the primary timing chain tensioner for worn shoe surface (1), refer to Figure 6A1 – 133.

Page 2588 of 6020

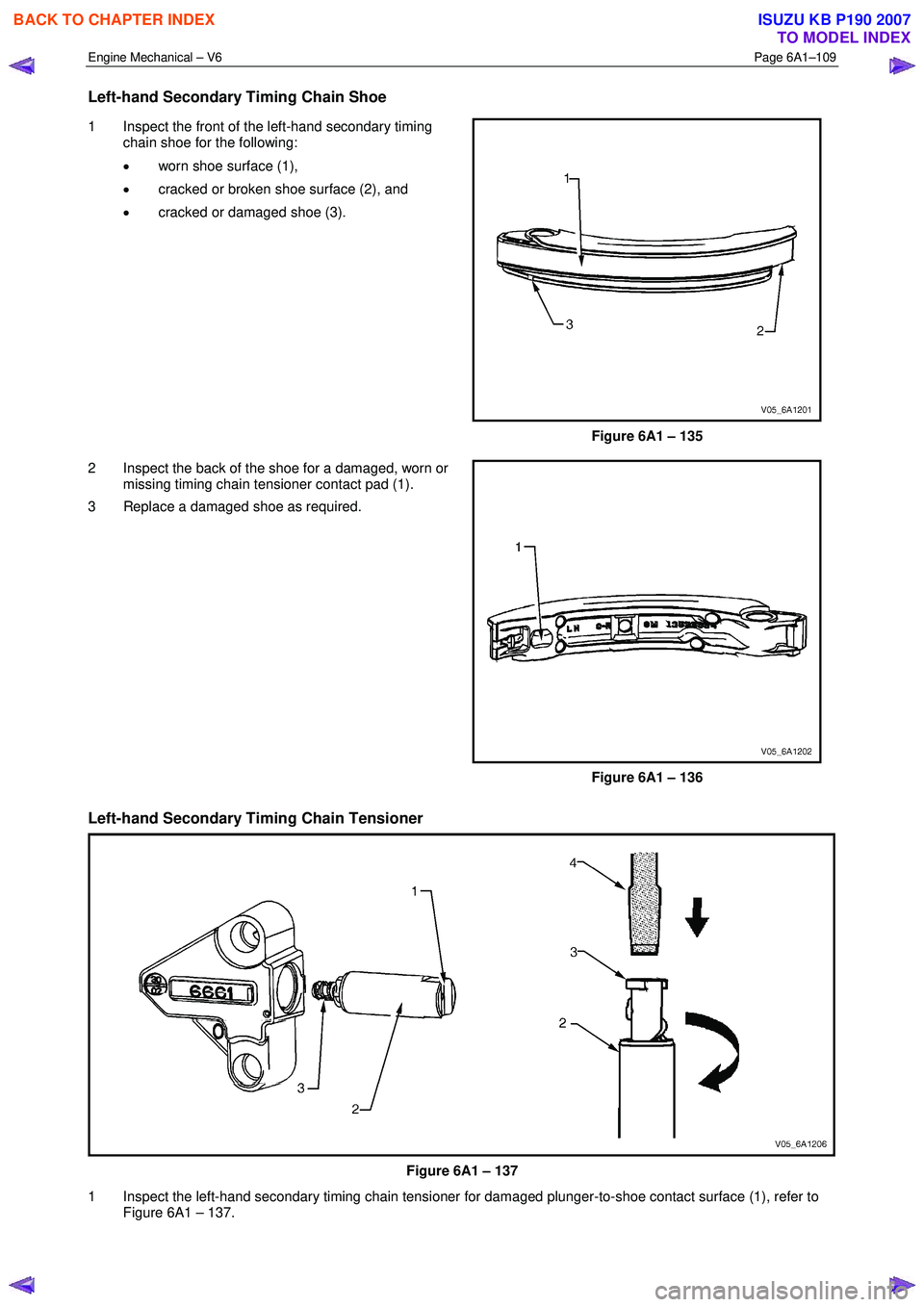

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–109 Left-hand Secondary Timing Chain Shoe 1 Inspect the front of the left-hand secondary timing chain shoe for the following: • worn shoe surface (1),

Page 2589 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–110 2 Inspect the tensioner for locked or binding tensioner shaft (2). Reset the plunger (3) and ensure the tensioner shaft moves freely in and out of the body

Page 2590 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–111 2 Inspect the back of the shoe for a damaged, worn or missing timing chain tensioner contact pad (1). Replace a damaged shoe as required. Figure 6A1

Page 2591 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–112 1 Install the crankshaft sprocket (1) onto the crankshaft (2) by aligning the keyway to the key on the crankshaft. 2 Slide the crankshaft sprocket on t

Page 2592 of 6020

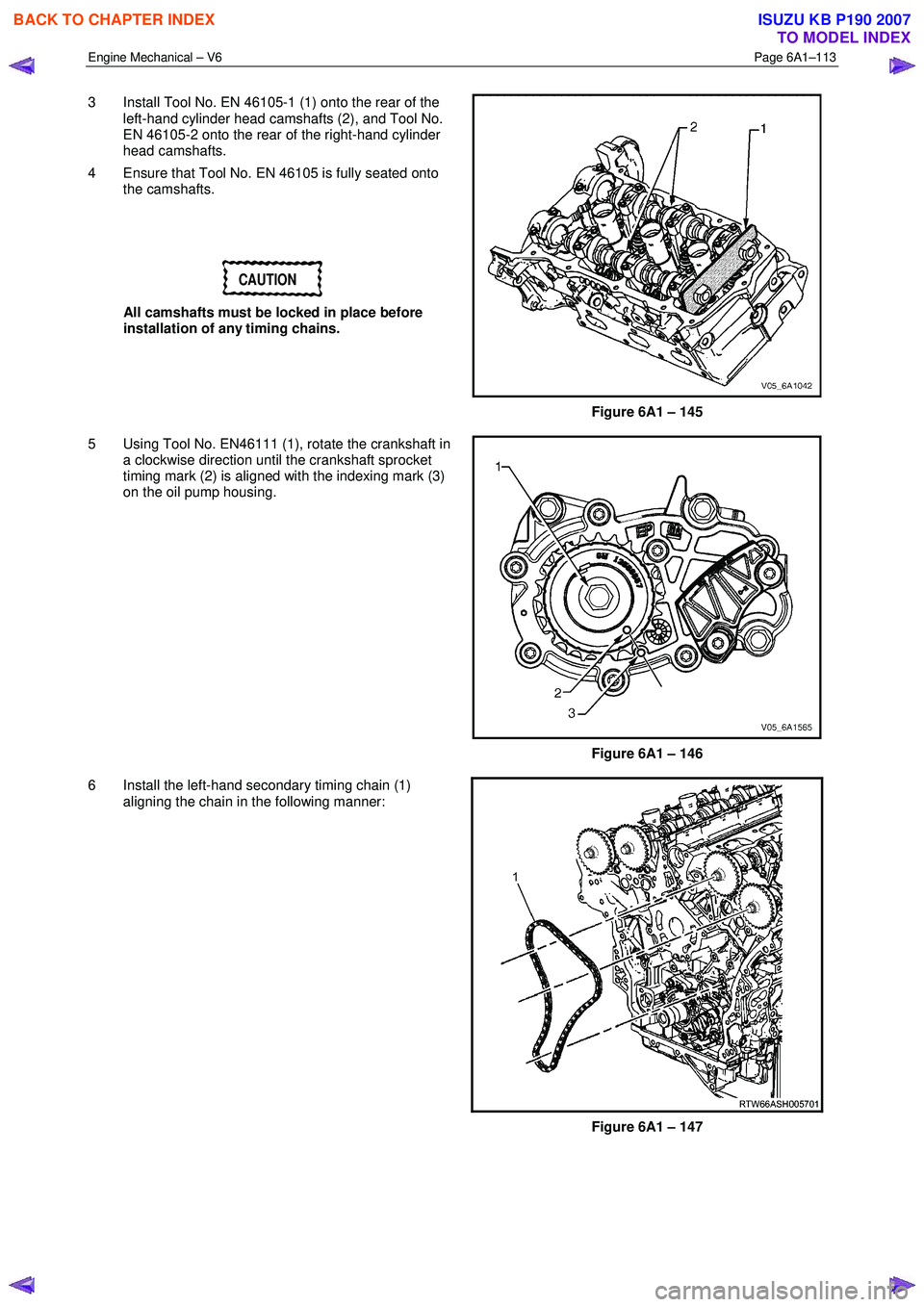

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–113 3 Install Tool No. EN 46105-1 (1) onto the rear of the left-hand cylinder head camshafts (2), and Tool No. EN 46105-2 onto the rear of the right-hand cyl
