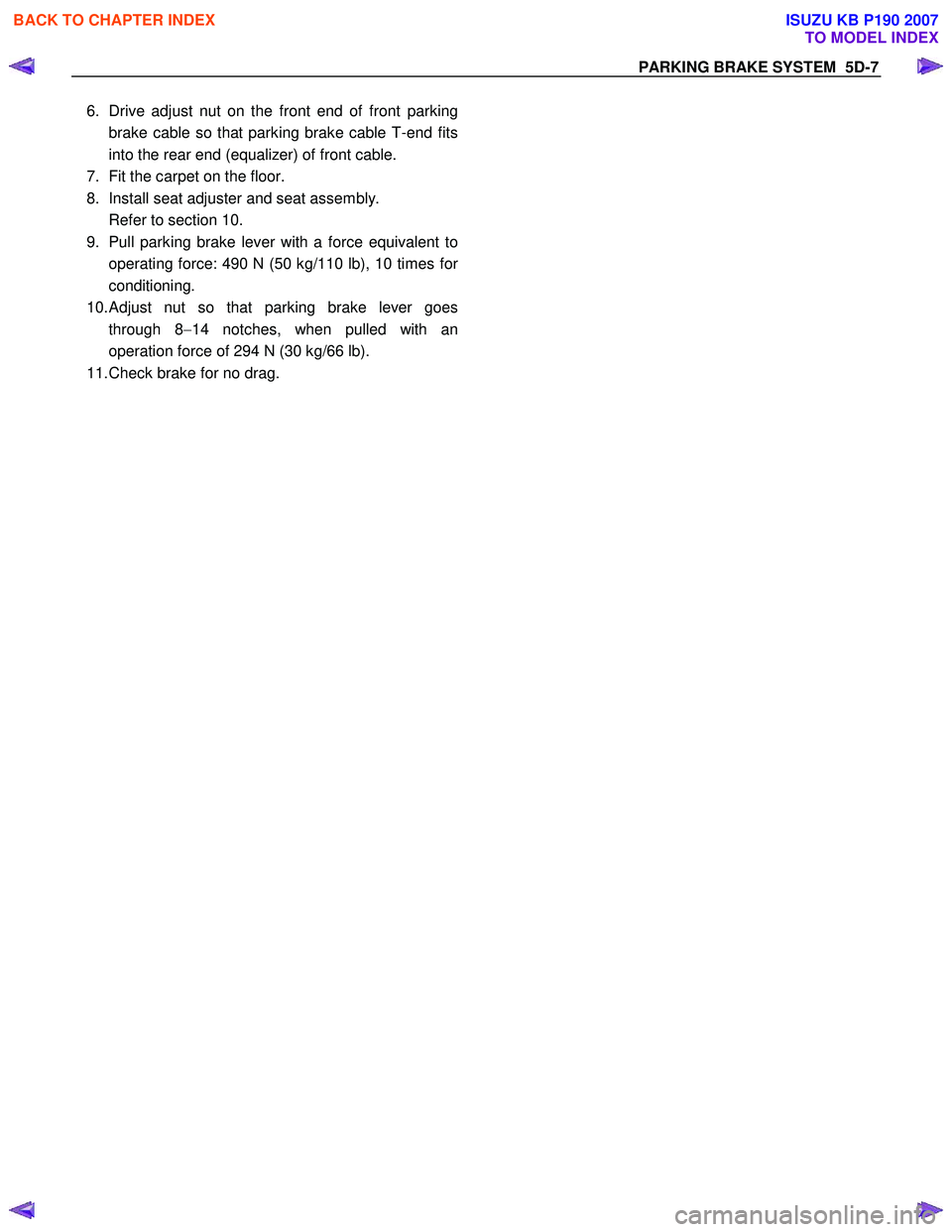

Page 777 of 6020
PARKING BRAKE SYSTEM 5D-7
6. Drive adjust nut on the front end of front parking
brake cable so that parking brake cable T-end fits
into the rear end (equalizer) of front cable.
7. Fit the carpet on the floor.
8. Install seat adjuster and seat assembly.
Refer to section 10.
9. Pull parking brake lever with a force equivalent to operating force: 490 N (50 kg/110 lb), 10 times fo
r
conditioning.
10. Adjust nut so that parking brake lever goes through 8 −14 notches, when pulled with an
operation force of 294 N (30 kg/66 lb).
11. Check brake for no drag.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 778 of 6020

5D-8 PARKING BRAKE SYSTEM
Parking Brake Lever
Parking Brake Lever Assembly and Associated Parts (Bucket Seat)
RTW 35DSF000101
Legend
(1) Rear Floor Console
(2) Parking Brake Cable T-end
(3) Adjust Nut
(4) Switch
(5) Parking Brake Lever Assembly
(6) Bolt
(7) Equalizer
Removal
1. Remove rear floor console.
Refer to section 10.
2. Loosen adjust nut.
3. Remove bolt.
4. Remove switch.
5. Disconnect parking brake cable T-end from parking brake lever assembly.
6. Take out parking brake lever assembly.
Installation
1. Apply grease (multipurpose type grease) to the
connecting portion of parking brake rear cable
T-end and parking brake lever equalizer. (arrow
mark).
2. Connect parking brake rear cable T-end to equalizer.
3. Install switch.
4. Tighten the parking brake lever fixing bolt to the
specified torque.
Torque: 15 N ⋅
⋅⋅
⋅
m (1.5 kgf ⋅
⋅⋅
⋅
m/11 lb ⋅
⋅⋅
⋅
ft)
5. Drive adjust nut on parking brake assembly so that parking brake cable T-end fits into equalizer.
6. Install rear floor console.
Refer to section 10.
7. Pull parking brake lever with a force equivalent to operating force: 490 N (50 kg/110 lb), 10 times fo
r
conditioning.
8. Adjust nut so that parking brake lever goes through 6 −9 notches, when pulled with an
operation force of 294 N (30 kg/66 lb).
9. Check brake for no drag.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 779 of 6020
PARKING BRAKE SYSTEM 5D-9
Parking Brake Rear Cable
Parking Brake Rear Cable and Associated Parts
RTW 55DLF000101
Legend
(1) Tension Pin
(2) Shoe Clamp Spring
(3) Return Spring
(4) Shoe Assembly with Parking Brake Lever
(5) Shoe Assembly with Adjuster Lever
(6) Spring
(7) Parking Brake Rear Cable
(8) Nut
(9) Parking Brake Cable Bolt
(10) Parking Brake Cable Nut
(11) T-end
(12) Outer Cable Retainer
(13) Equalizer
(14) Adjuster Lever Clip
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 780 of 6020

5D-10 PARKING BRAKE SYSTEM
Removal
1. Remove wheel and tire.
2. Remove brake drum.
3. Remove tension pin and shoe clamp spring.
4. Remove return spring.
5. Remove shoe assembly with parking brake lever.
6. Remove shoe assembly with adjuster lever and spring.
7. Remove parking brake inner cable from parking brake lever.
8. Use offset box wrench (12 mm hex.) to compress locking lugs on the cable, then remove parking
brake outer cable from back plate.
NOTE: Do not twist or bend the cable too much.
A damaged cable will cause poor operation or a cable
break down.
RTW 55CSH000301
Legend
(1) Offset Box W rench (12 mm hex)
9. Remove nut to fix the cable on the leaf spring.
10. Take out parking brake rear cable from the back plate.
11. Remove parking brake cable bolt and nut.
12. Disconnect T-end from the equalizer of front cable.
Installation
NOTE: Be sure to use a new shoe clamp spring and a
new adjuster lever clip.
1. Apply grease (multipurpose type grease) to the connecting portion of the rear cable and equalizer.
(arrow mark).
2. Install parking brake outer cable in back plate and inner cable in parking brake lever.
3. Install return spring.
4. Install shoe clamp spring and tension pin.
5. Install shoe assembly with adjuster lever, shoe assembly with parking brake lever and spring. ----
snap action
6. Install nut and tighten it to the specified torque. Torque: 7 N ⋅
⋅⋅
⋅
m (0.7 kgf ⋅
⋅⋅
⋅
m/61 lb ⋅
⋅⋅
⋅
in)
7. Connect T-end with equalizer through outer cable retainer.
8. Install parking brake cable nut and tighten it to the specified torque.
Torque: 15 N ⋅
⋅⋅
⋅
m (1.5 kgf ⋅
⋅⋅
⋅
m/11 lb ⋅
⋅⋅
⋅
ft)
9. Install parking brake cable bolt and tighten it to the specified torque.
Torque: 7 N ⋅
⋅⋅
⋅
m (0.7 kgf ⋅
⋅⋅
⋅
m/61 lb ⋅
⋅⋅
⋅
in)
10. Install brake drum.
11. Install wheel and tire.
12. Pull parking brake lever with a force equivalent to operating force: 490 N (50 kg/110 lb), 10 times fo
r
conditioning.
13.
Adjust parking brake lever adjusting nut so that
parking brake lever goes through 6-9 notches
(Bucket Seat) or 8 −14 notches (Bench Seat), when
pulled with an operation force of 294 N (30 kg/
66 lb).
14. Check brake for no drag.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 781 of 6020

PARKING BRAKE SYSTEM 5D-11
Inspection and Repair
Brake Lining Inspection
Check the shoe assemblies for wear by removing the
brake drum.
Replace the shoe assemblies if the lining thickness is
less than 1.0 mm (0.039 in).
Minimum limit: 1.0 mm (0.039 in)
308RS004
Parking Brake Adjustment
NOTE: All brakes are self-adjusting. Brakes are
adjusted by repeated stepping on the brake pedal.
(After stepping on the pedal and releasing it, the rea
r
brake auto-adjuster produces a clicking sound. The
same operation should be repeated until the sound
disappears.)
Take the following steps after overhauling the rea
r
brake assembly.
1. Move the parking brake lever to its fully released position.
2. Parking brake cable must be loosened sufficiently.
(Loosen the adjust nut.)
3. Repeat stepping on the brake pedal firmly, and releasing it until the clicking sound can no longe
r
be heard.
If the difference between the brake drum inside
diameter and the brake shoes external diameter is
adjusted to be 0.4 mm (0.0157 in), the number o
f
times for depressing the brake pedal can be
reduced.
4. Remove the drum. Measure the brake drum inside
diameter and the brake shoes external diameter.
Total shoe clearance: 0.4 mm (0.0157 in)
If incorrect, readjust the brake shoe clearance.
5. Rotate the adjust nut of hand brake lever until all slack disappears from the cable. Set the adjust
nut.
6. After the rear brake shoe/drum gap has been adjusted, perform parking brake cable adjustment.
7. Turn the adjusting nut so that the parking brake lever travels 6 −9 notches (Bucket Seat) or 8 −14
notches (Bench Seat) when pulled up with a force
of 294 N (30 kg/66 lb).
8. Make sure there is no brake dragging.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 782 of 6020
5D-12 PARKING BRAKE SYSTEM
Main Data and Specifications
General Specifications
Type Leading-Trailing
Drum inside diameter 254 mm (10 in) or 295 mm (11.6 in)
Parking brake lever stroke
6−9 notches; Bucket Seat
8 −14 notches; Bench Seat
W hen pulled with a force of 294 N (30 kg/66 lb)
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 783 of 6020
PARKING BRAKE SYSTEM 5D-13
Torque Specifications
N⋅
⋅⋅
⋅
m (kgf ⋅
⋅⋅
⋅
m/lb ⋅
⋅⋅
⋅
ft)
This illustration is based on the RHD model
RTW 35DSF000201
N⋅
⋅⋅
⋅
m (kgf ⋅
⋅⋅
⋅
m/lb ⋅
⋅⋅
⋅
ft)
E05R300006
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
