ACCELERATOR CONTROL 6H – 1

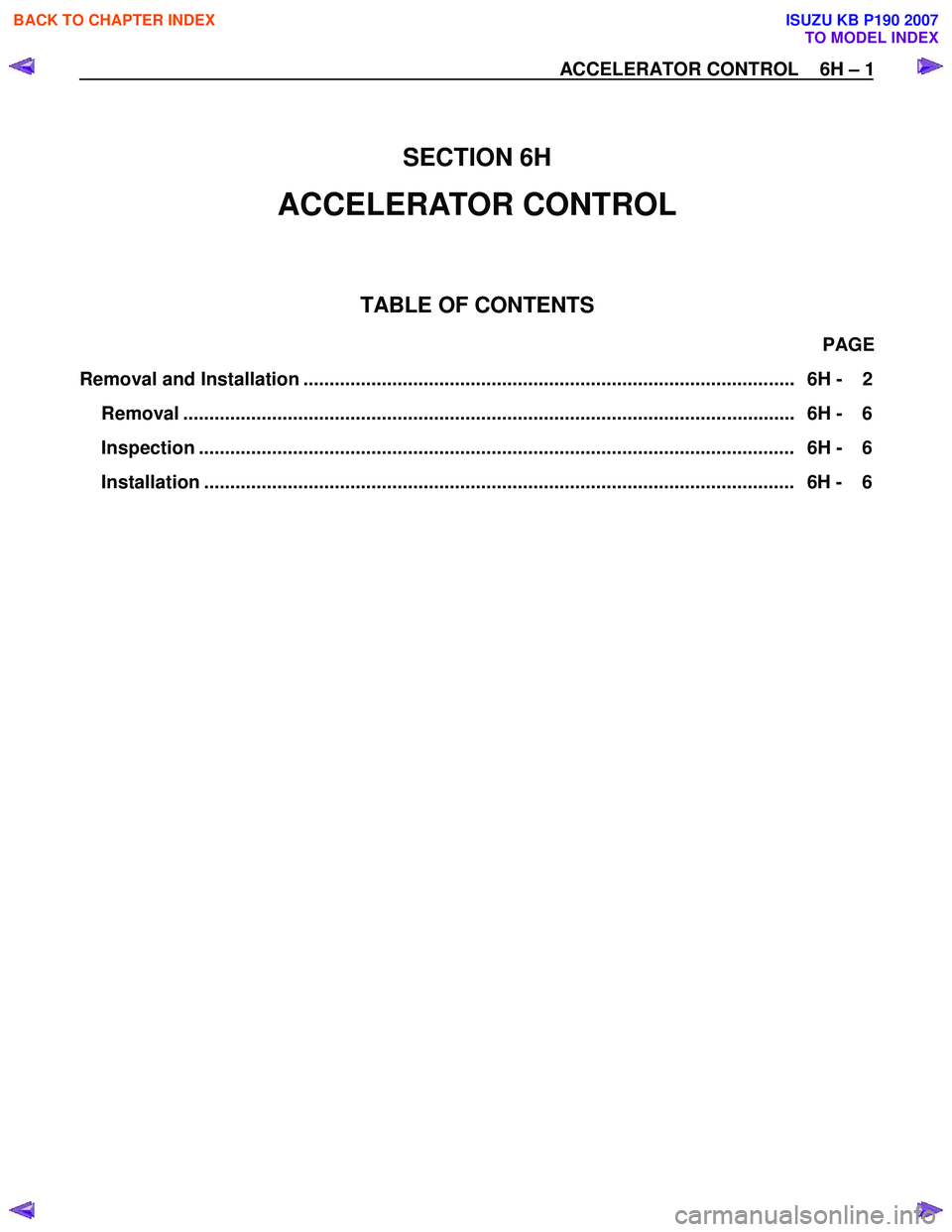

SECTION 6H
ACCELERATOR CONTROL
TABLE OF CONTENTS
PAGE
Removal and Installation .............................................................................................. 6H - 2 Removal ..................................................................................................................... 6H - 6
Inspection .................................................................................................................. 6H - 6
Installation ................................................................................................................. 6 H - 6
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

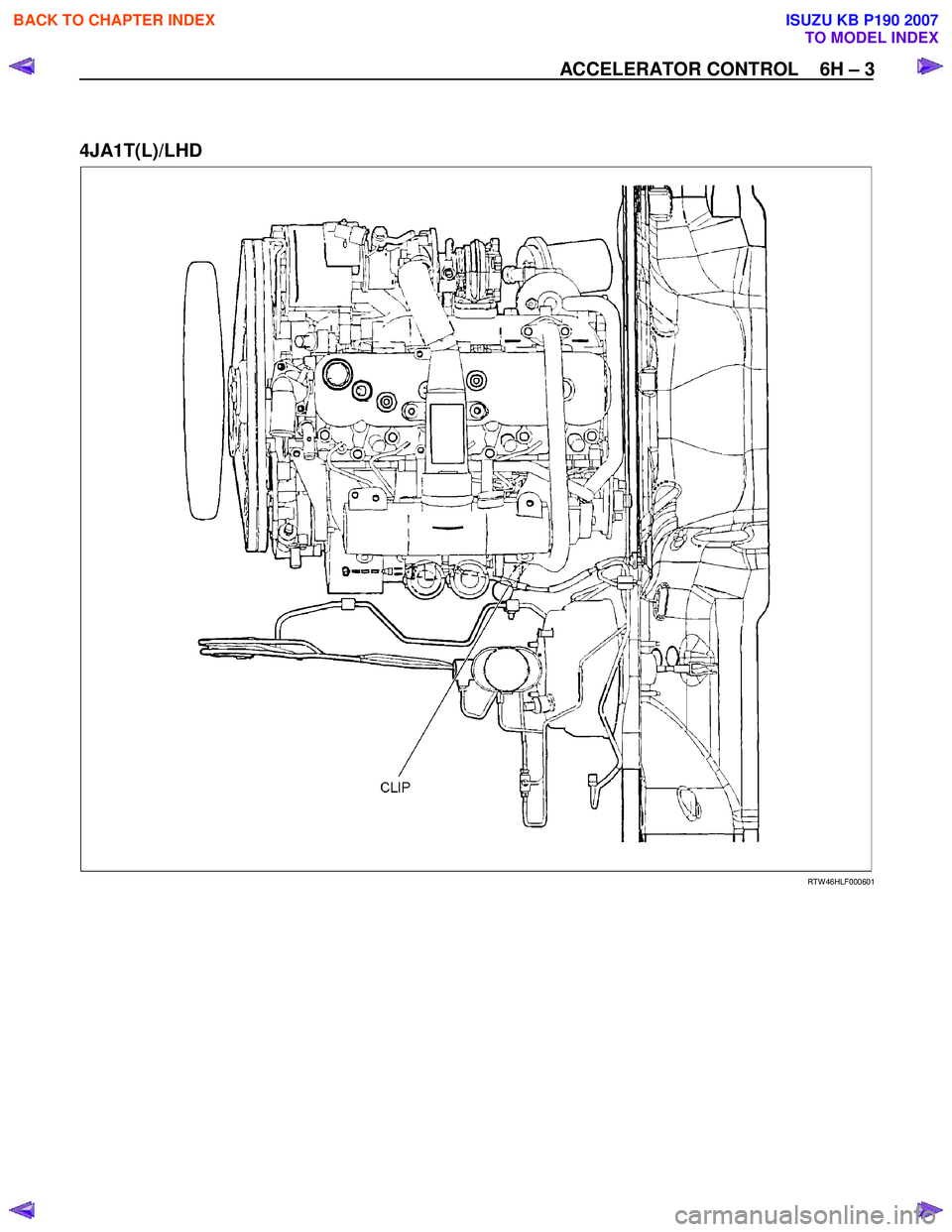

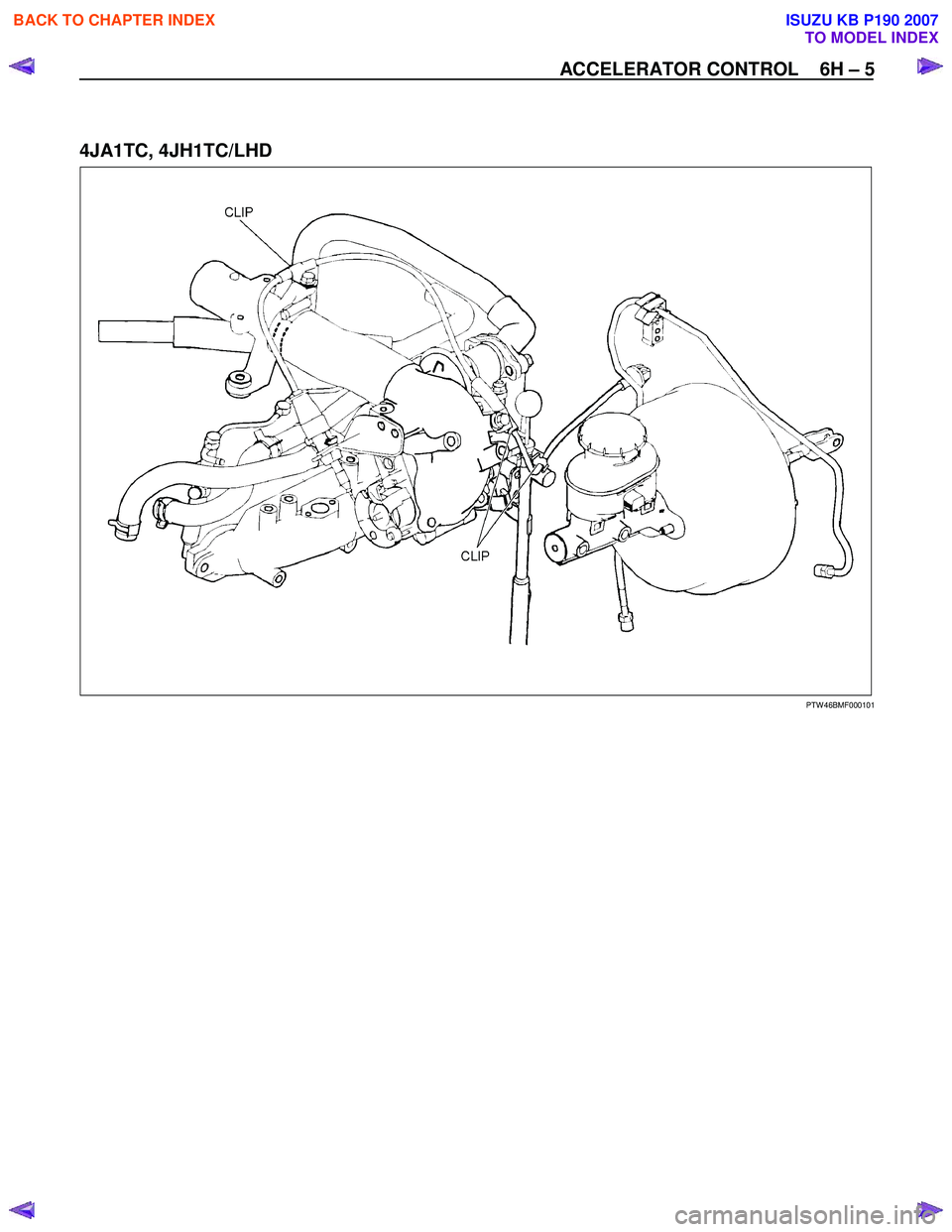

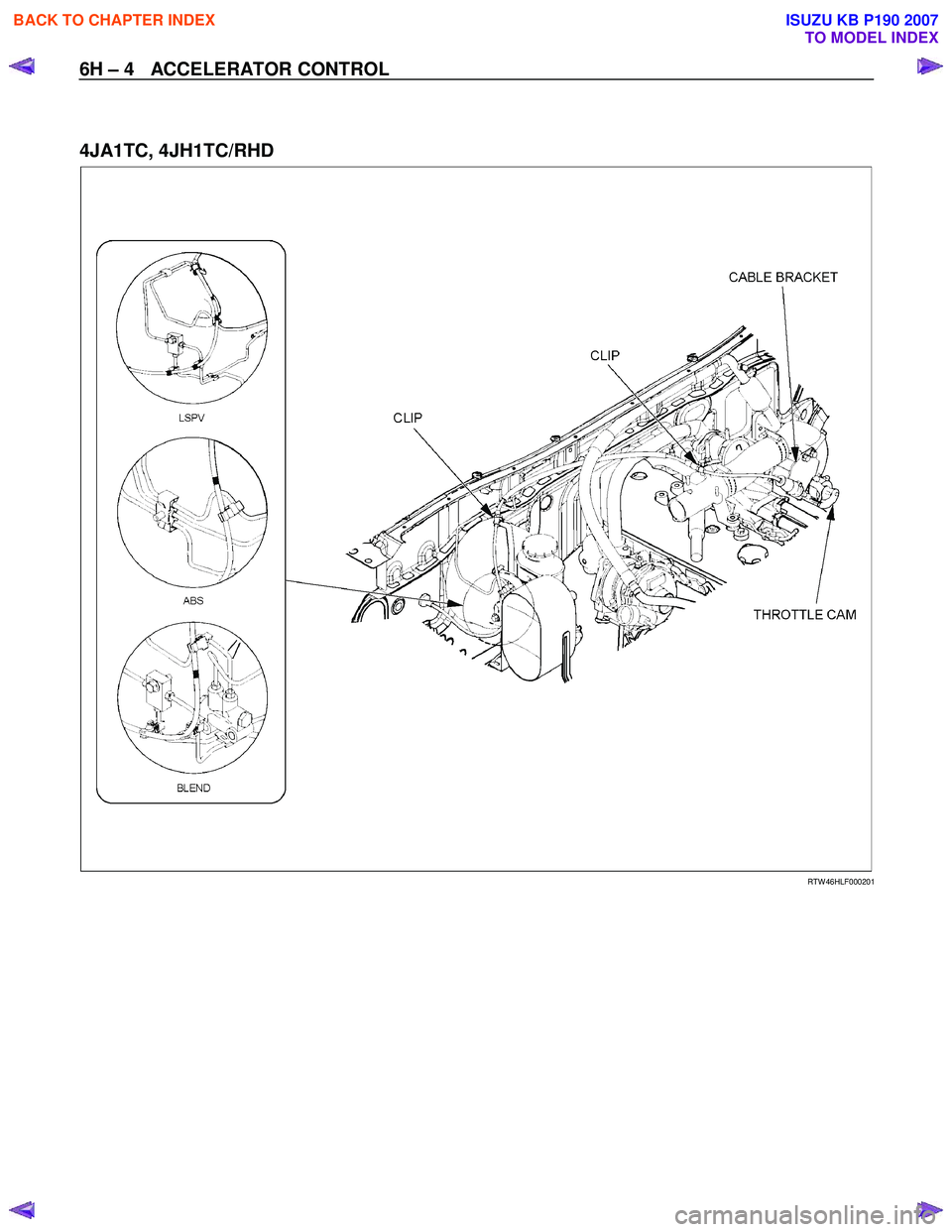

6H – 6 ACCELERATOR CONTROL
RTW 46HMH000201

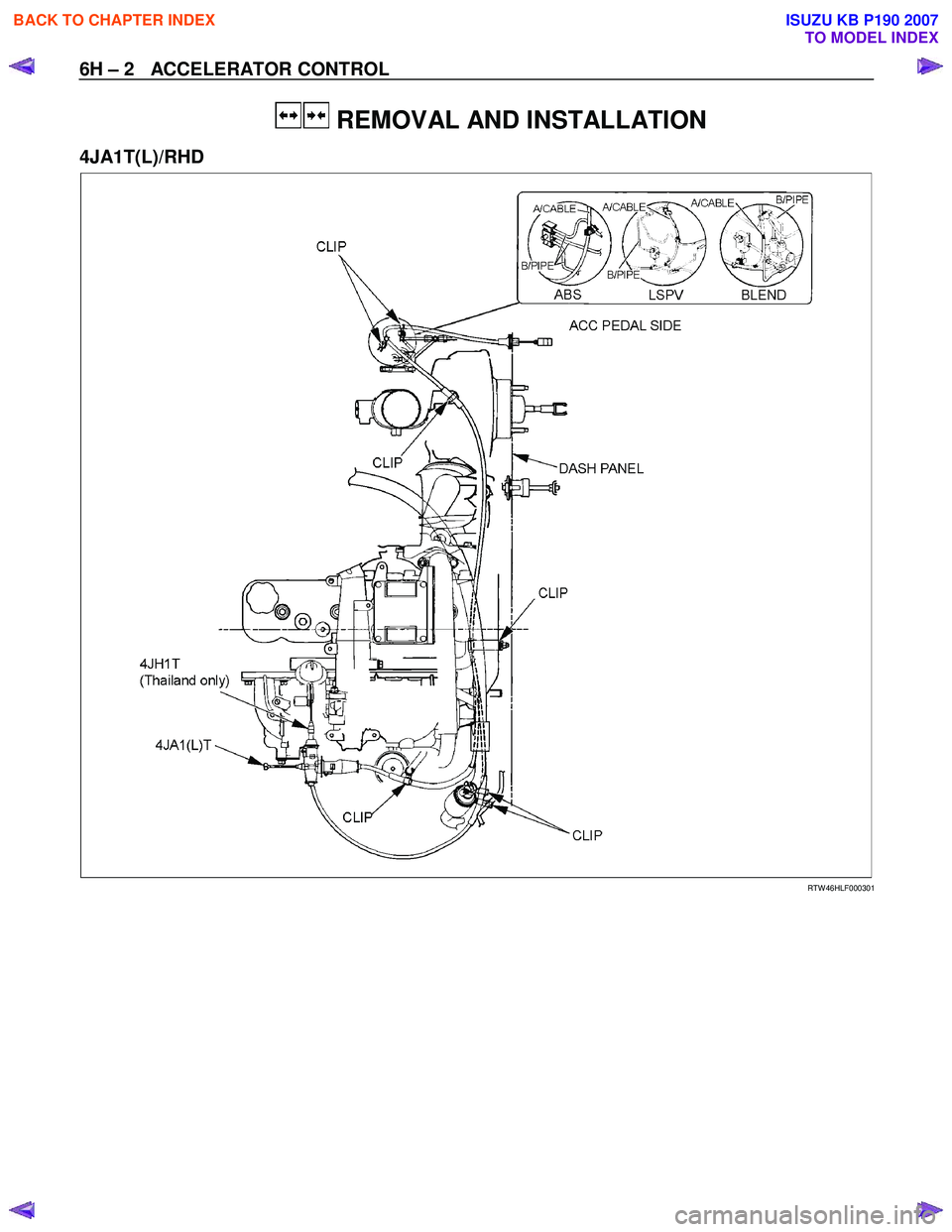

Removal
1. Disconnect the accelerator control cable from the
accelerator pedal and dash panel.
2. Remove the cable clips.
3. Remove the accelerator control cable from accelerator control cable bracket.
1) Slide the lock in direction A
2) Rotate the ratchet ring in undirection an arrow 90 °.
4. Remove the accelerator control cable from the throttle.
Inspection
Check the following items and replace the control cable if
any abnormality is found.
• The control cable should move smoothly.
• The control cable should not be bent or kinked.
• The control cable should not be damage or
corrosion.
Installation
1. Install the accelerator control cable to accelerator control pedal dash panel.
2. Install the accelerator control cable to throttle.
Attach T-END and inner cable to throttle cam of engine.
3. Install accelerator control cable to accelerator bracket.
1) Rotate the ratchet ring in direction an arrow 90 °
until both white marking are aligned.
2) Confirm marking of outer cap must be upper side.
3) Slider the lock in direction B.
4) Confirm ratchet ring is locked.
4. Install the cable clips to accelerator control cable.
NOTE:
Confirm that the throttle (engine side) is at full stroke
when the accelerator pedal is at full stroke.
