Page 5785 of 6020
CAB 10-27

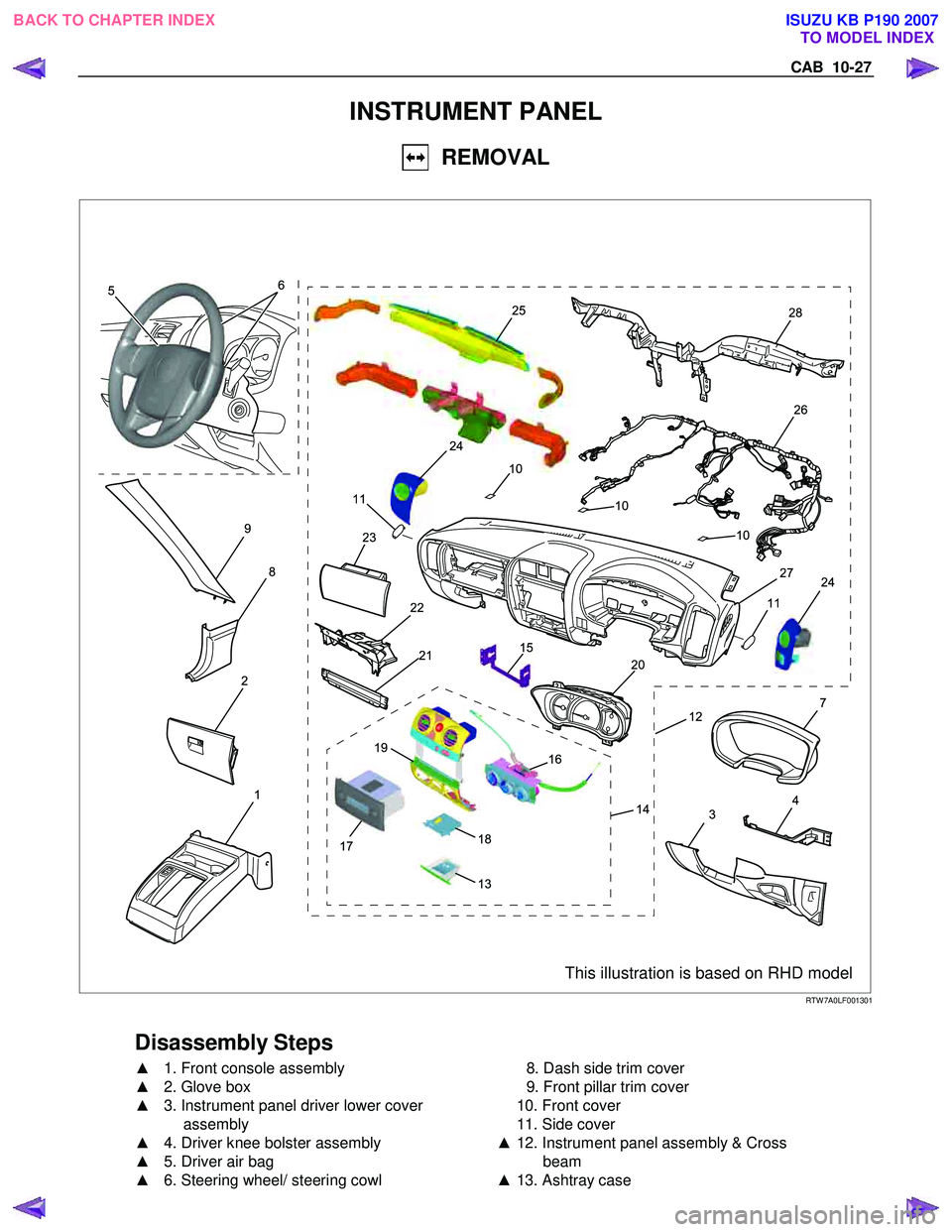

INSTRUMENT PANEL
REMOVAL
9
8
2
1
7
4
3
12
2120
15
19
22
18
14
16
13
17
24
23
11
2528
26
24
10
10
27
11
5 6
10
This illustration is based on RHD model RTW 7A0LF001301
Disassembly Steps
▲
1. Front console assembly
▲ 2. Glove box
▲ 3. Instrument panel driver lower cover
assembly
▲ 4. Driver knee bolster assembly
▲ 5. Driver air bag
▲ 6. Steering wheel/ steering cowl
8. Dash side trim cover
9. Front pillar trim cover
10. Front cover
11. Side cover
▲ 12. Instrument panel assembly & Cross
beam
▲ 13. Ashtray case
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 5786 of 6020
10-28 CAB

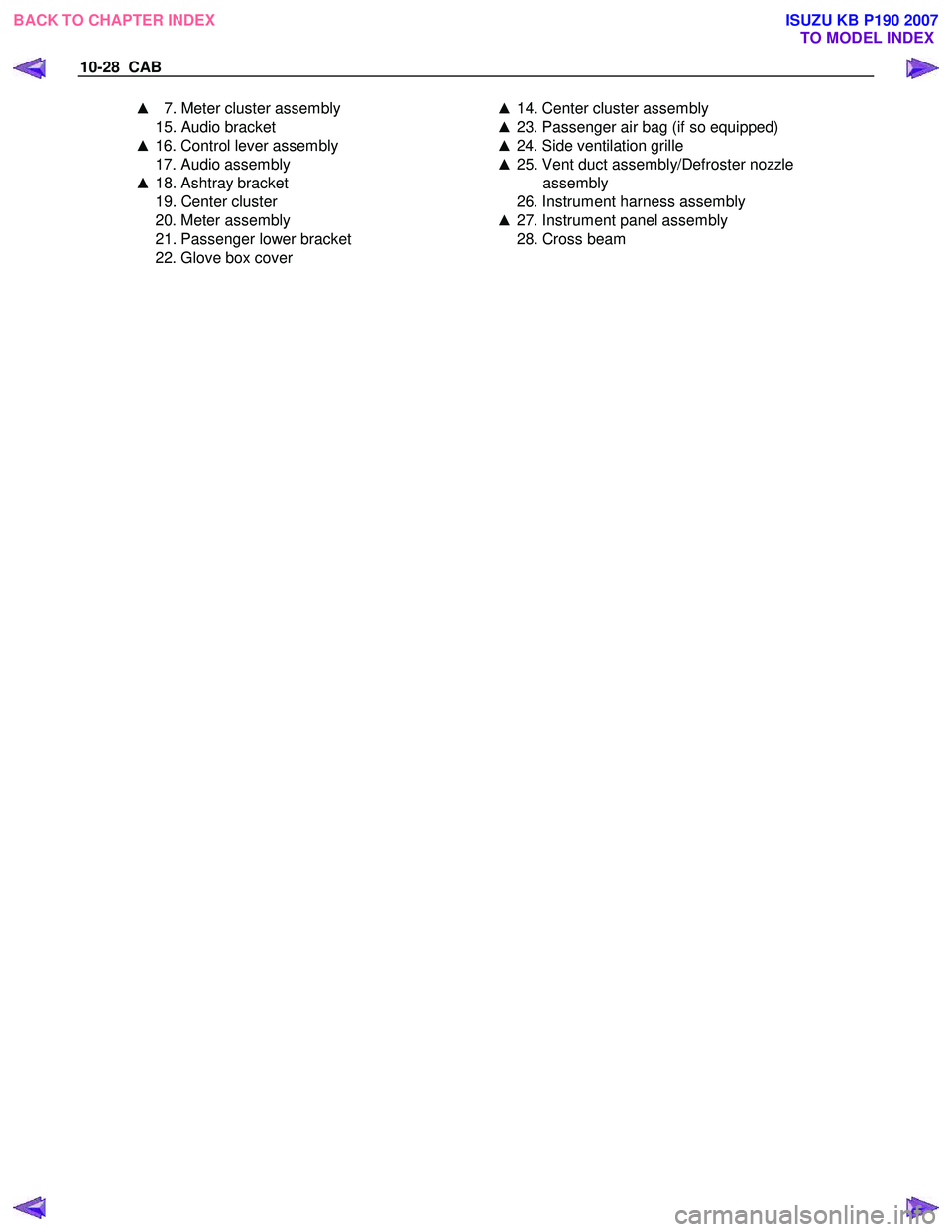

▲ 7. Meter cluster assembly ▲ 14. Center cluster assembly
15. Audio bracket
▲ 16. Control lever assembly
17. Audio assembly
▲ 18. Ashtray bracket
19. Center cluster
20. Meter assembly
21. Passenger lower bracket
22. Glove box cover
▲ 23. Passenger air bag (if so equipped)
▲ 24. Side ventilation grille
▲ 25. Vent duct assembly/Defroster nozzle
assembly
26. Instrument harness assembly
▲ 27. Instrument panel assembly
28. Cross beam
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5787 of 6020
CAB 10-29

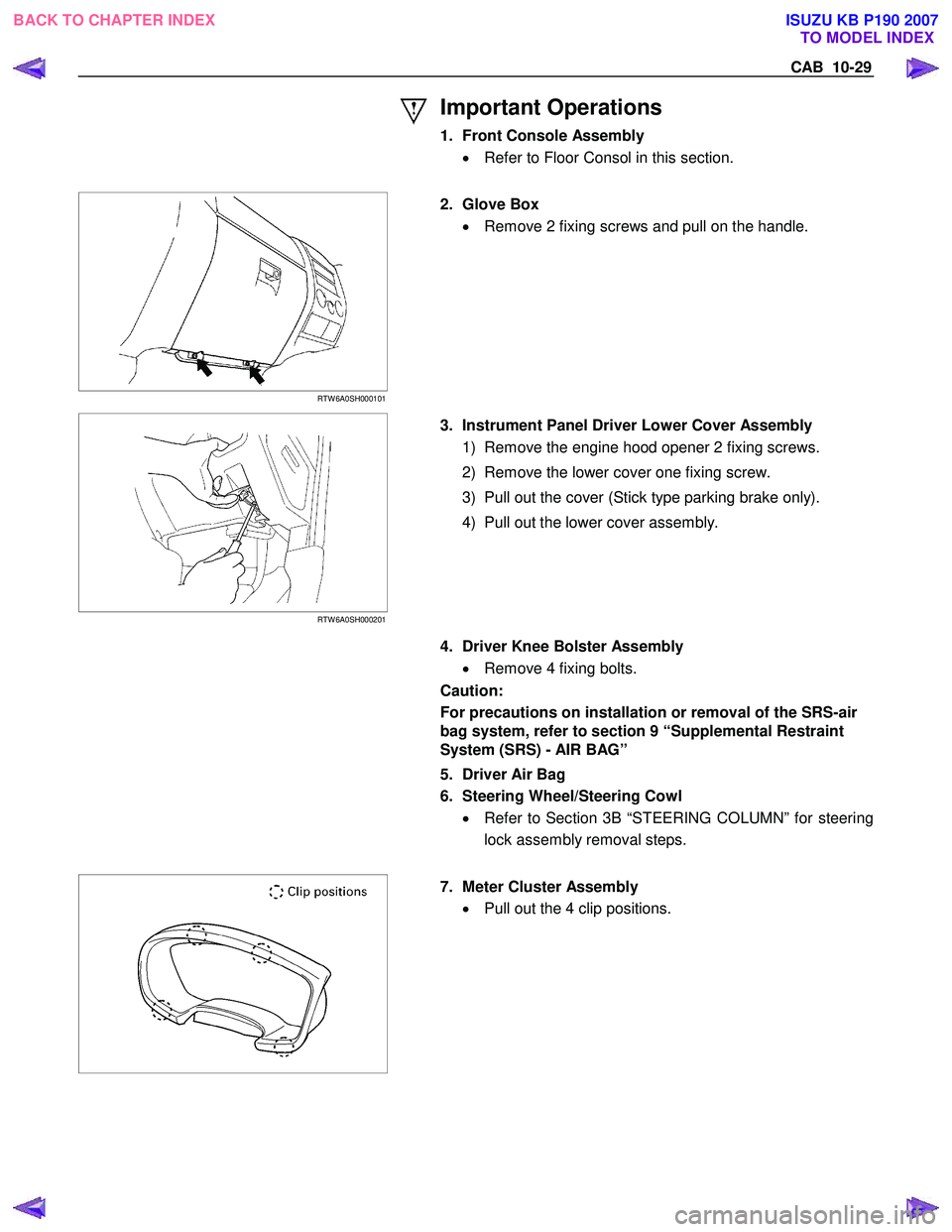

Important Operations
1. Front Console Assembly • Refer to Floor Consol in this section.
RTW 6A0SH000101
2. Glove Box
• Remove 2 fixing screws and pull on the handle.
RTW 6A0SH000201
3. Instrument Panel Driver Lower Cover Assembly
1) Remove the engine hood opener 2 fixing screws.
2) Remove the lower cover one fixing screw.
3) Pull out the cover (Stick type parking brake only).
4) Pull out the lower cover assembly.
4. Driver Knee Bolster Assembly
• Remove 4 fixing bolts.
Caution:
For precautions on installation or removal of the SRS-air
bag system, refer to section 9 “Supplemental Restraint
System (SRS) - AIR BAG”
5. Driver Air Bag
6. Steering Wheel/Steering Cowl • Refer to Section 3B “STEERING COLUMN” for steering
lock assembly removal steps.
7. Meter Cluster Assembly
• Pull out the 4 clip positions.
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5788 of 6020
10-30 CAB
RUW 5A0SH002701
12. Instrument Panel Assembly & Cross Beam
1) Remove the two bolts fixing the steering column to the cross beam and the two bolts fixing the brake pedal
bracket to the cross beam.
2) Remove the two bolts fixing the parking brake bracket to
the cross beam (Stick type parking brake only).
3) Disconnect the control cables at the blower unit and vent
unit.
4) Remove the fasteners fixing the instrument panel and cross beam assembly and the body panel.
5) Disconnect the instrument harness connectors.
This illustration is based on RHD model
RTW 7A0SF000201
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5789 of 6020

CAB 10-31
RTW 7A0SH000301

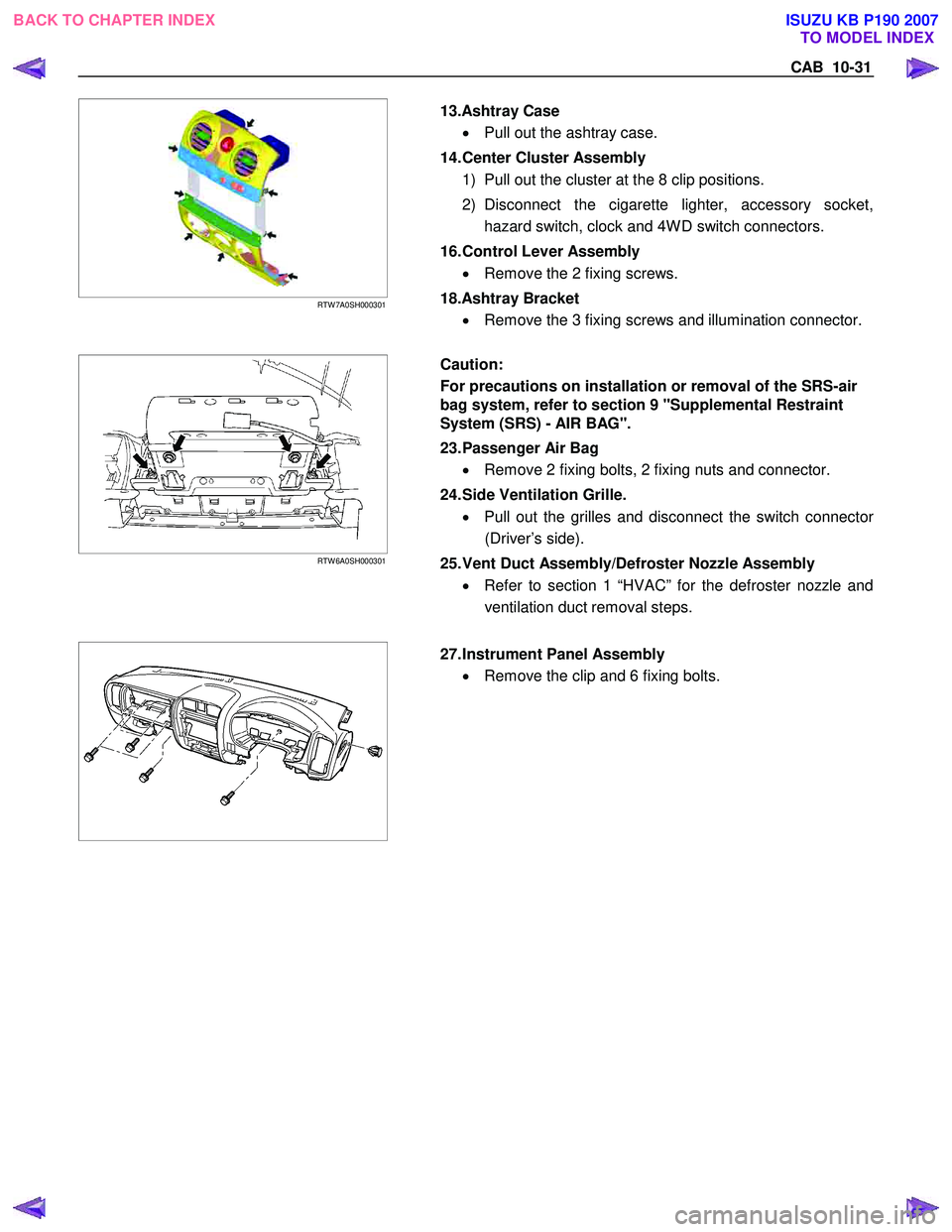

13.Ashtray Case
• Pull out the ashtray case.
14. Center Cluster Assembly 1) Pull out the cluster at the 8 clip positions.
2) Disconnect the cigarette lighter, accessory socket, hazard switch, clock and 4W D switch connectors.
16. Control Lever Assembly • Remove the 2 fixing screws.
18.Ashtray Bracket • Remove the 3 fixing screws and illumination connector.
RTW 6A0SH000301
Caution:
For precautions on installation or removal of the SRS-air
bag system, refer to section 9 "Supplemental Restraint
System (SRS) - AIR BAG".
23. Passenger Air Bag
• Remove 2 fixing bolts, 2 fixing nuts and connector.
24. Side Ventilation Grille. • Pull out the grilles and disconnect the switch connecto
r
(Driver’s side).
25. Vent Duct Assembly/Defroster Nozzle Assembly • Refer to section 1 “HVAC” for the defroster nozzle and
ventilation duct removal steps.
27. Instrument Panel Assembly
• Remove the clip and 6 fixing bolts.
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5790 of 6020
10-32 CAB

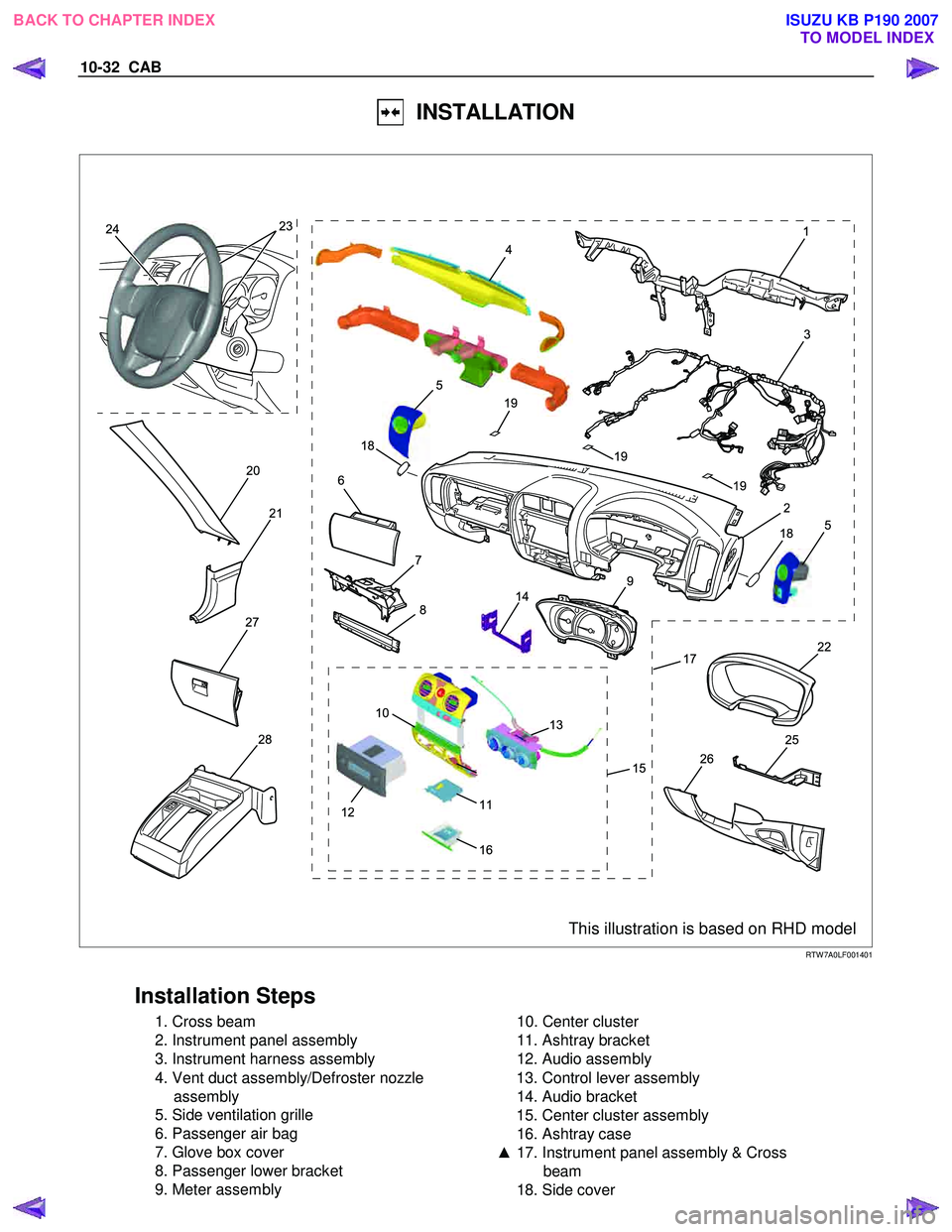

INSTALLATION
18 19
19 19
18
24 231
3
2
20
21
278
22
25
26
17
9
6
5
5
7
28
14
10
11
15
13
16
12
4
This illustration is based on RHD model RTW 7A0LF001401
Installation Steps
1. Cross beam
2. Instrument panel assembly
3. Instrument harness assembly
4. Vent duct assembly/Defroster nozzle assembly
5. Side ventilation grille
6. Passenger air bag
7. Glove box cover
8. Passenger lower bracket
9. Meter assembly
10. Center cluster
11. Ashtray bracket
12. Audio assembly
13. Control lever assembly
14. Audio bracket
15. Center cluster assembly
16. Ashtray case
▲ 17. Instrument panel assembly & Cross
beam
18. Side cover
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5791 of 6020
CAB 10-33

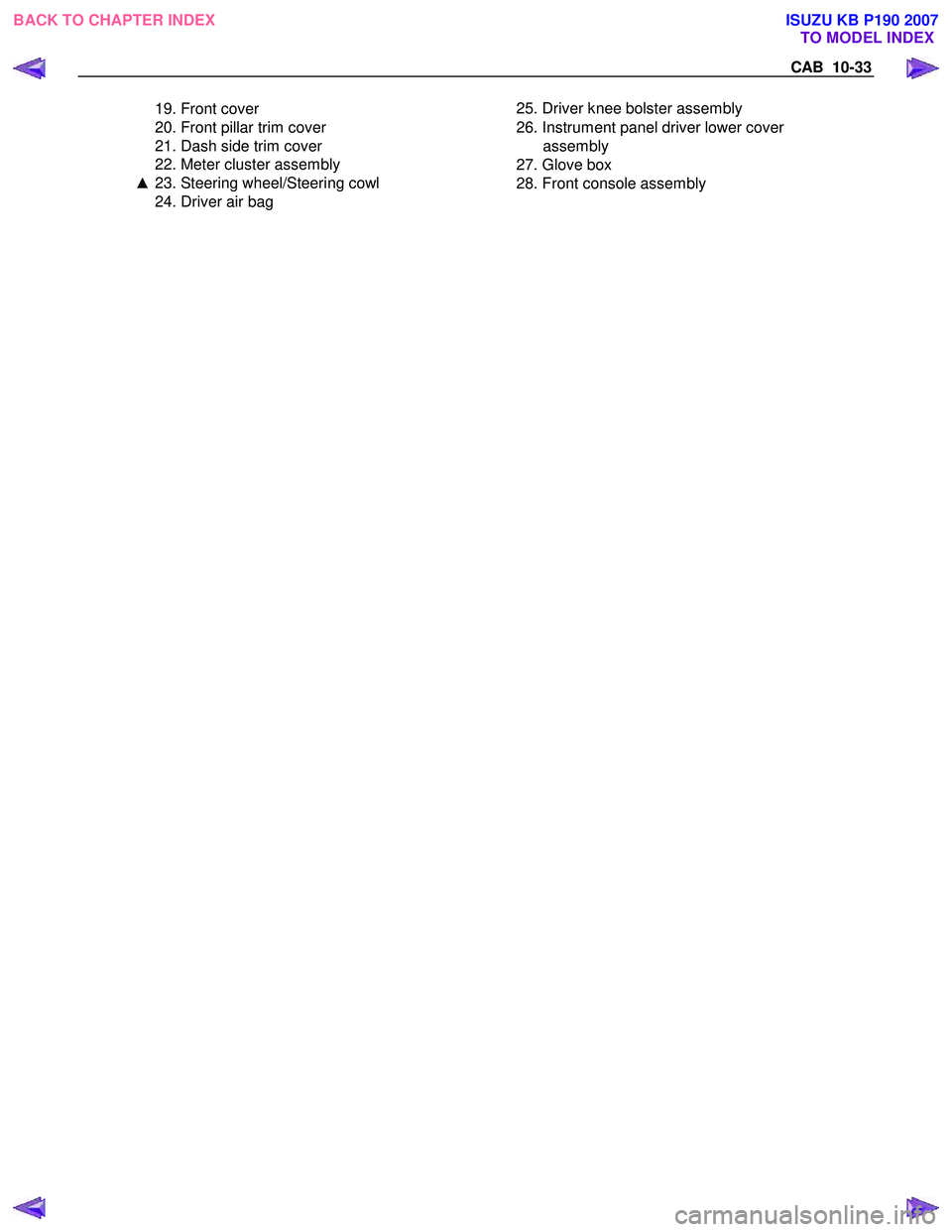

19. Front cover
20. Front pillar trim cover
21. Dash side trim cover
22. Meter cluster assembly
▲ 23. Steering wheel/Steering cowl
24. Driver air bag
25. Driver knee bolster assembly
26. Instrument panel driver lower cover assembly
27. Glove box
28. Front console assembly
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5792 of 6020
10-34 CAB
Important Operations
17. Instrument Panel Assembly & Cross Beam 1) Tighten the 4 bolts fixing the cross beam and body panel to the specified torque.
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
19 (1.9/14)
RUW 5A0SH002801
2) A Bolt: Steering Column to Cross Beam
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
20 (2.0/14)
B Bolt: Pedal Bracket to Cross Beam
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
15 (1.5/11)
3) C Bolt: Parking Brake Bracket to Cross Beam
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
15 (1.5/11)
23. Steering Wheel/Steering Cowl • Tighten the steering wheel fixing nut to the specified
torque.
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
34 (3.5/25)
