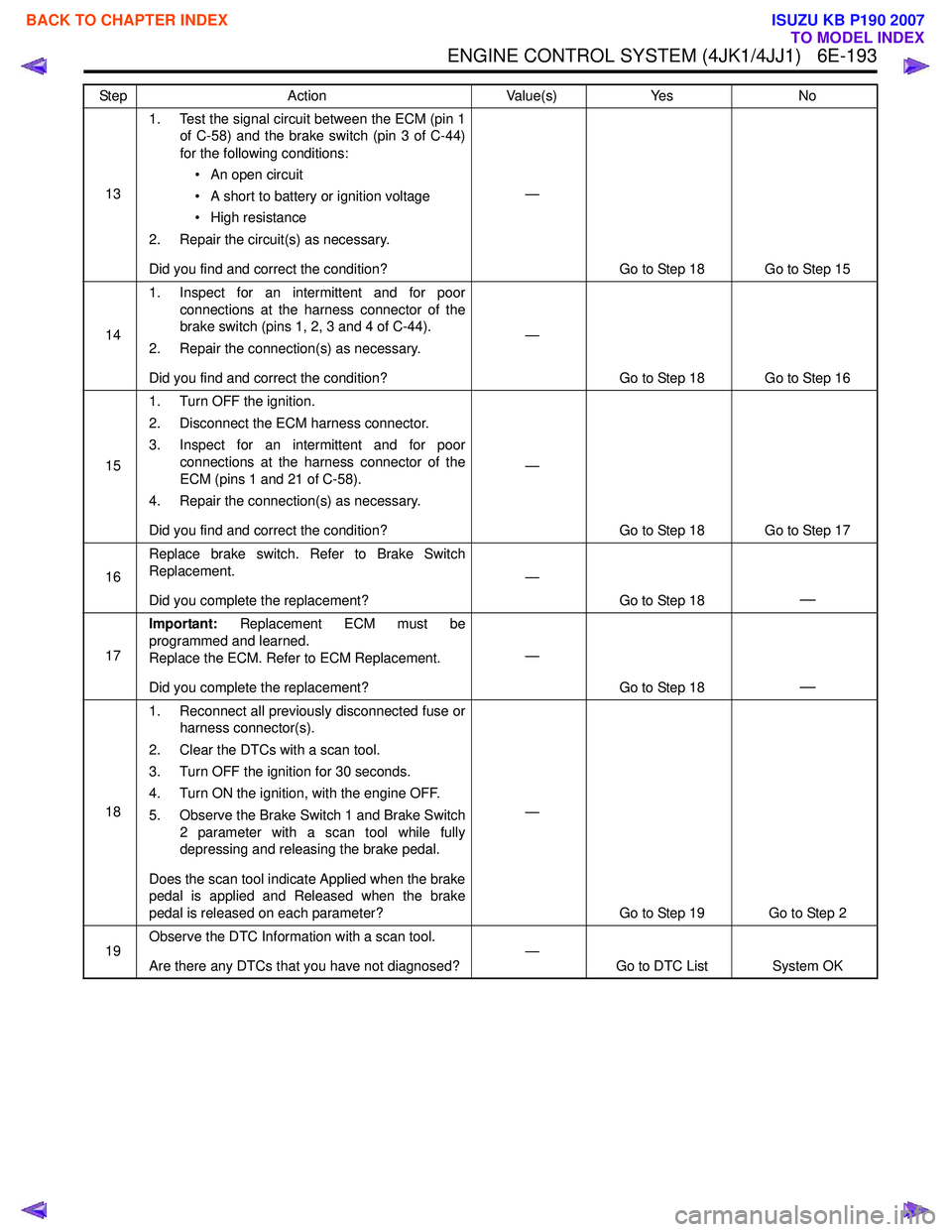

ISUZU KB P190 2007 Workshop Repair Manual 6E-192 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
51. Turn ON the ignition, with the engine OFF.
2. Observe the Brake Switch 1 parameter with a scan tool while momentarily jumping 3-amp
fused jumper wire a

6E-192 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
51. Turn ON the ignition, with the engine OFF.
2. Observe the Brake Switch 1 parameter with a scan tool while momentarily jumping 3-amp
fused jumper wire across the brake switch
harness connector between pins 1 and 2 of
the C-44.
Does the scan tool indicate Applied when the circuit
is jumpered and Released when the circuit is not
jumpered? —
Go to Step 14 Go to Step 7
6 Repair the open circuit or high resistance between
the Stop Light (15A) fuse and the brake switch (pin
1 of C-44). Check the Stop Light (15A) fuse first.
Did you complete the repair? —
Go to Step 18
—
71. Test the signal circuit between the ECM (pin
21 of C-58) and the brake switch (pin 2 of C-
44) for the following conditions:
• An open circuit
• A short to battery or ignition voltage
• High resistance
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 18 Go to Step 15
8 Observe the Brake Switch 2 parameter with a scan
tool while fully depressing and releasing the brake
pedal.
Does the scan tool indicate Applied when the brake
pedal is applied and Released when the brake
pedal is released? —
Go to Diagnostic Aids Go to Step 9
9 1. Check to ensure the brake switch is adjusted
correctly. The plunger should be all the way in
when the pedal is released, yet should not
impede with the brake pedal full upward travel.
2. Adjust the brake switch as necessary.
Did you find and correct the condition? —
Go to Step 18 Go to Step 10
10 1. Turn OFF the ignition.
2. Disconnect the brake switch harness connector.
3. Turn ON the ignition, with the engine OFF.
4. Connect a test lamp between the ignition voltage feed circuit of the brake switch 2
harness (pin 4 of C-44) and a known good
ground.
Does the test lamp illuminate? —
Go to Step 11 Go to Step 12
11 Observe the Brake Switch 2 parameter with a scan
tool while momentarily jumping 3-amp fused
jumper wire across the brake switch harness
connector between pins 3 and 4 of the C-44.
Does the scan tool indicate Released when the
circuit is jumpered and Applied when the circuit is
not jumpered? —
Go to Step 14 Go to Step 13
12 Repair the open circuit or high resistance between
the Engine (10A) fuse and the brake switch (pin 4
of C-44). Check the Engine (10A) fuse first.
Did you complete the repair? —
Go to Step 18
—
Step Action Value(s)Yes No

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 1810 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-193
131. Test the signal circuit between the ECM (pin 1
of C-58) and the brake switch (pin 3 of C-44)
for the following conditions:
• An open circuit
• A s

Page 1811 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E-194 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
DTC P0601 (Flash Code 53)
Circuit Description
This diagnostic applies to internal microprocessor
integrity conditions within the ECM.
Condition for Settin

6E-194 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
DTC P0601 (Flash Code 53)
Circuit Description
This diagnostic applies to internal microprocessor
integrity conditions within the ECM.
Condition for Setting the DTC • The ECM detects that the calculated checksum does not agree with the ECM internal registered
checksum.
Action Taken When the DTC Sets • The ECM illuminates the SVS lamp when the diagnostic runs and fails. Refer to DTC Type
Definitions for Action Taken When the DTC Sets -
Type C. (Euro 4 Specification)
• The ECM illuminates the MIL when the diagnostic runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
(Except Euro 4 Specification) • The ECM limits fuel injection quantity.
• The ECM inhibits pilot injection.
• The ECM inhibits cruise control.
• The ECM stops engine running when the vehicle speed is lower than 5 km/h (3 MPH) for 5 seconds.
The engine will run after the key is cycled when the
ignition has been tuned OFF for longer than 10
seconds.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the SVS Lamp/ DTC - Type C. (Euro 4
Specification)
• Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A. (Except Euro 4
Specification)
Circuit/ System Testing DTC P0601
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Turn ON the ignition, with the engine OFF.
4. Monitor the DTC Information with a scan tool.
Does the DTC fail this ignition? —
Go to Step 3 Go to Step 4
3 Important:
Replacement ECM must be
programmed and learned.
Replace the ECM. Refer to ECM Replacement.
Did you complete the replacement? —
Go to Step 4
—
41. Clear the DTCs with a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine.
4. Operate the vehicle within the Conditions for Running the DTC. You may also operate the
vehicle within the conditions that you
observed from the Freeze Frame/ Failure
Records.
Did the DTC fail this ignition? —
Go to Step 3 Go to Step 5
5 Observe the DTC Information with a scan tool.
Are there any DTCs that you have not diagnosed? —
Go to DTC List System OK

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 1812 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-195
DTC P0602 (Flash Code 154)
Circuit Description
The electrically erasable & programmable read only
memory (EEPROM) memorizes fuel injector ID code
informati

ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-195
DTC P0602 (Flash Code 154)
Circuit Description
The electrically erasable & programmable read only
memory (EEPROM) memorizes fuel injector ID code
information. If the ECM detects fuel injector ID codes
are not programmed into the ECM or an error in the
programmed fuel injector ID codes, this DTC will set.
Condition for Running the DTC • The ignition switch is ON.
Condition for Setting the DTC
Either of following condition is met: • The ECM detects that the fuel injector ID code is not programmed.
• The ECM detects an error in the programmed fuel injector ID code.
Action Taken When the DTC Sets • The ECM illuminates the SVS lamp when the diagnostic runs and fails. Refer to DTC Type
Definitions for Action Taken When the DTC Sets -
Type C. (Euro 4 Specification) • The ECM illuminates the MIL when the diagnostic
runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
(Except Euro 4 Specification)
• The ECM limits fuel injection quantity.
• The ECM inhibits cruise control.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the SVS Lamp/ DTC - Type C. (Euro 4
Specification)
• Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A. (Except Euro 4
Specification)
Notice: • Clear the DTC with a scan tool after programming the fuel injector ID code.
Circuit/ System Testing DTC P0602
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Ensure that all tool connections are secure.
2. Ensure that programming equipment is operating correctly.
3. Install a scan tool.
4. Turn OFF the ignition for 30 seconds.
5. Turn ON the ignition, with the engine OFF.
6. Monitor the DTC Information with a scan tool.
Does the DTC fail this ignition? —
Go to Step 3 Go to Step 5
3 1. Verify the correct fuel injector ID codes are
entered into the ECM with a scan tool. Refer
to ECM Replacement. If the fuel injector ID
codes are correctly entered, clear the DTC
with a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Turn ON the ignition, with the engine OFF.
Does the DTC fail this ignition? —
Go to Step 4 Go to Step 5
4 Important:
Replacement ECM must be
programmed and learned.
Replace the ECM. Refer to ECM Replacement.
Did you complete the replacement? —
Go to Step 5
—

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 1813 of 6020

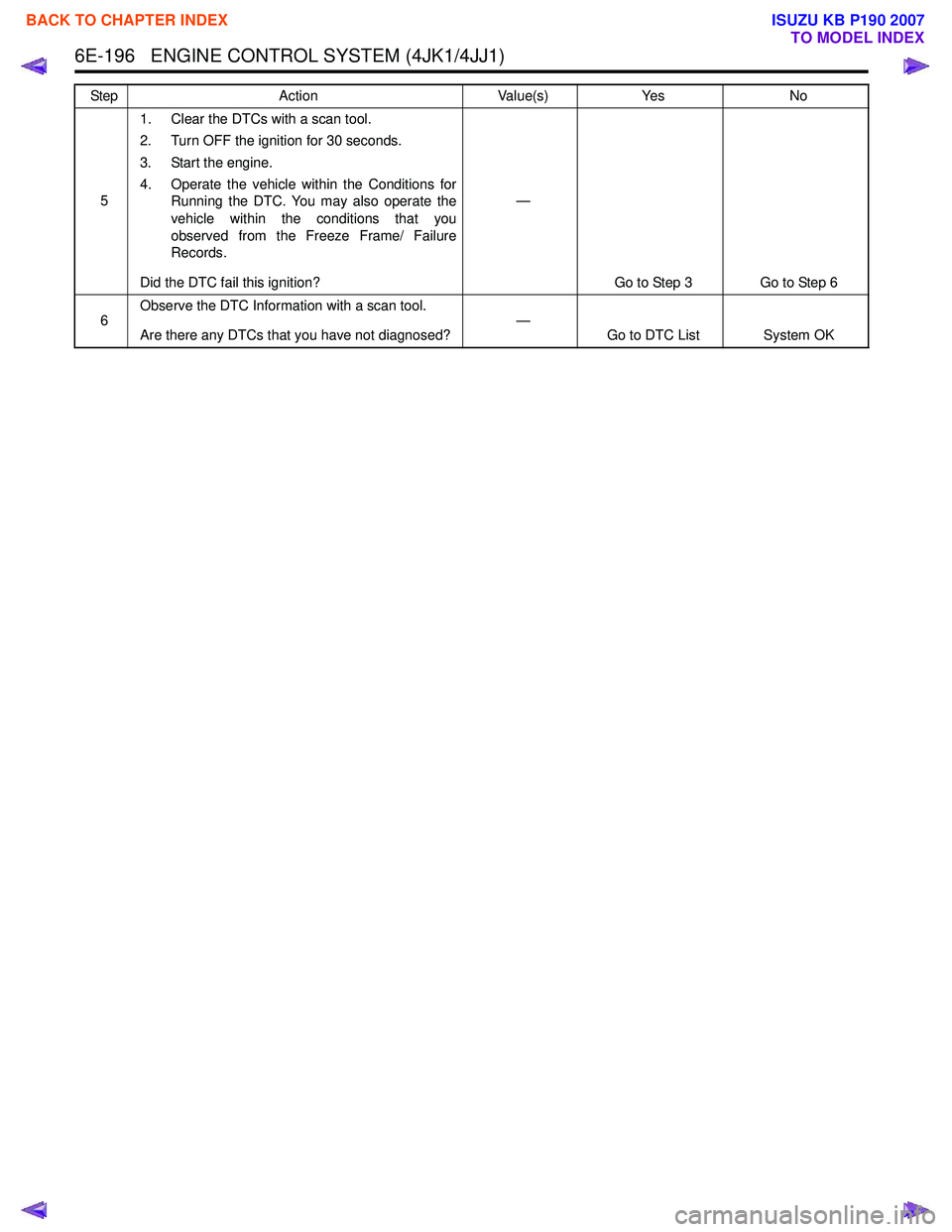

ISUZU KB P190 2007 Workshop Repair Manual 6E-196 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
51. Clear the DTCs with a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine.
4. Operate the vehicle within the Conditions for Running

Page 1814 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-197
DTC P0604 or P0606 (Flash Code 153 or 51)
Circuit Description
This diagnostic applies to internal microprocessor
integrity conditions within the ECM.
Cond

ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-197
DTC P0604 or P0606 (Flash Code 153 or 51)
Circuit Description
This diagnostic applies to internal microprocessor
integrity conditions within the ECM.
Condition for Setting the DTC • The ECM detects a malfunction in its internal random access memory (RAM). (DTC P0604)
• The ECM detects a malfunction in its internal main central processing unit (CPU) or sub integrated
circuit (IC). (DTC P0606)
Action Taken When the DTC Sets • The ECM illuminates the SVS lamp when the diagnostic runs and fails. Refer to DTC Type
Definitions for Action Taken When the DTC Sets -
Type C. (Euro 4 Specification)
• The ECM illuminates the MIL when the diagnostic runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
(Except Euro 4 Specification) • The ECM limits fuel injection quantity. (DTC
P0604)
• The ECM inhibits pilot injection. (DTC P0604)
• The ECM inhibits cruise control. (DTC P0604)
• The ECM stops engine running when the vehicle speed is lower than 5 km/h (3 MPH) for 5 seconds.
The engine will run after the key is cycled when the
ignition has been tuned OFF for longer than 10
seconds. (DTC P0604)
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the SVS Lamp/ DTC - Type C. (Euro 4
Specification)
• Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A. (Except Euro 4
Specification)
Circuit/ System Testing DTC P0604 or P0606
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Turn ON the ignition, with the engine OFF.
4. Monitor the DTC Information with a scan tool.
Does the DTC fail this ignition? —
Go to Step 3 Go to Step 4
3 Important:
Replacement ECM must be
programmed and learned.
Replace the ECM. Refer to ECM Replacement.
Did you complete the replacement? —
Go to Step 4
—
41. Clear the DTCs with a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine.
4. Operate the vehicle within the Conditions for Running the DTC. You may also operate the
vehicle within the conditions that you
observed from the Freeze Frame/ Failure
Records.
Did the DTC fail this ignition? —
Go to Step 3 Go to Step 5
5 Observe the DTC Information with a scan tool.
Are there any DTCs that you have not diagnosed? —
Go to DTC List System OK

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 1815 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E-198 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
DTC P0615 (Flash Code 19)
Circuit Description
The ECM controls the starter cut relay, which de-
energizes the starter relay based on engine speed
inputs or

6E-198 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
DTC P0615 (Flash Code 19)
Circuit Description
The ECM controls the starter cut relay, which de-
energizes the starter relay based on engine speed
inputs or immobilizer command signal. The starter cut
relay uses normally close type relay. During engine
stopping, the starter cut relay is closed to allow
grounding the starter relay. Once engine run, the ECM
energizes the starter cut relay to open the starter relay
circuit and starter motor is disengaged even the ignition
is positioned at START. If the ECM detects an improper
voltage on the starter cut relay control circuit, this DTC
will set.
Condition for Running the DTC • The ignition switch is ON.
Condition for Setting the DTC
Either of following condition is met: • The ECM detects a short to ground circuit condition on the starter cut relay control circuit for
longer than 3 seconds when the relay is
commanded OFF. • The ECM detects a short to voltage circuit
condition on the starter cut relay control circuit for
longer than 3 seconds when the relay is
commanded ON.
Action Taken When the DTC Sets • The ECM illuminates the SVS lamp when the diagnostic runs and fails. Refer to DTC Type
Definitions for Action Taken When the DTC Sets -
Typ e C.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the SVS Lamp/ DTC - Type C.
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
Notice: • If the starter cut relay control circuit is short to ground, engine does not crank.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P0615
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Turn ON the ignition, with the engine OFF. DO NOT start the engine.
4. Monitor the DTC Information with a scan tool.
Does the DTC fail this ignition? —
Go to Step 4 Go to Step 3
3 1. Start the engine.
2. Monitor the DTC Information with a scan tool.
Does the DTC fail this ignition? —
Go to Step 6 Go to Diagnostic
Aids
4 1. Turn OFF the ignition.
2. Replace the starter cut relay with the head light dimmer relay or replace with a known
good relay.
3. Turn ON the ignition, with the engine OFF. DO NOT start the engine.
4. Monitor the DTC Information with a scan tool.
Does the DTC fail this ignition? —
Go to Step 5 Go to Step 7

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 1816 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-199
51. Test the control circuit between the ECM (pin
35 of C-58) and the relay (pin 3 of X-7) for a
short to ground.
2. Repair the circuit(s) as necessary.
Di

Load next 8 pages

Page: < prev 1-10 ... 1777-1784 1785-1792 1793-1800 1801-1808 1809-1816 1817-1824 1825-1832 1833-1840 1841-1848 ... 6024 next >

spare tire location spare tire oil warning phone steering wheel adjustment
