ISUZU KB P190 2007 Workshop Repair Manual Engine Cooling – V6 Engine Page 6B1–34

3.8 Thermostat
Remove

Do not remove coolant filler cap while the
engine coolant temperature is above 50 °
°°
°
C, as
personal injury may res

Page 3170 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Cooling – V6 Engine Page 6B1–35

9 To gain easier access to the heater pipe flange and
thermostat housing bolts, disconnect the engine
harness and lay back on the right side of the e

Page 3171 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Cooling – V6 Engine Page 6B1–36

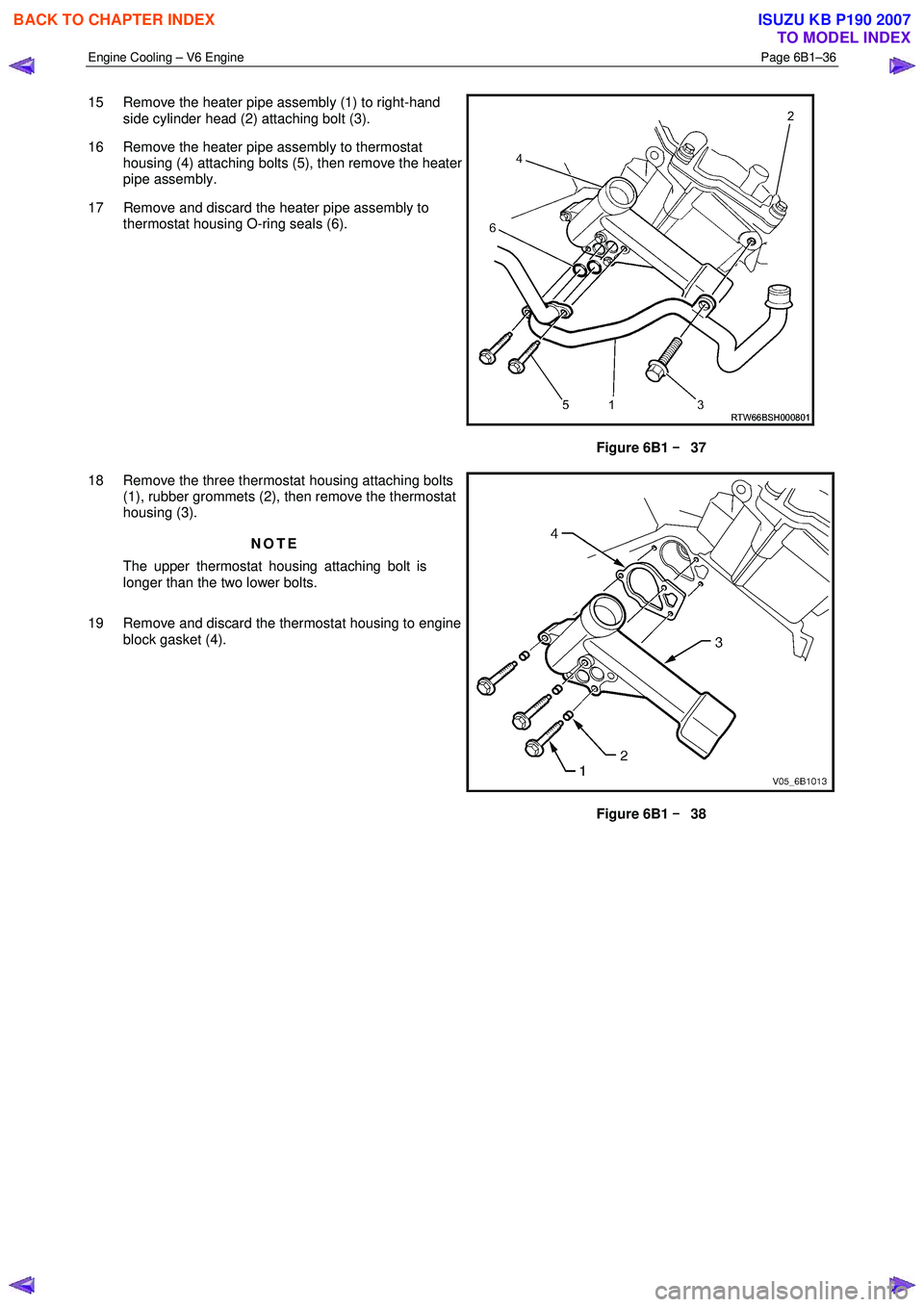

15 Remove the heater pipe assembly (1) to right-hand
side cylinder head (2) attaching bolt (3).
16 Remove the heater pipe assembly to thermostat hou

Page 3172 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Cooling – V6 Engine Page 6B1–37

Test
1 W ith the thermostat (1) installed in the housing,
suspend it and a suitable thermometer (2) in a
container of 50% clean fresh water and 50%

Engine Cooling – V6 Engine Page 6B1–37

Test
1 W ith the thermostat (1) installed in the housing,
suspend it and a suitable thermometer (2) in a
container of 50% clean fresh water and 50% Dexron ®
long life coolant, (conforming to GM 6277M).
NOTE
Neither the thermostat assembly (1) nor the
thermometer (2) should rest on the bottom of the
container because of uneven concentration of
heat at this point when the container is heated.
2 Heat container until thermostat begins to open. Agitate solution to ensure uniform temperature. Note
temperature and ensure thermostat opens within
specified temperature range.
Thermostat Opening Specifications
Opening Temperature ........................................ 82 ° C
Fully Open Temperature .................................... 95 ° C
3 Replace thermostat if it does not meet these operating
conditions.
Figure 6B1 –
––
–
39
Dismantle

Only dismantle the thermostat if a reverse
flushing operation of the cylinder block is to
be carried out. If the testing operation
indicates that the thermostat is faulty, then
the housing and thermostat are only serviced
as an assembly.
Remove thermostat (1) from thermostat housing (2) as
follows:
a Secure the thermostat housing by gripping in a vice fitted with soft jaws.

Always wear protective safety glasses when
working with spring-loaded devices. Failure
to do so could result in eye injury.
b Depress the retaining bar (3) on both sides of the thermostat and rotate the thermostat until it
clears the retaining lugs (4) on the thermostat
housing (2).
c Release the thermostat spring force.
d Remove the thermostat assembly from the thermostat housing.
Figure 6B1 – 40
Reassembly
The reassembly process is the reverse to that used for disassembly, with the following exceptions:
1 Check that the valve sealing surface is undamaged.
2 W ipe the valve sealing surface to ensure a clean surface.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 3173 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Cooling – V6 Engine Page 6B1–38

Install

Always wear protective safety glasses when
working with spring-loaded devices. Failure to
do so could result in eye injury.
1 Install th

Engine Cooling – V6 Engine Page 6B1–38

Install

Always wear protective safety glasses when
working with spring-loaded devices. Failure to
do so could result in eye injury.
1 Install the thermostat into the housing (reverse to removal procedure).
2 Ensure that the engine block and thermostat housing mating surfaces are clean and dry.
3 Install a new gasket to the thermostat housing.
4 Install the thermostat housing to the engine block and secure with the attaching bolts (with rubber grommets installed). Tighten all bolts to the correct torque specification.
Thermostat housing to engine
block bolt torque specification ..............................10 N.m
5 Ensure that the heater pipe assembly and thermostat housing mating surfaces are clean and dry.
6 Install new O-rings to the heater pipe assembly.
7 Install heater pipe assembly to thermostat housing and secure with the attaching bolts. Tighten all bolts to the correct torque specification.
Heater pipe assembly to thermostat
housing bolt torque specification ..........................10 N.m
8 Install heater pipe assembly to right-hand cylinder head bolt. Tighten bolt to the correct torque specification. Heater pipe assembly to cylinder
head bolt torque specification ..............................35 N.m

Always wear protective safety glasses when
working with spring type hose clamps. Failure
to do so could result in eye injury.
9 Reinstall the engine wiring harness, securing the rear harness former to the rear of the engine with the two retaining bolts, tightened to the correct torque specification.
Rear engine harness former
retaining bolts torque specification .......................15 N.m
10 Reinstall the left side engine harness former to the two locating pegs, then push inward to secure.
11 Reinstall the bolt securing the engine harness ground terminal, to the left side of the cylinder block and tighten to the correct torque specification.
Engine harness ground terminal
attaching bolt torque specification ........................12 N.m
12 Reinstall each wiring harness connector to its correct location, ensuring that all security clips are installed correctly.
13 Connect the heater hoses to the heater pipe assembly.
14 Install the coolant inlet pipe. Refer to 3.12 Coolant Inlet Pipe in this Section.
15 Close the radiator drain tap on the lower LHS of the radiator and remove the piece of rubber tubing to the tap outlet.
16 Reinstall the complete intake manifold assembly. Refer to 6A1 Engine Mechanical.
17 Refill cooling system. Refer to 3.3 Draining and Filling Cooling System in this Section.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 3174 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Cooling – V6 Engine Page 6B1–39

18 Check for coolant leaks. Refer to 3.7 Pressure Testing in this Section.
19 Install the radiator shroud.
20 Install the engine dress covers. Re

Page 3175 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Cooling – V6 Engine Page 6B1–40

2 Check coolant recovery system for leaks.
3.10 Coolant Pump
Remove

Refer to 3.1 Service Notes in this Section, for
important safety items.
NOT

Page 3176 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Cooling – V6 Engine Page 6B1–41

Figure 6B1 – 42 shows the drive belt routing for the HFV6 engine without air conditioning.

Figure 6B1 – 43
Legend
1 Coolant Pump
2 Generator
