7A4-20 UNIT REPAIR (JR405E)
Inspection
Valve
Inspect each of the valves for denting and other damage.
Spring
Inspect each of the springs for wear and fatigue.

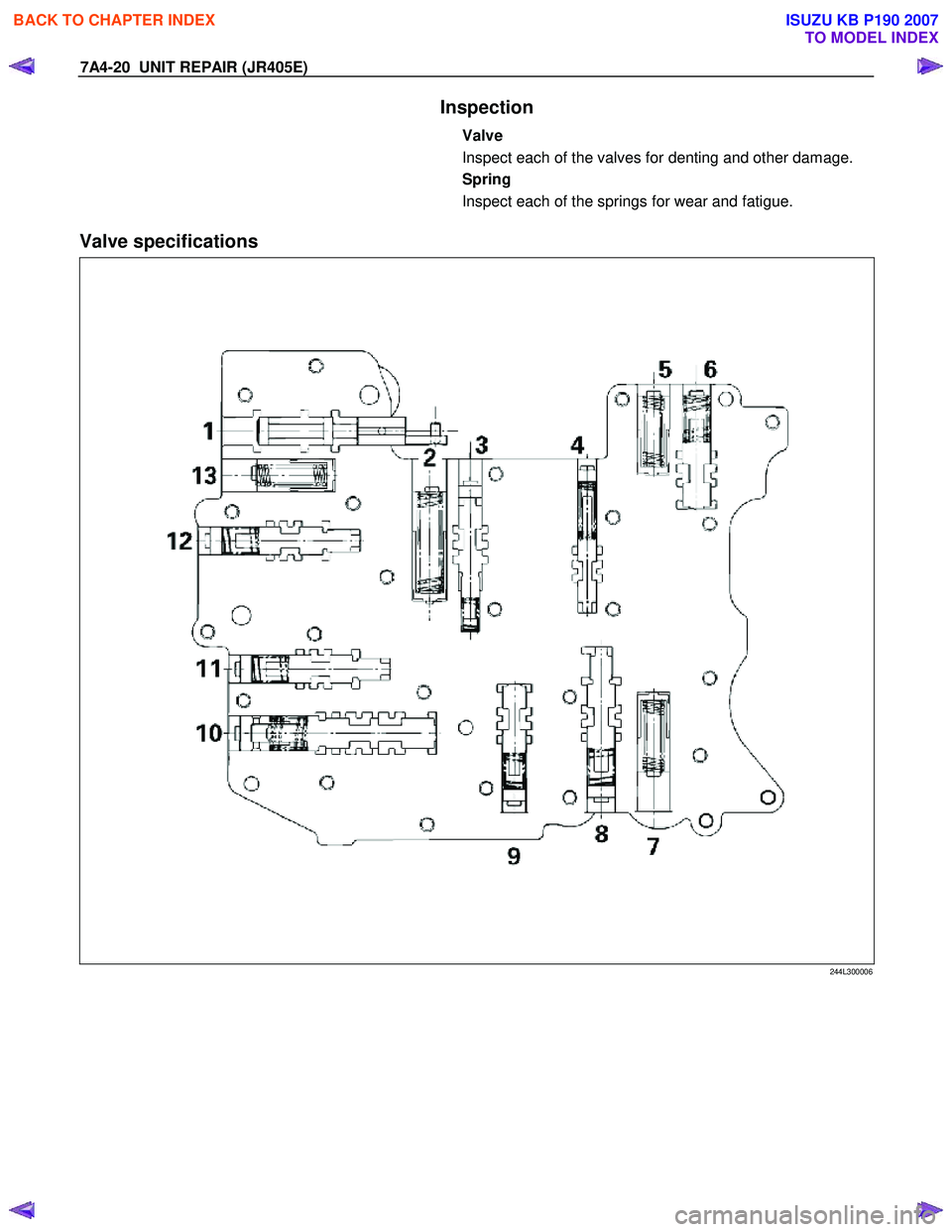

Valve specifications
244L300006
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4498 of 6020
UNIT REPAIR (JR405E) 7A4-21

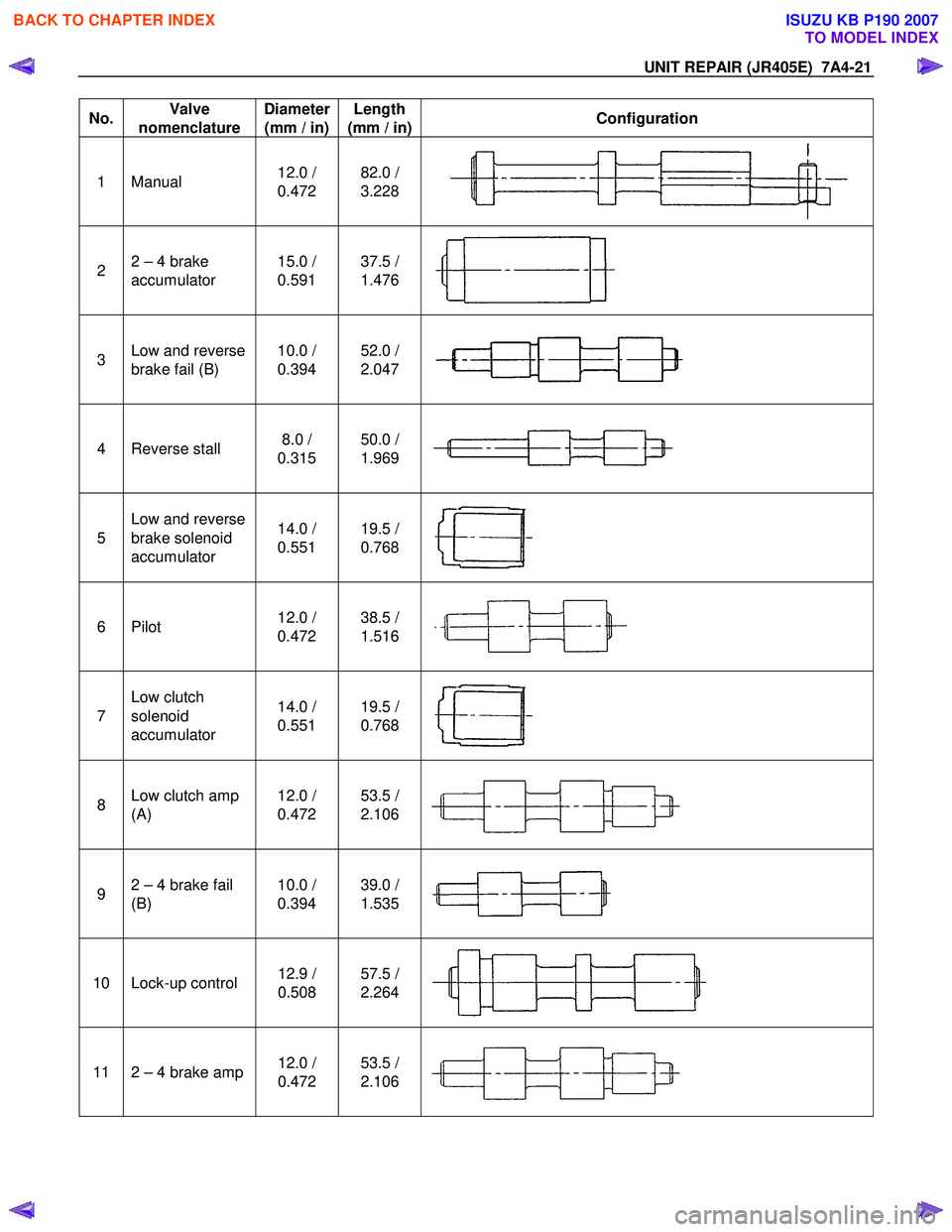

No. Valve
nomenclature Diameter
(mm / in) Length
(mm / in) Configuration
1 Manual 12.0 /
0.472 82.0 /
3.228
2 2 – 4 brake
accumulator 15.0 /
0.591 37.5 /
1.476
3 Low and reverse
brake fail (B) 10.0 /
0.394 52.0 /
2.047
4 Reverse stall 8.0 /
0.315 50.0 /
1.969
5 Low and reverse
brake solenoid
accumulator 14.0 /
0.551 19.5 /
0.768
6 Pilot 12.0 /
0.472 38.5 /
1.516
7 Low clutch
solenoid
accumulator 14.0 /
0.551 19.5 /
0.768
8 Low clutch amp
(A) 12.0 /
0.472 53.5 /
2.106
9 2 – 4 brake fail
(B) 10.0 /
0.394 39.0 /
1.535
10 Lock-up control 12.9 /
0.508 57.5 /
2.264
11 2 – 4 brake amp 12.0 /
0.472 53.5 /
2.106
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4499 of 6020

7A4-22 UNIT REPAIR (JR405E)

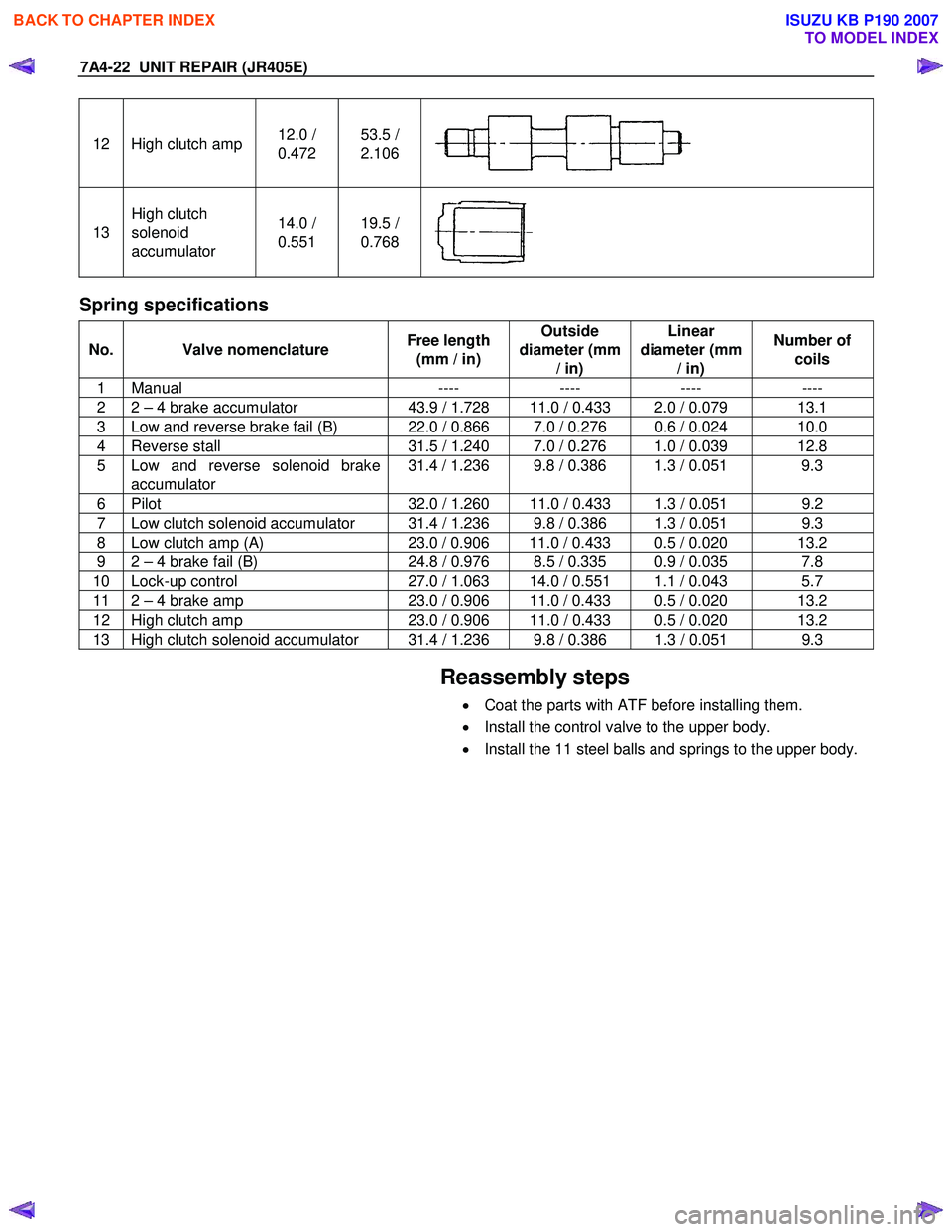

12 High clutch amp 12.0 /
0.472 53.5 /
2.106
13 High clutch
solenoid
accumulator 14.0 /
0.551 19.5 /
0.768
Spring specifications
No. Valve nomenclature Free length
(mm / in) Outside
diameter (mm / in) Linear
diameter (mm / in) Number of
coils
1 Manual ---- ---- ---- ----
2 2 – 4 brake accumulator 43.9 / 1.728 11.0 / 0.433 2.0 / 0.079 13.1
3 Low and reverse brake fail (B) 22.0 / 0.866 7.0 / 0.276 0.6 / 0.024 10.0
4 Reverse stall 31.5 / 1.240 7.0 / 0.276 1.0 / 0.039 12.8
5 Low and reverse solenoid brake
accumulator 31.4 / 1.236 9.8 / 0.386 1.3 / 0.051 9.3
6 Pilot
32.0 / 1.260 11.0 / 0.433 1.3 / 0.051 9.2
7 Low clutch solenoid accumulator 31.4 / 1.236 9.8 / 0.386 1.3 / 0.051 9.3
8 Low clutch amp (A) 23.0 / 0.906 11.0 / 0.433 0.5 / 0.020 13.2
9 2 – 4 brake fail (B) 24.8 / 0.976 8.5 / 0.335 0.9 / 0.035 7.8
10 Lock-up control 27.0 / 1.063 14.0 / 0.551 1.1 / 0.043 5.7
11 2 – 4 brake amp 23.0 / 0.906 11.0 / 0.433 0.5 / 0.020 13.2
12 High clutch amp 23.0 / 0.906 11.0 / 0.433 0.5 / 0.020 13.2
13 High clutch solenoid accumulator 31.4 / 1.236 9.8 / 0.386 1.3 / 0.051 9.3
Reassembly steps
• Coat the parts with ATF before installing them.
• Install the control valve to the upper body.
• Install the 11 steel balls and springs to the upper body.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4500 of 6020
UNIT REPAIR (JR405E) 7A4-23
CONTROL VALVE LOWER BODY
10CV11
Legend
1. Retainer plate, spring, and steel ball
2. Retainer plate, plug, spring, and pressure regulator valve
3. Retainer plate, spring, and high clutch accumulator
4. Retainer plate, plug, low and reverse brake fail valve A, and spring
5. Retainer plate, plug, spring, and fail valve
6. Retainer plate, plug, low and reverse brake amp valve, and spring
7. Oil pressure switch
8. Oil filter
9. Solenoid
10. Line pressure solenoid
11. Lock-up solenoid
12. Harness bracket
13. Solenoid fixing plate
14. Harness assembly
15. Retainer plate, plug, spring, and 2-4 brake fail valve A
16. Retainer plate, plug, spring, and low clutch amp valve B
17. Retainer plate, spring, and torque converter relief valve
18. Oil strainer
19. Control valve lower body
20. Retainer plate, spring, and 2-4 brake solenoid accumulator
21. Oil pressure switch
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4501 of 6020
7A4-24 UNIT REPAIR (JR405E)
Disassembly steps

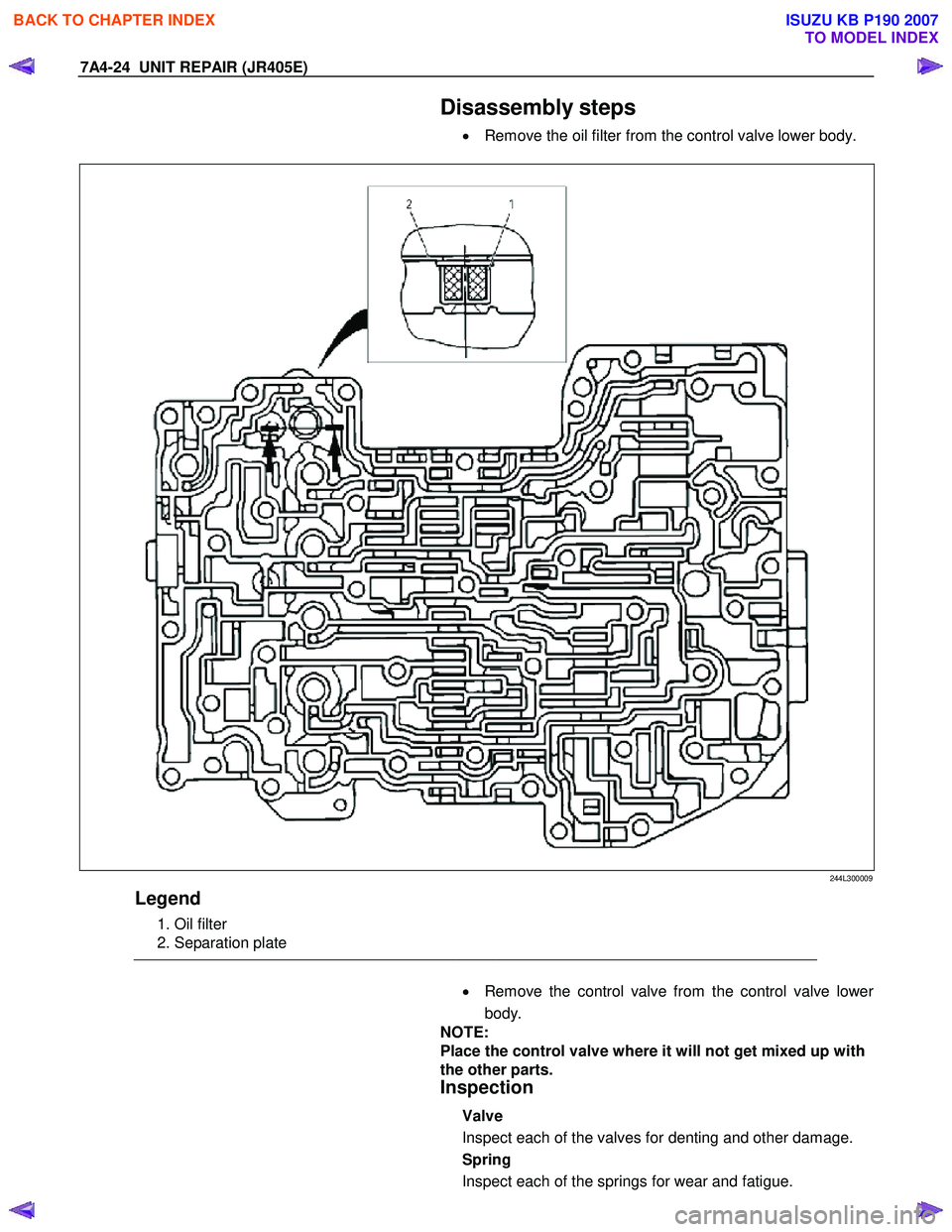

• Remove the oil filter from the control valve lower body.
244L300009
Legend
1. Oil filter
2. Separation plate
•
Remove the control valve from the control valve lower
body.
NOTE:
Place the control valve where it will not get mixed up with
the other parts.
Inspection
Valve
Inspect each of the valves for denting and other damage.
Spring
Inspect each of the springs for wear and fatigue.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4502 of 6020
UNIT REPAIR (JR405E) 7A4-25

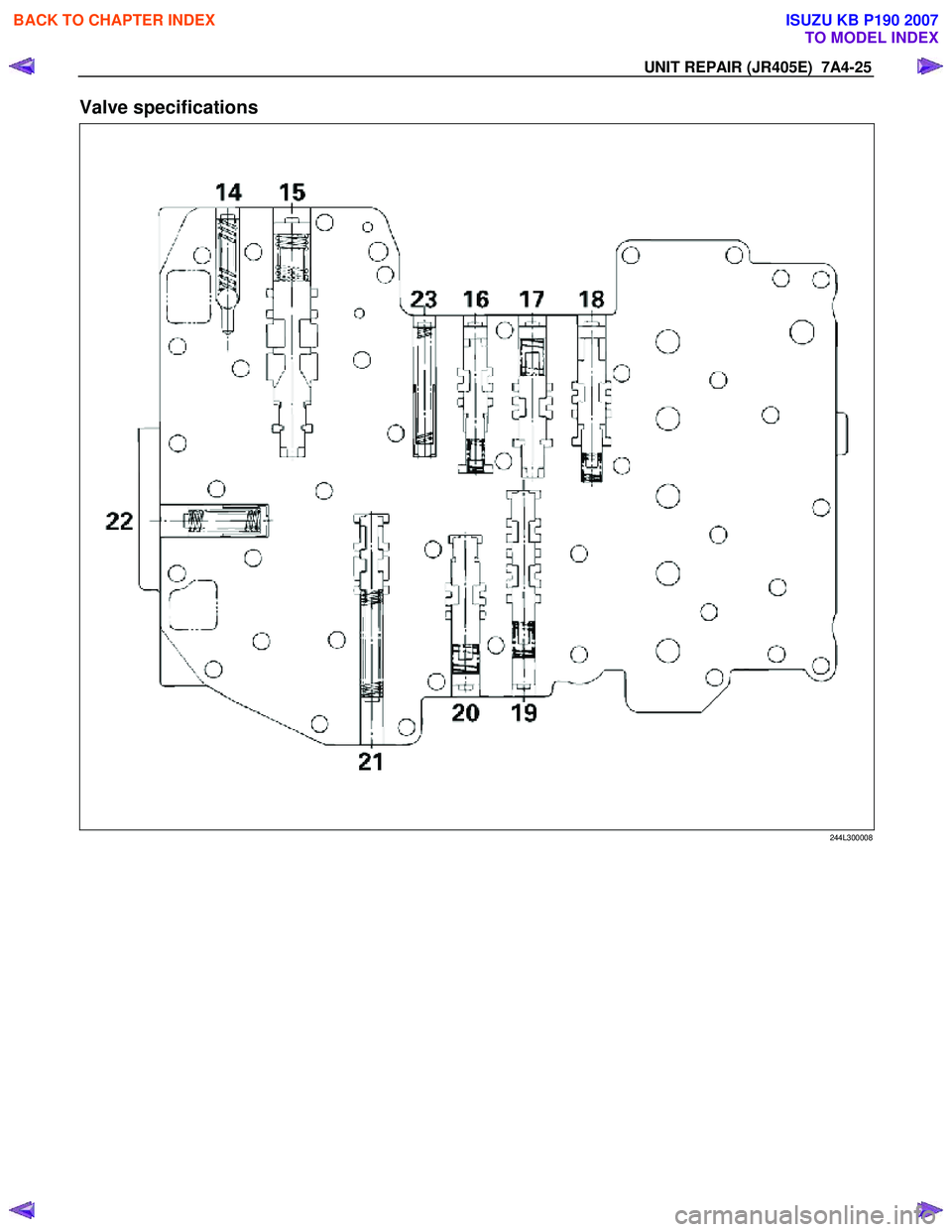

Valve specifications
244L300008
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4503 of 6020
7A4-26 UNIT REPAIR (JR405E)

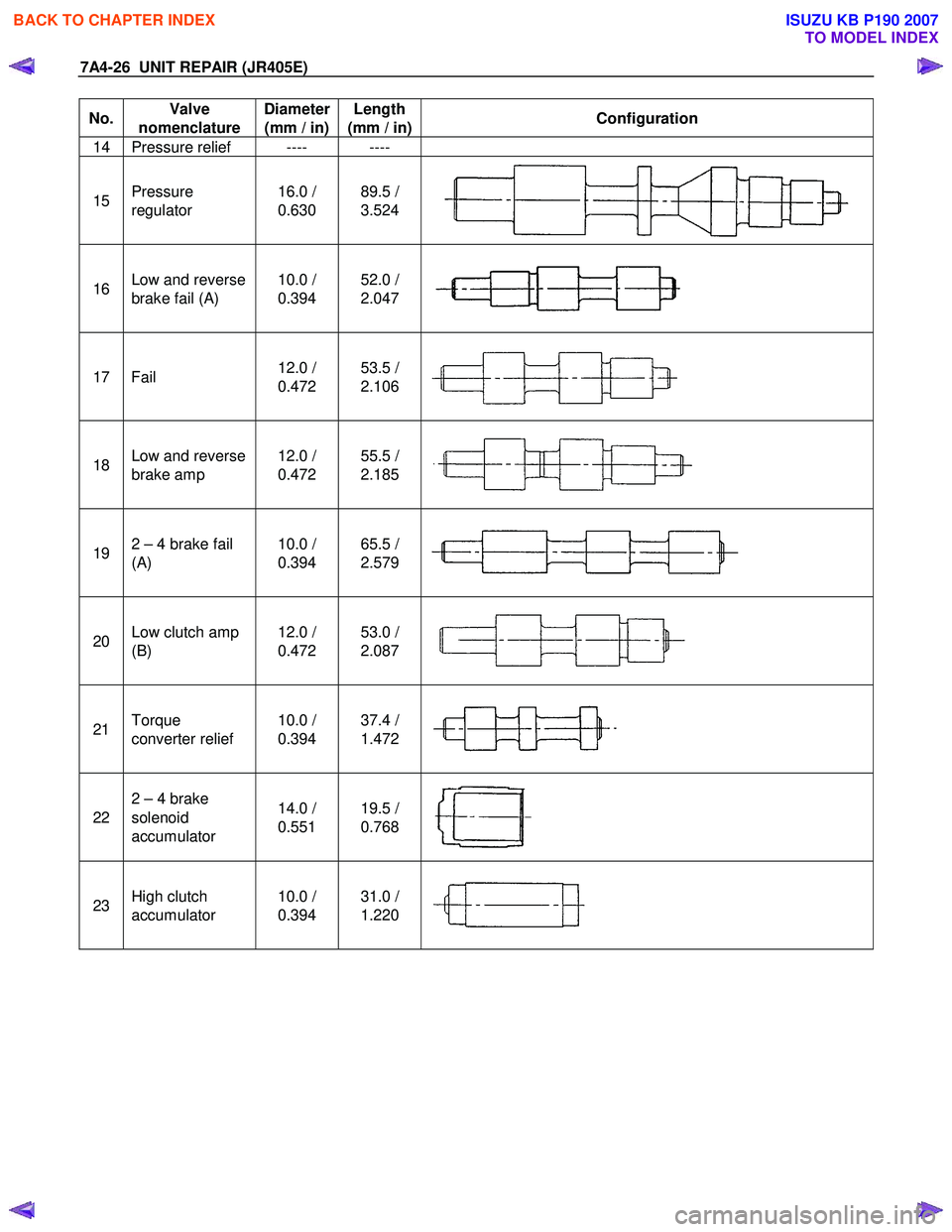

No. Valve
