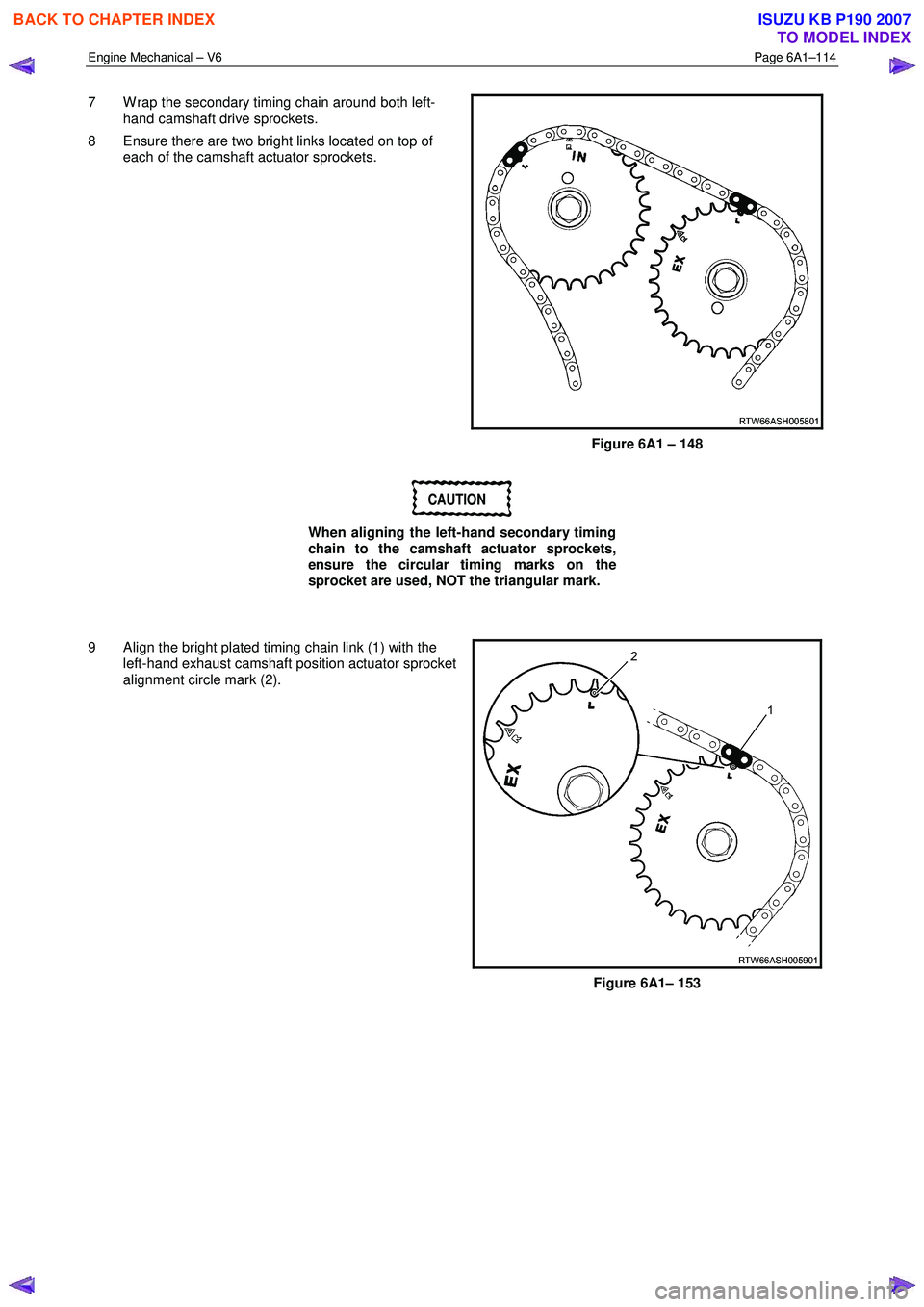

Engine Mechanical – V6 Page 6A1–114
7 W rap the secondary timing chain around both left-
hand camshaft drive sprockets.
8 Ensure there are two bright links located on top of each of the camshaft actuator sprockets.
Figure 6A1 – 148
CAUTION
When aligning the left-hand secondary timing
chain to the camshaft actuator sprockets,
ensure the circular timing marks on the
sprocket are used, NOT the triangular mark.
9 Align the bright plated timing chain link (1) with the left-hand exhaust camshaft position actuator sprocket
alignment circle mark (2).
Figure 6A1– 153
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2594 of 6020

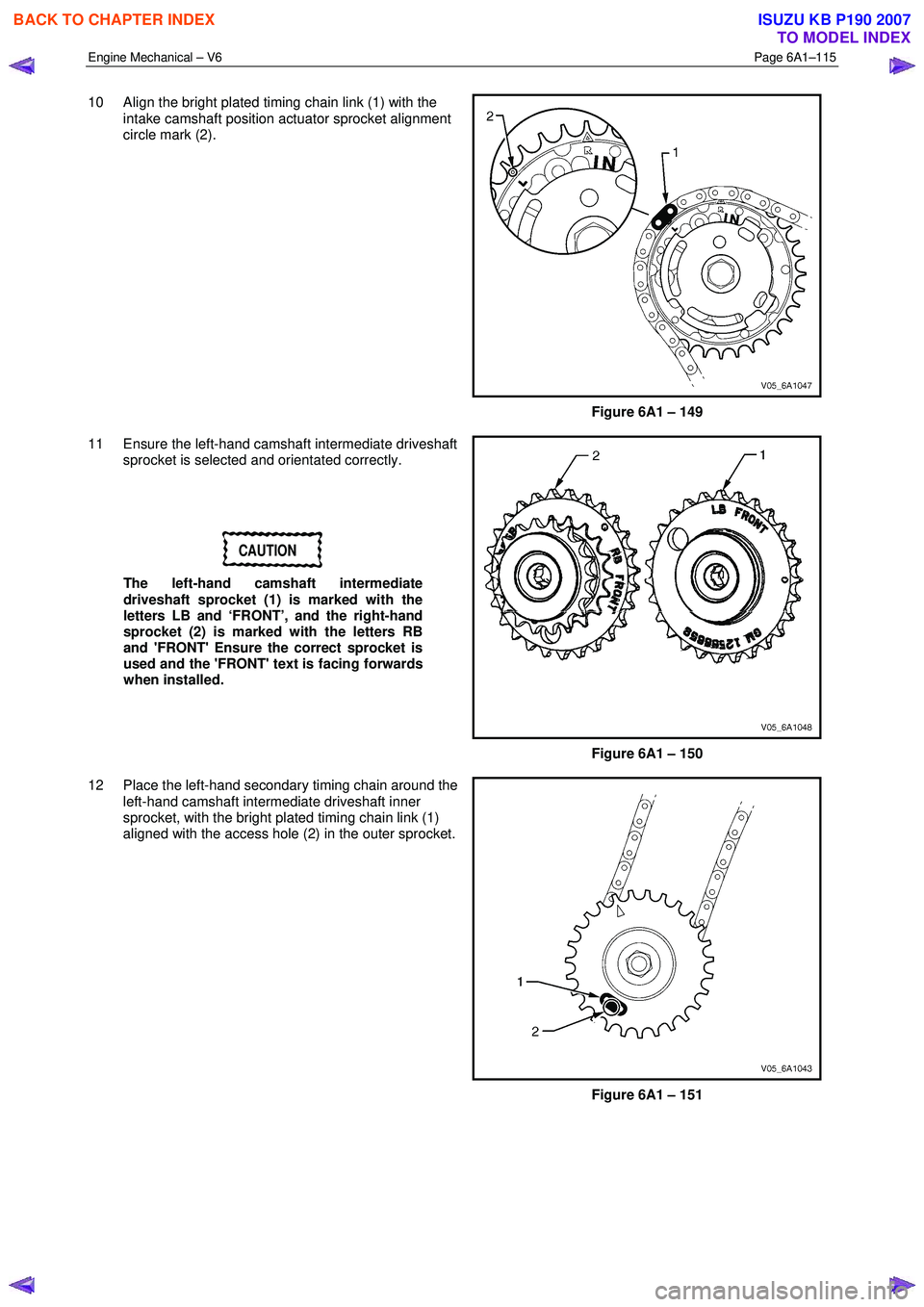

Engine Mechanical – V6 Page 6A1–115
10 Align the bright plated timing chain link (1) with the
intake camshaft position actuator sprocket alignment
circle mark (2).
Figure 6A1 – 149
11 Ensure the left-hand camshaft intermediate driveshaft sprocket is selected and orientated correctly.
CAUTION
The left-hand camshaft intermediate
driveshaft sprocket (1) is marked with the
letters LB and ‘FRONT’, and the right-hand
sprocket (2) is marked with the letters RB
and 'FRONT' Ensure the correct sprocket is
used and the 'FRONT' text is facing forwards
when installed.
Figure 6A1 – 150
12 Place the left-hand secondary timing chain around the left-hand camshaft intermediate driveshaft inner
sprocket, with the bright plated timing chain link (1)
aligned with the access hole (2) in the outer sprocket.
Figure 6A1 – 151
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2595 of 6020

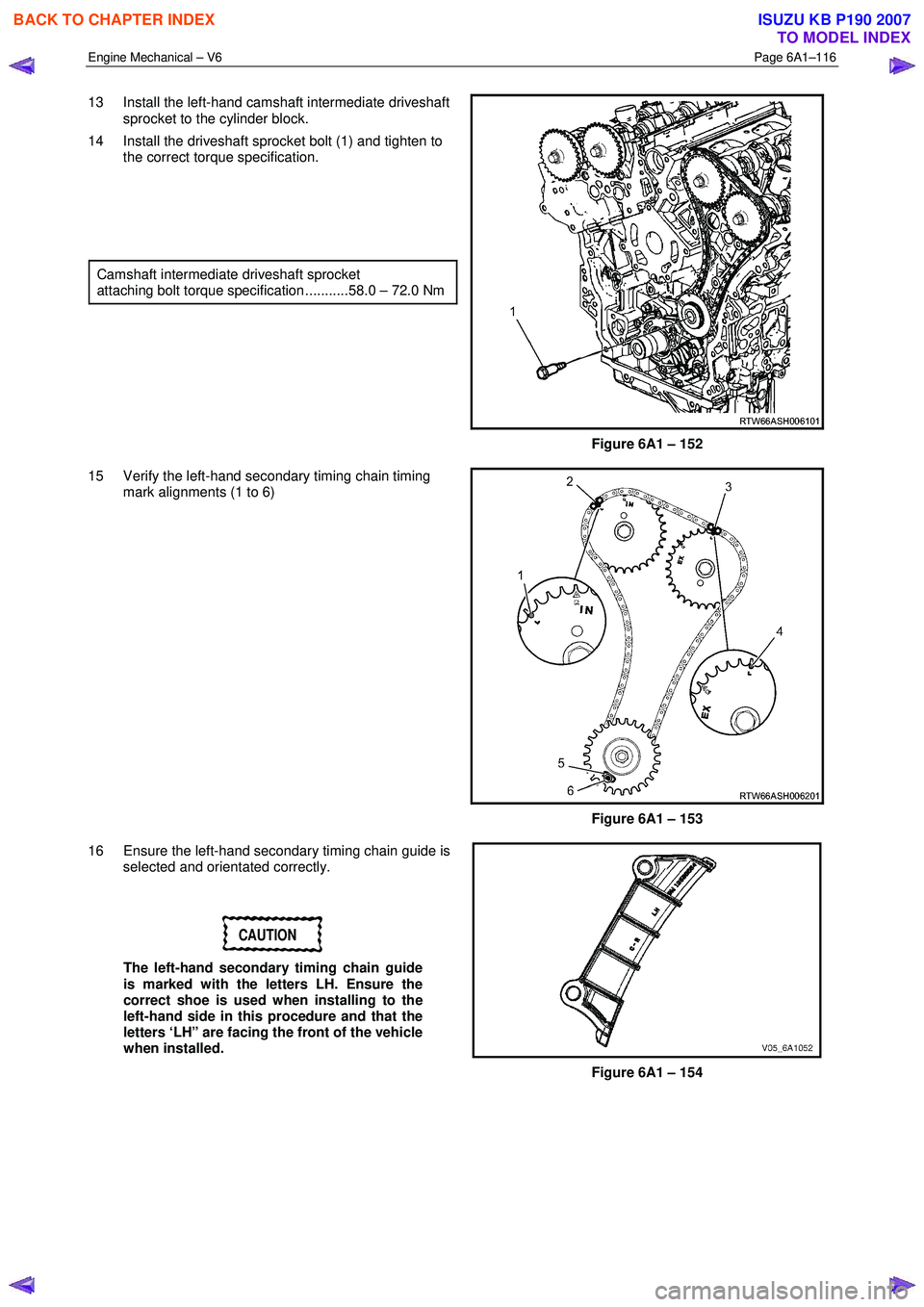

Engine Mechanical – V6 Page 6A1–116
13 Install the left-hand camshaft intermediate driveshaft
sprocket to the cylinder block.
14 Install the driveshaft sprocket bolt (1) and tighten to the correct torque specification.
Camshaft intermediate driveshaft sprocket
attaching bolt torque specification ...........58.0 – 72.0 Nm
Figure 6A1 – 152
15 Verify the left-hand secondary timing chain timing mark alignments (1 to 6)
Figure 6A1 – 153
16 Ensure the left-hand secondary timing chain guide is selected and orientated correctly.
CAUTION
The left-hand secondary timing chain guide
is marked with the letters LH. Ensure the
correct shoe is used when installing to the
left-hand side in this procedure and that the
letters ‘LH” are facing the front of the vehicle
when installed.
Figure 6A1 – 154
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2596 of 6020

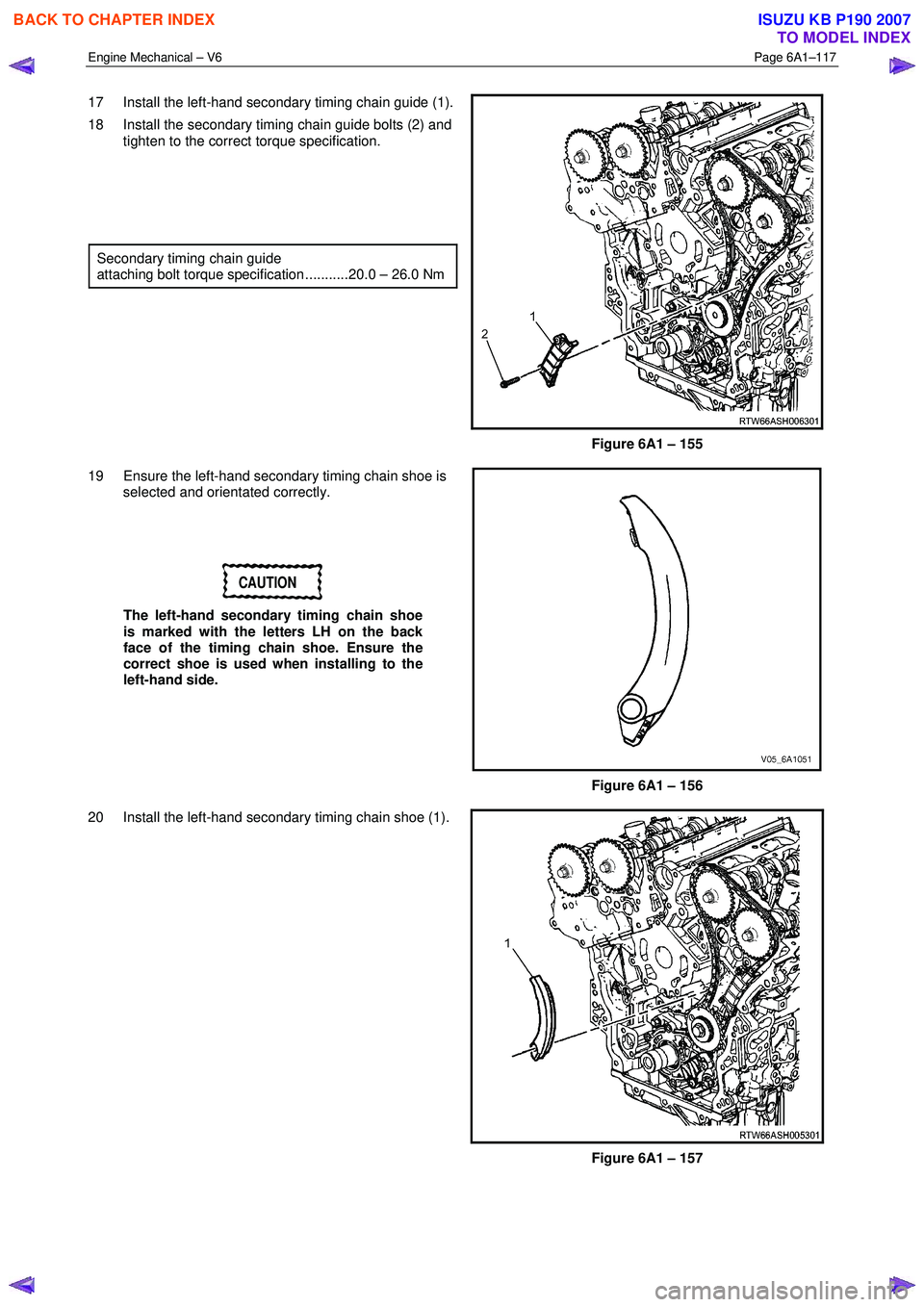

Engine Mechanical – V6 Page 6A1–117
17 Install the left-hand secondary timing chain guide (1).
18 Install the secondary timing chain guide bolts (2) and tighten to the correct torque specification.
Secondary timing chain guide
attaching bolt torque specification ...........20.0 – 26.0 Nm
Figure 6A1 – 155
19 Ensure the left-hand secondary timing chain shoe is selected and orientated correctly.
CAUTION
The left-hand secondary timing chain shoe
is marked with the letters LH on the back
face of the timing chain shoe. Ensure the
correct shoe is used when installing to the
left-hand side.
Figure 6A1 – 156
20 Install the left-hand secondary timing chain shoe (1).
Figure 6A1 – 157
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2597 of 6020
Engine Mechanical – V6 Page 6A1–118
21 Install the left-hand secondary timing chain shoe
bolt (1) and tighten to the correct torque specification.
NOTE
Ensure secondary timing chain shoe is clear of
the left-hand secondary timing chain tensioner
mounting pad, before tightening the attaching
bolt.
Secondary timing chain shoe attaching
bolt torque specification ..........................20.0 – 26.0 Nm
Figure 6A1 – 158
22 Ensure the left-hand secondary timing chain tensioner is selected and orientated correctly.
Figure 6A1 – 159
23 Reset the left-hand secondary timing chain tensioner.
NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver (1) or Tool No. J 45027 (4) to
wind the plunger in a clockwise direction, into
the tensioner shaft (2).
Figure 6A1 – 160
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2598 of 6020

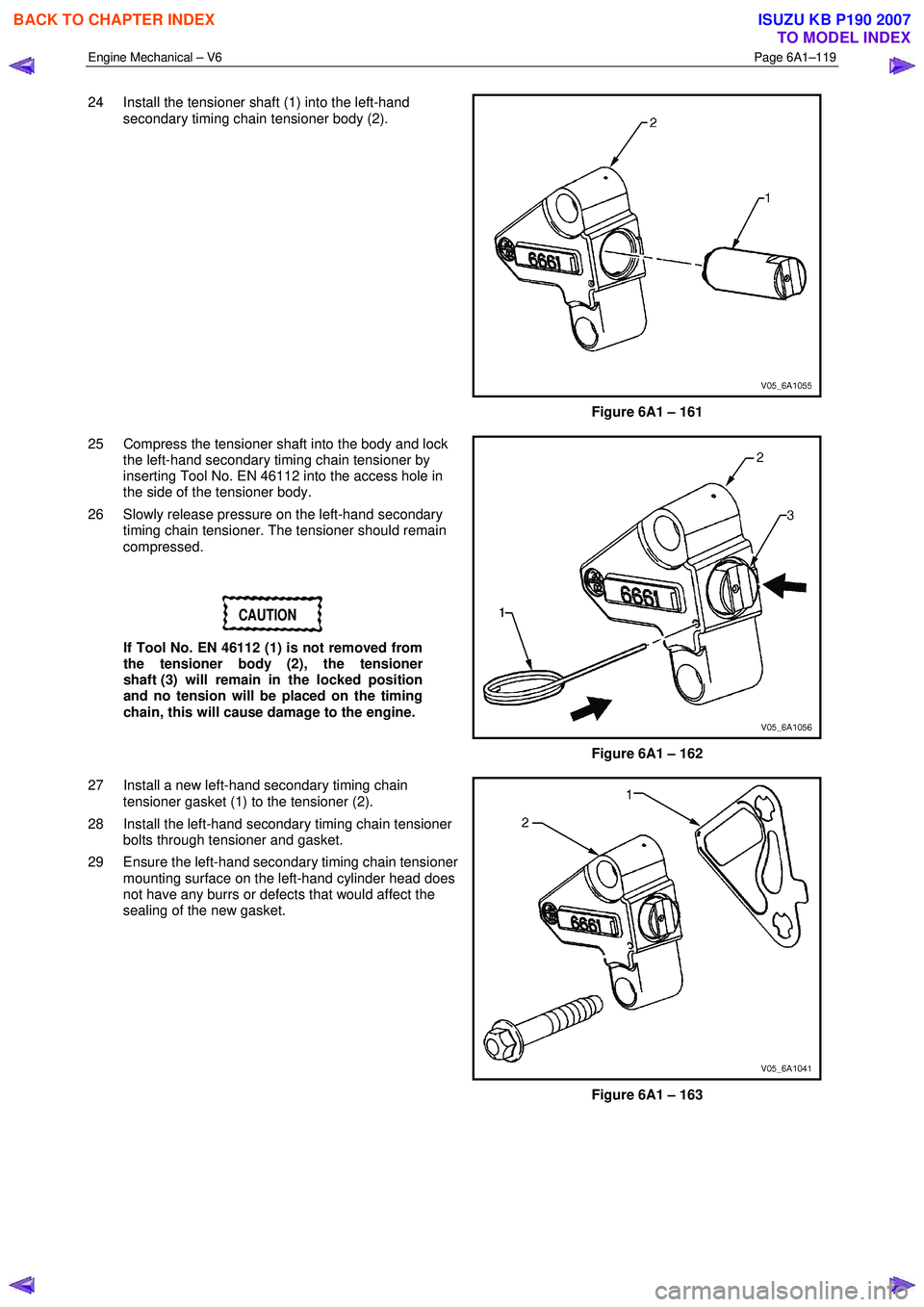

Engine Mechanical – V6 Page 6A1–119
24 Install the tensioner shaft (1) into the left-hand
secondary timing chain tensioner body (2).
Figure 6A1 – 161
25 Compress the tensioner shaft into the body and lock the left-hand secondary timing chain tensioner by
inserting Tool No. EN 46112 into the access hole in
the side of the tensioner body.
26 Slowly release pressure on the left-hand secondary timing chain tensioner. The tensioner should remain
compressed.
CAUTION
If Tool No. EN 46112 (1) is not removed from
the tensioner body (2), the tensioner
shaft (3) will remain in the locked position
and no tension will be placed on the timing
chain, this will cause damage to the engine.
Figure 6A1 – 162
27 Install a new left-hand secondary timing chain tensioner gasket (1) to the tensioner (2).
28 Install the left-hand secondary timing chain tensioner bolts through tensioner and gasket.
29 Ensure the left-hand secondary timing chain tensioner mounting surface on the left-hand cylinder head does
not have any burrs or defects that would affect the
sealing of the new gasket.
Figure 6A1 – 163
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2599 of 6020

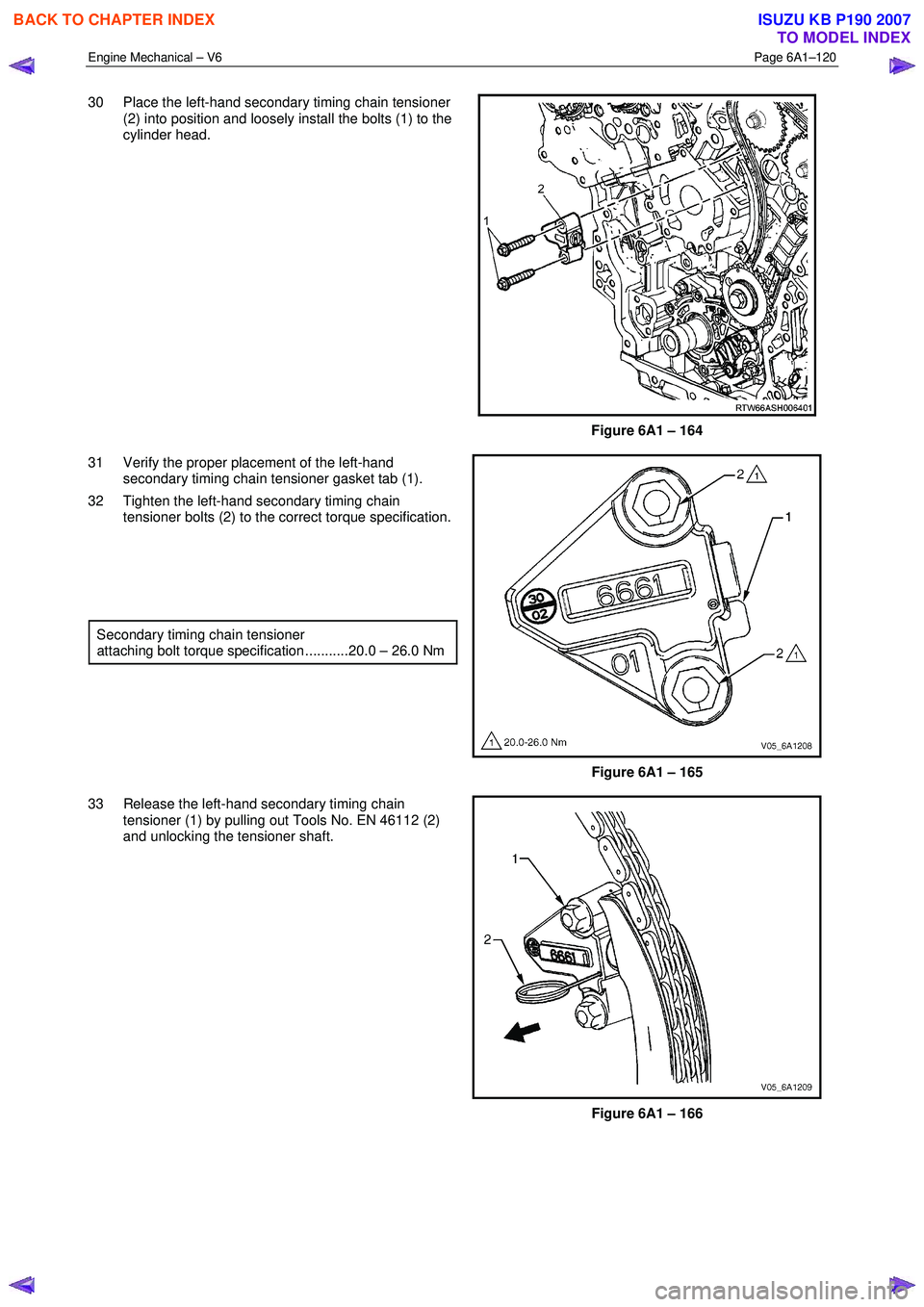

Engine Mechanical – V6 Page 6A1–120
30 Place the left-hand secondary timing chain tensioner
(2) into position and loosely install the bolts (1) to the
cylinder head.
Figure 6A1 – 164
31 Verify the proper placement of the left-hand secondary timing chain tensioner gasket tab (1).
32 Tighten the left-hand secondary timing chain tensioner bolts (2) to the correct torque specification.
Secondary timing chain tensioner
attaching bolt torque specification ...........20.0 – 26.0 Nm
Figure 6A1 – 165
33 Release the left-hand secondary timing chain tensioner (1) by pulling out Tools No. EN 46112 (2)
and unlocking the tensioner shaft.
Figure 6A1 – 166
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2600 of 6020

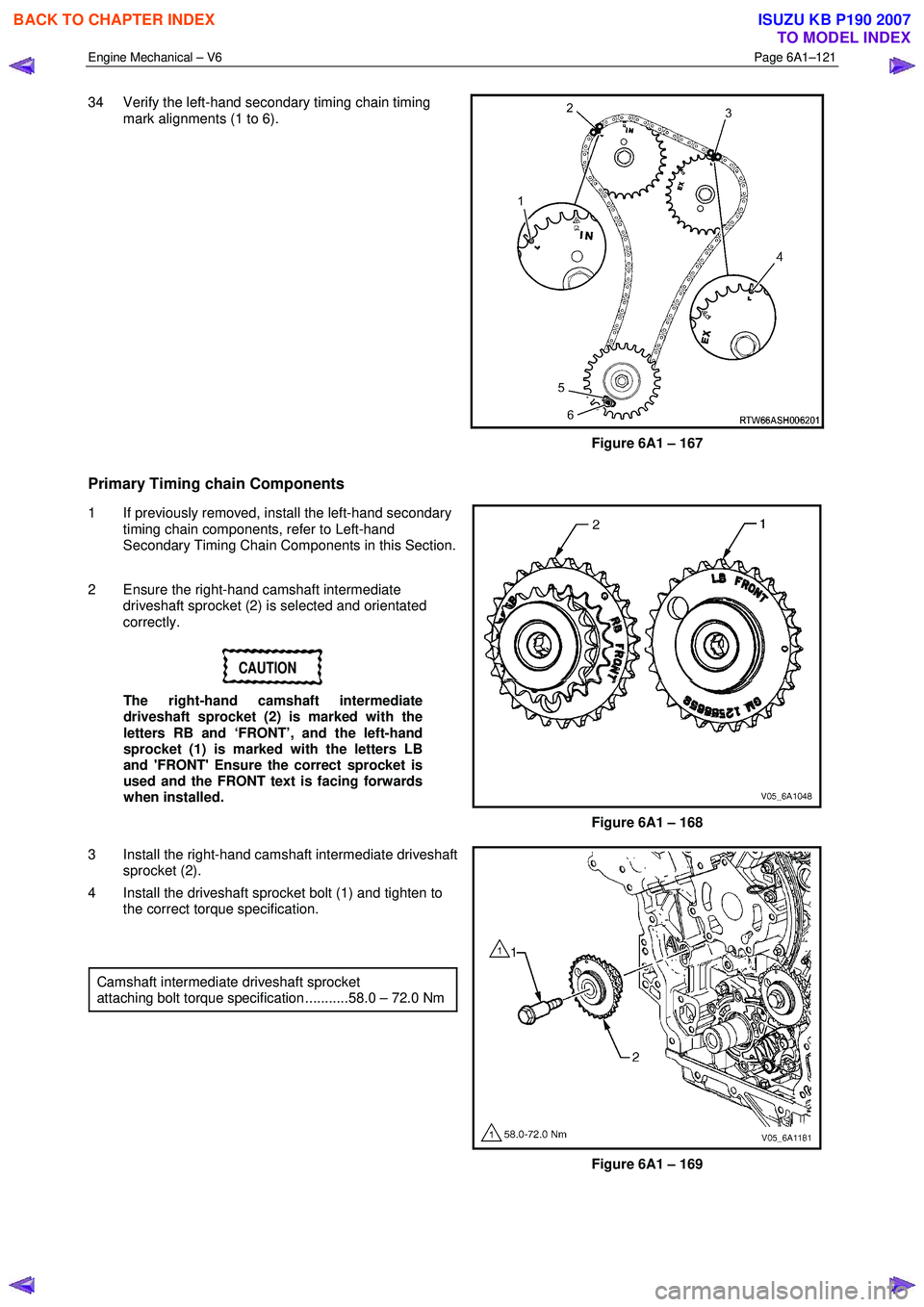

Engine Mechanical – V6 Page 6A1–121
34 Verify the left-hand secondary timing chain timing
mark alignments (1 to 6).
Figure 6A1 – 167
Primary Timing chain Components
1 If previously removed, install the left-hand secondary timing chain components, refer to Left-hand
Secondary Timing Chain Components in this Section.
2 Ensure the right-hand camshaft intermediate driveshaft sprocket (2) is selected and orientated
correctly.
CAUTION
The right-hand camshaft intermediate
driveshaft sprocket (2) is marked with the
letters RB and ‘FRONT’, and the left-hand
sprocket (1) is marked with the letters LB
and 'FRONT' Ensure the correct sprocket is
used and the FRONT text is facing forwards
when installed.
Figure 6A1 – 168
3 Install the right-hand camshaft intermediate driveshaft sprocket (2).
4 Install the driveshaft sprocket bolt (1) and tighten to the correct torque specification.
Camshaft intermediate driveshaft sprocket
attaching bolt torque specification ...........58.0 – 72.0 Nm
Figure 6A1 – 169
