ISUZU KB P190 2007 Workshop Repair Manual 6E-32 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
Engine Control Module (ECM)-J2
Pin No. Wire ColorPin Function
58 YEL CKP sensor signal
59 PNK Fuel filter switch signal
60 — Not used
61 BLU/ GRN IAT sens

6E-32 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
Engine Control Module (ECM)-J2
Pin No. Wire ColorPin Function
58 YEL CKP sensor signal
59 PNK Fuel filter switch signal
60 — Not used
61 BLU/ GRN IAT sensor low reference
62 BRN EGR drive voltage
63 YEL EGR control low side
64 BLK CMP sensor shield ground
65 — Not used
66 ORN/ BLK Turbocharger nozzle control
solenoid valve control
67 YEL Swirl control solenoid valve
control
68 WHT FRP sensor signal
69 BLK FRP sensor low reference
70 BLU/ RED FRP regulator low side
71 RED Cylinder #2 fuel injector charge
voltage
72 PNK Cylinder #4 fuel injector charge
voltage
73 BLK Ground
Connector No. C-58
Connector Color Black
Test Adapter No. J-35616-64A
Pin No. Wire Color Pin Function
1 ORN Brake switch 2 signal
2 BLK/ GRN Diagnostic request switch
RTW76ESH003101
12345678910111213141516
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52
53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72
Pin No. Wire Color
Pin Function
3 RED/ GRN P or N range switch (A/T)
BLK/ WHT Neutral switch (M/T)
4 GRN/ BLK Thermo relay signal
5 — Not used
6 — Not used
7 BLU APP sensor 3 5V reference
8 BL/ UWHT APP sensor 3 signal
9 ORN APP sensor 2 5V reference
10 BLU/ GRN APP sensor 2 signal 11 WHT APP sensor 1 5V reference
12 RED APP sensor 1 signal
13 GRY/ GRN Cruise cancel switch signal
14 WHT/ GRN Cruise main switch signal
15 — Not used
16 — Not used
17 — Not used
18 — Not used
19 YEL Clutch switch signal
20 — Not used
21 RED Brake switch 1 signal
22 — Not used
23 BLU/ RED APP sensor 3 low reference
24 BLK APP sensor 3 shield ground
25 ORN/ BLU APP sensor 2 low reference
26 BLK APP sensor 2 shield ground
27 BLK APP sensor 1 low reference
28 BLK APP sensor 1 shield ground
29 BRN/ YEL Cruise resume switch signal
30 LT GRN Cruise set switch signal
31 — Not used
32 — Not used
33 BLK/ RED Engine speed signal output
34 — Not used
35 ORN/ BLU Starter cut relay control
36 — Not used
37 BLK/ BLU Glow relay control
38 — Not used
39 — Not used
40 — Not used
41 — Not used
42 — Not used

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 1650 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-33
Pin No. Wire ColorPin Function
43 — Not used
44 RED/ WHT Starter switch signal
45 BLU/ RED ECM main relay control
46 — Not used
47 — Not used
48 —

Page 1651 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E-34 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
Engine Control Connector End Views
Accelerator Pedal Position (APP) SensorBarometric Pressure (BARO) Sensor
Boost Pressure Sensor
Connector No. C-40
Connector

Page 1652 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-35
Brake SwitchClutch Switch
Camshaft Position (CMP) Sensor
Connector No.
E-107
Connector Color Black
Test Adapter No. J-35616-64A
Pin No. Wire Color Pin Funct

Page 1653 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E-36 ENGINE CONTROL SYSTEM (4JK1/4JJ1)
Crankshaft Position (CKP) SensorCruise Main Switch
Data Link Connector (DLC)
Connector No.
E-39
Connector Color Black
Test Adapter No. J-35616-64A
Pin No. Wi

Page 1654 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-37
EGR ValveEngine Coolant Temperature (ECT) Sensor
Connector No.
B-58
Connector Color Black
Test Adapter No. J-35616-2A
Pin No. Wire Color Pin Function
1 BKL/ G

Page 1655 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E-38 ENGINE CONTROL SYSTEM (4JK1/4JJ1)

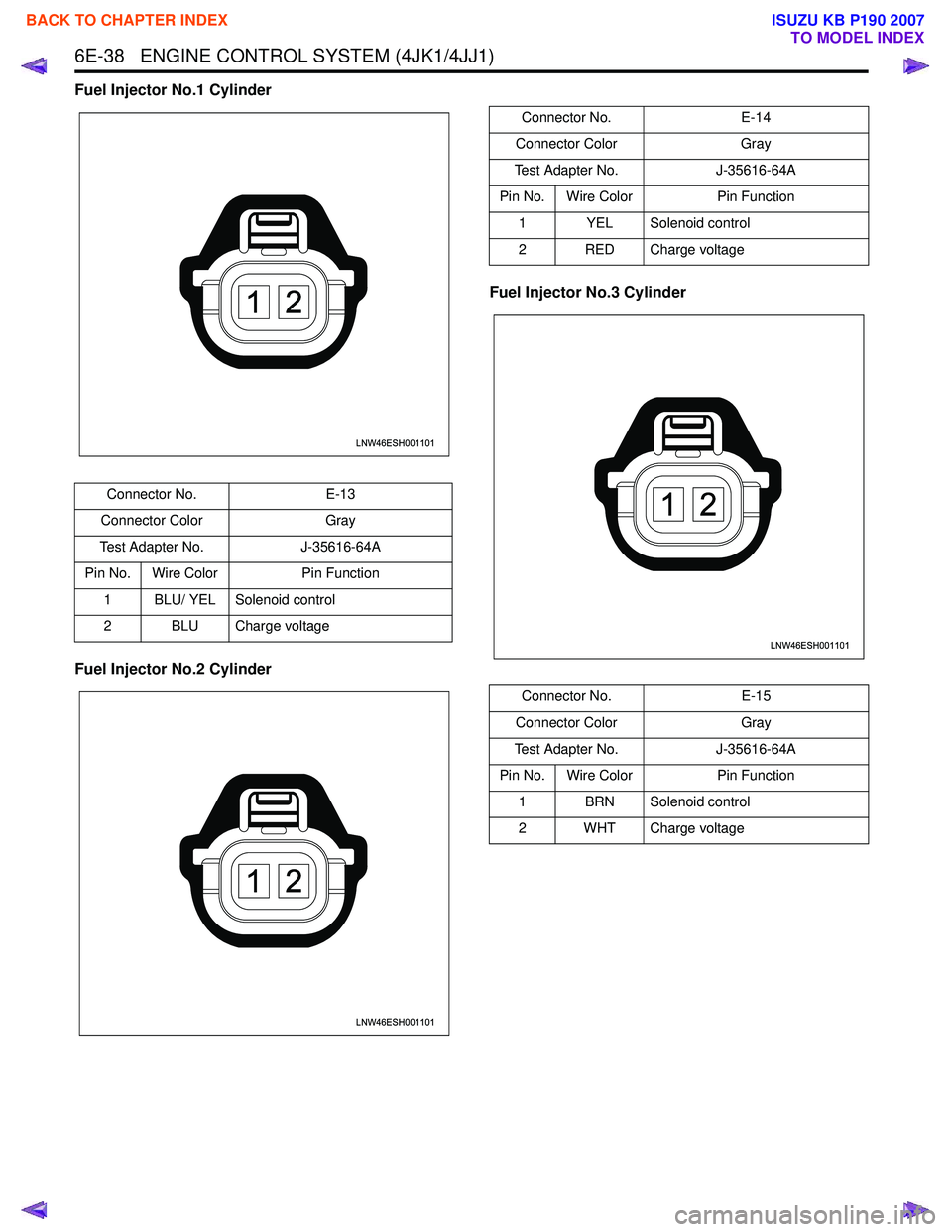

Fuel Injector No.1 Cylinder
Fuel Injector No.2 Cylinder Fuel Injector No.3 Cylinder
Connector No.
E-13
Connector Color Gray
Test Adapter No. J-35616-64A
Pin

Page 1656 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-39

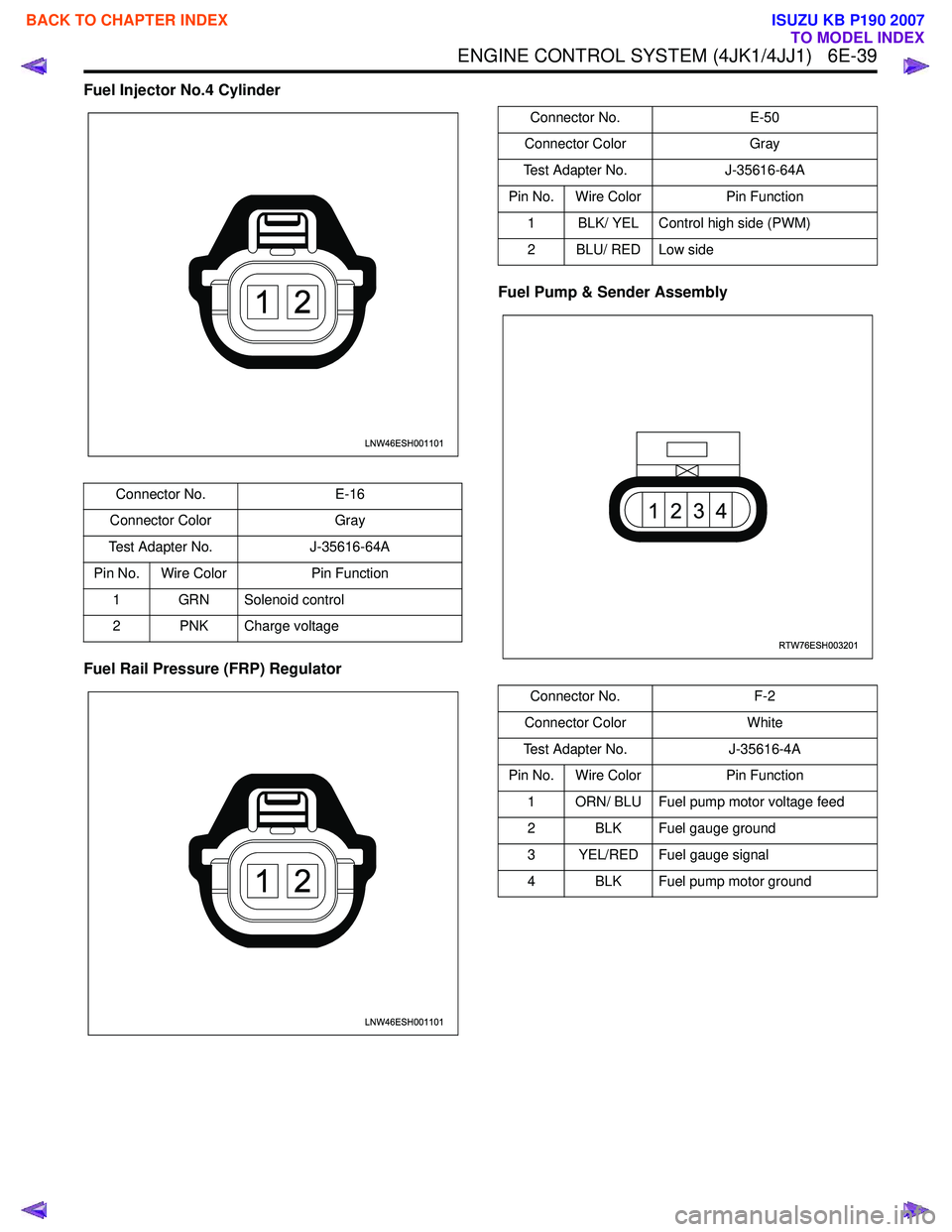

Fuel Injector No.4 Cylinder
Fuel Rail Pressure (FRP) Regulator Fuel Pump & Sender Assembly
Connector No.
E-16
Connector Color Gray
Test Adapter No. J-35616-6
