Page 4705 of 6020

ISUZU KB P190 2007 Workshop Repair Manual MANUAL TRANSMISSION 7B1-99 12. Apply engine oil to the needle bearing and the 3rd gear thrust surfaces. Install the needle bearing and the 3rd gear to the mainshaft. The 3rd gear dog teeth

Page 4706 of 6020

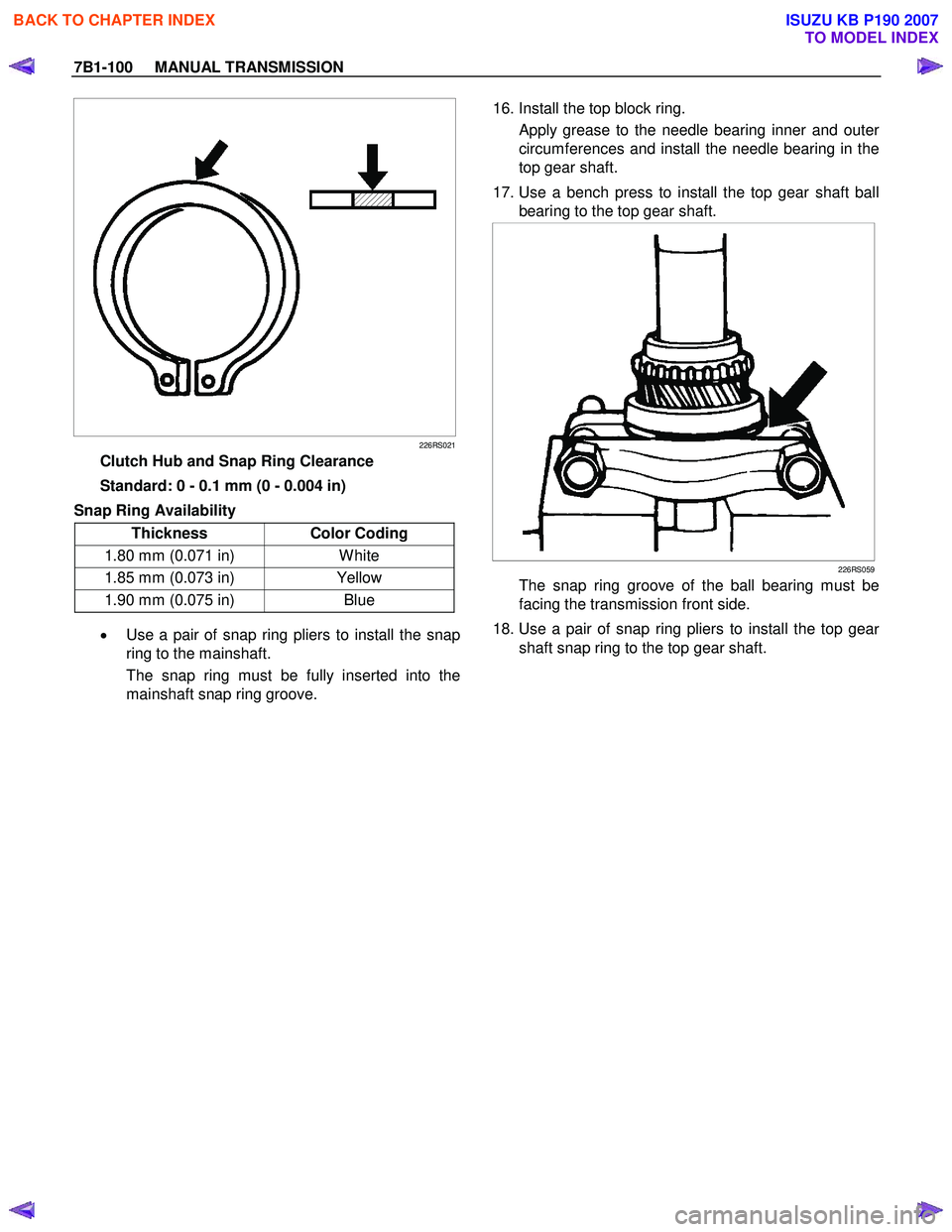

ISUZU KB P190 2007 Workshop Repair Manual 7B1-100 MANUAL TRANSMISSION 226RS021 Clutch Hub and Snap Ring Clearance Standard: 0 - 0.1 mm (0 - 0.004 in) Snap Ring Availability Thickness Color Coding 1.80 mm (0.071 in) W hite 1.8

Page 4707 of 6020

ISUZU KB P190 2007 Workshop Repair Manual MANUAL TRANSMISSION 7B1-101 Main Data and Specifications General Specifications MUA5G MUA5H MUA5S Transmission type Fully synchronized forward and reverse gears Control method Remote c

Page 4708 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7B1-102 MANUAL TRANSMISSION Torque Specifications N⋅ ⋅⋅ ⋅ m (kgf ⋅ ⋅⋅ ⋅ m/lb ⋅ ⋅⋅ ⋅ ft) RTW 77BLF003801 About arrow mark, refer to Transmission (MUA) Installat

Page 4709 of 6020

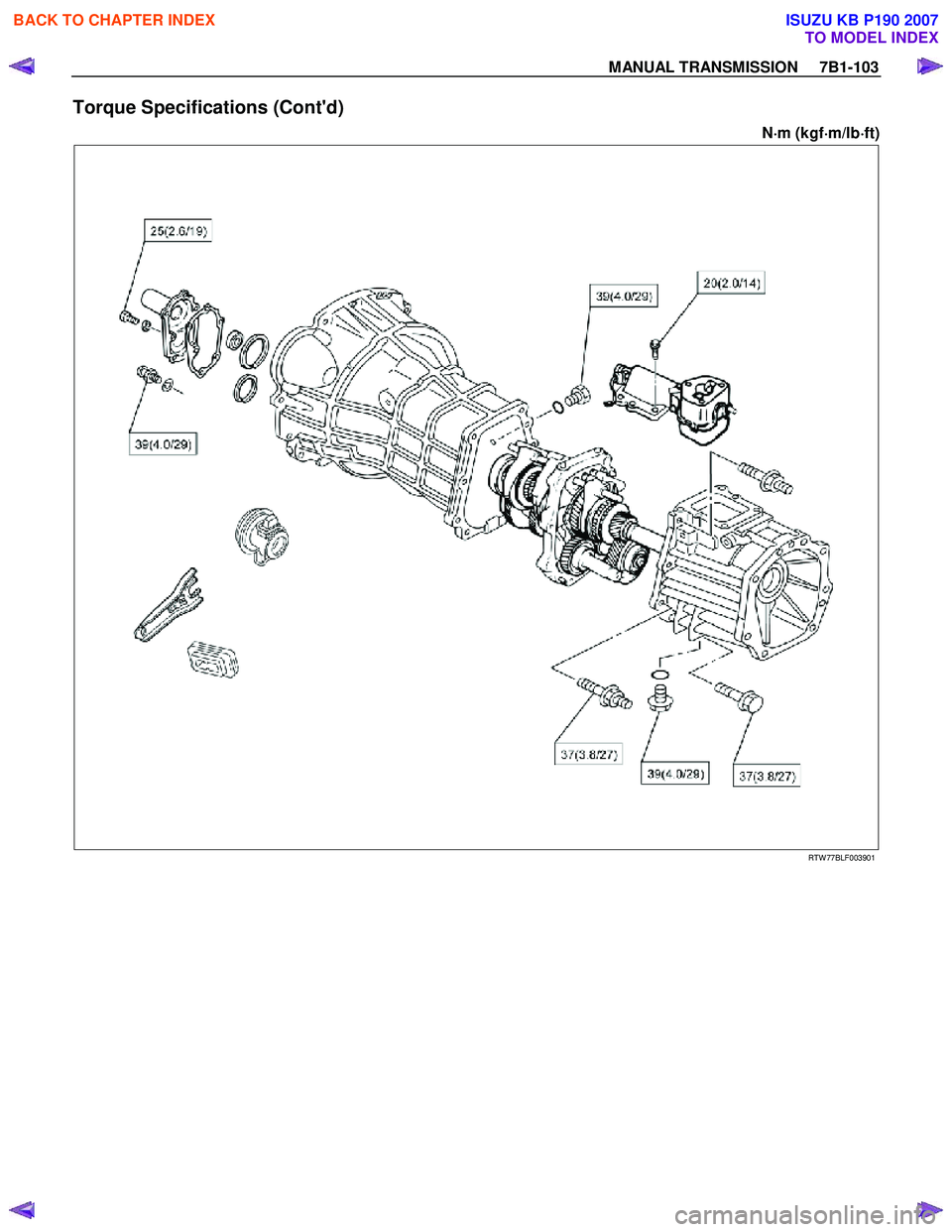

ISUZU KB P190 2007 Workshop Repair Manual MANUAL TRANSMISSION 7B1-103 Torque Specifications (Contd) N⋅ ⋅⋅ ⋅ m (kgf ⋅ ⋅⋅ ⋅ m/lb ⋅ ⋅⋅ ⋅ ft) RTW 77BLF003901 BACK TO CHAPTER INDEX TO MODEL INDE

Page 4710 of 6020

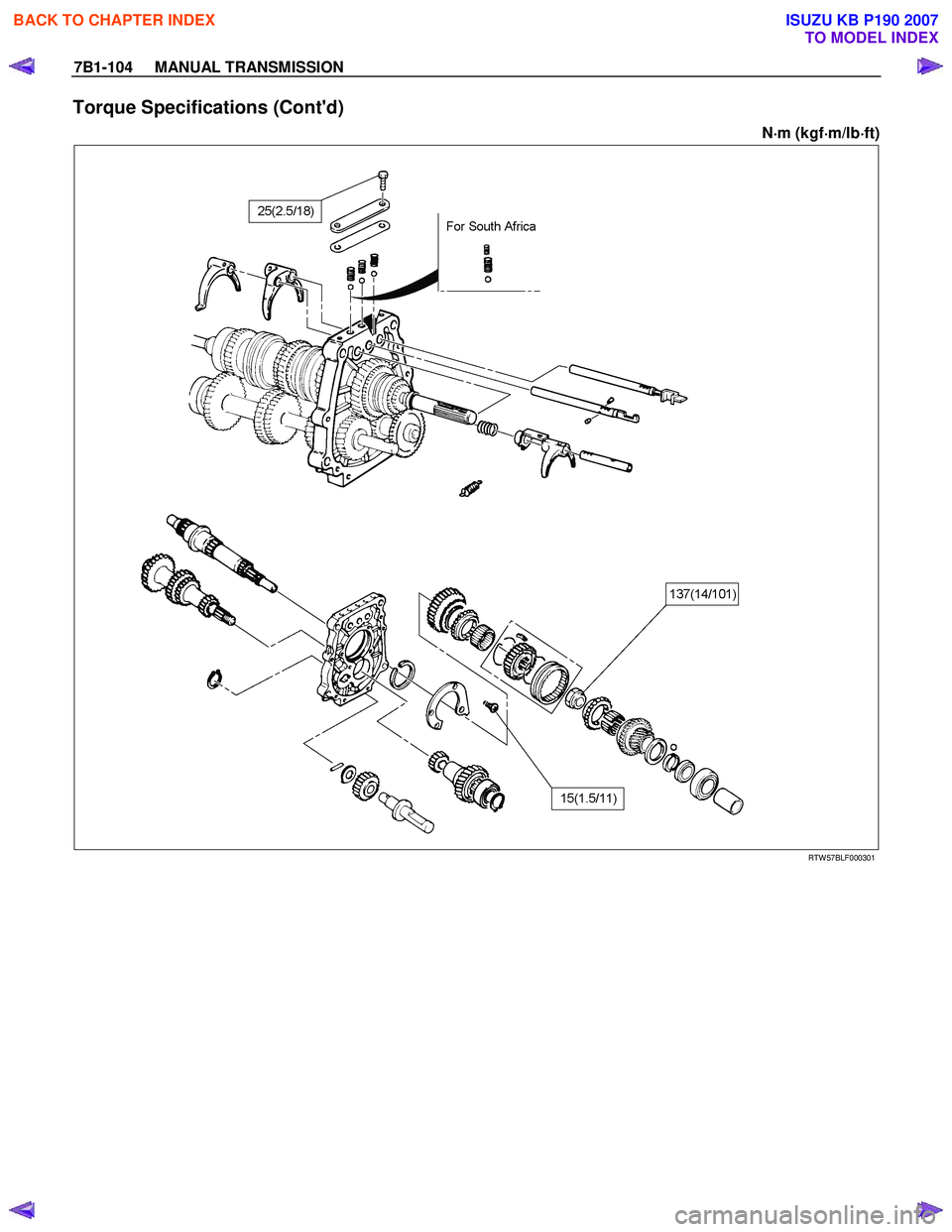

ISUZU KB P190 2007 Workshop Repair Manual 7B1-104 MANUAL TRANSMISSION Torque Specifications (Contd) N⋅ ⋅⋅ ⋅ m (kgf ⋅ ⋅⋅ ⋅ m/lb ⋅ ⋅⋅ ⋅ ft) RTW 57BLF000301 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU

Page 4711 of 6020

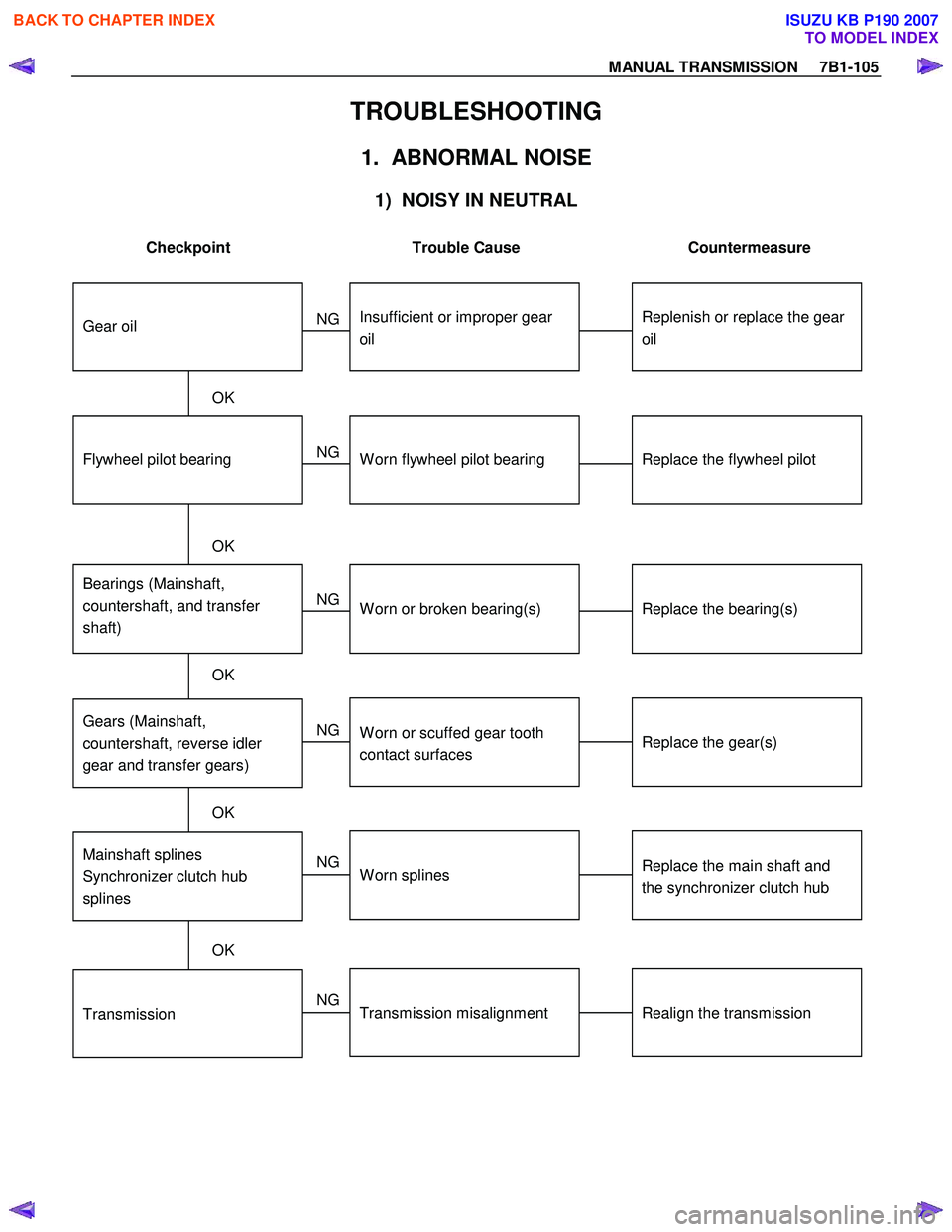

ISUZU KB P190 2007 Workshop Repair Manual MANUAL TRANSMISSION 7B1-105 TROUBLESHOOTING 1. ABNORMAL NOISE 1) NOISY IN NEUTRAL Checkpoint Trouble Cause Countermeasure Replenish or replace the gear oilInsufficient or improper

Page 4712 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7B1-106 MANUAL TRANSMISSION 2) NOISY OPERATION Checkpoint Trouble Cause Countermeasure Replenish or replace the gear oilInsufficient or improper engine oil NG Replace the gear(s) Repla
