5. Use a circuit tester to check the armature for
grounding.
1) Hold one probe of the circuit tester against the commutator segment.
2) Hold the other circuit tester probe against the armature core.
If the circuit tester indicates continuity, the armature is grounded.
The armature must be replaced.
RTW 46DSH003601
6. Use the circuit tester to check the armature for
continuity.
1) Hold the circuit tester probes against two commutator segments.
2) Repair Step 1 at different segments of the armature core.
There should be continuity between all segments of the commutator.
If there is not, the armature must be replaced.
RTW 46DSH003701
Yoke
1. Use a circuit tester to check the field winding
ground.
1) Hold one circuit tester probe against the field winding end or brush.
2) Hold the other circuit tester probe against the bare surface of the yoke body.
There should be no continuity. If there is continuity, the field coil is grounded. The yoke
must be replaced.
RTW 46DSH003801
2. Use the circuit tester to check the field winding
continuity.
1) Hold one circuit tester probe against the “M” terminal lead wire.
2) Hold the other circuit tester probe against the field winding brush.
There should be continuity.If there is no continuity, the yoke must be replaced.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1610 of 6020

6D-22 ENGINE ELECTRICAL (4JK1/4JJ1)
RTW 46DSH003901
Brush and Brush Holder
1. Use a vernier caliper to measure the brush length
(four brushes).
Replace the brushes as a set if one or more of the brush lengths is less than the specified limit.
Brush Length mm (in)
Standard Limit
15 (0.59) 12 (0.47)
RTW 46DSH004001
2. Use a circuit tester to check the brush holder
insulation.
Touch one probe to the holder plate and the othe
r
probe to the positive brush holder.
There should be no continuity.
RTW 46DSH004101
3. Inspect the brushes for excessive wear.
If the negative brushes have excessive wear, the entire brush holder assembly must be replaced.
If the positive brushes have excessive wear, the entire yoke must be replaced.
Overrunning Clutch
1. Inspect the overrunning clutch gear teeth for
excessive wear and damage.
Replace the overrunning clutch if necessary.
2. Rotate the pinion clockwise.
It should turn smoothly.
3. Try to rotate the pinion in the opposite direction.
The pinion should lock.
065RY00035
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1611 of 6020
ENGINE ELECTRICAL (4JK1/4JJ1) 6D-23

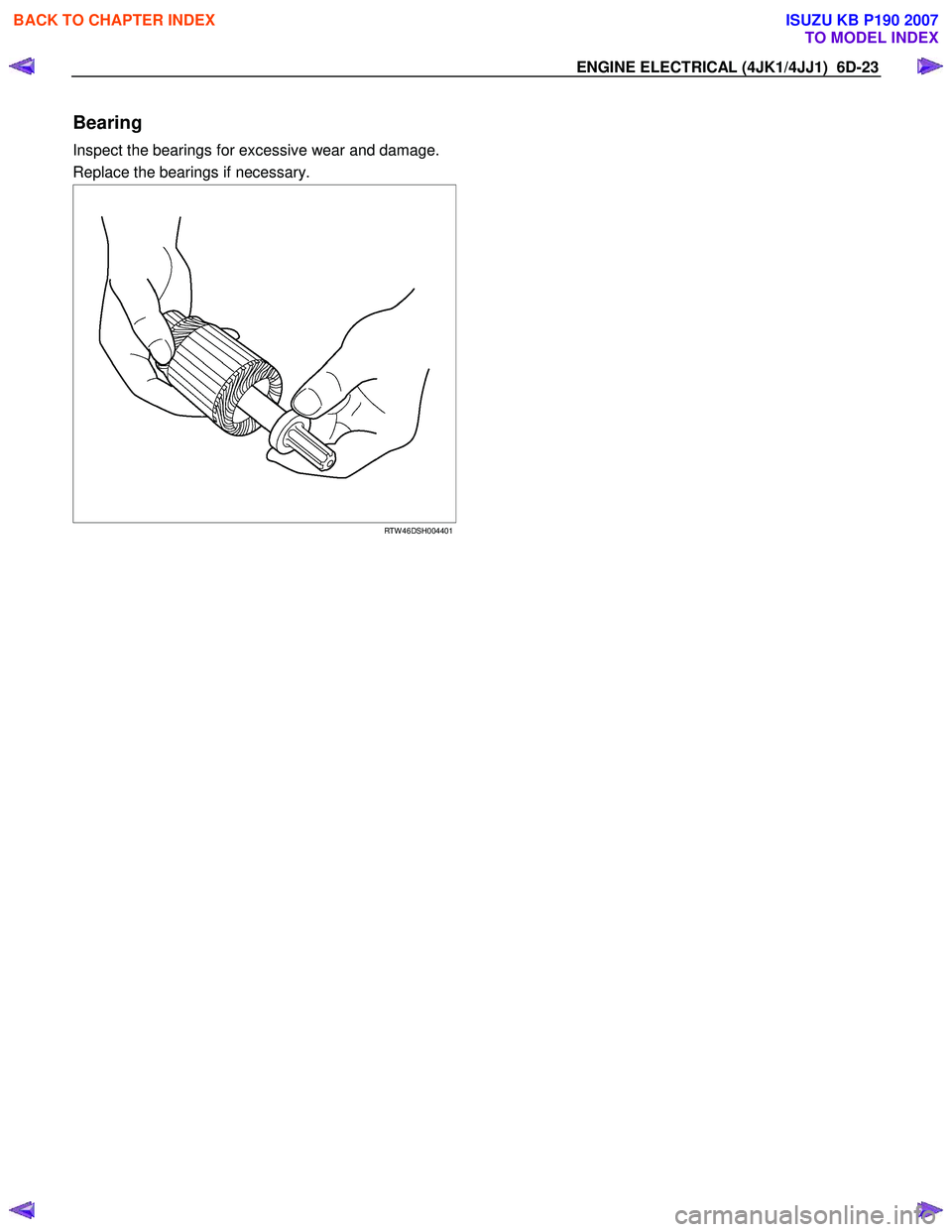

Bearing
Inspect the bearings for excessive wear and damage.
Replace the bearings if necessary.
RTW 46DSH004401
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1612 of 6020
6D-24 ENGINE ELECTRICAL (4JK1/4JJ1)

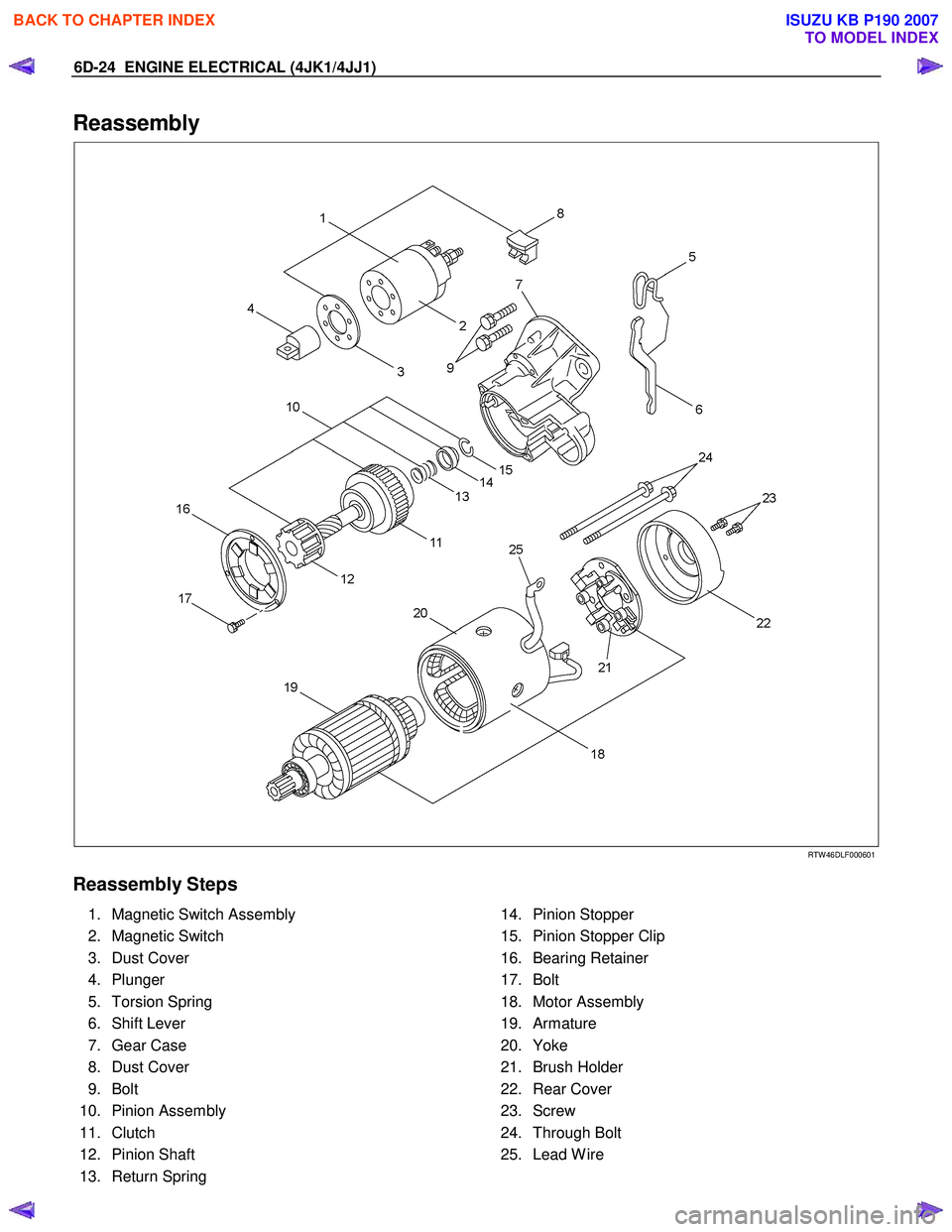

Reassembly
RTW 46DLF000601
Reassembly Steps
1. Magnetic Switch Assembly
2. Magnetic Switch
3. Dust Cover
4. Plunger
5. Torsion Spring
6. Shift Lever
7. Gear Case
8. Dust Cover
9. Bolt
10. Pinion Assembly
11. Clutch
12. Pinion Shaft
13. Return Spring 14. Pinion Stopper
15. Pinion Stopper Clip
16. Bearing Retainer
17. Bolt
18. Motor Assembly
19. Armature
20. Yoke
21. Brush Holder
22. Rear Cover
23. Screw
24. Through Bolt
25. Lead W ire
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1613 of 6020

ENGINE ELECTRICAL (4JK1/4JJ1) 6D-25

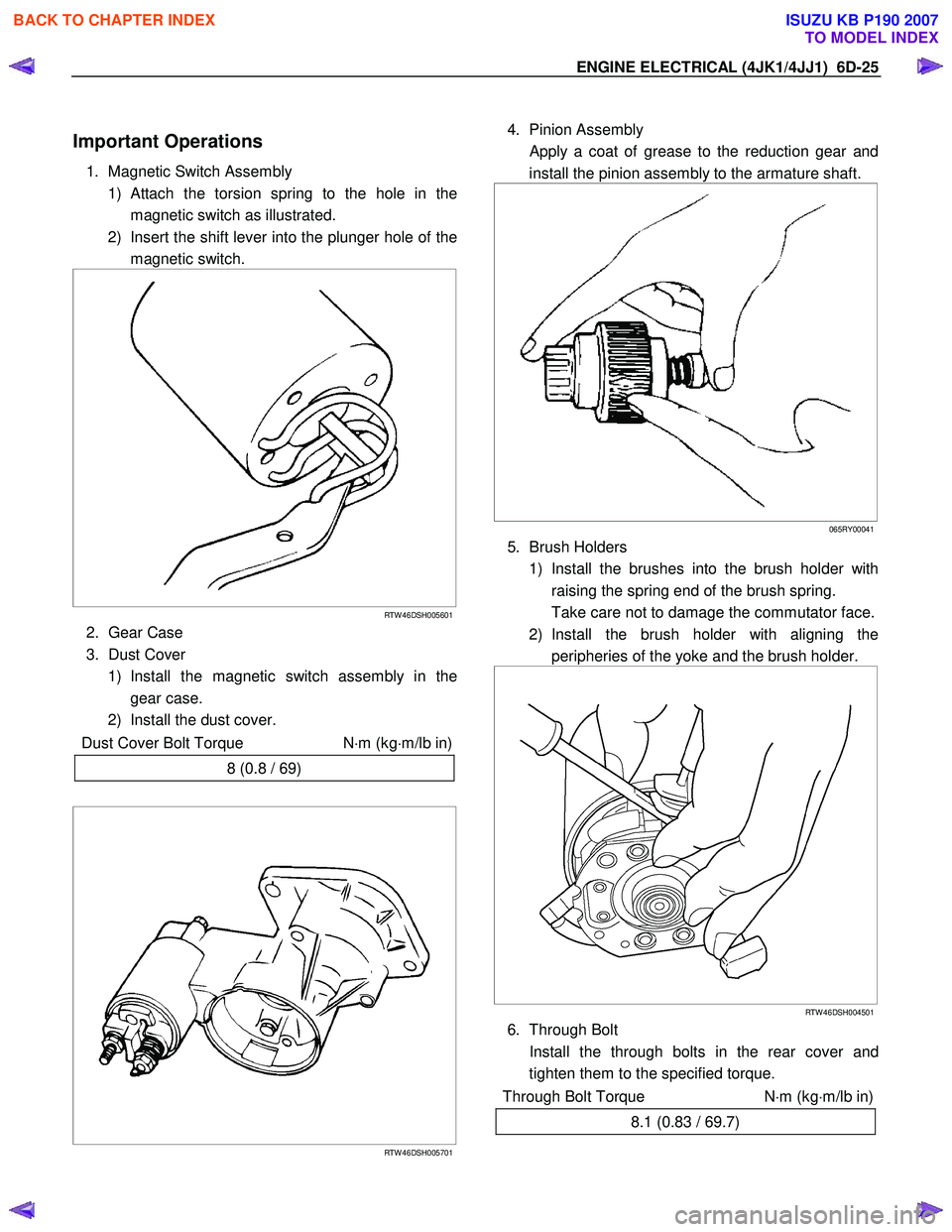

Important Operations
1. Magnetic Switch Assembly
1)
Attach the torsion spring to the hole in the
magnetic switch as illustrated.
2) Insert the shift lever into the plunger hole of the magnetic switch.
RTW 46DSH005601
2. Gear Case
3. Dust Cover 1) Install the magnetic switch assembly in the gear case.
2) Install the dust cover.
Dust Cover Bolt Torque N⋅m (kg ⋅m/lb in)
8 (0.8 / 69)
RTW 46DSH005701
4. Pinion Assembly
Apply a coat of grease to the reduction gear and
install the pinion assembly to the armature shaft.
065RY00041
5. Brush Holders
1) Install the brushes into the brush holder with raising the spring end of the brush spring.
Take care not to damage the commutator face.
2) Install the brush holder with aligning the peripheries of the yoke and the brush holder.
RTW 46DSH004501
6. Through Bolt
Install the through bolts in the rear cover and tighten them to the specified torque.
Through Bolt Torque N⋅m (kg ⋅m/lb in)
8.1 (0.83 / 69.7)
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1614 of 6020
6D-26 ENGINE ELECTRICAL (4JK1/4JJ1)
065RY00044

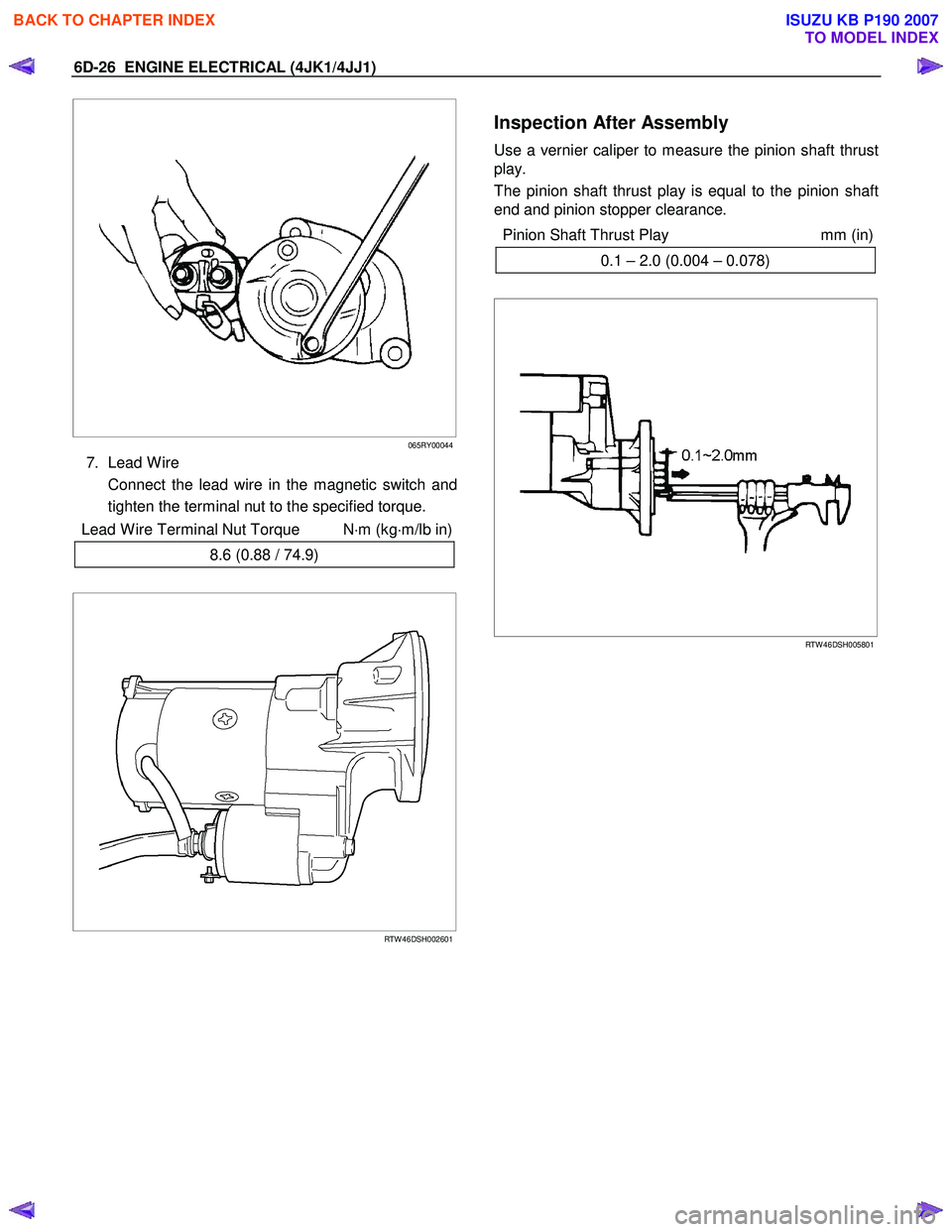

7. Lead W ire
Connect the lead wire in the magnetic switch and tighten the terminal nut to the specified torque.
Lead W ire Terminal Nut Torque N ⋅m (kg ⋅m/lb in)
8.6 (0.88 / 74.9)
RTW 46DSH002601
Inspection After Assembly
Use a vernier caliper to measure the pinion shaft thrust
play.
The pinion shaft thrust play is equal to the pinion shaft
end and pinion stopper clearance.
Pinion Shaft Thrust Play mm (in)
0.1 – 2.0 (0.004 – 0.078)
RTW 46DSH005801
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1615 of 6020
ENGINE ELECTRICAL (4JK1/4JJ1) 6D-27

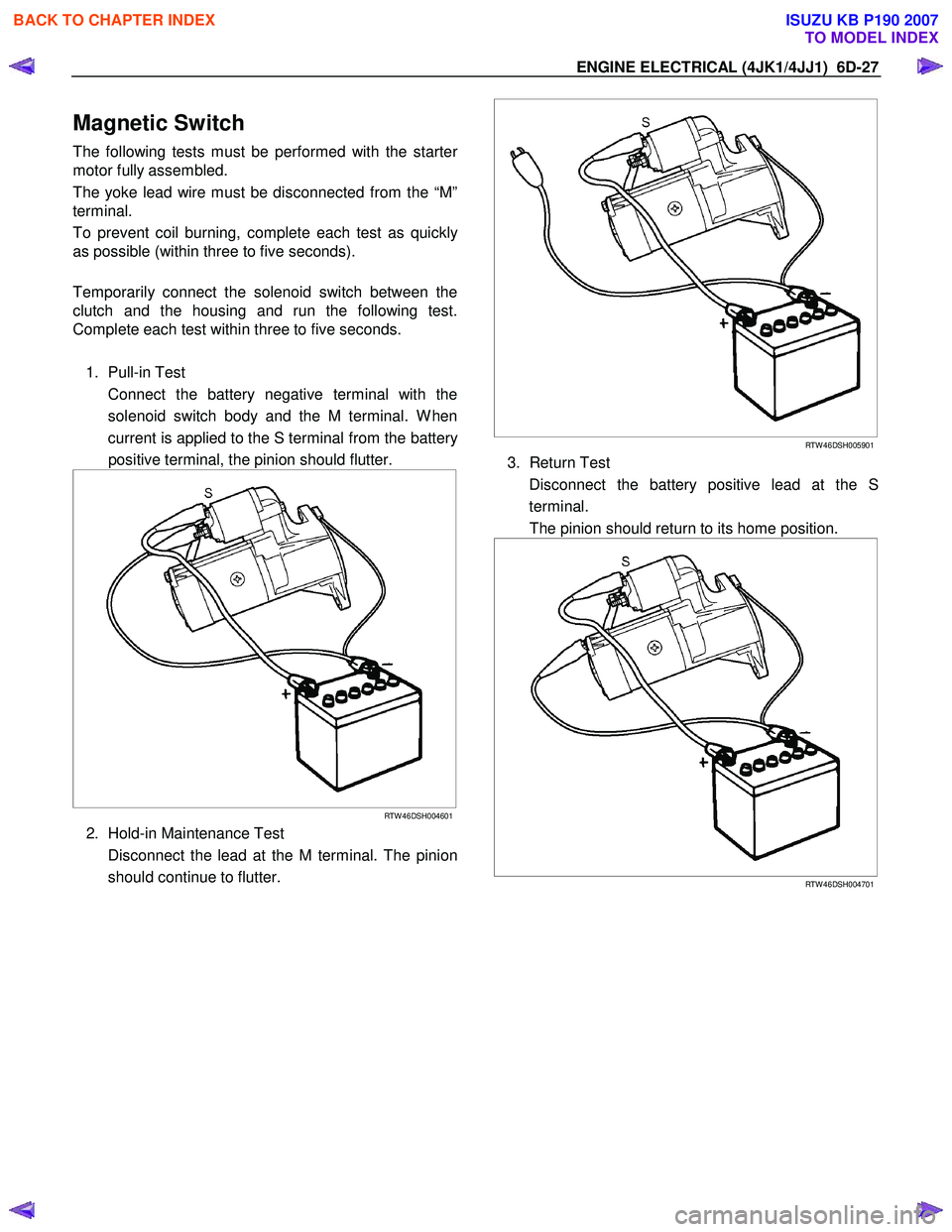

Magnetic Switch
The following tests must be performed with the starter
motor fully assembled.
The yoke lead wire must be disconnected from the “M”
terminal.
To prevent coil burning, complete each test as quickl
y
as possible (within three to five seconds).
Temporarily connect the solenoid switch between the
clutch and the housing and run the following test.
Complete each test within three to five seconds.
1. Pull-in Test
Connect the battery negative terminal with the solenoid switch body and the M terminal. W hen
current is applied to the S terminal from the batter
y
positive terminal, the pinion should flutter.
RTW 46DSH004601
2. Hold-in Maintenance Test
Disconnect the lead at the M terminal. The pinion should continue to flutter.
RTW 46DSH005901
3. Return Test
Disconnect the battery positive lead at the S terminal.
The pinion should return to its home position.
RTW 46DSH004701
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1616 of 6020
6D-28 ENGINE ELECTRICAL (4JK1/4JJ1)

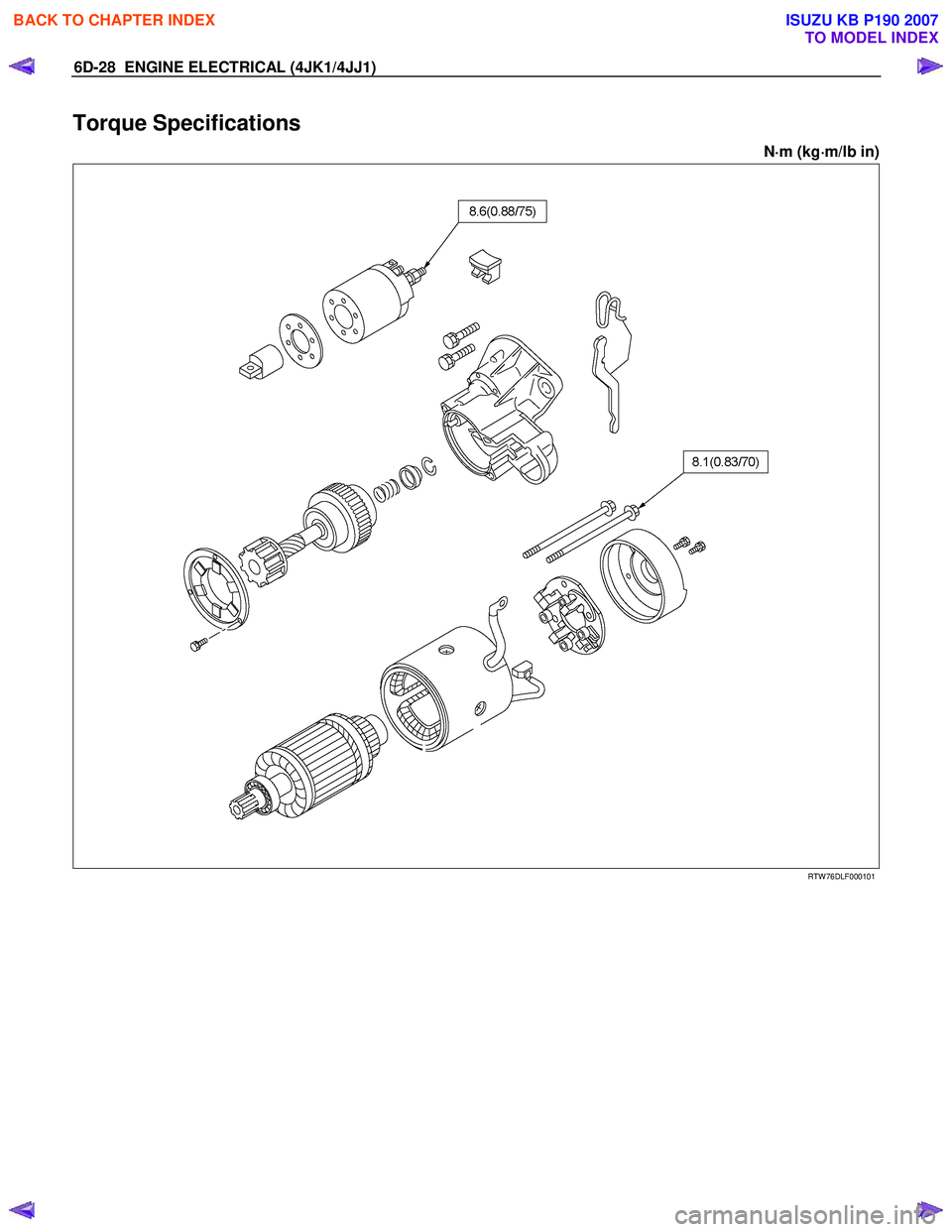

Torque Specifications
N⋅
⋅⋅
⋅
m (kg ⋅
⋅⋅
⋅
m/lb in)
RTW 76DLF000101
BACK TO CHAPTER INDEX
TO MODEL INDEX
