Page 5401 of 6020

ELECTRICAL-BODY AND CHASSIS 8A-463

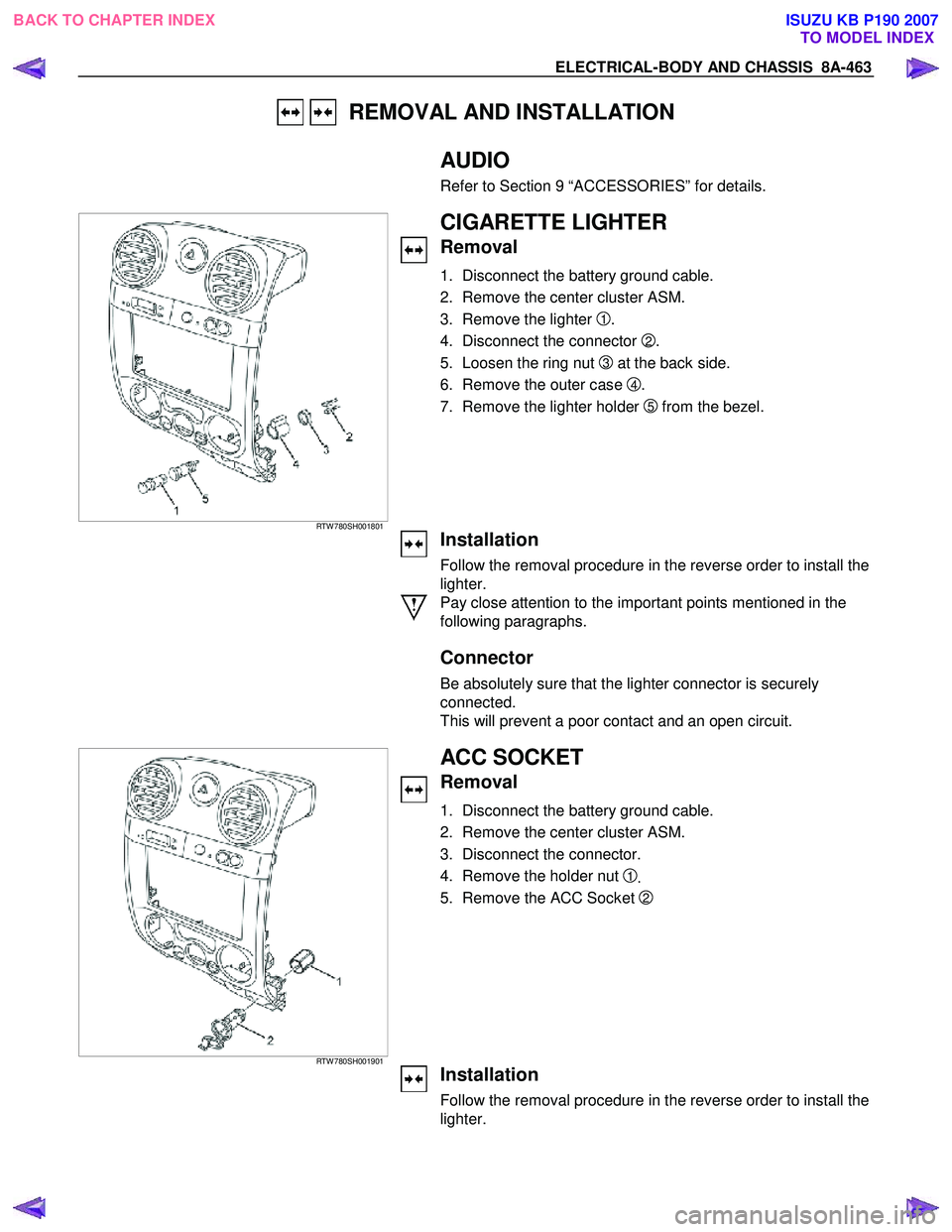

REMOVAL AND INSTALLATION
AUDIO
Refer to Section 9 “ACCESSORIES” for details.
RTW 780SH001801
CIGARETTE LIGHTER
Removal
1. Disconnect the battery ground cable.
2. Remove the center cluster ASM.
3. Remove the lighter
1.
4. Disconnect the connector
2.
5. Loosen the ring nut
3 at the back side.
6. Remove the outer case
4.
7. Remove the lighter holder
5 from the bezel.
Installation
Follow the removal procedure in the reverse order to install the
lighter.
Pay close attention to the important points mentioned in the
following paragraphs.
Connector
Be absolutely sure that the lighter connector is securely
connected.
This will prevent a poor contact and an open circuit.
RTW 780SH001901
ACC SOCKET
Removal
1. Disconnect the battery ground cable.
2. Remove the center cluster ASM.
3. Disconnect the connector.
4. Remove the holder nut
1.
5. Remove the ACC Socket
2
Installation
Follow the removal procedure in the reverse order to install the
lighter.
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5402 of 6020
8A-464 ELECTRICAL-BODY AND CHASSIS

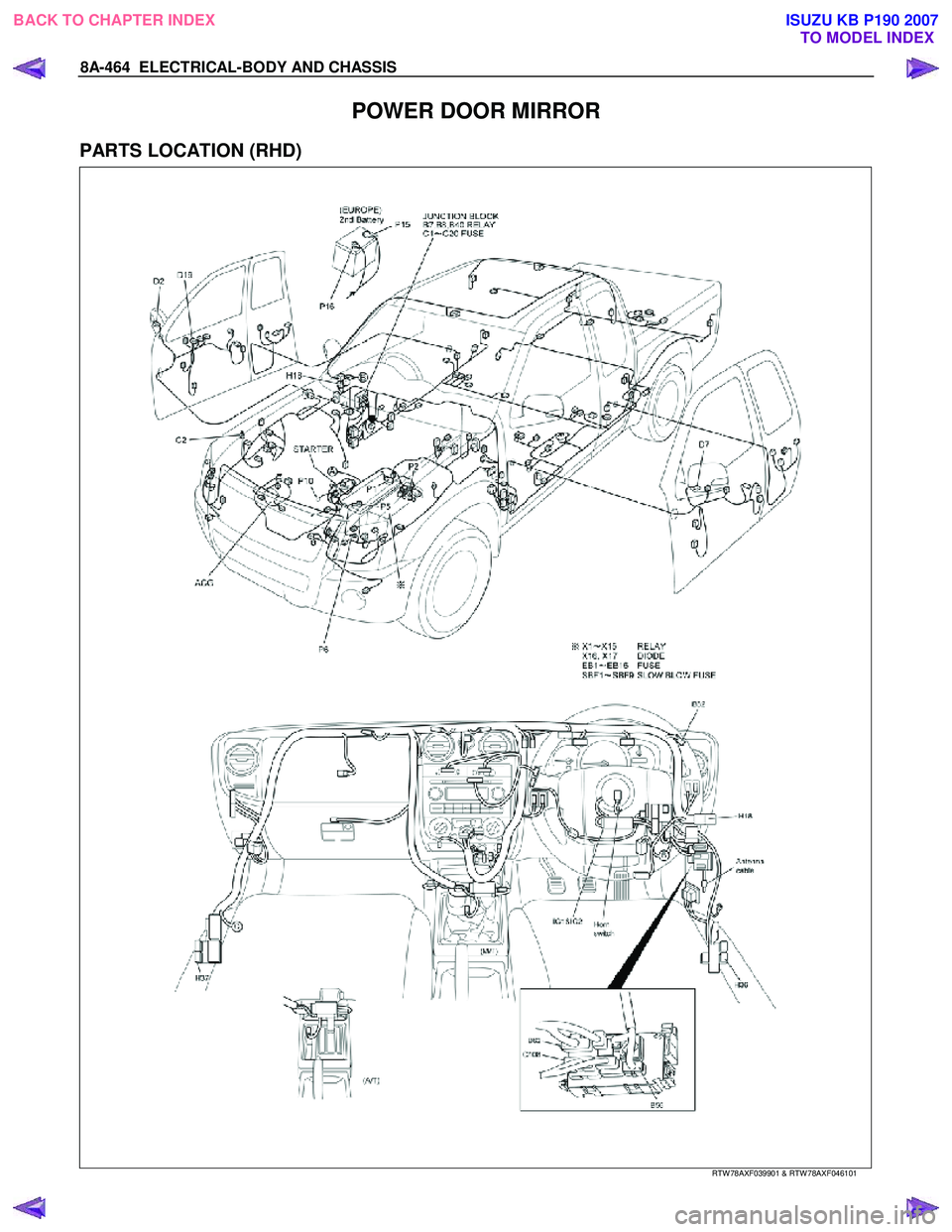

POWER DOOR MIRROR
PARTS LOCATION (RHD)
RTW 78AXF039901 & RTW 78AXF046101
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5403 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-465
PARTS LOCATION (LHD)
RTW 78AXF040001 & RTW 78AXF046201
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5404 of 6020
8A-466 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM C24SE (RHD)
RTW 780XF014301
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5405 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-467
CIRCUIT DIAGRAM HFV6
RTW 78AXF016201
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5406 of 6020
8A-468 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (RHD)
RTW 78AXF018301
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5407 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-469
CIRCUIT DIAGRAM 4JA1T(L)
RTW 78AXF006301
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5408 of 6020
8A-470 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM C24SE (LHD)
RTW 680XF013701
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
