Page 4625 of 6020

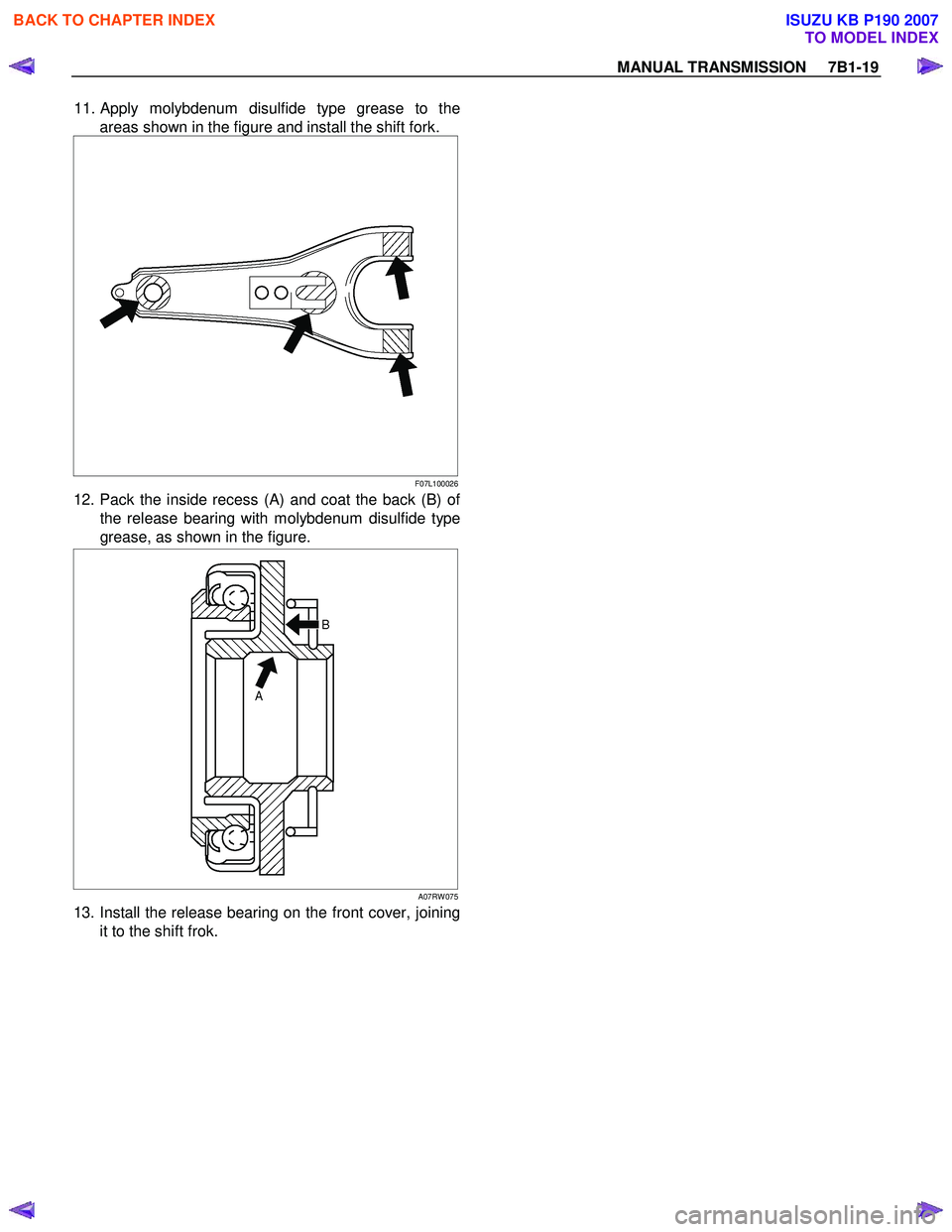

ISUZU KB P190 2007 Workshop Repair Manual MANUAL TRANSMISSION 7B1-19 11. Apply molybdenum disulfide type grease to the areas shown in the figure and install the shift fork. F07L100026 12. Pack the inside recess (A) and coat the back (B

Page 4626 of 6020

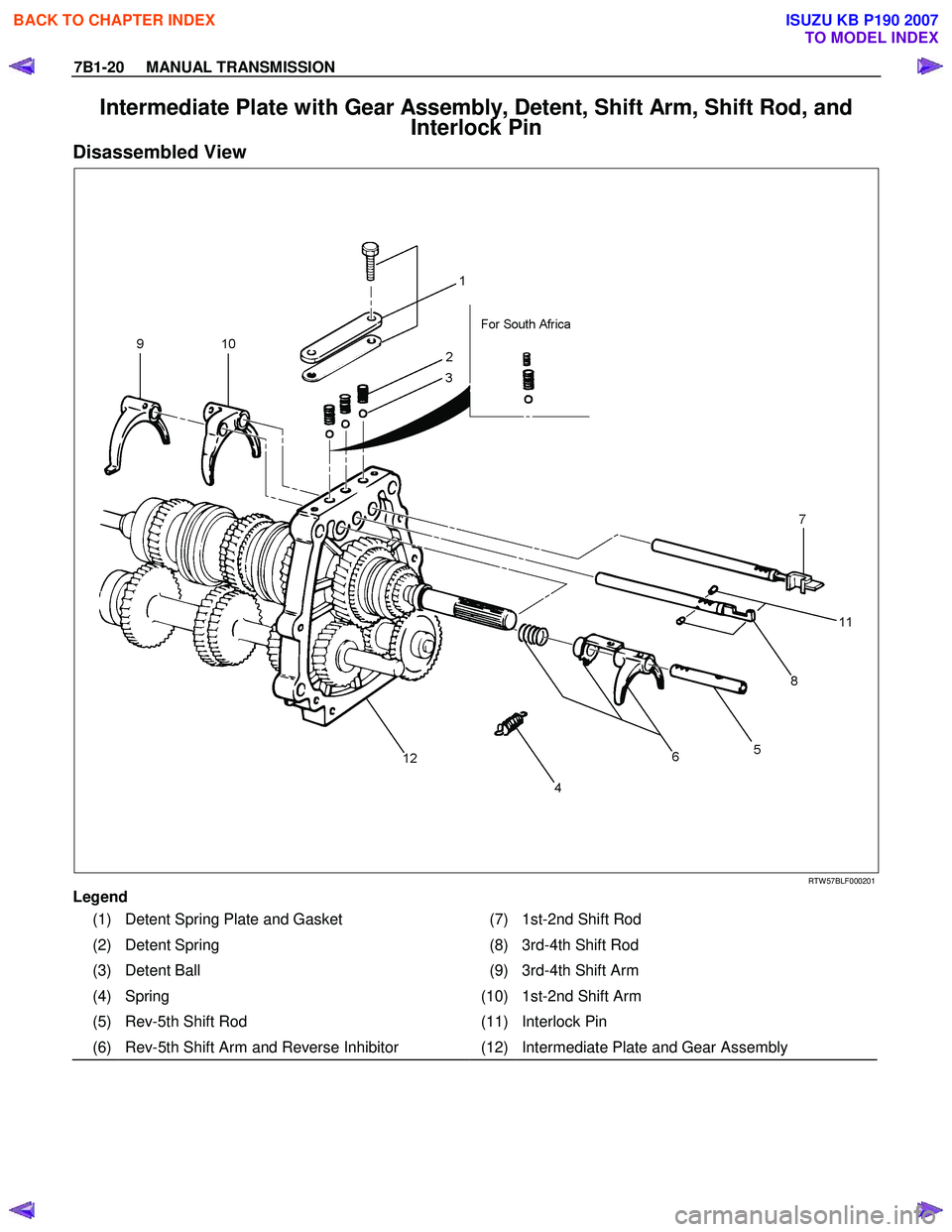

ISUZU KB P190 2007 Workshop Repair Manual 7B1-20 MANUAL TRANSMISSION Intermediate Plate with Gear Assembly, Detent, Shift Arm, Shift Rod, and Interlock Pin Disassembled View RTW 57BLF000201 Legend (1) Detent Spring P

Page 4627 of 6020

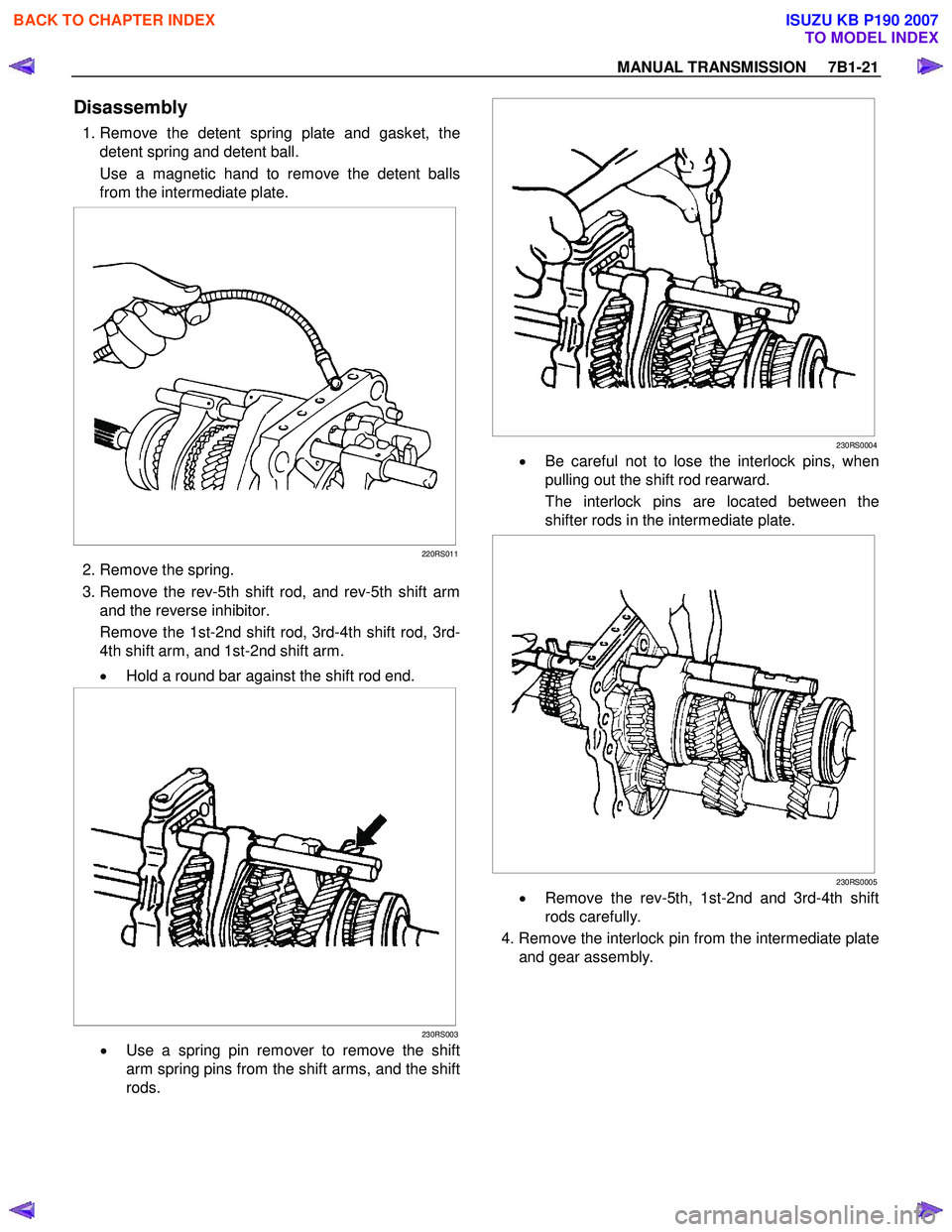

ISUZU KB P190 2007 Workshop Repair Manual MANUAL TRANSMISSION 7B1-21 Disassembly 1. Remove the detent spring plate and gasket, the detent spring and detent ball. Use a magnetic hand to remove the detent balls from the intermediate

Page 4628 of 6020

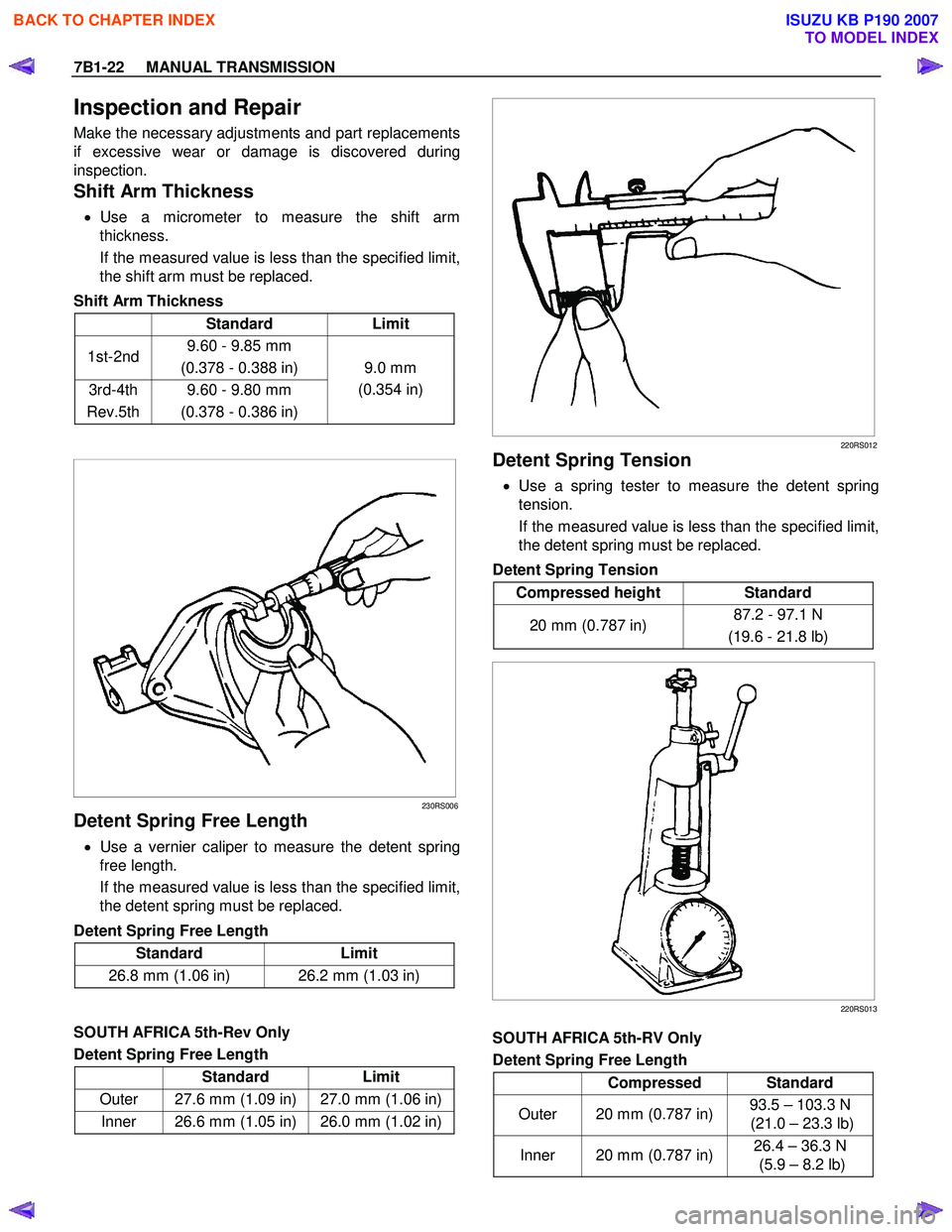

ISUZU KB P190 2007 Workshop Repair Manual 7B1-22 MANUAL TRANSMISSION Inspection and Repair Make the necessary adjustments and part replacements if excessive wear or damage is discovered during inspection. Shift Arm Thickness • Us

Page 4629 of 6020

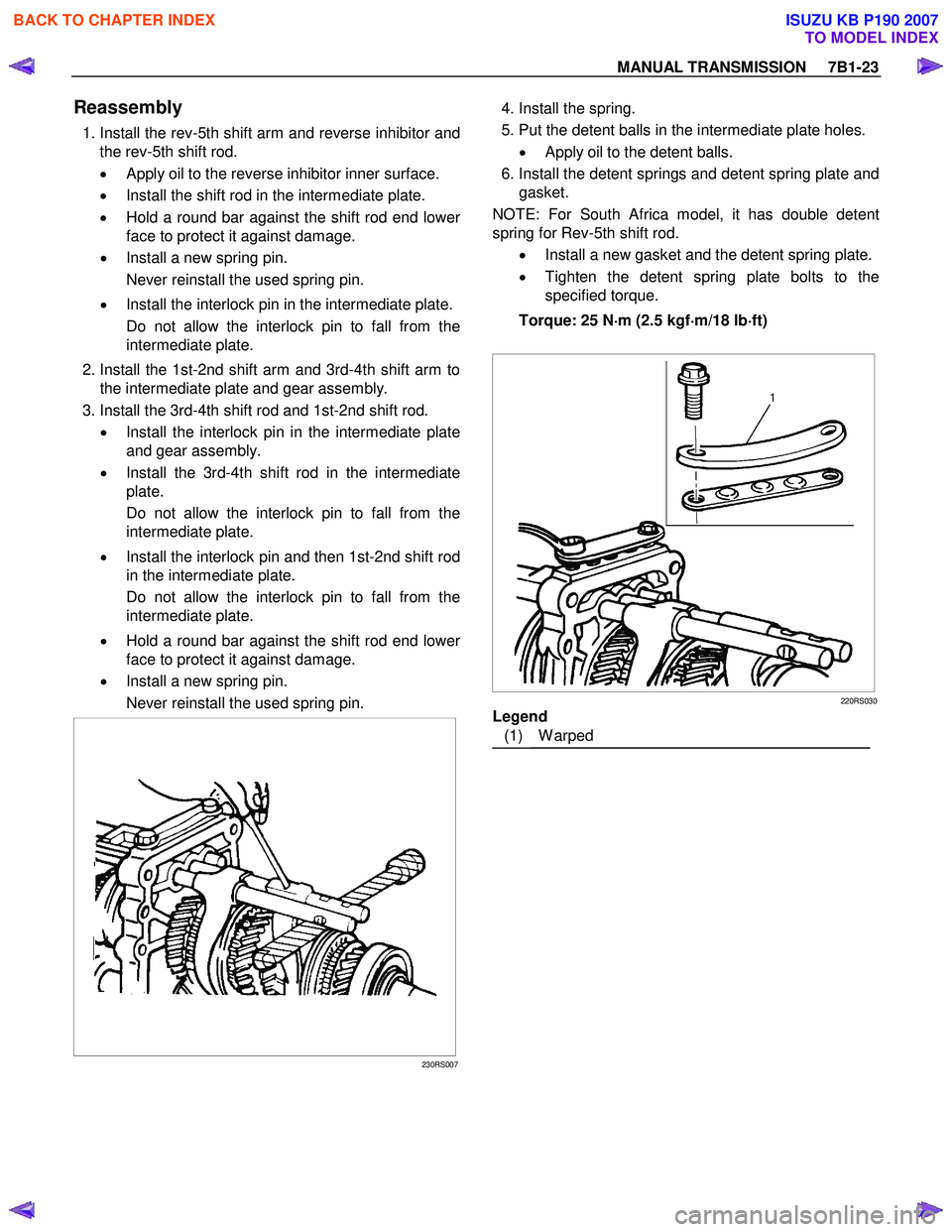

ISUZU KB P190 2007 Workshop Repair Manual MANUAL TRANSMISSION 7B1-23 Reassembly 1. Install the rev-5th shift arm and reverse inhibitor and the rev-5th shift rod. • Apply oil to the reverse inhibitor inner surface. • Instal

Page 4630 of 6020

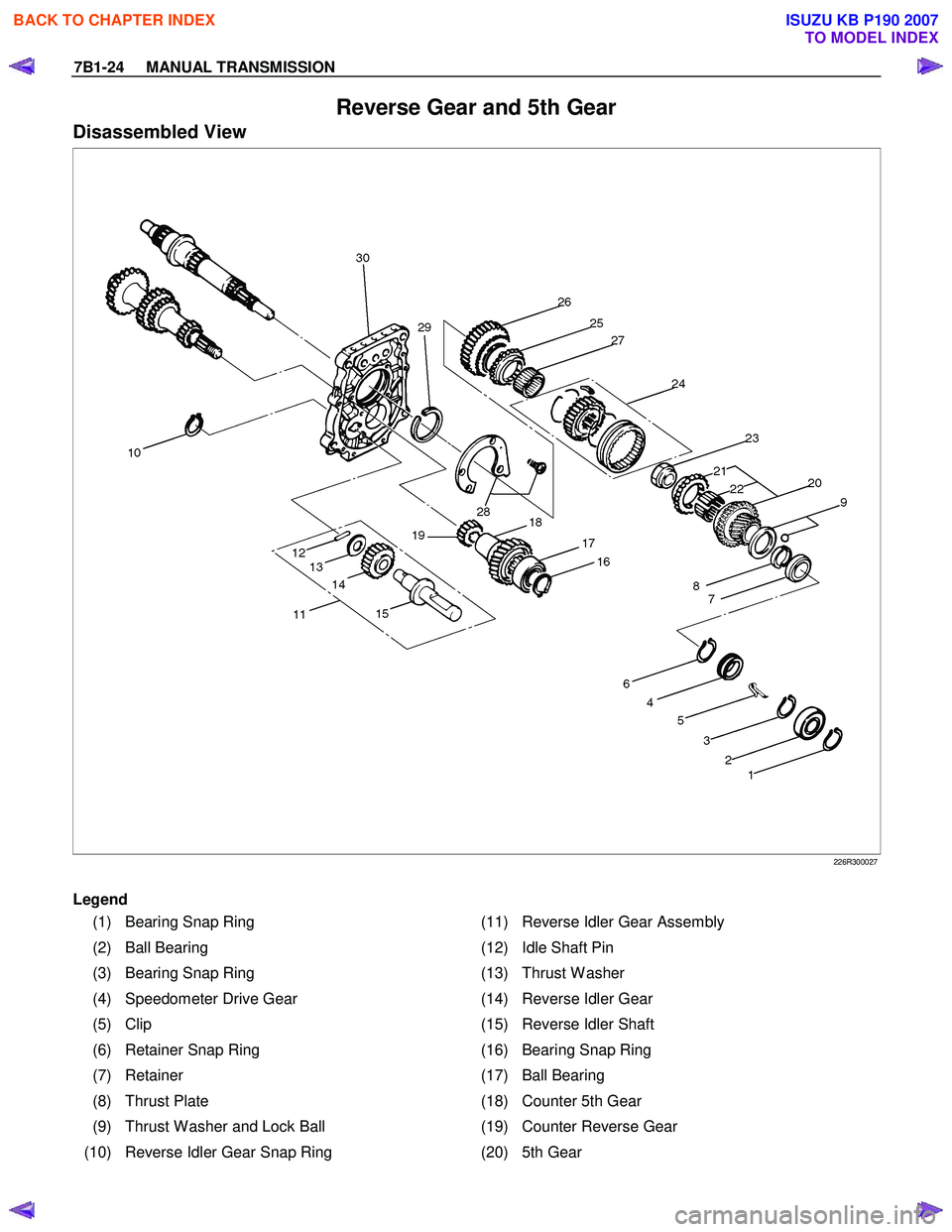

ISUZU KB P190 2007 Workshop Repair Manual 7B1-24 MANUAL TRANSMISSION Reverse Gear and 5th Gear Disassembled View 226R300027 Legend (1) Bearing Snap Ring (11) Reverse Idler Gear Assembly (2) Ball Bearing (12) Idle Shaft Pin

Page 4631 of 6020

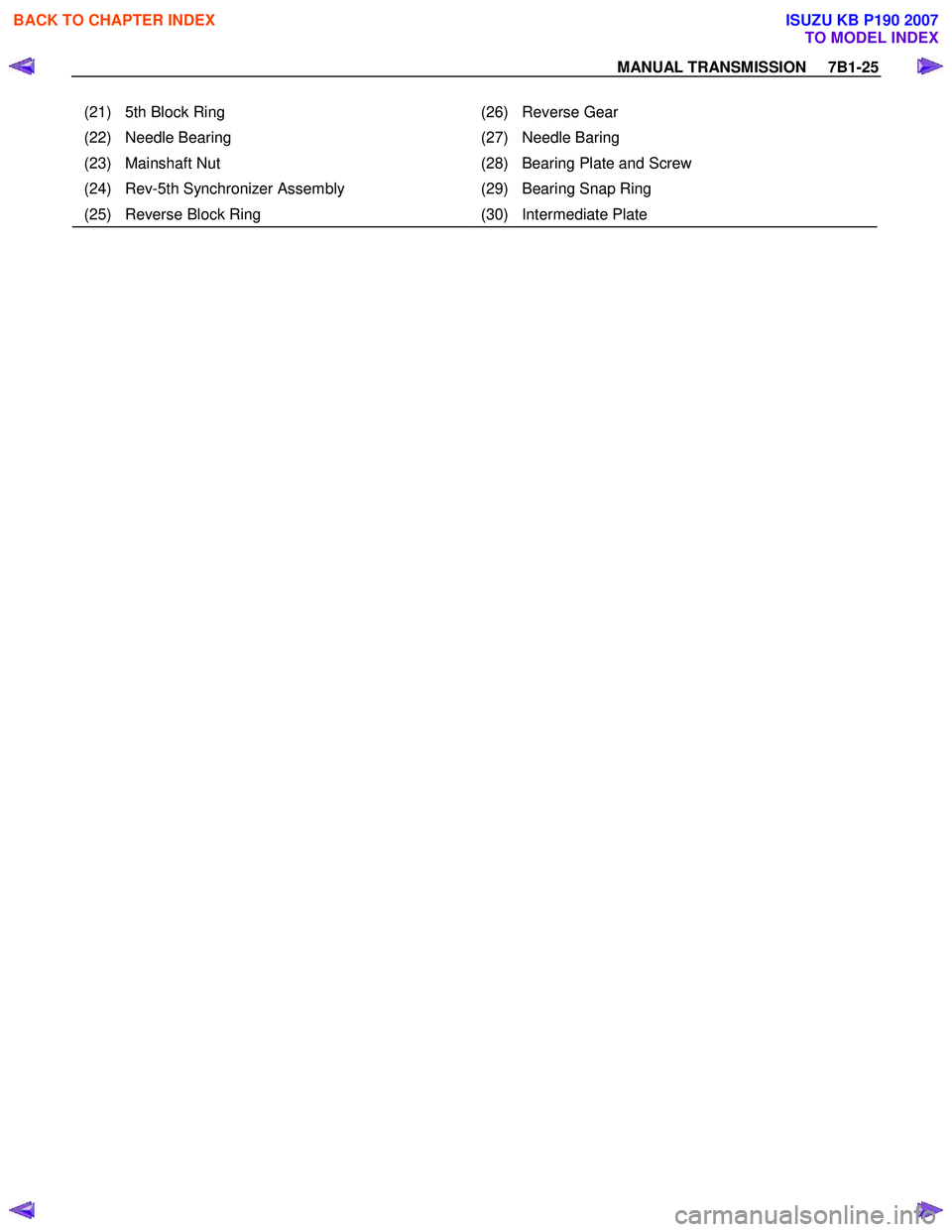

ISUZU KB P190 2007 Workshop Repair Manual MANUAL TRANSMISSION 7B1-25 (21) 5th Block Ring (26) Reverse Gear (22) Needle Bearing (27) Needle Baring (23) Mainshaft Nut (28) Bearing Plate and Screw (24) Rev-5th Synchronizer Assembl

Page 4632 of 6020

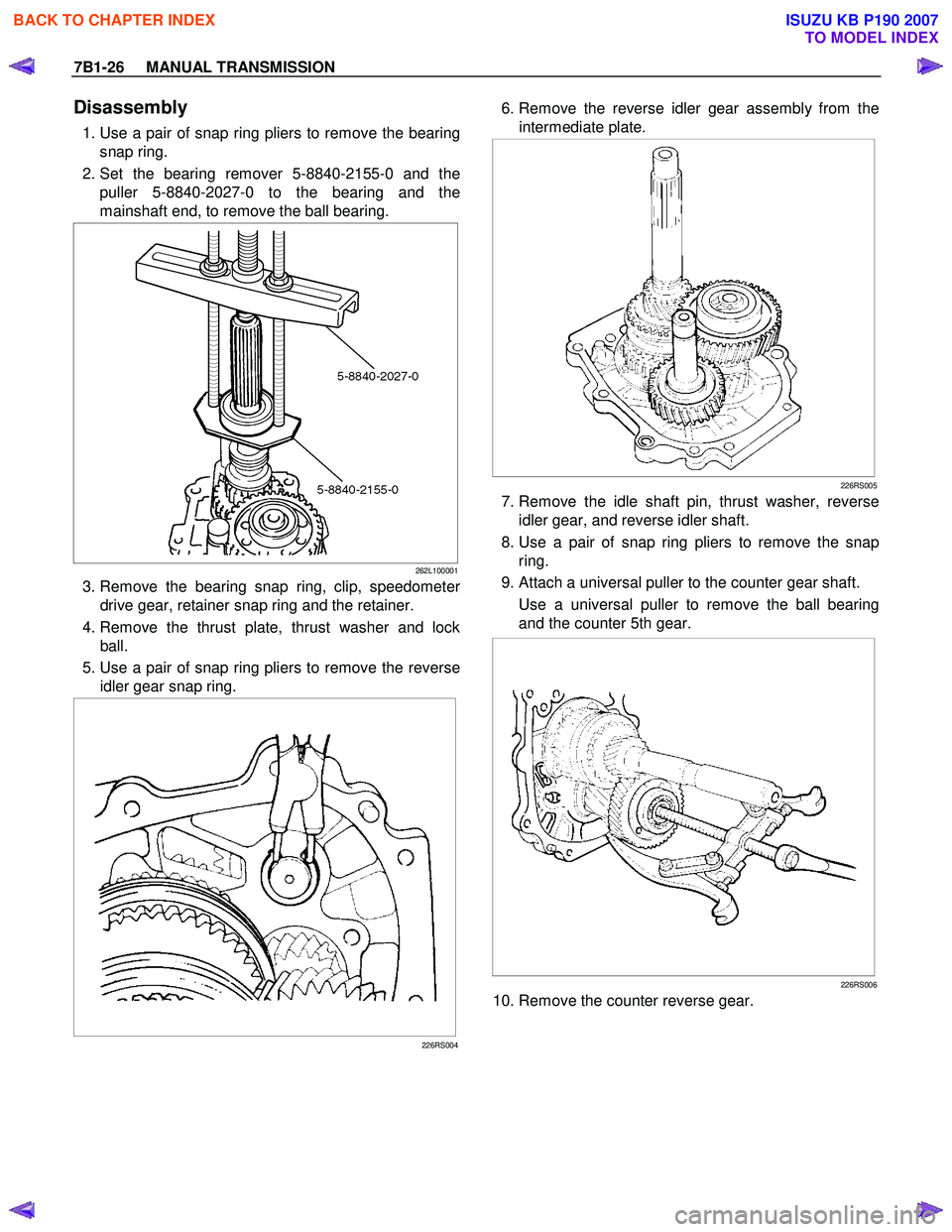

ISUZU KB P190 2007 Workshop Repair Manual 7B1-26 MANUAL TRANSMISSION Disassembly 1. Use a pair of snap ring pliers to remove the bearing snap ring. 2. Set the bearing remover 5-8840-2155-0 and the puller 5-8840-2027-0 to the bearin
