ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–111
4.34 DTC P2764 – Torque Converter Clutch
Pressure Control Solenoid Control
Circuit Low Voltage
DTC Description
This d

Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–111
4.34 DTC P2764 – Torque Converter Clutch
Pressure Control Solenoid Control
Circuit Low Voltage
DTC Description
This diagnostic procedure supports DTC P2764 Torque Converter Clutch (TCC) Pressure Control (PC) Solenoid Control
Circuit Low Voltage.
Circuit Description
The torque converter clutch pulse width modulation (TCC PW M) solenoid valve controls the fluid acting on the converter
clutch valve. The converter clutch valve controls the TCC application and release. The solenoid attaches to the control
valve body within the transmission. The solenoid receives voltage through ignition voltage circuit. The transmission
control module (TCM) controls the solenoid by providing a ground path on the TCC PW M solenoid valve control circuit.
Current flows through the solenoid coil according to the duty cycle, percentage of on and off time. The TCC PWM
solenoid valve provides a smooth engagement of the TCC by operating during a duty cycle percent of on time.
W hen the TCM detects a continuous open or short to ground in the TCC PW M solenoid valve control circuit, then
DTC P2764 sets. DTC P2764 is a type A DTC.
Refer to 2 W iring Diagrams and Connector Chart to aid in diagnosis.
Conditions for Running the DTC
• The system voltage is 8 – 18 V.
• The engine speed is 500 r.p.m. for 5 seconds.
Conditions for Setting the DTC
DTC P2764 sets when either of the following conditions occurs for 5 seconds:
• The TCM detects an open in the TCC PWM shift solenoid valve circuit when the TCC PW M is commanded on.
• The TCM detects a short to ground in the TCC PWM shift solenoid valve circuit when the TCC PWM is
commanded on.
Action Taken When the DTC Sets
• The TCM requests the ECM to illuminate the MIL during the second consecutive trip in which the Conditions for
Setting the DTC are met.
• The TCM commands maximum line pressure.
• The TCM freezes transmission adaptive functions.
• The TCM inhibits TCC engagement.
• The TCM inhibits 4th gear if in hot mode.
• At the time of the first failure, the TCM records the operating conditions when the conditions for setting the DTC are
met. The TCM stores this information as a Failure Record.
• At the time of the second failure, the ECM records the operating conditions when the conditions for setting the DTC
are met. The ECM stores this information as a Freeze Frame.
• The TCM stores DTC P2764 in TCM history during the second consecutive trip in which the conditions for setting
the DTC are met.
Conditions for Clearing the DTC
• The ECM turns off the MIL after the fourth consecutive drive trip in which the TCM does not send a MIL illumination
request.
• Tech 2 can clear the DTC.
• The TCM clears the DTC from TCM history if the vehicle completes 40 warm-up cycles without a non-emission
related diagnostic fault occurring.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 3898 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–112

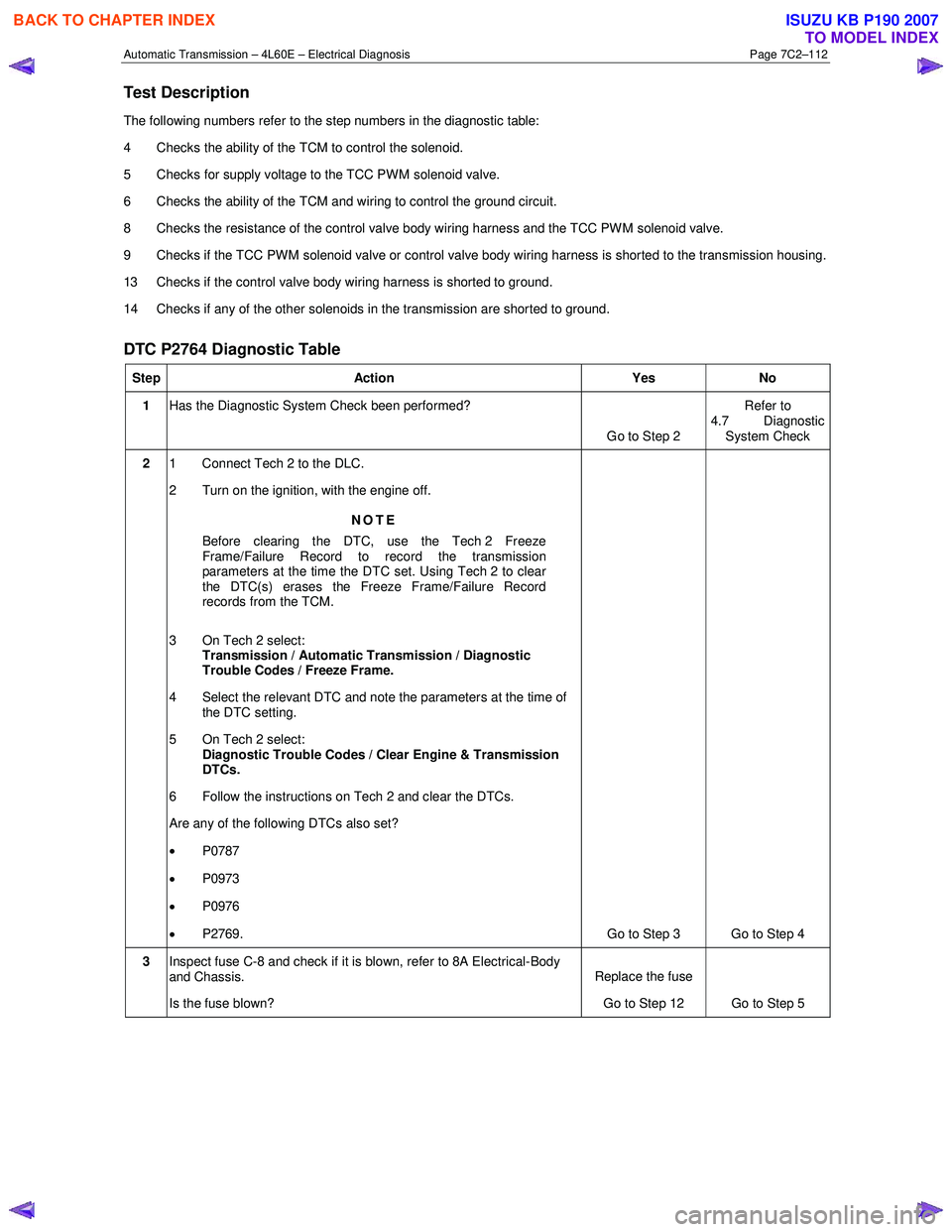

Test Description
The following numbers refer to the step numbers in the diagnostic table:
4 Checks the ability of the TCM

Page 3899 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–113
Step Action Yes No
4 1 On Tech 2 select:
Transmission / Automatic Transmission / Miscellaneous
Tests / TCC PWM solenoid

Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–113
Step Action Yes No
4 1 On Tech 2 select:
Transmission / Automatic Transmission / Miscellaneous
Tests / TCC PWM solenoid.
2 With Tech 2 command the TCC PWM solenoid ON and
OFF
three times.
3 On Tech 2 select: Data Display / TCC Data.
Does Tech 2 display the TCC Duty Cycle Circuit as Okay ? Check for an
intermittent fault in the circuit, refer to
8A Electrical-Body and Chassis Go to Step 5
5 1 Turn off the ignition.
2 Disconnect connector E-95 from the transmission.
NOTE
Additional DTCs may set.
3 Install Tool No. J 44152 Jumper Harness (20 pins) on to the harness connector E-95.
4 Turn on the ignition, with the engine off.
5 Using a test lamp, probe between connector E-95 pin 10 and a known ground.
Does the test lamp illuminate? Go to Step 6 Go to Step 15
6
1 Using a test lamp, probe connector E-95 pin 10 with the ground
lead to connector E-95 pin 19.
2 On Tech 2 select: Automatic Transmission / Miscellaneous Tests / TCC PWM
Solenoid.
3 With Tech 2 command the TCC PW M Solenoid On and
Off
three times.
Does the test lamp turn on and off with each command? Go to Step 8 Go to Step 7
7 Is the test lamp always illuminated? Go to Step 16 Go to Step 17
8 1 Remove Tool No. J44152 from the harness connector E-95 and
install on to the transmission connector E-95.
2 Using a multimeter set to measure resistance, probe across transmission connector E-95 pins 10 and 19.
Does the multimeter display 10 – 15 Ω? Go to Step 9 Go to Step 10
9 Using a multimeter set to measure resistance, probe between:
• Transmission connector E-95 pin 10 and a known ground.
• Transmission connector E-95 pin 19 and a known ground.
Does the multimeter display greater than 250 k Ω in both instances? Check for an
intermittent fault in the circuit, refer to
8A Electrical-Body and Chassis Go to Step 11
10 1 Remove Tool No. J44152 from the transmission.
2 Gain access to the TCC PWM solenoid and the control valve body wiring harness, refer to 7C4 Automatic Transmission –
4L60E – On-vehicle Servicing.
3 Disconnect the internal connector from the TCC PWM solenoid.
4 Using a multimeter set to measure resistance, probe across the TCC PWM solenoid pins.
Does the multimeter display 10 – 15 Ω? Replace the control
valve body wiring
harness, refer to 7C4 Automatic
Transmission –
4L60E – On-vehicle Servicing
Go to Step 19 Replace the TCC
PWM solenoid, refer
to 7C4 Automatic Transmission –
4L60E – On-vehicle Servicing.
Go to Step 19

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 3900 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–114
Step Action Yes No
11 1 Remove Tool No. J44152 from the transmission.
2 Gain access to the TCC PWM solenoid and the con

Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–114
Step Action Yes No
11 1 Remove Tool No. J44152 from the transmission.
2 Gain access to the TCC PWM solenoid and the control valve body wiring harness, refer to 7C4 Automatic Transmission –
4L60E – On-vehicle Servicing.
3 Using a multimeter set to measure resistance, probe between each of the TCC PW M solenoid pins and a known ground.
Does the multimeter display 250 k Ω in both instances? Replace the control
valve body wiring harness, refer to
7C4 Automatic
Transmission –
4L60E – On-vehicle Servicing
Go to Step 19 Replace the TCC
PWM solenoid, refer to 7C4 Automatic Transmission –
4L60E – On-vehicle Servicing.
Go to Step 19
12 Using a multimeter, test between E-95 pin 10 and C-107 pin 9 for a
short to ground.
Did you find and correct the condition? Go to Step 19 Go to Step 13
13 1 Gain access to the control valve body wiring harness, refer to
7C4 Automatic Transmission – 4L60E – On-vehicle Servicing.
2 Test for a short to ground in the control valve body wiring harness.
Did you find a short to ground condition? Replace the control
valve body wiring harness, refer to
7C4 Automatic
Transmission –
4L60E – On-vehicle Servicing
Go to Step 19 Go to Step 14
14 1 Test each solenoid for a short to ground.
2 Replace the faulty solenoid as necessary.
Did you complete the replacement? Go to Step 19 —
15 Using a multimeter, test between E-95 pin 10 and C-107 pin 9 for an
open circuit.
Did you find and correct the condition? Go to Step 19 —
16 Using a multimeter, test between E-95 pin 11 and C-96 pin 14 for a
short to ground.
Did you find and correct the condition? Go to Step 19 Go to Step 20
17 Using a multimeter, test between E-95 pin 11 and C-96 pin 14 for an
open circuit.
Did you find and correct the condition? Go to Step 19 Go to Step 20
18 Replace the TCM, refer to 7C4 Automatic Transmission – 4L60E –
On-vehicle Servicing.
Did you complete the replacement? Go to Step 19 —
19 Perform the following procedure to verify the repair:
1 On Tech 2 select: Diagnostic Trouble Codes / Clear Engine & Transmission
DTCs.
2 Follow the instructions on Tech 2 and clear any DTCs.
3 On Tech 2 select: Data Display / TCC Data.
4 Drive the vehicle in D4 and ensure the TCC Duty Cycle Circuit
parameter displays Okay for 5 seconds.
5 On Tech 2 select:
Diagnostic Trouble Codes / Read DTC Information.
Has DTC P2764 set? Go to Step 2 Go to Step 20

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 3901 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–115
Step Action Yes No
20 On Tech 2 select:
Diagnostic Trouble Codes / Read DTC Information.
Does Tech 2 display any DTCs

Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–115
Step Action Yes No
20 On Tech 2 select:
Diagnostic Trouble Codes / Read DTC Information.
Does Tech 2 display any DTCs you have not diagnosed? Refer to
4.8 Diagnostic Trouble Code List System OK
When all diagnosis and repairs are completed, check the system for correct operation.

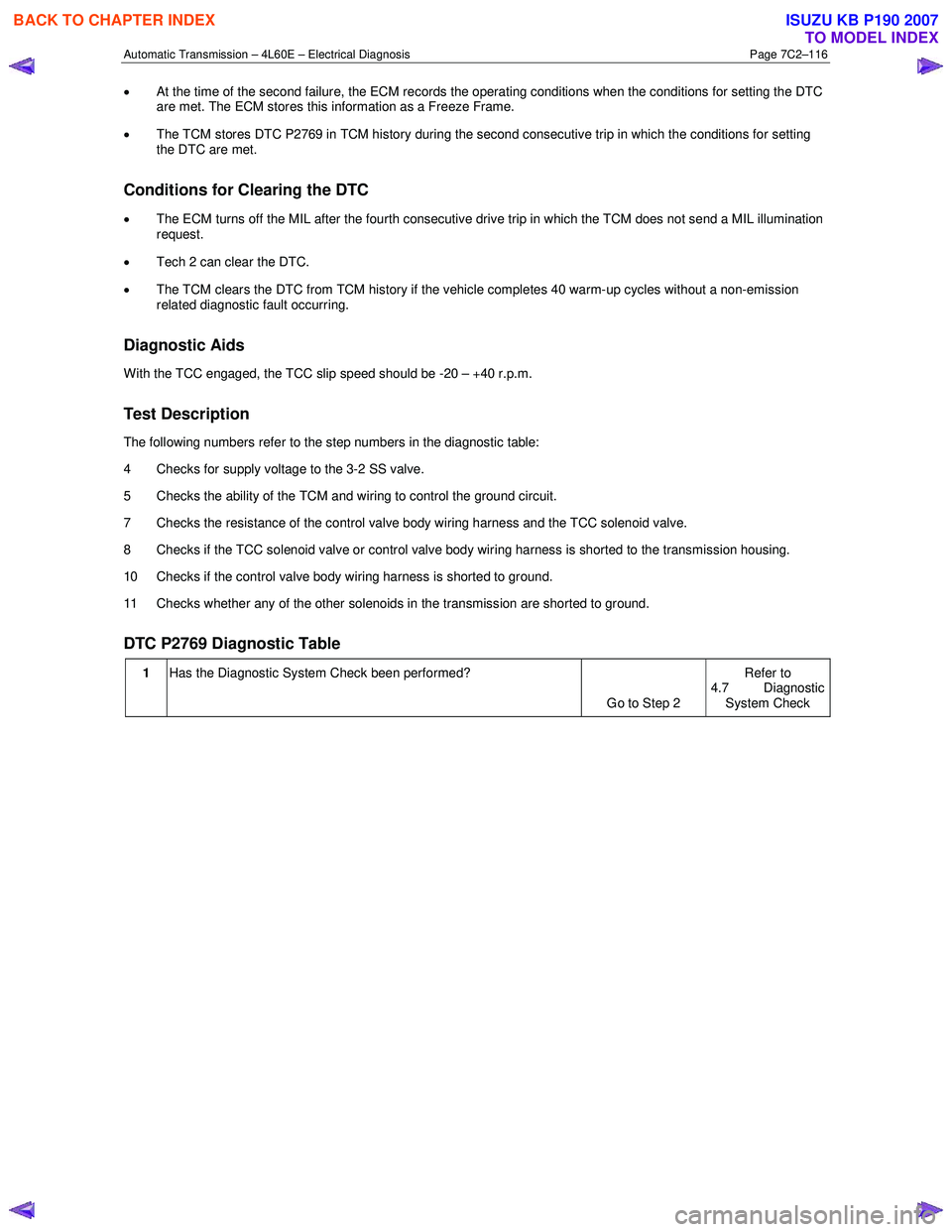

4.35 DTC P2769 – Torque Converter Clutch
Enable Solenoid Control Circuit Low
Voltage
DTC Description
This diagnostic procedure supports DTC P2769 Torque Converter Clutch (TCC) Enable Solenoid Control Circuit Low
Voltage.
Circuit Description
The torque converter clutch (TCC) solenoid valve is an electrical device that is used with the torque converter clutch
pulse width modulation (TCC PWM) solenoid valve to control TCC apply and release. The TCC solenoid valve attaches
to the transmission case assembly extending into the pump cover. The TCC solenoid valve receives voltage through
ignition voltage circuit. The transmission control module (TCM) controls the solenoid by providing the ground path on the
TCC solenoid valve control circuit. The TCM monitors the throttle position (TP) voltage, the vehicle speed and other
inputs to determine when to energize the TCC solenoid valve.
NOTE
The TCC solenoid valve is part of the control
valve body wiring harness. To replace the
solenoid valve, the control valve body harness
must be replaced.
When the TCM detects a continuous open or short to ground in the TCC solenoid valve control circuit, then DTC P2769
sets. DTC P2769 is a type B DTC.
Refer to 2 W iring Diagrams and Connector Chart to aid in diagnosis.
Conditions for Running the DTC
• The system voltage is 8 – 18 V.
• The engine speed is 500 r.p.m. for 5 seconds.
Conditions for Setting the DTC
DTC P2769 sets when either of the following conditions occurs for 5 seconds:
• The TCM detects an open in the TCC solenoid valve circuit when the TCC is commanded on.
• The TCM detects a short to ground in the TCC shift solenoid valve circuit when the TCC is commanded on.
Action Taken When the DTC Sets
• The TCM requests the ECM to illuminate the MIL during the second consecutive trip in which the conditions for
setting the DTC are met.
• The TCM freezes transmission adaptive functions.
• The TCM inhibits TCC engagement.
• The TCM inhibits 4th gear if in hot mode.
• At the time of the first failure, the TCM records the operating conditions when the conditions for setting the DTC are
met. The TCM stores this information as a Failure Record.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 3902 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–116
• At the time of the second failure, the ECM records the operating conditions when the conditions for setting the DTC
are

Page 3903 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–117

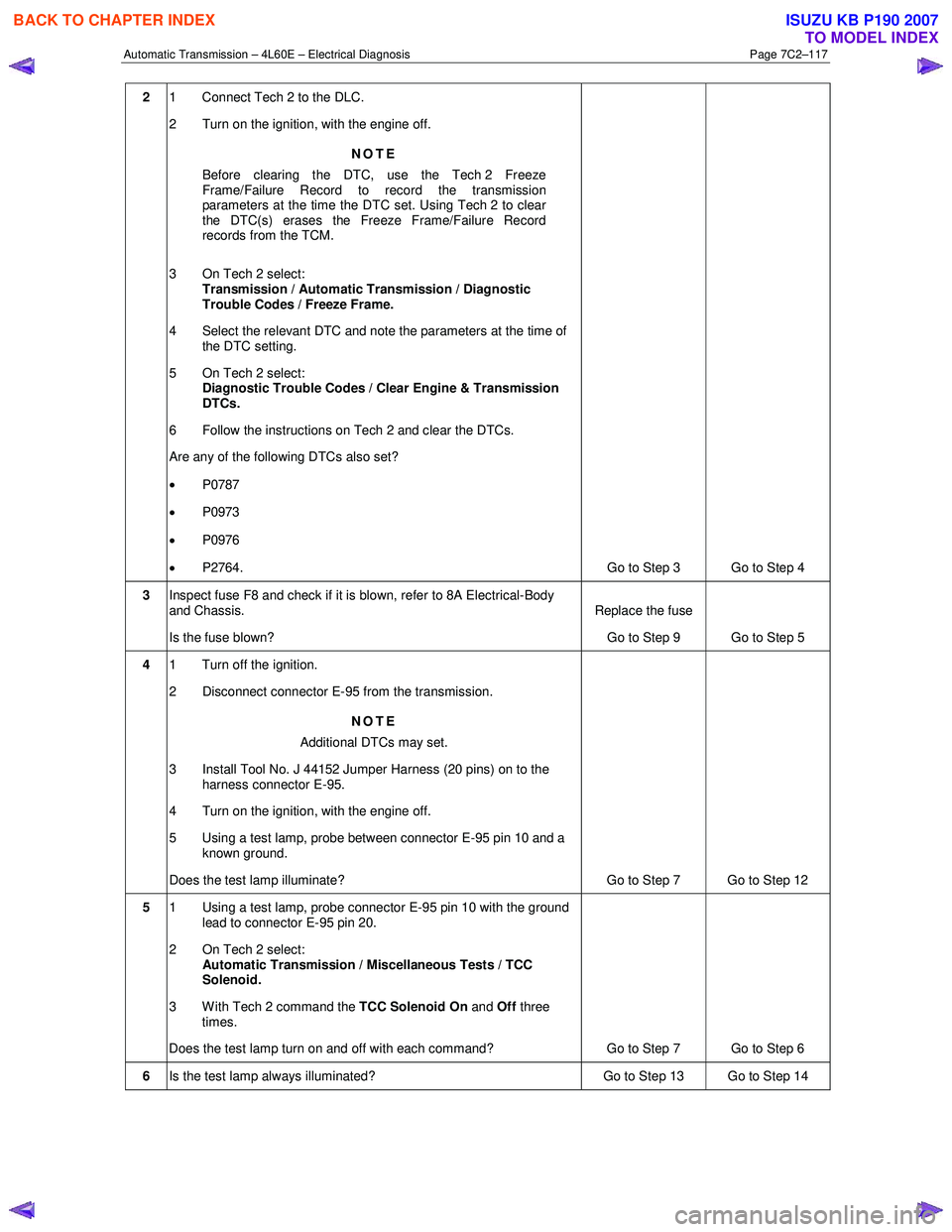

2 1 Connect Tech 2 to the DLC.
2 Turn on the ignition, with the engine off.
NOTE
Before clearing the DTC, use the Tech

Page 3904 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–118

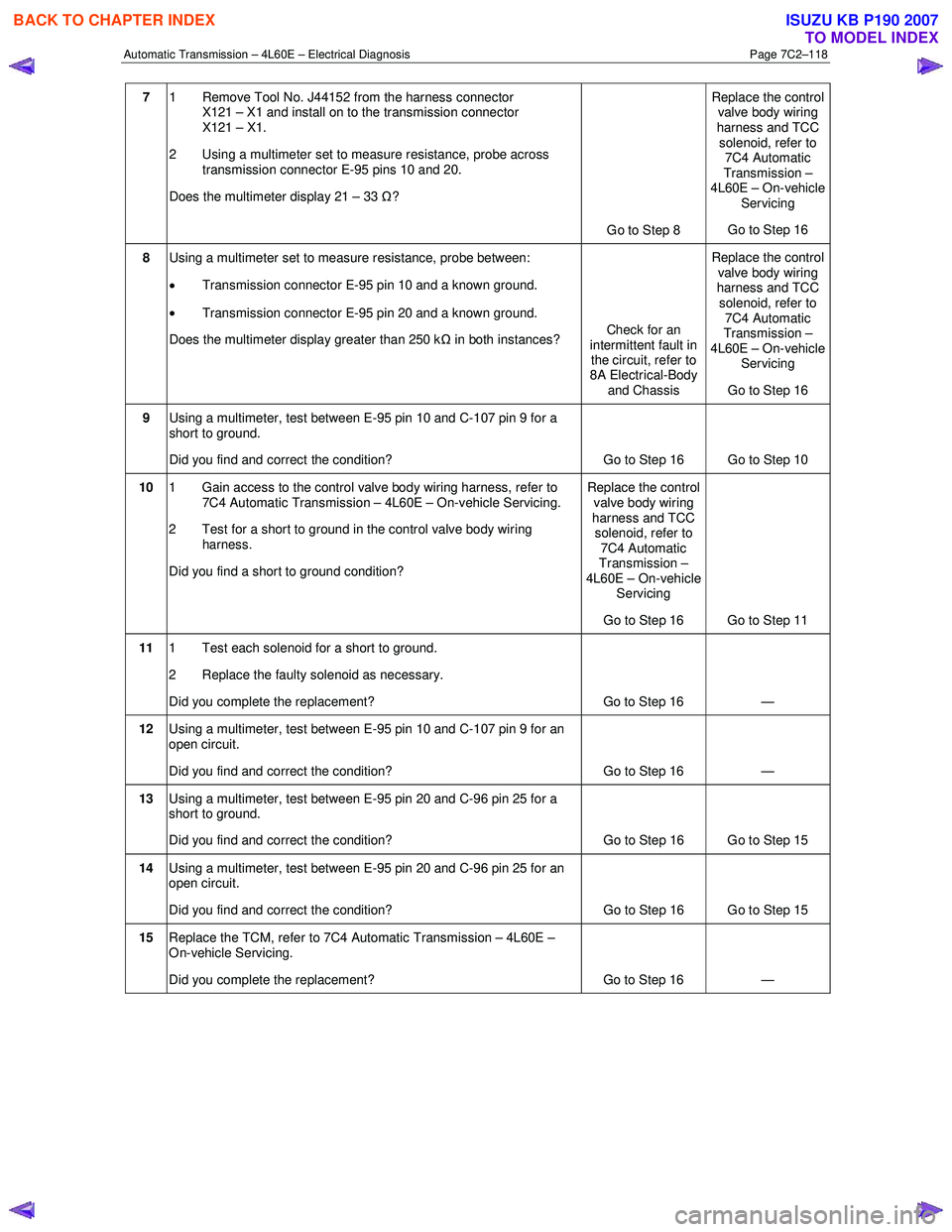

7 1 Remove Tool No. J44152 from the harness connector
X121 – X1 and install on to the transmission connector
X121 –

Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–118
7 1 Remove Tool No. J44152 from the harness connector
X121 – X1 and install on to the transmission connector
X121 – X1.
2 Using a multimeter set to measure resistance, probe across transmission connector E-95 pins 10 and 20.
Does the multimeter display 21 – 33 Ω?
Go to Step 8 Replace the control
valve body wiring
harness and TCC
solenoid, refer to 7C4 Automatic
Transmission –
4L60E – On-vehicle
Servicing
Go to Step 16
8 Using a multimeter set to measure resistance, probe between:
• Transmission connector E-95 pin 10 and a known ground.
• Transmission connector E-95 pin 20 and a known ground.
Does the multimeter display greater than 250 k Ω in both instances? Check for an
intermittent fault in the circuit, refer to
8A Electrical-Body
and Chassis Replace the control
valve body wiring
harness and TCC solenoid, refer to
7C4 Automatic
Transmission –
4L60E – On-vehicle Servicing
Go to Step 16
9 Using a multimeter, test between E-95 pin 10 and C-107 pin 9 for a
short to ground.
Did you find and correct the condition? Go to Step 16 Go to Step 10
10 1 Gain access to the control valve body wiring harness, refer to
7C4 Automatic Transmission – 4L60E – On-vehicle Servicing.
2 Test for a short to ground in the control valve body wiring harness.
Did you find a short to ground condition? Replace the control
valve body wiring
harness and TCC solenoid, refer to
7C4 Automatic
Transmission –
4L60E – On-vehicle Servicing
Go to Step 16 Go to Step 11
11 1 Test each solenoid for a short to ground.
2 Replace the faulty solenoid as necessary.
Did you complete the replacement? Go to Step 16 —
12 Using a multimeter, test between E-95 pin 10 and C-107 pin 9 for an
open circuit.
Did you find and correct the condition? Go to Step 16 —
13 Using a multimeter, test between E-95 pin 20 and C-96 pin 25 for a
short to ground.
Did you find and correct the condition? Go to Step 16 Go to Step 15
14 Using a multimeter, test between E-95 pin 20 and C-96 pin 25 for an
open circuit.
Did you find and correct the condition? Go to Step 16 Go to Step 15
15 Replace the TCM, refer to 7C4 Automatic Transmission – 4L60E –
On-vehicle Servicing.
Did you complete the replacement? Go to Step 16 —

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Load next 8 pages

Page: < prev 1-10 ... 3865-3872 3873-3880 3881-3888 3889-3896 3897-3904 3905-3912 3913-3920 3921-3928 3929-3936 ... 6024 next >

ground clearance sensor inflation pressure child restraint oil temperature oil dipstick
