Page 4489 of 6020

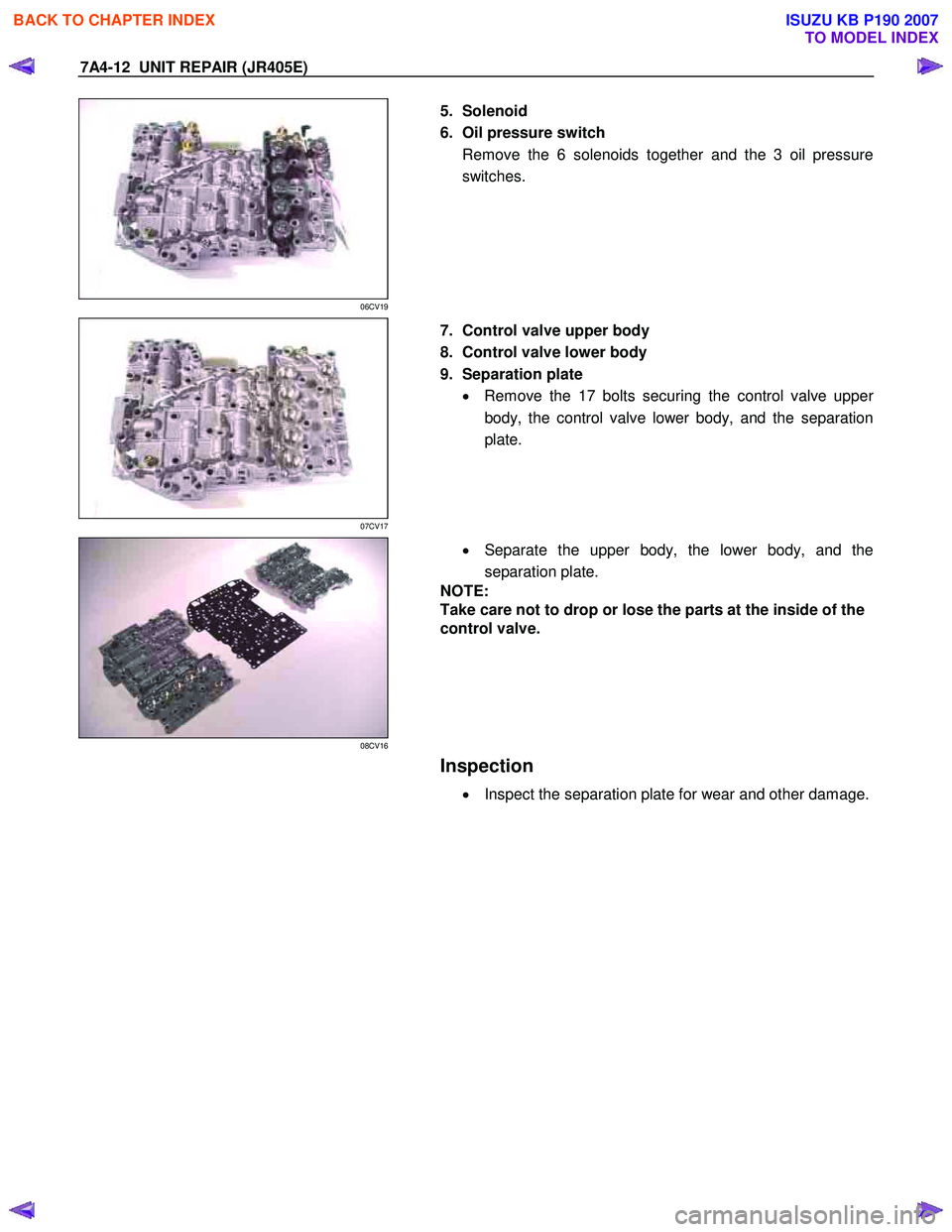

ISUZU KB P190 2007 Workshop Repair Manual 7A4-12 UNIT REPAIR (JR405E) 06CV19 5. Solenoid 6. Oil pressure switch Remove the 6 solenoids together and the 3 oil pressure switches. 07CV17 7. Control valve upper body 8.

Page 4490 of 6020

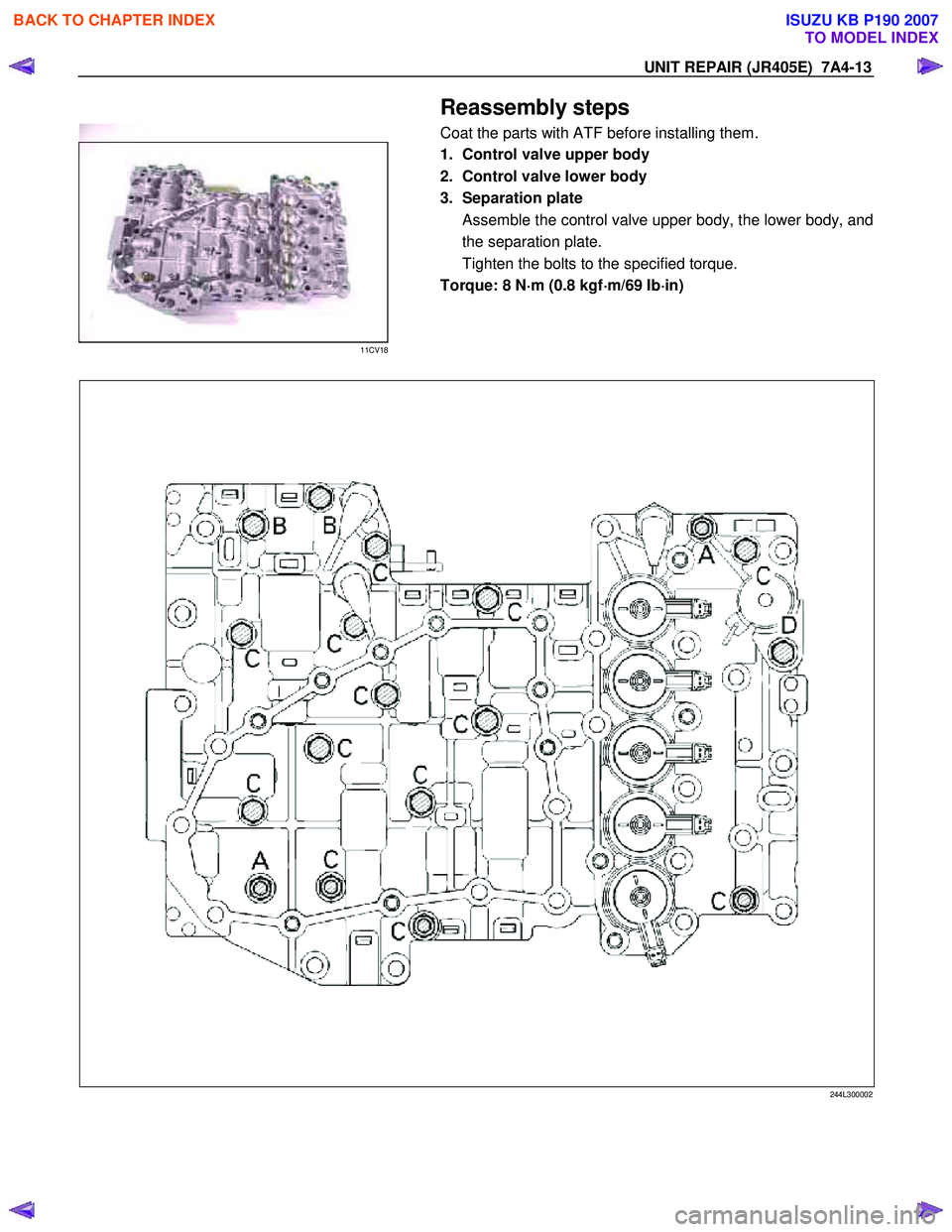

ISUZU KB P190 2007 Workshop Repair Manual UNIT REPAIR (JR405E) 7A4-13 Reassembly steps Coat the parts with ATF before installing them. 11CV18 1. Control valve upper body 2. Control valve lower body 3. Separation plate Asse

Page 4491 of 6020

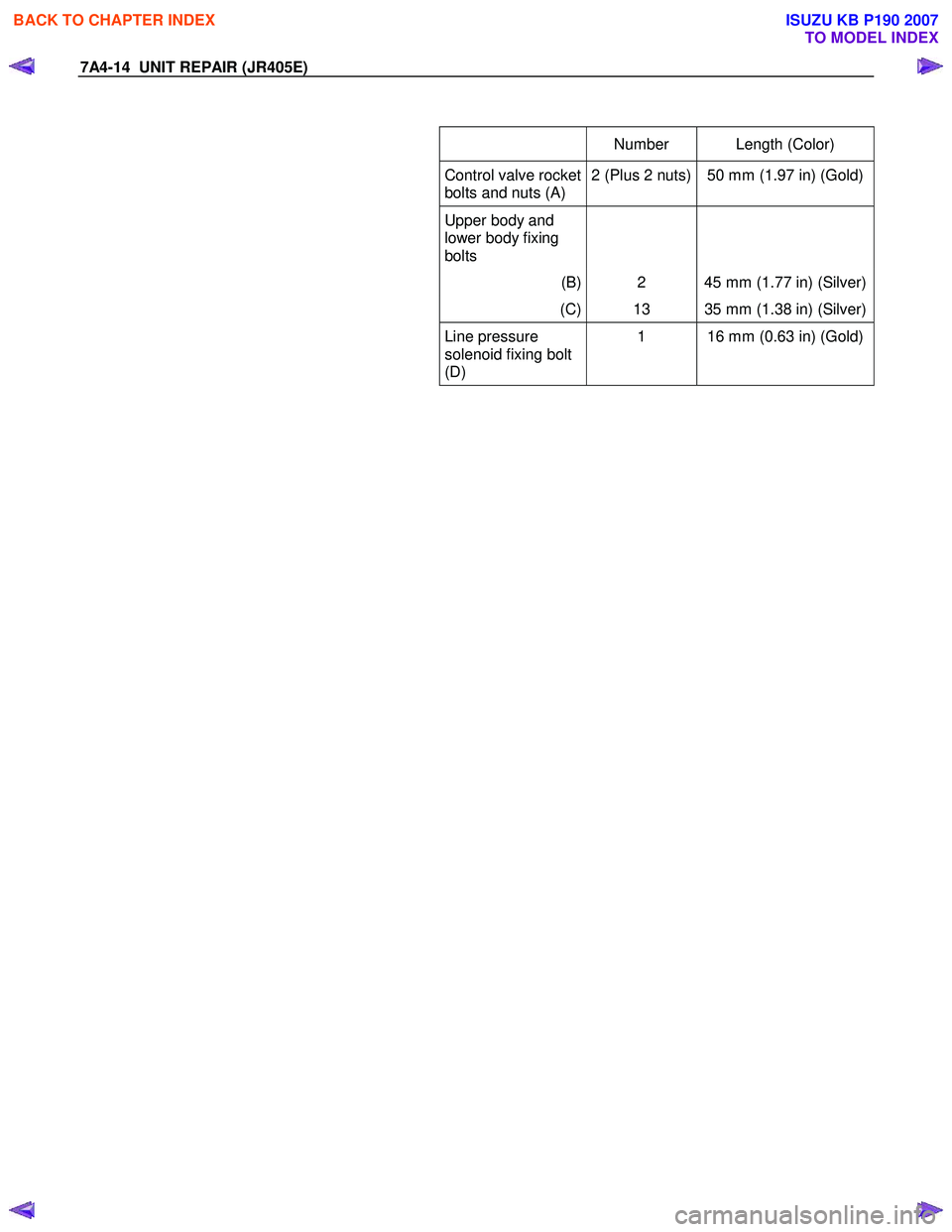

ISUZU KB P190 2007 Workshop Repair Manual 7A4-14 UNIT REPAIR (JR405E) Number Length (Color) Control valve rocket bolts and nuts (A) 2 (Plus 2 nuts) 50 mm (1.97 in) (Gold) Upper body and lower body fixing bolts (B) 2 45 mm (1

Page 4492 of 6020

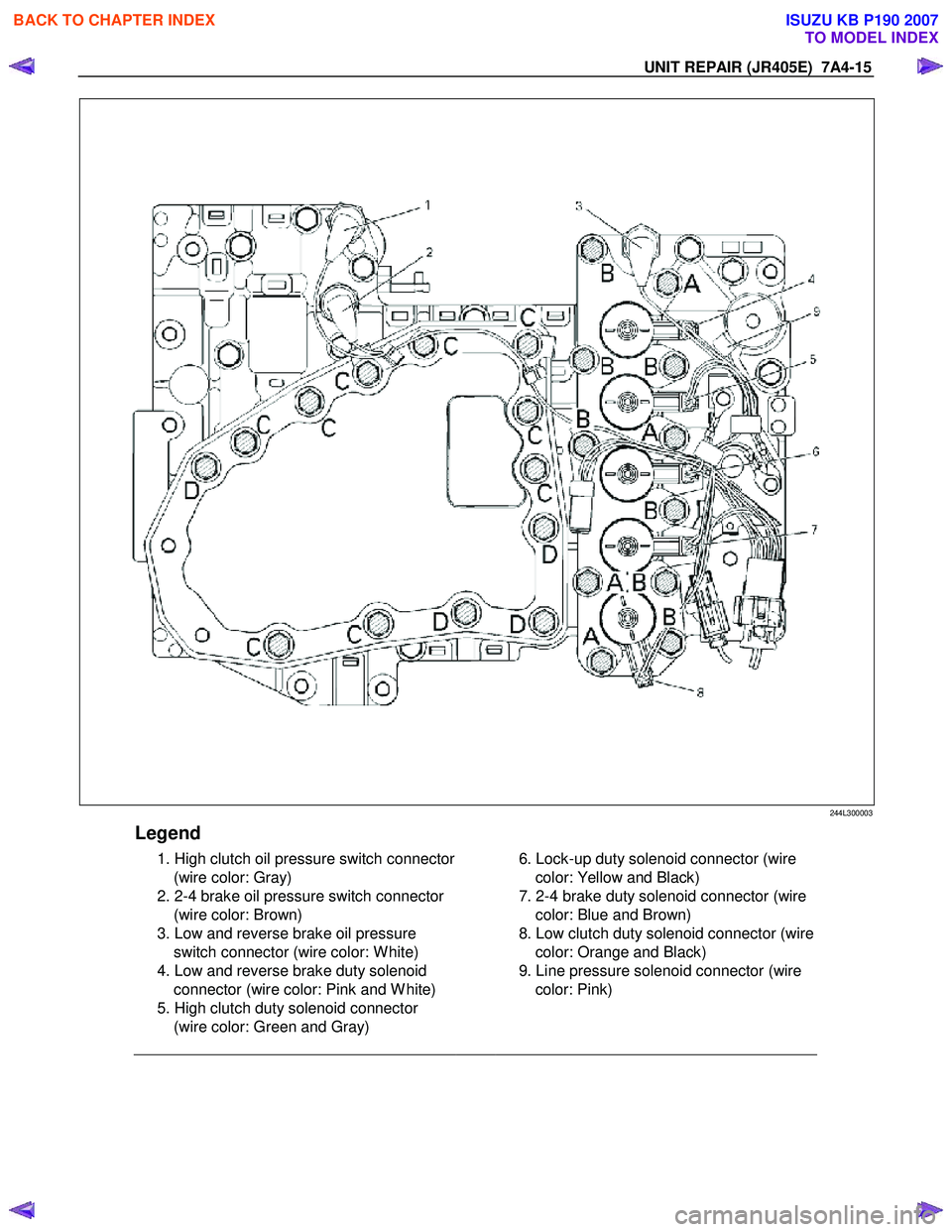

ISUZU KB P190 2007 Workshop Repair Manual UNIT REPAIR (JR405E) 7A4-15 244L300003 Legend 1. High clutch oil pressure switch connector (wire color: Gray) 2. 2-4 brake oil pressure switch connector (wire color: Brown) 3. Low and re

Page 4493 of 6020

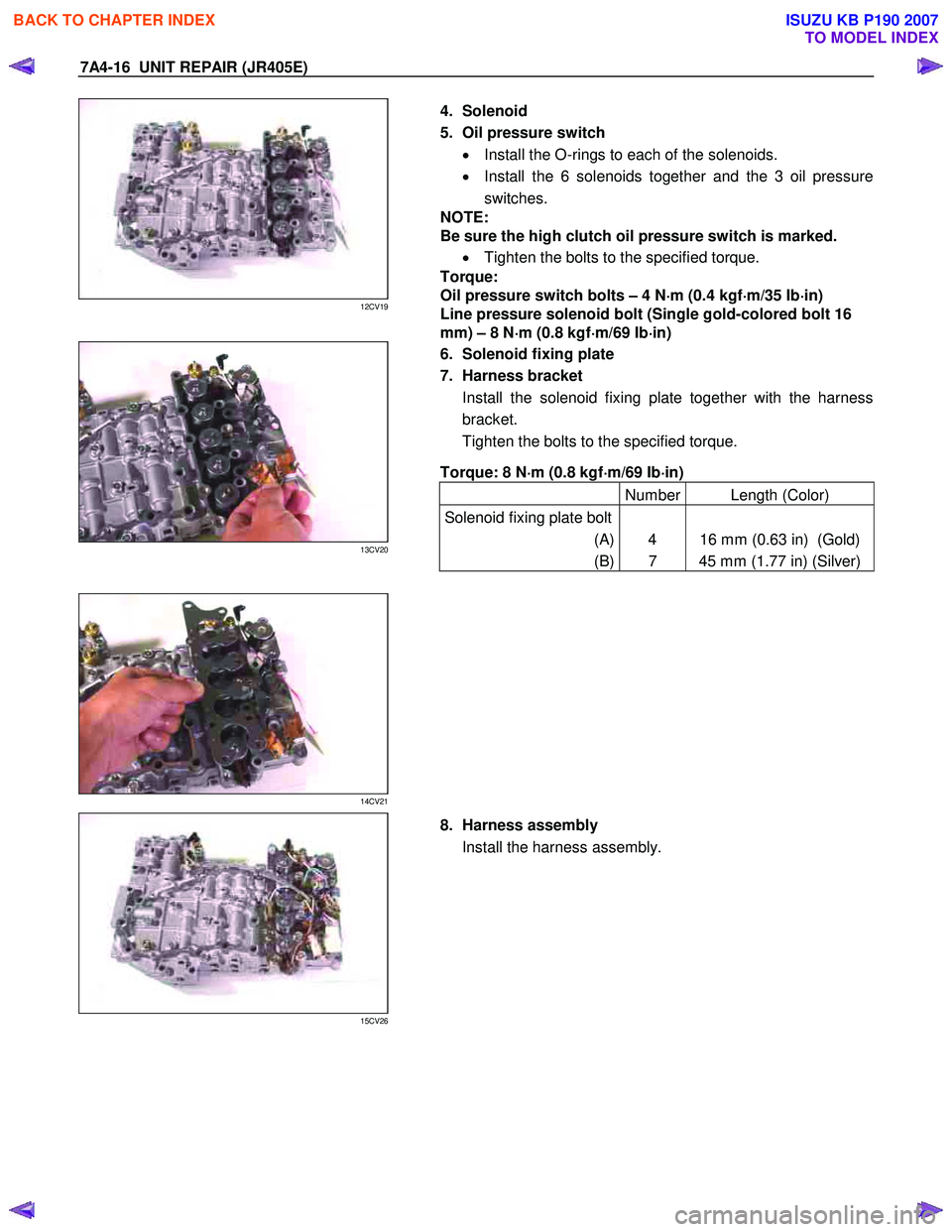

ISUZU KB P190 2007 Workshop Repair Manual 7A4-16 UNIT REPAIR (JR405E) 12CV19 4. Solenoid 5. Oil pressure switch • Install the O-rings to each of the solenoids. • Install the 6 solenoids together and the 3 oil pressure sw

Page 4494 of 6020

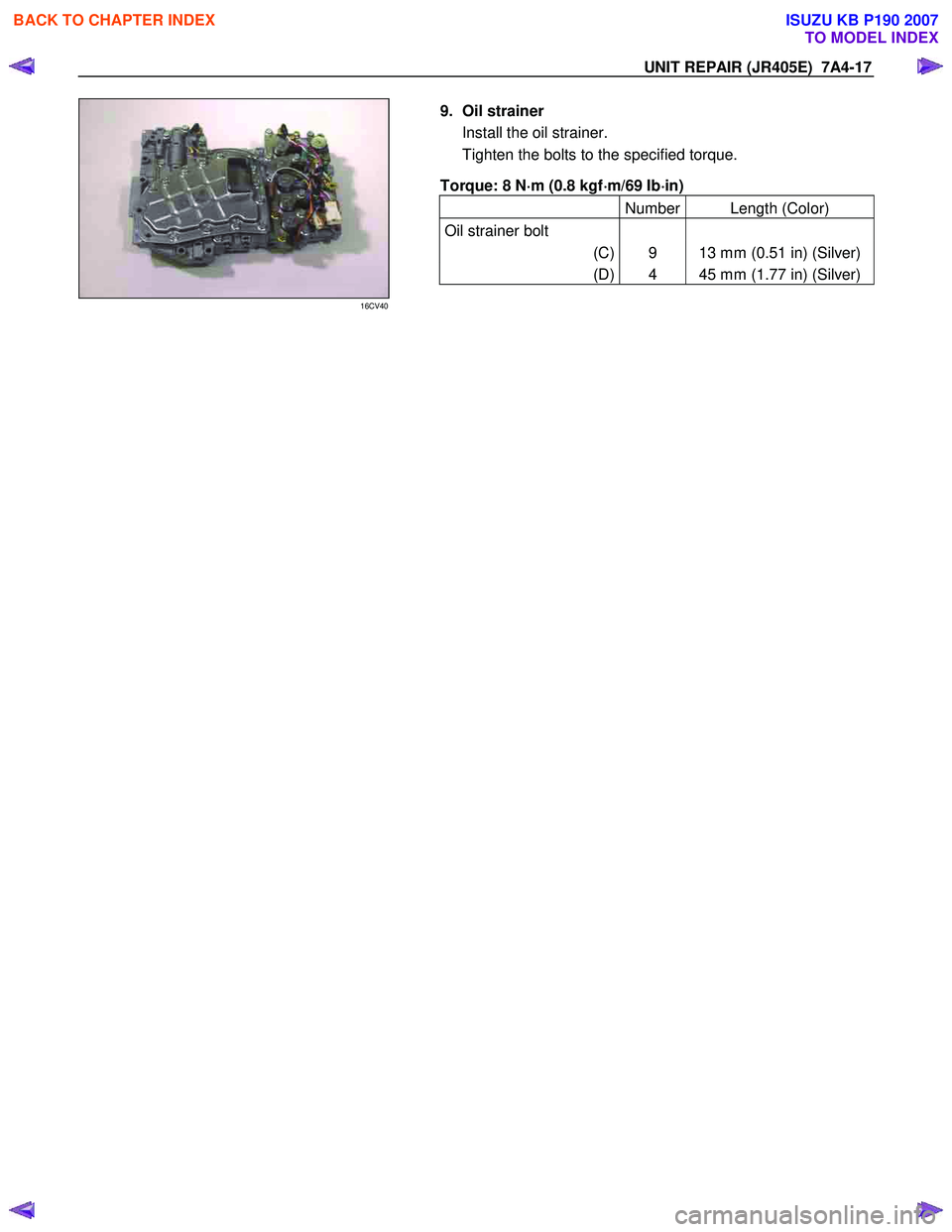

ISUZU KB P190 2007 Workshop Repair Manual UNIT REPAIR (JR405E) 7A4-17 9. Oil strainer Install the oil strainer. Tighten the bolts to the specified torque. Torque: 8 N ⋅ ⋅⋅ ⋅ m (0.8 kgf ⋅ ⋅⋅ ⋅ m/69 Ib ⋅ ⋅⋅ ⋅ in)

Page 4495 of 6020

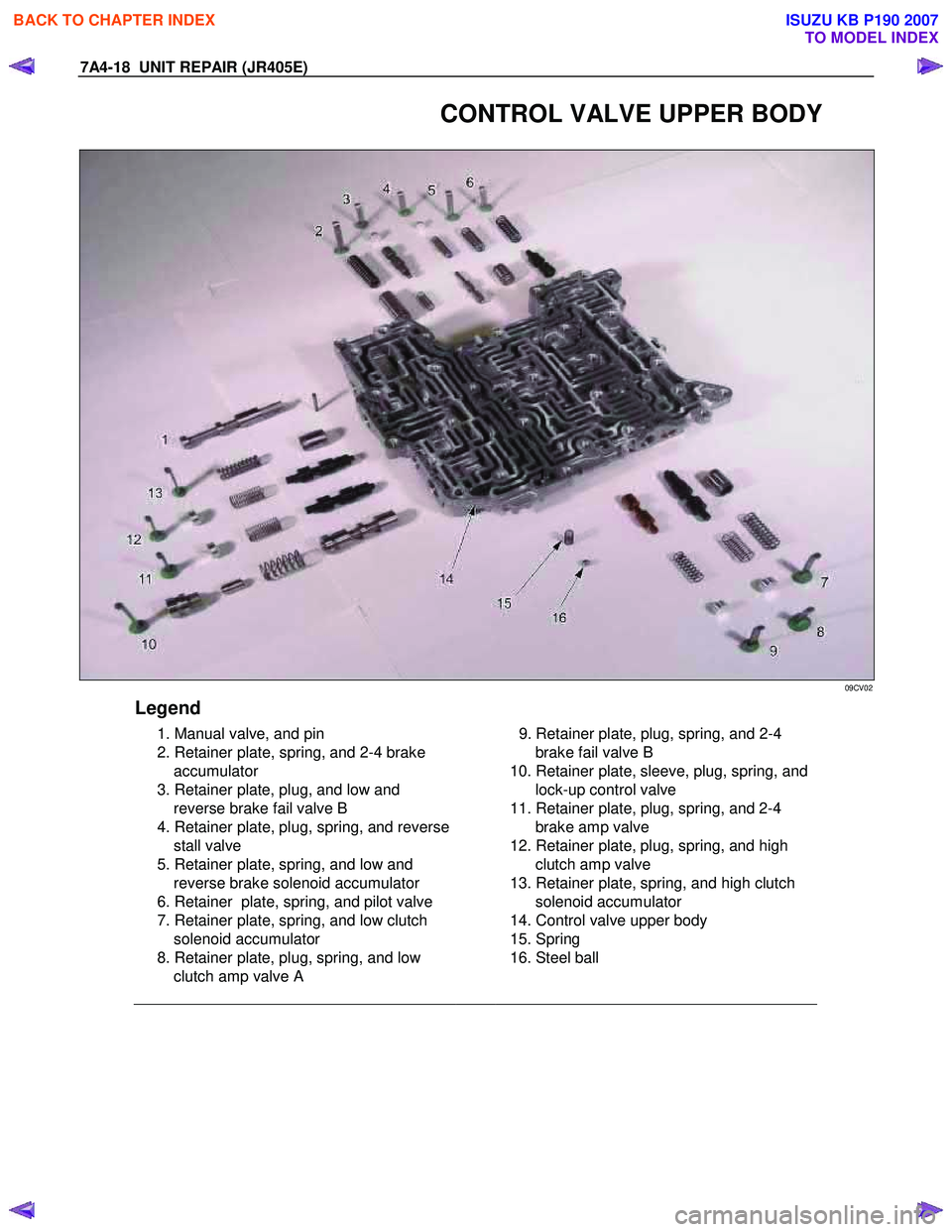

ISUZU KB P190 2007 Workshop Repair Manual 7A4-18 UNIT REPAIR (JR405E) CONTROL VALVE UPPER BODY 09CV02 Legend 1. Manual valve, and pin 2. Retainer plate, spring, and 2-4 brake accumulator 3. Retainer plate, plug, and low an

Page 4496 of 6020

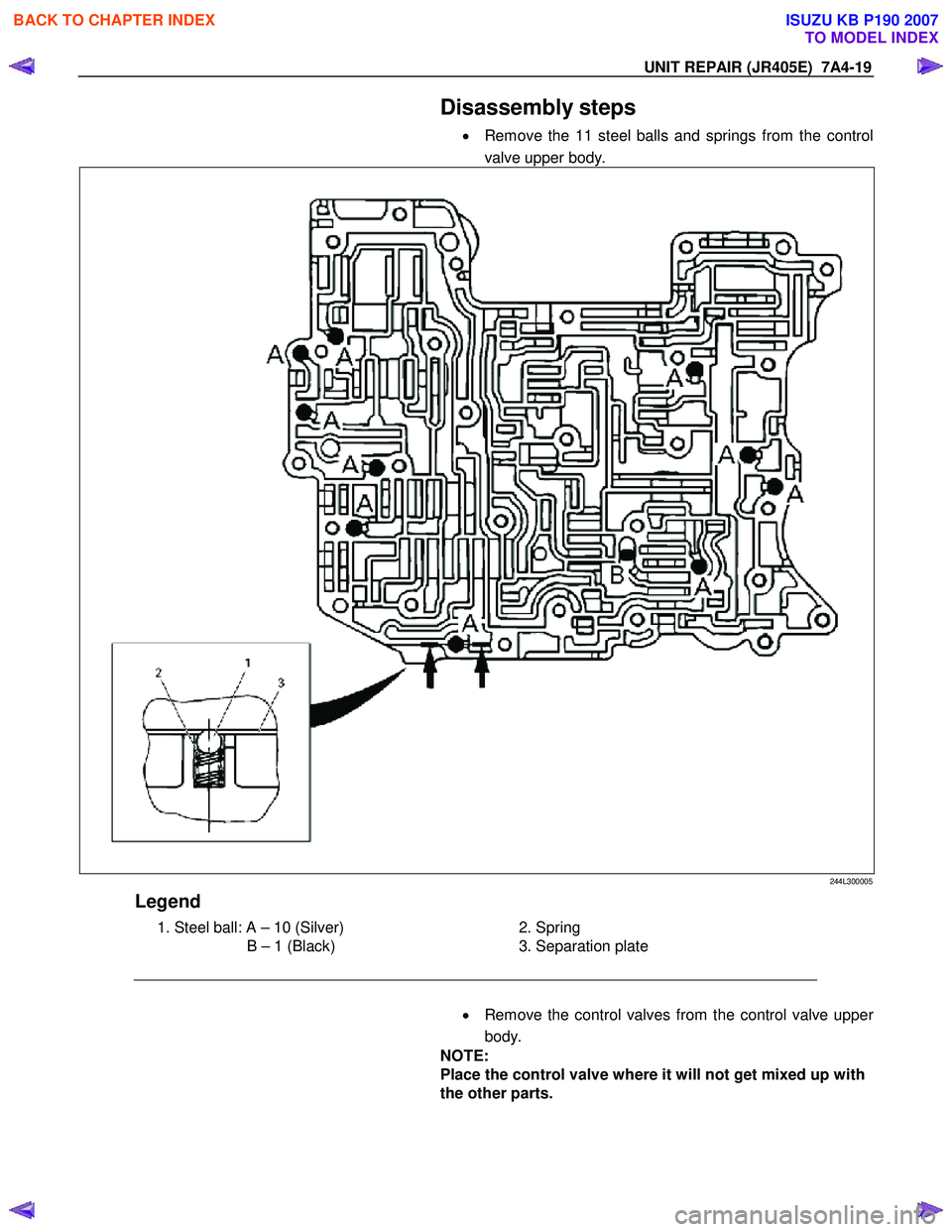

ISUZU KB P190 2007 Workshop Repair Manual UNIT REPAIR (JR405E) 7A4-19 Disassembly steps • Remove the 11 steel balls and springs from the control valve upper body. 244L300005 Legend 1. Steel ball: A – 10 (Silver) B – 1 (Bla
