Page 2177 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–7 COMPONENT LOCATORt 1 2 4 3 (1) (2) Air Cleaner Idle Air Control (IAC) Valve (3) (4) Engine Coolant Temperature (ECT) Sensor Engine Control Module (ECM) 3

Page 2178 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E–8 ENGINE DRIVEABILITY AND EMISSIONS 1234 (1) (2) Injector #1 Cylinder Injector #2 Cylinder (3) (4) Injector #3 Cylinder Injector #4 Cylinder (Under the ECM) (1) Ignition Coil Module Assembly (1

Page 2179 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–9 (1) Crankshaft Position (CKP) Sensor(1) Knock Sensor (KS) (1) (2) Engine Coolant Temperature (ECT) Sensor Thermo Meter Sensor 21 (1) Manifold Absolute Pressur

Page 2180 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E–10 ENGINE DRIVEABILITY AND EMISSIONS (1) Canister(1) (2) Fuel Tank Fuel Pump 2 1 (1) (2) Vehicle Speed Sensor (VSS) Transmission Assembly 12 (1) (2) Power Steering Pressure Switch Power Steering

Page 2181 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–11 ECM Circuit Diagram (1/2) BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 2182 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E–12 ENGINE DRIVEABILITY AND EMISSIONS ECM Circuit Diagram (2/2) BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

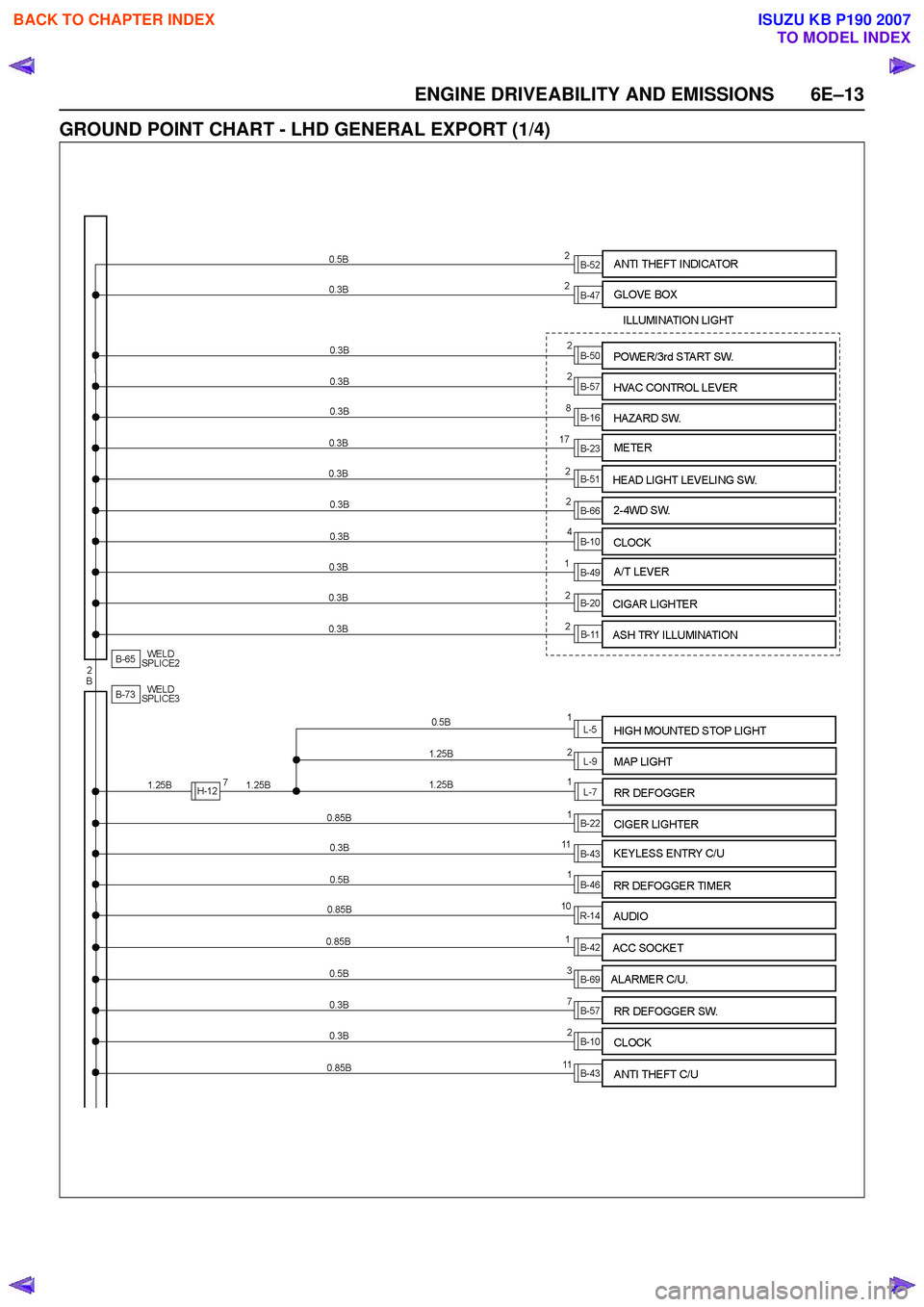

Page 2183 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–13 GROUND POINT CHART - LHD GENERAL EXPORT (1/4) BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

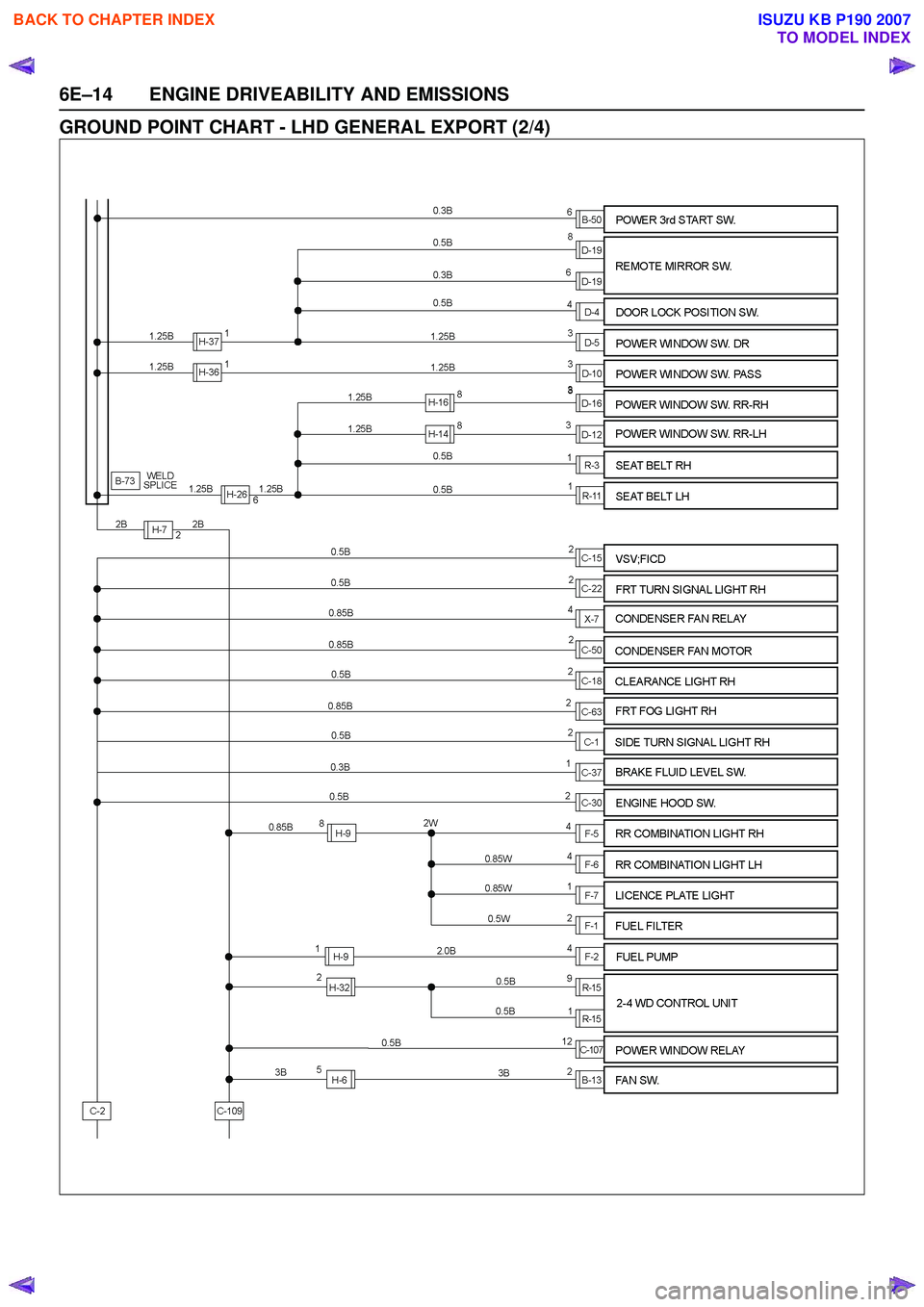

Page 2184 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E–14 ENGINE DRIVEABILITY AND EMISSIONS GROUND POINT CHART - LHD GENERAL EXPORT (2/4) BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007
