2007 ISUZU KB P190 Workshop Repair Manual

maintenance schedule reset instrument cluster air conditioning turn signal bulb fuel pump

Load previous 8 pages

Page 3145 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Cooling – V6 Engine Page 6B1–10

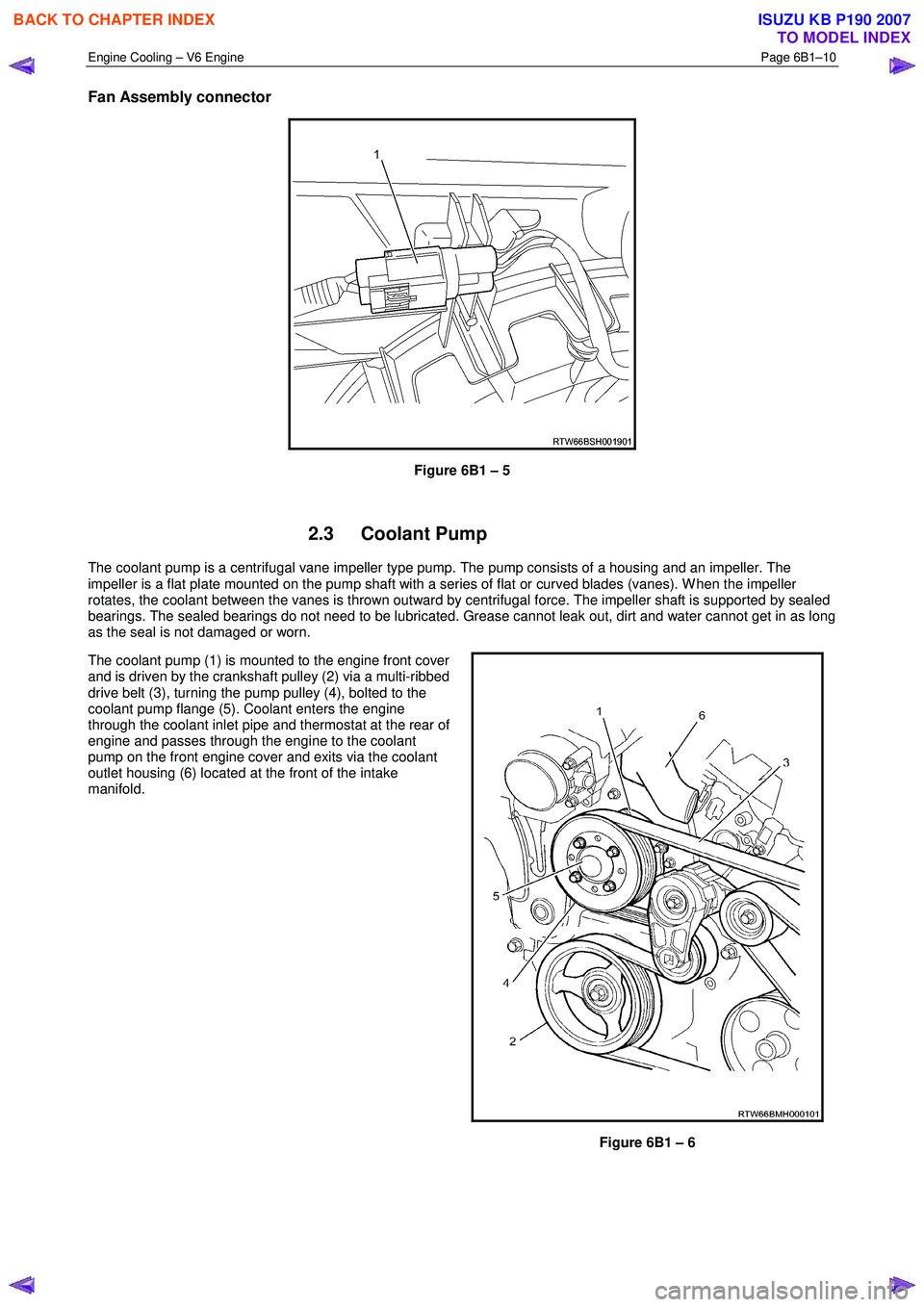

Fan Assembly connector

Figure 6B1 – 5

2.3 Coolant Pump
The coolant pump is a centrifugal vane impeller type pump. The pump consists of a housing

Page 3146 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Cooling – V6 Engine Page 6B1–11

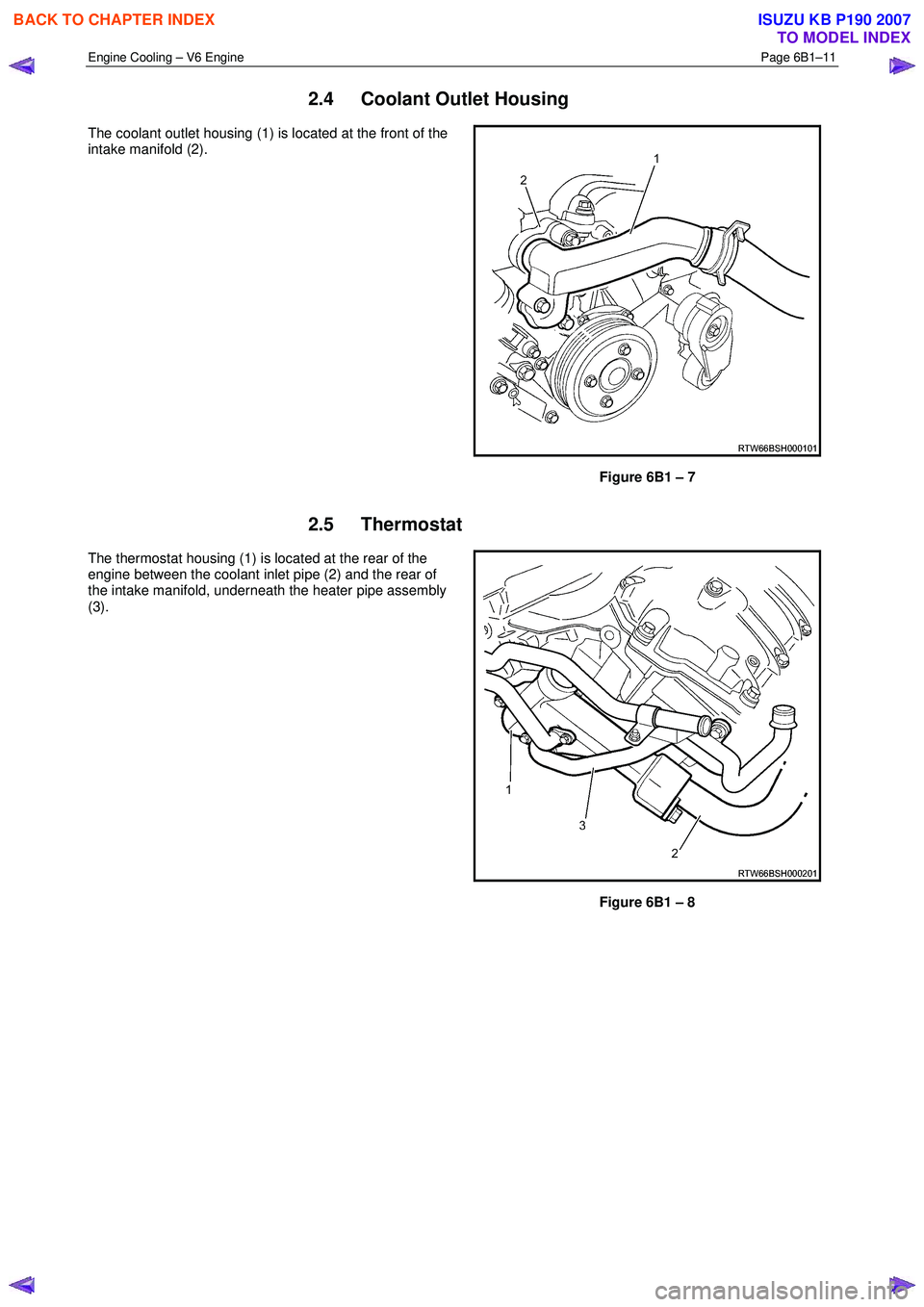

2.4 Coolant Outlet Housing
The coolant outlet housing (1) is located at the front of the
intake manifold (2).

Figure 6B1 – 7
2.5 Thermostat

Page 3147 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Cooling – V6 Engine Page 6B1–12

Figure 6B1 – 9
Legend
1 Bypass Valve
2 Thermostat Retaining Bar
3 Thermostat Assembly Retaining Lugs
4 Wax Pellet 5 Air Bleed Valve
6 Pi

Page 3148 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Cooling – V6 Engine Page 6B1–13

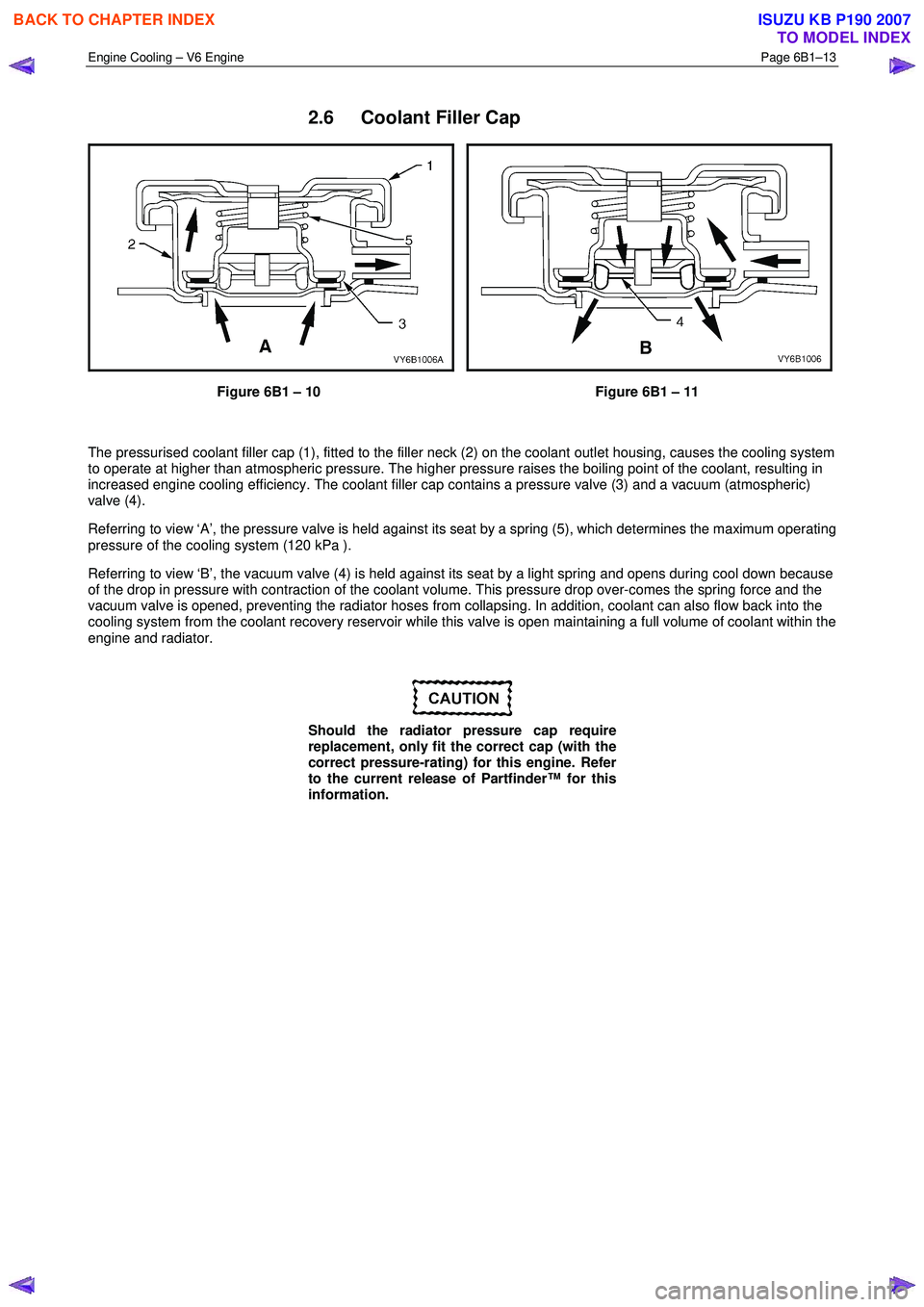

2.6 Coolant Filler Cap
Figure 6B1 – 10 Figure 6B1 – 11

The pressurised coolant filler cap (1), fitted to the filler neck (2) on the coolant outl

Page 3149 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Cooling – V6 Engine Page 6B1–14

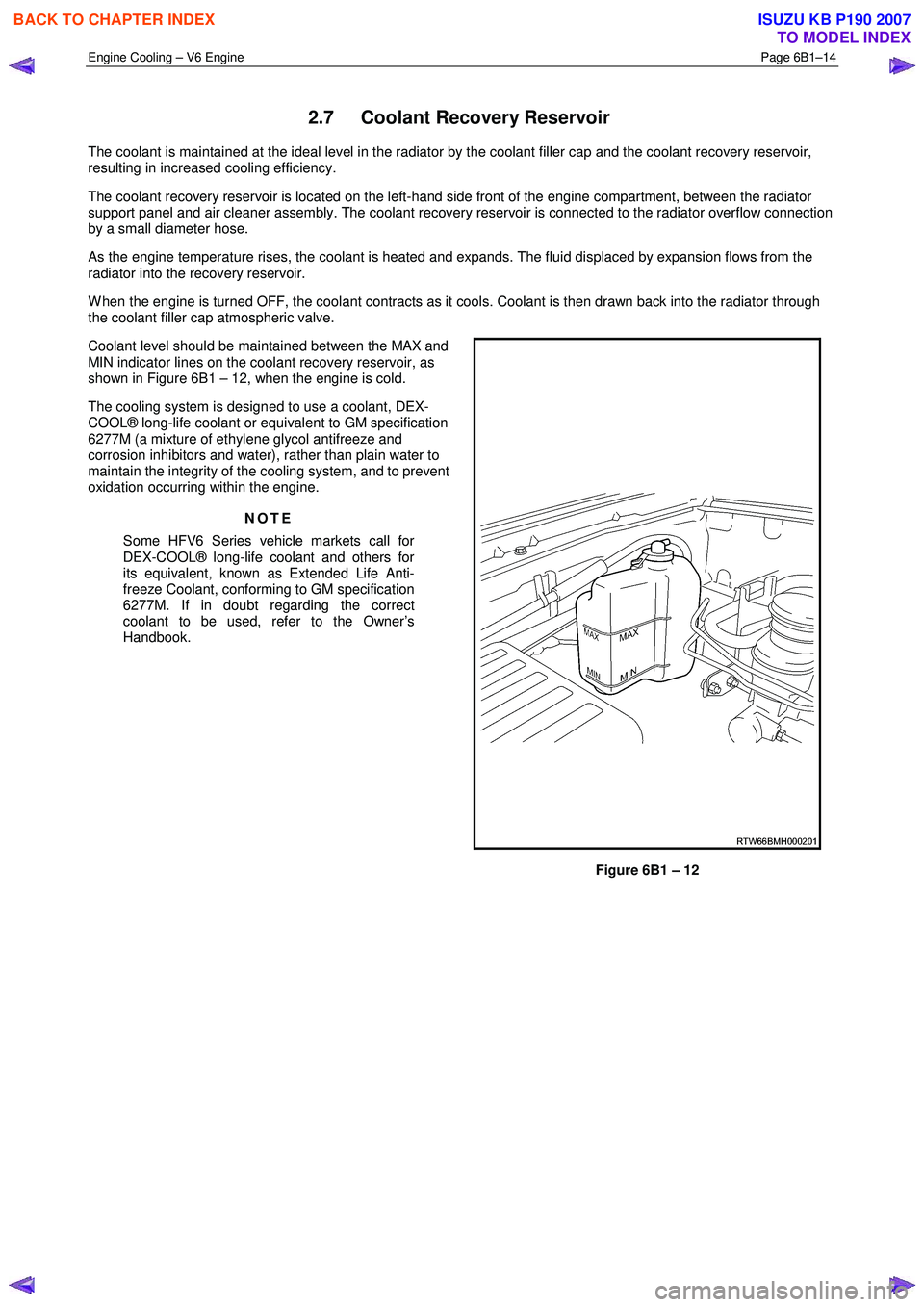

2.7 Coolant Recovery Reservoir
The coolant is maintained at the ideal level in the radiator by the coolant filler cap and the coolant recovery reservoi

Page 3150 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Cooling – V6 Engine Page 6B1–15

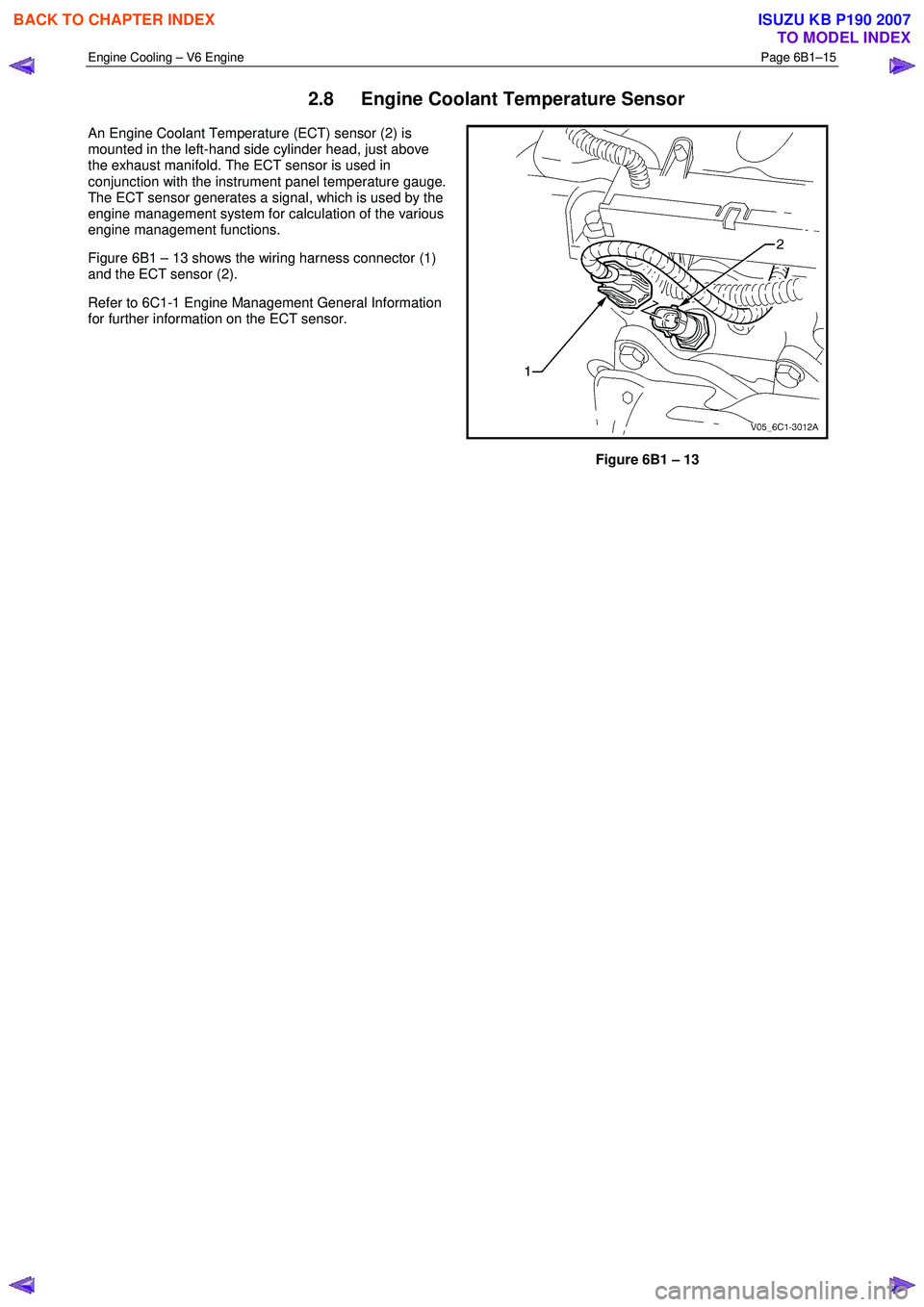

2.8 Engine Coolant Temperature Sensor
An Engine Coolant Temperature (ECT) sensor (2) is
mounted in the left-hand side cylinder head, just above
the

Page 3151 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Cooling – V6 Engine Page 6B1–16

3 Service Operations
3.1 Service Notes
Safety

• To avoid serious personal injury, never
remove the coolant filler pressure cap on
the coolant

Engine Cooling – V6 Engine Page 6B1–16

3 Service Operations
3.1 Service Notes
Safety

• To avoid serious personal injury, never
remove the coolant filler pressure cap on
the coolant outlet housing when the
engine is hot, even if the cooling system
should require filling. Sudden release of
cooling system pressure is very
dangerous.
• The vehicle is fitted with an electric
radiator cooling fan. When working around
the engine compartment, keep clear of the
fan as it may start without warning.
Before removing the coolant filler cap, allow the engine to cool, then place a shop rag over the coolant filler cap and then
slowly turn the cap anticlockwise, approximately 1½ turns, until the pressure relief position is reached. The pressure
relief position will allow any remaining pressure within the system to escape into the coolant recovery reservoir. Continue
to rotate the cap anticlockwise until the cap can be safely removed.
Periodic Servicing
The cooling system requires little attention except for maintaining the coolant to the correct level in the recovery reservoir
and periodic servicing at the time or distance intervals as outlined in 0B Lubrication and Service.
Periodic servicing includes:
1 Checking coolant level. Refer to 3.3 Draining and Filling Cooling System in this Section.
2 Checking coolant concentration. Refer to 3.2 Coolant Maintenance – Testing Coolant Concentration in this Section.
3 Pressure test cooling system and coolant filler cap. Refer to 3.7 Pressure Testing in this Section.
4 Tighten hose clamps and inspect all hoses. Refer to 3.6 Coolant Hoses in this Section. Replace hoses if swollen or deteriorated.

Always wear protective safety glasses when
working with spring type hose clamps. Failure
to do so could result in eye injury.
5 Clean out cooling system, refer to 3.4 Cleaning Cooling System – Cooling System Flush, in this Section and refill. Refer to 3.3 Draining and Filling Cooling System in this Section.
Environmental Issues
To reduce environmental impact and maintenance cost, whenever the coolant is drained from any engine, the service
records are to be checked to determine when the coolant was last changed. If more than six months life is left before the
next coolant change, then the following procedure is to be followed:
1 W hen draining the coolant from the engine, use a clean container to hold at least 12 litres of coolant and ensure that the coolant is not contaminated in the draining process.
2 After repairs have been completed, refill the engine cooling system with the drained coolant.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 3152 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Cooling – V6 Engine Page 6B1–17

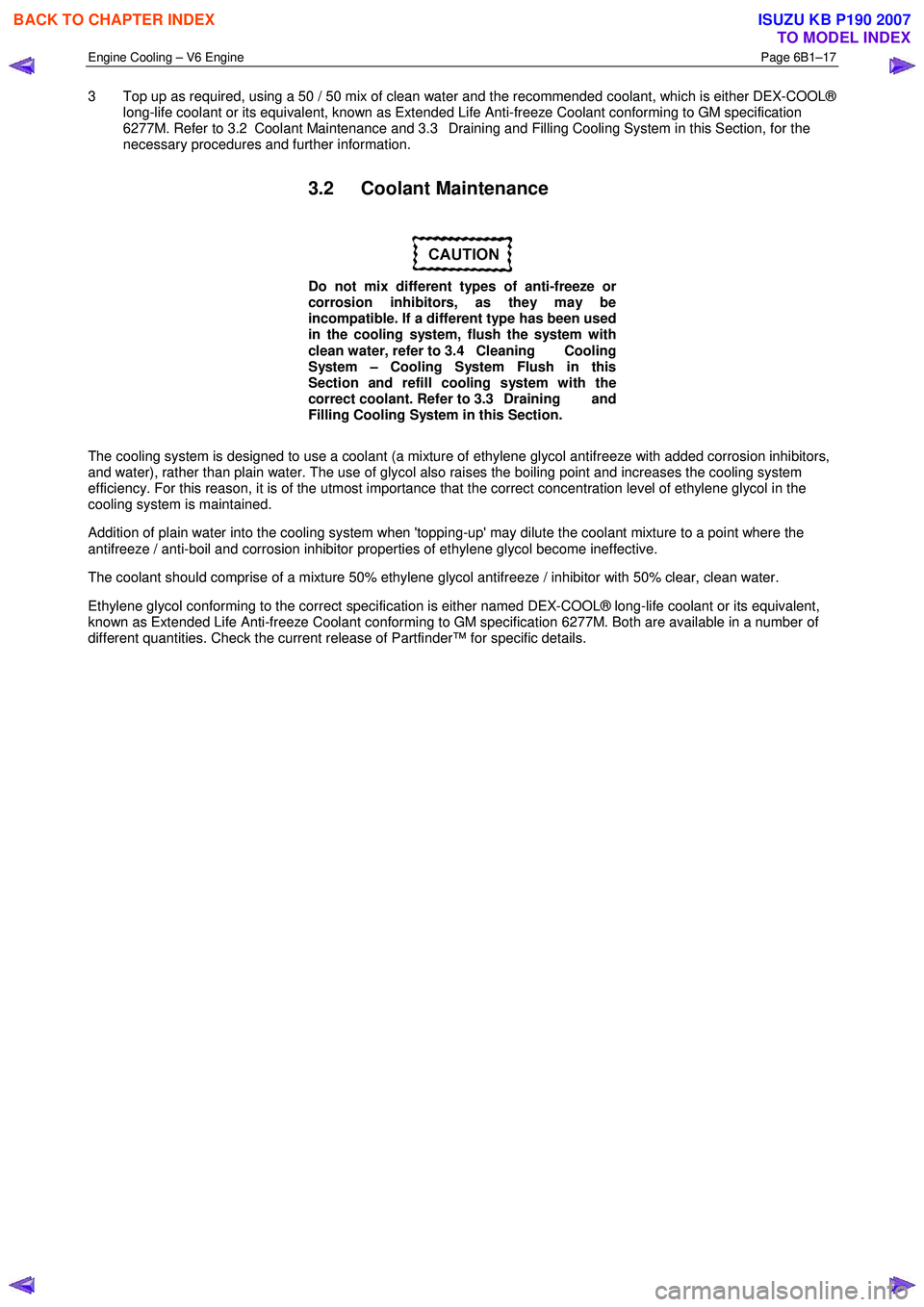

3 Top up as required, using a 50 / 50 mix of clean water and the recommended coolant, which is either DEX-COOL®
long-life coolant or its equivalent, k

Load next 8 pages
