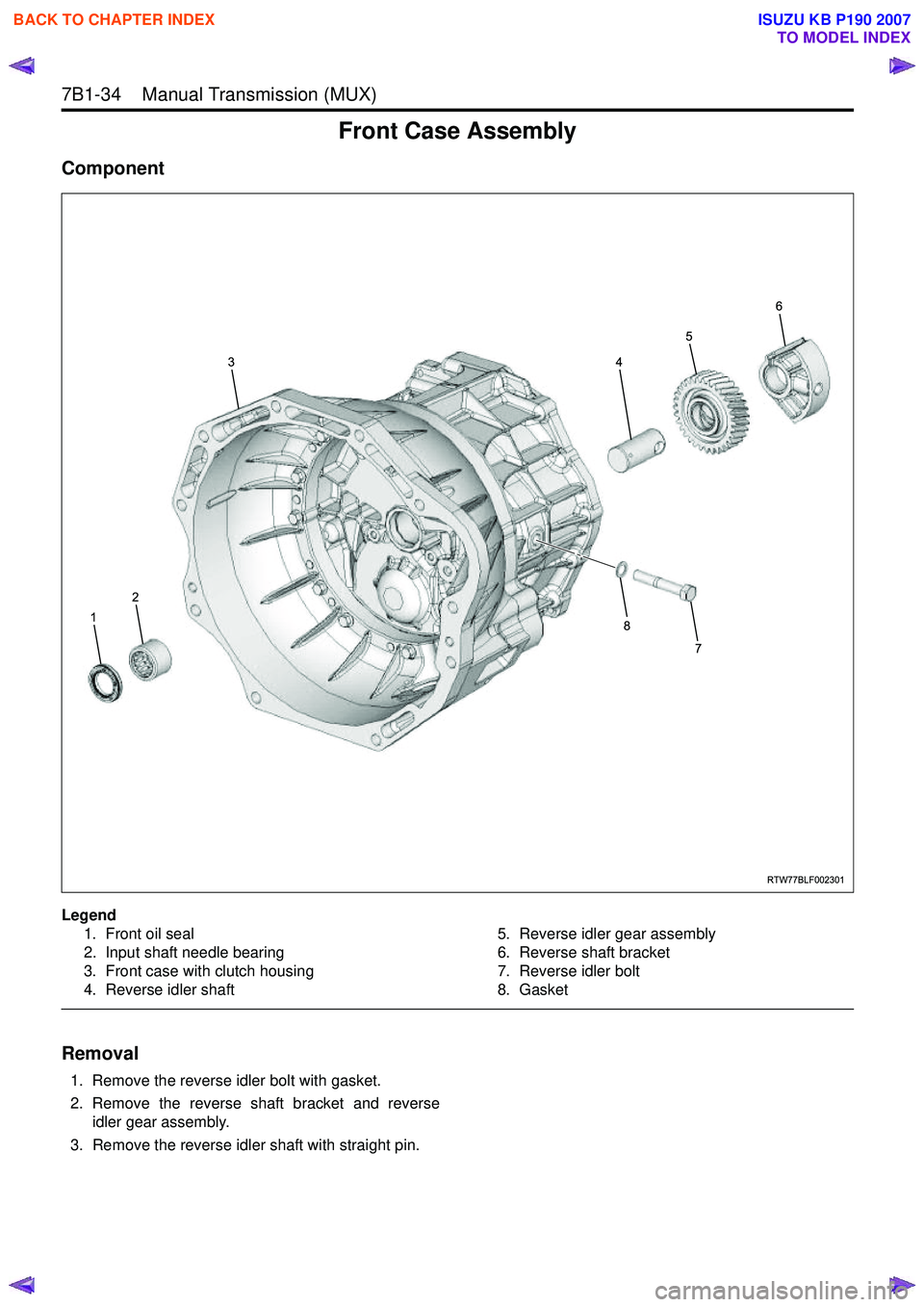

ISUZU KB P190 2007 Workshop Repair Manual 7B1-34 Manual Transmission (MUX) Front Case Assembly Component Legend1. Front oil seal 2. Input shaft needle bearing 3. Front case with clutch housing 4. Reverse idler shaft 5. Reverse idler gear

Page 4754 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Manual Transmission (MUX) 7B1-35 4. Use the installer 5-8840-0125-0 (2) and grip 5-8840-0007-0 (1) to remove the front oil seal and input shaft needle bearing from the front case, and discard the

Page 4755 of 6020

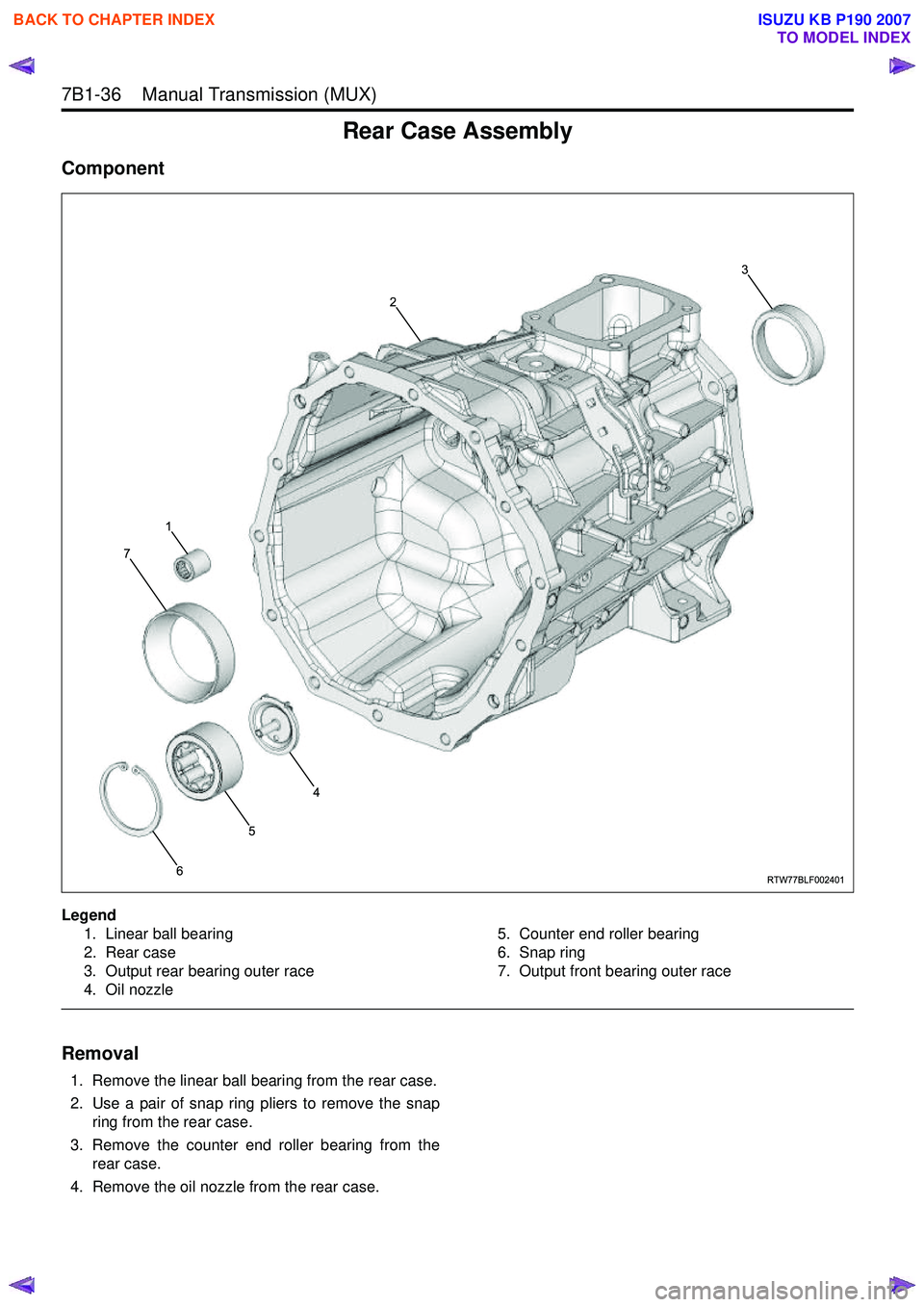

ISUZU KB P190 2007 Workshop Repair Manual 7B1-36 Manual Transmission (MUX) Rear Case Assembly Component Legend1. Linear ball bearing 2. Rear case 3. Output rear bearing outer race 4. Oil nozzle 5. Counter end roller bearing 6. Snap ring

Page 4756 of 6020

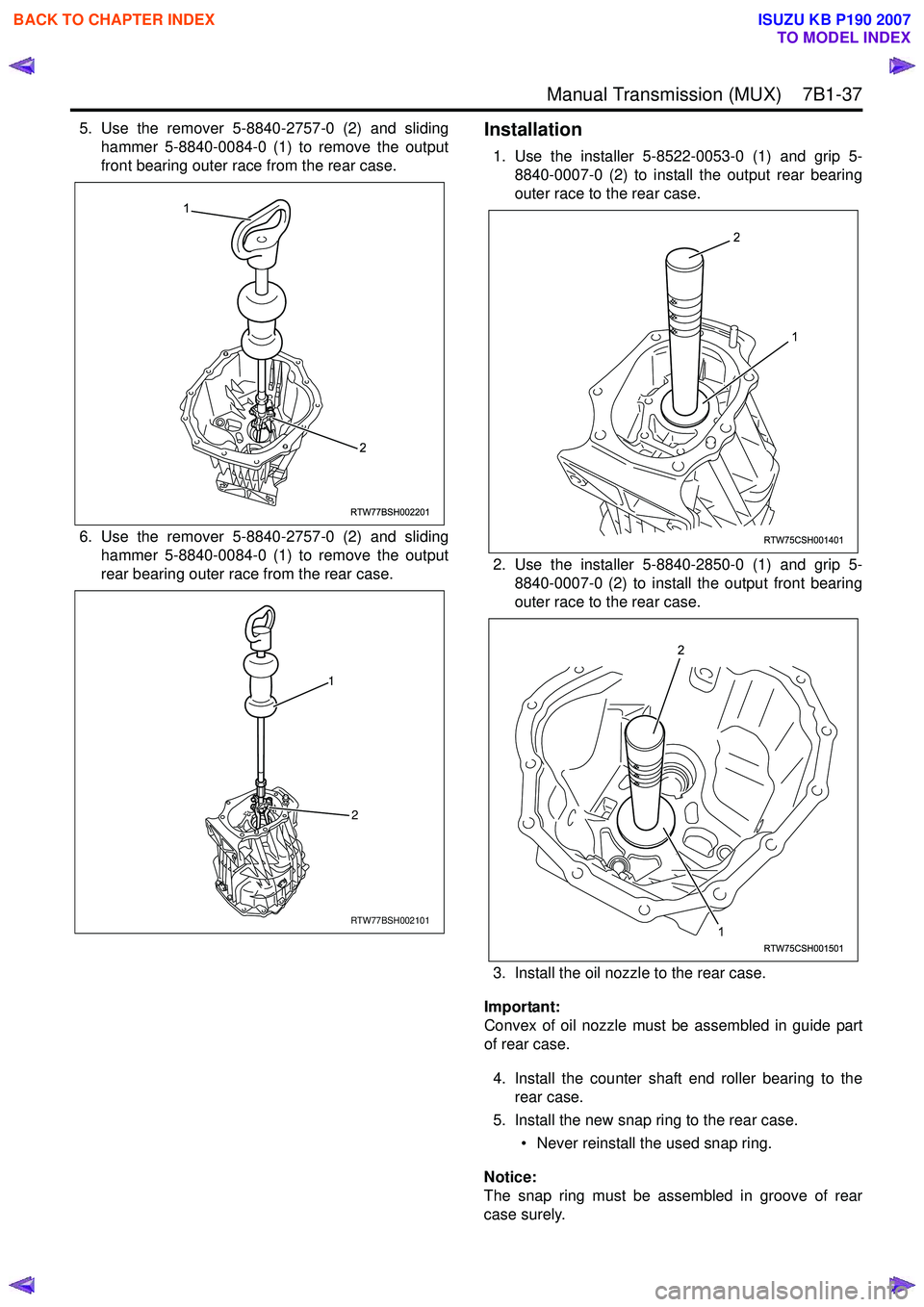

ISUZU KB P190 2007 Workshop Repair Manual Manual Transmission (MUX) 7B1-37 5. Use the remover 5-8840-2757-0 (2) and slidinghammer 5-8840-0084-0 (1) to remove the output front bearing outer race from the rear case. 6. Use the remover 5-88

Page 4757 of 6020

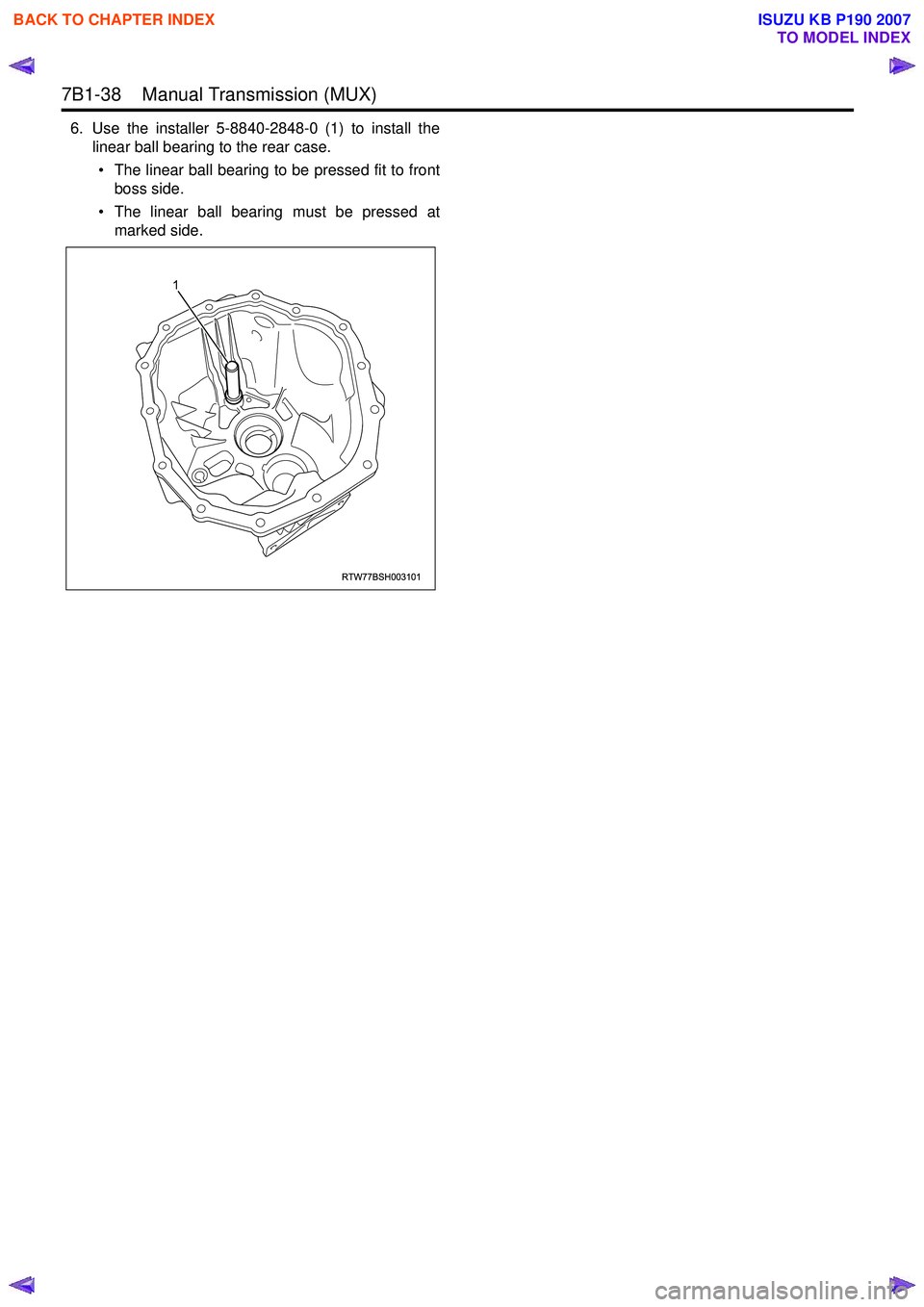

ISUZU KB P190 2007 Workshop Repair Manual 7B1-38 Manual Transmission (MUX) 6. Use the installer 5-8840-2848-0 (1) to install thelinear ball bearing to the rear case. • The linear ball bearing to be pressed fit to front boss side. • Th

Page 4758 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Manual Transmission (MUX) 7B1-39 End Cover Assembly Component Legend1. Rear oil seal (4x2 model) 2. End cover (4x2 model) 3. Rear oil seal (4x4 model) 4. End cover (4x4 modeel) Removal 1. Remov

Page 4759 of 6020

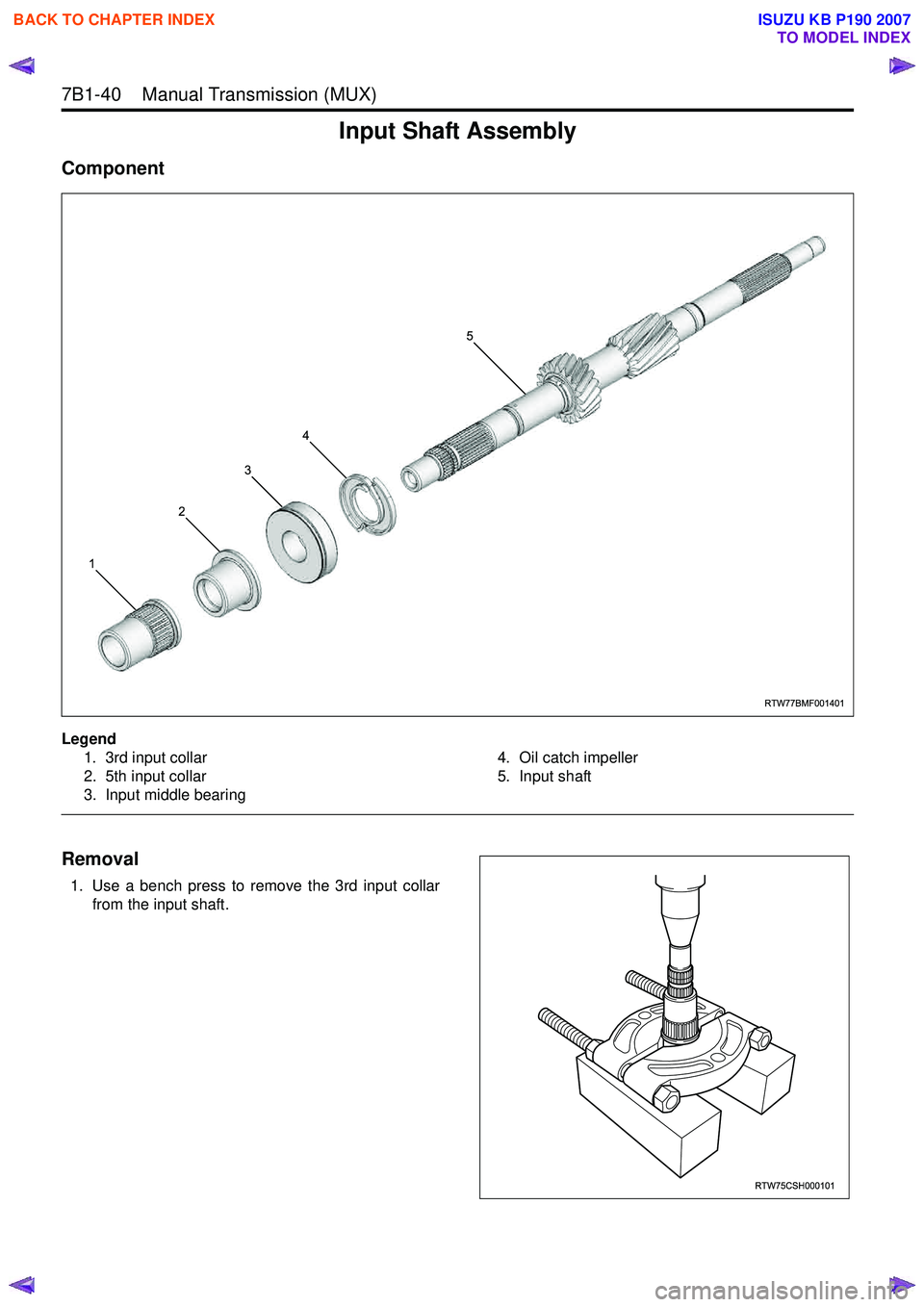

ISUZU KB P190 2007 Workshop Repair Manual 7B1-40 Manual Transmission (MUX) Input Shaft Assembly Component Legend1. 3rd input collar 2. 5th input collar 3. Input middle bearing 4. Oil catch impeller 5. Input shaft Removal 1. Use a bench

Page 4760 of 6020

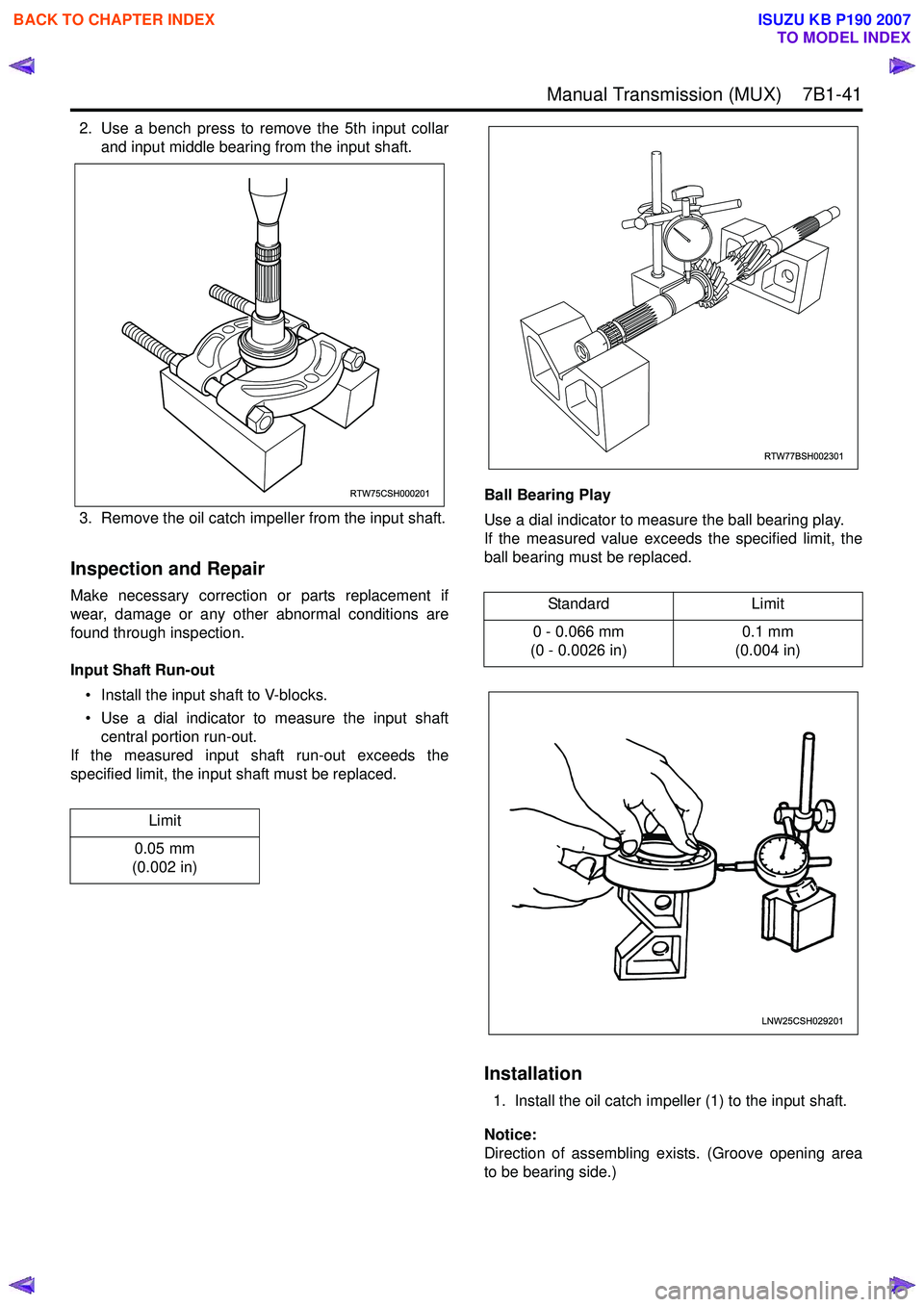

ISUZU KB P190 2007 Workshop Repair Manual Manual Transmission (MUX) 7B1-41 2. Use a bench press to remove the 5th input collarand input middle bearing from the input shaft. 3. Remove the oil catch impeller from the input shaft. Inspection
