2007 ISUZU KB P190 Harness

HEATER AND AIR CONDITIONING 1-45
COMPRESSOR
REMOVAL AND INSTALLATION (4JA1-T, 4JH1-TC)






852R300006
Removal Steps
1. Air duct
2. Magnetic clutch harness connector
3. Lock nut
4. Tension adjustment bolt
5. Drive belt
6. Refrigerant line
7. Bolt; compressor to bracket
8. Compressor assembly

Installation Steps
8. Compressor assembly
7. Bolt; compressor to bracket

6. Refrigerant line
5. Drive belt
4. Tension adjustment bolt
3. Lock nut
2. Magnetic clutch harness connector
1. Air duct


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

HEATER AND AIR CONDITIONING 1-47
REMOVAL AND INSTALLATION (4JJ1-TC Standard Output, 4JJ1-TC High Output, 4JK1-TC High Output)

RTW 510MF000201

Removal Steps
1. Magnetic clutch harness connector
2. Drive belt
3. Refrigerant line
4. Bolt; compressor to bracket
5. Compressor assembly

Installation Steps
5. Compressor assembly
▲ 4. Bolt; compressor to bracket
▲ 3. Refrigerant line
▲ 2. Drive belt
1. Magnetic clutch harness connector


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

HEATER AND AIR CONDITIONING 1-49

REMOVAL AND INSTALLATION (C24SE)



RTW 310MF000401

Removal Steps
1. Magnetic clutch harness connector
2. Drive belt
3. Refrigerant line
4. Bolt; compressor to bracket
5. Compressor assembly

Installation Steps
5. Compressor assembly
4. Bolt; compressor to bracket
3. Refrigerant line
2. Drive belt
1. Magnetic clutch harness connector


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

HEATER AND AIR CONDITIONING 1-95

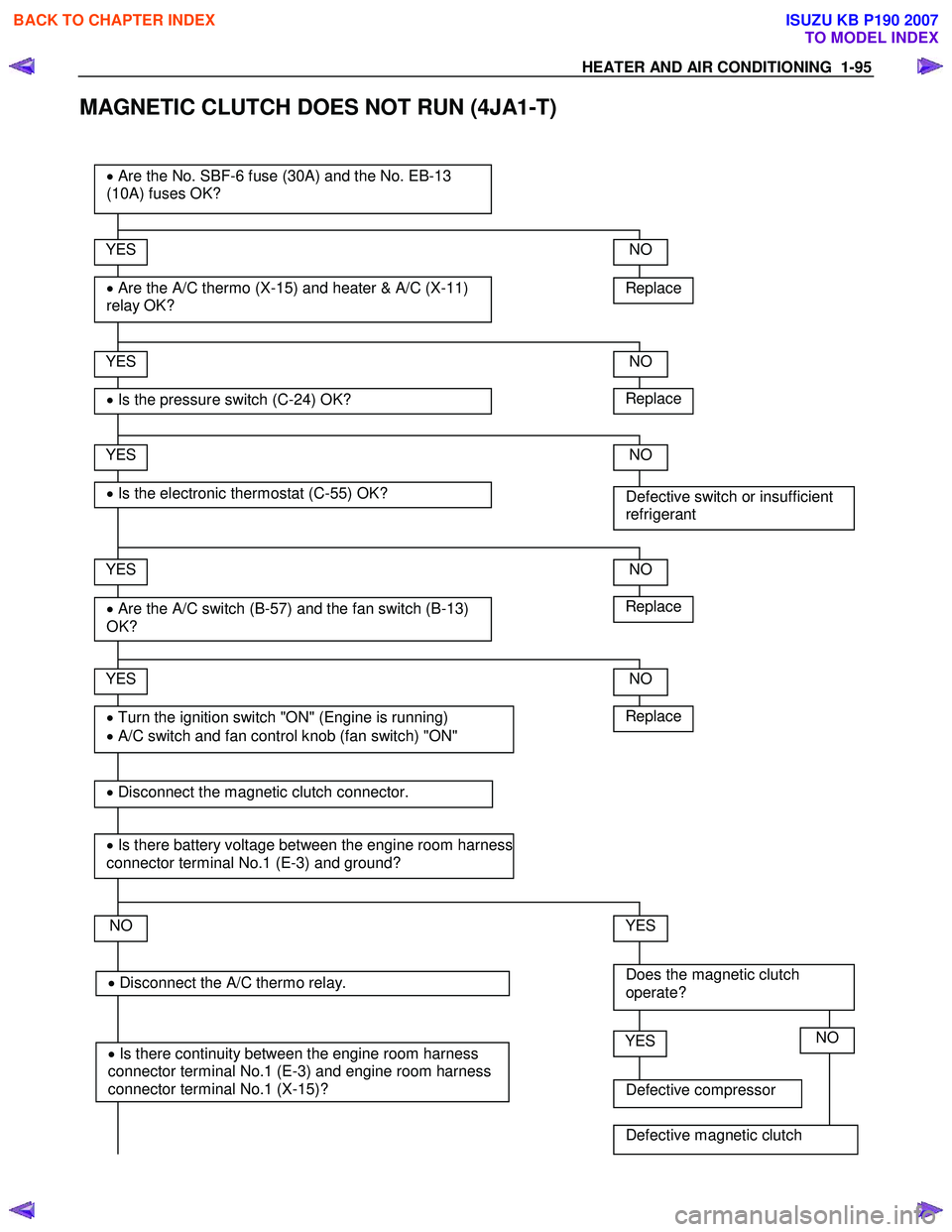

MAGNETIC CLUTCH DOES NOT RUN (4JA1-T)



Replace
YES
• Are the A/C thermo (X-15) and heater & A/C (X-11)
relay OK?
• Are the No. SBF-6 fuse (30A) and the No. EB-13
(10A) fuses OK?
YES
• Is the pressure switch (C-24) OK?
YES
• Are the A/C switch (B-57) and the fan switch (B-13)
OK?
NO
YES
• Turn the ignition switch "ON" (Engine is running)
• A/C switch and fan control knob (fan switch) "ON"
NO
Replace
NO
Defective switch or insufficient
refrigerant
NO
NO
Does the magnetic clutch
operate?
YES
Replace
• Disconnect the magnetic clutch connector.
• Is there battery voltage between the engine room harness
connector terminal No.1 (E-3) and ground?
Defective compressor
YESNO
Defective magnetic clutch
• Is the electronic thermostat (C-55) OK?
YES
Replace
NO
• Disconnect the A/C thermo relay.
• Is there continuity between the engine room harness
connector terminal No.1 (E-3) and engine room harness
connector terminal No.1 (X-15)?


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

1-96 HEATER AND AIR CONDITIONING




Open circuit between the engine room
harness connector terminal No.1 (X-
15).
NOYES
• Is there continuity between the engine room
harness connector terminal No.2 (X-15) and
ground?
YES
• Is there battery voltage between the engine room
harness connector terminal No.3 (X-15) and
ground? Open circuit between the engine room
harness connector terminal No. 2 (X-
15).
NO
YES
• Is there continuity between the engine room
harness connector terminal No. 5 (X-15) and the
engine room harness connector terminal No. 2 (C-
24)?
Open circuit between the No. EB-13
fuse and the engine room harness
connector terminal No. 3 (X-15).
NO
• Disconnect the pressure switch.
• Disconnect the condenser fan relay connector
condenser fan.
• Is there battery voltage between the engine room
harness connector terminal No.4 (C-24) and
ground? Open circuit between the condenser
fan relay No. 3 (X-13) and engine
room harness connector terminal No.3
(C-24).
• Is there continuity between the relay terminal
No.3 (X-13)and engine room harness connector
terminal No.3 (C-24)?
Open circuit between the engine room
harness connector terminal No. 5 (X-
15) and the engine room harness
connector terminal No. 2 (C-24).
YES NO
YES NO



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

HEATER AND AIR CONDITIONING 1-97



YES
Open circuit between the No. EB-13
fuse and engine room harness
connector terminal No. 4 (C-24).
NO
YES
• Is there battery voltage between the engine
room harness connector terminal No.3 (C-55)
and ground? Open circuit between the engine room
harness connector terminal No. 2 (C-
55) and the engine room harness
connector terminal No. 1 (C-24).
NO
YES
• Is there continuity between the engine room
harness connector terminal No.1 (C-55) and the
chassis side harness connector terminal No.5
(B-57) ? or (cooler only) the short connector
terminal No.3 (B-79) and the chassis side
harness connector terminal No.5 (B-57)? Open circuit between the No. EB-13
fuse and the engine room harness
connector terminal No. 3 (C-55).
NO
• connect the A/C thermo relay connector.
• Disconnect the electronic thermostat.
• Is there continuity between the engine room
harness connector terminal No. 2 (C-55) and the
engine room harness connector terminal No. 1
(C-24)?
Open circuit between the engine room
harness connector terminal No. 1 (C-
55) or (cooler only) the short
connector No. 3 (B-79) and the
chassis side harness connector
terminal No.5 (B-57). • Is there continuity between the engine room
harness connector (cooler only) terminal No. 4
(C-55) and the chassis side harness connector
terminal No. 11 (B-57)?
YES NO


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

1-98 HEATER AND AIR CONDITIONING


YES
• Disconnect the A/C switch.
• Is there battery voltage between the chassis side
harness connector terminal No. 6 (B-57) and ground (C-
109)?
Open circuit between the engine room
harness connector (cooler only) terminal
No. 4 (C-55) and the chassis side harness
connector terminal No. 11 (B-57).
NO YES
• Is there battery voltage between the chassis side
harness connector terminal No. 10 (B-57) and ground?
Open circuit between the chassis side
harness connector No. 1 (B-79) and the
chassis side harness connector terminal
No. 10 (B-57).
NO
YES
• Defective ECM Open circuit between the No. EB-13 fuse
and the chassis side harness connector
No. 6 (B-57).
NO




BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

1-100 HEATER AND AIR CONDITIONING
MAGNETIC CLUTCH DOES NOT RUN (4JH1-TC)



Replace
YES
• Are the A/C thermo (X-15) and heater & A/C (X-11)
and A/C compressor (X-14) relay OK?
• Are the No. SBF-6 fuse (30A) and the No. EB-13
(10A) fuses OK?
YES
• Is the pressure switch (C-24) OK?
YES
• Are the A/C switch (B-57) and the fan switch (B-13)
OK?
NO
YES
• Is there continuity between the engine harness
connector terminal No.1 (E-3) and the engine room
harness connector terminal No.2 (X-14)?
• Disconnect the A/C compressor relay.
• Turn the ignition switch "ON" (Engine is running)
• A/C switch and fan control knob (fan switch) "ON"
NO
Replace
NO
Defective switch or insufficient
refrigerant
NO
NO
Does the magnetic clutch
operate?
YES
Replace
• Disconnect the magnetic clutch connector.
• Is there battery voltage between the engine room harness
connector terminal No.1 (E-3) and ground?
Defective compressor
YESNO
Defective magnetic clutch
• Is the electronic thermostat (C-55) OK?
YES
Replace
NO
