Page 5137 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-199

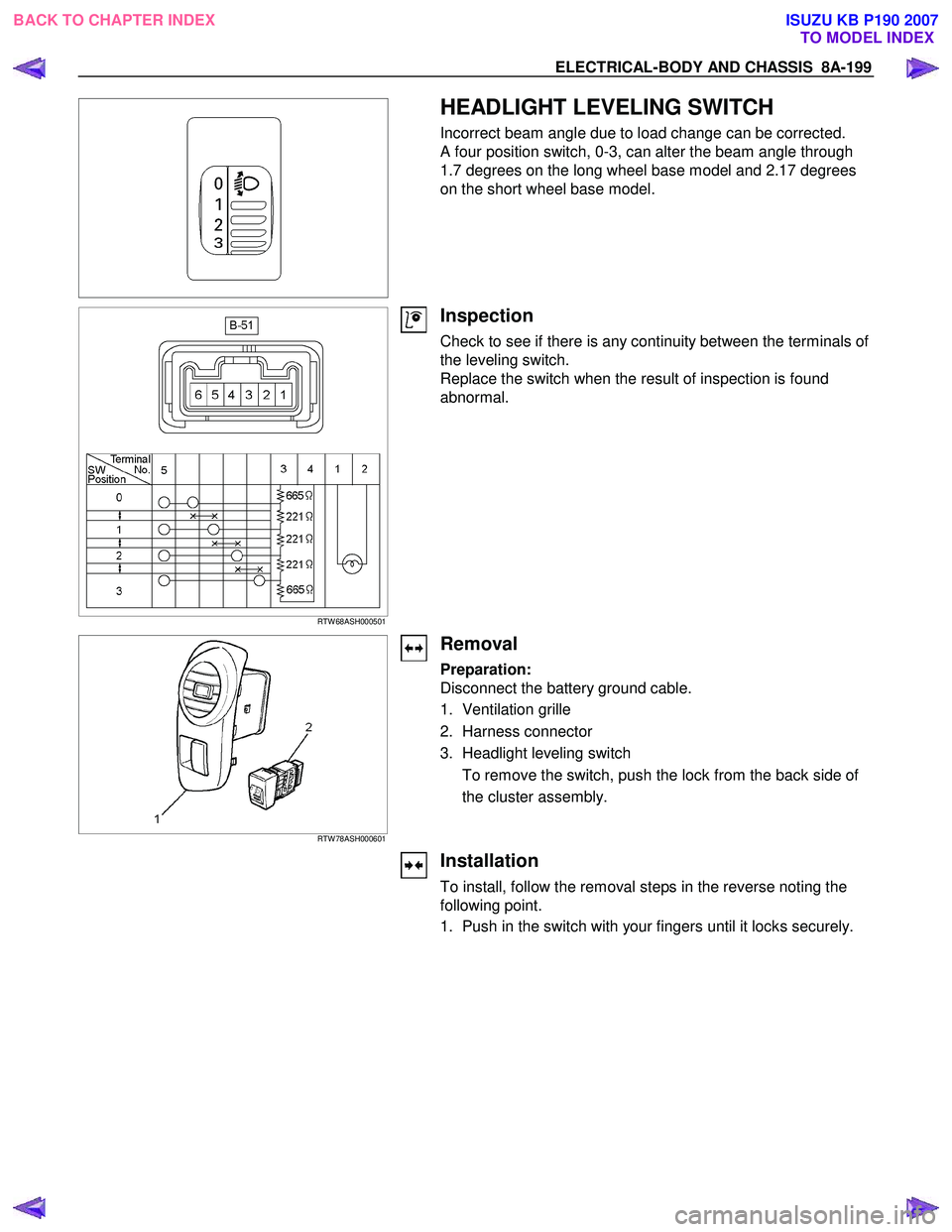

HEADLIGHT LEVELING SWITCH
Incorrect beam angle due to load change can be corrected.
A four position switch, 0-3, can alter the beam angle through
1.7 degrees on the long wheel base model and 2.17 degrees
on the short wheel base model.
RTW 68ASH000501
Inspection
Check to see if there is any continuity between the terminals of
the leveling switch.
Replace the switch when the result of inspection is found
abnormal.
RTW 78ASH000601
Removal
Preparation:
Disconnect the battery ground cable.
1. Ventilation grille
2. Harness connector
3. Headlight leveling switch To remove the switch, push the lock from the back side of
the cluster assembly.
Installation
To install, follow the removal steps in the reverse noting the
following point.
1. Push in the switch with your fingers until it locks securely.
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5138 of 6020
8A-200 ELECTRICAL-BODY AND CHASSIS

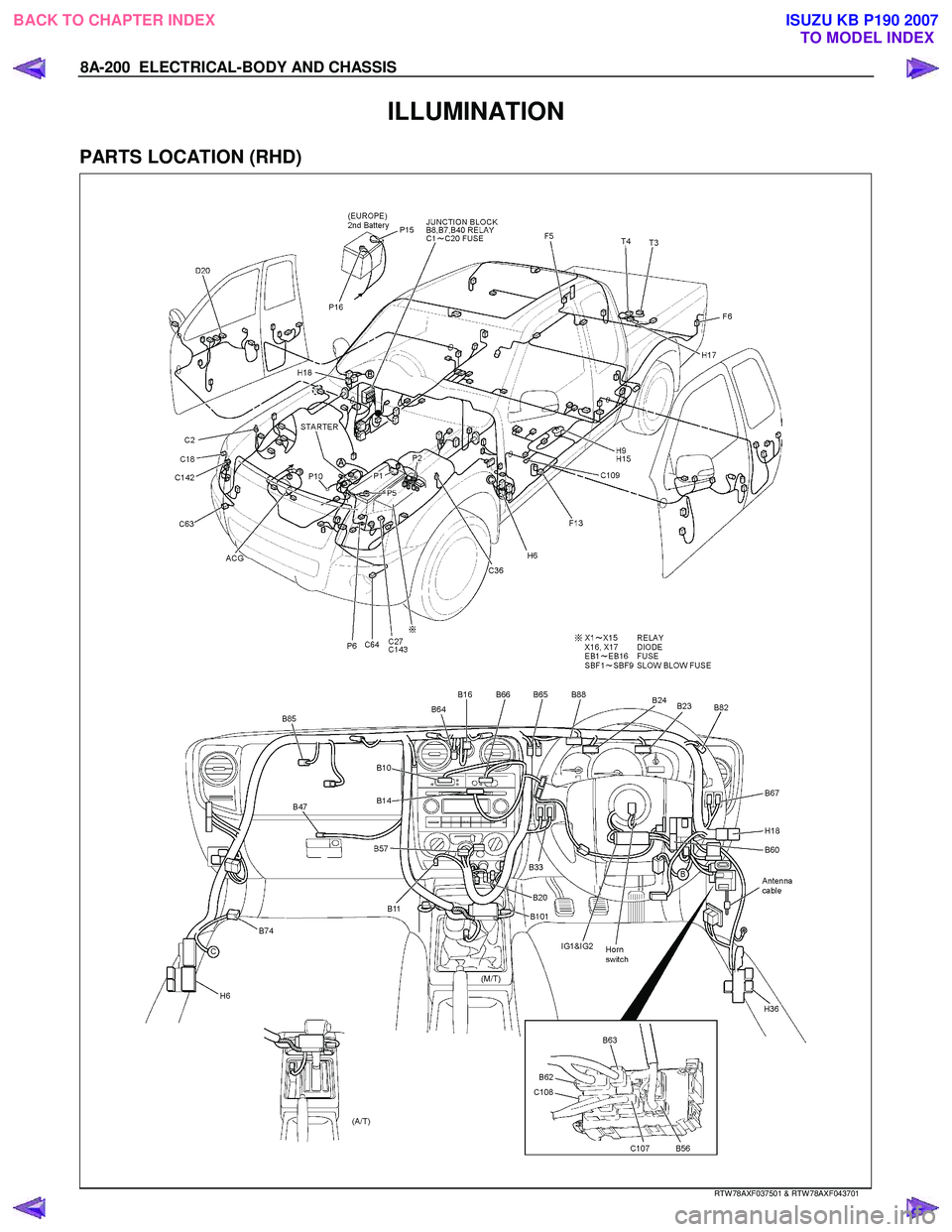

ILLUMINATION
PARTS LOCATION (RHD)
RTW 78AXF037501 & RTW 78AXF043701
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5139 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-201

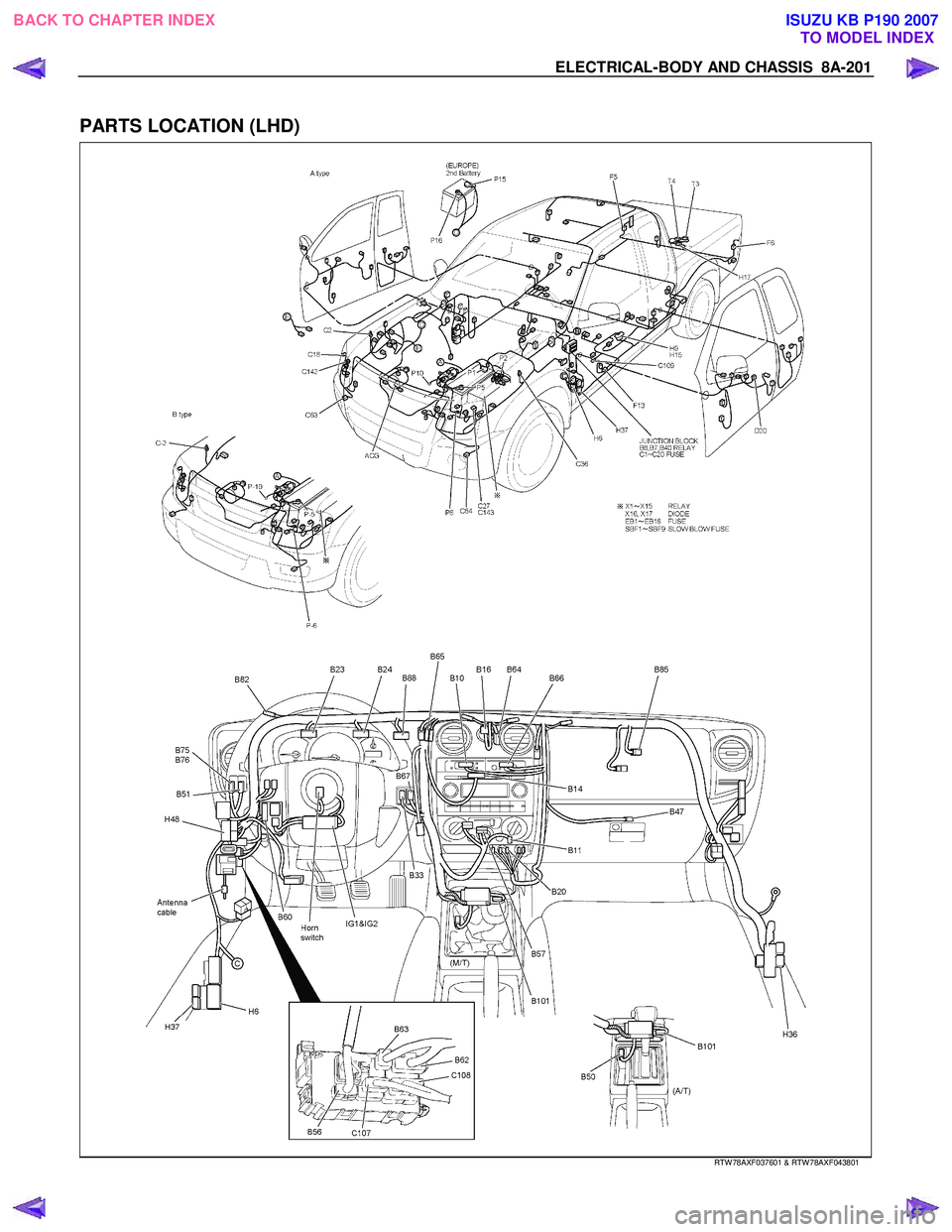

PARTS LOCATION (LHD)
RTW 78AXF037601 & RTW 78AXF043801
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5140 of 6020
8A-202 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM C24SE (RHD) WITHOUT ILLUMINATION CONTROL
RTW 680XF007701
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5141 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-203
CIRCUIT DIAGRAM C24SE (RHD) WITH ILLUMINATION CONTROL
RTW 680XF007801
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5142 of 6020
8A-204 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM C24SE (LHD) WITHOUT ILLUMINATION CONTROL
RTW 680XF007901
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5143 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-205
CIRCUIT DIAGRAM C24SE (LHD) WITH ILLUMINATION CONTROL
RTW 680XF008001
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5144 of 6020
8A-206 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM HFV6 (RHD)
RTW 78AXF025701
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
