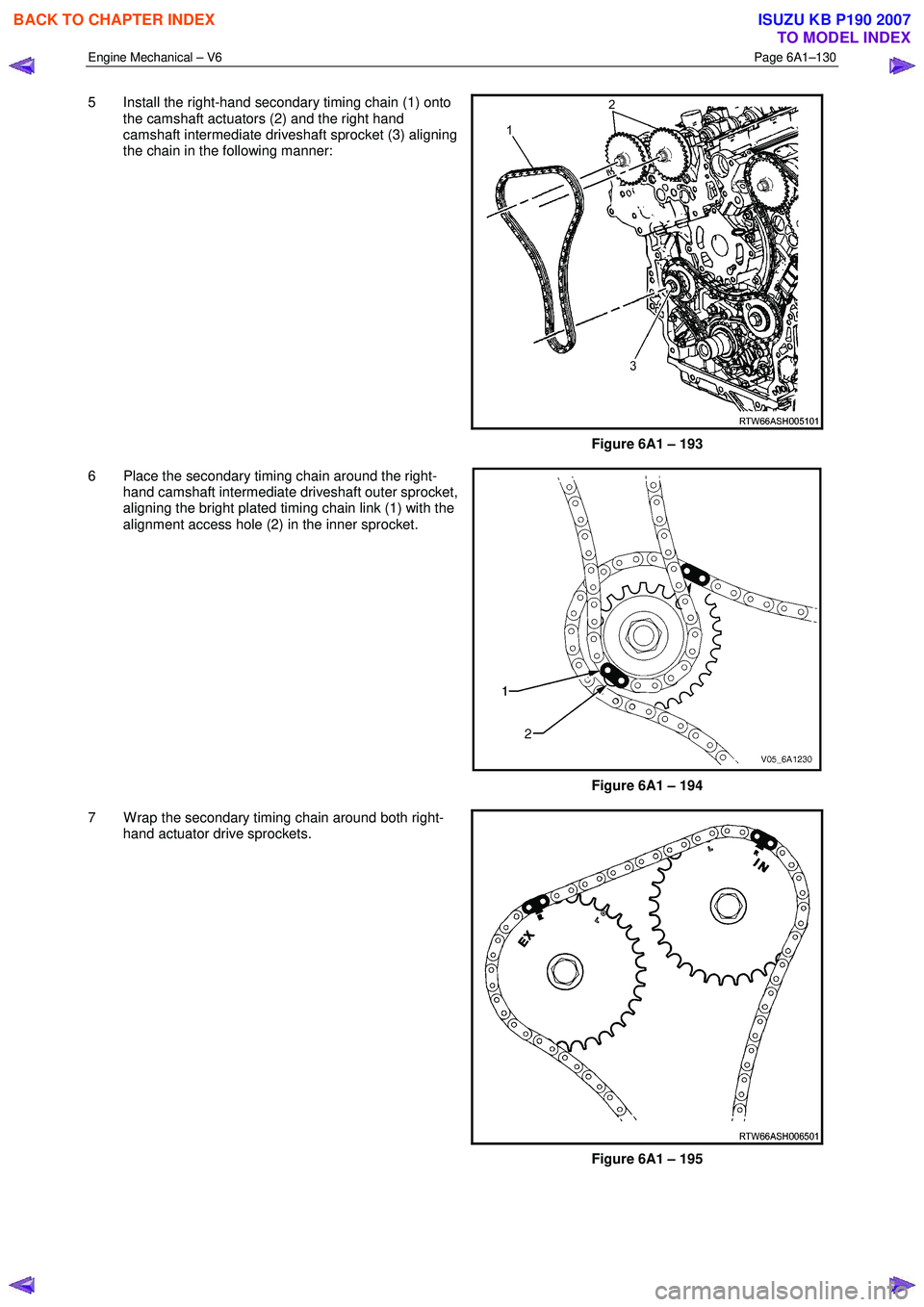

Engine Mechanical – V6 Page 6A1–130
5 Install the right-hand secondary timing chain (1) onto
the camshaft actuators (2) and the right hand
camshaft intermediate driveshaft sprocket (3) aligning
the chain in the following manner:
Figure 6A1 – 193
6 Place the secondary timing chain around the right- hand camshaft intermediate driveshaft outer sprocket,
aligning the bright plated timing chain link (1) with the
alignment access hole (2) in the inner sprocket.
Figure 6A1 – 194
7 W rap the secondary timing chain around both right- hand actuator drive sprockets.
Figure 6A1 – 195
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2610 of 6020

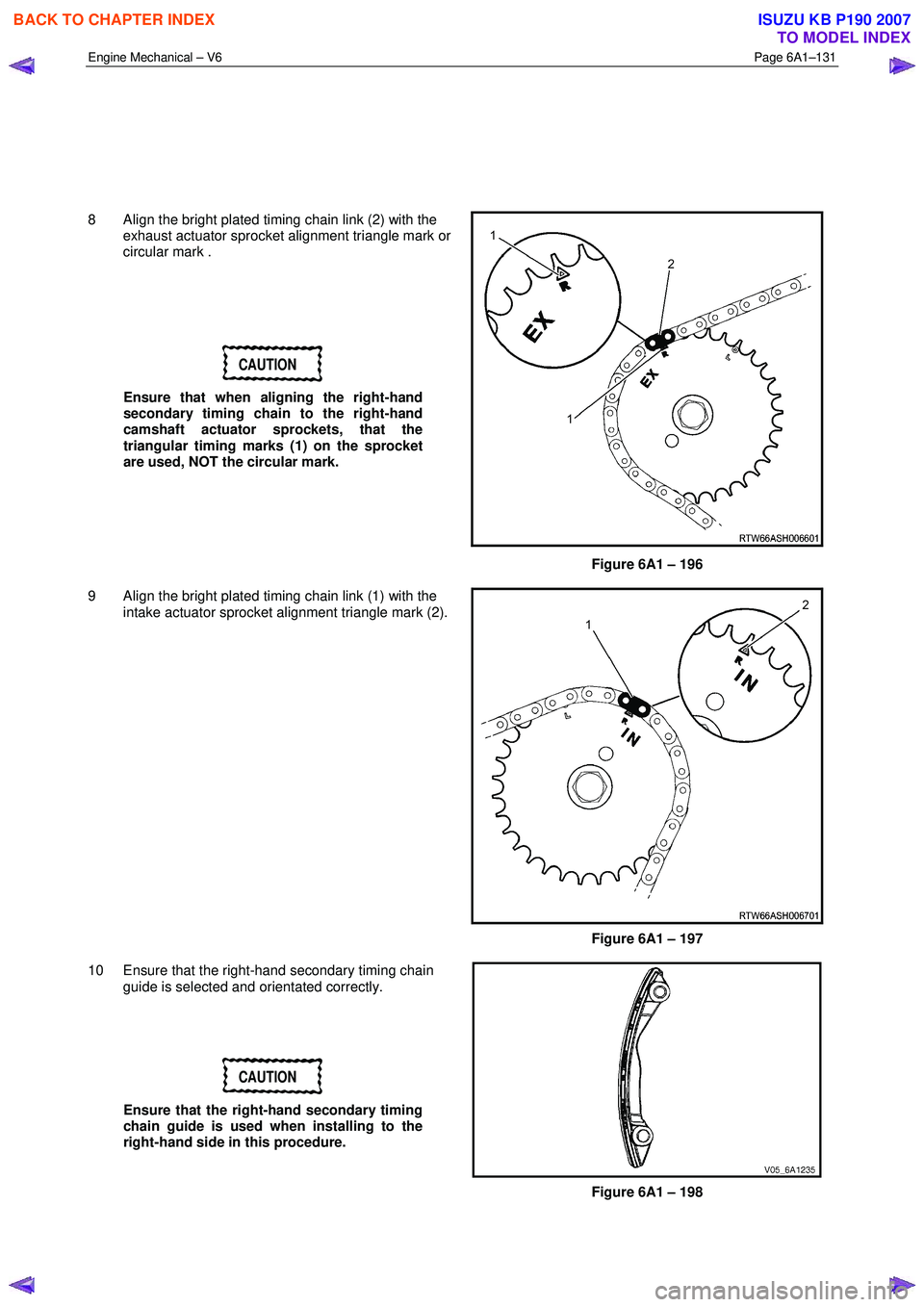

Engine Mechanical – V6 Page 6A1–131
8 Align the bright plated timing chain link (2) with the exhaust actuator sprocket alignment triangle mark or
circular mark .
CAUTION
Ensure that when aligning the right-hand
secondary timing chain to the right-hand
camshaft actuator sprockets, that the
triangular timing marks (1) on the sprocket
are used, NOT the circular mark.
Figure 6A1 – 196
9 Align the bright plated timing chain link (1) with the intake actuator sprocket alignment triangle mark (2).
Figure 6A1 – 197
10 Ensure that the right-hand secondary timing chain guide is selected and orientated correctly.
CAUTION
Ensure that the right-hand secondary timing
chain guide is used when installing to the
right-hand side in this procedure.
Figure 6A1 – 198
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2611 of 6020

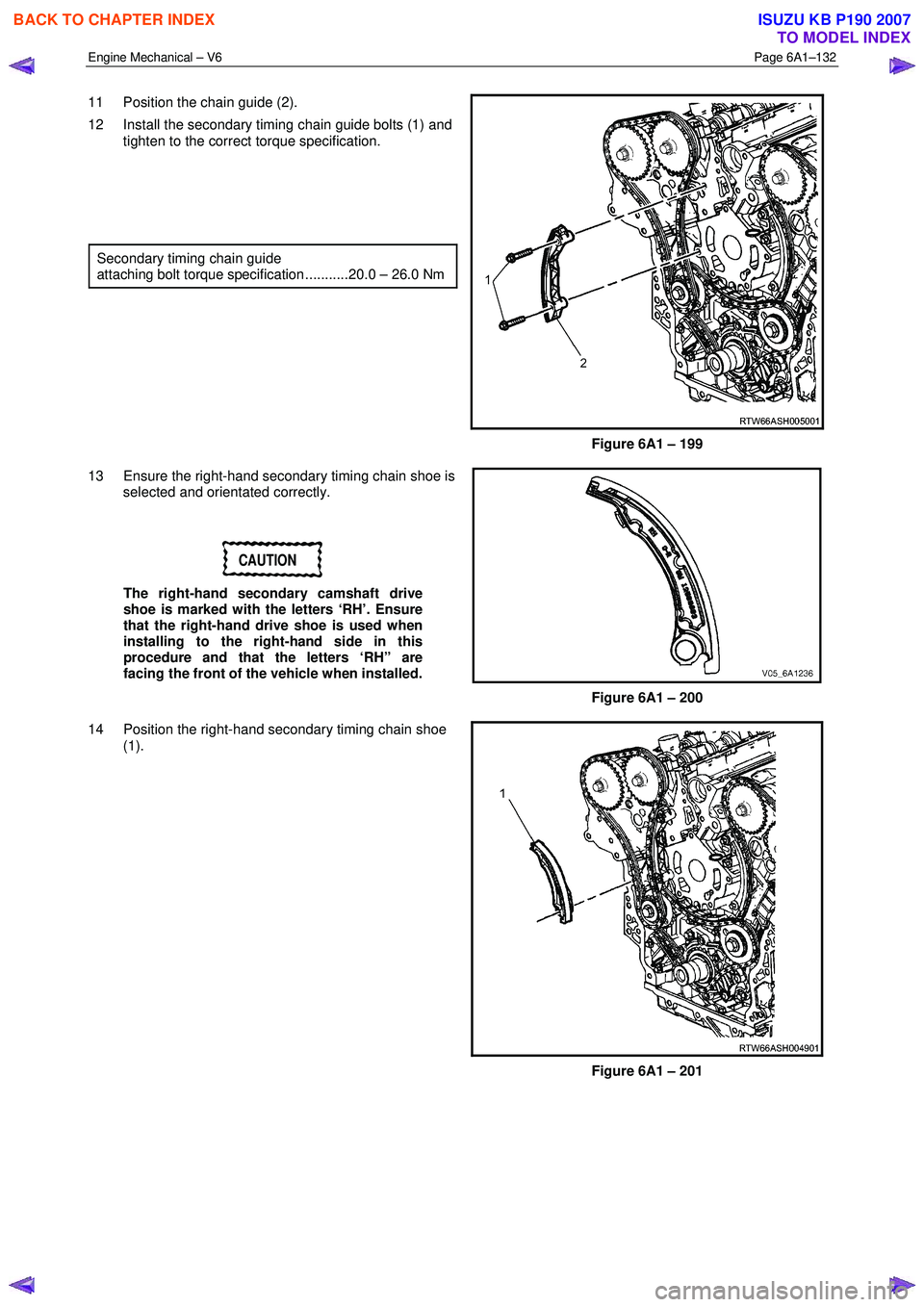

Engine Mechanical – V6 Page 6A1–132
11 Position the chain guide (2).
12 Install the secondary timing chain guide bolts (1) and tighten to the correct torque specification.
Secondary timing chain guide
attaching bolt torque specification ...........20.0 – 26.0 Nm
Figure 6A1 – 199
13 Ensure the right-hand secondary timing chain shoe is selected and orientated correctly.
CAUTION
The right-hand secondary camshaft drive
shoe is marked with the letters ‘RH’. Ensure
that the right-hand drive shoe is used when
installing to the right-hand side in this
procedure and that the letters ‘RH” are
facing the front of the vehicle when installed.
Figure 6A1 – 200
14 Position the right-hand secondary timing chain shoe (1).
Figure 6A1 – 201
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2612 of 6020
Engine Mechanical – V6 Page 6A1–133
15 Install the secondary timing chain shoe bolt (1) and
tighten to the correct torque specification.
Secondary timing chain shoe
attaching bolt torque specification ...........20.0 – 26.0 Nm
Figure 6A1 – 202
16 Ensure the right-hand secondary timing chain tensioner is selected and orientated correctly.
Figure 6A1 – 203
17 Reset the right-hand secondary timing chain tensioner.
NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver (1) or Tool No. J 45027 to
wind the plunger in a clockwise direction, into
the tensioner shaft (2).
Figure 6A1 – 204
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2613 of 6020

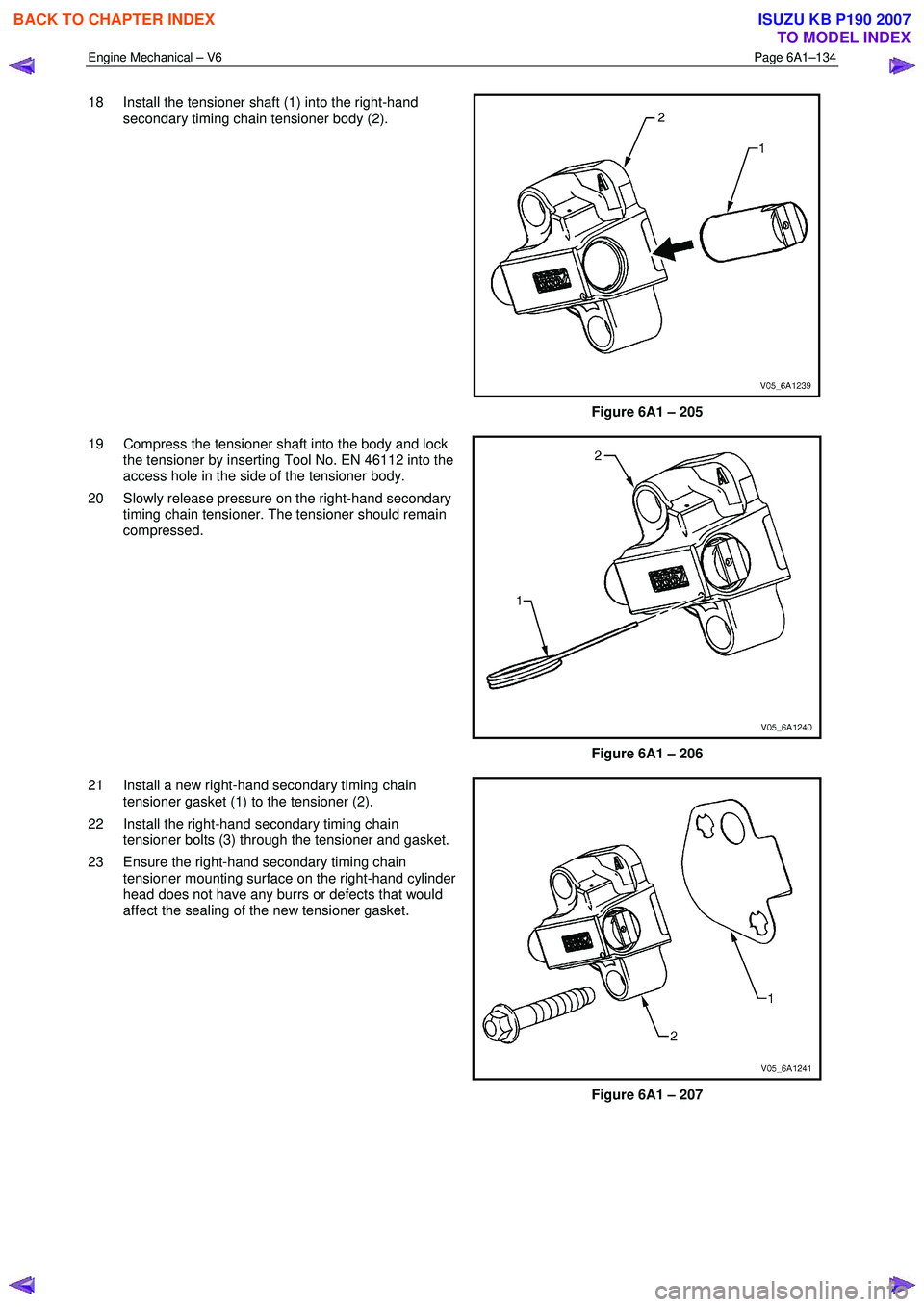

Engine Mechanical – V6 Page 6A1–134
18 Install the tensioner shaft (1) into the right-hand
secondary timing chain tensioner body (2).
Figure 6A1 – 205
19 Compress the tensioner shaft into the body and lock the tensioner by inserting Tool No. EN 46112 into the
access hole in the side of the tensioner body.
20 Slowly release pressure on the right-hand secondary timing chain tensioner. The tensioner should remain
compressed.
Figure 6A1 – 206
21 Install a new right-hand secondary timing chain tensioner gasket (1) to the tensioner (2).
22 Install the right-hand secondary timing chain tensioner bolts (3) through the tensioner and gasket.
23 Ensure the right-hand secondary timing chain tensioner mounting surface on the right-hand cylinder
head does not have any burrs or defects that would
affect the sealing of the new tensioner gasket.
Figure 6A1 – 207
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2614 of 6020

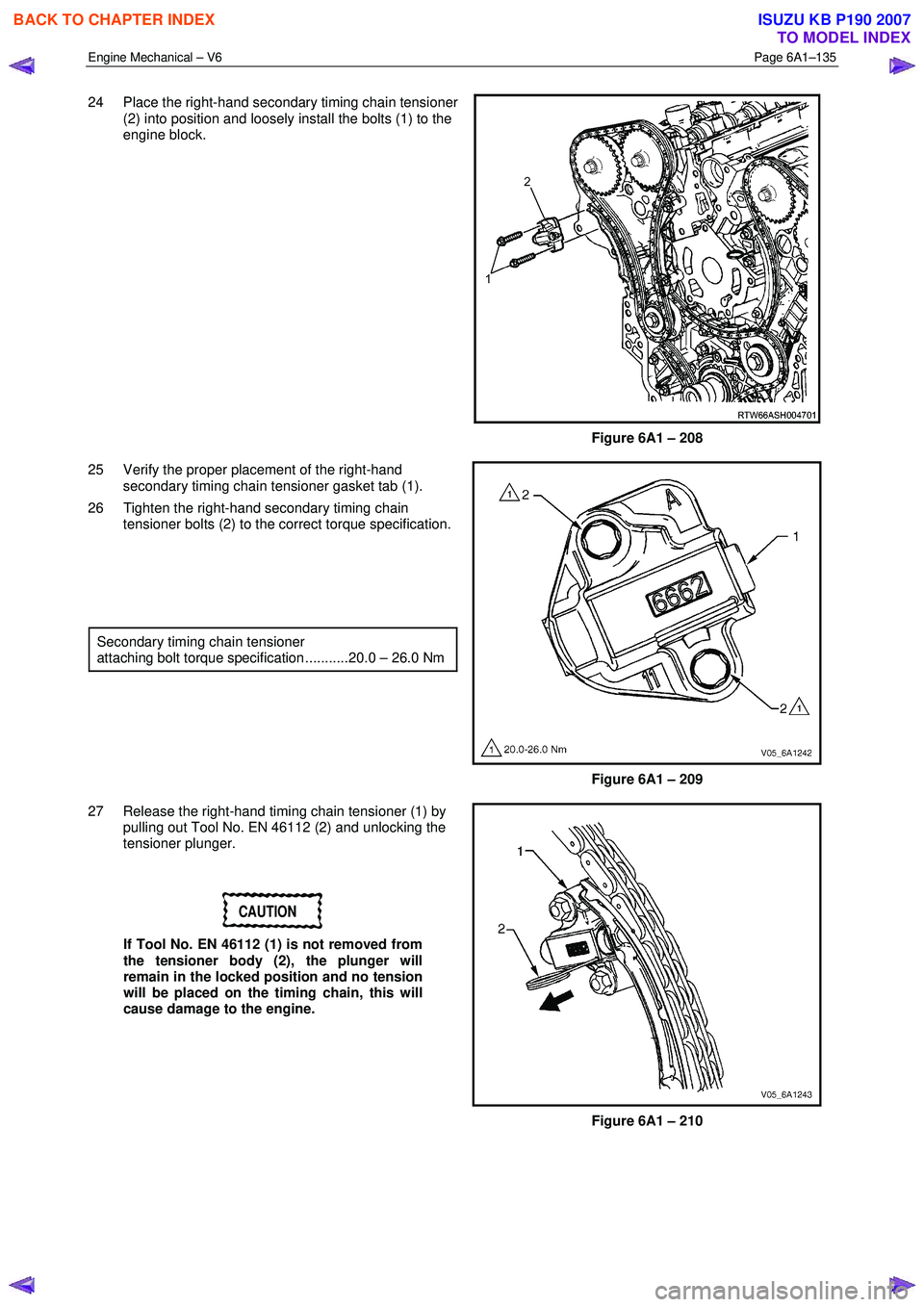

Engine Mechanical – V6 Page 6A1–135
24 Place the right-hand secondary timing chain tensioner
(2) into position and loosely install the bolts (1) to the
engine block.
Figure 6A1 – 208
25 Verify the proper placement of the right-hand secondary timing chain tensioner gasket tab (1).
26 Tighten the right-hand secondary timing chain tensioner bolts (2) to the correct torque specification.
Secondary timing chain tensioner
attaching bolt torque specification ...........20.0 – 26.0 Nm
Figure 6A1 – 209
27 Release the right-hand timing chain tensioner (1) by pulling out Tool No. EN 46112 (2) and unlocking the
tensioner plunger.
CAUTION
If Tool No. EN 46112 (1) is not removed from
the tensioner body (2), the plunger will
remain in the locked position and no tension
will be placed on the timing chain, this will
cause damage to the engine.
Figure 6A1 – 210
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2615 of 6020

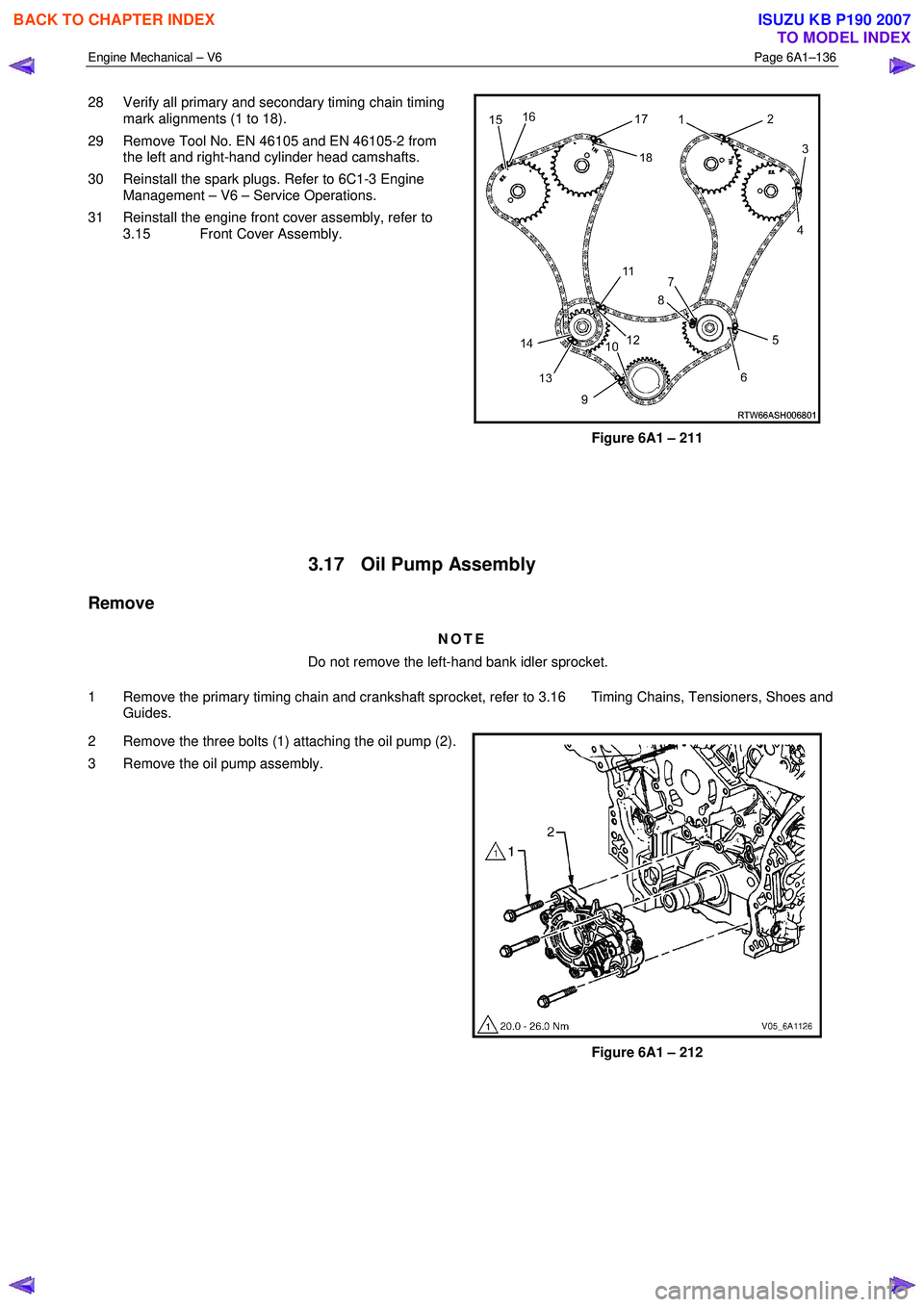

Engine Mechanical – V6 Page 6A1–136
28 Verify all primary and secondary timing chain timing
mark alignments (1 to 18).
29 Remove Tool No. EN 46105 and EN 46105-2 from the left and right-hand cylinder head camshafts.
30 Reinstall the spark plugs. Refer to 6C1-3 Engine Management – V6 – Service Operations.
31 Reinstall the engine front cover assembly, refer to 3.15 Front Cover Assembly.
Figure 6A1 – 211
3.17 Oil Pump Assembly
Remove
NOTE
Do not remove the left-hand bank idler sprocket.
1 Remove the primary timing chain and crankshaft sprocket, refer to 3.16 Timing Chains, Tensioners, Shoes and Guides.
2 Remove the three bolts (1) attaching the oil pump (2).
3 Remove the oil pump assembly.
Figure 6A1 – 212
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2616 of 6020

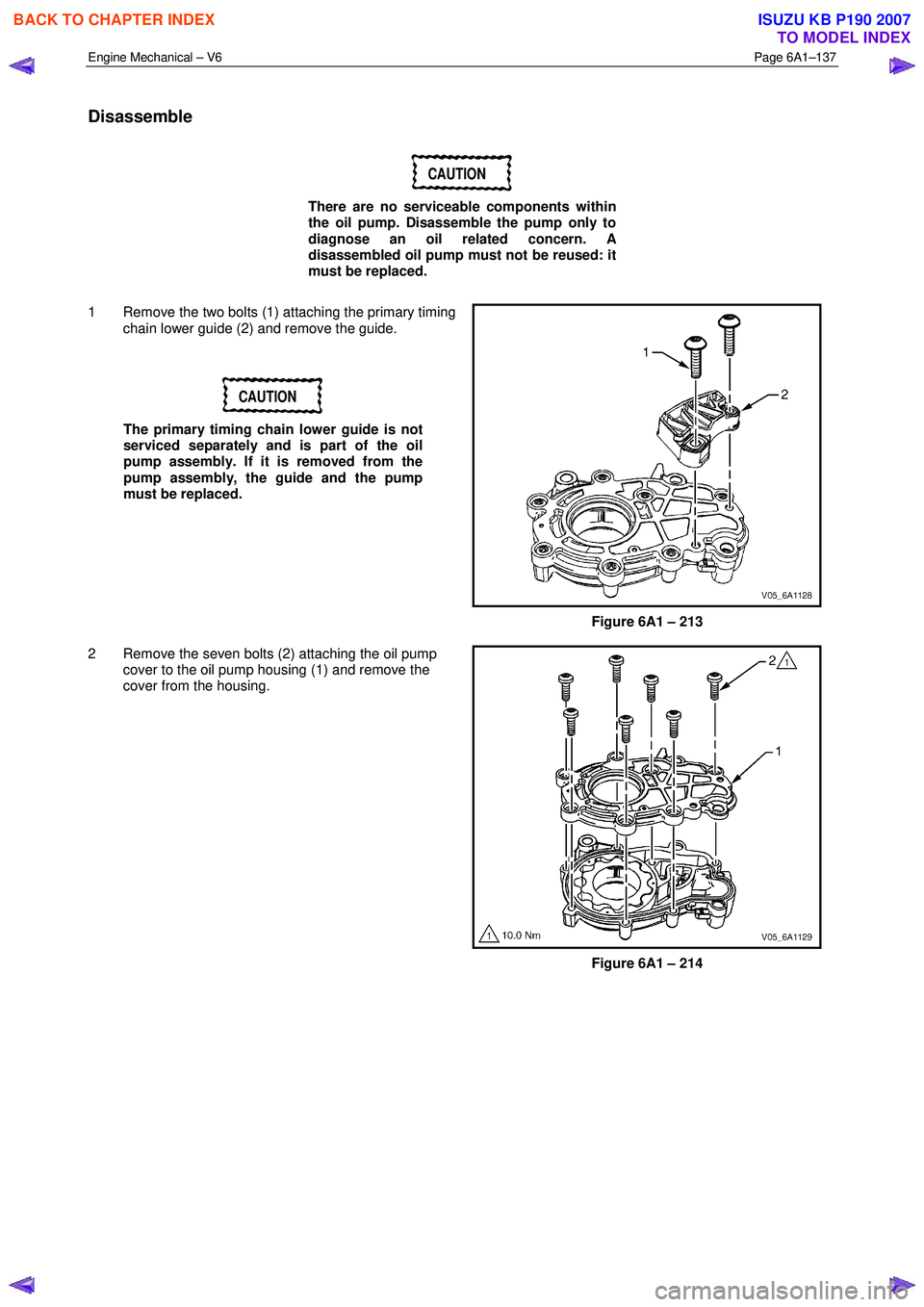

Engine Mechanical – V6 Page 6A1–137
Disassemble
CAUTION
There are no serviceable components within
the oil pump. Disassemble the pump only to
diagnose an oil related concern. A
disassembled oil pump must not be reused: it
must be replaced.
1 Remove the two bolts (1) attaching the primary timing chain lower guide (2) and remove the guide.
CAUTION
The primary timing chain lower guide is not
serviced separately and is part of the oil
pump assembly. If it is removed from the
pump assembly, the guide and the pump
must be replaced.
Figure 6A1 – 213
2 Remove the seven bolts (2) attaching the oil pump cover to the oil pump housing (1) and remove the
cover from the housing.
Figure 6A1 – 214
