Page 2745 of 6020

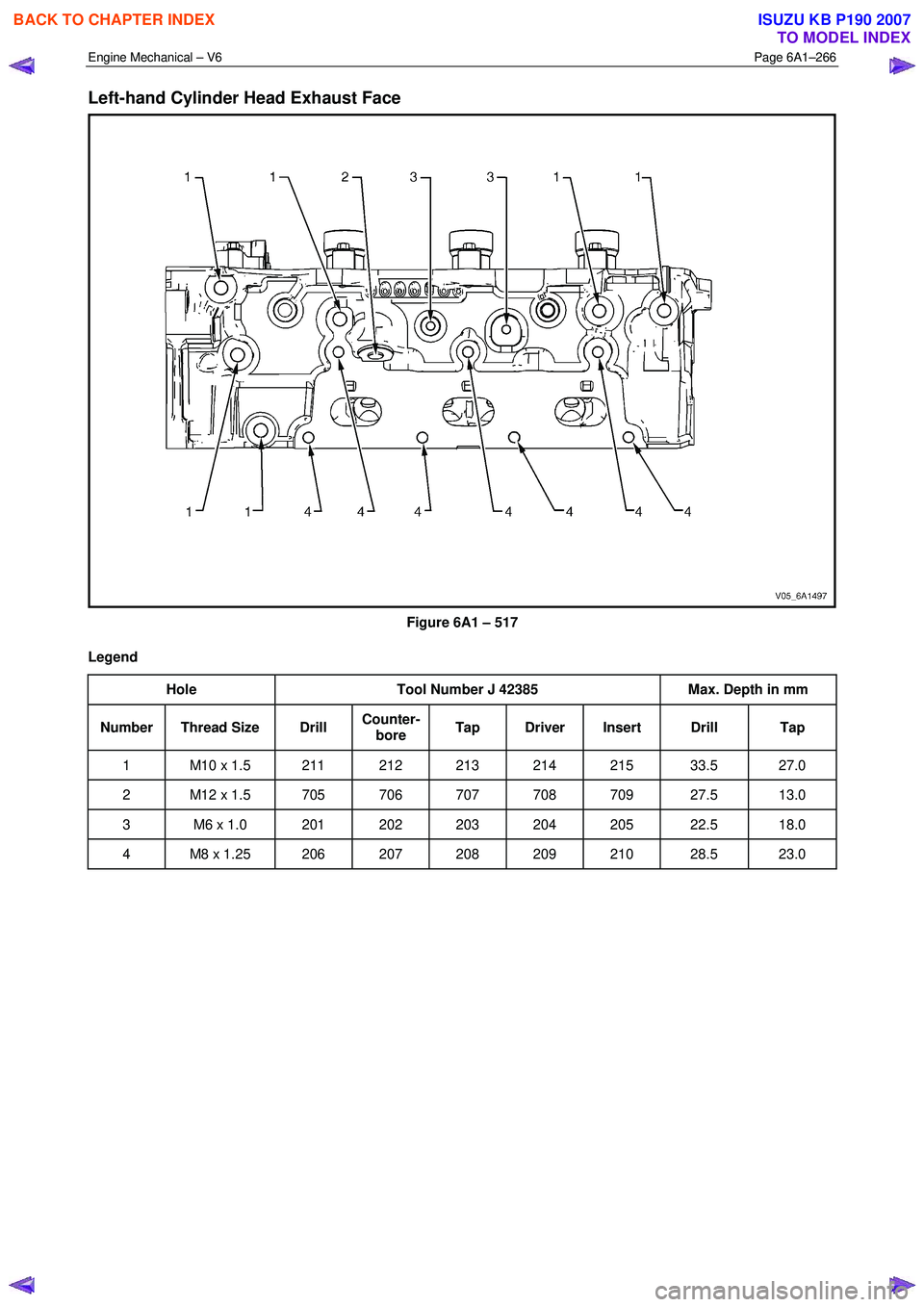

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–266 Left-hand Cylinder Head Exhaust Face Figure 6A1 – 517 Legend Hole Tool Number J 42385 Max. Depth in mm Number Thread Size Drill Counter- bore Tap

Page 2746 of 6020

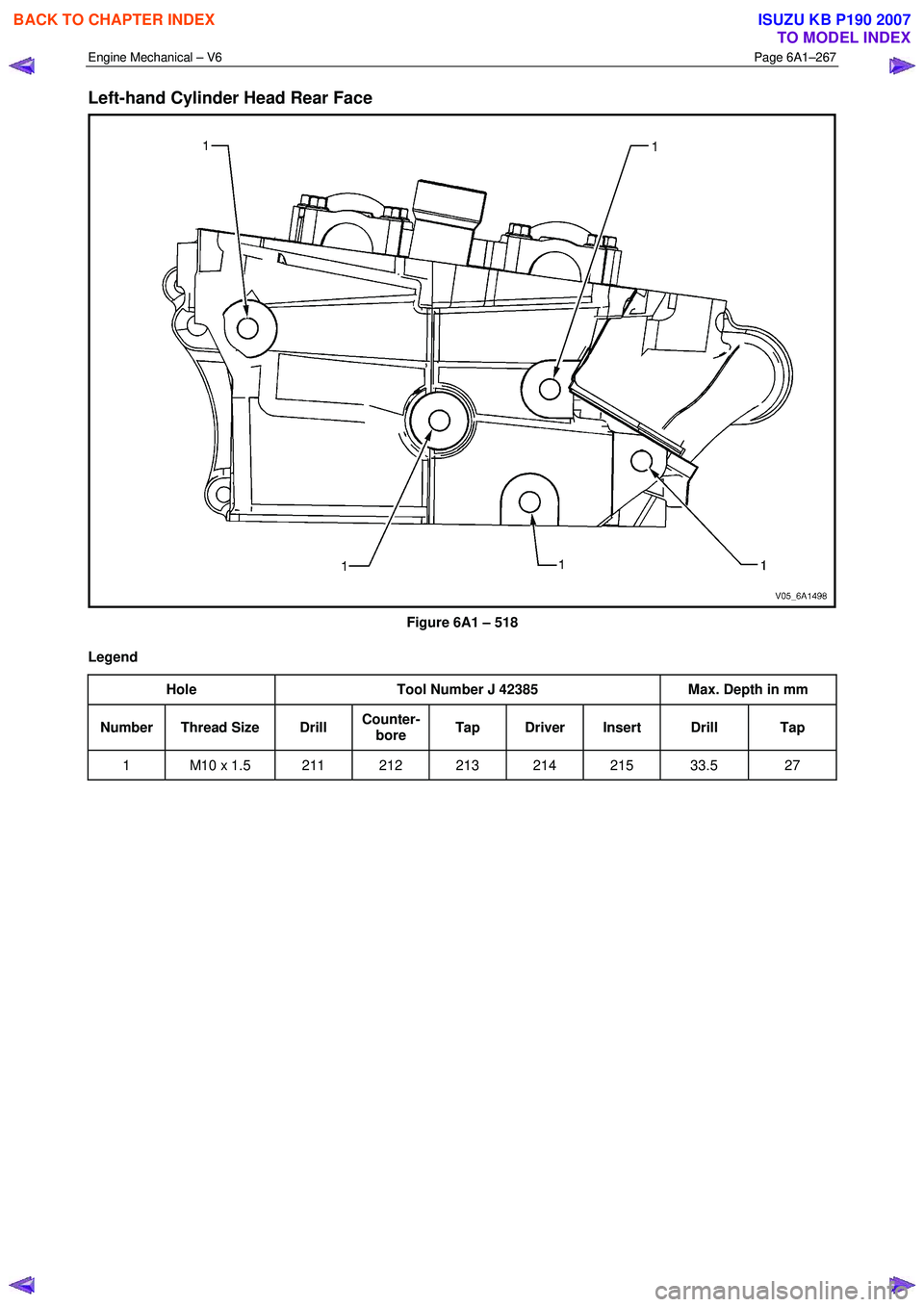

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–267 Left-hand Cylinder Head Rear Face Figure 6A1 – 518 Legend Hole Tool Number J 42385 Max. Depth in mm Number Thread Size Drill Counter- bore Tap Dr

Page 2747 of 6020

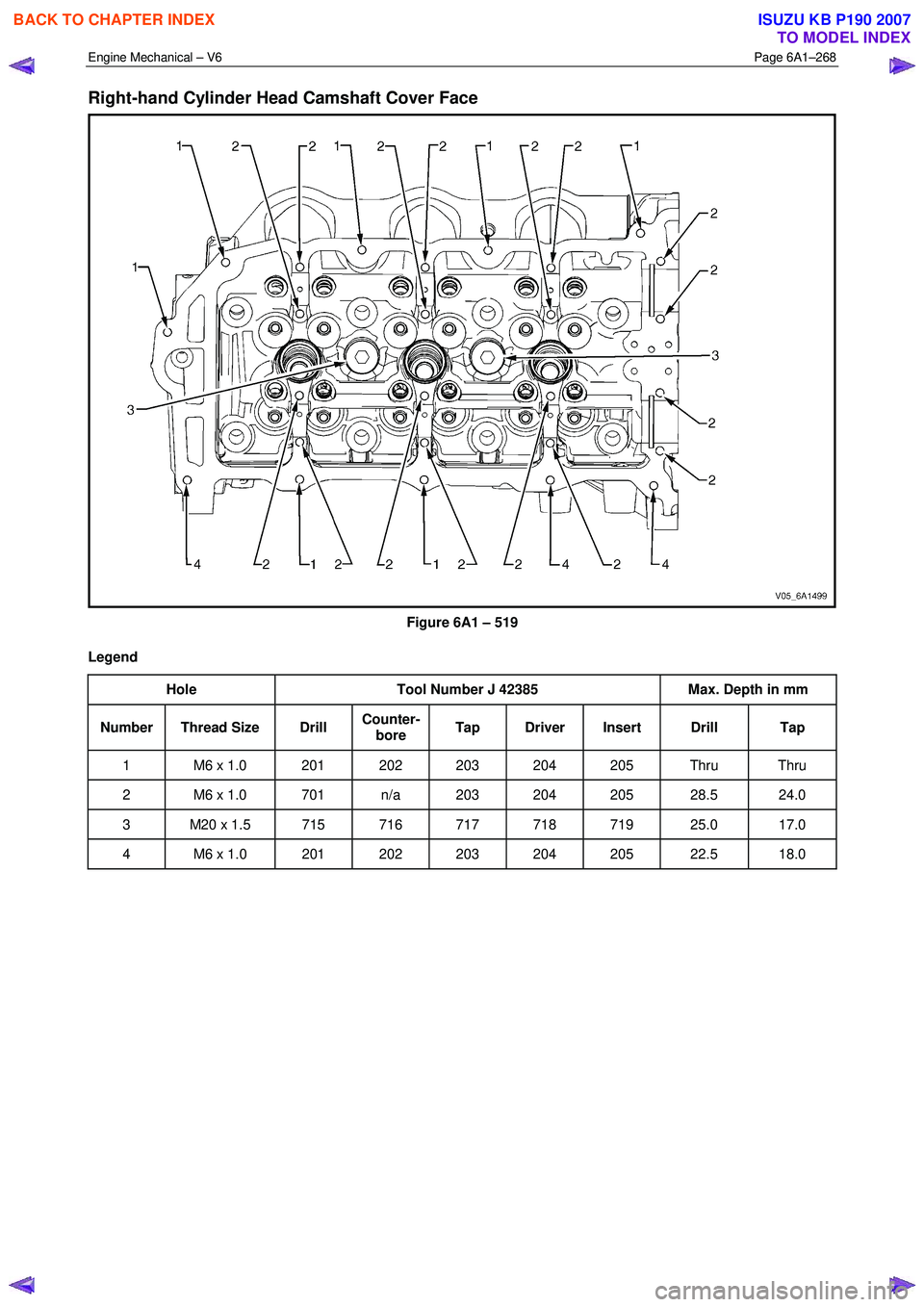

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–268 Right-hand Cylinder Head Camshaft Cover Face Figure 6A1 – 519 Legend Hole Tool Number J 42385 Max. Depth in mm Number Thread Size Drill Counter- b

Page 2748 of 6020

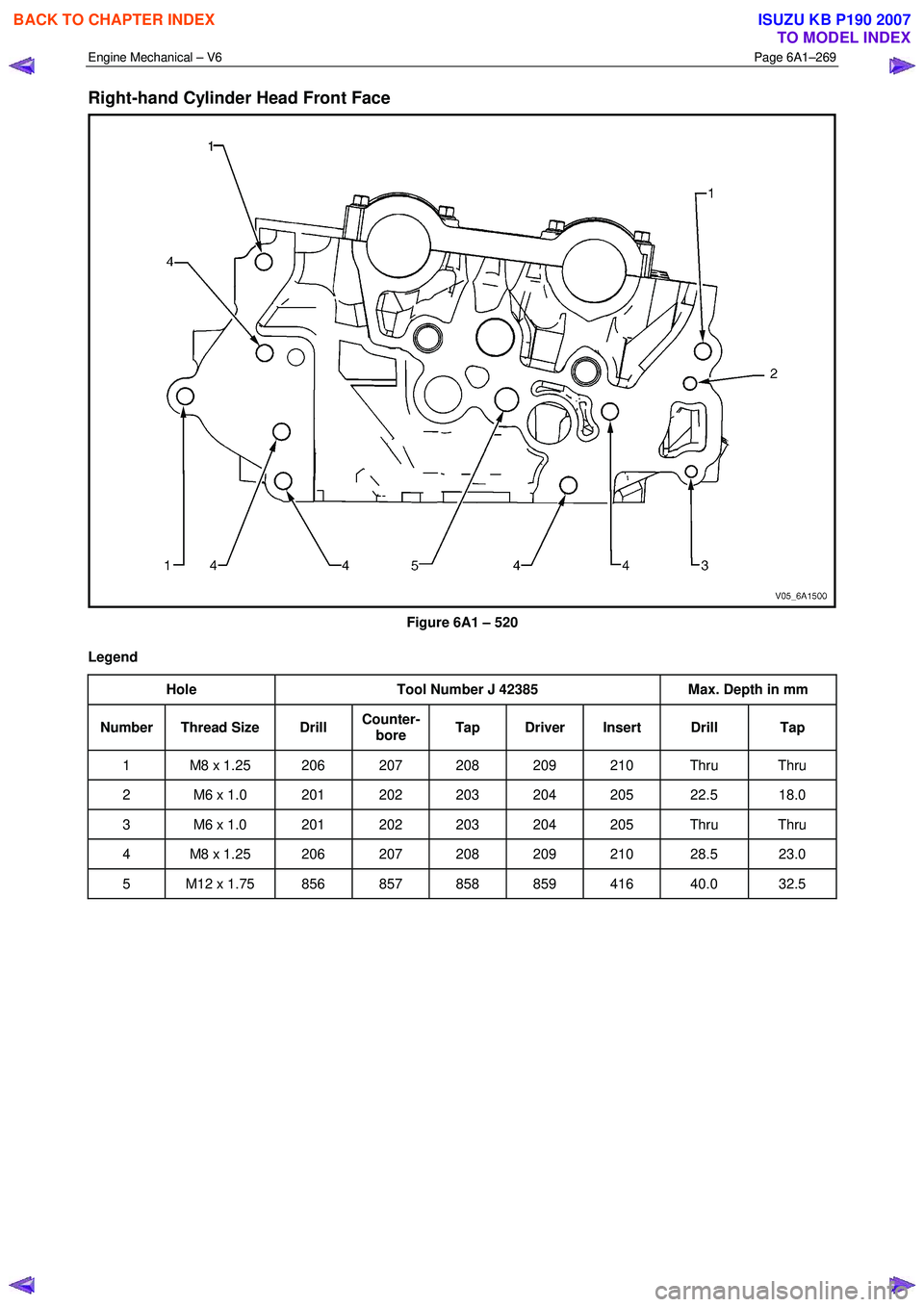

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–269 Right-hand Cylinder Head Front Face Figure 6A1 – 520 Legend Hole Tool Number J 42385 Max. Depth in mm Number Thread Size Drill Counter- bore Tap

Page 2749 of 6020

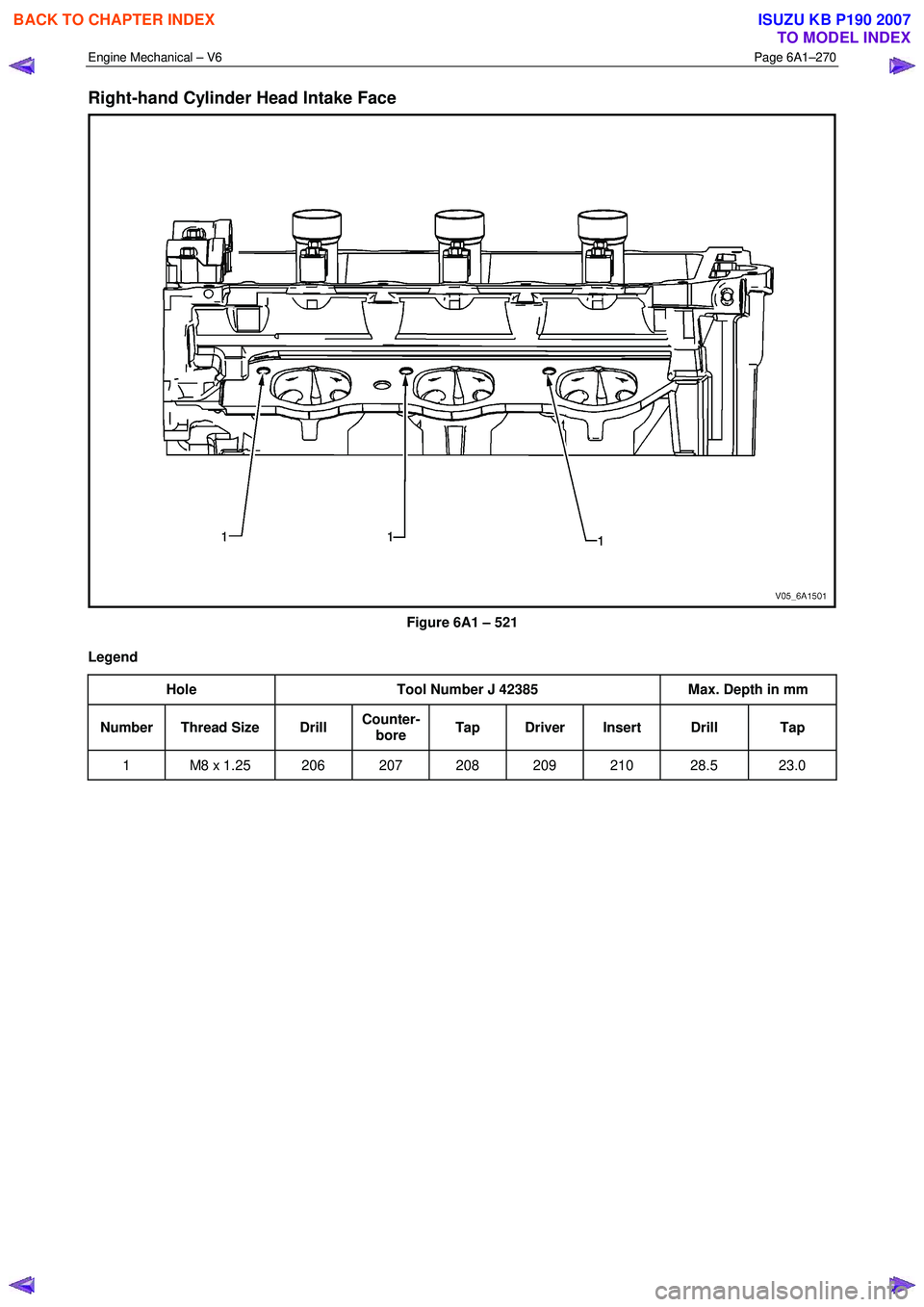

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–270 Right-hand Cylinder Head Intake Face Figure 6A1 – 521 Legend Hole Tool Number J 42385 Max. Depth in mm Number Thread Size Drill Counter- bore Tap

Page 2750 of 6020

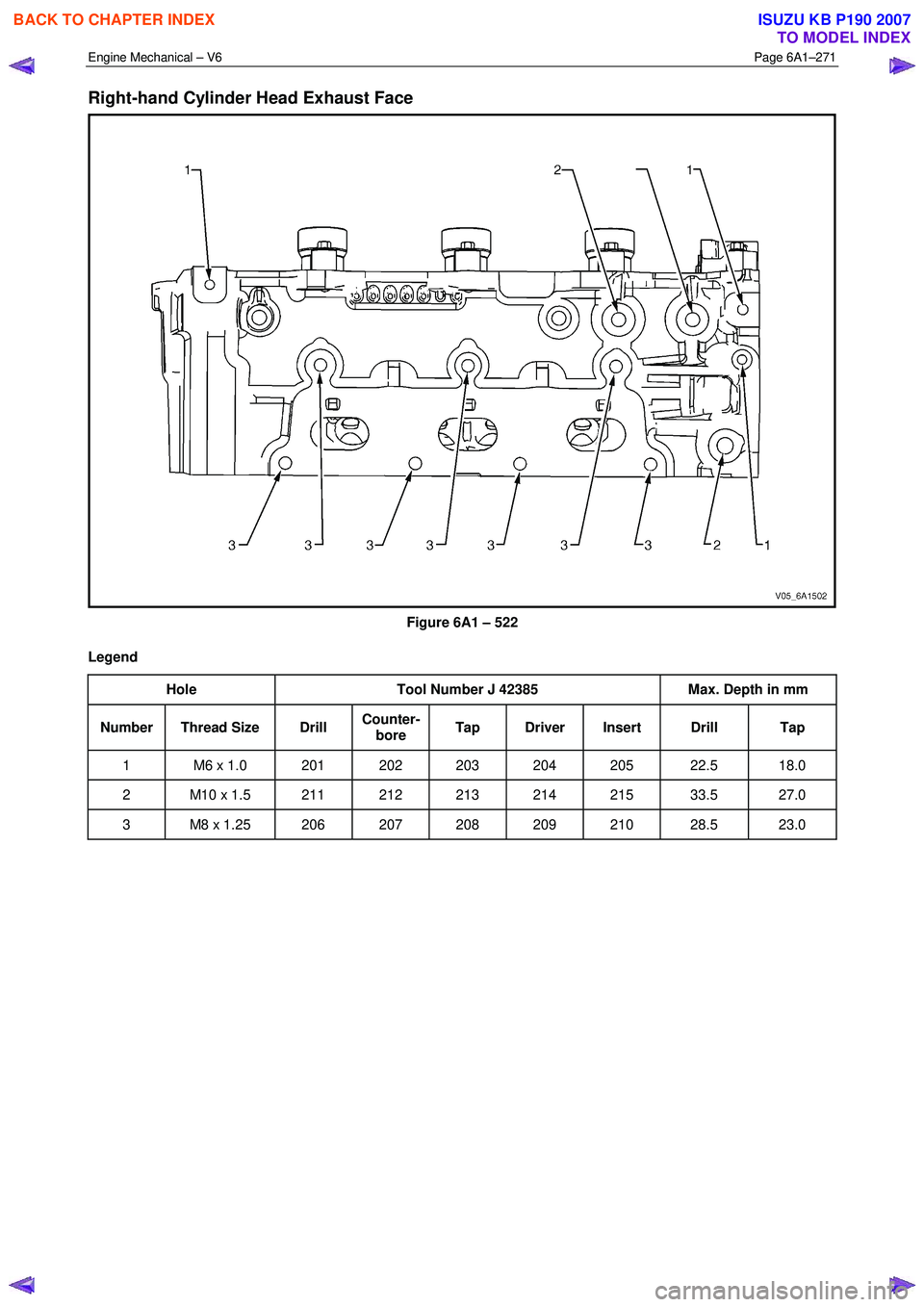

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–271 Right-hand Cylinder Head Exhaust Face Figure 6A1 – 522 Legend Hole Tool Number J 42385 Max. Depth in mm Number Thread Size Drill Counter- bore Ta

Page 2751 of 6020

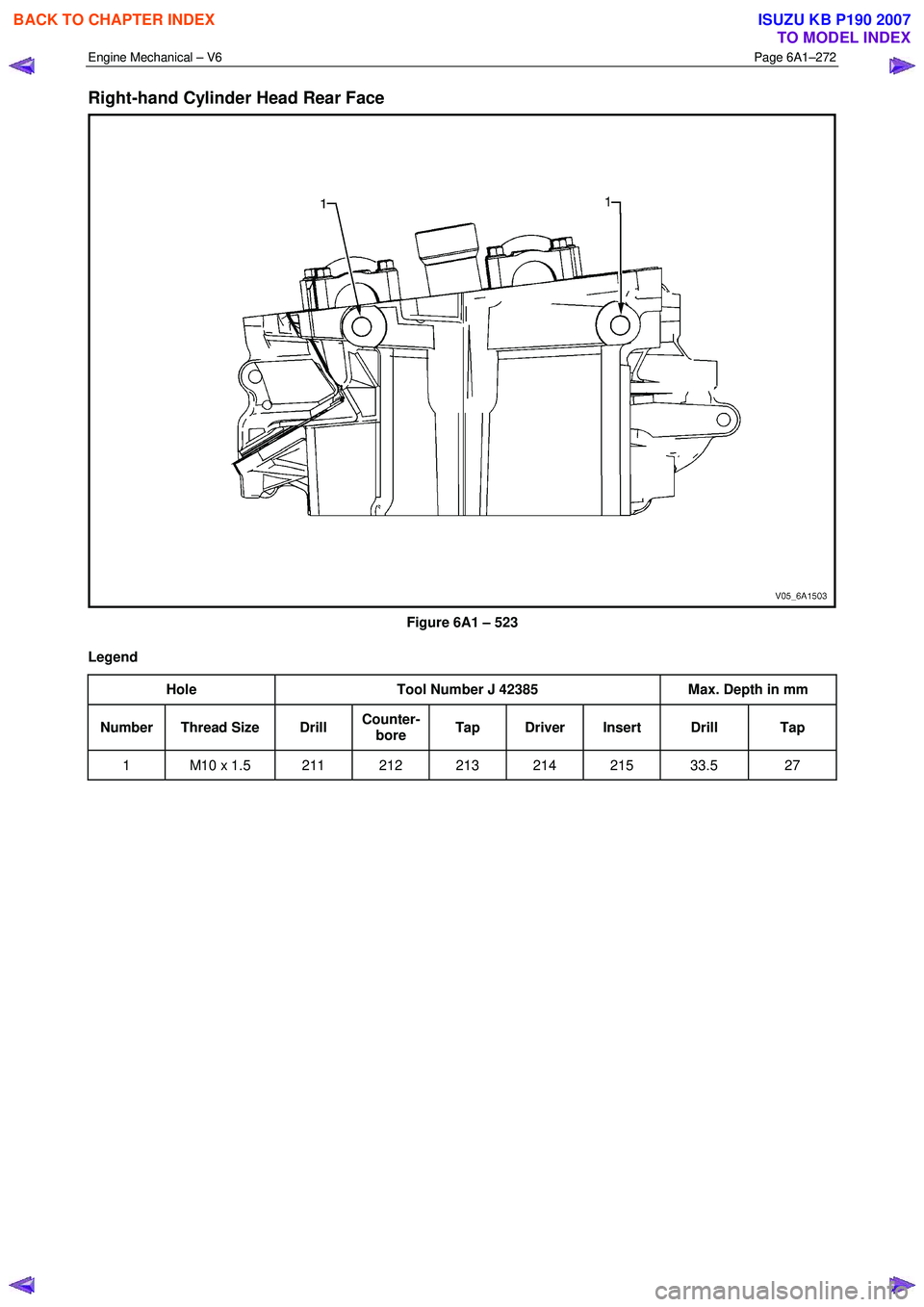

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–272 Right-hand Cylinder Head Rear Face Figure 6A1 – 523 Legend Hole Tool Number J 42385 Max. Depth in mm Number Thread Size Drill Counter- bore Tap D

Page 2752 of 6020

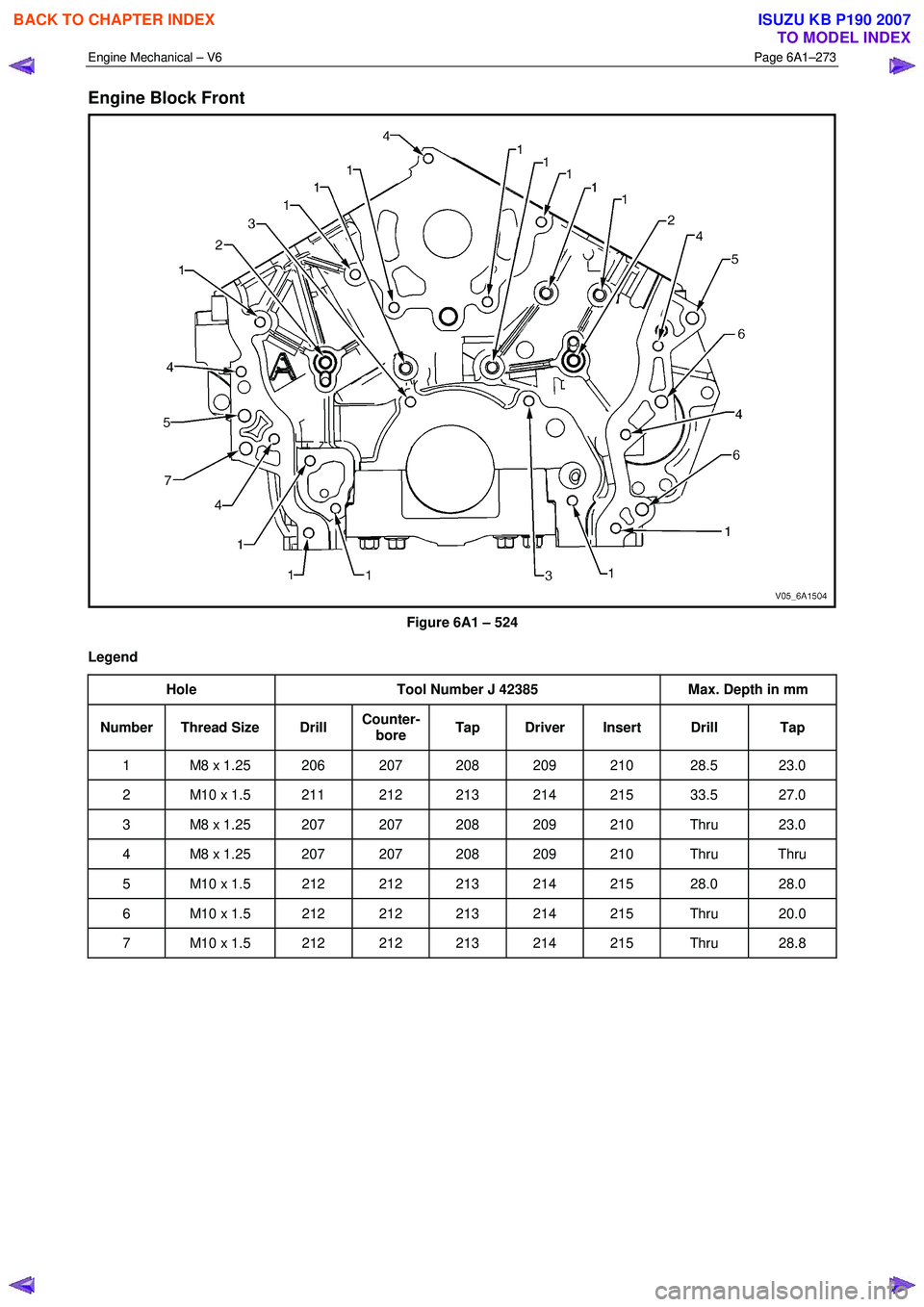

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–273 Engine Block Front Figure 6A1 – 524 Legend Hole Tool Number J 42385 Max. Depth in mm Number Thread Size Drill Counter- bore Tap Driver Insert Dr
