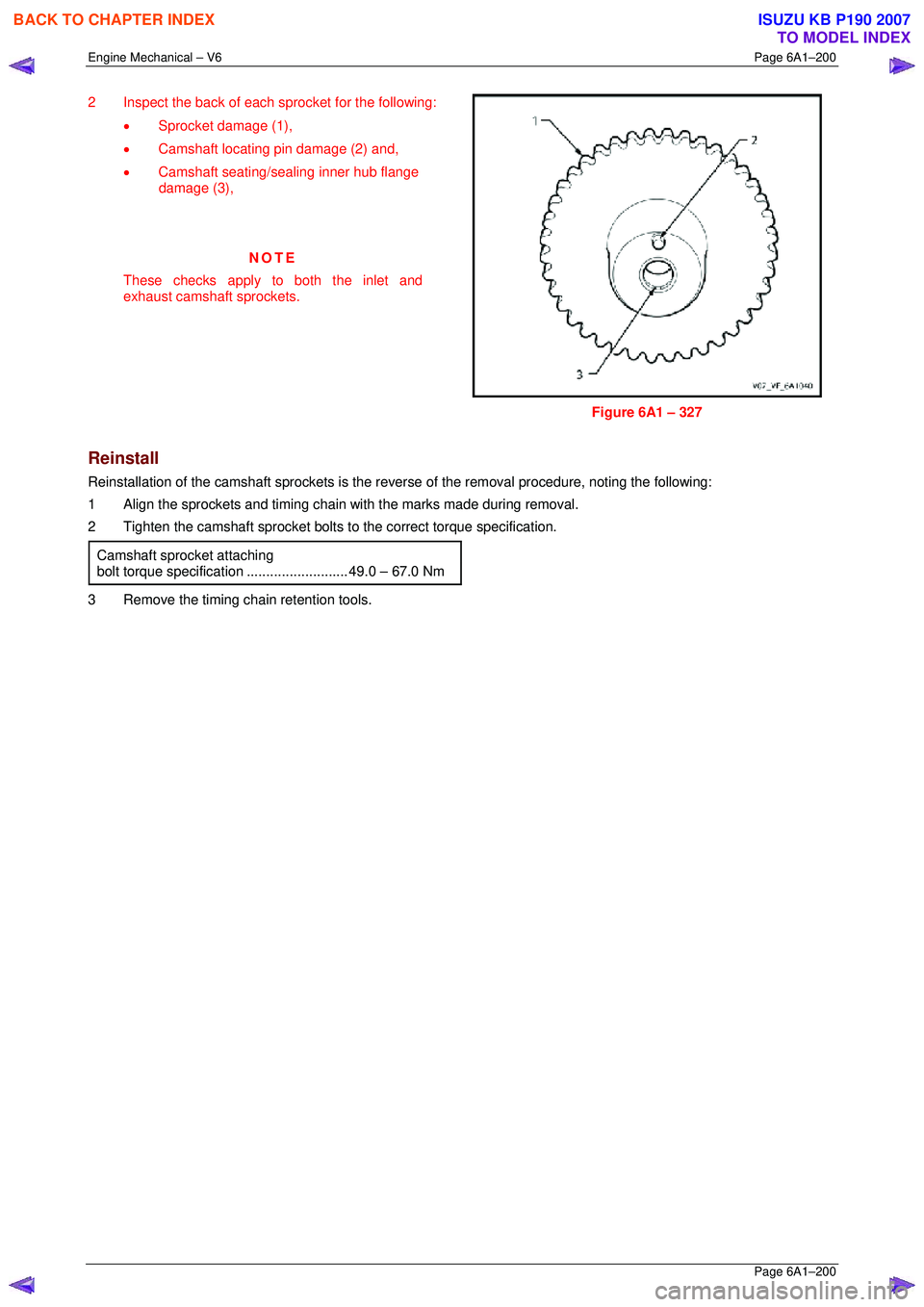

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–200 Page 6A1–200 2 Inspect the back of each sprocket for the following: • Sprocket damage (1), • Camshaft locating pin damage (2) and, • Camshaft s

Page 2978 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–201 Page 6A1–201 3.20 Camshaft Remove Right-hand Side 1 Remove the right-hand cylinder head camshaft sprockets, refer to 3.18 Camshaft Sprocket. NOTE To

Page 2979 of 6020

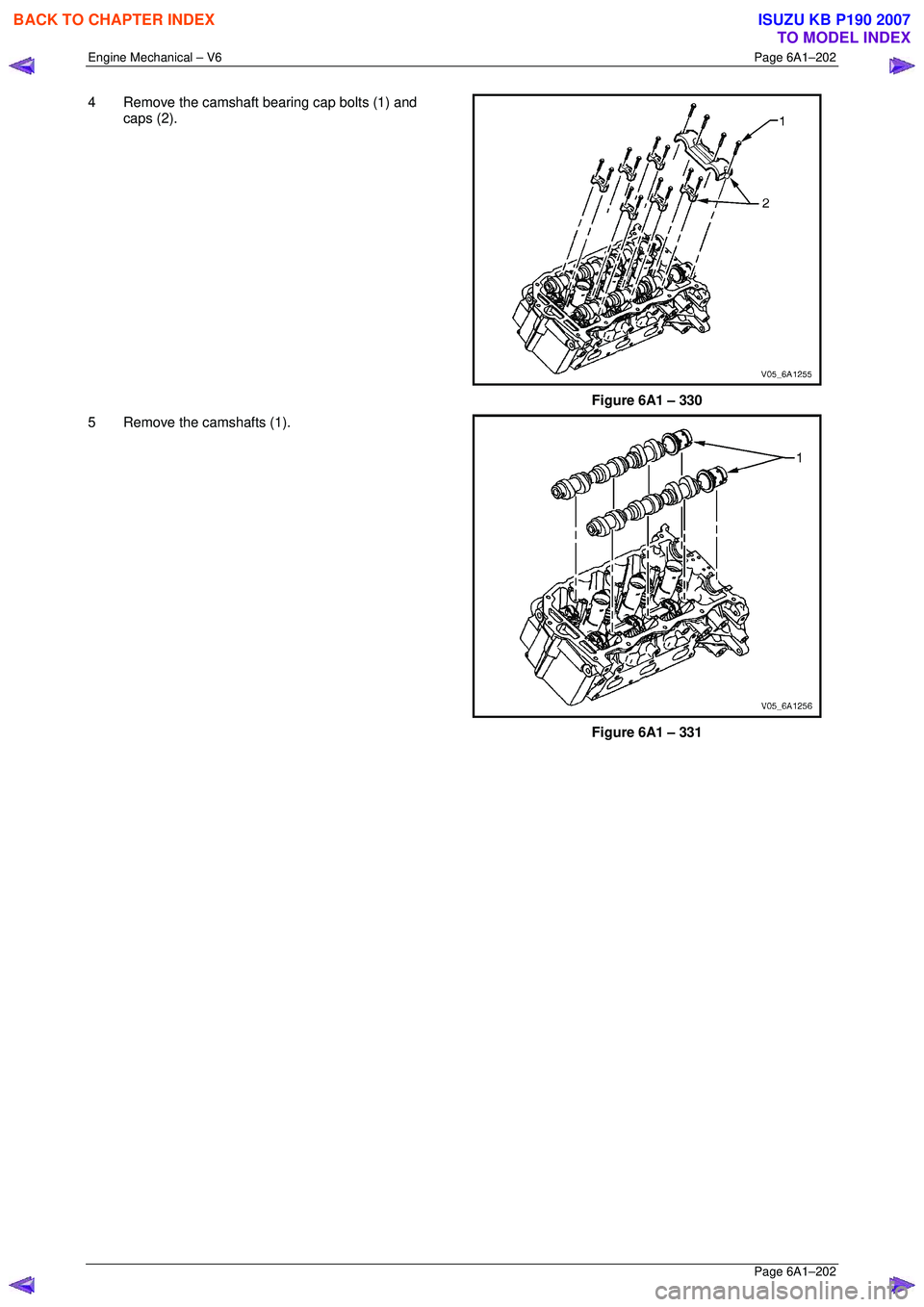

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–202 Page 6A1–202 4 Remove the camshaft bearing cap bolts (1) and caps (2). Figure 6A1 – 330 5 Remove the camshafts (1). Figure 6A1 – 331 BA

Page 2980 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–203 Page 6A1–203 Left-hand Side 1 Remove the left-hand cylinder head camshaft sprockets, refer to 3.18 Camshaft Sprocket . NOTE Tool No. EN-46105–1 was

Page 2981 of 6020

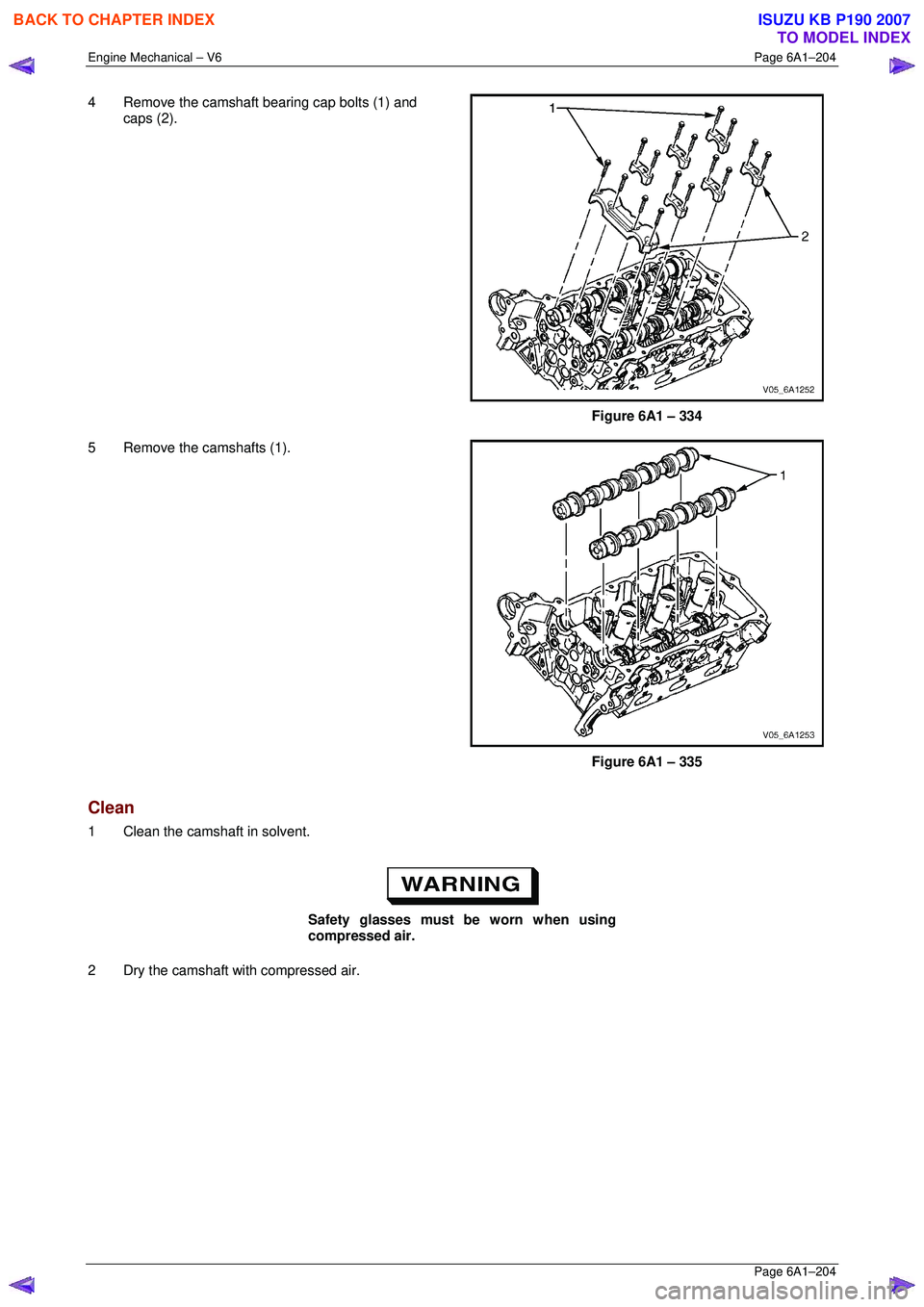

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–204 Page 6A1–204 4 Remove the camshaft bearing cap bolts (1) and caps (2). Figure 6A1 – 334 5 Remove the camshafts (1). Figure 6A1 – 335 Clea

Page 2982 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–205 Page 6A1–205 Inspect Camshaft Visual Inspection 1 Inspect the threaded hole (2) for damage. 2 Inspect the camshaft spro cket locating notch (3) for

Page 2983 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–206 Page 6A1–206 4 Measure the camshaft runout using a dial indicator (1). Figure 6A1 – 339 5 Measure the camshaft thrust width for wear using a de

Page 2984 of 6020

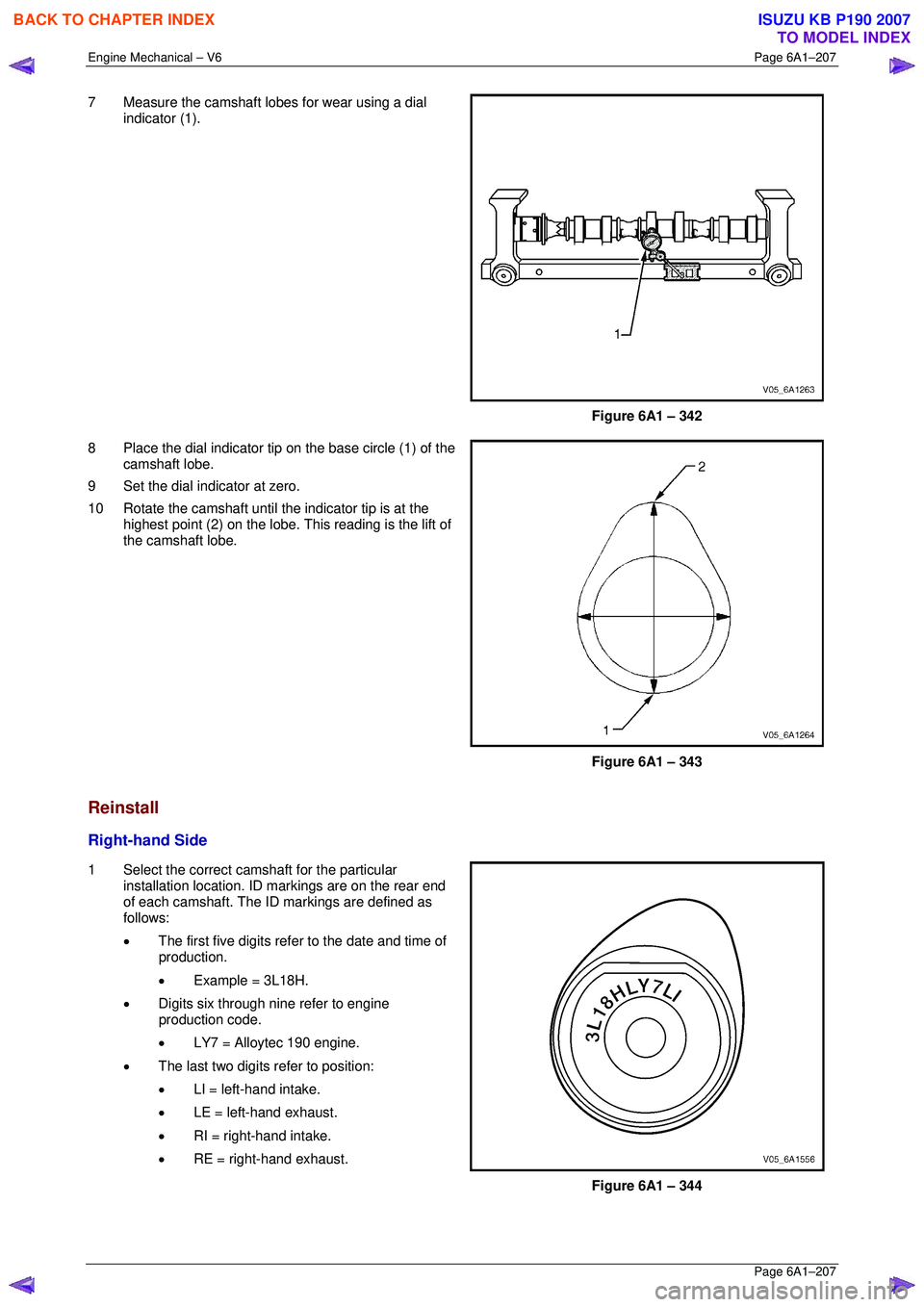

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–207 Page 6A1–207 7 Measure the camshaft lobes for wear using a dial indicator (1). Figure 6A1 – 342 8 Place the dial indicator tip on the base circl
