Page 5625 of 6020

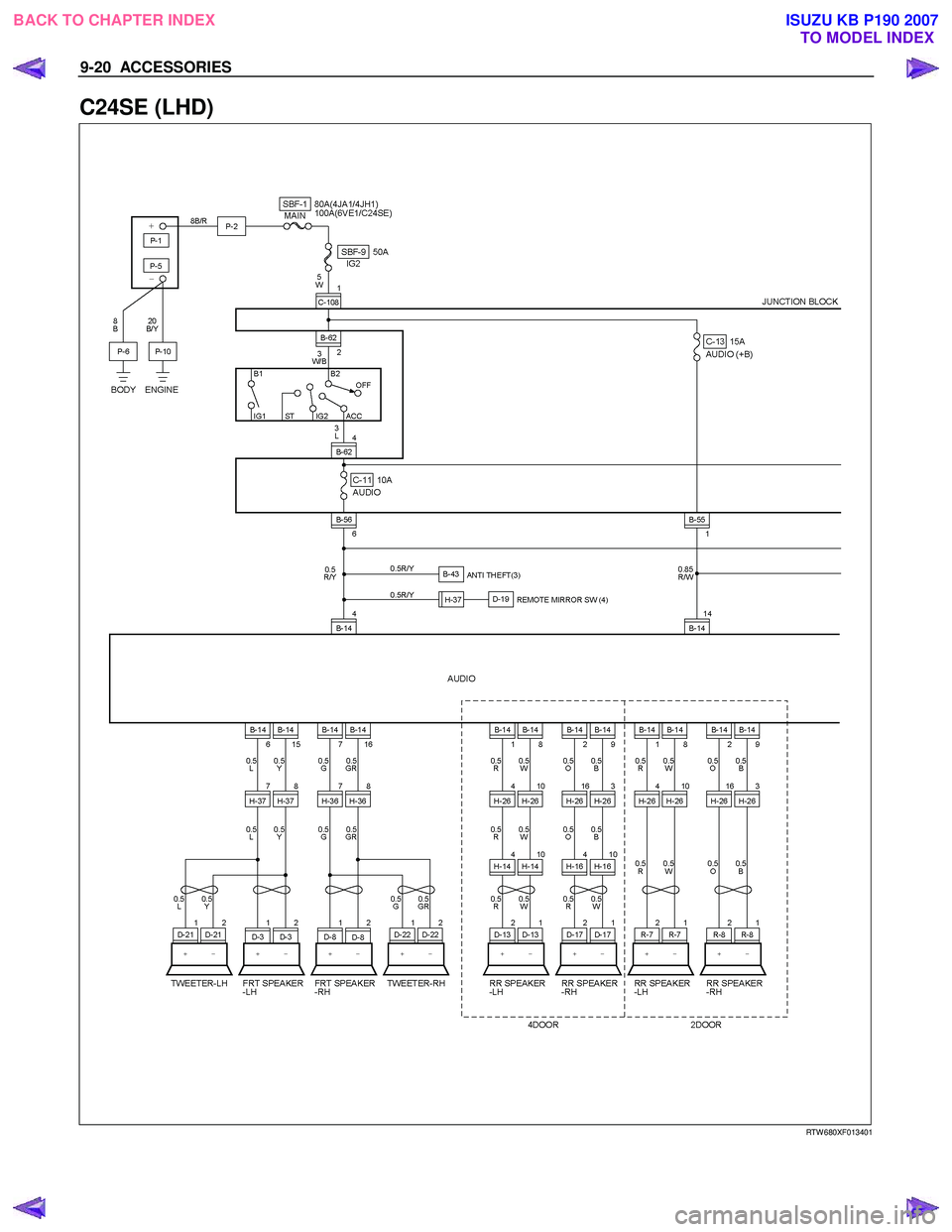

ISUZU KB P190 2007 Workshop Repair Manual 9-20 ACCESSORIES C24SE (LHD) RTW 680XF013401 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5626 of 6020

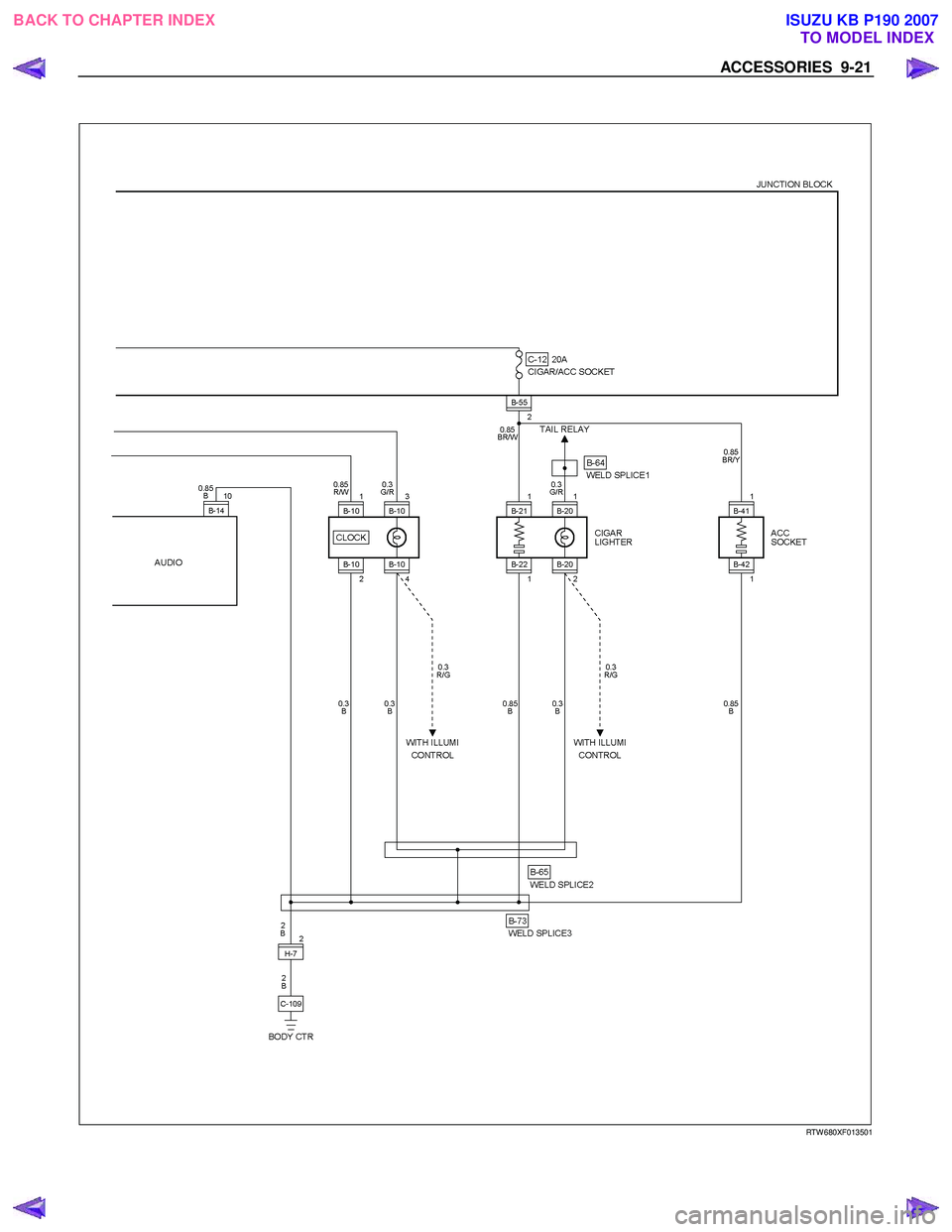

ISUZU KB P190 2007 Workshop Repair Manual ACCESSORIES 9-21 RTW 680XF013501 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5627 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 9-22 ACCESSORIES CONNECTOR LIST No. Connector face No. Connector face B-10 White Clock B-64 SilverW eld splice 1 (Illumination) B-14 Gray Audio B-65 SilverW eld splice 2 (Ground) B-20

Page 5628 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ACCESSORIES 9-23 No. Connector face No. Connector face D-22 White Tweeter -LH P-1 SilverBattery (+) H-14 White Rear body ∼ Rear door -LH P-2 SilverRelay & Fuse box H-16 White

Page 5629 of 6020

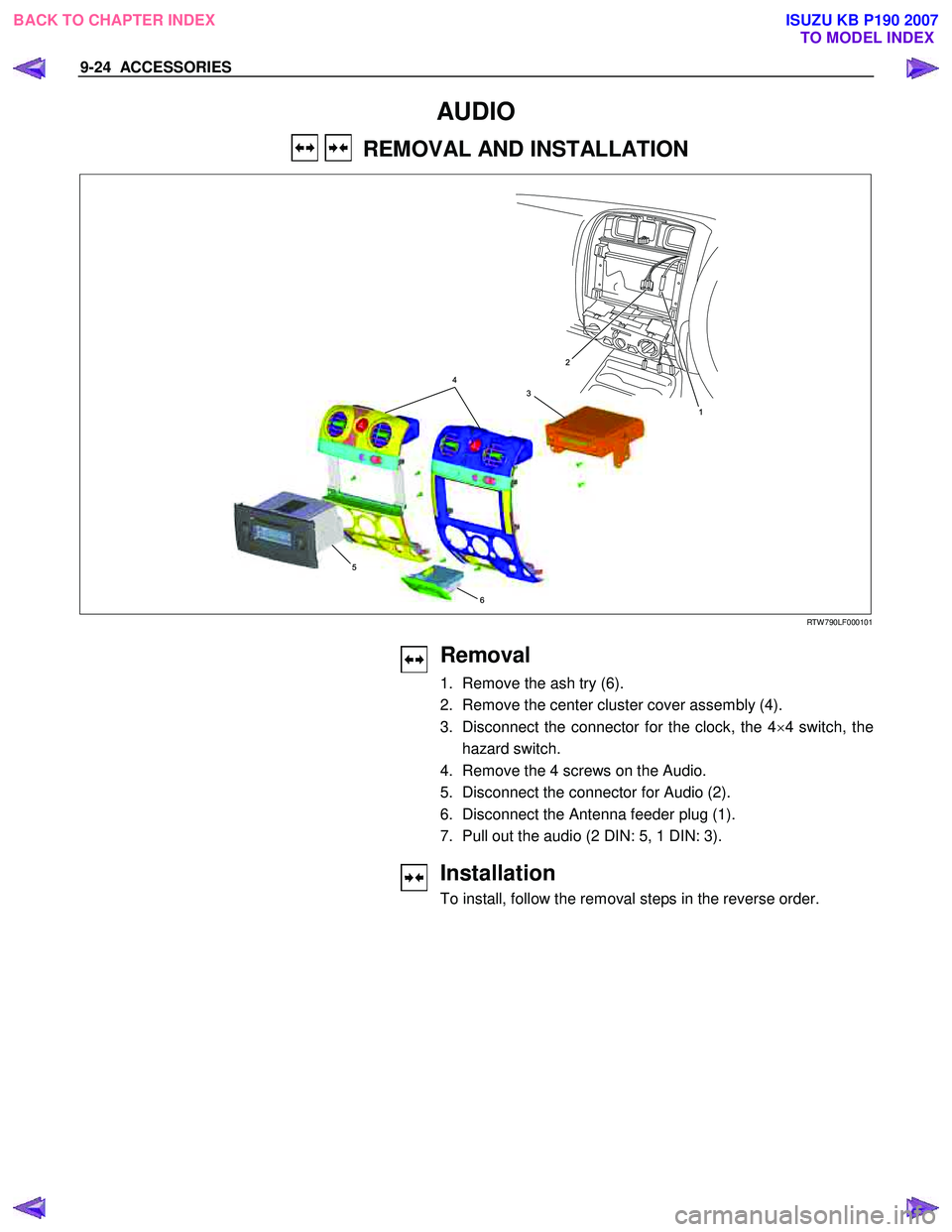

ISUZU KB P190 2007 Workshop Repair Manual 9-24 ACCESSORIES AUDIO REMOVAL AND INSTALLATION 1 2 4 3 5 6 RTW 790LF000101 Removal 1. Remove the ash try (6). 2. Remove the center cluster cover assembly (4). 3. Discon

Page 5630 of 6020

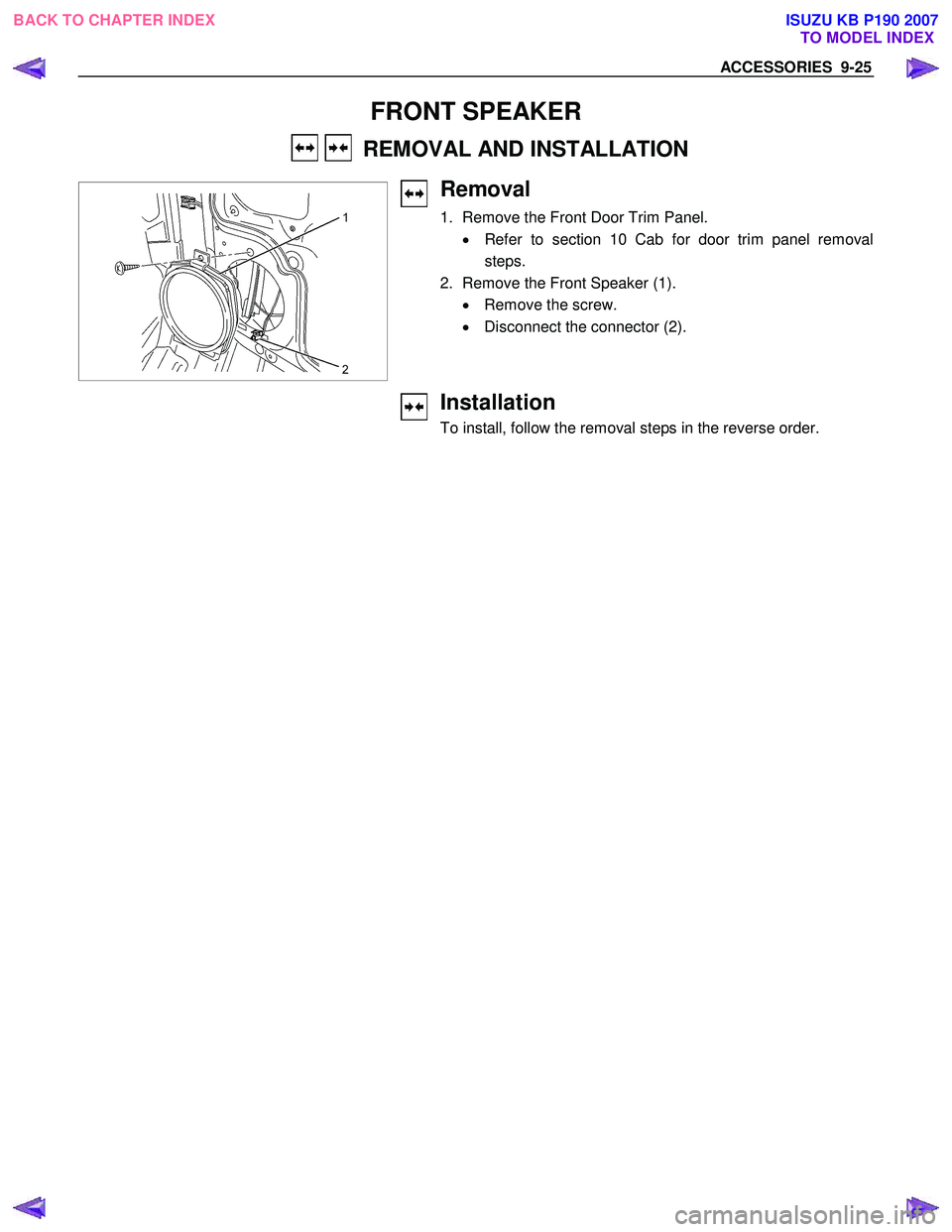

ISUZU KB P190 2007 Workshop Repair Manual ACCESSORIES 9-25 FRONT SPEAKER REMOVAL AND INSTALLATION Removal 1. Remove the Front Door Trim Panel. • Refer to section 10 Cab for door trim panel removal steps. 2. Remove

Page 5631 of 6020

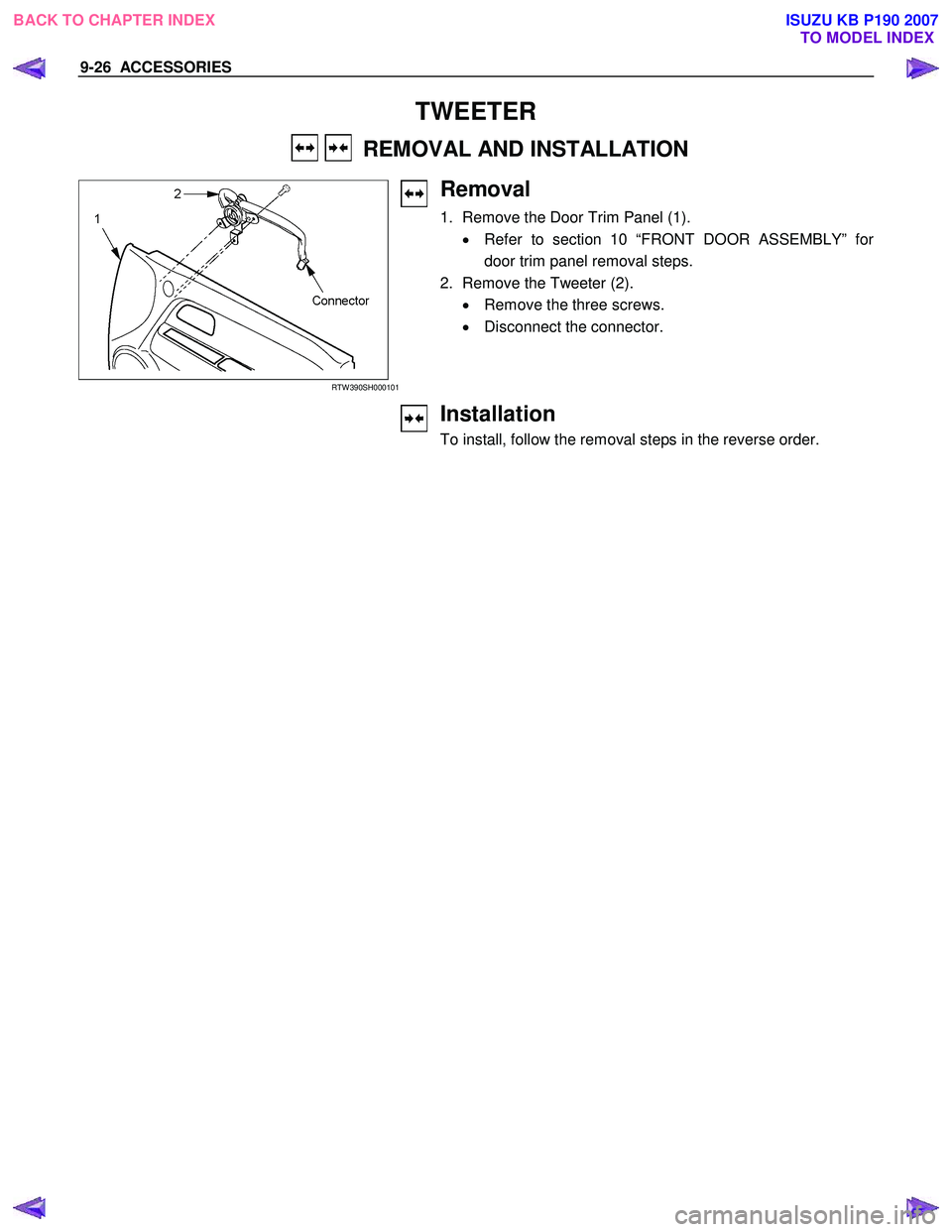

ISUZU KB P190 2007 Workshop Repair Manual 9-26 ACCESSORIES TWEETER REMOVAL AND INSTALLATION RTW 390SH000101 Removal 1. Remove the Door Trim Panel (1). • Refer to section 10 “FRONT DOOR ASSEMBLY” fo r door trim panel re

Page 5632 of 6020

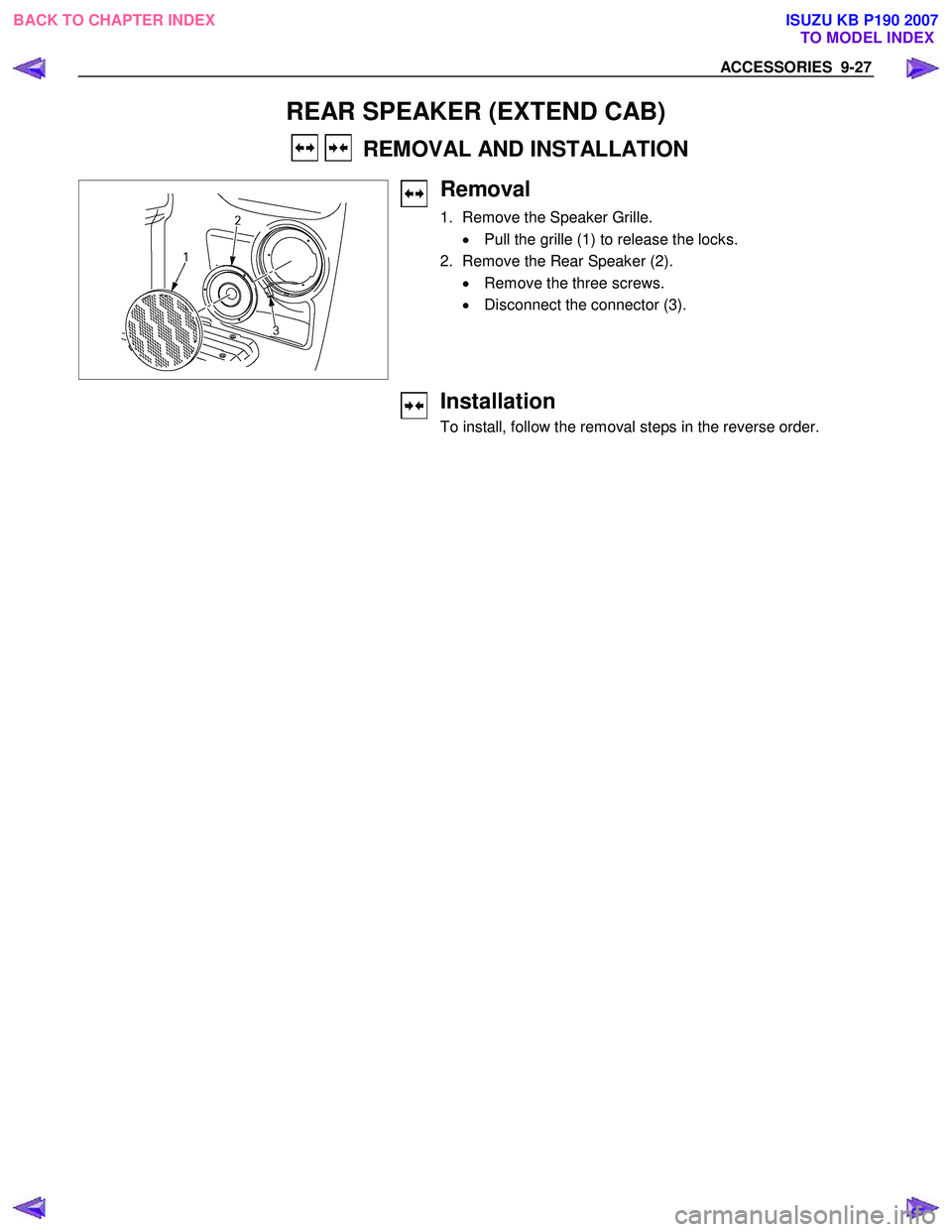

ISUZU KB P190 2007 Workshop Repair Manual ACCESSORIES 9-27 REAR SPEAKER (EXTEND CAB) REMOVAL AND INSTALLATION Removal 1. Remove the Speaker Grille. • Pull the grille (1) to release the locks. 2. Remove the Rear Speaker (2
